Use the SDA command SHOW LAN/COUNT to display information about the LAN
adapters as maintained by the LAN device driver (the command shows
counters for all protocols, not just PEDRIVER [SCA] related counters).
Example F-4 shows a sample display from the SHOW LAN/COUNT command.
| Example F-4 SDA Command SHOW LAN/COUNTERS
Display |
$ ANALYZE/SYSTEM
SDA> SHOW LAN/COUNTERS
LAN Data Structures
-------------------
-- EXA Counters Information 22-JAN-1994 11:21:19 --
Seconds since zeroed 3953329 Station failures 0
Octets received 13962888501 Octets sent 11978817384
PDUs received 121899287 PDUs sent 76872280
Mcast octets received 7494809802 Mcast octets sent 183142023
Mcast PDUs received 58046934 Mcast PDUs sent 1658028
Unrec indiv dest PDUs 0 PDUs sent, deferred 4608431
Unrec mcast dest PDUs 0 PDUs sent, one coll 3099649
Data overruns 2 PDUs sent, mul coll 2439257
Unavail station buffs(1) 0 Excessive collisions(2) 5059
Unavail user buffers 0 Carrier check failure 0
Frame check errors 483 Short circuit failure 0
Alignment errors 10215 Open circuit failure 0
Frames too long 142 Transmits too long 0
Rcv data length error 0 Late collisions 14931
802E PDUs received 28546 Coll detect chk fail 0
802 PDUs received 0 Send data length err 0
Eth PDUs received 122691742 Frame size errors 0
LAN Data Structures
-------------------
-- EXA Internal Counters Information 22-JAN-1994 11:22:28 --
Internal counters address 80C58257 Internal counters size 24
Number of ports 0 Global page transmits 0
No work transmits 3303771 SVAPTE/BOFF transmits 0
Bad PTE transmits 0 Buffer_Adr transmits 0
Fatal error count 0 RDL errors 0
Transmit timeouts 0 Last fatal error None
Restart failures 0 Prev fatal error None
Power failures 0 Last error CSR 00000000
Hardware errors 0 Fatal error code None
Control timeouts 0 Prev fatal error None
Loopback sent 0 Loopback failures 0
System ID sent 0 System ID failures 0
ReqCounters sent 0 ReqCounters failures 0
-- EXA1 60-07 (SCA) Counters Information 22-JAN-1994 11:22:31 --
Last receive(3) 22-JAN 11:22:31 Last transmit(3) 22-JAN 11:22:31
Octets received 7616615830 Octets sent 2828248622
PDUs received 67375315 PDUs sent 20331888
Mcast octets received 0 Mcast octets sent 0
Mcast PDUs received 0 Mcast PDUs sent 0
Unavail user buffer 0 Last start attempt None
Last start done 7-DEC 17:12:29 Last start failed None
.
.
.
|
The SHOW LAN/COUNTERS display usually includes device counter
information about several LAN adapters. However, for purposes of
example, only one device is shown in Example F-4.
| Field |
Description |
|
(1) Unavail station buffs (unavailable station buffers)
|
Records the number of times that fixed station buffers in the LAN
driver were unavailable for incoming packets. The node receiving a
message can lose packets when the node does not have enough LAN station
buffers. (LAN buffers are used by a number of consumers other than
PEDRIVER, such as DECnet, TCP/IP, and LAT.) Packet loss because of
insufficient LAN station buffers is a symptom of either LAN adapter
congestion or the system's inability to reuse the existing buffers fast
enough.
|
|
(2) Excessive collisions
|
Indicates the number of unsuccessful attempts to transmit messages on
the adapter. This problem is often caused by:
- A LAN loading problem resulting from heavy traffic (70% to 80%
utilization) on the specific LAN segment.
- A component called a screamer. A
screamer is an adapter whose protocol does not adhere
to Ethernet or FDDI hardware protocols. A screamer does not wait for
permission to transmit packets on the adapter, thereby causing
collision errors to register in this field.
If a significant number of transmissions with multiple collisions
have occurred, then OpenVMS Cluster performance is degraded. You might
be able to improve performance either by removing some nodes from the
LAN segment or by adding another LAN segment to the cluster. The
overall goal is to reduce traffic on the existing LAN segment, thereby
making more bandwidth available to the OpenVMS Cluster system.
|
|
(3) Last receive and Last transmit
|
The difference in the times shown in the Last receive and Last transmit
message fields should not be large. Minimally, the timestamps in these
fields should reflect that HELLO datagram messages are being sent
across channels every 3 seconds. Large time differences might indicate:
- A hardware failure
- Whether or not the LAN driver sees the NISCA protocol as being
active on a specific LAN adapter
|
F.4 Troubleshooting NISCA Communications
F.4.1 Areas of Trouble
Sections F.5 and F.6 describe two likely areas of
trouble for LAN networks: channel formation and retransmission. The
discussions of these two problems often include references to the use
of a LAN analyzer tool to isolate information in the NISCA protocol.
Reference: As you read about how to diagnose NISCA
problems, you may also find it helpful to refer to Section F.7, which
describes the NISCA protocol packet, and Section F.8, which describes
how to choose and use a LAN network failure analyzer.
F.5 Channel Formation
Channel-formation problems occur when two nodes cannot communicate
properly between LAN adapters.
F.5.1 How Channels Are Formed
Table F-6 provides a step-by-step description of channel formation.
Table F-6 Channel Formation
| Step |
Action |
|
1
|
Channels are formed when a node sends a HELLO datagram from its LAN
adapter to a LAN adapter on another cluster node. If this is a new
remote LAN adapter address, or if the corresponding channel is closed,
the remote node receiving the HELLO datagram sends a CCSTART datagram
to the originating node after a delay of up to 2 seconds.
|
|
2
|
Upon receiving a CCSTART datagram, the originating node verifies the
cluster password and, if the password is correct, the node responds
with a VERF datagram and waits for up to 5 seconds for the remote node
to send a VACK datagram. (VERF, VACK, CCSTART, and HELLO datagrams are
described in Section F.7.6.)
|
|
3
|
Upon receiving a VERF datagram, the remote node verifies the cluster
password; if the password is correct, the node responds with a VACK
datagram and marks the channel as open. (See Figure F-2.)
|
|
4
|
| WHEN the local node... |
THEN... |
|
Does not receive the VACK datagram within 5 seconds
|
The channel state goes back to closed and the handshake timeout counter
is incremented.
|
|
Receives the VACK datagram within 5 seconds and the cluster password is
correct
|
The channel is opened.
|
|
|
5
|
Once a channel has been formed, it is maintained (kept open) by the
regular multicast of HELLO datagram messages. Each node multicasts a
HELLO datagram message at least once every 3.0 seconds over each LAN
adapter. Either of the nodes sharing a channel closes the channel with
a listen timeout if it does not receive a HELLO datagram or a sequence
message from the other node within 8 to 9 seconds. If you receive a
"Port closed virtual circuit" message, it indicates a channel
was formed but there is a problem receiving traffic on time. When this
happens, look for HELLO datagram messages getting lost.
|

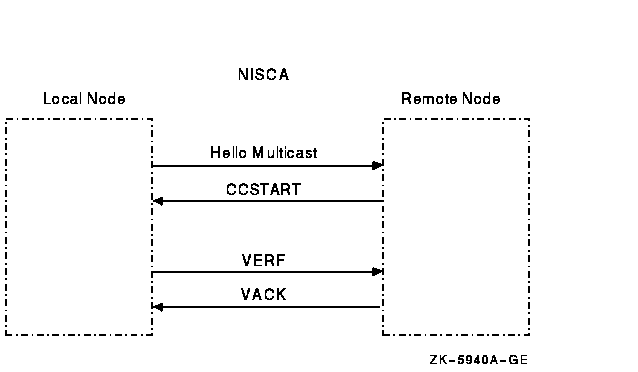

Figure F-2 shows a message exchange during a successful
channel-formation handshake.
Figure F-2 Channel-Formation Handshake
F.5.2 Techniques for Troubleshooting
When there is a break in communications between two nodes and you
suspect problems with channel formation, follow these instructions:
| Step |
Action |
|
1
|
Check the obvious:
- Is the remote node powered on?
- Is the remote node booted?
- Are the required network connections connected?
- Do the cluster multicast datagrams pass through all of the required
bridges in both directions?
- Are the cluster group code and password values the same on all
nodes?
|
|
2
|
Check for dead channels by using SDA. The SDA command SHOW
PORT/CHANNEL/VC=VC_
remote_node can help you determine whether a channel ever
existed; the command displays the channel's state.
Reference: Refer to Section F.3 for examples of the
SHOW PORT command. Section F.10.1 describes how to use a LAN analyzer to
troubleshoot channel formation problems.
|
|
3
|
See also Appendix D for information about using the
LAVC$FAILURE_ANALYSIS program to troubleshoot channel problems.
|
F.6 Retransmission Problems
Retransmissions occur when the local node does not receive
acknowledgment of a message in a timely manner.
F.6.1 Why Retransmissions Occur
The first time the sending node transmits the datagram containing the
sequenced message data, PEDRIVER sets the value of the REXMT flag bit
in the TR header to 0. If the datagram requires retransmission,
PEDRIVER sets the REXMT flag bit to 1 and resends the datagram.
PEDRIVER retransmits the datagram until either the datagram is received
or the virtual circuit is closed. If multiple channels are available,
PEDRIVER attempts to retransmit the message on a different channel in
an attempt to avoid the problem that caused the retransmission.
Retransmission typically occurs when a node runs out of a critical
resource, such as large request packets (LRPs) or nonpaged pool, and a
message is lost after it reaches the remote node. Other potential
causes of retransmissions include overloaded LAN bridges, slow LAN
adapters (such as the DELQA), and heavily loaded systems, which delay

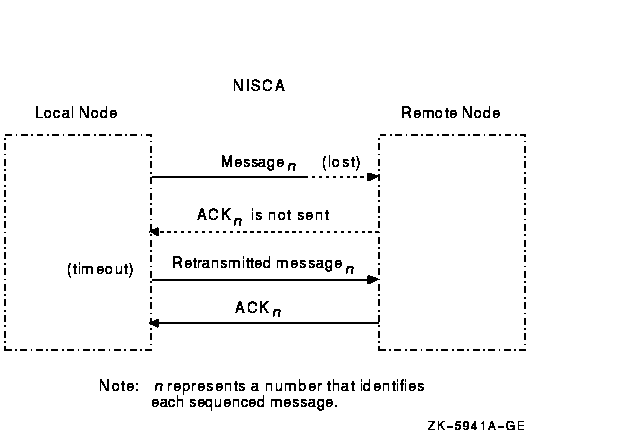

packet transmission or reception. Figure F-3 shows an unsuccessful
transmission followed by a successful retransmission.
Figure F-3 Lost Messages Cause Retransmissions
Because the first message was lost, the local node does not receive
acknowledgment (ACK) from the remote node. The remote node acknowledged
the second (successful) transmission of the message.
Retransmission can also occur if the cables are seated improperly, if
the network is too busy and the datagram cannot be sent, or if the
datagram is corrupted or lost during transmission either by the

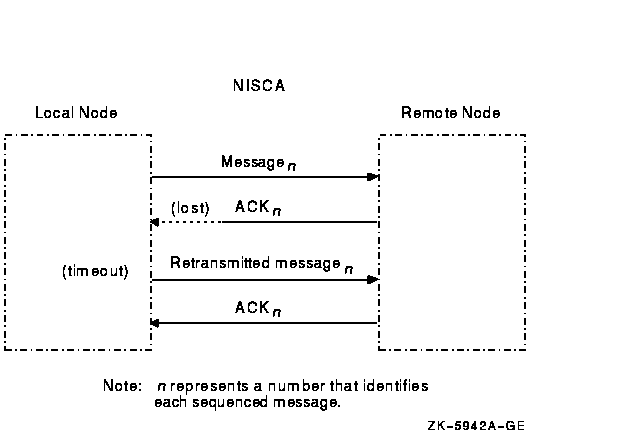

originating LAN adapter or by any bridges or repeaters. Figure F-4
illustrates another type of retransmission.
Figure F-4 Lost ACKs Cause Retransmissions
In Figure F-4, the remote node receives the message and transmits an
acknowledgment (ACK) to the sending node. However, because the ACK from
the receiving node is lost, the sending node retransmits the message.
F.6.2 Techniques for Troubleshooting
You can troubleshoot cluster retransmissions using a LAN protocol
analyzer for each LAN segment. If multiple segments are used for
cluster communications, then the LAN analyzers need to support a
distributed enable and trigger mechanism (see Section F.8). See also
Section G.1 for more information about how PEDRIVER chooses channels
on which to transmit datagrams.
Reference: Techniques for isolating the retransmitted
datagram using a LAN analyzer are discussed in Section F.10.2. See also
Appendix G for more information about congestion control and
PEDRIVER message retransmission.
F.7 Understanding NISCA Datagrams
Troubleshooting NISCA protocol communication problems requires an
understanding of the NISCA protocol packet that is exchanged across the
OpenVMS Cluster system.
F.7.1 Packet Format
The format of packets on the NISCA protocol is defined by the $NISCADEF
macro, which is located in [DRIVER.LIS] on VAX systems and in [LIB.LIS]
for Alpha systems on your CD listing disk.

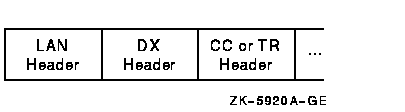

Figure F-5 shows the general form of NISCA datagrams. A NISCA
datagram consists of the following headers, which are usually followed
by user data:

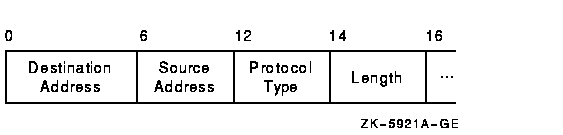

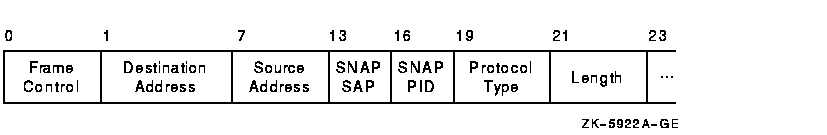

- LAN headers, including an Ethernet or an FDDI header
- Datagram exchange (DX) header
- Channel control (CC) or transport (TR) header
Figure F-5 NISCA Headers
Caution: The NISCA protocol is subject to change
without notice.
F.7.2 LAN Headers
The NISCA protocol is supported on LANs consisting of Ethernet and
FDDI, described in Sections F.7.3 and F.7.4. These
headers contain information that is useful for diagnosing problems that
occur between LAN adapters.
Reference: See Section F.9.4 for methods of isolating
information in LAN headers.
F.7.3 Ethernet Header
Each datagram that is transmitted or received on the Ethernet is
prefixed with an Ethernet header. The Ethernet header, shown in
Figure F-6 and described in Table F-7, is 16 bytes long.
Figure F-6 Ethernet Header
Table F-7 Fields in the Ethernet Header
| Field |
Description |
|
Destination address
|
LAN address of the adapter that should receive the datagram
|
|
Source address
|
LAN address of the adapter sending the datagram
|
|
Protocol type
|
NISCA protocol (60--07) hexadecimal
|
|
Length
|
Number of data bytes in the datagram following the length field
|
F.7.4 FDDI Header
Each datagram that is transmitted or received on the FDDI is prefixed
with an FDDI header. The NISCA protocol uses mapped Ethernet format
datagrams on the FDDI. The FDDI header, shown in Figure F-7 and
described in Table F-8, is 23 bytes long.
Figure F-7 FDDI Header
Table F-8 Fields in the FDDI Header
| Field |
Description |
|
Frame control
|
NISCA datagrams are logical link control (LLC) frames with a priority
value (5
x). The low-order 3 bits of the frame-control byte contain the
priority value. All NISCA frames are transmitted with a nonzero
priority field. Frames received with a zero-priority field are assumed
to have traveled over an Ethernet segment because Ethernet packets do
not have a priority value and because Ethernet-to-FDDI bridges generate
a priority value of 0.
|
|
Destination address
|
LAN address of the adapter that should receive the datagram.
|
|
Source address
|
LAN address of the adapter sending the datagram.
|
|
SNAP SAP
|
Subnetwork access protocol; service access point. The value of the
access point is AA--AA--03 hexadecimal.
|
|
SNAP PID
|
Subnetwork access protocol; protocol identifier. The value of the
identifier is 00--00--00 hexadecimal.
|
|
Protocol type
|
NISCA protocol (60--07) hexadecimal.
|
|
Length
|
Number of data bytes in the datagram following the length field.
|
F.7.5 Datagram Exchange (DX) Header
The datagram exchange (DX) header for the OpenVMS Cluster protocol is
used to address the data to the correct OpenVMS Cluster node. The DX
header, shown in Figure F-8 and described in Table F-9, is 14
bytes long. It contains information that describes the OpenVMS Cluster
connection between two nodes. See Section F.9.3 about methods of
isolating data for the DX header.

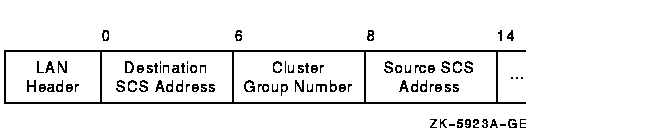

Figure F-8 DX Header
Table F-9 Fields in the DX Header
| Field |
Description |
|
Destination SCS address
|
Manufactured using the address AA--00--04--00--
remote-node-SCSSYSTEMID. Append the remote node's SCSSYSTEMID
system parameter value for the low-order 16 bits. This address
represents the destination SCS transport address or the OpenVMS Cluster
multicast address.
|
|
Cluster group number
|
The cluster group number specified by the system manager. See
Chapter 8 for more information about cluster group numbers.
|
|
Source SCS address
|
Represents the source SCS transport address and is manufactured using
the address AA--00--04--00--
local-node-SCSSYSTEMID. Append the local node's SCSSYSTEMID
system parameter value as the low-order 16 bits.
|
F.7.6 Channel Control (CC) Header
The channel control (CC) message is used to form and maintain working
network paths between nodes in the OpenVMS Cluster system. The
important fields for network troubleshooting are the datagram
flags/type and the cluster password.
Note that because the CC and TR headers occupy the same space, there is
a TR/CC flag that identifies the type of message being transmitted over
the channel. Figure F-9 shows the portions of the CC header needed
for network troubleshooting, and Table F-10 describes these fields.

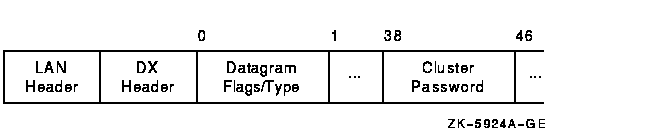

Figure F-9 CC Header
Table F-10 Fields in the CC Header
| Field |
Description |
|
Datagram type (bits <3:0>)
|
Identifies the type of message on the Channel Control level. The
following table shows the datagrams and their functions.
| Value |
Abbreviated
Datagram
Type |
Expanded
Datagram
Type |
Function |
|
0
|
HELLO
|
HELLO datagram message
|
Multicast datagram that initiates the formation of a channel between
cluster nodes and tests and maintains the existing channels. This
datagram does not contain a valid cluster password.
|
|
1
|
BYE
|
Node-stop
notification
|
Datagram that signals the departure of a cluster node.
|
|
2
|
CCSTART
|
Channel start
|
Datagram that starts the channel-formation handshake between two
cluster nodes. This datagram is sent in response to receiving a HELLO
datagram from an unknown LAN adapter address.
|
|
3
|
VERF
|
Verify
|
Datagram that acknowledges the CCSTART datagram and continues the
channel formation handshake. The datagram is sent in response to
receiving a CCSTART or SOLICIT_SRV datagram.
|
|
4
|
VACK
|
Verify acknowledge
|
Datagram that completes the channel-formation handshake. The datagram
is sent in response to receiving a VERF datagram.
|
|
5
|
Reserved
|
|
|
|
6
|
SOLICIT_SERVICE
|
Solicit
|
Datagram sent by a booting node to form a channel to its disk server.
The server responds by sending a VERF, which forms the channel.
|
|
7--15
|
Reserved
|
|
|
|
|
Datagram flags (bits <7:4>)
|
Provide additional information about the control datagram. The
following bits are defined:
- Bit <4> (AUTHORIZE)---Set to 1 if the cluster password field
is valid.
- Bit <5> (Reserved)---Set to 1.
- Bit <6> (Reserved)---Set to 0.
- Bit <7> (TR/CC flag)---Set to 1 to indicate the CC datagram.
|
|
Cluster password
|
Contains the cluster password.
|
