The <curses.h> header file defines variables and constants useful for implementing Curses (see Table 6-2).

For example, you can use the predefined macro ERR to test the success or failure of a Curses function. Example 6-4 shows how to perform such a test.

#include <curses.h>

WINDOW  *win1, *win2, *win3;

main()
{
   initscr();
   win1 = newwin(10, 10, 1, 5);
      .
      .
      .
   if (mvwin(win1, 1, 10) == ERR)
      addstr("The MVWIN function failed.");
      .
      .
      .
   endwin();
}

In Example 6-4, if the mvwin function fails, the program adds a string to stdscr that explains the outcome. The Curses mvwin function moves the starting position of a window.

6.6 Cursor Movement

In the UNIX system environment, you can use Curses functions to move the cursor across the terminal screen. With other implementations, you can either allow Curses to move the cursor using the move function, or you can specify the origin and the destination of the cursor to the mvcur function, which moves the cursor in a more efficient manner.

In HP C for OpenVMS Systems, the two functions are functionally equivalent and move the cursor with the same efficiency.

Example 6-5 shows how to use the move and mvcur functions.

#include <curses.h>

main()
{
   initscr();
      .
      .
      .
(1)   clear();
(2)   move(10, 10);
(3)   move(LINES/2, COLS/2);
(4)   mvcur(0, COLS-1, LINES-1, 0);
      .
      .
      .
   endwin();
}

Key to Example 6-5:

1. The clear macro erases stdscr and positions the cursor at coordinates (0,0).
2. The first occurrence of move moves the cursor to coordinates (10,10).
3. The second occurrence of move uses the predefined variables LINES and COLS to calculate the center of the screen (by calculating the value of half the number of LINES and COLS on the screen).
4. The mvcur function forces absolute addressing. This function can address the lower left corner of the screen by claiming that the cursor is presently in the upper right corner. You can use this method if you are unsure of the current position of the cursor, but move works just as well.

The following program example shows the effects of many of the Curses macros and functions. You can find explanations of the individual lines of code, if not self-explanatory, in the comments to the right of the particular line. Detailed discussions of the functions follow the source code listing.

Example 6-6 shows the definition and manipulation of one user-defined window and stdscr .

/*        CHAP_6_STDSCR_OCCLUDE.C                       */

/* This program defines one window: win1.  win1 is      */
/* located towards the center of the default window     */
/* stdscr.  When writing to an occluding window (win1)  */
/* that is later erased, the writing is erased as well. */

#include <curses.h>     /* Include header file.         */

WINDOW *win1;                   /* Define windows.      */

main()
{
    char str[80];               /* Variable declaration.*/

    initscr();  /* Set up Curses.   */
    noecho();   /* Turn off echo.   */

    /* Create window.             */
    win1 = newwin(10, 20, 10, 10);

    box(stdscr, '|', '-');  /* Draw a box around stdscr. */
    box(win1, '|', '-');    /* Draw a box around win1.   */

    refresh();  /* Display stdscr on screen.  */

    wrefresh(win1);     /* Display win1 on screen.  */

(1)   getstr(str);      /* Pause. Type a few words!   */

   mvaddstr(22, 1, str);
(2)   getch();
     /* Add string to win1.        */

    mvwaddstr(win1, 5, 5, "Hello");
    wrefresh(win1);     /* Add win1 to terminal scr.  */

    getch();    /* Pause.  Press Return.      */

    delwin(win1);       /* Delete win1.           */

(3)   touchwin(stdscr); /* Refresh all of stdscr.     */

   getch();                   /* Pause.  Press Return.      */
   endwin();                  /* Ends session.              */
}

Key to Example 6-6:

1. The program waits for input. The echo was disabled using the noecho macro, so the words that you type do not appear on stdscr . However, the macro stores the words in the variable str for use elsewhere in the program.
2. The getch macro causes the program to pause. When you are finished viewing the screen, press Return so the program can resume. The getch macro refreshes stdscr on the terminal screen without calling refresh . The screen appears like Figure 6-4.

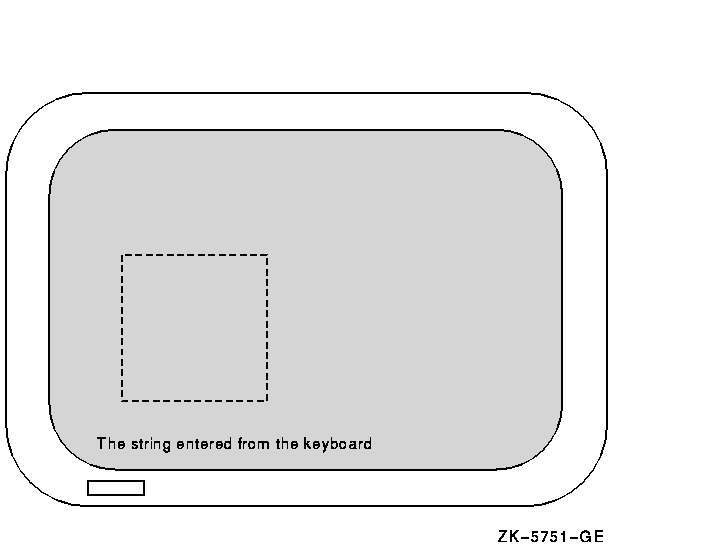

Figure 6-4 An Example of the getch Macro

1. The touchwin function refreshes the screen so that all of stdscr is visible and the deleted occluding window no longer appears on the screen.

Table 7-1 lists and describes the math functions in the HP C Run-Time Library (RTL). For more detailed information on each function, see the Reference Section.

Additional math routine variants are supported for HP C on OpenVMS Alpha systems only. They are defined in <math.h> and are float and long double variants of the routines listed in Table 7-1.

Float variants take float arguments and return float values. Their names have an f suffix. For example:

float cosf (float x);
float tandf (float x);

Long double variants take long double arguments and return long double values. Their names have an l suffix. For example:

long double cosl (long double x);
long double tandl (long double x);

All math routine variants are included in the Reference Section of this manual.

Note that for programs compiled without /L_DOUBLE=64 (that is, compiled with the default /L_DOUBLE=128), the long double variants of these HP C RTL math routines map to the X_FLOAT entry points documented in the HP Portable Mathematics Library (HPML) manual.
