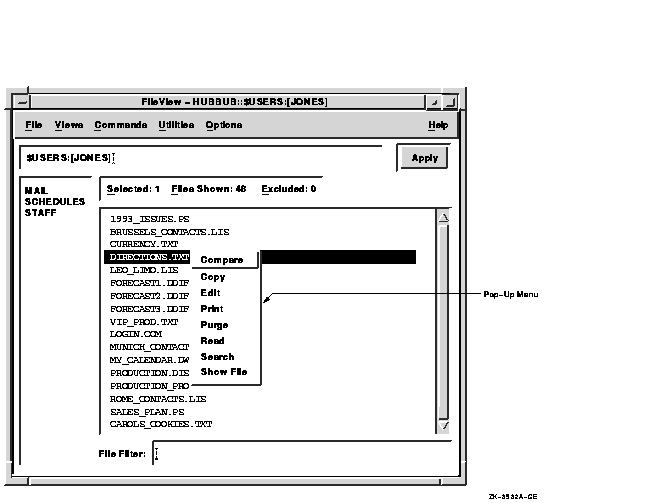

Pop-up menus make it easier for you to work with files and applications by giving you quick, direct access to an application's commands and functions. Pop-up menus duplicate commands and functions available on pull-down menus. Unlike pull-down menus, which require you to move the pointer to the menu bar, you can display a pop-up menu anywhere in an application's work area.

To display a pop-up menu:

1. Press and hold MB3 on the application's work area.
2. Drag to the menu item you want.
3. Release MB3.

If you change your mind while looking at a pop-up menu, drag outside the menu and release MB3. The menu disappears and no action is taken.

3.2.4 Choosing Items from Options Menus

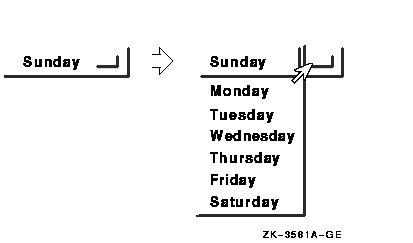

An options menu is a pop-up menu that appears in a dialog box. An options menu allows you to choose one option from many. In the dialog box, only the current option is displayed. To see the other options from which you can choose, you display the option menu.

To display an options menu:

1. Press and hold MB1 on the current option.
   The options menu is displayed.
2. Drag to the menu item you want.
3. Release MB1.
   The options menu disappears. The option you chose is now the current option.

If you decide not to change the original option, drag outside the menu and release MB1. The menu disappears and no changes occur.

3.2.5 Choosing Items from Submenus

A menu item with a submenu icon---an arrow pointing to the right---indicates that a corresponding submenu is available. If you choose that menu item, the submenu is displayed and you need to refine your choice by choosing a menu item from that submenu.

To display a submenu and choose a menu item from it:

1. On the application's menu bar, press and hold MB1 to display the pull-down menu.
2. Drag to the menu item you want.
3. If the menu item has a submenu associated with it, the submenu will appear to the right of the menu.
4. Drag to the menu item you want to choose from the submenu.
5. Release MB1.

When you work with DECwindows, you can have one window or many windows open at the same time. Using multiple windows lets you work with many applications and switch between them. This section describes basic features of windows and explains how to move, size, and arrange them.

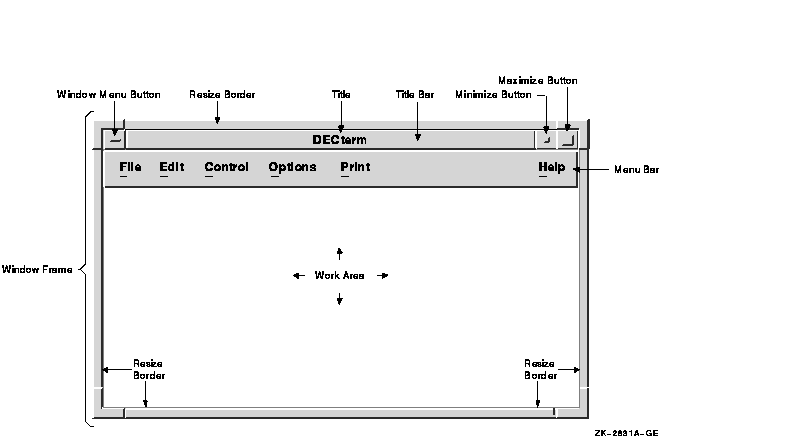

Most windows include the following components:

• The window frame surrounds a window and usually consists of resize borders, a title bar, a window menu button, a minimize button, and a maximize button.
• The resize border surrounds an application window and lets you resize the application's window.
• The title bar shows the name of the application and contains window management buttons that you can use to rearrange your screen display. Most windows have a title bar.
• The window title identifies the function of a window. For a main window, it usually contains the name of the application. For a dialog box, it may also contain specific information about the use of the window.
• The window menu button displays the window menu, which contains menu items for working with windows.
• The minimize button lets you shrink a window to an icon on the workspace. An icon is a small graphic representation of an object, usually an application.
• The maximize button lets you increase the size of a window to its maximum allowable size.
• The menu bar contains the names of menus you can choose from to work with the application.
• The client or work area is the area in a window where you interact with the application.
• The matte is an optional decorative border between the window frame and the work area.

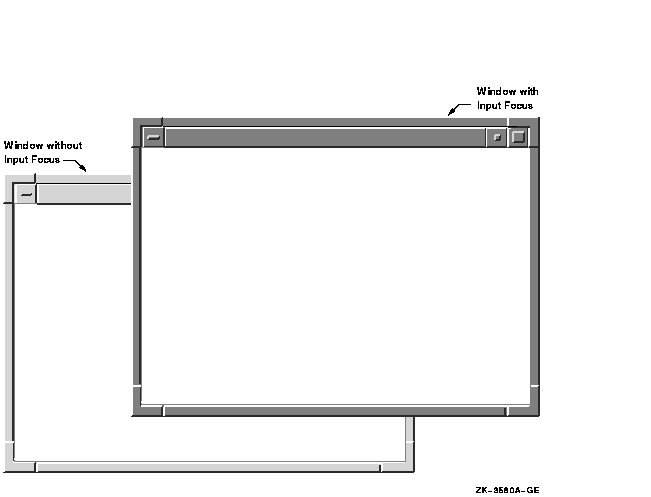

When you have more than one window open, DECwindows needs to know which one you're currently working on so that the commands you choose and the text you type end up in the right place. To work with a window, you must make it active or give it input focus. When you make a window active, by default it moves to the front of the stack of overlapping windows and its window frame is highlighted. Any keystrokes you type appear in this window. When you make another window active, the new window is given input focus. Only one window can have input focus at a time.

To make a window active:

1. Point to a location in the window or window frame.
2. Click MB1.

DECwindows provides two ways to give windows input focus: explicit focus and implicit focus. With an explicit focus policy, you must move the pointer to a window and click on a mouse button or press a key on the keyboard. This is the default focus policy for DECwindows. With an implicit focus policy, moving the pointer into a window gives the window input focus. For more information about changing your input focus policy, see Chapter 10.

3.3.3 Moving Windows

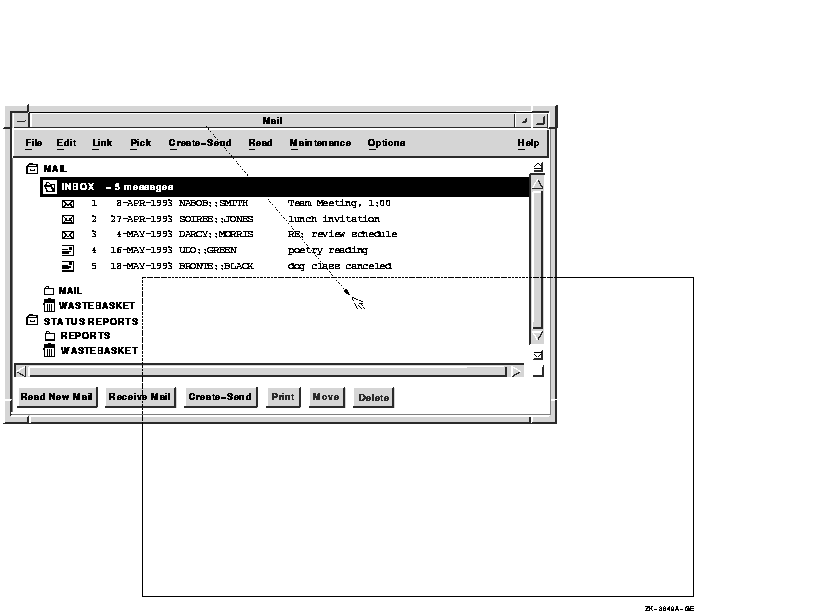

If one window partially obscures another, you might want to arrange them so that each is completely visible. To move a window:

1. Position the pointer anywhere in the window's title bar (except on a button).

   ---


2. Press and hold MB1.
   An outline of the window appears.

   ---


3. Drag the window outline to the new location.
4. Release MB1.
   If the window was partially obscured by other windows, by default it moves to the front of the stack of windows and is given input focus.

To cancel a move operation, press the Escape key (or F11).

3.3.4 Sizing Windows

Sometimes you want to make one window very large so you can see everything in it. Other times, you might want to work with small windows, such as when several applications are running simultaneously. You can change the size of your windows to suit your needs by using the window's resize borders.

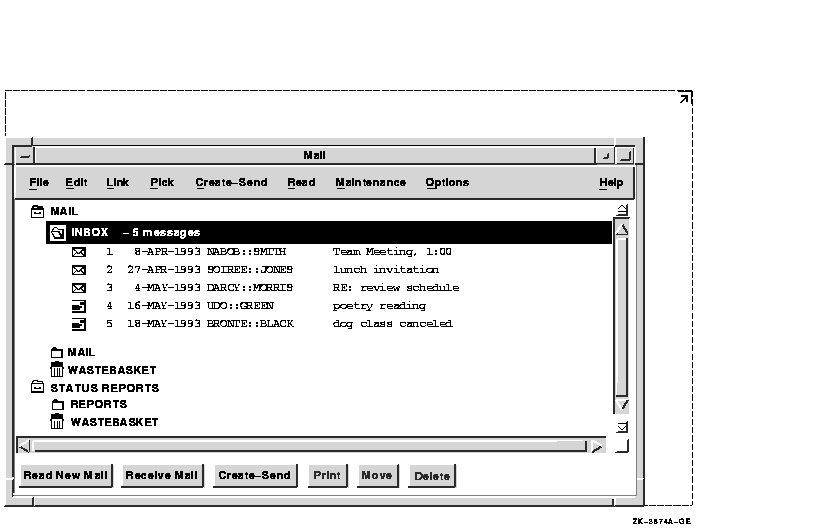

To change the size of a window:

1. Position the pointer on one of the window's resize borders. Note that the resize operation is limited by the side or corner that you select.
   The pointer changes into one of the following resize cursors:

   ---


2. Press and hold MB1.
3. Drag the resize cursor to the size you want.

   ---


   To make the window larger, drag the resize cursor beyond the window border. To make the window smaller, drag the resize cursor inside the window border. The outline stops moving when the window is as small as it can get.
4. Release MB1.

To cancel the operation, press the Escape key (or F11).

3.3.5 Minimizing Windows

If you have several applications running at the same time, you can free up space on your screen to run another application by minimizing a window, which means that you shrink the window to an icon. When you minimize a window, the application it represents continues to run and remains easily accessible. All processes continue to execute while the application is stored as an icon.

To minimize a window:

1. Point to the window's minimize button.
2. Click MB1.
   The window closes and its icon appears on the Workspace.

When you restore an icon, you open a window for that application. If you have more than one window open and restore an icon to a window, by default the new window is placed at the front of the stack of overlapping windows.

To restore an icon to a window:

1. Point to the icon on the Workspace.
2. Double click MB1.

The window opens, is given input focus, and is available for your use.

3.3.7 Maximizing Windows

If you are working with only one application, you might want to maximize (enlarge) the application window so that it fills your screen. When you maximize a window, your other windows and icons stay on the screen, but they are covered by the maximized window.

To maximize a window:

1. Point to the window's maximize button.
2. Click MB1.
   The window expands to its maximum allowable size.

To restore a maximized window:

1. Point to the window's maximize button.
2. Click MB1.
   The window returns to its original size.

By default, icons are displayed as separate windows on the screen. You can move them anywhere on your screen.

If you want to display your icons in one central place, you can store them in an icon box. An icon box is a window that contains the icons for all the windows on the screen. To find how to create an icon box, see Chapter 10.

In an icon box, if you double click on any icon, the window becomes active by default and is raised to the top of the screen. Using the keyboard, you can press Return on a highlighted icon to make the window active. If you Shift+double click on any icon, it will minimize that window.

When a window is restored from an icon, the icon is dimmed. If you do not use an icon box, the icon is not dimmed when you restore a window. Instead, the icon is removed from the screen.

The preceding sections describe how to manage your windows using the buttons and resize borders on the window frame. You can also access many of these window features using the Window menu and the Workspace menu.

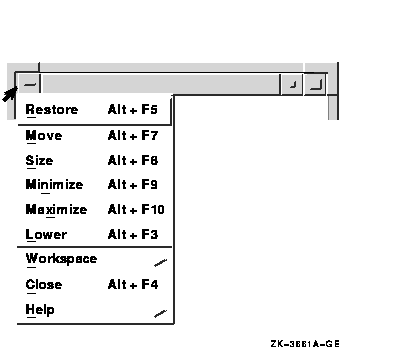

The Window menu contains menu items for working with windows. To display the Window menu, click on the Window Menu button on the left corner of the title bar.

The Workspace menu contains general information for arranging windows and customizing the window manager. To display the Workspace menu, click MB1 or MB3 on the Workspace. You can also display the Workspace menu by choosing Workspace... from the Window menu.

When you are working with stacked windows and select a window, it moves to the front of the stack and is given input focus. But if a larger window obscures a smaller window, you can't select that small window without moving the larger window out of the way. If you use the title bar to move the larger window, you disrupt your work arrangement.

By using the window-arranging options on the Workspace menu, you can shuffle your windows without moving them to another location. Shuffle Down and Shuffle Up lower and raise windows on the screen without affecting input focus. Next Window and Previous Window change which window is active. By default, they also raise the window to the top of the screen.

The Shuffle Up and Shuffle Down menu items are useful if you are working in a large window and want to refer to a window that is obscured. You can shuffle the windows on the screen until the hidden window is displayed and then continue to type in the large window. If no windows are obscuring other windows, then shuffling the windows has no effect.

Next Window and Previous Window are useful if you want to circulate through all the windows on the screen. Using these options differs from shuffling windows. Next Window always brings you to the next window even if it is not obscured and always makes that window active.

For example, suppose you have three windows: a clock, Session Manager, and a DECterm window. The DECterm window is active. If you select Next Window, then the clock may become active. If you select Next Window again, then Session Manager becomes active. If you choose Previous Window, then the clock becomes active again.

The DECwindows Motif Window Manager controls the way your windows look (for example, the style and contents of the title bar) and behave when you are working with them. By using the Window Manager's customize menu options, you can customize your workspace and windows to suit your working needs and style. For more information about using the Window Manager's customize options, see Chapter 10.

3.4 Working with Dialog Boxes

DECwindows displays a dialog box whenever it needs additional information from you to carry out a task. Sometimes you need to type text; other times, you need only click on a button to change a setting.

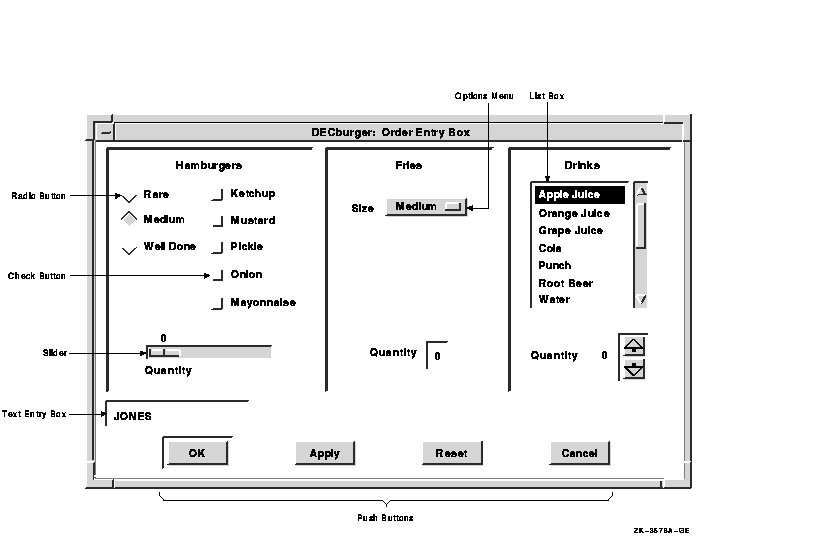

Dialog boxes offer various ways to supply information to an application:

• By typing text in a text entry box. A text entry box is a box in a dialog box where you type information that DECwindows needs to perform a specific task.
  A text insertion cursor is visible in each entry box. The text cursor, which blinks when an entry box has input focus, shows you where the text you type will appear. What you type appears to the left of the text cursor. Use the <X| key to correct typing mistakes.
• By clicking on diamond-shaped radio buttons or square check buttons. Radio buttons let you select one option from many. Check buttons let you turn a setting on or off.
• By dragging the slider in a scale. Dialog boxes often contain a scale and slider when you need to supply a numeric value. The arrow in the slider points to the current value.
• By selecting choices, for example, file names from a list box. Scroll bars appear if the choices do not fit in the list box.
• By clicking on push buttons. Push buttons, such as OK, Apply, or Cancel let you tell DECwindows what to do with the information you supplied in the dialog box.

  Tip A double border around a push button indicates it is the default option. Default options are those you will choose most frequently. Usually, the OK button is the default option in a dialog box. Whenever you see a button with a double border, pressing the Return key achieves the same result as clicking on that button.

How you move focus in a dialog box depends on the object---for example, a check button or text entry box---you want to work with. The following table describes the ways you can move focus and change settings in a dialog box:

Once you change the settings you want, click on either the OK or the Apply button and the new settings will take effect. If you decide not to change the settings, click on the Cancel button. Some applications save or apply settings in different ways. For more information about saving your Session Manager, FileView, or Window Manager settings, refer to the appropriate chapter in Part 2.

3.4.4 Making Selections from List Boxes

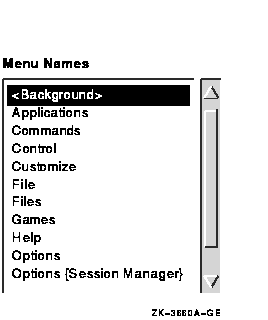

A list box is part of a dialog box that contains a list of items, often file names, from which you can choose. Many applications display a list box when you open or save a file.

To select an item from a list box, point to the item and click MB1. The item you select is highlighted.

If an application needs a file name to complete a task, it displays a file selection box. A file selection box contains a list box that displays a list of files in the current directory.

If you select a file name in the list box, you can click on OK to open the file. DECwindows also gives you a shortcut for opening files from list boxes: Double clicking on the file name produces the same results as selecting that file name and clicking on OK.

If you want to work with a file that does not appear in the list box, type the name of the file in the Selection entry box and click on OK. Or, use the File Filter entry box to list a subset of files that you can then select from. For example, to list all the files in another directory with the file type TXT, enter the complete directory specification---[JONES.LETTERS]*.TXT---in the File Filter entry box and click on the Filter button. The list of files that meet the qualifications are displayed. Double click on the name of the file you want to open.

3.5 Scrolling

Some application windows display scroll bars, which let you view the text that does not fit in a single window. Some windows have both horizontal and vertical scroll bars.

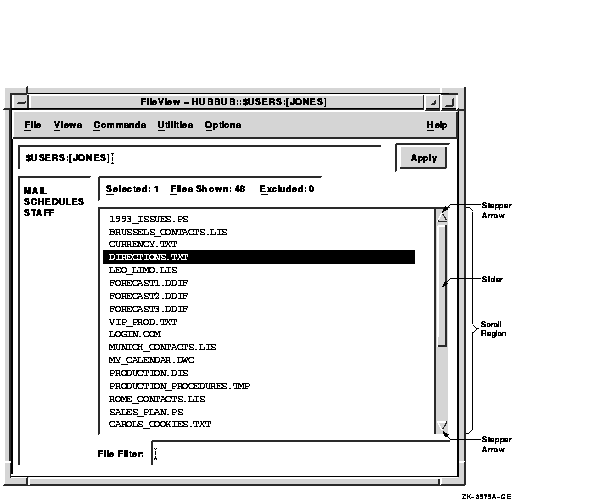

A scroll bar consists of stepper arrows at either end of the scroll region. The slider is the thicker box that overlays some of the scroll region. If the slider is at the top of the scroll region, the beginning of the file or list is visible. If the slider is at the bottom of the scroll region, the end of the file or list is visible.

The length of the slider is relative to the total amount of text in the document and indicates how much more text remains to be displayed. For example, a short slider indicates that much text remains to be displayed. A long slider that completely fills the scroll bar indicates that all the text is currently displayed.

The following table describes how to use scroll bars:
