The DECwindows Motif Toolkit includes conversion routines for use by applications. You might find these conversion routines particularly useful when used in conjunction with the CSText widget. Table 8-3 lists the conversion routines.

To create a CSText widget, perform the following steps:

1. Create the CSText widget using any of the widget creation mechanisms listed in Table 8-4.
   Choose the mechanism that provides access to the widget resources you need to set.

   Table 8-4 Mechanisms for Creating CSText Widgets

   Mechanism	CSText Widget
   Toolkit routine	Use the DXmCreateCSText routine to create a CSText widget without scroll bars.
   Toolkit routine	Use the DXmCreateScrolledCSText routine to create a CSText widget with horizontal and/or vertical scroll bars. Your application must also set the XmNscrollVertical and/or XmNscrollVertical resource.
   UIL object type	Use the UIL object type DXmCSText to define a CSText widget in a UIL module. At run time, the MRM routine MrmFetchWidget creates the widget according to this definition.
   UIL object type	Use the UIL object type DXmScrolledCSText to define a scrolled CSText widget in a UIL module. At run time, the MRM routine MrmFetchWidget creates the widget according to this definition.

2. Manage the CSText widget by using the intrinsic routine XtManageChild.

After you complete these steps, the CSText widget appears on the display if its parent has been realized.

Toolkit routines and UIL provide access to the complete set of resources at widget creation time.

When you create a CSText widget, you can specify aspects of the initial appearance of the widget by assigning values to widget resources.

8.4.1 Using UIL to Create a CSText Widget

Example 8-4 demonstrates using UIL to create a CSText widget. This CSText widget has 2 rows and 25 columns. The initial content of this widget is "Sample Text". The widget uses the font list identified by the cs_font variable.

   .
   .
   .
module cstext
    version = 'v1.0'
    names = case_sensitive


procedure
         cstext_activate();


value
    cs_font : font('-ADOBE-Courier-Bold-R-Normal--14-140-*-*-M-90-ISO8859-1');


object
    cstext_main : DXmCSText {
        arguments
             {
             XmNfontList = cs_font;
             XmNvalue = compound_string("Sample Text");
             XmNx = 20;
             XmNy = 20;
             XmNrows = 2;
             XmNcolumns = 25;
             };
    };

end module;
   .
   .
   .

Example 8-5 shows the C source code associated with the UIL module.

   .
   .
   .
#include <stdio>
#include <Mrm/MrmAppl.h>
#include <DXm/DXmCSText.h>

Widget toplevel, text_w;


static MrmHierarchy s_MrmHierarchy;
static MrmType *dummy_class;
static char *db_filename_vec[] =
  {"cstext.uid"
  };


int main(argc, argv)
    unsigned int argc;
    char **argv;
{
    XtAppContext app_context;

    MrmInitialize();
    DXmInitialize();

    toplevel = XtAppInitialize(&app_context, "example", NULL, 0, &argc,
                             argv, NULL, NULL, 0);


   /* Open the UID files (the output of the UIL compiler) in the hierarchy*/

    if (MrmOpenHierarchy(1,
      db_filename_vec,
      NULL,
      &s_MrmHierarchy)
      !=MrmSUCCESS)
          printf("can't open hierarchy");

    if (MrmFetchWidget(s_MrmHierarchy, "cstext_main", toplevel,
      &text_w, &dummy_class) != MrmSUCCESS)
        printf("can't fetch widget");

    XtManageChild(text_w);

    XtRealizeWidget(toplevel);

    XtAppMainLoop(app_context);

}

   .
   .
   .

As described in Section 8.4, you can implement the CSText widget through UIL or through the Toolkit widget creation routine. Example 8-6 demonstrates using the Toolkit CSText widget creation routine to create a CSText widget.

   .
   .
   .
#include <stdio>
#include <Mrm/MrmAppl.h>
#include <DXm/DXmCSText.h>


static void change_cs();
static void ok_text();
XmString       cstring;


Widget toplevel, text_shell,
       text_label, text_w,
       ok_button;


int main(argc, argv)
    unsigned int argc;
    char **argv;
{
    XtAppContext   app_context;
    Arg            arglist[15];
    int            ac = 0;
    XFontStruct    *font;
    XmFontList     font_list;
    XtCallbackRec  callback_arg[2];

    toplevel = XtAppInitialize(&app_context, "example", NULL, 0, &argc,
                               argv, NULL, NULL, 0);

    ac = 0;
    cstring = XmStringCreateLtoR("User Defined", XmSTRING_ISO8859_1);
    (1)XtSetArg( arglist[ac], XmNdialogTitle, cstring);ac++;
    XtSetArg( arglist[ac], XmNallowOverlap, TRUE);ac++;
    XtSetArg( arglist[ac], XmNheight, 300);ac++;
    XtSetArg( arglist[ac], XmNwidth, 300);ac++;
    XtSetArg( arglist[ac], XmNresizePolicy, XmRESIZE_GROW);ac++;

    text_shell = XmCreateBulletinBoard(toplevel, "CSText", arglist, ac );
    XmStringFree(cstring);


    ac = 0;
    cstring = XmStringCreateLtoR("Enter a 10-letter title\nfor this widget",
                                  XmSTRING_ISO8859_1);
    (2)XtSetArg( arglist[ac], XmNlabelString, cstring);ac++;
    XtSetArg( arglist[ac], XmNx, 90);ac++;
    XtSetArg( arglist[ac], XmNy, 20);ac++;
    text_label = XmCreateLabel(text_shell, "textlabel", arglist, ac );
    XmStringFree(cstring);



    font = DXmLoadQueryFont( XtDisplay (toplevel),
                "-ADOBE-Courier-Bold-R-Normal--14-140-*-*-M-90-ISO8859-1");

    if (font == NULL){
               printf("Fonts Are Not Available");
               exit(0);
       }


    font_list = XmStringCreateFontList(font, XmSTRING_ISO8859_1);

    callback_arg[0].callback = change_cs;
    callback_arg[0].closure = 0;
    callback_arg[1].callback = NULL;
    callback_arg[1].closure = NULL;


    (3)ac = 0;
    XtSetArg( arglist[ac], XmNfontList, font_list ); ac++;
    XtSetArg( arglist[ac], XmNx, 40);ac++;
    XtSetArg( arglist[ac], XmNy, 100);ac++;
    XtSetArg( arglist[ac], XmNrows, 2 ); ac++;
    XtSetArg( arglist[ac], XmNcolumns, 35 ); ac++;
    XtSetArg( arglist[ac], XmNmaxLength, 10 ); ac++;
    XtSetArg( arglist[ac], XmNactivateCallback, callback_arg);ac++;

    text_w = DXmCreateCSText(text_shell, "textwidget", arglist, ac );
    XmFontListFree (font_list );

    (4)XtManageChild(text_w);

    XtManageChild(text_label);
    XtManageChild(text_shell);

    XtRealizeWidget(toplevel);


    XtAppMainLoop(app_context);

 }



 /* The user entered a new title*/


(5)static void change_cs(w, tag, reason)
     Widget             w;
     int               *tag;
     unsigned long     *reason;
{
    int ac = 0;
    Arg arglist[15];
    XmString  new_text;
    XtCallbackRec   ok_arg[2];


    new_text = DXmCSTextGetString(w);
    XtUnmanageChild(w);

    ac = 0;
    (6)XtSetArg( arglist[ac], XmNdialogTitle, new_text);ac++;
    XtSetValues (text_shell, arglist, ac);

    ac = 0;
    cstring = XmStringCreateLtoR("Thank you.\nPress OK to Exit",
                                  XmSTRING_ISO8859_1);
    (7)XtSetArg( arglist[ac], XmNlabelString, cstring);ac++;
    XtSetValues (text_label, arglist, ac);
    XmStringFree(cstring);



    ok_arg[0].callback = ok_text;
    ok_arg[0].closure = 0;
    ok_arg[1].callback = NULL;
    ok_arg[1].closure = NULL;

    ac = 0;
    cstring = XmStringCreateLtoR("OK", XmSTRING_ISO8859_1);
    XtSetArg( arglist[ac], XmNlabelString, cstring);ac++;
    XtSetArg( arglist[ac], XmNactivateCallback, ok_arg);ac++;
    XtSetArg( arglist[ac], XmNheight, 60);ac++;
    XtSetArg( arglist[ac], XmNwidth, 60);ac++;
    XtSetArg( arglist[ac], XmNx, 125);ac++;
    XtSetArg( arglist[ac], XmNy, 150);ac++;
    ok_button = XmCreatePushbutton(text_shell, "ok", arglist, ac);

    XtFree(new_text);
    XmStringFree(cstring);

    XtManageChild(text_label);
    XtManageChild(ok_button);
    XtManageChild(text_shell);

}



 /* The user pressed OK*/


static void ok_text(w, tag, reason)
     Widget             w;
     int               *tag;
     unsigned long     *reason;
{
     exit(1);

}

   .
   .
   .

1. Create a BulletinBoard widget to use as the parent. This example program uses the CSText widget to change the title of the BulletinBoard widget. The XmNresizePolicy resource is set to XmRESIZE_GROW to allow the BulletinBoard widget to grow but not shrink. Otherwise, when the CSText widget was unmanaged, the BulletinBoard widget would shrink.
2. Create a Label widget. The XmNlabelString resource contains a compound string derived from "Enter a 10-letter title for this widget" string.
3. Create a CSText widget with 2 rows, 35 columns, and a maximum length of 10 characters. Note that the CSText widget is created with 35 columns, not 10, for appearance. The XmNmaxLength resource limits input to 10 characters regardless of the number or rows or columns.
4. Manage the CSText widget, the XmLabel widget, and the BulletinBoard widget. Realize the top-level widget.
5. As a result of an activate callback on the CSText widget, the change_cs callback is invoked. The change_cs callback calls DXmCSTextGetString to get the compound string derived from the user-entered value of the CSText widget and unmanages the CSText widget.
6. The compound string is used as the title of BulletinBoard widget.
7. The label of the XmLabel widget is then changed to "Thank you. Press OK to Exit" and the BulletinBoard, XmLabel, and XmPushbutton widgets are managed. When the user presses the OK push button, the program exits.

This chapter describes how to use the Structured Visual Navigation (SVN) widget in an application. The chapter includes examples from the demo SVN widget implementation found in the /usr/examples/motif directory on Digital UNIX systems and in the DECW$EXAMPLES directory on OpenVMS systems. The demo uses many of the SVN resources and associated routines. (Note that the SVN demo example is not available with Windows NT.)

9.1 Overview of the SVN Widget

The SVN widget presents data in a hierarchical structure and lets the user navigate in, and select from, the structure.

You can use the SVN widget to present hierarchies of information in an organized manner, as shown in Figure 9-1 from the SVN demo application. Your application need only tell the SVN widget about the organization of the data and respond to SVN widget callbacks; the SVN widget is responsible for actually displaying the data.

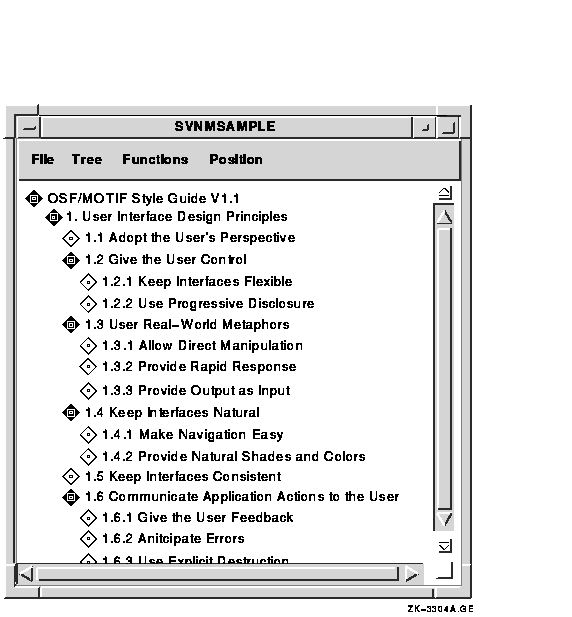

Figure 9-1 The SVN Widget

As another example, the DECwindows Mail application uses the SVN widget to create drawers that contain folders and folders that contain messages. In displaying this hierarchy, you can show just the drawers (the highest level of information hierarchy); you can open a drawer to display all the folders within it; and you can open a folder to display all the mail messages in the folder.

Your application is responsible for creating the hierarchy and supplying the data to the SVN widget; the actual data in the hierarchy is transparent to the SVN widget.

You can use SVN to display hierarchical information in three different formats, or modes:

• Outline format, as shown in Figure 9-1.
• Tree format, as shown in Figure 9-2. The tree style can be oriented from the top, the left, in outline form, and in a user-defined style.
• Column format, as shown in Figure 9-3. The difference between the outline and column formats is that in column format, a window pane separates a set of components from the rest of the display. You can scroll horizontally on each side, independently of the other side. However, you have only one vertical scroll bar.

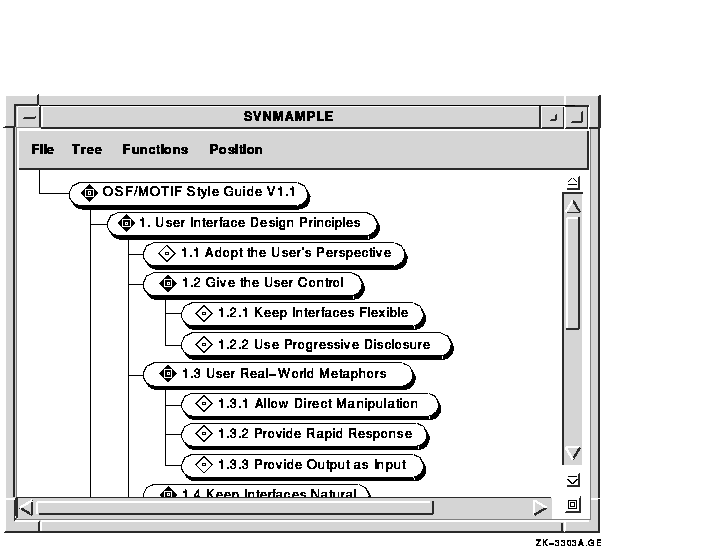

Figure 9-2 Tree Format

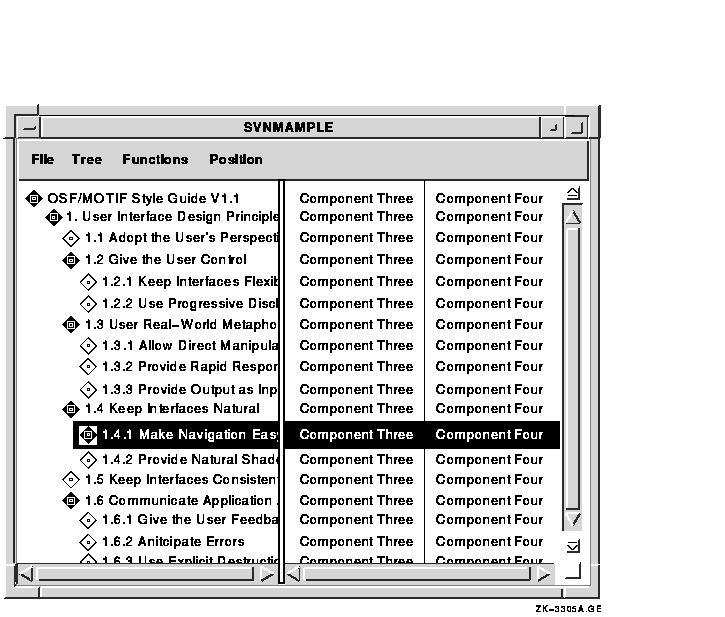

Figure 9-3 Column Format

Each SVN line, or entry, in your hierarchy can display as many as 30 pieces of information, called components, depending upon the amount of information users need. The components can be of three data types: text, pixmaps, and widgets.

Components you might want to use include:

• Icon---Depicts the state (expanded or collapsed) of an entry. For example, the folder icon in DECwindows Mail can show either a closed folder or an open folder. This component is set via the DXmSvnSetComponentPixmap routine.
• Entry number---Gives the position of the entry within its sublevel, as set with the DXmSvnAddEntries routine.
• Description---A short line of text that describes the entry. This resource is set via the DXmSvnSetComponentText or DXmSvnSetComponentWidget routines. You can use the x and y arguments of the DXmSvnSetComponentText and DXmSvnSetComponentWidget routines to align the descriptions.
• Child summary---Lists the number and type of entries revealed when an entry is expanded. If an entry is expanded, this number reflects the number and type of children revealed. You can use the DXmSvnGetComponentTag routine to get the child summary information.

Not all of the components are always relevant to users. For example, the child summary would not be a relevant piece of information for a nonexpandable entry.

The SVN widget includes routines that allow your application to insert and remove components as necessary. Additional support routines allow you to set the text associated with a component, set a component hidden, set and determine a component's width, and determine a component's number.

9.1.2 Selection Mode

The term selection mode refers to the portion of an entry that is selected and displayed in reverse video in response to a user action. Mode selection (other than DXmSvnKselectEntry) is probably most useful in column mode. Note that you can select only the complete entry from the primary work window; the secondary work window lets you select individual components within an entry.

The SVN Widget gives you a choice of four selection modes:

• DXmSvnKselectEntry---Select the entire entry.
• DXmSvnKselectComp---Select a component within an entry.
• DXmSvnKselectCompAndPrimary---Select a component within the secondary work window and select the entire entry from the primary work window.
• DXmSvnKselectEntryOrComp---Select the entire entry if in the primary work window or select the component if in the secondary work window.

The SVN widget includes support routines that allow your application to select entries chosen by users. Your application can call the DXmSvnGetNumSelections routine to determine how many entries are selected and the DXmSvnGetSelections routine to return the selected entry numbers. Additional routines set and clear selected entries and hide and show selections.

9.1.3 Tree-Mode Navigation Window

As a user navigates through the data hierarchy using tree display mode, it is possible to lose track of an entry's relative position within the hierarchy. The SVN widget includes a navigation window that users can use to find their relative position within the tree display mode. This navigation window is activated by a push button in the SVN widget. An example navigation window is shown in Figure 9-4.

Figure 9-4 SVN Tree-Mode Navigation Window

You can set the DXmSvnNnavWindowTitle resource to specify a title for this navigation window.

9.1.4 Location Cursor

The location cursor is a solid rectangle around the current entry. When the SVN widget is created, the location cursor is on the first entry in the display by default. Your application can set the DXmSvnNstartLocationCursor resource to specify which entry the location cursor should be first drawn on. This resource can be set only when the SVN widget is created.

After the first entry, the location cursor is always located on the last selected or toggled entry. In addition, all callbacks report which entry has the location cursor in the callback structure.

9.1.5 Highlighting Entries

The SVN widget includes support routines that allow your application to highlight entries chosen by users by enclosing them in dashed rectangular boxes. Your application decides how to treat the highlighted entries; the SVN widget does not assign any special significance to highlighted entries.

Your application can call the DXmSvnGetNumHighlighted routine to determine how many entries are highlighted and the DXmSvnGetHighlighted routine to return the highlighted entry numbers.

9.1.6 Editable Text

The SVN widget supports both read-only and read/write text in components.

Your application can call the DXmSvnSetComponentText routine to set a read-only compound string component and the DXmSvnGetComponentText routine to get the address of this compound string component.

For read/write text, your application can call the DXmSvnSetComponentWidget to use a subwidget as a component.

Managing subwidgets requires significant system resources. If an application supports read/write text, it should dynamically replace text components with a subwidget component when the user selects an entry for modification. For example, the SVN demo application uses a CSText widget as a subwidget component. The demo application allows users to toggle between read-only and read/write states.

if (Editable)
   if (node->stext == 0)
      {

        Widget primary_window;
        XtSetArg (args[0], DXmSvnNprimaryWindowWidget, &primary_window);
        XtGetValues (svnw, args, 1);

        XtSetArg (args[0], XmNvalue,    node->text);
        XtSetArg (args[1], XmNcolumns,  50        );
        XtSetArg (args[2], XmNrows,     1         );
        XtSetArg (args[3], XmNwordWrap, FALSE     );
        node->stext = DXmCreateCSText(primary_window, "TextWidget", args, 4);
      };

   if (Editable)
        DXmSvnSetComponentWidget (svnw, data->entry_number, 2,
                                  pixmap_width+4, 0, node->stext);
    else
        DXmSvnSetComponentText (svnw, data->entry_number, 2,
                                pixmap_width+4, 0, node->text, fontlist);

The SVN widget lets your application alter the sensitivity of an entry. The DXmSvnSetEntrySensitivity routine lets you make an entry sensitive or insensitive; the DXmSvnGetEntrySensitivity routine returns the sensitivity of an entry.

9.1.8 Disabling/Enabling the SVN Widget

The SVN widget provides routines that lock (DXmSvnDisableDisplay) and unlock (DXmSvnEnableDisplay) the SVN widget. These routines allow your application to make changes to the SVN widget and update the display without the user making additional changes. For example, if a user expands an entry, the DXmSvnDisableDisplay routine makes sure that further user actions are not processed until the expansion is completed and your application calls the DXmSvnEnableDisplay routine.

Your application does not need to disable and enable the SVN widget in response to a callback. The SVN widget automatically disables the widget prior to issuing the callback and automatically enables the widget upon return.
