When you use the SAVE ATTRIBUTES command or when you save attributes on exiting or quitting, you can have EVE create or update a command file. To save attributes in a command file, use the SAVE ATTRIBUTES command, as follows:

Command: SAVE ATTRIBUTES
Save attributes in a section file [YES]? no
Save attributes in a command file [YES]? [Return]
Enter file name [TPU$COMMAND.TPU] MYCOM
14 written to file DISK$1:[USER]MYCOM.TPU;1

The prompt for the command file name shows, in brackets, the default command file that EVE uses if you press the Return key at the prompt without typing a file name. This default is one of the following:

• The command file specified with the /COMMAND qualifier when you invoked EVE
• The command file defined by the logical name TPU$COMMAND
• A command file called TPU$COMMAND.TPU in your current directory

You can set your preferred default command file --- that is, the command file you want EVE to create or update, without having to specify the file each time you save attributes. For example, the following command sets your default command file as MYCOM.TPU in your current directory:

Command: SET DEFAULT COMMAND FILE MYCOM

If you want to save in a command file rather than in a section file, you should also use the SET NOSECTION FILE PROMPTING command. Then, when you save attributes, EVE asks whether to save in a command file without first asking whether to save in a section file.

When you use SET DEFAULT COMMAND FILE, you usually specify the command file you are going to use at startup for future editing sessions. The command does not determine the command file to be executed when you invoke EVE, but only the command file in which you save attributes and menu definitions. To specify the command file you want executed at startup, do any of the following:

• Use EDIT/TPU/COMMAND and specify the command file you want to use:

  $ EDIT/TPU/COMMAND=MYEVE

• Define the logical name TPU$COMMAND to specify the command file and then invoke EVE using EDIT/TPU:

  $ DEFINE TPU$COMMAND SYS$LOGIN:MYEVE $ EDIT/TPU

• Name the command file TPU$COMMAND.TPU in your current directory and then use EDIT/TPU to invoke EVE.

For more information about creating and using command files, see the EVE online help topic entitled Command Files.

A.11 Converting from EDT to EVE

If you are accustomed to the EDT editor, you can customize EVE to work in similar ways by using a section file, an initialization file, or both, or by using DECTPU procedures.

Typically, you save key definitions, learn sequences, and other extensions in a section file (created with the SAVE EXTENDED EVE command). Use an EVE initialization file to set editing preferences or private defaults, such as margins and tabs, which are not saved in the section file.

A.11.1 Using the SET KEYPAD EDT Command

The SET KEYPAD EDT command defines several keys to emulate EDT. You can put the command in your EVE initialization file or save the keypad setting in a section file. Most keypad functions work as in EDT, although the names may differ. For more information, see the online help topic called EDT Differences.

A.11.2 Defining Keys for EVE Commands

Use DEFINE KEY commands to define keys that are not otherwise defined by SET KEYPAD EDT. Put the key-definition commands in your initialization file or save the definitions in a section file.

The following sets of EDT and EVE key definitions are equivalent:

In EDT:

DEF KEY  GOLD 2    "EXT SHOW BUFFER."
DEF KEY  GOLD l    "CHGLW."
DEF KEY  GOLD u    "CHGUW."
DEF KEY  GOLD 10   "EXT FIND=?.."
DEF KEY  GOLD 9    "CUTSR PASTE."
DEF KEY  cont n    "EXT QUIT."
DEF KEY  func 34   "SHL."

In EVE:

DEF KEY=  GOLD E2   SHOW BUFFERS
DEF KEY=  GOLD l    LOWERCASE WORD
DEF KEY=  GOLD U    UPPERCASE WORD
DEF KEY=  GOLD PF2  BUFFER
DEF KEY=  GOLD KP9  STORE TEXT
DEF KEY=  Ctrl/N    QUIT
DEF KEY=  F20       SHIFT RIGHT 8

Note the differences between EDT and EVE in some key names, as well as differences in command names. For more information about key names, see Section A.1.

A.11.3 Setting Bound Cursor Motion

Use the SET CURSOR BOUND command to enable an EDT style bound cursor. By default, EVE uses a free cursor, which you can move anywhere in the buffer. You can save the setting in your section file or DECTPU command file.

A.11.4 Setting the Right Margin for Wrapping Text

Put the SET RIGHT MARGIN command in your EVE initialization file to set a wrap limit for entering text and for FILL commands. For example, the following EDT and EVE commands are equivalent:

In EDT:

SET WRAP 70

In EVE:

SET RIGHT MARGIN 70

(The EVE command SET WRAP corresponds to the EDT command SET NOTRUNCATE.)

A.11.5 Setting Scroll Margins for Moving the Cursor

Put the SET SCROLL MARGINS command in your EVE initialization file to set distances for scrolling to begin automatically as you move the cursor up or down. For example, with a 24-line terminal screen (21-line main window), the following EDT and EVE commands are equivalent:

In EDT:

SET CURSOR 5:15

In EVE:

SET SCROLL MARGINS 5 6

EVE scroll margins are measured from the top and bottom, respectively. In EDT, both scroll margins are measured from the top. You can specify numbers of lines or percentages of the window size. Also, the size of the EVE main window depends on your terminal settings. For example, on a workstation, the EVE main window may be longer than 21 lines.

A.11.6 Setting Searches for Exact Case

Searches follow EVE rules for case sensitivity. Put SET FIND commands in your EVE initialization file to set the way you want searches to work. For example, the following EDT and EVE commands are nearly equivalent:

In EDT:

SET SEARCH EXACT

In EVE:

SET FIND CASE EXACT

These commands are not exact equivalences because EVE always matches diacritical marks exactly as entered in the search string.

A.11.7 Converting EDT Macros to DECTPU Procedures

You can use DECTPU procedures in place of EDT macros. Create a buffer that contains the procedures and then use EXTEND commands to compile the procedures with EXTEND commands. Or, put the procedures in a DECTPU command file and then use the /COMMAND qualifier to invoke EVE. In either case, you can save the compiled procedures in your section file.

You can also use the LEARN command to bind the corresponding EVE commands to a single key. You can then save the key definition in your section file. Another method is to put the corresponding EVE commands in an initialization file.

The following examples show a macro from an EDT startup file which is translated into a DECTPU procedure. Each macro creates a new command, WIDEN, which sets the display to 132 columns and sets the right margin to 120.

EDT Macro:

FIND =WIDEN
INSERT;SET SCREEN 132
INSERT;SET WRAP 120
FIND =MAIN.

DECTPU Procedure:

PROCEDURE EVE_WIDEN;
   EVE_SET_WIDTH (132);
   EVE_SET_RIGHT_MARGIN (120);
ENDPROCEDURE;

To execute the macro or procedure, use the following commands:

In EDT:

* DEFINE MACRO WIDEN
* WIDEN

In EVE:

Command: EXTEND EVE WIDEN
Command: WIDEN

You can usually convert EDT macros and key definitions that use nokeypad specifiers into DECTPU procedures or learn sequences. The following examples show an EDT key definition that uses nokeypad mode and the corresponding DECTPU procedure and key definition. In each case, you define Comma on the numeric keypad to transpose or swap the current and previous character. The --C in EDT nokeypad statements can be translated as MOVE_HORIZONTAL (--1) in DECTPU procedures.

In EDT:

DEFINE KEY 19 AS "-C D1C +C UNDC."

In DECTPU:

PROCEDURE USER_TRANSPOSE
   LOCAL  SWAP_THIS;

   SWAP_THIS  :=  ERASE_CHARACTER (1);

   MOVE_HORIZONTAL (-1);
   EVE$INSERT_TEXT (SWAP_THIS);
   RETURN (TRUE);
ENDPROCEDURE;

EVE$DEFINE_KEY ("USER_TRANSPOSE", COMMA, , EVE$X_USER_KEYS);

Setting the EDT keypad does not define keys for EDT style tab adjustment. However, you can get similar effects by defining a key for the WPS keypad Ruler key (GOLD R) and then using the ruler to add or delete tab stops.

For example, the following command defines F20 as the WPS Ruler key (without having to enable the WPS keypad):

Command: DEFINE KEY= F20  WPS GOLD-R

Then, to add or delete tab stops, follow these steps:

This appendix describes the DEC Multinational Character Set and the DCL character set. It includes information about:

• DEC Multinational Character Set
• DCL character set

The DEC Multinational Character Set is an 8-bit character set with 256 characters; the first 128 characters in the set correspond to the ASCII character set. Each character has a value in the range 0 to 255 decimal.

B.1.1 ASCII Character Set

Section B.1.2 represents the ASCII character set (characters with decimal values 0 through 127). The first half of each numbered column identifies the character as you would enter it on a VT-series terminal or workstation or as you would see it on a printer (except for the nonprintable characters). The remaining half of each column identifies the character by the binary value of the byte; the value is stated in three radixes --- octal, decimal, and hexadecimal.

For example, the uppercase letter A has, under ASCII conventions, a storage value of hexadecimal 41 (a bit configuration of 01000001), equivalent to 101 in octal notation and 65 in decimal notation. DCL uses hexadecimal values to perform string comparisons. (For a description of string comparisons, see Chapter 14.)

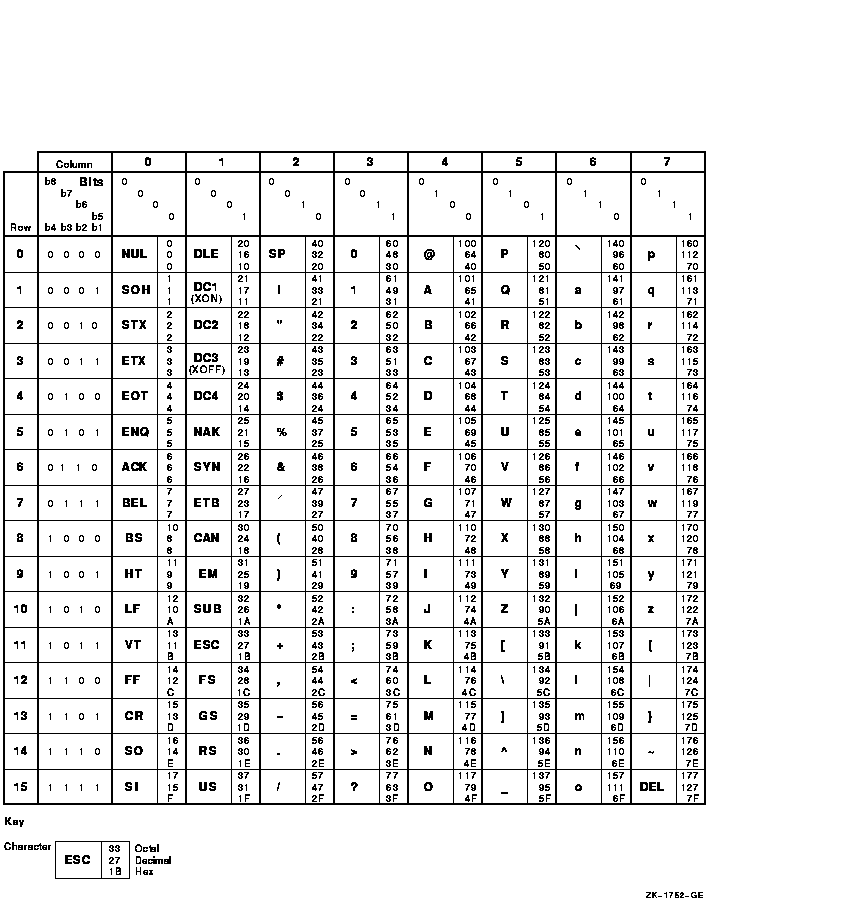

B.1.2 ASCII Character Set, Part 1

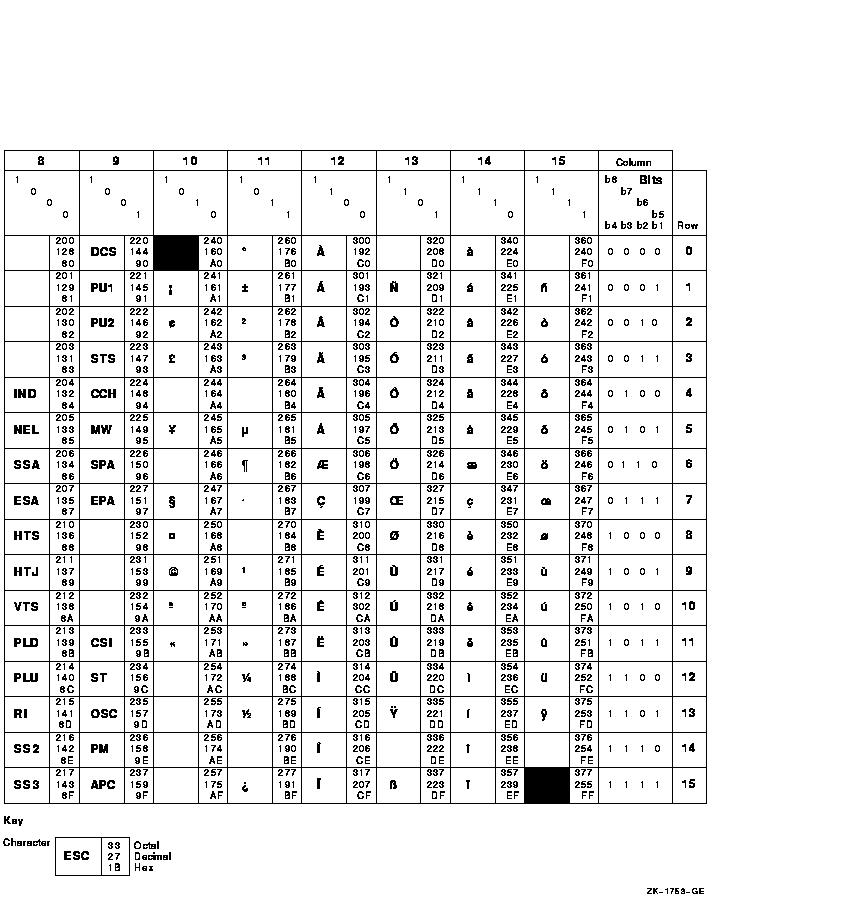

B.1.3 ASCII Character Set, Part 2

B.2 DCL Character Set
