The parameters PFRATL and WSDEC, which control voluntary decrementing, are very sensitive to the application work load.

For the PFRATH and PFRATL parameters, it is possible to define values that appear to be reasonable page faulting limits but yield poor performance.

The problem results from the page replacement algorithm and the time spent maintaining the operation within the page faulting limits.

For example, for some values of PFRATL, you might observe that a process continuously page faults as its working set size grows and shrinks while the process attempts to keep its page fault rate within the limits imposed by PFRATH and PFRATL.

However, you might observe the same process running in approximately the same size working set, without page faulting once, with PFRATL turned off (set to zero).

Oscillation occurs when a process's working set size never stabilizes. To prevent the site from encountering an undesirable extreme of oscillation, the system turns off voluntary decrementing by initially setting parameter PFRATL equal to zero. You will achieve voluntary decrementing only if you deliberately turn it on.

3.5.7 Adjusting AWSA Parameters

The following table summarizes adjustments to AWSA parameters:

You can circumvent the AWSA feature by using the DCL command SET WORKING_SET/NOADJUST.

Use caution in disabling the AWSA feature, because conditions could arise that would force the swapper to trim the process back to the value of the SWPOUTPGCNT system parameter.

Once AWSA is disabled for a process, the process cannot increase its working set size after the swapper trims the process to the SWPOUTPGCNT value. If the value of SWPOUTPGNT is too low, the process is restricted to that working set size and will fault badly.

3.5.9 Performance Management Strategies for Tuning AWSA

By developing a strategy for performance management that considers the desired automatic working set adjustment, you will know when the AWSA parameters are out of adjustment and how to direct your tuning efforts.

Sites choose one of the following general strategies for tuning AWSA parameters:

• Rapid response---Tune to provide a rapid response whenever the load demands greater working set sizes, allowing active memory reclamation to return memory from idle processes. To implement this strategy:
  • Start processes off with small values for their working set defaults.
  • Set PFRATH low (possibly even to zero).
  • Set a low value for AWSTIME.
  • Set a relatively large value for WSINC.
  • Set BORROWLIM low and WSEXTENT high (even as high as WSMAX) to provide either large working set quotas or generous loans.

  This is the default OpenVMS strategy where both BORROWLIM and GROWLIM are set equal to the value of FREELIM to allow maximum growth by active processes, and active reclamation is enabled to return memory idle processes.
• Less dynamic response---Tune for a less dynamic response that will stabilize and track moderate needs for working set growth. To implement this strategy:
  • Establish moderate values for AWSTIME, WSINC, and PFRATH. For example, set WSINC equal to approximately 10 percent of the typical value for WSDEFAULT.
  • Provide more generous working set defaults, so that you do not need to set BORROWLIM so low as to ensure that loans would always be granted.

The first strategy works best in the time-sharing environment where there can be wild fluctuations in demand for memory from moment to moment and where there tends to be some number of idle processes consuming memory at any moment. The second strategy works better in a production environment where the demand tends to be more predictable and far less volatile.

3.6 Swapper Trimming

The swapper process performs two types of memory management activities---swapping and swapper trimming. Swapping is writing a process to a reserved disk file known as a swapping file, so that the remaining processes can benefit from the use of memory without excessive page faulting.

To better balance the availability of memory resources among processes, the operating system normally reclaims memory through a more complicated sequence of actions known as swapper trimming.

The system initiates swapper trimming whenever it detects too few pages in the free-page list.

Trimming takes place at two levels (at process level and systemwide) and occurs before the system resorts to swapping.

3.6.1 First-Level Trimming

The swapper performs first-level trimming by checking for processes with outstanding loans; that is, processes that have borrowed on their working set extent. Such processes can be trimmed, at the swapper's discretion, back to their working set quota.

3.6.2 Second-Level Trimming

If first-level trimming failed to produce a sufficient number of free pages, then the swapper can trim at the second level.

With second-level trimming, the swapper refers to the systemwide trimming value SWPOUTPGCNT. The swapper selects a candidate process and then trims the process back to SWPOUTPGCNT and outswaps it. If the deficit is still not satisfied, the swapper selects another candidate.

As soon as the needed pages are acquired, the swapper stops trimming on the second level.

3.6.3 Choosing Candidates for Second-Level Trimming

Because the swapper does not want to trim pages needed by an active process, it selects the processes that are candidates for second-level trimming based on their states.

Memory is always reclaimed from suspended processes before it is taken from any other processes. The actual algorithm used for the selection in each of these cases is complex, but those processes that are in either local event flag wait or hibernate wait state are the most likely candidates.

In addition, the operating system differentiates between those processes that have been idle for some time and are likely to remain idle and those processes that have not been idle too long and might become computable sooner.

By freeing up pages through outswapping, the system should allow enough processes to satisfy their CPU requirements, so that those processes that were waiting can resume execution sooner.

Dormant process pseudoclass

After suspended (SUSP) processes, dormant processes are the most likely candidates for memory reclamation by the swapper. Two criteria define a dormant process as follows:

• The process must be a nonreal-time process whose current priority is equal to or less than the system parameter DEFPRI (default 4).
• The process must be a computable process that has not had a significant event (page fault, direct or buffered I/O, CPU time allocation) within an elapsed time period defined by the system parameter DORMANTWAIT (default 10 seconds).

To disable second-level trimming, increase SWPOUTPGCNT to such a large value that second-level trimming is never permitted.

The swapper will still trim processes that are above their working set quotas back to SWPOUTPGCNT, as appropriate.

If you encounter a situation where any swapper trimming causes excessive paging, it may be preferable to eliminate second-level trimming and initiate swapping sooner. In this case, tune the swapping with the SWPOUTPGCNT parameter.

For a process with the PSWAPM privilege, you can also disable swapping and second-level trimming with the DCL command SET PROCESS/NOSWAPPING.

3.6.5 Swapper Trimming Versus Voluntary Decrementing

On most systems, swapper trimming is more beneficial than voluntary decrementing because:

• Swapper trimming occurs on an as-needed basis.
• Voluntary decrementing occurs on a continuous basis and affects only active, computable processes.
• Voluntary decrementing can reach a detrimental condition of oscillation.

The AUTOGEN command procedure, which establishes parameter values when the system is first installed, provides for swapper trimming but disables voluntary decrementing.

3.6.6 Virtual Balance Slots (VAX only)

On VAX systems, under certain circumstances, the operating system provides an alternative to costly outswap operations. A virtual balance slot (VBS) holds the mapping for a memory resident process that currently does not own a real balance slot. Virtual balance slots allow a virtually unlimited number of concurrent memory resident processes through the timesharing of available system address space limited by the system parameter MAXPROCESSCNT.

Traditionally, the sizes of system virtual address (SVA) space and the largest process supported in the system have limited the number of concurrent memory resident processes. When this limit was exceeded, processes were swapped out. Excessive swapping can seriously degrade the overall performance of the system.

When to Use Virtual Balance Slots

When is it appropriate to use virtual balance slots? Typically, you will have adequate memory but no balance slots. The types of applications most likely to be affected are those that have a large number of processes resident in memory, either because of a large number of users (for example, ALL-IN-1 applications) or because of a large number of processes per user (such as DECwindows terminals).

See the OpenVMS System Management Utilities Reference Manual for information about tuning virtual balance slots using MONITOR.

Enabling and Disabling Virtual Balance Slots

Virtual balance slots and their dynamic capabilities are enabled by default. As the system manager, you can enable or disable the use of virtual balance slots by using the bit-encoded system parameters VBSS_ENABLE and VBSS_ENABLE2. Table 3-1 describes the various bit settings of VBSS_ENABLE.

You must reboot the system after setting VBSS_ENABLE.

VBSS_ENABLE2 enables and disables the dynamic capabilities of VBS. It is valid only when VBS is enabled. Table 3-2 describes the various bit settings of VBSS_ENABLE2.

The memory management subsystem includes a policy that actively reclaims memory from inactive processes when a deficit is first detected but before the memory resource is depleted.

The active memory reclamation policy acts on two types of idle processes:

• Long-waiting processes
• Periodically waking processes

A candidate process for this policy would be in the LEF or HIB state for longer than number of seconds specified by the system parameter LONGWAIT.

First-Level Trimming

By setting FREEGOAL to a high value, memory reclamation from idle processes is triggered before a memory deficit becomes crucial and thus results in a larger pool of free pages available to active processes. When a process that has been swapped out in this way must be swapped in, it can frequently satisfy its need for pages from the large free-page list.

The system uses standard first-level trimming to reduce the working set size.

Second-Level Trimming

Second-level trimming with active memory reclamation enabled occurs, but with a significant difference.

When shrinking the working set to the value of SWPOUTPGCNT, the active memory reclamation policy removes pages from the working set but leaves the working set size (the limit to which pages can be added to the working set) at its current value, rather than reducing it to the value of SWPOUTPGCNT.

In this way, when the process is outswapped and eventually swapped in, it can readily fault the pages it needs without rejustifying its size through successive adjustments to the working set by AWSA.

Swapping Long-Waiting Processes

Long-waiting processes are swapped out when the size of the free-page list drops below the value of FREEGOAL.

A candidate long-waiting process is selected and outswapped no more than once every 5 seconds.

3.7.2 Reclaiming Memory from Periodically Waking Processes

The active memory reclamation policy also targets processes that do the following:

• Wake periodically
• Do minimal work
• Return to a sleep state

Watchdog Processes

Because it has a periodically waking behavior, a watchdog process is not a candidate for swapping but might be a good candidate for memory reclamation (trimming).

For this type of process, the policy tracks the relative wait-to-execution time.

How Trimming Is Performed

When the active memory reclamation policy is enabled, standard first- and second-level trimming are not used.

When the size of the free-page list drops below twice the value of FREEGOAL, the system initiates memory reclamation (trimming) of processes that wake periodically.

If a periodically waking process is idle 99 percent of the time and has accumulated 30 seconds of idle time, the policy trims 25 percent of the pages in the process's working set as the process reenters a wait state. Therefore, the working set remains unchanged.

3.7.3 Setting the FREEGOAL Parameter

The system parameter FREEGOAL controls how much memory is reclaimed from idle processes.

Setting FREEGOAL to a larger value reclaims more memory; setting FREEGOAL to a smaller value reclaims less.

For information about AUTOGEN and setting system parameters, refer to the OpenVMS System Manager's Manual, Volume 2: Tuning, Monitoring, and Complex Systems.

3.7.4 Sizing Paging and Swapping Files

Because it reclaims memory from idle processes by trimming and swapping, the active memory reclamation policy can increase paging and swapping file use.

Use AUTOGEN in feedback mode to ensure that your paging and swapping files are appropriately sized for the potential increase.

For information about sizing paging and swapping files using AUTOGEN, refer to the OpenVMS System Manager's Manual, Volume 2: Tuning, Monitoring, and Complex Systems.

3.7.5 How Is the Policy Enabled?

Active memory reclamation is enabled by default.

By using the system parameter MMG_CTLFLAGS which is bit encoded, you can enable and disable proactive memory reclamation mechanisms.

Table 3-3 describes the bit settings.

MMG_CTLFLAGS is a dynamic parameter and is affected by AUTOGEN.

3.8 Memory Sharing

Memory sharing (either code or data) is accomplished using a systemwide global page table similar in function to the system page table.

3.8.1 Global Pages

Figures 3-6 and 3-7 illustrate how memory can be conserved through the use of global (shared) pages. The three processes (A, B, and C) run the same program, which consists of two pages of read-only code and one page of writable data.

Figure 3-6 shows the virtual-to-physical memory mapping required when each process runs a completely private copy of the program. Figure 3-7 illustrates the physical-memory gains possible and the data-structure linkage required when the read-only portion of the program is shared by the three processes. Note that each process must still maintain a private data area to avoid corrupting the data used by the other processes.

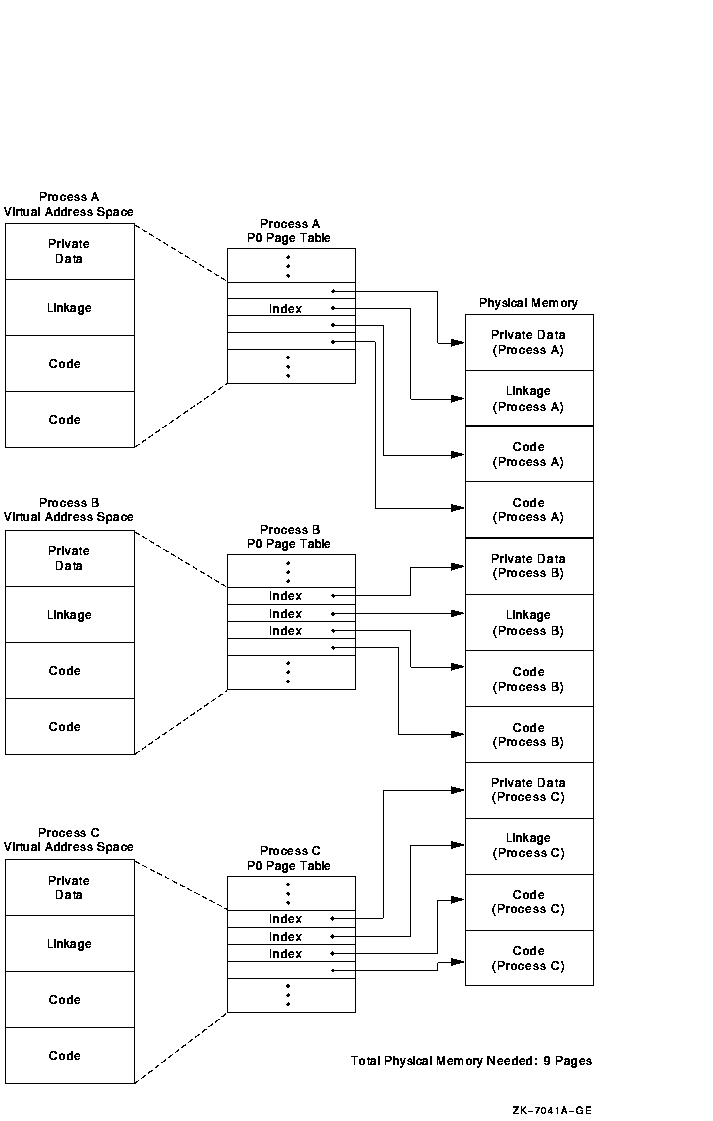

Figure 3-6 Example Without Shared Code

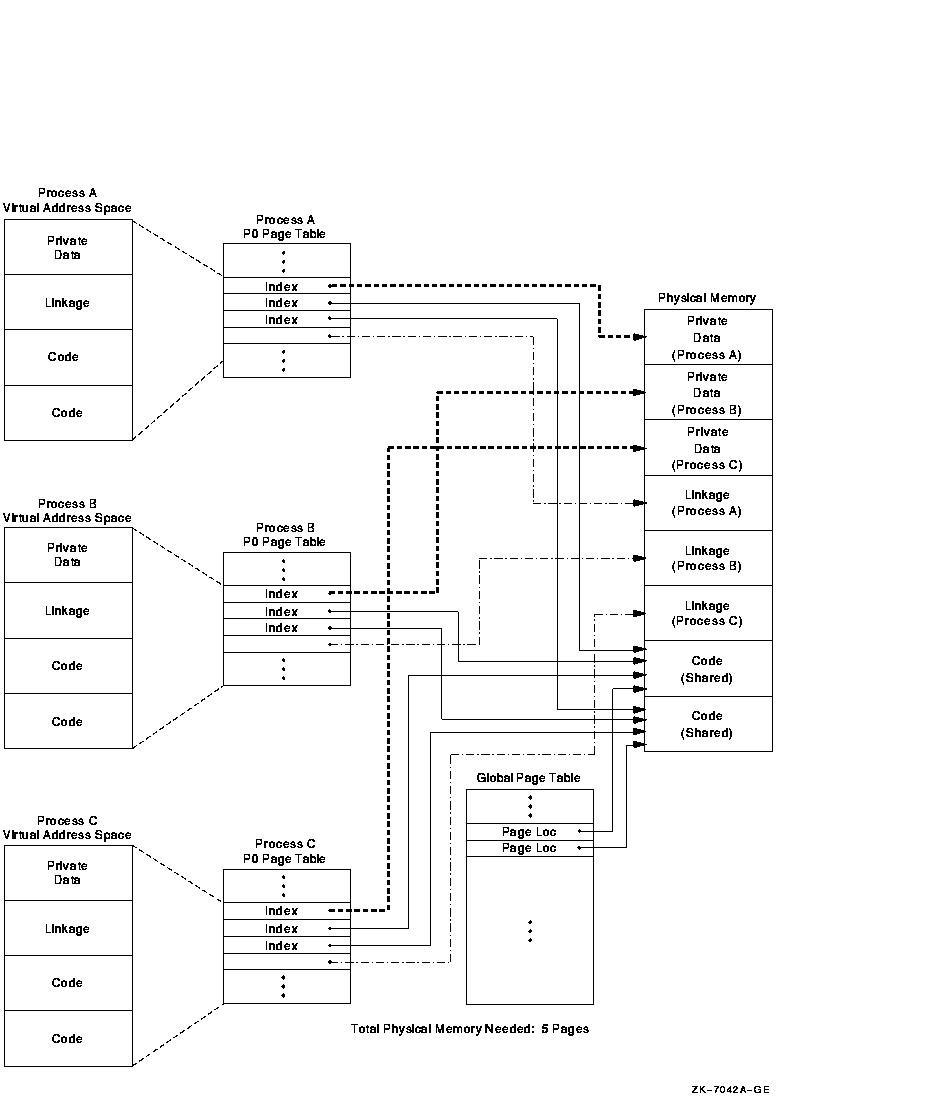

Figure 3-7 Example with Shared Code

The amount of memory saved by sharing code among several processes is shown in the following formula:
savedmemory = pages of shared readonly code * ( sharing processes - 1)

For example, if 30 users share 300 pages of code, the savings are 8700 pages.

3.8.2 System Overhead

The small amount of overhead required to obtain these memory savings consists of the data-structure space required for the (1) global page table entries and (2) global section table entries, both of which are needed to provide global mapping.

For more information about global sections, see the OpenVMS Linker Utility Manual.
