Using this item code, you can group multiple requests into a single call to the $REGISTRY service. If you use this multiple-request feature, use the REG$_SEPARATOR item code to indicate the end of the set of item codes for the current request and that there is another request to process.

REG$_SUBKEYINDEX

The REG$_SUBKEYINDEX item code is an input item code. It is a longword that specifies the index of the subkey to retrieve.

REG$_SUBKEYNAME

The REG$_SUBKEYNAME item code is an input item code. It is a string of Unicode characters that specifies the name of a subkey. A Unicode character is 4 bytes long.

REG$_SUBKEYNAMEMAX

The REG$_SUBKEYNAMEMAX item code is an output item code. It is a longword that receives the length (in characters) of a specified key's longest subkey name.

REG$_SUBKEYSNUMBER

The REG$_SUBKEYSNUMBER item code is an output item code. It is a longword that receives the number of subkeys contained in a specified key.

REG$_VALUEINDEX

The REG$_VALUEINDEX item code is an input item code. It is a longword that specifies the index of the value to retrieve within a specified key. Note that the value index starts at zero and can be any value up to one less than the count returned by REG$_VALUENUMBER .

REG$_VALUEDATA

The REG$_VALUEDATA item code is, depending on the function code, either an input or output item code. It is a buffer that contains either the value data component to write to the OpenVMS Registry (input), or it receives a data value component from the OpenVMS Registry (output).

REG$_VALUEDATAMAX

The REG$_VALUEDATAMAX item code is an output item code. It is a longword that receives the length (in bytes) of the specified key's longest data component value.

REG$_VALUENAME

The REG$_VALUENAME item code is, depending on the function code, either an input or an output item code. It is a string of Unicode characters that specifies the name of a value.

REG$_VALUENAMEMAX

The REG$_VALUENAMEMAX item code is an output item code. It is a longword that receives the length (in characters) of a specified key's longest value name.

REG$_VALUENUMBER

The REG$_VALUENUMBER item code is an output item code. It is a longword that receives the number of values contained in a specified key.

REG$_VOLATILE

The REG$_VOLATILE item code identifies the volatility of an item. As an output, it returns the volatility of the object. On OpenVMS, volatile keys and values are lost when all nodes running an OpenVMS Registry server are rebooted. (In a standalone system, volatile keys and values are lost when the system reboots.)

Volatile Type	Description
`REG$K_CLUSTER`	The item is removed when the cluster reboots.
`REG$K_NONE`	The item is not volatile (default).

Function Modifiers You can optionally specify the high-order bits of a function code value with function modifiers. These individual bits can alter the operation of the function.

For example, you can specify the function modifier REG$M_CASE_SENSITIVE with the function REG$FC_CREATE_KEY . When you use the function and function modifier together, the data passed to the OpenVMS Registry is treated as case sensitive. The two values are written in DEC C as REG$M_CASE_SENSITIVE | REG$FC_CREATE_KEY .

The OpenVMS Registry function modifiers are defined in the header file REGDEF.H .

REG$M_CASE_SENSITIVE
Use case-sensitive matching for keys and values.
REG$M_DISABLE_WILDCARDS
Treat wildcard characters as normal characters for this function.
REG$M_IGNORE_LINKS
Force the operation to not follow any symbolic links associated with a key or a value.
By default, if a key or value is symbolically linked to another key or value, the system follows all links so that the operation specified by the function code is performed on the linked key or value.
When you specify the REG$M_IGNORE_LINKS function modifier, the operation specified by the function code affects only the specified key or value, not the linked key or value.
By default, if a key or value has a symbolic link, it can not be deleted. If you specify the REG$M_IGNORE_LINKS function modifier, the system deletes the key or value.
REG$M_NOW
Write to disk immediately, regardless of the REG$_CACHEACTION item code value.

Part 3
OpenVMS Events

This part contains reference information about OpenVMS Events.

Chapter 14
OpenVMS Events

14.1 What are Events?

On a Windows NT system, an event is any significant occurrence in the system or an application---for example, a service starting or stopping, a user logging on or off, or accessing resources. When the system encounters an event, the Event Log service writes the event (or audit entry) in the form of a record that contains date and time, source, category, event number, user, and computer information to a system, security, or application log, creating an audit trail. On Windows NT systems, you display these logs and their recorded events using the Event Viewer.

With COM Version 1.0 for OpenVMS, OpenVMS wrote all COM for OpenVMS events to the DCOM$EVENTLOG.RPT text file. With COM Version 1.1-B for OpenVMS, OpenVMS supports both Windows NT logging and Advanced Server for OpenVMS logging of COM for OpenVMS events. You can now log a COM for OpenVMS event (such as the starting of a COM server on OpenVMS), and review these OpenVMS events from a Windows NT system or an OpenVMS system.

For a detailed review of OpenVMS Events dependencies and a description of how OpenVMS Events interacts with other parts of the OpenVMS infrastructure, see Section 4.8.

14.1.1 Suggested Reading

The following sources can provide you with more information on Events and related topics:

Third-party books on event logging:
- Windows NT Server 4.0 Unleashed, Jason Garms, SAMS Publishing, Indianapolis, IN, 1998. ISBN: 0-672-30933-5.
- Win32 System Services: The Heart of Window 95 and Windows NT, Marshall Brain, Prentice Hall, Upper Saddle River, NJ, 1996. ISBN: 0-13-324732-5.
Other sources:
- Microsoft Win32 Software Development Kit
  In particular, see the sections about the RegisterEventSource , ReportEvent , and DeregisterEventSource functions, and System Services: Event Logging section.

14.2 Overview of OpenVMS Events

The system logs OpenVMS Events to a Windows NT event log, to the Advanced Server for OpenVMS event log, and to a log file on the OpenVMS system.

You can use the following techniques to view OpenVMS Events:

Windows NT event viewer (see Section 14.2.1)
Advanced Server for OpenVMS event viewer (see Section 14.2.2)
OpenVMS event log file (see Section 14.2.3)

14.2.1 Viewing OpenVMS Events Using Windows NT Event Viewer

Use the following procedure to view OpenVMS Events through the Windows NT event viewer:

Start the Windows NT event viewer.
From the Start menu, select Programs, Administrative Tools, Event Viewer.
From the Event Viewer window, click the menu bar Log option. Click Select Computer...., and select the OpenVMS system from the list box.
From the Event Viewer window, click the menu bar Log option. Click System to display the System event log. The System event log contains the COM for OpenVMS events.
To display COM for OpenVMS events only, use the following procedure:
- From the Event Viewer window, click the menu bar View option. Click Filter Events....
  The system displays the Filter window.
- On the Filter window, click the Source: list box. From the list, choose DCOM.

14.2.2 Viewing OpenVMS Events Using Advanced Server for OpenVMS Event Viewer

Use the following procedure to view the COM for OpenVMS events:

Ensure that the Advanced Server for OpenVMS is running.
Enter the following Advanced Server for OpenVMS ADMINISTRATOR command:
$ ADMIN SHOW EVENTS/TYPE=SYSTEM/SOURCE=DCOM/FULL
The viewer displays COM for OpenVMS events only, along with any additional information associated with the COM for OpenVMS event.

14.2.3 Event Logging on OpenVMS Only

In some cases, you might want to write and view COM for OpenVMS events only on an OpenVMS system. In place of the Windows NT log, Compaq has included an alternate event logger that writes COM event information to an OpenVMS file. You can find this file in the following location:

SYS$MANAGER:DCOM$EVENTLOG.RPT

COM for OpenVMS creates this event logging report automatically when the COM server ( DCOM$RPCSS ) encounters an error. The event logger appends new events at the bottom (end) of the file. A logged event has the following format:

event type : ddd mmm dd hh:mm:ss yyyy
First event message

event type : ddd mmm dd hh:mm:ss yyyy
Second event message
.
.
.

Example 14-1 shows the contents of an event log.

Example 14-1 Sample OpenVMS Event Log

$ Type SYS$MANAGER:DCOM$EVENTLOG.RPT

(1)
ERROR : Tue Sep 15 11:18:54 1998
Unable to start a DCOM Server: {5E9DDEC7-5767-11CF-BEAB-00AA006C3606}
Runas (null)/SMITH
The Windows NT error: 1326
Happened while starting: device:[account]SSERVER.EXE

(2)
ERROR : Tue Sep 15 19:14:45 1998
The server {0C092C21-882C-11CF-A6BB-0080C7B2D682} did not register
with DCOM within the required timeout.

The system logged the first error event on Tue Sep 15 11:18:54 1998. The COM server (DCOM$RPCSS) was unable to start the COM application device:[account]SSERVER.EXE on behalf of the client running under the SMITH account. (The client may have received an error such as "access denied.") The resulting Windows NT error was 1326 , which translates as "Logon failure: unknown user name or bad password."
If you see this error, check the validity of the user account using the OpenVMS Authorize utility (AUTHORIZE).
The system logged the second error event on Tue Sep 15 19:14:45 1998. The COM server (DCOM$RPCSS) was able to start the COM application {0C092C21-882C-11CF-A6BB-0080C7B2D682} , but the application did not run successfully. The application failed to register with DCOM$RPCSS within the specified time limit. (The client may have received an error such as "Server execution failed" CO_E_SERVER_EXEC_FAILURE. )
If you see this error, run the server application interactively to determine its integrity.

NTA$EVENTW

Allows an application to record information in the event log files.
The NTA$EVENTW routine completes all operations synchronously.

Format

NTA$EVENTW [nullarg], func, itmlst, evsb

Arguments

nullarg

OpenVMS usage: reserved

type: longword (unsigned)

access: read only

mechanism: by value

Reserved for Compaq use.
func

OpenVMS usage: function_code

type: longword (unsigned)

access: read only

mechanism: by value

Function code specifying the function NTA$EVENTW is to perform. The func argument is a longword containing this function code. The $EVENTDEF macro defines the names of each function code.
itmlst

OpenVMS usage: address of item list

type: 64-bit address

access: read only

mechanism: by value

Item list specifying information about the event source or the event. The itmlst argument is the 64-bit address of a list of item descriptors, each of which describes an item of information. An item list in 64-bit format is terminated by a quadword of 0.

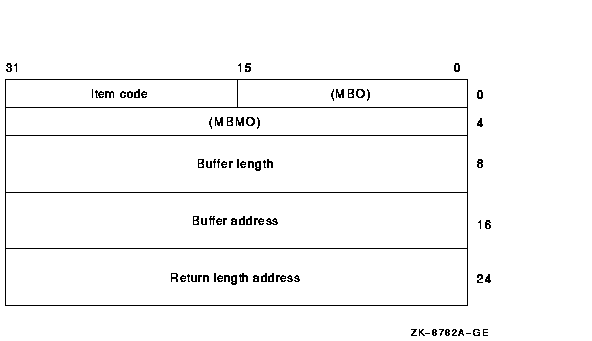

The following diagram shows the 64-bit format of a single item descriptor.

evsb

OpenVMS usage:	address of status block
type:	64-bit address
access:	write only
mechanism:	by reference

Event status block to contain the completion status for the requested operation.

NTA$EVENTW sets the status block to 0 upon request initiation. Upon request completion, the EVT$L_VMS_STATUS field contains the primary (OpenVMS) completion status for the operation.

If an error occurs, EVT$L_NT_STATUS (if non-zero) is the secondary error status to further define the error condition. Function Codes

EVT$_FC_REGISTER_EVENT_SOURCE
Open an association with an event log.

Item code Required Parameter Data type

EVT$_SERVER_NAME No Input String (4-byte Unicode)

EVT$_SOURCE No Input String (4-byte Unicode)

EVT$_HANDLE Yes Output Unsigned longword
EVT$_SERVER_NAME
The universal naming convention (UNC) name of the server on which this operation is to be performed.
UNC names have the form \\server\share\path\file. This item must be zero or unspecified. This performs the operation on an available Advanced Server for OpenVMS server in the cluster.
EVT$_SOURCE
The name of the application that logs the event. This field associates an application message file that contains descriptive text with the application's event log entries.
If specified, the source must be a subkey of the Eventlog\System key, the Eventlog\Security key, or the Eventlog\Application registry key. For example, a source name of Myapp indicates a registry entry in the following:
HKEY_LOCAL_MACHINE\System\CurrentControlSet\ Services\Eventlog\Application\Myapp)
The Myapp registry value EventMessageFile names the path and message file to be used to translate this application's events.
The source can be unspecified or specified as NULL. In this case, the system logs events to the Application log file but the application logs no message file (and, as a result, no replacement text) for the associated events.
EVT$_HANDLE
Returns a handle to the Application event log. This handle is required input for other $EVENT functions.
On failure, a handle of 0 is returned. This handle is outside the responsibility of the CloseHandle API.
EVT$_FC_REPORT_EVENT
Generate an event log entry.

Item code Required Parameter Data type

EVT$_HANDLE Yes Input Unsigned longword

EVT$_EVENT_TYPE Yes Input Word mask

EVT$_EVENT_CATEGORY No Input Word

EVT$_EVENT_ID Yes Input Longword

EVT$_USER_SID No Input NT Security ID

EVT$_NUMSTRINGS No Input Word

EVT$_DATASIZE No Input Longword

EVT$_STRING_ARRAY No Input Array of varying-length descriptors. (4-byte Unicode)

EVT$_RAW_DATA No Input Binary data

EVT$_HANDLE
Value returned by a previous EVT$_FC_REGISTER_EVENT_SOURCE call.
EVT$_EVENT_TYPE
Indicates the severity of the event. The type is one of the following:
EVT$_SUCCESS
EVT$_ERROR
EVT$_WARNING
EVT$_INFO
EVT$_AUDIT_SUCCESS
EVT$_AUDIT_FAILURE

The severity type maps to its Windows NT equivalent, defined in WINNT.H.
EVT$_EVENT_CATEGORY
An integer value from 1 to 65535. EVT$_EVENT_CATEGORY is unique to a particular source.
EVT$_EVENT_CATEGORY allows an application to divide its message file into sections, each indexed by event ID. If you do not specify a category, the system defaults to a category of zero.
EVT$_EVENT_ID
An unlimited integer value. This value indexes the category in an application message file that locates the text string displayed for this event message. The event ID is unique to a particular source.
EVT$_USER_SID
The optional Windows NT Security ID of the thread logging the event. An application that has acquired Windows NT credentials through the $PERSONA system service can obtain its SID through calls to the OpenProcessToken and GetTokenInformation Win32 APIs. The format is opaque to this service.
EVT$_NUMSTRINGS
A count of the strings specified in the EVT$_STRING_ARRAY item code.
EVT$_DATASIZE
Length in bytes of the buffer indicated by the EVT$_RAW_DATA item code.
EVT$_STRING_ARRAY
An array of string pointers. Each entry points to a null terminated string. A description string in a message file can contain string placeholders in the form %n, where %1 indicates the first placeholder. Strings specified in this array replace these placeholders when the system displays the event message.
EVT$_RAW_DATA
Allows you to include binary data in an event message.
For example, you might use this to dump a data structure from a failing component.

EVT$_DEREGISTER_EVENT_SOURCE
Close an association with an event log.

Item code Required Parameter Data type

EVT$_HANDLE Yes Input Unsigned longword

EVT$_HANDLE
Value returned by a previous EVT$_FC_REGISTER_EVENT_SOURCE call.

Item Codes

Item Code	Parameter Type	Data Type
`EVT$_SERVER_NAME`	Input	String
`EVT$_SOURCE`	Input	String
`EVT$_HANDLE`	Input/Output	Unsigned longword
`EVT$_EVENT_TYPE`	Input	Word mask
`EVT$_EVENT_CATEGORY`	Input	Word
`EVT$_EVENT_ID`	Input	Longword
`EVT$_USER_SID`	Input	NT security ID
`EVT$_NUMSTRINGS`	Input	Word
`EVT$_DATASIZE`	Input	Longword
`EVT$_STRING_ARRAY`	Input	Array of string pointers
`EVT$_RAW_DATA`	Input	Binary data

Description The NTA$EVENTW routine allows you to register and deregister an event source and report event data. This event logging allows you to record information from within an application. You can use the events routines to track progress within an application or identify problems encountered by an application.

The NTA$EVENTW routine completes synchronously; that is, control is returned to the caller only after the request completes.

Use the following process to write event data:

Register the event source.
This operation defines the event log to which the system writes event data.
Report the event.
This operation causes the system to write the information to the appropriate event log.
Deregister the event source.
This operation frees resources acquired as part of the event source registration operation.

Condition Values Returned

SS$_NORMAL Service completed successfully.

SS$_ACCVIO One of the arguments cannot be read/written.

SS$_BADPARAM Bad parameter.

SS$_NOPRIV Insufficient privilege to access the specified event log.

SS$_TIMEOUT Request timed out.

SS$_UNREACHABLE Events service unavailable.

SS$_REJECT The Windows NT LAN Manager server encountered an error. See the Win32 status for more information.

14.3 Writing Your Own Events

By default, the system logs DCOM events generated by COM for OpenVMS. In addition to recording COM for OpenVMS events, the system can also log COM application events for COM applications that you create.

The COM for OpenVMS kit includes sample code that shows how to generate an application event using Win32 APIs. You can use this example as is on a Windows NT system. The example also builds correctly using the instructions for building COM for OpenVMS applications on OpenVMS (to get the required header files from DCOM$LIBRARY). See Chapter 7 for these instructions. The example also includes the linking instructions to build the example using Wind/U.

14.4 Troubleshooting OpenVMS Events

Errors that occur during event reporting can be difficult to trace because of the number of intervening software layers through which the event passes. The following list describes how OpenVMS Events pass through other software layers until they are recorded in the Windows NT log.

An application calls one of the Win32 event functions ( RegisterEventSource , ReportEvent , or DeregisterEventSource ).
Using the supplied arguments, the Win32 API builds an appropriate item list and calls the NTA$EVENTW routine.
The NTA$EVENTW routine validates the information supplied (function code, item list, and so on) and builds an appropriate item list for the SYS$ACM system service.
If NTA$EVENT detects any errors NTA$EVENT returns the errors to the Win32 API using R0 and the event status block.
The SYS$ACM system service validates the information and passes it to the NT ACME.
If SYS$ACM detects any errors, SYS$ACM returns the errors to NTA$EVENTW using R0 and the ACM status block..
The NT ACME passes the supplied information (using an IPC pipe) to a dispatcher in the Advanced Server for OpenVMS.
If the NT ACME detects any errors, the NT ACME returns the errors to the caller using the ACM status block.
The Advanced Server for OpenVMS dispatcher validates the information and calls the appropriate routines to perform the requested operation (register, report, or deregister).
If the Advanced Server for OpenVMS detects any errors, it reports the errors to the NT ACME. The NT ACME passes the errors back to the other callers.

Checking the contents of the event status block help you determine where the failure might have happened. Table 14-1 lists (in order of importance) the checks you should perform.

**Table 14-1 Troubleshooting OpenVMS Events Failures**
R0 Status	Status Field Value	Component to Check
Failure (bit 0 clear)	EVT$L_NT_STATUS field is nonzero.	Error most likely occurred within Advanced Server for OpenVMS.
Failure	EVT$L_VMS_STATUS field is nonzero and the EVT$L_NT_STATUS is zero.	Error most likely occurred within the SYS$ACM system service or the NT ACME.
Failure	EVT$L_VMS_STATUS is zero and EVT$L_NT_STATUS is zero.	Error most likely occurred within the SYS$ACM system service.

Note

The Win32 API usually converts the error status to an appropriate NT error status code and makes it available through the GetLastError Win32 API. (The status returned by the event API simply indicates a generic failure.)

Part 4
Appendixes

This part contains reference information about COM for OpenVMS and the OpenVMS Registry.

The appendixes provide information about the MIDL compiler, troubleshooting tips, COM sample code, running COM for OpenVMS in an unauthenticated environment, and APIs and interfaces.

This part also includes coupons for related COM books, a glossary, and a list of acronyms.

Appendix A
MIDL Compiler Options

A.1 Mode

Switch	Use
`/ms_ext`	Microsoft extensions to the IDL language (default)
`/c_ext`	Allow Microsoft C extensions in the IDL file (default)
`/osf`	OSF mode - disables /ms_ext and /c_ext options
`/app_config`	Allow selected ACF attributes in the IDL file
`/mktyplib203`	MKTYPLIB Version 2.03 compatibility mode

A.2 Input

Switch	Use
`/acf filename`	Specify the attribute configuration file
`/I directory-list`	Specify one or more directories for include path
`/no_def_idir`	Ignore the current and the INCLUDE directories

A.3 Output File Generation

Switch	Use
`/client none`	Do not generate client files
`/client stub`	Generate client stub file only
`/out directory`	Specify destination directory for output files
`/server none`	Generate no server files
`/server stub`	Generate server stub file only
`/syntax_check`	Check syntax only; do not generate output files
`/Zs`	Check syntax only; do not generate output files
`/old`	Generate old format type libraries
`/new`	Generate new format type libraries

A.4 Output File Names

Switch	Use
`/cstub filename`	Specify client stub file name
`/dlldata filename`	Specify dlldata file name
`/h filename`	Specify header file name
`/header filename`	Specify header file name
`/iid filename`	Specify interface UUID file name
`/proxy filename`	Specify proxy file name
`/sstub filename`	Specify server stub file name
`/tlb filename`	Specify type library file name

A.5 C Compiler and Preprocessor Options

Switch	Use
`/cpp_cmd cmd_line`	Specify name of C preprocessor
`/cpp_opt options`	Specify additional C preprocessor options
`/D name[=def]`	Pass #define name, optional value to C preprocessor
`/no_cpp`	Turn off the C preprocessing option
`/nocpp`	Turn off the C preprocessing option
`/U name`	Remove any previous definition (undefine)

A.6 Environment

Switch	Use
`/char signed`	C compiler default char type is signed
`/char unsigned`	C compiler default char type is unsigned
`/char ascii7`	Char values limited to 0-127
`/dos`	Target environment is MS-DOS client
`/env dos`	Target environment is MS-DOS client
`/env mac`	Target environment is Apple Macintosh
`/env powermac`	Target environment is Apple PowerMac
`/env win16`	Target environment is Microsoft Windows 16-bit (Win 3.x)
`/env win32`	Target environment is Microsoft Windows 32-bit (NT)
`/mac`	Target environment is Apple Macintosh
`/ms_union`	Use Midl 1.0 non-DCE wire layout for non-encapsulated unions
`/oldnames`	Do not mangle version number into names
`/powermac`	Target environment is Apple PowerMac
`/rpcss`	Automatically activate rpc_sm_enable_allocate
`/use_epv`	Generate server side application calls via entry-pt vector
`/no_default_epv`	Do not generate a default entry-point vector
`/prefix client str`	Add "str" prefix to client-side entry points
`/prefix server str`	Add "str" prefix to server-side manager routines
`/prefix switch str`	Add "str" prefix to switch routine prototypes
`/prefix all str`	Add "str" prefix to all routines
`/win16`	Target environment is Microsoft Windows 16-bit (Win 3.x)
`/win32`	Target environment is Microsoft Windows 32-bit (NT)

A.7 Error and Warning Messages

Switch	Use
`/error none`	Turn off all error checking options
`/error allocation`	Check for out of memory errors
`/error bounds_check`	Check size vs transmission length specification
`/error enum`	Check enum values to be in allowable range
`/error ref`	Check ref pointers to be non-null
`/error stub_data`	Emit additional check for server side stub data validity
`/no_warn`	Suppress compiler warning messages

A.8 Optimization

Switch	Use
`/align {1\|2\|4\|8}`	Designate packing level of structures
`/pack {1\|2\|4\|8}`	Designate packing level of structures
`/Zp{1\|2\|4\|8}`	Designate packing level of structures
`/Oi`	Generate fully interpreted stubs
`/Oic`	Generate fully interpreted stubs for standard interfaces and stubless proxies for object interfaces as of NT 3.51 release
`/Oicf`	Generate fully interpreted stubs with extensions and stubless proxies for object interfaces as of NT 4.0 release
`/Os`	Generate inline stubs
`/hookole`	Generate HookOle debug info for local object interfaces

A.9 Miscellaneous

Switch	Use
`@response_file`	Accept input from a response file
`/?`	Display a list of MIDL compiler switches
`/confirm`	Display options without compiling MIDL source
`/help`	Display a list of MIDL compiler switches
`/nologo`	Suppress displaying of the banner lines
`/o filename`	Redirects output from screen to a file
`/W{0\|1\|2\|3\|4}`	Specify warning level 0-4 (default = 1)
`/WX`	Report warnings at specified /W level as errors

Appendix B
Troubleshooting

B.1 RPC Troubleshooting

When you perform a significant number of simultaneous NTLM authentications, the following errors are likely to occur. Several factors affect the number of simultaneous NTLM authentications, however, you are most likely to see these errors when the network is congested or when the RPC application server does not respond to requests in a timely manner. The errors are returned as standard RPC application return values.

Table B-1 provides a description of the suspected cause and possible workarounds.

**Table B-1 RPC Errors**
Error	Cause/Corrective Actions
RPC_S_CONNECTION_REJECTED	This error is seen by the client application as an exception when using either DECnet Phase IV or DECnet Phase V as a transport and when the server is heavily loaded servicing other DECnet clients. The system returns this error when the client RPC run time binds to a newly created socket and the socket call returns error 61 (connection refused). Possible solutions: Raise DECnet resource quotas. Enhance the client RPC program to catch the exception and either retry the RPC or choose a different server.
RPC_S_CONNECTION_TIMED_OUT	This error is seen by the client application as an exception when using TCP or DECnet as a transport and when the server is heavily loaded. The system returns this error when the client RPC run time binds to a newly created socket and the server takes too long to either accept or reject the connection. Possible solutions: Configure TCP or DECnet to wait longer before sockets time out. Enhance the RPC client application to call `rpc_mgmt_set_com_timeout()` and instruct the RPC run time to retry when it gets this socket error. Recode the client RPC program to catch the exception and either retry the RPC or choose a different server.
RPC_S_ASSOC_SHUTDOWN	This error is seen by the client application as an exception when using TCP or DECnet as a transport and when the client is heavily loaded (usually when the client is also an RPC server). After an RPC server receives an RPC_BIND packet from a client and the server sends back an RPC_BIND_ACK packet to the client, the server expects to receive a `REQUEST` packet within 12 seconds. If the client does not send the `REQUEST` packet within 12 seconds, the RPC server deletes the association and sends a `SHUTDOWN` packet to the client. The client RPC run time raises an exception to the RPC application. This scenario is likely to occur when the client RPC application is also acting as an RPC server and that RPC server is already heavily loaded. Possible solutions: Implement the client RPC program to catch the exception and either retry the RPC or choose a different server.
RPC_S_COMM_FAILURE	This error is seen by the client application as an exception when using DG (UDP) as a transport and when the RPC server is heavily loaded. The RPC client sends a `REQUEST` packet to the server. If the client does not get a `WORKING` packet response from the server within 30 seconds, the client sends a `PING` packet to the server to see if the server is still active and working on the client's request. If the RPC server is under heavy load, the server may not return the `WORKING` packet to the client before the client times out. Possible solutions: RPC client application can call `rpc_mgmt_set_com_timeout()` to instruct the RPC run time to wait longer than 30 seconds before timing out. Implement the client RPC program to catch the exception and either retry the RPC or choose a different server.

B.2 Troubleshooting the ACME server

Use the following procedure to troubleshoot problems with the ACME server:

Verify that the ACME_SERVER process is running (use the SHOW SERVER ACME command) and verify there is a connection between the MSV1_0 ACME agent and the Advanced Server for OpenVMS process.
If no connection exists, verify that the PWRK$ACME_SERVER logical name contains the SCS node names of systems in the cluster that are running the Advanced Server for OpenVMS process.
If the PWRK$ACME_SERVER logical name is defined correctly, verify that the Advanced Server for OpenVMS process is running on the systems specified (look for the PWRK$LMSRV process).
If authentications are failing, check the following:
- Interdomain authentication (EASTOSHKOSK\JOE) requires trust relationships. Use the Advanced Server for OpenVMS ADMINISTER ADD TRUST[/TRUSTED] or [/PERMITTED] command to establish the desired trust relationships between two domains.
- Windows NT passwords are case sensitive. Be sure you have entered the passwords using the correct case.
- Windows NT user either has no OpenVMS hostmap account or maps to an invalid OpenVMS account (the default UAF mapping is PWRK$DEFAULT, which has DISUSER flag set). Use the Advanced Server for OpenVMS ADMINISTER ADD HOSTMAP command to map the Windows NT user name to a valid OpenVMS account.
- Windows NT user account is invalid, expired, disabled, or has an invalid password. Use the Advanced Server for OpenVMS ADMINISTER SHOW USER/FULL command to display the complete user account information. Use the Advanced Server for OpenVMS ADMINISTER SHOW ACCOUNT POLICY command to display the domain policy information.
- OpenVMS account does not have EXTAUTH flag set. In AUTHORIZE, use the UAF utility MODIFY user-name/FLAG=EXTAUTH command. (You can override this requirement by setting the IGNORE_EXTAUTH bit (bit number 11 [decimal]) in the SECURITY_POLICY system parameter.)
- UAF record flag is set to DISUSER. In AUTHORIZE, use the UAF utility MODIFY user-name/FLAG=NODISUSER command.
- UAF record modal restrictions prevent "login" (check local dialup, remote, network, and batch access restrictions). In AUTHORIZE, use the UAF utility MOD user-name/LOCAL (or DIALUP, BATCH, NETWORK,REMOTE) keywords; INTERACTIVE sets LOCAL, DIALUP, and REMOTE access restrictions.
- Intrusion subsystem has entered break-in evasion mode because the number of failed logins has exceeded the system threshold (set by SYSGEN parameter LGI_BRK_LIM). Use the SHOW INTRUSION command to view the intrusion database. Use the DELETE/INTRUSION source command to remove entries from the database. If the LGI_BRK_DISUSER is set, the UAF record may be set to DISUSER. Use the OpenVMS AUTHORIZE command to reset the flag.

B.3 Troubleshooting the DCOM$RPCSS Process

The DCOM$RPCSS process must be running to run any COM for OpenVMS applications on your OpenVMS system. The DCOM$STARTUP.COM command file is automatically starts this process. If you have problems running COM for OpenVMS applications, check that this process is running. Use the following command:

  $ SHOW SYSTEM

If the process is initializing, the process name is DCOM$STARTUP-**. If the process is in its normal running state, the process name is be DCOM$RPCSS.

Check the SYS$MANAGER:DCOM$RPCSS.OUT log file for error messages from the DCOM$RPCSS process. The messages can include the following:

%ACME-E-PWDEXPIRED, password has expired
If the DCOM$RPCSS log file contains this error, do the following:
1. Run the Advanced Server for OpenVMS ADMIN utility and to change the password of the DCOM$RPCSS account. See Section 6.2.1.
2. Update the COM for OpenVMS Service Control Manager password file. See Section 6.2.1.

B.4 Troubleshooting the Advanced Server for OpenVMS

The Advanced Server for OpenVMS must be running to authenticate users with NT credentials.

A troubleshooter may wish to enable the audit policy to capture failures for logonoff and system events. For example, on systems running Advanced Server for OpenVMS, issue the command:

    $ ADMINISTER SET AUDIT POLICY/AUDIT/FAILURE=(LOGONOFF,SYSTEM)

To monitor events, issue the commands:

    $ ADMINISTER SHOW EVENT /FULL /TYPE=SYSTEM
    $ ADMINISTER SHOW EVENT /FULL /TYPE=SECURITY

For more information, the Advanced Server for OpenVMS Server Administrator's Guide provides a chapter on Monitoring Events and Troubleshooting.

Additionally, the system manager may want to check the system operator log, SYSMANAGER:OPERATOR.LOG, to verify that no network errors have occurred.

B.5 Troubleshooting COM for OpenVMS Application Failures

This section describes problems you may encounter when running a COM application.

B.5.1 Access Denied Failures

For information on access denied failures, see Section 5.4.6.

Appendix C
Cookbook Examples: Building a Sample Application on OpenVMS

Note

SAMPLE1 and DISPATCH_SAMPLE1 are taken from Dale Rogerson's book, Inside COM, published by Microsoft Press.

C.1 COM Example (Sample1)

This sample implements a COM client and server in which the component provides two interfaces: IX and IY . The client also queries the component for a third interface, IZ , an interface that the component does not provide.

This sample demonstrates connectivity between two OpenVMS systems, between two Windows NT systems, or between an OpenVMS system and a Windows NT system.

Note

Before you build the application on OpenVMS, you must run NTA$LOGON and acquire Windows NT credentials. For more information, see Section 8.2.

C.1.1 OpenVMS Instructions

The following sections describe how to build the application on an OpenVMS system.

C.1.1.1 Building the Application on OpenVMS

Copy files from the DCOM examples directory to your local directory. For example:

   $ set default mydisk:[mydirectory]
   $ copy dcom$examples:[sample1]*.* []

To build the application, run the following command procedure:

   $ @build_sample1

If you have MMS, you can use the included description file as follows:

   $  MMS/DESCRIPTION=BUILD_SAMPLE1.MMS

The BUILD file builds and registers both the in-process and out-of-process servers.

C.1.1.2 Registering the Application on OpenVMS

The build procedure automatically registers both DISPCMPNT$SHR.EXE and DISPCMPNT.EXE . To register the components manually, use the following procedure:

To register the in-process server, use the REGSVR32 utility as follows:

  $ regsvr32 :== $DCOM$REGSVR32.EXE
  $ regsvr32 path-nameDISPCMPNT$SHR.EXE

To unregister the in-process server, use the REGSVR32 utility as follows:
$ regsvr32 /u path-nameDISPCMPNT$SHR.EXE

To register the out-of-process server:

  $ dispcmpnt :== $path-nameDISPCMPNT.EXE
  $ dispcmpnt /regserver

To unregister the out-of-process server:
$ dispcmpnt /unregserver
To register the Proxy Stub, use the REGSVR32 utility as follows:
$ regsvr32 path-namePROXY$SHR.EXE
To unregister the Proxy Stub, use the REGSVR32 utility as follows:
$ regsvr32 /u path-namePROXY$SHR.EXE

C.1.1.3 Running the Application on OpenVMS as an Out-of-Process Server

To run the sample where the component is an out-of-process server, run DISPCMPNT.EXE . When the system displays the Server: Waiting message from the component, run the client in a separate window or terminal session.

Window (or terminal session) 1:
$ run dispcmpnt

Window (or terminal session) 2:

   $ client :== $path-nameCLIENT.EXE
   For OutProc:
   $ client
   2
   $

The client displays the following:

  To which server do you want to connect?
   1) In-Process Server
   2) Out-of-Process Server
   :

Enter 2 to select the out-of-process server.

C.1.1.4 Running the Application on OpenVMS and Specifying a Remote Server

Run DISPCMPNT.EXE on the system you designate as the remote machine (or server system). The remote system can also be a Windows NT system. When you receive the Server: Waiting message from the component, run the client on the system you designate as the local machine (or client system). For example:

   $ client :== $path-nameCLIENT.EXE
   $ client remote-system-name
   2
   $

The client displays the following:

  To which server do you want to connect?
   1) In-Process Server
   2) Out-of-Process Server
   :

Enter 2 to select remote server execution, out-of-process server.

C.1.1.5 Running the Application on OpenVMS as an In-Process Server

To run the sample where the component is an in-process server, run only the client. For example:

   For InProc:
   $ client
   1
   $

The client displays the following:

  To which server do you want to connect?
   1) In-Process Server
   2) Out-of-Process Server
   :

Enter 1 to select the in-process server.

C.1.2 Windows NT Instructions

The following sections describe how to build the application on a Windows NT system.

Note

In order to build Visual C++ applications from a DOS window, you must first set up a number of environment variables. If you did not select the option to have these variables set up automatically when you installed Visual C++, you will need to set them up each time you create a DOS window. To set up these variables, execute the file

C:\Program Files\Microsoft Visual Studio\VC98\BIN\VCVARS32.BAT

C.1.2.1 Building the Application on Windows NT

Copy the README-SAMPLE1.TXT file and the following files from the COM examples directory to your Windows NT system:

   CLIENT.CXX
   DCLIENT.CXX
   DISPCMPNT.CXX
   DISPCMPNT.DEF
   DISPCMPNT.IDL
   MAKE-ONE.
   MAKEFILE.BAT
   REGISTRY.CXX
   REGISTRY.H

Build the sample using the MAKEFILE.BAT file. For example:

   > MAKEFILE

The Makefile builds and registers both the in-process and out-of-process servers.

C.1.2.2 Registering the Application on Windows NT

The build procedure make-one automatically registers DISPCMPNT.DLL , PROXY.DLL , and CMPNT.EXE as follows:

   regsvr32 -s Dispcmpnt.dll
   regsvr32 -s Proxy.dll
   Dispcmpnt /RegServer

To unregister the application, enter the following:

   regsvr32 -u Dispcmpnt.dll
   regsvr32 -u Proxy.dll
   Dispcmpnt /UnRegServer

C.1.2.3 Running the Application on Windows NT

Run CLIENT . Follow the same procedure as described for OpenVMS for running the application as an in-process server ( Section C.1.1.5) and out-of-process server Section C.2.1.3).

Use the name of a remote machine (UNC or DNS) as an argument to instantiate the object on the remote machine. For example:

   >Client hostname        ! point the client at the remote system
   2                       ! means outproc invocation
   >

C.2 Automation Example (Dispatch_Sample1)

This sample implements the Automation component server as a dual interface. There are two separate clients: Dclient , which connects to the dual interface through the dispinterface, and Client , which is a COM client implementation that connects through the IUnknown interface (using a v-table).

This sample demonstrates connectivity between two OpenVMS systems, between two Windows NT systems, or between an OpenVMS system and a Windows NT system.

C.2.1 OpenVMS Instructions

The following sections describe how to build the application on an OpenVMS system.

C.2.1.1 Building the Application on OpenVMS

Copy files from the DCOM examples directory to your local directory. For example:

   $ set default mydisk:[mydirectory]
   $ copy dcom$examples:[dispatch_sample1]*.* []

To build the application, run the following command procedure:

   $ @build_dispatch_sample1

If you have MMS, you can use the included description file as follows:

   $  MMS/DESCRIPTION=BUILD_DISPATCH_SAMPLE1.MMS

The BUILD file builds and registers both the in-process and out-of-process servers.

C.2.1.2 Registering the Application on OpenVMS

The build procedure automatically registers both DISPCMPNT$SHR.EXE and DISPCMPNT.EXE . To register the components manually, use the following procedure:

To register the in-process server, use the REGSVR32 utility as follows:

  $ regsvr32 :== $DCOM$REGSVR32.EXE
  $ regsvr32 path-nameDISPCMPNT$SHR.EXE

To unregister the in-process server, use the REGSVR32 utility as follows:
$ regsvr32 /u path-nameDISPCMPNT$SHR.EXE

To register the out-of-process server:

  $ dispcmpnt :== $path-nameDISPCMPNT.EXE
  $ dispcmpnt /regserver

To unregister the out-of-process server:
$ dispcmpnt /unregserver

C.2.1.3 Running the Application on OpenVMS as an Out-of-process Server

To run the sample where the component is an out-of-process server, run DISPCMPNT.EXE .

When the system displays the Server: Waiting message from the component, run the client in a separate window or terminal session.

Window (or terminal session) 1:
$ run dispcmpnt
Window (or terminal session) 2:
- For dispatch client:
  $ run dclient
- For COM client:
  $ run client

The client displays the following:

  To which server do you want to connect?
   1) In-Process Server
   2) Out-of-Process Server
   :

Enter 2 to select the out-of-process server.

C.2.1.4 Running the Application on OpenVMS and Specifying a Remote Server

To use the COM client, enter the following:

   $ client :== $path-nameCLIENT.EXE
   $ client remote-system-name
  To which server do you want to connect?
   1) In-Process Server
   2) Out-of-Process Server
   :

Enter 2 to select remote server execution, out-of-process server.

C.2.1.5 Running the Application on OpenVMS as an In-Process Server

To run the sample where the component is an in-process server, run only the client. For example:

For dispatch client:
$ run dclient
For COM client:
$ run client

The client displays the following:

  To which server do you want to connect?
   1) In-Process Server
   2) Out-of-Process Server
   :

Enter 1 to select the in-process server.

C.2.2 Windows NT Instructions

The following sections describe how to build the application on a Windows NT system.

Note

C:\Program Files\Microsoft Visual Studio\VC98\BIN\VCVARS32.BAT

C.2.2.1 Building the Application on Windows NT

Copy the README-DISPATCH-SAMPLE1.TXT file and the following files from the COM examples directory to your Windows NT system:

   CLIENT.CXX
   DCLIENT.CXX
   DISPCMPNT.CXX
   DISPCMPNT.DEF
   DISPCMPNT.IDL
   MAKE-ONE.
   MAKEFILE.BAT
   REGISTRY.CXX
   REGISTRY.H

Build the sample using the MAKEFILE.BAT file. For example:

   C:> MAKEFILE

The Makefile builds and registers both the in-process and out-of-process servers.

C.2.2.2 Registering the Application on Windows NT

The build procedure make-one automatically registers DISPCMPNT.DLL , PROXY.DLL , and DISPCMPNT.EXE as follows:

   regsvr32 -s Dispcmpnt.dll
   Dispcmpnt /RegServer

To unregister the application, enter the following:

   regsvr32 -u Dispcmpnt.dll
   Dispcmpnt /UnRegServer

C.2.2.3 Running the Application on Windows NT

Run DCLIENT or CLIENT . Follow the same procedure as described for OpenVMS for running the application as an in-process server ( Section C.2.1.5) and an out-of-process server ( Section C.2.1.3).

Use the name of a remote machine (UNC or DNS) as an argument to instantiate the object on the remote machine.

C.3 Cross-Domain Security Example (CLIENTAUTH)

This sample shows how you can authenticate a remote client that is not in the server's domain or in a domain that has a trust with the server's domain. The client must pass to this application the credentials (user name, domain and password) of an account on the server's domain that is allowed access and launch permissions. In fact, the client need not be in any domain and can be anywhere on the network. This is demonstrated in Section C.3.1.3.

C.3.1 OpenVMS Instructions

The following sections describe how to build the application on an OpenVMS system.

Note

Not all functionality is present in the underlying Windows NT infrastructure on OpenVMS. Therefore, you cannot currently run the client on OpenVMS. This sample works when you run the client on Windows NT and the server on OpenVMS.

Copy files from the DCOM examples directory to your local directory.

   $ set default mydisk:[mydirectory]
   $ copy dcom$examples:[clientauth]*.* []

To build the application, run the command procedure:

   $ @build_clientauth

The BUILD file builds and registers both the in-process and out-of-process servers.

C.3.1.1 Registering the Application on OpenVMS

PROXY$SHR.EXE , CLIENTAUTH$SHR.EXE , and CLIENTAUTH.EXE are registered automatically by the build procedure. To register the application manually, use the following procedure:

To register the in-process server, use the REGSVR32 utility provided:

  $ regsvr32 :== $DCOM$REGSVR32.EXE
  $ regsvr32 <path-name>CLIENTAUTH$SHR.EXE
  $ regsvr32 <path-name>PROXY$SHR.EXE

To unregister the in-process server:

  $ regsvr32 /u <path-name>CLIENTAUTH$SHR.EXE
  $ regsvr32 /u <path-name>PROXY$SHR.EXE

To register the out-of-process server:

  $ clientauth :== $<path-name>CLIENTAUTH.EXE
  $ clientauth /regserver

To unregister the out-of-process server:
$ clientauth /unregserver

C.3.1.2 Running the Application on OpenVMS as an Out-of-Process Server

To run the sample where the component is an out-of-process server, run CLIENTAUTH.EXE . When you receive the server waiting message from the component, run the client (in a separate window or terminal session).

Window (or terminal session) 1:
$ run clientauth
Window (or terminal session) 2:
$ client :== $<path-name>CLIENT.EXE For OutProc: $ client 2 $
The client will ask whether you want to start an in-process server or an out-of-process server. Select out-of-process server.

C.3.1.3 Running the Application on OpenVMS and Specifying a Remote Server

Run CLIENTAUTH.EXE on the system you designate as the remote machine, or server system. The remote system can also be a Windows NT system. When you receive the server waiting message from the component, run the client on the system you designate as the local machine, or client system.

   $ client :== $<path-name>CLIENT.EXE
   $ client <remote-system-name>
   2
   $ Please enter account to use on remote machine:
   $ Username:
   $ Domain:
   $ Password:

The client will ask whether you want to start an in-process server or an out-of-process server. For remote server execution, select out-of-process server. You will then be prompted to enter the user name, domain and password of an account on the remote server. Make sure this account has been granted access and launch permissions to the component (see Section 6.3.2).

C.3.1.4 Running the Application on OpenVMS as an In-Process Server

To run the sample where the component is an in-process server, run only the client:

   For InProc:
   $ client
   1
   $

The client will ask whether you want to start an in-process server or an out-of-process server. Select in-process server.

C.3.2 Windows NT Instructions

The following sections describe how to build the application on a Windows NT system.

Note

C:\Program Files\Microsoft Visual Studio\VC98\BIN\VCVARS32.BAT

C.3.2.1 Building the Application on Windows NT

Copy this file README-CLIENTAUTH.TXT and the following files from the DCOM examples directory to your Windows NT system:

   CLIENT.CXX
   CLIENTAUTH.CXX
   CLIENTAUTH.DEF
   CLIENTAUTH.IDL
   GUIDS.CXX
   MAKE-ONE.
   MAKEFILE.BAT
   PROXY.DEF
   REGISTRY.CXX
   REGISTRY.H

Build the sample using the MAKEFILE.BAT file.

   > MAKEFILE

The Makefile builds and registers both the in-process and out-of-process servers.

C.3.2.2 Registering the Application on Windows NT

CLIENTAUTH.DLL , PROXY.DLL , and CLIENTAUTH.EXE are registered automatically by the build procedure <make-one>:

   regsvr32 -s clientauth.dll
   regsvr32 -s Proxy.dll
   clientauth /RegServer

To unregister:

   regsvr32 -u clientauth.dll
   regsvr32 -u Proxy.dll
   clientauth /UnRegServer

C.3.2.3 Running the Application on Windows NT

Run CLIENT. Follow the same procedure as described for OpenVMS for running application as in-process and out-of-process (see Section C.3.1.2 and Section C.3.1.4).

Do not use command line arguments to instantiate the object on the current machine. Use the name of a remote machine (UNC or DNS) as an argument to instantiate the object on the remote machine.

  (i.e) >Client hostname        ! point the client at the remote system
        2                       ! means outproc invocation
        >
        >Username:
        >Domain:
        >Password:

Contents

Index

HP OpenVMS Systems Documentation

OpenVMS Connectivity Developer Guide

REG$_SUBKEYINDEX

REG$_SUBKEYNAME

REG$_SUBKEYNAMEMAX

REG$_SUBKEYSNUMBER

REG$_VALUEINDEX

REG$_VALUEDATA

REG$_VALUEDATAMAX

REG$_VALUENAME

REG$_VALUENAMEMAX

REG$_VALUENUMBER

REG$_VOLATILE

REG$M_CASE_SENSITIVE

REG$M_DISABLE_WILDCARDS

REG$M_IGNORE_LINKS

REG$M_NOW

Part 3OpenVMS Events

Chapter 14OpenVMS Events

14.1 What are Events?

14.2 Overview of OpenVMS Events

14.2.1 Viewing OpenVMS Events Using Windows NT Event Viewer

14.2.2 Viewing OpenVMS Events Using Advanced Server for OpenVMS Event Viewer

14.2.3 Event Logging on OpenVMS Only

NTA$EVENTW

Format

Arguments

nullarg

func

itmlst

evsb

EVT$_FC_REGISTER_EVENT_SOURCE

EVT$_FC_REPORT_EVENT

EVT$_DEREGISTER_EVENT_SOURCE

Condition Values Returned

Part 4Appendixes

Appendix AMIDL Compiler Options

A.1 Mode

A.2 Input

A.3 Output File Generation

A.4 Output File Names

A.5 C Compiler and Preprocessor Options

A.6 Environment

A.7 Error and Warning Messages

A.8 Optimization

A.9 Miscellaneous

Appendix BTroubleshooting

B.1 RPC Troubleshooting

B.2 Troubleshooting the ACME server

B.3 Troubleshooting the DCOM$RPCSS Process

B.4 Troubleshooting the Advanced Server for OpenVMS

Appendix CCookbook Examples: Building a Sample Application on OpenVMS

C.1 COM Example (Sample1)

C.1.1 OpenVMS Instructions

C.1.1.3 Running the Application on OpenVMS as an Out-of-Process Server

C.1.2.1 Building the Application on Windows NT

C.1.2.3 Running the Application on Windows NT

C.2 Automation Example (Dispatch_Sample1)

C.2.1.3 Running the Application on OpenVMS as an Out-of-process Server

C.2.2.1 Building the Application on Windows NT

C.2.2.3 Running the Application on Windows NT

C.3.1.2 Running the Application on OpenVMS as an Out-of-Process Server

C.3.1.3 Running the Application on OpenVMS and Specifying a Remote Server

C.3.2.1 Building the Application on Windows NT

C.3.2.3 Running the Application on Windows NT

Part 3
OpenVMS Events

Chapter 14
OpenVMS Events

Part 4
Appendixes

Appendix A
MIDL Compiler Options

Appendix B
Troubleshooting

Appendix C
Cookbook Examples: Building a Sample Application on OpenVMS
