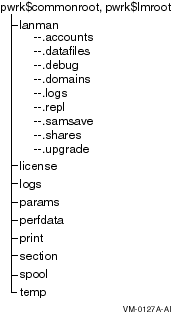

Figure F-1, PATHWORKS Advanced Server On-Disk Structure Diagram, shows the PATHWORKS Advanced Server on-disk structure. Note that only a portion of the substructure is shown.
Figure F-1 PATHWORKS Advanced Server On-Disk Structure Diagram
Table G-1, PATHWORKS Advanced Server Logical Names, describes the logical names that are created when you configure or start the PATHWORKS Advanced Server.
| Logical Name | Description |
|---|---|
| NETBIOS$DEVICE | Used for the DECnet device. This logical name is not defined during installation; it is used to define network adapters under certain circumstances. (For more information, see Section 3.8, The Advanced Server Network Adapter.) |
| PWRK$ACME_MODULE | System-specific external authentication software (either VAX or Alpha). |
| PWRK$ACME_SERVER | On an OpenVMS Cluster member that is not running the Advanced Server software and does not have access to external authentication software by means of a shared cluster disk, defines OpenVMS Advanced Server cluster members designated to process external authentication requests for that member. This logical name is not defined during installation. (For more information, see Section 5.6.1, Setting Up External Authentication in OpenVMS Clusters.) |
| PWRK$ACME_DEFAULT_DOMAIN | Defines the default domain for users using external authentication. This logical name is not defined during installation. (For more information, refer to the Compaq PATHWORKS for OpenVMS (Advanced Server) Server Administrator's Guide.) |
| PWRK$ADDON_LIBRARY | Location of file system shareable images |
| PWRK$COMMON | Top-level directory for PATHWORKS Advanced Server |
| PWRK$COMMONROOT 1 | Root of the PATHWORKS Advanced Server common directory tree |
| PWRK$CSSHR | Common services module |
| PWRK$KNBDAEMON_DEVICE | Used for the TCP/IP device, this logical name is not defined during installation; it is used to define network adapters under certain circumstances. (For more information, see Section 3.8, The Advanced Server Network Adapter.) |
| PWRK$LANMAN | PATHWORKS Advanced Server area |
| PWRK$LANMAN_STARTED | Indicates whether the PATHWORKS Advanced Server has been started. |
| PWRK$LICENSE | PATHWORKS Advanced Server license area |
| PWRK$LMDATAFILES | PATHWORKS Advanced Server data files area |
| PWRK$LMDEBUG | Area where trace files are written |
| PWRK$LMDOMAINS | PATHWORKS Advanced Server domain area |
| PWRK$LMLOGS | PATHWORKS Advanced Server log file area |
| PWRK$LMMSGFILES | Advanced Server message files |
| PWRK$LMROOT 1 | Root of the PATHWORKS Advanced Server directory tree |
| PWRK$LMMSGFILES | Advanced Server message files |
| PWRK$LMUPGRADE | PATHWORKS Advanced Server upgrade area |
| PWRK$LMREPLEXPORT | Export replication files area |
| PWRK$LMREPLIMPORT | Import replication files area |
| PWRK$LMSAMSAVE | SAM database backup area |
| PWRK$LMSAMSAVEX | SAM database backup area |
| PWRK$LOADSTREAMS | Logical for LoadStreams image |
| PWRK$LOGS | Common log file area |
| PWRK$LR_DISABLE_CLIENT_PING | Defines whether the License Registrar checks for a client-based license or, instead, attempts immediately to assign a server-based license. (For more information, refer to the Compaq Advanced Server for OpenVMS Guide to Managing Advanced Server Licenses.) |
| PWRK$LR_LICENSE_REPORT_INTERVAL | Determines the interval at which reports about server-based licenses are generated in the License Registrar log file; by default, these reports are not generated. |
| PWRK$LR_LOG_SERVERBASED_ACTIVITY | Determines whether events related to server-based licensing are logged. |
| PWRK$LS_V6_ACCESS_UPGRADE | Included in the License Server startup file to allow upgrades of PATHWORKS V5 for OpenVMS (LAN Manager) client license requests. |
| PWRK$LS_V7_ACCESS_UPGRADE | Included in the License Server startup file to allow upgrades of PATHWORKS V5 for OpenVMS (LAN Manager) client license requests. |
| PWRK$NETBEUI_DEVICE | Used for the NetBEUI device, this logical name is not defined during installation; it is used to define network adapters under certain circumstances. (For more information, see Section 3.8, The Advanced Server Network Adapter.) |
| PWRK$PARAMS | Parameter area |
| PWRK$PCFSDRIVER | PCFS driver |
| PWRK$PCIDRIVER | PCI driver |
| PWRK$PERFDATA | PATHWORKS monitor performance data directory |
| PWRK$PRINT | PATHWORKS Advanced Server printer database directory |
| PWRK$ROOT | Top-level directory for PATHWORKS Advanced Server |
| PWRK$SAMSAVE | SAMCHECK data area |
| PWRK$SAMSAVEX | SAMCHECK data area |
| PWRK$SECTION | Section file area |
| PWRK$SHARED_IMAGES | Indicates whether shared images have been loaded. |
| PWRK$SPOOL | Spool area |
| PWRK$TEMP | Temporary PATHWORKS Advanced Server files |
| PWRK$VERSION | File and print server version number |
