HP OpenVMS System Services Reference Manual
$FORGET_RMW
Deletes a Resource Manager instance (RMI) from the calling process.
$FORGET_RMW always waits for the request to complete before returning
to the caller. Other than this, it is identical to $FORGET_RM.
Format
SYS$FORGET_RMW [efn] ,[flags] ,iosb ,[astadr] ,[astprm] ,rm_id
C Prototype
int sys$forget_rmw (unsigned int efn, unsigned int flags, struct _iosb
*iosb, void (*astadr)(__unknown_params), int astprm, unsigned int
rm_id);
$FORMAT_ACL
Formats the specified access control entry (ACE) into a text string.
Format
SYS$FORMAT_ACL aclent ,[acllen] ,aclstr ,[width] ,[trmdsc] ,[indent]
,[accnam] ,[nullarg]
C Prototype
int sys$format_acl (void *aclent, unsigned short int *acllen, void
*aclstr, unsigned short int *width, void *trmdsc, unsigned short int
*indent, unsigned int *accnam, int (*routin)(__unknown_params));
Arguments
aclent
OpenVMS usage: |
char_string |
type: |
character-coded text string |
access: |
read only |
mechanism: |
by descriptor--fixed-length string descriptor |
Description of the ACE formatted when $FORMAT_ACL completes execution.
The aclent argument is the address of a descriptor
pointing to a buffer containing the description of the input ACE. The
first byte of the buffer contains the length of the ACE; the second
byte contains a value that identifies the type of ACE, which in turn
determines the ACE format.
For more information about the ACE format, see the Description section.
acllen
OpenVMS usage: |
word_unsigned |
type: |
word (unsigned) |
access: |
write only |
mechanism: |
by reference |
Length of the output string resulting when $FORMAT_ACL completes
execution. The acllen argument is the address of a
word containing the number of characters written to
aclstr.
aclstr
OpenVMS usage: |
char_string |
type: |
character-coded text string |
access: |
write only |
mechanism: |
by descriptor--fixed-length string descriptor |
Formatted ACE resulting when $FORMAT_ACL completes its execution. The
aclstr argument is the address of a string descriptor
pointing to a buffer containing the output string.
width
OpenVMS usage: |
word_unsigned |
type: |
word (unsigned) |
access: |
read only |
mechanism: |
by reference |
Maximum width of the formatted ACE resulting when $FORMAT_ACL completes
its execution. The width argument is the address of a
word containing the maximum width of the formatted ACE. If this
argument is omitted or contains the value 0, an infinite length display
line is assumed. When the width is exceeded, the character specified by
trmdsc is inserted.
trmdsc
OpenVMS usage: |
char_string |
type: |
character-coded text string |
access: |
read only |
mechanism: |
by descriptor--fixed-length string descriptor |
Line termination characters used in the formatted ACE. The
trmdsc argument is the address of a descriptor
pointing to a character string containing the termination characters
that are inserted for each formatted ACE when the width has been
exceeded.
indent
OpenVMS usage: |
word_unsigned |
type: |
word (unsigned) |
access: |
read only |
mechanism: |
by reference |
Number of blank characters beginning each line of the formatted ACE.
The indent argument is the address of a word
containing the number of blank characters that you want inserted at the
beginning of each formatted ACE.
accnam
OpenVMS usage: |
access_bit_names |
type: |
longword (unsigned) |
access: |
read only |
mechanism: |
by reference |
Names of the bits in the access mask when executing the $FORMAT_ACL.
The accnam argument is the address of an array of 32
quadword descriptors that define the names of the bits in the access
mask. Each element points to the name of a bit. The first element names
bit 0, the second element names bit 1, and so on.
You can call LIB$GET_ACCNAM to retrieve the access name table for the
class of object whose ACL is to be formatted.
If you omit accnam, the following names are used:
Bit |
Name |
Bit 0
|
READ
|
Bit 1
|
WRITE
|
Bit 2
|
EXECUTE
|
Bit 3
|
DELETE
|
Bit 4
|
CONTROL
|
Bit 5
|
BIT_5
|
Bit 6
|
BIT_6
|
.
.
.
|
|
Bit 31
|
BIT_31
|
nullarg
OpenVMS usage: |
null_arg |
type: |
longword (unsigned) |
access: |
read only |
mechanism: |
by value |
Placeholding argument reserved to HP.
Description
The Format Access Control List Entry service formats the specified
access control entry (ACE) into text string representation. There are
seven types of ACE:
- Alarm ACE
- Application ACE
- Audit ACE
- Creator ACE
- Default Protection ACE
- Identifier ACE
- Subsystem ACE
The format for each of the ACE types is described in the following
sections and the byte offsets and type values for each ACE type are
defined in the $ACEDEF system macro library.
Alarm ACE
The access Alarm ACE generates a security alarm. Its format is as
follows:
The following table describes the ACE fields and lists the symbol name
for each:
Field |
Symbol Name |
Description |
Length
|
ACE$B_SIZE
|
Byte containing the length in bytes of the ACE buffer
|
Type
|
ACE$B_TYPE
|
Byte containing the type value ACE$C_ALARM
|
Flags
|
ACE$W_FLAGS
|
Word containing Alarm ACE information and ACE type-independent
information
|
Access
|
ACE$L_ACCESS
|
Longword containing a mask indicating the access modes to be watched
|
Alarm name
|
ACE$T_AUDITNAME
|
Character string containing the alarm name
|
The flag field contains information specific to Alarm ACEs and
information applicable to all types of ACEs. The following symbols are
bit offsets to the Alarm ACE information:
Bit Position |
Meaning When Set |
ACE$V_SUCCESS
|
Indicates that the alarm is raised when access is successful
|
ACE$V_FAILURE
|
Indicates that the alarm is raised when access fails
|
The following symbols are bit offsets to ACE information that is
independent of ACE type:
Bit Position |
Meaning When Set |
ACE$V_DEFAULT
|
This ACE is added to the ACL of any file created in the directory whose
ACL contains this ACE. This bit is applicable only for an ACE in a
directory file's ACL.
|
ACE$V_HIDDEN
|
This ACE is application dependent. You cannot use the DCL ACL commands
and the ACL editor to change the setting; the DCL command DIRECTORY/ACL
does not display it.
|
ACE$V_NOPROPAGATE
|
This ACE is not propagated among versions of the same file.
|
ACE$V_PROTECTED
|
This ACE is not deleted if the entire ACL is deleted; instead, you must
delete this ACE explicitly.
|
The following symbol values are offsets to bits within the access mask.
You can also obtain the symbol values as masks with the appropriate bit
set using the prefix ACE$M rather than ACE$V:
Bit |
Meaning When Set |
ACE$V_READ
|
Read access is monitored.
|
ACE$V_WRITE
|
Write access is monitored.
|
ACE$V_EXECUTE
|
Execute access is monitored.
|
ACE$V_DELETE
|
Delete access is monitored.
|
ACE$V_CONTROL
|
Modification of the access field is monitored.
|
Application ACE

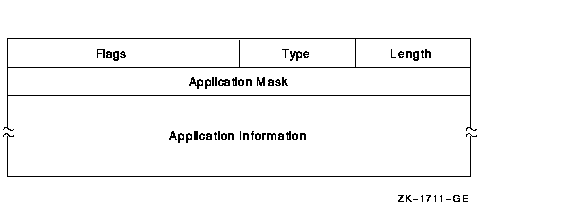

The Application ACE contains application-dependent information. Its
format is as follows:
The following table describes the ACE fields and lists the symbol name
for each:
Field |
Symbol Name |
Description |
Length
|
ACE$B_SIZE
|
Byte containing the length in bytes of the ACE buffer.
|
Type
|
ACE$B_TYPE
|
Byte containing the type value ACE$C_INFO
|
Flags
|
ACE$W_FLAGS
|
Word containing Application ACE information and ACE type-independent
information
|
Application mask
|
ACE$L_INFO_FLAGS
|
Longword containing a mask defined and used by the application
|
Application information
|
ACE$T_INFO_START
|
Variable-length data structure defined and used by the application. The
length of this data is implied by the length field
|
The flag field contains information specific to Application ACEs and
information applicable to all types of ACEs. The following symbol is a
bit offset to the Application ACE information:
Bit |
Meaning When Set |
ACE$V_INFO_TYPE
|
Four-bit field containing a value indicating whether the application is
a CSS application (ACE$C_CSS) or a customer application (ACE$C_CUST).
|
The following symbols are bit offsets to ACE information that is
independent of ACE type:
Bit |
Meaning When Set |
ACE$V_DEFAULT
|
This ACE is added to the ACL of any file created in the directory whose
ACL contains this ACE. This bit is applicable only for an ACE in a
directory file's ACL.
|
ACE$V_HIDDEN
|
This bit is application dependent. You cannot use the DCL ACL commands
and the ACL editor to change the setting; the DCL command DIRECTORY/ACL
does not display it.
|
ACE$V_NOPROPAGATE
|
This ACE is not propagated among versions of the same file.
|
ACE$V_PROTECTED
|
This ACE is not deleted if the entire ACL is deleted; instead, you must
delete this ACE explicitly.
|
Audit ACE
The Audit ACE sets a security audit. Its format is as follows:
The following table describes the ACE fields and lists the symbol name
for each:
Field |
Symbol Name |
Description |
Length
|
ACE$B_SIZE
|
Byte containing the length in bytes of the ACE buffer
|
Type
|
ACE$B_TYPE
|
Byte containing the type value ACE$C_AUDIT
|
Flags
|
ACE$W_FLAGS
|
Word containing Audit ACE information and ACE type-independent
information
|
Access
|
ACE$L_ACCESS
|
Longword containing a mask indicating the access modes to be watched
|
Alarm name
|
ACE$T_AUDITNAME
|
Character string containing the alarm name
|
The following symbols are bit offsets to ACE information that is
independent of ACE type:
Bit Position |
Meaning When Set |
ACE$V_DEFAULT
|
This ACE is added to the ACL of any file created in the directory whose
ACL contains this ACE. This bit is applicable only for an ACE in a
directory file's ACL.
|
ACE$V_HIDDEN
|
This ACE is application dependent. You cannot use the DCL ACL commands
and the ACL editor to change the setting; the DCL command DIRECTORY/ACL
does not display it.
|
ACE$V_NOPROPAGATE
|
This ACE is not propagated among versions of the same file.
|
ACE$V_PROTECTED
|
This ACE is not deleted if the entire ACL is deleted; instead, you must
delete this ACE explicitly.
|
The following symbol values are offsets to bits within the access mask.
You can also obtain the symbol values as masks with the appropriate bit
set using the prefix ACE$M rather than ACE$V.
Bit |
Meaning When Set |
ACE$V_READ
|
Read access is monitored.
|
ACE$V_WRITE
|
Write access is monitored.
|
ACE$V_EXECUTE
|
Execute access is monitored.
|
ACE$V_DELETE
|
Delete access is monitored.
|
ACE$V_CONTROL
|
Modification of the access field is monitored.
|
Creator ACE

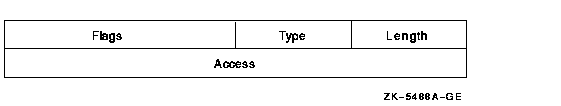

The Creator ACE controls access to an object based on creators. Its
format is as follows:
The following table describes the ACE fields and lists the symbol name
for each:
Field |
Symbol Name |
Description |
Length
|
ACE$B_SIZE
|
Byte containing the length in bytes of the ACE buffer.
|
Type
|
ACE$B_TYPE
|
Byte containing the type value ACE$C_NEW_OWNER.
|
Flags
|
ACE$W_FLAGS
|
Word containing Creator ACE information and ACE type-independent
information.
|
Access
|
ACE$L_ACCESS
|
Longword containing a mask indicating the access modes to be granted to
the creator of the file.
|
The following symbols are bit offsets to ACE information that is
independent of ACE type:
Bit |
Meaning When Set |
ACE$V_NOPROPAGATE
|
This ACE is not propagated among versions of the same file.
|
ACE$V_PROTECTED
|
This ACE is not deleted if the entire ACL is deleted; instead, you must
delete this ACE explicitly.
|
The following symbol values are offsets to bits within the mask
indicating the access mode granted in the system, owner, group, and
world fields:
Bit Position |
Meaning When Set |
ACE$V_READ
|
Read access is granted.
|
ACE$V_WRITE
|
Write access is granted.
|
ACE$V_EXECUTE
|
Execute access is granted.
|
ACE$V_DELETE
|
Delete access is granted.
|
ACE$V_CONTROL
|
Modification of the access field is granted.
|
You can also obtain the symbol values as masks with the appropriate bit
set by using the prefix ACE$M rather than ACE$V.

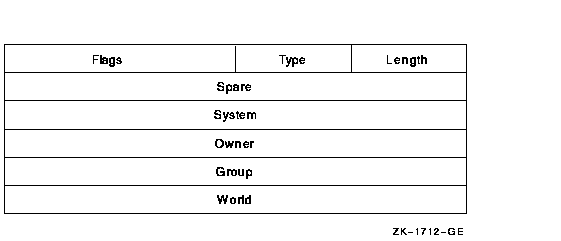

Default Protection ACE
The Default Protection ACE specifies the UIC-based protection for all
files created in the directory. You can use this type of ACE only in
the ACL of a directory file. Its format is as follows:
The following table describes the ACE fields and lists the symbol name
for each:
Field |
Symbol Name |
Description |
Length
|
ACE$B_SIZE
|
Byte containing the length in bytes of the ACE buffer.
|
Type
|
ACE$B_TYPE
|
Byte containing the type value ACE$C_DIRDEF.
|
Flags
|
ACE$W_FLAGS
|
Word containing ACE type-independent information.
|
Spare
|
ACE$L_SPARE1
|
Longword that is reserved for future use and must be 0.
|
System
|
ACE$L_SYS_PROT
|
Longword containing a mask indicating the access mode granted to system
users. Each bit represents one type of access.
|
Owner
|
ACE$L_OWN_PROT
|
Longword containing a mask indicating the access mode granted to the
owner. Each bit represents one type of access.
|
Group
|
ACE$L_GRP_PROT
|
Longword containing a mask indicating the access mode granted to group
users. Each bit represents one type of access.
|
World
|
ACE$L_WOR_PROT
|
Longword containing a mask indicating the access mode granted to the
world. Each bit represents one type of access.
|
The flag field contains information applicable to all types of ACEs.
The following symbols are bit offsets to ACE information that is
independent of ACE type:
Bit Position |
Meaning When Set |
ACE$V_HIDDEN
|
This ACE is application dependent. You cannot use the DCL ACL commands
and the ACL editor to change the setting; the DCL command DIRECTORY/ACL
does not display it.
|
ACE$V_NOPROPAGATE
|
This ACE is not propagated among versions of the same file.
|
ACE$V_PROTECTED
|
This ACE is not deleted if the entire ACL is deleted; instead, you must
delete this ACE explicitly.
|
The system interprets the bits within the access mask as shown in the
following table. The following symbol values are offsets to bits within
the mask indicating the access mode granted in the system, owner,
group, and world fields:
Bit Position |
Meaning When Bit Is Set |
ACE$V_READ
|
Read access is denied.
|
ACE$V_WRITE
|
Write access is denied.
|
ACE$V_EXECUTE
|
Execute access is denied.
|
ACE$V_DELETE
|
Delete access is denied.
|
ACE$V_CONTROL
|
Delete access is denied.
|
You can also obtain the symbol values as masks with the appropriate bit
set by using the prefix ACE$M rather than ACE$V.

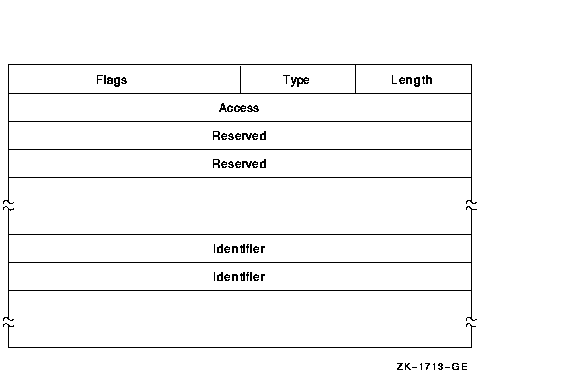

Identifier ACE
The Identifier ACE controls access to an object based on identifiers.
Its format is as follows:
The following table describes the ACE fields and lists the symbol name
for each:
Field |
Symbol Name |
Description |
Length
|
ACE$B_SIZE
|
Byte containing the length in bytes of the ACE buffer.
|
Type
|
ACE$B_TYPE
|
Byte containing the type value ACE$C_KEYID.
|
Flags
|
ACE$W_FLAGS
|
Word containing Identifier ACE information and ACE type-independent
information.
|
Access
|
ACE$L_ACCESS
|
Longword containing a mask indicating the access mode granted to the
specified identifiers.
|
Reserved
|
ACE$V_RESERVED
|
Longwords containing application-specific information. The number of
reserved longwords is specified in the flags field.
|
Identifier
|
ACE$L_KEY
|
Longwords containing identifiers. The number of longwords is implied by
ACE$B_SIZE. If an accessor holds all of the listed identifiers, the ACE
is said to match the accessor, and the access specified in ACE$L_ACCESS
is granted.
|
The flags field contains information specific to Identifier ACEs and
information applicable to all types of ACEs. The following symbol is a
bit offset to Identifier ACE information:
Bit |
Meaning When Set |
ACE$V_RESERVED
|
Four-bit field containing the number of longwords to reserve for
application-dependent data. The number must be between 0 and 15. The
reserved longwords, if any, immediately precede the identifiers.
|
The following symbols are bit offsets to ACE information that is
independent of ACE type:
Bit |
Meaning When Set |
ACE$V_DEFAULT
|
This ACE is added to the ACL of any file created in the directory whose
ACL contains this ACE. This bit is applicable only for an ACE in a
directory file's ACL.
|
ACE$V_HIDDEN
|
This bit is application dependent. You cannot use the DCL ACL commands
and the ACL editor to change the setting; the DCL command DIRECTORY/ACL
does not display it.
|
ACE$V_NOPROPAGATE
|
This ACE is not propagated among versions of the same file.
|
ACE$V_PROTECTED
|
This ACE is not deleted if the entire ACL is deleted; instead, you must
delete this ACE explicitly.
|
|
