HP OpenVMS System Services Reference Manual


Previous Contents Index

Because the processor type is a longword decimal number, the buffer length field in the item descriptor should specify 4 (bytes).

The $PRDEF macro defines the following symbols for the processor types:

Processor Symbol
VAX-11/730 PR$_SID_TYP730
VAX-11/750 PR$_SID_TYP750
VAX-11/780, 785 PR$_SID_TYP780
VAXstation II, II/GPX, and MicroVAX II PR$_SID_TYPUV2
VAXstation 2000/MicroVAX 2000 PR$_SID_TYP410
VAX 8200, 8250, 8300, 8350 PR$_SID_TYP8SS
VAX 8530, 8550, 8810 (8700), and 8820-N (8800) PR$_SID_TYP8NN
VAX 8600, 8650 PR$_SID_TYP790
VAX 8820, 8830, 8840 PR$_SID_TYP8PS
VAXft 3000 Model 310 PR$_SID_TYP520
VAXstation, MicroVAX 3100 series PR$_SID_TYP420
MicroVAX 3300, 3400, 3500, 3600, 3800, 3900 PR$_SID_TYP650
VAXstation 3520, 3540 PR$_SID_TYP60
VAX 4000-300 PR$_SID_TYP670
VAX 6000-200, 6000-300 series PR$_SID_TYP9CC
VAX 6000-400 series PR$_SID_TYP9RR
VAX 9000-200, 9000-400 series PR$_SID_TYP9AQ

On Alpha and I64 systems, $GETSYI returns PR$_SID_TYP_NOTAVAX.

For information about extended processor type codes, see the description for the SYI$_XCPU item code.

SYI$_CPU_AUTOSTART

On Alpha and I64 systems, returns a list of zeroes and ones, separated by commands and indexed by CPU ID. Any entry with a value of one indicates that specific CPU will be brought into the OpenVMS active set if it transitions into the current instance from outside, or is powered up while already owned.

SYI$_CPU_FAILOVER

Returns list of numeric partition IDs, separated by commas and indexed by CPU ID, that define the destination of the processor if the current instance should crash. Supported only on AlphaServer systems that support partitioning.

SYI$_CPUCAP_MASK

On Alpha and I64 systems, returns an array of quadword user capability masks for all CPUs in the system. This array is indexed by CPU ID and contains as many elements as the amount of space specified by the buffer length field in the item descriptor.

To minimize wasted space, a prior call to $GETSYI with SYI$_MAX_CPUS will provide the number of CPUs that need to be retrieved. Multiplying that value by 8 bytes for each quadword provides the value to be written in the buffer length field of the item descriptor.

SYI$_CPUCONF

On Alpha and I64 systems, returns the CPU Configuration bit mask: 0 through 31.

SYI$_CPUTYPE

On Alpha and I64 systems, returns the processor type, as stored in the hardware restart parameter block (HWRPB).

For example, the value of 2 represents a DECchip 21064 processor. Because this number is a longword, the buffer length field in the item descriptor should specify 4 (bytes).

The following table shows the processor codes and processors:

Processor Code Processor
2 21064
4 21066, 21068, 21066A, 21068A
5 21164
6 21064A
7 21164A
8 21264
11 21264A
12 21264C
13 21264B
14 21264D
15 21364
16 21364

SYI$_CWLOGICALS

Returns the number 1 if the clusterwide logical name database has been initialized on the CPU, or the value 0 if it has not been initialized. Because this number is a Boolean value (1 or 0), the buffer length field in the item descriptor should specify 1 (byte).

SYI$_DAY_OVERRIDE

Returns the number 1 if the SET DAY command has been used to override the default primary and secondary day types in the user authorization file that are used to control user logins. $GETSYI returns the number 0 if no override is currently in effect, and the contents of user authorization file records for each user are being honored.

SYI$_DAY_SECONDARY

Returns the number 1 if any override with the SET DAY command has been used to specify that the current day is to be considered a Secondary day for user login purposes. $GETSYI returns the number 0 if any override with the SET DAY command has been used to specify that the current day is to be considered a Primary day for user login purposes.

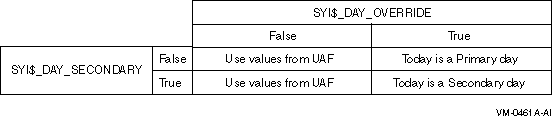

If $GETSYI returns the number 0 for SYI$_DAY_OVERRIDE, the number returned for SYI$_DAY_SECONDARY is meaningless.


SYI$_DECIMAL_EMULATED

Returns the number 1 if the decimal string instructions are emulated on the CPU and the value 0 if they are not.

Because this number is a Boolean value (1 or 0), the buffer length field in the item descriptor should specify 1 (byte).

SYI$_DECNET_FULLNAME

Returns, as a character string, the DECnet for OpenVMS full name of the node.

Because the DECnet for OpenVMS full name of a node can contain up to 255 characters, the buffer length field in the item descriptor should specify 255 (bytes).

SYI$_D_FLOAT_EMULATED

Returns the number 1 if the D_floating instructions are emulated on the CPU and 0 if they are not.

Because this number is a Boolean value (1 or 0), the buffer length field in the item descriptor should specify 1 (byte).

SYI$_DEF_PRIO_MAX

On Alpha and I64 systems, returns the maximum priority for the default scheduling policy.

Because this number is a longword, the buffer length field in the item descriptor should specify 4 (bytes).

SYI$_DEF_PRIO_MIN

On Alpha and I64 systems, returns the minimum priority for the default scheduling policy.

Because this number is a longword, the buffer length field in the item descriptor should specify 4 (bytes).

SYI$_ERLBUFFERPAGES

Returns the number of pages (on VAX systems) or pagelets (on Alpha and I64 systems) in an error log buffer.

Because this number is a longword, the buffer length field in the item descriptor should specify 4 (bytes).

SYI$_ERRORLOGBUFFERS

Returns the number of system pages (on VAX systems) or pagelets (on Alpha and I64 systems) in use as buffers for the error logger.

Because this number is a word in length, the buffer length field in the item descriptor should specify 2 (bytes).

SYI$_F_FLOAT_EMULATED

Returns the number 1 if the F_floating instructions are emulated on the CPU and 0 if they are not.

Because this number is a Boolean value (1 or 0), the buffer length field in the item descriptor should specify 1 (byte).

SYI$_FREE_GBLPAGES

Returns the current number of free global pages. The system parameter GBLPAGES sets the number of global pages that can exist systemwide.

Because the current number is a longword, the buffer length in the item descriptor should specify 4 (bytes).

SYI$_FREE_GBLSECTS

Returns the current number of free global section table entries. The system parameter GBLSECTIONS sets the maximum number of global sections that can exist systemwide.

Because the current number is a longword, the buffer length in the item descriptor should specify 4 (bytes).

SYI$_G_FLOAT_EMULATED

Returns the number 1 if the G_floating instructions are emulated on the CPU and the value 0 if they are not.

Because this number is a Boolean value (1 or 0), the buffer length field in the item descriptor should specify 1 (byte).

SYI$_GALAXY_ID

On Alpha systems, returns the 128-bit Galaxy ID. Supported only on AlphaServer GS series systems.

SYI$_GALAXY_MEMBER

On Alpha systems, returns 1 if you are member of a Galaxy sharing community, 0 if you are not a member. Supported only on AlphaServer GS series systems.

SYI$_GALAXY_PLATFORM

On Alpha systems, returns 1 if you are running on a Galaxy platform, 0 if you are not running on a Galaxy platform. Supported only on AlphaServer GS series systems.

SYI$_GALAXY_SHMEMSIZE

On Alpha systems, returns the number of shared memory pages. If the current instance is not a member of a Galaxy, no shared memory is reported. Supported only on AlphaServer GS series systems.

SYI$_GH_RSRVPGCNT

On Alpha and I64 systems, returns the number of pages covered by granularity hints to reserve for use by the Install utility after system startup has completed.

Because this number is a longword, the buffer length field in the item descriptor should specify 4 (bytes).

SYI$_GLX_FORMATION

On Alpha systems, returns the a time-stamp string when the Galaxy configuration, of which this instance is a member, was created. Supported only on AlphaServer GS series systems.

SYI$_GLX_MAX_MEMBERS

On Alpha systems, returns the maximum count of instances that may join the current Galaxy configuration. Supported only on AlphaServer GS series systems.

SYI$_GLX_MBR_MEMBER

On Alpha systems, returns the 64-byte integer. Each 8 bytes represents a Galaxy member number, listed from 7 to 0. The value is 1 if the instance is currently a member, 0 if not a member. Supported only on AlphaServer GS series systems.

SYI$_GLX_MBR_NAME

On Alpha systems, returns a string indicating the names which are known in the Galaxy membership. Supported only on AlphaServer GS series systems.

SYI$_GLX_TERMINATION

On Alpha systems, returns a time-stamp string when the Galaxy configuration, of which this instance last was a member, was terminated. Supported only on AlphaServer GS series systems.

SYI$_H_FLOAT_EMULATED

Returns the number 1 if the H_floating instructions are emulated on the CPU and the value 0 if they are not.

Because this number is a Boolean value (1 or 0), the buffer length field in the item descriptor should specify 1 (byte).

SYI$_HP_ACTIVE_CPU_CNT

Returns the number of active CPUs in this hard partition that are not currently in firmware console mode. For OpenVMS, this implies that the CPU is in, or in the process of joining, the active set in one of the instances in the hard partition. Supported only on AlphaServer systems that support partitioning.

SYI$_HP_ACTIVE_SP_CNT

Returns the count of active operating system instances currently executing within the hard partition. Supported only on AlphaServer systems that support partitioning.

SYI$_HP_CONFIG_SBB_CNT

Returns a count of the existing system building blocks within the current hard partition. Supported only on AlphaServer systems that support partitioning.

SYI$_HP_CONFIG_SP_CNT

Returns the maximum count of soft partitions within the current hard partition. This count does not imply that an operating system instance is currently running within any given soft partition. Supported only on AlphaServer systems that support partitioning.

SYI$_HW_MODEL

Returns a small integer that can be used to identify the model type of the node.

An integer greater than 1023 indicates an Alpha and I64 node.

An integer less than or equal to 1023 indicates a VAX node.

The $ALPHADEF and $VAXDEF macros in SYS$LIBRARY:STARLET define the model type integers. See the tables under the SYI$_HW_NAME item code for the VAX processor names and the corresponding model types.

Because SYI$_HW_MODEL is a word, the buffer length field in the item descriptor should specify 2 (bytes).

SYI$_HW_NAME

Returns the model name string of the node. The model name is a character string that describes the model of the node (such as VAX 8800, MicroVAX II). The model name usually corresponds to the nameplate that appears on the outside of the CPU cabinet.

Because SYI$_HW_NAME can include up to 60 characters plus one for the byte count, the buffer length field in the item descriptor should specify 61 (bytes). An example of an I64 processor follows:


    HP rx4640  (1.10GHz/4.0MB)

The following table lists the Alpha model processor names and the corresponding model types:

Alpha Model Processor Name Alpha Model Type
DEC 3000 400 ALPHA$K_A3000_400W
DEC 3000 400S ALPHA$K_A3000_400S
DEC 3000 500 ALPHA$K_A3000_500W
DEC 3000 500S ALPHA$K_A3000_500S
DEC 4000 610 ALPHA$K_A4000_610
DEC 4000 620 ALPHA$K_A4000_620
DEC 4000 630 ALPHA$K_A4000_630
DEC 4000 640 ALPHA$K_A4000_640
DEC 7000 Model 610 ALPHA$K_A7000_610
DEC 7000 Model 620 ALPHA$K_A7000_620
DEC 7000 Model 630 ALPHA$K_A7000_630
DEC 7000 Model 640 ALPHA$K_A7000_640
DEC 10000 Model 610 ALPHA$K_A10000_610
DEC 10000 Model 620 ALPHA$K_A10000_620
DEC 10000 Model 630 ALPHA$K_A10000_630
DEC 10000 Model 640 ALPHA$K_A10000_640

The following table lists the VAX model processor names and the corresponding model types:

VAX Model Processor Name VAX Model Type
VAX-11/730 VAX$K_V730
VAX-11/750 VAX$K_V750
VAX-11/780 VAX$K_V780
VAX-11/785 VAX$K_V785
MicroVAX II VAX$K_VUV2
VAXstation II VAX$K_VWS2
VAXstation II/GPX VAX$K_VWSD
VAXstation 2000 VAX$K_VWS2000
MicroVAX 2000 VAX$K_VUV2000
VAXstation 2000/GPX VAX$K_VWSD2000
VAX 8200 VAX$K_V8200
VAX 8250 VAX$K_V8250
VAX 8300 VAX$K_V8300
VAX 8350 VAX$K_V8350
VAX 8530 VAX$K_V8500
VAX 8550 VAX$K_V8550
VAX 8600 VAX$K_V8600
VAX 8650 VAX$K_V8650
VAX 8810 (8700) VAX$K_V8700
VAX 8820-N (8800) VAX$K_V8800
VAX 8820, 8830, or 8840 with one CPU enabled VAX$K_V8810
VAX 8820 VAX$K_V8820
VAX 8830 VAX$K_V8830
VAX 8840 VAX$K_V8840
VAXft 3000 Model 310 VAX$K_V520FT
VAXstation 3520 VAX$K_V3520L
VAXstation 3540 VAX$K_V3540L
VAX 4000-300 timeshare VAX$K_V670
VAX 4000-300 server VAX$K_V670_S
VAX 6000-210 timeshare VAX$K_V6210_T
VAX 6000-220 timeshare VAX$K_V6220_T
VAX 6000-230 timeshare VAX$K_V6230_T
VAX 6000-240 timeshare VAX$K_V6240_T
VAX 6000-250 timeshare VAX$K_V6250_T
VAX 6000-260 timeshare VAX$K_V6260_T
VAX 6000-210 server VAX$K_V6210_S
VAX 6000-220 server VAX$K_V6220_S
VAX 6000-310 timeshare VAX$K_V6310_T
VAX 6000-320 timeshare VAX$K_V6320_T
VAX 6000-330 timeshare VAX$K_V6330_T
VAX 6000-340 timeshare VAX$K_V6340_T
VAX 6000-350 timeshare VAX$K_V6350_T
VAX 6000-360 timeshare VAX$K_V6360_T
VAX 6000-310 server VAX$K_V6310_S
VAX 6000-320 server VAX$K_V6320_S
VAX 6000-410 timeshare VAX$K_V9RR10_T
VAX 6000-420 timeshare VAX$K_V9RR20_T
VAX 6000-430 timeshare VAX$K_V9RR30_T
VAX 6000-440 timeshare VAX$K_V9RR40_T
VAX 6000-450 timeshare VAX$K_V9RR50_T
VAX 6000-460 timeshare VAX$K_V9RR60_T
VAX 6000-410 server VAX$K_V9RR10_S
VAX 6000-420 server VAX$K_V9RR20_S
VAX 9000-210 VAX$K_V9AR10
VAX 9000-410 VAX$K_V9AQ10
VAX 9000-420 VAX$K_V9AQ20
VAX 9000-430 VAX$K_V9AQ30
VAX 9000-440 VAX$K_V9AQ40

SYI$_IO_PREFER_CPU

On Alpha and I64 systems, returns the bit mask of CPUs available to be Fast Path preferred CPUs.

SYI$_ITB_ENTRIES

On Alpha and I64 systems, systems, returns the number of instruction stream translation buffer entries that support granularity hints to be allocated for resident code.

Because this number is a longword, the buffer length field in the item descriptor should specify 4 (bytes).

SYI$_MAX_CPUS

On Alpha and I64 systems, returns the maximum number of CPUs that could be recognized by this instance.

SYI$_MAX_PFN

Returns the highest numbered PFN in use by the operating system. The highest numbered PFN used by OpenVMS is influenced by the PHYSICAL_MEMORY system parameter.

Because this number is a longword, the buffer length field in the item descriptor should specify 4 (bytes).

SYI$_MEMSIZE

Returns the total number of pages of physical memory in the system configuration.

Because this number is a longword, the buffer length field in the item descriptor should specify 4 (bytes).

SYI$_NODE_AREA

Returns the DECnet area of the node.

Because the DECnet area is a longword decimal number, the buffer length field in the item descriptor should specify 4 (bytes).

SYI$_NODE_CSID

Returns the OpenVMS Cluster system ID (CSID) of the node. The CSID is a longword hexadecimal number assigned to the node by the cluster management software.

Because the CSID is a longword, the buffer length field in the item descriptor should specify 4 (bytes).

SYI$_NODE_EVOTES

Returns the number of votes the node expects to find in the OpenVMS Cluster system. This number is determined by the system parameter EXPECTED_VOTES.

Because the number is a word in length, the buffer length field in the item descriptor should specify 2 (bytes).

SYI$_NODE_HWVERS

Returns the platform-specific hardware version information associated with the node. The high word of the buffer contains the CPU type. The $VAXDEF and $ALPHADEF macros define the CPU model types for VAX and Alpha systems, respectively. (HP recommends acquiring the model type using the SYI$_HW_MODEL item code.)

Because the hardware version is a 12-byte hexadecimal number, the buffer length field in the item descriptor should specify 12 (bytes).

SYI$_NODE_NUMBER

Returns the DECnet for OpenVMS number of the node.

Because the DECnet for OpenVMS number is a longword decimal number, the buffer length field in the item descriptor should specify 4 (bytes).

SYI$_NODE_QUORUM

Returns the value (in decimal) of the quorum held by the node. This number is derived from the node's system parameter EXPECTED_VOTES.

Because this number is a word in length, the buffer length field in the item descriptor should specify 2 (bytes).

SYI$_NODE_SWINCARN

Returns the software incarnation of the node.

Because the software incarnation of the node is an 8-byte hexadecimal number, the buffer length field in the item descriptor should specify 8 (bytes).

SYI$_NODE_SWTYPE

Returns the software type of the node. The software type indicates whether the node is a VAX system, an Alpha or I64 system, or an HSC storage controller.

Because the software type is a 4-byte ASCII string, the buffer length field in the item descriptor should specify 4 (bytes).

SYI$_NODE_SWVERS

Returns the software version of the node.

Because the software version is a 4-byte ASCII string, the buffer length field in the item descriptor should specify 4 (bytes).

SYI$_NODE_SYSTEMID

Returns the system identification of the node.

The OpenVMS Cluster management software assigns this system identification to the node. You can obtain this information by using the DCL command SHOW CLUSTER. Because the system identification is a 6-byte hexadecimal number, the buffer length field in the item descriptor should specify 6 (bytes).

SYI$_NODE_VOTES

Returns the number (in decimal) of votes held by the node. This number is determined by the node's system parameter VOTES.

Because this number is a word in length, the buffer length field in the item descriptor should specify 2 (bytes).

SYI$_NODENAME

Returns, as a character string, the name of the node in the buffer specified in the item list.

Because this name can include up to 15 characters, the buffer length field in the item descriptor should specify 15 (bytes).

SYI$_PAGEFILE_FREE

Returns the number of free pages in the currently installed page files.

Because this number is a longword, the buffer length field in the item descriptor should specify 4 (bytes).

SYI$_PAGEFILE_PAGE

Returns the number of pages in the currently installed page files.

Because this number is a longword, the buffer length field in the item descriptor should specify 4 (bytes).

SYI$_PAGE_SIZE

Returns the number of CPU-specific bytes per page in the system.

On VAX systems, $GETSYI always returns 512.

On Alpha and I64 systems, CPU page size varies from system to system.

On Alpha, and I64, and VAX systems, because this number is a longword, the buffer length field in the item descriptor should specify 4 (bytes).

SYI$_PARTITION_ID

On Alpha and I64 systems, returns the soft partition ID. Supported only on AlphaServer systems that support partitioning.

SYI$_PFN_MEMORY_MAP---Alpha Only

Returns a map describing the system's use of physical memory. Figure SYS-1 shows an example of a physical memory map.

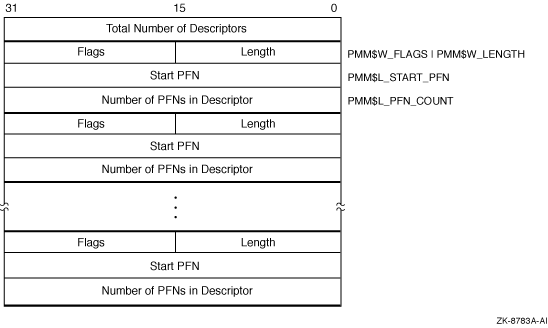

Figure SYS-1 SYI$_PFN_MEMORY_MAP---Alpha Only


The first longword of the physical memory contains a count of descriptors. This number is equal to the value returned when the SYI$_PMD_COUNT item code is specified.

Each descriptor contains at least 3 longwords: a word containing the length of the descriptor (always use PMM$C_LENGTH when determining descriptor size); a flags word (whose bits are defined in the following table); and the starting PFN for that physical memory cluster and the number of PFNs in that cluster.

Bit Meaning When Set
PMM$V_CONSOLE The physical memory descriptor is in use by the console (hardware).
PMM$V_OPENVMS The physical memory descriptor is in use by OpenVMS.
PMM$V_AVAILABLE The physical descriptor is not in use by either the console (hardware) or OpenVMS.
Remaining bits The remaining bits in the PMM$W_FLAGS word are reserved for HP.

The structure definition for the physical memory descriptor resides in PMMDEF.H.

Because the size of the physical memory map returned by $GETSYI can vary from system to system, HP recommends using the following steps when using this item code:

  1. Call $GETSYI first using the SYI$_PMD_COUNT to obtain the number of physical memory descriptors.
  2. Dynamically create a buffer to which $GETSYI can copy the physical memory map. The size of the buffer can be computed with the following formula:


    Previous Next Contents Index
