Unless you specify MNT$M_GROUP or MNT$M_SYSTEM, the logical name is entered in the process logical name table.

MNT$_OWNER

MNT$_PROCESSOR

For Files-11 On-Disk Structure Level 2 disks, MNT$_PROCESSOR controls block cache allocation.

To specify MNT$_PROCESSOR, the caller must have OPER privilege.

The buffer must contain a character string specifying either the string UNIQUE, a device name, or a file specification. Following is a description of the action taken for each of these cases:

MNT$_QUOTA

MNT$_RECORDSIZ

If you do not specify MNT$_RECORDSIZ, the record size is assumed to be equal to the block size.

MNT$_SHAMEM

Volume Shadowing for OpenVMS automatically performs a copy or a merge operation, if necessary, when it mounts the disk into the shadow set.

MNT$_SHANAM

Because every shadow set is represented by a virtual unit, you must include at least one MNT$_SHANAM item descriptor in the item list that you pass to $MOUNT to create and mount the shadow set. If you are mounting a volume set containing more than one shadow set, you must include one MNT$_SHANAM item descriptor for each virtual unit included in the volume set.

The relative position of the item descriptors in the item list determines the membership of the shadow set. That is, it indicates which members should be bound to a specific virtual unit to form the shadow set. You must first specify the virtual unit by using the MNT$_SHANAM item code. Then, you can specify any number of members that are to be represented by that virtual unit by using one of the following item codes: MNT$_SHAMEM, MNT$_SHAMEM_COPY, or MNT$_SHAMEM_MGCOPY. If you specify one shadow set and want to specify a second, specify a second virtual unit item descriptor. The members you specify subsequently are bound to the shadow set represented by the virtual unit specified in the second virtual unit item descriptor.

MNT$_UCS

MNT$_UNDEFINED_FAT

The buffer contains a 32-bit structure that defines a file's record format, record attributes, and maximum record size.

The following diagram depicts the structure of the Undefined File Attributes buffer:

The following table defines the buffer fields:

MNT$_VOLNAM

The operating system requires disk volume labels to be unique in the first 12 characters within a given domain.

The MNT$_VOLNAM item code can appear more than once in an item list; it appears more than once when a volume set is being mounted because, in this case, one volume name is given to each volume in the volume set.

When a disk volume set is being mounted, you must specify MNT$_DEVNAM and MNT$_VOLNAM once for each volume of the volume set. The $MOUNT service mounts the volume specified by the first MNT$_VOLNAM item code on the device specified by the first MNT$_DEVNAM item code in the item list; it mounts the volume specified by the second MNT$_VOLNAM code on the device specified by the second MNT$_DEVNAM code, and so on for all specified volumes and devices. Thus, there must be an equal number of these two item codes in the item list.

When a tape volume set is being mounted, the number of MNT$_DEVNAM item codes specified need not be equal to the number of MNT$_VOLNAM item codes specified, because more than one volume can be mounted on the same device.

MNT$_VOLSET

An ISO 9660 volume set name can be from 1 to 128 characters in length.

Volume set names must be unique in the first 12 characters. In addition, if the first 12 characters of the volume set name are the same as the first 12 characters of any volume label, a lock manager deadlock will occur. To avoid this problem, you must override either the volume label (by using the MNT$_VOLNAM item code) or the volume set name (by using the MNT$_VOLSET item code).

When you specify MNT$_VOLSET, volumes specified by the MNT$_VOLNAM item code are bound into a new volume set or added to an existing volume set, depending on whether the name specified by MNT$_VOLSET is a new or already existing name.

When you specify MNT$_VOLSET to add volumes to an existing volume set, the root volume (RVN1) must either (1) already be mounted or (2) be specified first (by the MNT$_DEVNAM and MNT$_VOLNAM item codes) in the item list.

When you specify MNT$_VOLSET to create a new volume set, the first volume specified (by the MNT$_DEVNAM and MNT$_VOLNAM item codes) in the item list becomes the root volume.

MNT$_VPROT

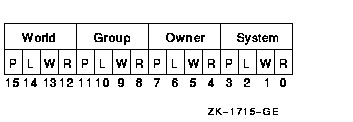

The protection mask consists of four 4-bit fields. Each field grants or denies read, write, logical, and physical access to a category of users. Cleared bits grant access; set bits deny access. The following diagram depicts the structure of the protection mask:

If you do not specify MNT$_VPROT or specify it as the value 0, the volume receives the protection that it was assigned when it was initialized. To specify MNT$_VPROT for a Files-11 structured volume, the caller must either own the volume or have VOLPRO privilege.

MNT$_WINDOW

When a file is opened, the file system uses the mapping pointers to access the data in the file. To specify MNT$_WINDOW, you need OPER privilege.

Description

The Mount Volume service mounts a tape, disk volume, or volume set and specifies options for the mount operation.

When a subprocess mounts a private volume without explicitly allocating the device, the master process of the job becomes the owner of this device. This provision is necessary because the subprocess can be deleted and the volume should remain privately mounted for this job.

When a subprocess explicitly allocates a device and then mounts a private volume on this device, this subprocess retains the device ownership. In this case, only subprocesses of the device owner, and processes with SHARE privilege, have access to the device.

The $MOUNT service uses the following system resources to mount volumes with group or systemwide access allowed:

• Nonpaged pool
• Paged pool

When $MOUNT mounts a disk volume, the logical name DISK$volume-label is always created. If you specify a logical name in the mount request that is different from DISK$volume-label, there will be two logical names associated with the device.

If the logical name of a volume is in a process-private table, then the name is not deleted when the volume is dismounted.

Required Access or Privileges

To mount a volume on a device, you must have read or control access to that device.

To mount a particular volume, the caller must either own or have privilege to access the specified volume or volumes. The privileges required depend on the operation and are listed with the item codes that specify the operation.

The calling process must have TMPMBX or PRMMBX privilege to perform an operator-assisted mount. SECURITY privilege is required to enable protected subsystems.

Required Quota

None

Related Services

$ALLOC, $ASSIGN, $BRKTHRU, $BRKTHRUW, $CANCEL, $CREMBX, $DALLOC, $DASSGN, $DELMBX, $DEVICE_SCAN, $DISMOU, $GETDVI, $GETDVIW, $GETMSG, $GETQUI, $GETQUIW, $INIT_VOL, $PUTMSG, $QIO, $QIOW, $SNDERR, $SNDJBC, $SNDJBCW, $SNDOPR

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The item list or an address specified in the item list cannot be accessed.
SS$_BADPARAM	A buffer length of 0 was specified with a nonzero item code; an illegal item code was specified; or no device was specified.
SS$_NOGRPNAM	The caller does not have GRPNAM privilege.
SS$_NOHOMEBLK	Files-11 home block not found on volume.
SS$_NOOPER	The caller does not have the required OPER privilege.
SS$_NOPRIV	The caller does not have sufficient privilege to access a specified volume.
SS$_NOSUCHDEV	The specified device does not exist on the host system.
SS$_NOSYSNAM	The caller does not have SYSNAM privilege.

The $MOUNT service can also return a condition value that is specific to the Mount utility. The symbolic definition macro $MOUNDEF defines these condition values.

Allows installations to provide their own routine to interpret and output the accessibility field in the VOL1 and HDR1 labels of an ANSI labeled magnetic tape.

Format

SYS$MTACCESS lblnam ,[uic] ,[std_version] ,[access_char] ,[access_spec] ,type

C Prototype

int sys$mtaccess (unsigned int *lblnam, unsigned int uic, unsigned int std_version, unsigned int access_char, unsigned int access_spec, unsigned int type);

Arguments

lblnam

OpenVMS usage:	address
type:	longword (unsigned)
access:	read only
mechanism:	by reference

ANSI label to be processed. The lblnam argument is the address of a longword containing the label. On input, the label passed is either the VOL1 or HDR1 label read from the magnetic tape; on output of labels, the value of this field is 0. The type of label passed is determined by type.

uic

OpenVMS usage:	uic
type:	longword (unsigned)
access:	read only
mechanism:	by value

UIC of the user performing the operation. The uic argument is a longword containing the UIC.

std_version

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	read only
mechanism:	by value

Decimal equivalent of the ANSI standard version read from the VOL1 label. The std_version argument is a longword containing the standard version number.

access_char

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	read only
mechanism:	by value

Accessibility character specified by the user. The access_char argument is a byte containing the accessibility character used for the output of labels.

access_spec

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	read only
mechanism:	by value

Value specifying whether the accessibility character passed in access_char was specified by the user.

The access_spec argument is a byte containing one of the following values:

Value	Meaning
MTA$K_CHARVALID	Yes
MTA$K_NOCHAR	No

This argument is used only for the output of labels.

type

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	read only
mechanism:	by value

Type of accessibility field to process.

The type argument is a byte containing one of the following values:

Value	Meaning
MTA$K_INVOL1	Input a VOL1 label
MTA$K_INHDR1	Input a HDR1 label
MTA$K_OUTVOL1	Output a VOL1 label
MTA$K_OUTHDR1	Output a HDR1 label

Description

The Magnetic Tape Accessibility service allows installations to provide their own routine to interpret and output the accessibility field in the VOL1 and HDR1 labels of ANSI labeled magnetic tapes. The installation can override the default routine by providing an MTACCESS.EXE executive loaded image.

The default installation routine first checks the ANSI standard version of the label. For magnetic tapes with a version number of 3 or less, the routine outputs either a blank or the character you specified. On input of these magnetic tapes, the routine checks for a blank and returns the value SS$_FILACCERR if the field is not blank.

For magnetic tapes with a version number greater than 3, the routine outputs either the character specified by the access_char argument or an ASCII 1 if no character was specified. On input of these magnetic tapes, the routine checks for a blank. If the field is blank, R0 is set to 0. In that case, you are given full access and protection is not checked. If the field contains an ASCII 1, and the VOL1 Implementation Identifier field contains the system code, R0 is set to SS$_NORMAL. In that case, the protection is checked.

If the field is not blank and does not contain an ASCII 1, R0 is set to SS$_FILACCERR, which forces you to override accessibility checking and allows the magnetic tape file system to check protection.

The following table summarizes the results of label input check:

Contents of R0	Result
SS$_NORMAL	Check the protection on the magnetic tape.
0	Give the user full access. Protection is not checked.
SS$_FILACCERR	Check for explicit override, then check protection.

Note that the default accessibility routine does not output SS$_NOVOLACC or SS$_NOFILACC. These statuses are included for the installation's use, and the magnetic tape file system handles these cases.

The magnetic tape file system calls $MTACCESS to process the accessibility field in the VOL1 and HDR1 labels. After a call to the system service, the magnetic tape file system checks that the installation did not move the magnetic tape. If the magnetic tape was moved, the magnetic tape file system completes the current operation with an SS$_TAPEPOSLOST error. Finally, it processes the remainder of the label according to the status returned by $MTACCESS.

Required Access or Privileges

Because accessibility is an installation-provided routine, the operating system cannot determine which users have the authority to override the processing of this field. However, the magnetic tape file system allows only operator class users to deal with blank magnetic tapes so that a user must have both OPER and VOLPRO privileges to initialize or mount blank magnetic tapes.

Required Quota

None

Related Services

$ADD_HOLDER, $ADD_IDENT, $ASCTOID, $CHECK_ACCESS, $CHKPRO, $CREATE_RDB, $ERAPAT, $FIND_HELD, $FIND_HOLDER, $FINISH_RDB, $FORMAT_ACL, $FORMAT_AUDIT, $GET_SECURITY, $GRANTID, $HASH_PASSWORD, $IDTOASC, $MOD_HOLDER, $MOD_IDENT, $PARSE_ACL, $REM_HOLDER, $REM_IDENT, $REVOKID, $SET_SECURITY

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_FILACCERR	The accessibility characteristic in the HDR1 label is not blank and you cannot access the file without overriding the field.
SS$_NOFILACC	The user has no access to the file.
SS$_NOVOLACC	The user has no access to the volume.

Converts an absolute or delta time from 64-bit system time format to binary integer date and time values.

On Alpha and I64 systems, this service accepts 64-bit addresses.

Format

SYS$NUMTIM timbuf ,[timadr]

C Prototype

int sys$numtim (unsigned short int timbuf [7], struct _generic_64 *timadr);

Arguments

timbuf

OpenVMS usage:	vector_word_unsigned
type:	word (unsigned)
access:	write only
mechanism:	by 32- or 64-bit reference (Alpha and I64); by 32-bit reference (VAX)

Buffer into which $NUMTIM writes the converted date and time. The timbuf argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a 7-word structure.

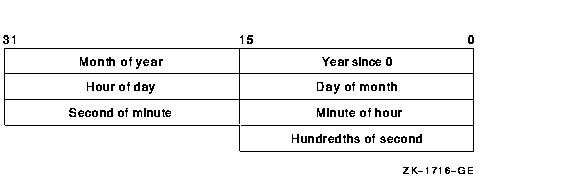

The following diagram depicts the fields in this structure:

If the timadr argument specifies a delta time, $NUMTIM returns the value 0 in the year since 0 and month of year fields. It returns in the day of month field the number of days specified by the delta time.

timadr

If you do not specify timadr, $NUMTIM returns the current system time.

If timadr specifies the value 0, $NUMTIM returns the base date (November 17, 1858).

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The 64-bit time value cannot be read by the caller, or the buffer cannot be written by the caller.
SS$_IVTIME	The specified delta time is equal to or greater than 10,000 days.
