$PERSONA_QUERY (Alpha and I64)
On Alpha and I64 systems, retrieves attribute values from a persona
(and accompanying extensions).
Format
SYS$PERSONA_QUERY persona ,itmlst
C Prototype
int sys$persona_query (unsigned int *persona, void *itmlst);
Arguments
persona
| OpenVMS usage: |
persona |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by reference |
Address of a longword into which the persona identification handle is
written.
Two special values for persona are also permitted: 0,
which means use the current persona, and -1, which means use the
process' natural persona.
itmlst
| OpenVMS usage: |
item_list_3 |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by reference |
Attributes describing which information about the persona is to be
returned. The itmlst argument is the address of a list
of item descriptors, each of which describes an item of information or
an item list processing directive. The list of item descriptors is
terminated by a longword value of 0.

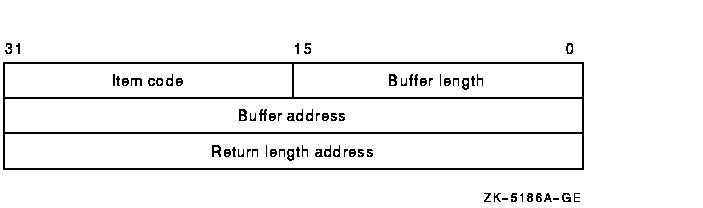

The following diagram shows the format of a single item descriptor:
The following table lists the item field descriptors and their
definitions:
| Field |
Description |
|
Buffer length
|
A word containing a user-supplied integer specifying the length (in
bytes) of the buffer into which $PERSONA_QUERY writes the information.
The length of the buffer depends on the item code specified in the item
code field of the item descriptor. If the value of buffer length is too
small, $PERSONA_QUERY truncates the data.
If the buffer length is specified as 0, the service does not return
any data in the buffer; instead, the service returns the size of buffer
required to contain the data in the Return Length address. This allows
run-time determination of the size of buffer needed to hold the
requested information.
|
|
Item code
|
A word containing a user-supplied symbolic code specifying the item of
information $PERSONA_QUERY is to return, or specifying a directive for
processing subsequent items. The $ISSDEF macro defines these codes.
Each item code is described in the Description section.
|
|
Buffer address
|
A longword containing the user-supplied address of the buffer into
which $PERSONA_QUERY writes the information.
|
|
Return length address
|
A longword containing the user-supplied address of a word into which
the service writes the length in bytes of the information it returned.
If the buffer length field is zero (0), then you must specify a return
length address.
|
Description
The Query for Persona Data service returns the requested items in the
buffers supplied.
OpenVMS Persona Item Codes
The following table contains the item codes specific to the OpenVMS
persona extension data:
| Item Code |
Use+ |
Size (bytes) |
Description |
|
ISS$_USERNAME
|
Q,M,F
|
32
|
OpenVMS user name as text string
|
|
ISS$_ACCOUNT
|
Q,M,F
|
32
|
OpenVMS account name as text string
|
|
ISS$_DOMAIN
|
Q,F
|
32
|
OpenVMS SCSNODE as text string as obtained from $GETJPI's nodename
|
|
ISS$_PRINCIPAL
|
Q,F
|
64
|
OpenVMS user name as text string
|
|
ISS$_EXTENSION
|
Q,F
|
32
|
The text string VMS
|
|
ISS$_WORKPRIV
|
Q,M
|
8
|
Working privilege mask
|
|
ISS$_WORKCLASS
|
Q,M
|
Varying
|
Working classification
|
|
ISS$_RIGHTS
|
Q
|
Varying
|
Enabled list of rights identifiers
|
|
ISS$_NOAUDIT
|
Q,M
|
4
|
No audit counter---0 means audits disabled
|
|
ISS$_UIC
|
Q,M,F
|
4
|
Current UIC
|
|
ISS$_AUTHPRIV
|
Q,M
|
8
|
Authorized privilege mask
|
|
ISS$_PERMPRIV
|
Q,M
|
8
|
Permanent privilege mask
|
|
ISS$_IMAGE_WORKPRIV
|
Q,M
|
8
|
Image working privilege mask
|
|
ISS$_ENABLED
|
Q
|
4
|
Mask of enabled rights chains
|
|
ISS$_AUTHRIGHTS
|
Q
|
Varying
|
Authorized list of rights identifiers
|
|
ISS$_MINCLASS
|
Q
|
Varying
|
Minimum classification
|
|
ISS$_MAXCLASS
|
Q
|
Varying
|
Maximum classification
|
+Use descriptions are: Query, Modify, and Find.
Common Item Codes
The following table contains the item codes specific to the common
persona extension data:
| Item Code |
Use+ |
Size (bytes) |
Description |
|
ISS$_COMMON_USERNAME
|
Q
|
varying
|
User name as text string
|
|
ISS$_COMMON_ACCOUNT
|
Q
|
varying
|
Account name as text string
|
|
ISS$_COMMON_FLAGS
|
Q
|
4
|
Flags as a longword
|
|
ISS$_DOMAIN
|
Q
|
varying
|
Domain name as text string
|
|
ISS$_COMMON_PRINCIPAL
|
Q
|
varying
|
Principal name as text string
|
|
ISS$_EXTENSION
|
Q
|
32
|
Extension name as text string
|
|
ISS$_DOI
|
Q
|
8
|
Domain Of Interpretation quadword
|
+Use descriptions are: Query, Modify, and Find.
General Persona Item Codes
The following table contains the item codes specific to the general
persona extension data:
| Item Code |
Use+ |
Size (bytes) |
Description |
|
ISS$_SWITCH_EXTENSION
|
Q,M
|
4
|
Extension ID to be used for subsequent item code processing
|
|
ISS$_FLAGS
|
Q,M
|
4
|
Various flags (ISS$_FLAG_PERMANENT)
|
|
ISS$_MODE
|
Q
|
4
|
Persona creation mode (user, supervisor, exec, or kernel)
|
|
ISS$_UID
|
Q
|
16
|
UID assigned when persona created
|
|
ISS$_PERSONA_ID
|
Q
|
4
|
Persona ID of this PSB
|
|
ISS$_PRIMARY_EXTENSION
|
Q,M
|
4
|
Extension id of primary authenticator
|
|
ISS$_EXTENSION_COUNT
|
Q
|
4
|
Count of extensions attached to persona
|
|
ISS$_EXTENSION_ARRAY
|
Q
|
varying
|
Array of longwords containing extension ids of all extensions attached
to persona
|
+Use descriptions are: Query, Modify, and Find.
NT Persona Item Codes
The following table contains the item codes specific to the NT persona
extension data:
| Item Code |
Use+ |
Size (bytes) |
Description |
|
ISS$_NT_PRINCIPAL
|
Q,F
|
varying
|
Principal name as text string
|
|
ISS$_NT_TOKEN_USERNAME
|
Q,F
|
varying
|
NT user name as text string
|
|
ISS$_NT_TOKEN_DOMAINNAME
|
Q,F
|
varying
|
NT domain as text string
|
|
ISS$_EXTENSION
|
Q,F
|
varying
|
The text string "NT"
|
|
ISS$_NT_FLAGS
|
Q,M
|
4
|
Various flags
|
|
ISS$_NT_USER_REFCOUNT
|
Q,M
|
4
|
NT-Specific User Field
|
|
ISS$_NT_CREDENTIALS
|
Q,M
|
varying
|
All Token and Security info
|
|
ISS$_NT_NT_OWF_PASSWORD
|
Q,M
|
varying
|
NT Password
|
|
ISS$_NT_LM_OWF_PASSWORD
|
Q,M
|
varying
|
LM Password
|
|
ISS$_NT_TOKEN_USERSESSIONKEY
|
Q,F
|
16
|
User's session key
|
|
ISS$_NT_TOKEN_LMSESSIONKEY
|
Q,F
|
8
|
LM session key
|
+Use descriptions are: Query, Modify, and Find.
Required Access or Privileges
No privileges are required to call this service.
Required Quota
None
Related Services
$PERSONA_ASSUME, $PERSONA_CLONE, $PERSONA_CREATE,
$PERSONA_CREATE_EXTENSION, $PERSONA_DELETE_EXTENSION,
$PERSONA_DELEGATE, $PERSONA_DELETE, $PERSONA_EXTENSION_LOOKUP,
$PERSONA_FIND, $PERSONA_MODIFY, $PERSONA_RESERVE
Condition Values Returned
|
SS$_NORMAL
|
The service completed successfully.
|
|
SS$_ACCVIO
|
The item list cannot be read by the caller, or the buffer length or
buffer cannot be written by the caller.
|
|
SS$_BADPARAM
|
An invalid parameter was specified.
|
|
SS$_BADITMCOD
|
The item list contains an invalid item code.
|
|
SS$_NOSUCHEXT
|
The extension requested does not exist on the system.
|
|
SS$_PERSONANONGRATA
|
The persona ID supplied is invalid.
|
$PERSONA_RESERVE (Alpha and I64)
On Alpha and I64 systems, reserves a persona ID in the server's persona
table to be filled in by the $PERSONA_DELEGATE system service.
Format
SYS$PERSONA_RESERVE clientPID ,persona
C Prototype
int sys$persona_reserve (unsigned int *clientPID, unsigned int
*persona);
Arguments
clientPID
| OpenVMS usage: |
process_ID |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by reference |
Address of a longword containing the External Process Identification
(EPID) of the client process for which the server is reserving the slot.
persona
| OpenVMS usage: |
persona |
| type: |
longword (unsigned) |
| access: |
write only |
| mechanism: |
by reference |
Address of a longword into which the persona identification is written.
This service sets aside the identification for the client's
to-be-delegated persona.
Description
This service reserves a persona identifier slot within the current
process for a specific client process to use in delegating its persona
to this process. A reserved persona slot can be deleted by a call to
the $PERSONA_DELETE service. When a return fails, no persona slot has
been reserved for the client process.
The delegation of persona is only supported for processes residing on
the same node of a cluster.
Required Access or Privileges
IMPERSONATE
Required Quota
BYTLM
Related Services
$PERSONA_ASSUME, $PERSONA_CLONE, $PERSONA_CREATE,
$PERSONA_CREATE_EXTENSION, $PERSONA_DELETE_EXTENSION,
$PERSONA_DELEGATE, $PERSONA_DELETE, $PERSONA_EXTENSION_LOOKUP,
$PERSONA_FIND, $PERSONA_MODIFY
Condition Values Returned
|
SS$_NORMAL
|
The service completed successfully.
|
|
SS$_ACCVIO
|
The item list cannot be read by the caller.
|
|
SS$_BADPARAM
|
An invalid parameter was specified.
|
|
SS$_EXQUOTA
|
The caller lacks sufficient quota to allocate a new persona.
|
|
SS$_NONEXPR
|
The specified process does not exist, or an invalid process
identification was specified.
|
$PROCESS_AFFINITY (Alpha and I64)
On Alpha and I64 systems, allows modification of the CPU affinity set
for a specified kernel thread.
This service accepts 64-bit addresses.
Format
SYS$PROCESS_AFFINITY [pidadr] [,prcnam] [,select_mask] [,modify_mask]
[,prev_mask] [,flags]
C Prototype
int sys$process_affinity (unsigned int *pidadr, void *prcnam, struct
_generic_64 *select_mask, struct _generic_64 *modify_mask, struct
_generic_64 *prev_mask, struct _generic_64 *flags);
Arguments
pidadr
| OpenVMS usage: |
process_id |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by 32- or 64-bit reference |
Process identification (PID) of a kernel thread whose affinity mask is
to be modified or returned. The pidadr argument is the
32- or 64-bit address of a longword that contains the PID.
Process selection is made through a combination of the
pidadr and prcnam arguments. If
neither are specified or if both have a zero value, the service
operations are made to the user affinity mask of the current kernel
thread of the calling process. The pidadr argument
takes precedence over the prcnam argument in any
circumstances where both are supplied in the service call.
prcnam
| OpenVMS usage: |
process_name |
| type: |
character-coded text string |
| access: |
read only |
| mechanism: |
by 32- or 64-bit descriptor--fixed-length string
descriptor |
Process name of the process whose affinity mask is to be modified or
returned. The prcnam argument is the 32- or 64-bit
address of a character string descriptor pointing to the process name
string. A process can be identified with a 1- to 15-character string.
The service operations are made to the user affinity mask of the
initial thread of the specified process.
If pidadr and prcnam are both
specified, then pidadr is modified or returned and
prcnam is ignored. If neither argument is specified,
then the context of the current kernel thread of the calling process is
modified or returned.
select_mask
| OpenVMS usage: |
mask_quadword |
| type: |
quadword (unsigned) |
| access: |
read only |
| mechanism: |
by 32- or 64-bit reference |
Mask specifying which bits of the specified process' affinity mask are
to be modified. The select_mask argument is the 32- or
64-bit address of a quadword bit vector wherein a bit, when set,
specifies that the corresponding CPU position in the mask is to be
modified.
The individual CPU bits in select_mask can be
referenced by their symbolic name constants, CAP$M_CPU0 through
CAP$M_CPU31. These constants (zero-relative to match system CPU IDs)
specify the position in the mask quadword that correspond to the bit
name. Multiple CPUs can be selected by ORing together the appropriate
bits.
modify_mask
| OpenVMS usage: |
mask_quadword |
| type: |
quadword (unsigned) |
| access: |
read only |
| mechanism: |
by 32- or 64-bit reference |
Mask specifying the settings for those explicit affinities selected in
the select_mask argument. The
modify_mask argument is the 32- or 64-bit address of a
quadword bit vector wherein a bit, when set, specifies that the
corresponding CPU is to be added to the specified process affinity set;
when clear, the corresponding CPU is to be removed from the specified
process affinity set.
The bit constants CAP$M_CPU0 through CAP$M_CPU31 can be used to modify
the appropriate bit position in the quadword pointed to by
modify_mask. Multiple CPUs can be added to the
affinity set by ORing together the appropriate bits.
To add a specific CPU to the affinity mask set, that bit position must
be set in both select_mask and
modify_mask. To remove a specific CPU from the
affinity mask set, that bit position must be set in
select_mask and clear in modify_mask.
The constant CAP$K_ALL_CPU_ADD, when specified in
modify_mask, indicates that all CPUs specified in
select_mask are to be added to the affinity mask set.
The constant CAP$K_ALL_CPU_REMOVE indicates that all CPUs in
select_mask are to be removed from the affinity mask
set.
prev_mask
| OpenVMS usage: |
mask_quadword |
| type: |
quadword (unsigned) |
| access: |
write only |
| mechanism: |
by 32- or 64-bit reference |
Previous CPU affinity mask for the specified kernel thread before
execution of this call to $PROCESS_AFFINITY. The
prev_mask argument is the 32- or 64-bit address of a
quadword into which $PROCESS_AFFINITY writes the previous explicit
affinity bit mask.
flags
| OpenVMS usage: |
mask_quadword |
| type: |
quadword (unsigned) |
| access: |
read only |
| mechanism: |
by 32- or 64-bit reference |
Options selected for affinity modification. The flags
argument is a quadword bit vector wherein a bit corresponds to an
option. Only the bits specified below are used; the remainder of the
quadword bits are reserved and must be 0.
Each option (bit) has a symbolic name, which the $CAPDEF macro defines.
The flags argument is constructed by performing a
logical OR operation using the symbolic names of each desired option.
The following table describes the symbolic name of each option:
| Symbolic Name |
Description |
|
CAP$M_FLAG_PERMANENT
|
Indicates whether to modify the permanent process affinities in
addition to the current image copy. If CAP$M_FLAG_PERMANENT is set,
then both the permanent and current affinities are modified. If the
flag bit is clear or
flags is unspecified, then just the current image
process affinities are modified.
This bit also determines which of the affinity masks are returned in
prev_mask. If set, the permanent mask, used to
reinitialize the current set at image rundown, is returned. If the bit
is clear or the
flags argument is not specified, the current running
mask is returned.
|
|
CAP$M_FLAG_CHECK_CPU
|
Determines whether the kernel thread can be left in a nonrunnable state
under some circumstances. No operation of this service will allow a
transition from a runnable to blocked state; however, if the kernel
thread is already at a blocked state, this bit determines whether the
result of the operation must leave it runnable. If CAP$M_FLAG_CHECK_CPU
is set or
flags is unspecified, the kernel thread will be
checked to ensure it can safely run on one of the CPUs in the active
set; otherwise, any valid state operations on kernel threads already in
a blocked state will be allowed.
|
|
CAP$M_FLAG_CHECK_CPU_ACTIVE
|
Indicates whether a check is made to verify that all CPUs in the select
mask that are about to be selected for affinity binding are in the
active set. This does not apply to CPUs that are about to be cleared
from the current affinity set. Unlike CAP$M_FLAG_CHECK_CPU where only a
single CPU has to be valid for the condition to pass,
CAP$M_FLAG_CHECK_CPU_ACTIVE requires that all CPUs in the selected set
must pass the criteria.
|
|
CAP$M_PURGE_WS_IF_NEW_RAD
|
Causes the working set of the process to be purged if the choice of
affinity results in a change to the home RAD of the process.
|
Description
The Modify Process Affinity system service, based on the arguments
select_mask and modify_mask, adds or
removes CPUs from the specified kernel thread's affinity mask sets. If
specified, the previous affinity mask is returned in
prev_mask. With the modify_mask
argument, multiple CPUs can be added to or removed from the process
affinity mask set in the same system service call.
Adding a specific CPU to the process affinity mask indicates that the
kernel thread is able to execute only on that CPU or on the others
specified in the mask. Affinity scheduling takes effect as soon as the
affinity mask becomes nonzero, limiting the CPU selection for the
kernel thread to what is specified and available. Thread selection and
execution is still subject to standard capability requirements, but
only the affinity CPU set is considered when looking for an available
site. When the affinity mask is cleared, all CPUs are again considered
available and affinity is deactivated.
Either modify_mask or prev_mask, or
both, must be specified as arguments. If modify_mask
is specified, then select_mask must be specified as an
argument. If modify_mask is not specified, then no
modifications are made to the affinity mask for the specified kernel
thread. In this case, select_mask is ignored. If
prev_mask is not specified, then no previous mask is
returned.
No service changes will be allowed if the specified kernel thread will
transition from a runnable to blocked state. The CAP$M_FLAG_CHECK_CPU
bit in the flags argument requires that the final
thread state be runnable regardless of previous state; otherwise,
interim changes that maintain a blocked state are allowed if the thread
is already in one.
Required Privileges
The caller must have the ALTPRI privilege to call SYS$PROCESS_AFFINITY
to modify its own affinity mask. To modify another process' affinity
mask, the caller must have:
ALTPRI---To modify any process with a matching UIC
ALTPRI and GROUP---To modify any process in the same UIC group
ALTPRI and WORLD---To modify any process
|
