HP OpenVMS System Services Reference Manual
To call SYS$PROCESS_AFFINITY simply to retrieve the specific process or
global mask, the caller need only have the following privileges:
None---To retrieve the state of itself or any process with a matching
UIC
GROUP---To retrieve the state of any process in the same UIC group
WORLD---To retrieve the state of any process
Related Services
$CPU_CAPABILITIES
$PROCESS_CAPABILITIES
Condition Values Returned
|
SS$_NORMAL
|
The service completed successfully.
|
|
SS$_BADPARAM
|
One of more arguments has an invalid value.
|
|
SS$_ACCVIO
|
The service cannot access the locations specified by one or more
arguments.
|
|
SS$_NOPRIV
|
Insufficient privilege for attempted operation.
|
|
SS$_NOSUCHTHREAD
|
The specified kernel thread does not exist.
|
|
SS$_NONEXPR
|
The specified process does not exist, or an invalid process
identification was specified.
|
|
SS$_IVLOGNAM
|
The process name string has a length of 0 or has more than 15
characters.
|
|
SS$_CPUCAP
|
No CPU can run the specified process with new affinities.
|
|
SS$_INSFARG
|
Fewer than the required number of arguments were specified or no
operation was specified.
|
$PROCESS_CAPABILITIES (Alpha and I64)
On Alpha and I64 systems, allows modification of the user capability
set for a specified kernel thread, or for the global user capability
process default.
This service accepts 64-bit addresses.
Format
SYS$PROCESS_CAPABILITIES [pidadr] [,prcnam] [,select_mask]
[,modify_mask] [,prev_mask] [,flags]
C Prototype
int sys$process_capabilities (unsigned int *pidadr, void *prcnam,
struct _generic_64 *select_mask, struct _generic_64 *modify_mask,
struct _generic_64 *prev_mask, struct _generic_64 *flags);
Arguments
pidadr
| OpenVMS usage: |
process_id |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by 32- or 64-bit reference |
Process identification (PID) of a kernel thread whose user capability
mask is to be modified or returned. The pidadr
argument is the 32- or 64-bit address of a longword that contains the
PID.
Process selection is made through a combination of the
pidadr and prcnam arguments. If
neither are specified or if both have a zero value, the service
operations are made to the user capability mask of the current kernel
thread of the calling process. The pidadr argument
takes precedence over the prcnam argument where both
are supplied in the service call.
If the constant CAP$M_FLAG_DEFAULT_ONLY is specified in
flags, then the user portion of the default process
user capability mask is modified or returned instead, regardless of the
values specified in pidadr.
prcnam
| OpenVMS usage: |
process_name |
| type: |
character-coded text string |
| access: |
read only |
| mechanism: |
by 32- or 64-bit descriptor--fixed-length string
descriptor |
Process name of the process whose user capability mask is to be
modified or returned. The prcnam argument is the 32-
or 64-bit address of a character string descriptor pointing to the
process name string. A process can be identified with a 1- to
15-character string. The service operations are made to the user
capability mask of the initial thread of the specified process.
You can use the prcnam argument only if the process
identified by the descriptor has the same UIC group number as the
calling process. To obtain information about processes in other groups,
the pidadr argument must be used.
If pidadr and prcnam are both
specified, then prcnam is ignored. If neither argument
is specified, then the context of the current kernel thread of the
calling process is modified or returned.
select_mask
| OpenVMS usage: |
mask_quadword |
| type: |
quadword (unsigned) |
| access: |
read only |
| mechanism: |
by 32- or 64-bit reference |
Mask specifying which bits of the specified process' user capability
mask are to be modified. The select_mask argument is
the 32- or 64-bit address of a quadword bit vector wherein a bit, when
set, specifies that the corresponding user capability is to be modified.
The individual user capability bits in select_mask can
be referenced by their symbolic bit constant names, CAP$M_USER1 through
CAP$M_USER16. These constants (not zero-relative) specify the position
in the mask quadword that corresponds to the bit name. Multiple
capabilities can be selected by ORing together the appropriate bits.
Alternatively, the constant CAP$K_ALL_USER, when specified as the
select_mask argument, selects all user capabilities.
modify_mask
| OpenVMS usage: |
mask_quadword |
| type: |
quadword (unsigned) |
| access: |
read only |
| mechanism: |
by 32- or 64-bit reference |
Mask specifying the settings for those capabilities selected in the
select_mask argument. The modify_mask
argument is the 32- or 64-bit address of a quadword bit vector wherein
a bit, when set, specifies that the corresponding user capability is to
be added to the specified kernel thread; when clear, the corresponding
user capability is to be removed.
The symbolic bit constants CAP$M_USER1 through CAP$M_USER16 can be used
to modify the appropriate bit position in modify_mask.
Multiple capabilities can be modified by ORing together the appropriate
bits.
To add a specific user capability to a kernel thread, that bit position
must be set in both select_mask and
modify_mask. To remove a specific user capability from
a kernel thread, that bit position must be set in
select_mask and clear in modify_mask.
The symbolic constant CAP$K_ALL_USER_ADD, when specified in
modify_mask, indicates that all capabilities specified
in select_mask are to be added to the appropriate
capability set. The symbolic constant CAP$K_ALL_USER_REMOVE indicates
that all specified capabilities are to be removed from the set.
prev_mask
| OpenVMS usage: |
mask_quadword |
| type: |
quadword (unsigned) |
| access: |
write only |
| mechanism: |
by 32- or 64-bit reference |
Previous user capability mask for the specified process or thread
before execution of this call to $PROCESS_CAPABILITIES. The
prev_mask argument is the 32- or 64-bit address of a
quadword into which $PROCESS_CAPABILITIES writes the previous bit mask.
If CAP$M_FLAG_DEFAULT_ONLY is set in the flags
argument, then prev_mask will contain the user portion
of the global default capability mask.
flags
| OpenVMS usage: |
mask_quadword |
| type: |
quadword (unsigned) |
| access: |
read only |
| mechanism: |
by 32- or 64-bit reference |
Options selected for the user capability modification. The
flags argument is a quadword bit vector wherein a bit
corresponds to an option. Only the bits specified below are used; the
remainder of the quadword bits are reserved and must be zero.
Each option (bit) has a symbolic name, defined by the $CAPDEF macro.
The flags argument is constructed by performing a
logical OR operation using the symbolic names of each desired option.
The following table describes the symbolic name of each option:
| Symbolic Name |
Description |
|
CAP$M_FLAG_DEFAULT_ONLY
|
Indicates that the specified operations are to be performed on the
global context cell instead of on a specific kernel thread. This bit
supersedes any individual kernel thread specified in
pidadr or
prcnam. Specifying this bit constant applies the
service operations to the capabilities for all newly created processes.
|
|
CAP$M_FLAG_PERMANENT
|
Indicates whether to modify the permanent user process capabilities in
addition to the current image copy. If CAP$M_FLAG_PERMANENT is set,
then both the permanent and current user process capabilities are
modified. If this bit is clear or
flags is unspecified, then just the current image
process capabilities are modified.
This bit also determines which of the capability masks are returned
in
prev_mask. If set, the permanent mask, used to
reinitialize the current set at image rundown, is returned. If the bit
is clear or the
flags argument is not specified, the current running
mask is returned.
|
|
CAP$M_FLAG_CHECK_CPU
|
Determines whether the kernel thread can be left in a nonrunnable state
under some circumstances. No operation of this service will allow a
transition from runnable to blocked state; however, if the kernel
thread is already at a blocked state, this bit determines whether the
result of the operation must leave it runnable. If CAP$M_FLAG_CHECK_CPU
is set or
flags is unspecified, the kernel thread will be
checked to ensure it can safely run on one of the CPUs in the active
set; otherwise, any state operations on kernel threads already in a
blocked state will be allowed.
|
|
CAP$M_PURGE_WS_IF_NEW_RAD
|
Causes the working set of the process to be purged if the choice of
capability results in a change to the home RAD of the process.
|
Description
The Modify Process User Capabilities system service, based on the
arguments select_mask and
modify_mask, adds or removes user capabilities for the
specified kernel thread. If specified, the previous capability mask is
returned in prev_mask. With the
modify_mask argument, multiple user capabilities for a
kernel thread can be added or removed in the same system service call.
Either modify_mask or prev_mask, or
both, must be specified as arguments. If modify_mask
is specified, then select_mask must be specified as an
argument. If modify_mask is not specified, then no
modifications are made to the user capability mask for the specified
kernel thread. In this case, select_mask is ignored.
If prev_mask is not specified, then no previous mask
is returned.
No service changes will be allowed if the specified kernel thread will
transition from a runnable to blocked state. The CAP$M_FLAG_CHECK_CPU
bit in the flags argument requires that the final
thread state be runnable regardless of previous state; otherwise,
interim changes that maintain a blocked state are allowed if the thread
is already in one.
If the symbolic bit constant CAP$M_FLAG_DEFAULT_ONLY is set in the
flags argument, the user capability modifications or
the mask read requests are made only to the global initialization cell
regardless of what process selections values are specified in the
pidadr and prcnam arguments.
Required Access or Privileges
The caller must have the ALTPRI privilege to call
SYS$PROCESS_CAPABILITIES to modify its own user capability mask. To
modify another process' user capability mask, the caller must have:
ALTPRI---To modify any process with a matching UIC
ALTPRI and GROUP---To modify any process in the same UIC group
ALTPRI and WORLD---To modify any process
To call SYS$PROCESS_CAPABILITIES simply to retrieve the specific
process or global mask, the caller need only have the following
privileges:
None---To retrieve the state of itself or any process with a matching
UIC
GROUP---To retrieve the state of any process in the same UIC group
WORLD---To retrieve the state of any process
Related Services
$CPU_CAPABILITIES
Condition Values Returned
|
SS$_NORMAL
|
The service completed successfully.
|
|
SS$_BADPARAM
|
One of more arguments has an invalid value.
|
|
SS$_ACCVIO
|
The service cannot access the locations specified by one or more
arguments.
|
|
SS$_NOSUCHTHREAD
|
The specified kernel thread does not exist.
|
|
SS$_NONEXPR
|
The specified process does not exist, or an invalid process
identification was specified.
|
|
SS$_IVLOGNAM
|
The process name string has a length of 0 or more than 15 characters.
|
|
SS$_NOPRIV
|
Insufficient privilege for attempted operation.
|
|
SS$_CPUCAP
|
No CPU can run the specified process with new capabilities.
|
|
SS$_INSFARG
|
Fewer than the required number of arguments were specified or no
operation was specified.
|
$PROCESS_SCAN
Creates and initializes a process context that is used by $GETJPI to
scan processes on the local system or across the nodes in an OpenVMS
Cluster system.
On Alpha and I64 systems, this service accepts 64-bit addresses.
Format
SYS$PROCESS_SCAN pidctx [,itmlst]
C Prototype
int sys$process_scan (unsigned int *pidctx, void *itmlst);
Arguments
pidctx
| OpenVMS usage: |
process_id |
| type: |
longword (unsigned) |
| access: |
modify |
| mechanism: |
by 32- or 64-bit reference (Alpha and I64); by 32-bit
reference (VAX) |
Context value supplied by $PROCESS_SCAN to be used as the
pidadr argument of $GETJPI. The
pidctx argument is the 32-bit address (on VAX systems)
or the 32- or 64-bit address (on Alpha and I64 systems) of a longword
that is to receive the process context longword. This longword normally
contains 0 or a previous context. If it contains a previous context,
the old context is deleted. If it contains a value other than 0 or a
previous context, the old value is ignored.
itmlst
| OpenVMS usage: |
32-bit item_list_3 or 64-bit item_list_64b |
| type: |
longword (unsigned) for 32-bit; quadword (unsigned) for
64-bit |
| access: |
read only |
| mechanism: |
by 32- or 64-bit reference (Alpha and I64); by 32-bit
reference (VAX) |
Item list specifying selection criteria to be used by the scan or to
control the scan.
The itmlst argument is the 32-bit address (on VAX
systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a
list of item descriptors, each of which describes one selection
criterion or control option. Within each selection criterion you can
include several item entries. An item list in 32-bit format is
terminated by a longword of 0; an item list in 64-bit format is
terminated by a quadword of 0. All items in an item list must be of the
same format---either 32-bit or 64-bit.
The information in the item list is passed to the item descriptor in
one of two ways. If the item descriptor can always hold the actual
value of the selection criterion, the value is placed in the second
longword of the item descriptor and the buffer length is specified as
0. If the item descriptor points to the actual value of the selection
criterion, the address of the value is placed in the second longword of
the item descriptor and you must specify the buffer length for the
selection criterion. Each item code description specifies whether the
information is passed by value or by reference.

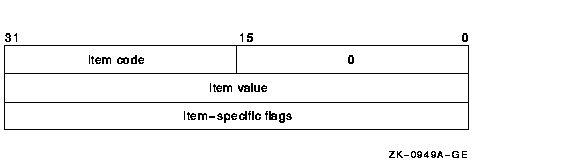

The following diagram depicts the format of a 32-bit item descriptor
that passes the selection criterion as a value:

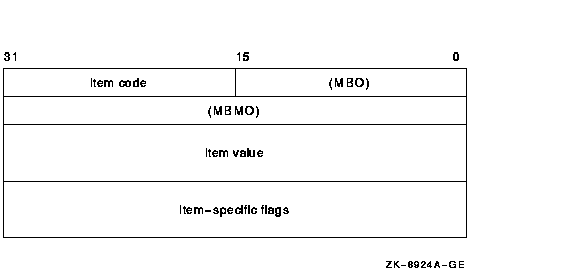

The following diagram depicts the format of a 64-bit item descriptor
that passes the selection criterion as a value:

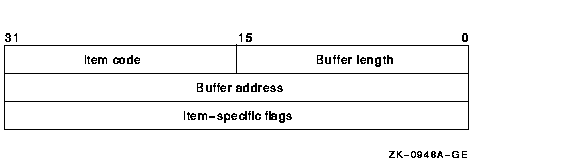

The following diagram depicts the format of a 32-bit item descriptor
that passes the selection criterion by reference:

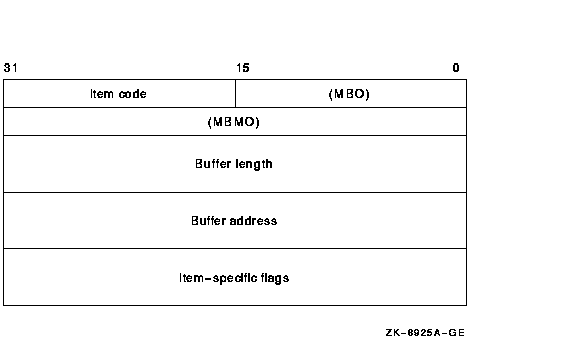

The following diagram depicts the format of a 64-bit item descriptor
that passes the selection criterion by reference:
The following table defines the item descriptor fields:
| Descriptor Field |
Definition |
|
Buffer length
|
Buffer length is specified in a different way for the two types of item
descriptors.
|
|
|
|
Character string or reference descriptors:
|
A word containing a user-supplied integer specifying the length (in
bytes) of the buffer from which $PROCESS_SCAN retrieves a selection
criterion. The length of the buffer needed depends on the item code
specified in the item descriptor.
|
|
Immediate value descriptors:
|
The length of the buffer is always specified as 0.
|
|
|
Item code
|
A word containing the selection criterion. These codes are defined by
the $PSCANDEF macro.
Each item code is described after this list of descriptor fields.
|
|
Item value
|
A longword containing the actual value of the selection criterion. When
you specify an item code that is passed by value, $PROCESS_SCAN
searches for the actual value contained in the item list. See the
description of the buffer address field for information about item
codes that are passed by reference.
|
|
Buffer address
|
A longword containing the user-supplied address of the buffer from
which $PROCESS_SCAN retrieves information needed by the scan. When you
specify an item code that is passed by reference, $PROCESS_SCAN uses
the address as a pointer to the actual value. See the description of
the item value field for information about item codes that are passed
by value.
|
|
Item-specific flags
|
A longword that contains flags to help control selection information.
Item-specific flags, for example EQL or NEQ, are used to specify how
the value specified in the item descriptor is compared to the process
value.
These flags are defined by the $PSCANDEF macro. Some flags are
common to multiple item codes; other flags are specific to an
individual item code. See the description of each item code to
determine which flags are used.
For item codes that describe bit masks or character strings, these
flags control how the bit mask or character string is compared with
that in the process. By default, they are compared for equality.
For item codes that describe integers, these flags specify an
arithmetic comparison of an integer item with the process attribute.
For example, a PSCAN$M_GTR selection specifying the value 4 for the
item code PSCAN$_PRIB finds only the processes with a base priority
above 4. Without one of these flags, the comparison is for equality.
|
|
MBO
|
Must be 1.
|
|
MBMO
|
Must be --1.
|
Item Codes
PSCAN$_ACCOUNT
When you specify PSCAN$_ACCOUNT, $GETJPI returns information about
processes that match the account field.
If the string supplied in the item descriptor is shorter than the
account field, the string is blank-padded for the comparison unless the
item-specific flag PSCAN$M_PREFIX_MATCH is present.
Because the information is a character string, the selection value is
passed by reference. The length of the buffer is placed in the first
word of the item descriptor and the address of the buffer is placed in
the second longword.
Although the current length of the account field is 8 bytes, the
PSCAN$_ACCOUNT buffer can be up to 64 bytes in length. If the buffer
length is 0 or greater than 64, the SS$_IVBUFLEN error is returned.
PSCAN$_AUTHPRI
When you specify PSCAN$_AUTHPRI, $GETJPI returns information about
processes that match the authorized base priority field.
This integer item code is passed by value; the value is placed in the
second longword of the item descriptor. The buffer length must be
specified as 0.
The flags that can be used with this item code are listed in
Table SYS-49.
PSCAN$_CURPRIV
When you specify PSCAN$_CURPRIV, $GETJPI returns information about
processes that match the current privilege field. Privilege bits are
defined by the $PRVDEF macro.
Because the bit mask information is too long to be passed by value, the
information is passed by reference. The privilege buffer must be
exactly 8 bytes, otherwise the SS$_IVBUFLEN error is returned.
The flags that can be used with this item code are listed in
Table SYS-49.
PSCAN$_GETJPI_BUFFER_SIZE
When you specify PSCAN$_GETJPI_BUFFER_SIZE, you determine the size of a
buffer to be used by $GETJPI to process multiple requests in a single
message. Using this item code can greatly improve the performance of
scans on remote nodes, because fewer messages are needed. This item
code is ignored during scans on the local node.
This integer item code is passed by value; the value is placed in the
second longword of the item descriptor. The buffer length must be
specified as 0. The buffer is allocated by $PROCESS_SCAN; you do not
have to allocate a buffer.
If you use PSCAN$_GETJPI_BUFFER_SIZE with $PROCESS_SCAN, all calls to
$GETJPI using the context established by $PROCESS_SCAN must request the
same item code information. Because $GETJPI locates information for
more than one process at a time, it is not possible to change the item
codes or the length of the buffers used in the $GETJPI item list.
$GETJPI checks each call and returns the error SS$_BADPARAM if an
attempt is made to change the item list during a buffered process scan;
however, the buffer addresses can be changed between $GETJPI calls.
Because the locating and buffering of information by $GETJPI is
transparent to a calling program, you are not required to change the
way $GETJPI is called when you use this item code.
The $GETJPI buffer uses the process quota BYTLM. If the buffer is too
large for the process quota, $GETJPI (not $PROCESS_SCAN) returns the
error SS$_EXBYTLM. If the buffer specified is not large enough to
contain the data for at least one process, $GETJPI returns the error
SS$_BADPARAM.
No item-specific flags are used with PSCAN$_GETJPI_BUFFER_SIZE.
PSCAN$_GRP
When you specify PSCAN$_GRP, $GETJPI returns information about
processes that match the UIC group number.
This integer item code is passed by value; the value is placed in the
second longword of the item descriptor. Because the value of the group
number is a word, the high-order word of the value is ignored. The
buffer length must be specified as 0.
The flags that can be used with this item code are listed in
Table SYS-49.
PSCAN$_HW_MODEL
When you specify PSCAN$_HW_MODEL, $GETJPI returns information about
processes that match the specified CPU hardware model number.
The hardware model number is an integer, such as VAX$K_V8840. The VAX$
symbols are defined by the $VAXDEF macro.
This integer item code is passed by value; the value is placed in the
second longword of the item descriptor. The buffer length must be
specified as 0.
The flags that can be used with this item code are listed in
Table SYS-49.
PSCAN$_HW_NAME
When you specify PSCAN$_HW_NAME, $GETJPI returns information about
processes that match the specified CPU hardware name, such as
VAX-11/780, VAX 8800, or VAXstation II/GPX.
Because the information is a character string, the selection value is
passed by reference. The length of the selection value is placed in the
first word of the item descriptor and the address of the buffer is
placed in the second longword.
The PSCAN$_HW_NAME buffer can be up to 128 bytes in length. If the
buffer length is 0 or greater than 128, the SS$_IVBUFLEN error is
returned.
The flags that can be used with this item code are listed in
Table SYS-49.
PSCAN$_JOBPRCCNT
When you specify PSCAN$_JOBPRCCNT, $GETJPI returns information about
processes that match the subprocess count for the job (the count of all
subprocesses in the job tree).
This integer item code is passed by value; the value is placed in the
second longword of the item descriptor. The buffer length must be
specified as 0.
The flags that can be used with this item code are listed in
Table SYS-49.
PSCAN$_JOBTYPE
When you specify PSCAN$_JOBTYPE, $GETJPI returns information about
processes that match the job type. The job type values include the
following:
| Value |
Description |
|
JPI$K_LOCAL
|
Local interactive process
|
|
JPI$K_DIALUP
|
Interactive process accessed by a modem line
|
|
JPI$K_REMOTE
|
Interactive process accessed by using SET HOST
|
|
JPI$K_BATCH
|
Batch process
|
|
JPI$K_NETWORK
|
Noninteractive network process
|
|
JPI$K_DETACHED
|
Detached process
|
|
