5.3.47 SOURCE

Function

The SOURCE clause identifies a data item to be sent to an associated printable item defined within a Report Group Description entry.

source-id

names an elementary item in the Data Division.

Syntax Rules

  1. If source-id is a Report Section item it must be either:
    • A PAGE-COUNTER
    • A LINE-COUNTER
    • A sum counter that is part of the report within which the SOURCE clause appears
  2. The Report Writer Control System (RWCS) moves the contents of source-id to the printable item. source-id definitions must conform to the rules for sending items in the MOVE statement.

General Rule

The RWCS executes implicit MOVE statements specified by the SOURCE clauses when it formats the print lines (just before it presents them).

Additional References

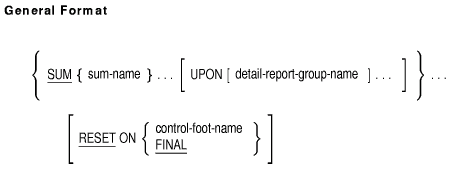

5.3.48 SUM

Function

The SUM clause establishes a Report Writer sum counter and names the data items to be summed.

sum-name

names a numeric data item with an optional sign in the Subschema, File, Working-Storage, or Linkage Sections, or another sum counter in the Report Section.

detail-report-group-name

names a DETAIL report group.

control-foot-name

must reference a control-name in the report's CONTROL clause.

Syntax Rules

  1. A SUM clause can appear only in the description of a CONTROL FOOTING report group.
  2. If there is no UPON phrase, any sum-name in the SUM clause that is itself a sum counter must be defined either in the same report group that contains this SUM clause or in a report group at a lower level in the control hierarchy of this report.
    If there is an UPON phrase, sum-name must not reference a sum counter.
  3. If the associated report file connector is an external file connector and if sum-name references a numeric data item in the Subschema, File, Working-Storage, or Linkage Sections, then sum-name must reference the same external data item in all programs in the run unit.
  4. detail-report-group-name must be a control-name in a CONTROL clause and must be the name of a DETAIL report group described in the same report as the CONTROL FOOTING report group in which the SUM clause appears.
  5. detail-report-group-name may be qualified by a report-name.
  6. control-foot-name must not be at a lower control level than the associated control level for the report group in which the RESET phrase appears.
    If FINAL appears in the RESET phrase, FINAL must also appear in the CONTROL clause for this report.
  7. The highest permissible qualifier for sum-name is the report-name.

General Rules

  1. The SUM clause establishes a sum counter. At run time, the Report Writer Control System (RWCS) adds the value in each sum-name to the sum counter. This addition is consistent with the rules for arithmetic statements.
  2. The UPON phrase provides for selective subtotalling. Subtotalling occurs each time the RWCS processes the DETAIL report group referenced by detail-report-group-name.
  3. If there is a RESET phrase, the RWCS will set the sum counter to zero when the RWCS is processing the designated level of control hierarchy. If there is no RESET phrase, the RWCS will set the sum counter in the CONTROL FOOTING report group to zero when the RWCS processes that report group.
    The RWCS initially sets sum counters to zero during the execution of the INITIATE statement for the report containing the sum counter.
  4. The size of the sum counter is equal to the number of receiving character positions defined in the PICTURE clause that accompanies the SUM clause in the description of the elementary item.
  5. Only one sum counter exists for an elementary report entry, regardless of the number of SUM clauses specified in the elementary report entry.
  6. If the elementary report entry for a printable item contains a SUM clause, the sum counter serves as a source data item. On a control break, the RWCS moves the data from the sum counter to the printable item for presentation according to the rules of the MOVE statement.
  7. If a data-name appears as the subject of an elementary report entry that contains a SUM clause, the data-name is the name of the sum counter; the data-name is not the name of a printable item that the entry may also define.
  8. Procedure Division statements can alter the contents of sum counters.
  9. During the execution of GENERATE and TERMINATE statements, the RWCS adds the values in sum-name to a sum counter.
  10. The RWCS adds each individual sum-name into the sum counter when it processes the CONTROL FOOTING report group defining the sum counter.

Technical Notes

  • The three categories of sum counter accumulation are as follows:
    • Subtotalling
    • Crossfooting
    • Rolling forward

    Subtotalling occurs only during execution of GENERATE statements and after any control break processing but before processing of the DETAIL report group. Crossfooting and rolling forward occur during the processing of CONTROL FOOTING report groups.
  • Subtotalling accumulates numeric data fields (sum-names) into a sum counter. sum-name must not reference a sum counter when subtotalling. If the SUM clause contains the UPON phrase, sum-names are subtotalled when a GENERATE statement executes for a DETAIL report group. If there is no UPON phrase, sum-names are subtotalled when any GENERATE data-name statement is executed for the report in which the SUM clause appears.
  • Crossfooting accumulates sum counters (sum-name) from the same CONTROL FOOTING report group into another sum counter. It is a horizontal sum of sums.
    Crossfooting occurs when a control break takes place and when the CONTROL FOOTING report group is processed.
    Crossfooting is performed according to the sequence in which sum counters are defined within the CONTROL FOOTING report group. That is, all crossfooting into the first sum counter defined in the CONTROL FOOTING report group is completed, and then all crossfooting into the second sum counter defined in the CONTROL FOOTING report group is completed. This procedure repeats until all crossfooting operations are completed.
    When one of the sum-names is the sum counter defined by the Data Description entry in which that sum clause appears, the initial value of that sum counter is used in the summing operation.
  • Rolling forward accumulates sum counters (sum-name) defined in lower level CONTROL FOOTING report groups into another sum counter. It is a vertical sum of sums. A sum counter in a lower level CONTROL FOOTING report group is rolled forward when a control break occurs and at the time the lower level CONTROL FOOTING report group is processed.
  • If two or more sum-names specify the same sum counter, then the sum counter is added as many times as the sum counter is referenced in the SUM clause. It is permissible for two or more of the sum-names to specify the same DETAIL report group. When a GENERATE data-name statement for such a DETAIL report group is given, the incrementing occurs repeatedly, as many times as the sum-name appears in the UPON phrase.

Additional References

5.3.49 SYNCHRONIZED

Function

The SYNCHRONIZED clause specifies elementary item alignment on word boundary offsets relative to a record's beginning. These offsets are related to the size and usage of the item being stored.

Syntax Rules

  1. SYNC is an abbreviation for SYNCHRONIZED.
  2. The SYNCHRONIZED clause can be used only for an elementary item.

General Rules

  1. The SYNCHRONIZED clause aligns a data item in a record so that no other data item occupies any character positions between the required boundaries to the left and right of the data item.
  2. If the number of character positions needed to store the data item is less than the number of positions between the required boundaries, no other data items occupy the unused positions.
    However, the unused character positions are included in the size of those group items:
    • To which the elementary item belongs
    • In which the elementary item is not the first subordinate item

    The first elementary item in a group item always aligns on the same boundary as the group item. In this case, any unused character positions do not affect the size of that group item.
  3. The size of a SYNCHRONIZED data item equals the number of character positions between its natural boundaries. Therefore, the LEFT and RIGHT phrases have the same effect; they are equivalent to each other, and to the SYNCHRONIZED clause with neither the LEFT nor RIGHT phrases.
  4. The SYNCHRONIZED clause does not change the size or operational sign position of the data item it specifies.
  5. Each occurrence of the data item is synchronized if the clause applies to a data item whose data description entry also has an OCCURS clause, or to a data item subordinate to another data item whose data description entry has an OCCURS clause.

Technical Notes

  • The SYNCHRONIZED clause does not affect the alignment of DISPLAY data items.
  • The SYNCHRONIZED clause explicitly aligns COMP, COMP-1, COMP-2, POINTER, and INDEX data items on boundaries that are related to the size of the item.
    One word COMP items are aligned on 2-byte boundaries, longword items on 4-byte boundaries, and quadword items on 8-byte boundaries. All boundaries are relative to the beginning of the record containing the data item.
  • The following table shows the alignment for each data type that the SYNCHRONIZED clause affects:
    Data Type Boundary
    COMP (1 to 4 digits) 2-byte
    COMP (5 to 9 digits) 4-byte
    COMP (10 to 18 digits) 8-byte
    COMP (19 to 31 digits) 16-byte
    COMP-1 4-byte
    COMP-2 8-byte
    INDEX 4-byte
    POINTER 4-byte (OpenVMS)
    POINTER 8-byte (Tru64 UNIX)
