The first report, Figure 10-4, is a preprinted form letter that can be inserted into a business envelope. This report has a logical page length of 20 lines and a width of 80 characters. Note that this report uses only the first 15 lines on the page. Because this is a preprinted form, the program supplies only the following information:

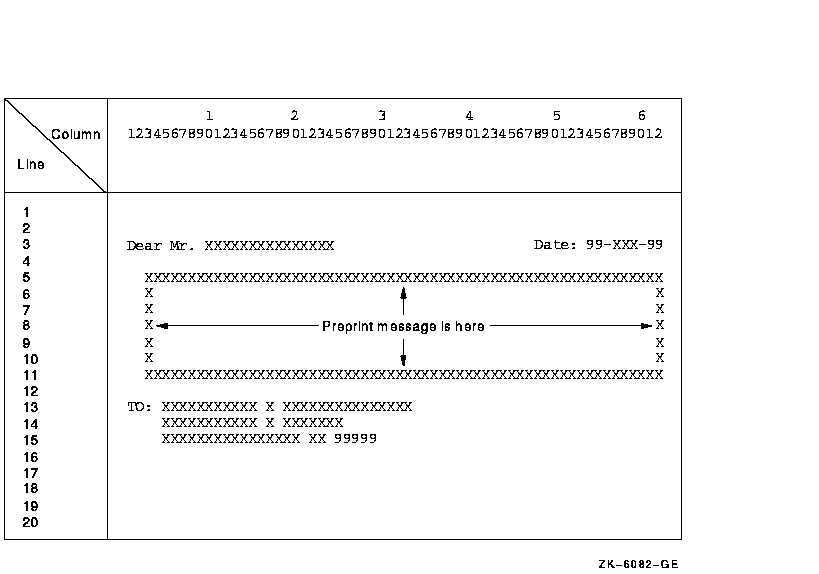

Figure 10-4 A 20-Line Logical Page
The second report, Figure 10-5, is a double-spaced master listing of all input records. While this report's logical page is identical to the default logical page for the system (in this case, 66 vertical lines and 132 horizontal characters), this report uses only the first 55 lines on the page. Both reports are output to a disk for later printing.

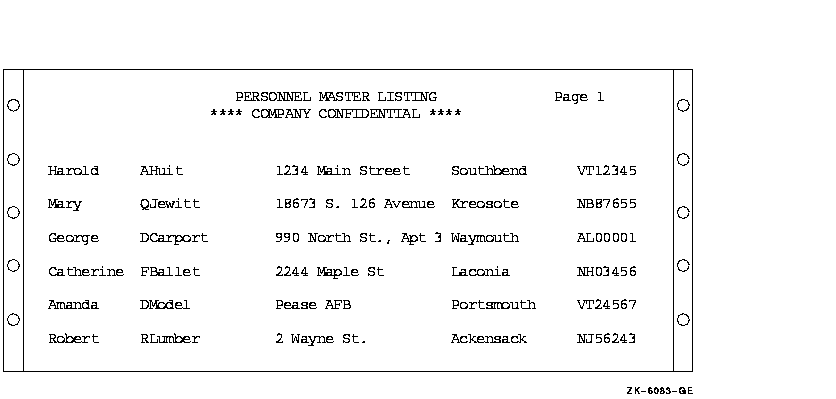

Figure 10-5 A Double-Spaced Master Listing
A linage-file report has sequential organization and access mode, and consists of one or more logical pages. An HP COBOL program that produces a linage-file report uses the LINAGE and LINAGE-COUNTER capabilities in addition to the facilities used for conventional reports.
In contrast to the conventional COBOL report, you can use the LINAGE clause to do the following:
Additionally, a linage-file report has a LINAGE-COUNTER special register assigned to it that monitors the number of lines written to the current logical page.
To program a linage report, you should understand how to do the following:
On OpenVMS, the linage file contains variable length with fixed control records. All advancing information is encoded in the fixed control portion of the record. <>
On Tru64 UNIX, the linage file contains variable length records. All advancing information is written to the file as blank lines. <>
The following sections discuss these topics in detail. Example 10-5
shows an example of a linage-file program.
10.6.1 Defining the Logical Page in a Linage-File Report
Your program specifies the format of your report. Using the report layout worksheet you created, you can write an HP COBOL program that defines the logical page area and divides the page into logical page sections for a linage-file report. Figure 10-6 shows the logical page area and the four divisions of a linage-file report.

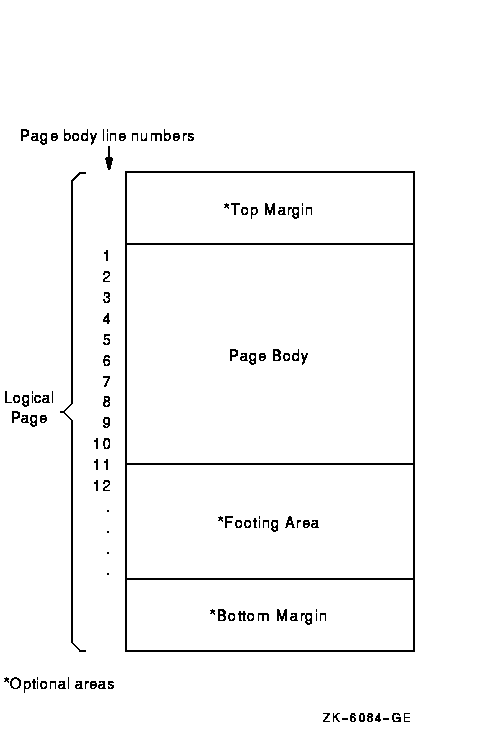

Figure 10-6 Logical Page Areas for a Linage-File Report
To define the number of lines on a logical page and to divide it into logical page sections, you must include the LINAGE clause as a File Description entry in your program. The LINAGE clause lets you specify the size of the logical page's top and bottom margins and the line where the footing area begins in the page body.
For example, to define how many lines you want your program to skip at the top or bottom of the logical page, use the LINAGE clause with either the LINES AT TOP or the LINES AT BOTTOM phrase. To define a footing area within the logical page, use the LINAGE clause with the WITH FOOTING phrase.
The LINES AT TOP phrase positions the printer on the first print line in the page body. The LINES AT BOTTOM phrase positions the printer at the top of the next logical page once the current page body is complete. The WITH FOOTING phrase defines a footing area in the logical page that controls page-overflow conditions. Additionally, you can insert specific text, such as footnotes or page numbers, on the bottom lines of your logical page.
In addition to defining the logical page area and the number of lines
that appear on a page, you must be prepared to handle vertical spacing,
horizontal spacing, logical page advancement, and page-overflow. The
following sections discuss these topics in detail.
10.6.2 Controlling the Spacing in a Linage-File Report
To control the horizontal spacing on a logical page, define every report item from your report layout worksheet in the Working-Storage Section of your HP COBOL program.
To control the vertical spacing on a logical page, use the WRITE statement. The WRITE statement controls whether one or more lines is skipped before or after your program writes a line of the report. For example, to print a line before advancing five lines, use the following:
WRITE... BEFORE ADVANCING 5 LINES. |
To print a line after advancing two lines, use the following:
WRITE... AFTER ADVANCING 2 LINES. |
The LINAGE-COUNTER special register is one method of tracking the number of lines that your program writes on a logical page. When you use the LINAGE-COUNTER special register, each time a line is written or skipped, the register is incremented by 1.
Before the program writes a new line, it checks the LINAGE-COUNTER value to see if the current logical page can accept the new line. If the value equals the maximum number of lines for the page body, the compiler positions the pointer on the first print line of the next page body. The compiler automatically resets this register to 1 each time your program begins a new logical page.
If you choose not to use the LINAGE-COUNTER register, you can advance
to the next logical page using the WRITE statement, as explained in
Section 10.6.4.
10.6.4 Advancing to the Next Logical Page in a Linage-File Report
Linage-files automatically advance to the next logical page when the LINAGE-COUNTER value equals the number of lines on the logical page. However, HP COBOL also lets your program control logical page advancement with the WRITE statement.
To manually advance to the next logical page from any line in the current page body and position the printer on the first print line of the next page body, your program must include the WRITE statement with either the BEFORE ADVANCING PAGE clause or the AFTER ADVANCING PAGE clause. For an example of the WRITE statement, see Section 10.6.7.
Section 10.6.5 describes how to handle a page-overflow condition.
10.6.5 Programming for the End-of-Page and Page-Overflow Condition
A page-overflow condition occurs when your program writes more lines than the logical page can accommodate. Although the compiler automatically advances to the next logical page when you use the LINAGE-COUNTER register, header information is not printed, and the next line begins on the next logical page.
If you want your program to advance to the next page and print page headers on the new page when the page is full, you should include routines in your program that limit the number of lines on each logical page.
Example 10-4 demonstrates how to include these routines in your program using the logical page shown in Figure 10-7.

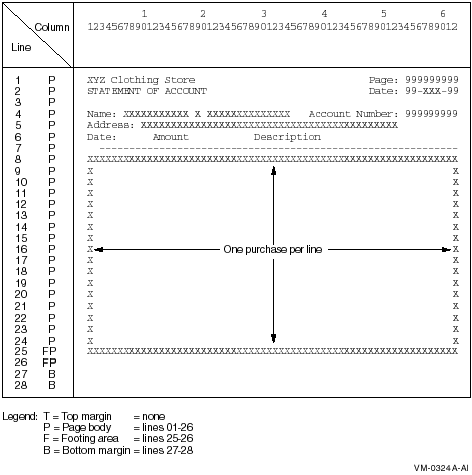

Figure 10-7 A 28-Line Logical Page
In Figure 10-7, each detail line of the report represents a separate purchase at the XYZ Clothing Store. Each page can contain from 1 to 18 purchase lines. Each customer can have an unlimited number of purchases. A total of purchases for each customer is to appear on line 25 of that customer's last statement page. Headers appear on the top of each page.
The input file, INPUT.DAT, consists of individual purchase records sorted in ascending order by customer account number and purchase date. In Example 10-4, the LINAGE clause defines a footing area so the program can check for an end-of-page condition. When the condition is detected, the program executes its header routine to print lines 1 to 7.
| Example 10-4 Checking for End-of-Page on a 28-Line Logical Page |
|---|
IDENTIFICATION DIVISION.
PROGRAM-ID. REPOVF.
ENVIRONMENT DIVISION.
INPUT-OUTPUT SECTION.
FILE-CONTROL.
SELECT INPUT-FILE ASSIGN TO "INPUT.DAT".
SELECT REPORT-FILE ASSIGN TO "REPORT.DAT".
DATA DIVISION.
FILE SECTION.
FD INPUT-FILE.
01 INPUT-RECORD.
02 I-NAME.
03 I-FIRST PIC X(10).
03 I-MID PIC X.
03 I-LAST PIC X(15).
02 I-ADDRESS.
03 I-STREET PIC X(20).
03 I-CITY PIC X(15).
03 I-STATE PIC XX.
03 I-ZIP PIC 99999.
02 I-ACCOUNT-NUMBER PIC X(9).
02 I-PURCHASE-DATE PIC XXXXXX.
02 I-PURCHASE-AMOUNT PIC S9(6)V99.
02 I-PURCHASE-DESCRIP PIC X(20).
FD REPORT-FILE
LINAGE IS 26 LINES
WITH FOOTING AT 25
LINES AT BOTTOM 2.
01 PRINT-LINE PIC X(80).
WORKING-STORAGE SECTION.
01 HEAD-1.
02 H1-LC PIC 99.
02 FILLER PIC X(20) VALUE "XYZ Clothing Store ".
02 FILLER PIC X(25) VALUE SPACES.
02 FILLER PIC X(6) VALUE "Page: ".
02 H1-PAGE PIC Z(9).
01 HEAD-2.
02 H2-LC PIC 99.
02 FILLER PIC X(20) VALUE "STATEMENT OF ACCOUNT".
02 FILLER PIC X(25) VALUE SPACES.
02 FILLER PIC X(6) VALUE "Date: ".
02 H2-DATE PIC X(9).
01 HEAD-3.
02 H3-LC PIC 99.
02 FILLER PIC X(6) VALUE "Name: ".
02 H3-FNAME PIC X(10).
02 FILLER PIC X VALUE SPACE.
02 H3-MNAME PIC X.
02 FILLER PIC X VALUE SPACE.
02 H3-LNAME PIC X(15).
02 FILLER PIC X(17) VALUE " Account Number: ".
02 H3-NUM PIC Z(9).
01 HEAD-4.
02 H4-LC PIC 99.
02 FILLER PIC X(9) VALUE "Address: ".
02 H4-STRT PIC X(20).
02 FILLER PIC X VALUE SPACE.
02 H4-CITY PIC X(15).
02 FILLER PIC X VALUE SPACE.
02 H4-STATE PIC XX.
02 FILLER PIC X VALUE SPACE.
02 H4-ZIP PIC 99999.
01 HEAD-5.
02 H5-LC PIC 99.
02 FILLER PIC X(4) VALUE "Date".
02 FILLER PIC X(7) VALUE SPACES.
02 FILLER PIC X(6) VALUE "Amount".
02 FILLER PIC X(10) VALUE SPACES.
02 FILLER PIC X(11) VALUE "Description".
01 HEAD-6 PIC X(61) VALUE ALL "-".
01 DETAIL-LINE.
02 DET-LC PIC 99.
02 DL-DATE PIC X(9).
02 FILLER PIC X VALUE SPACE.
02 DL-AMT PIC $ZZZ,ZZZ.99-.
02 FILLER PIC X VALUE SPACE.
02 DL-DESC PIC X(20).
01 TOTAL-LINE.
02 TOT-LC PIC 99.
02 FILLER PIC X(25) VALUE "Total purchases to date: ".
02 TL PIC $ZZZ,ZZZ,ZZZ.99-.
01 TOTAL-PURCHASES PIC S9(9)V99.
01 PAGE-NUMBER PIC S9(9).
01 HOLD-I-ACCOUNT-NUMBER PIC X(9) VALUE IS LOW-VALUES.
01 END-OF-FILE PIC X VALUE IS "N".
01 THESE-MANY PIC 99 VALUE IS 1.
PROCEDURE DIVISION.
A000-BEGIN.
OPEN INPUT INPUT-FILE
OUTPUT REPORT-FILE.
DISPLAY " Enter date--DD-MMM-YY:".
ACCEPT H2-DATE.
PERFORM A100-READ-INPUT UNTIL END-OF-FILE = "Y".
A050-WRAP-UP.
CLOSE INPUT-FILE
REPORT-FILE.
DISPLAY "END-OF-JOB".
STOP RUN.
A100-READ-INPUT.
READ INPUT-FILE AT END MOVE "Y" TO END-OF-FILE
PERFORM A400-PRINT-TOTALS
MOVE HIGH-VALUES TO I-ACCOUNT-NUMBER.
DISPLAY INPUT-RECORD.
IF END-OF-FILE NOT = "Y"
AND I-ACCOUNT-NUMBER NOT = HOLD-I-ACCOUNT-NUMBER
PERFORM A200-NEW-CUSTOMER.
IF END-OF-FILE NOT = "Y"
AND I-ACCOUNT-NUMBER = HOLD-I-ACCOUNT-NUMBER
PERFORM A300-PRINT-DETAIL-LINE.
MOVE I-ACCOUNT-NUMBER TO HOLD-I-ACCOUNT-NUMBER.
A200-NEW-CUSTOMER.
IF HOLD-I-ACCOUNT-NUMBER = LOW-VALUES
PERFORM A600-SET-UP-HEADERS
PERFORM A500-PRINT-HEADERS
PERFORM A300-PRINT-DETAIL-LINE
ELSE
PERFORM A400-PRINT-TOTALS
PERFORM A600-SET-UP-HEADERS
PERFORM A500-PRINT-HEADERS
PERFORM A300-PRINT-DETAIL-LINE.
A300-PRINT-DETAIL-LINE.
MOVE I-PURCHASE-DATE TO DL-DATE.
MOVE I-PURCHASE-AMOUNT TO DL-AMT.
MOVE I-PURCHASE-DESCRIP TO DL-DESC.
* At EOP this last detail line goes in footing area of current page
WRITE PRINT-LINE FROM DETAIL-LINE
AT END-OF-PAGE PERFORM A500-PRINT-HEADERS.
ADD I-PURCHASE-AMOUNT TO TOTAL-PURCHASES.
A400-PRINT-TOTALS.
MOVE TOTAL-PURCHASES TO TL.
* Skip to footing area
COMPUTE THESE-MANY = 25 - LINAGE-COUNTER.
WRITE PRINT-LINE FROM TOTAL-LINE AFTER ADVANCING THESE-MANY LINES.
MOVE 0 TO TOTAL-PURCHASES.
A500-PRINT-HEADERS.
ADD 1 TO PAGE-NUMBER.
MOVE PAGE-NUMBER TO H1-PAGE.
WRITE PRINT-LINE FROM HEAD-1 AFTER ADVANCING PAGE.
WRITE PRINT-LINE FROM HEAD-2.
MOVE SPACES TO PRINT-LINE.
WRITE PRINT-LINE.
WRITE PRINT-LINE FROM HEAD-3.
WRITE PRINT-LINE FROM HEAD-4.
WRITE PRINT-LINE FROM HEAD-5.
WRITE PRINT-LINE FROM HEAD-6.
A600-SET-UP-HEADERS.
MOVE I-FIRST TO H3-FNAME.
MOVE I-MID TO H3-MNAME.
MOVE I-LAST TO H3-LNAME.
MOVE I-ACCOUNT-NUMBER TO H3-NUM.
MOVE I-STREET TO H4-STRT.
MOVE I-CITY TO H4-CITY.
MOVE I-STATE TO H4-STATE.
MOVE I-ZIP TO H4-ZIP.
|
