DEChub 90: DECbrouter 90T1

The DECbrouter 90T is a wide area router/bridge device. The T1 has two interfaces and the T2 has three. The local interface can be either 10base2 or 10baseT (both ports are available). The 90T1 remote ports are serial and support the following standards:

• EIA530A
• RS232/V.28
• RS449/RS422/V.11
• RS449/RS423/V.10
• V.35
• V.36
• X.21 Leased Lines

The standards supported by 90T2 and 90T2A are slightly different but I don't have either.

Photos

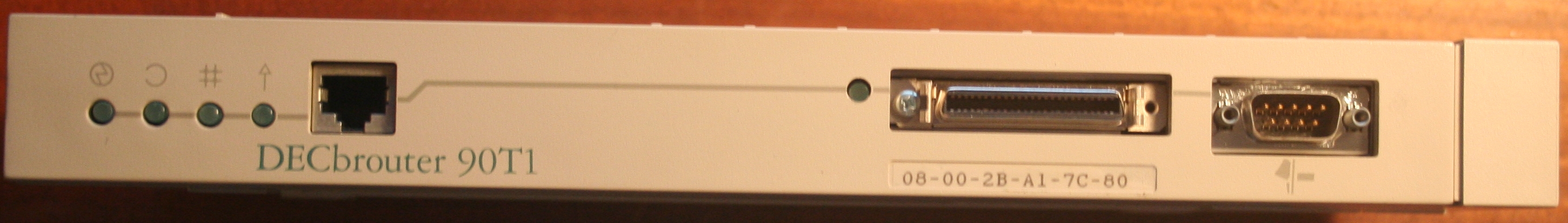

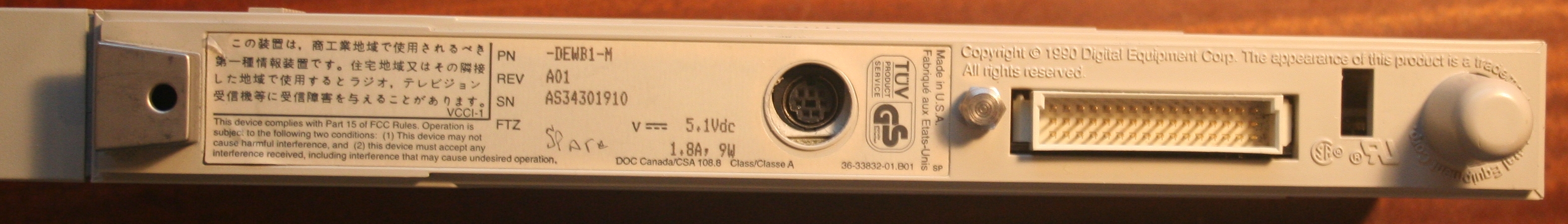

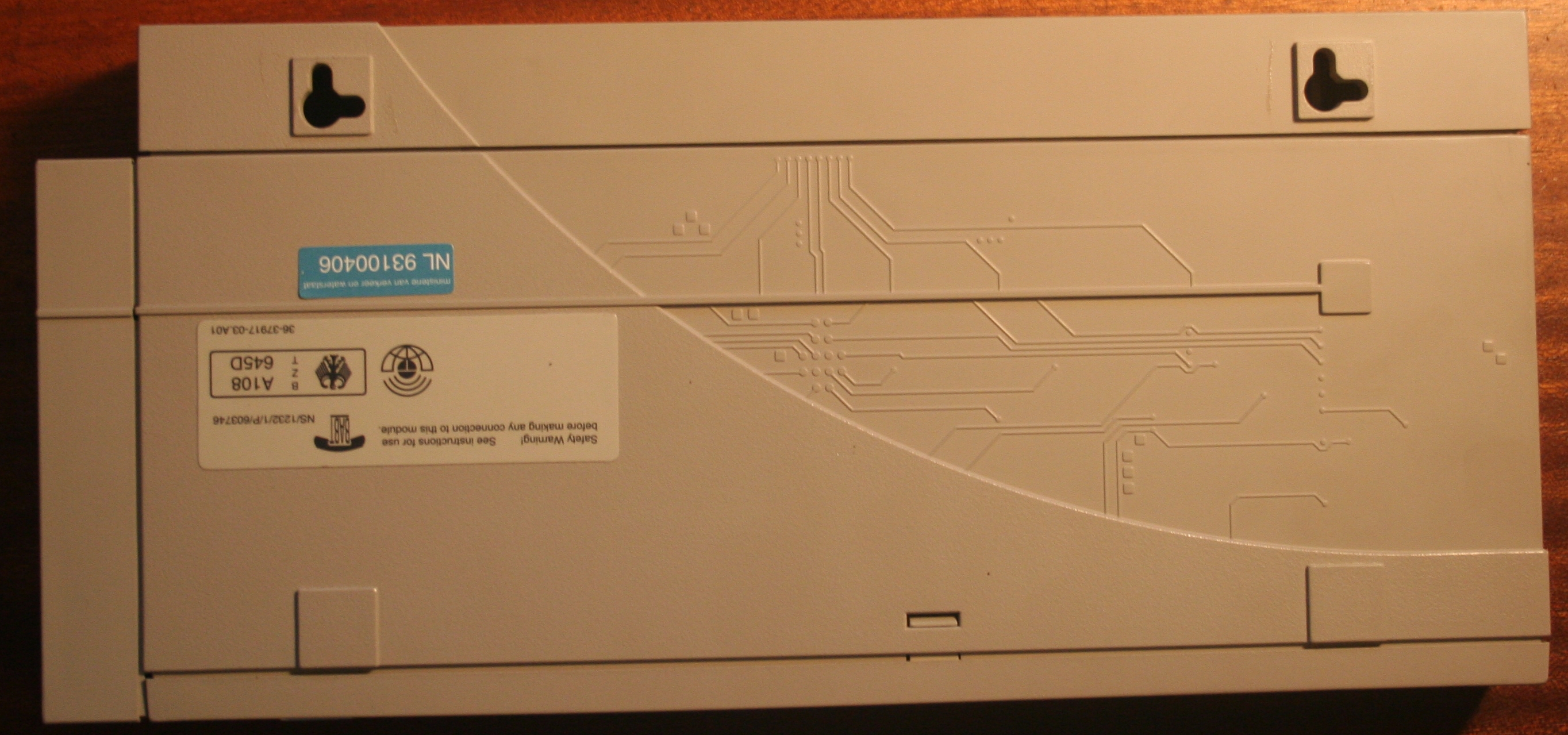

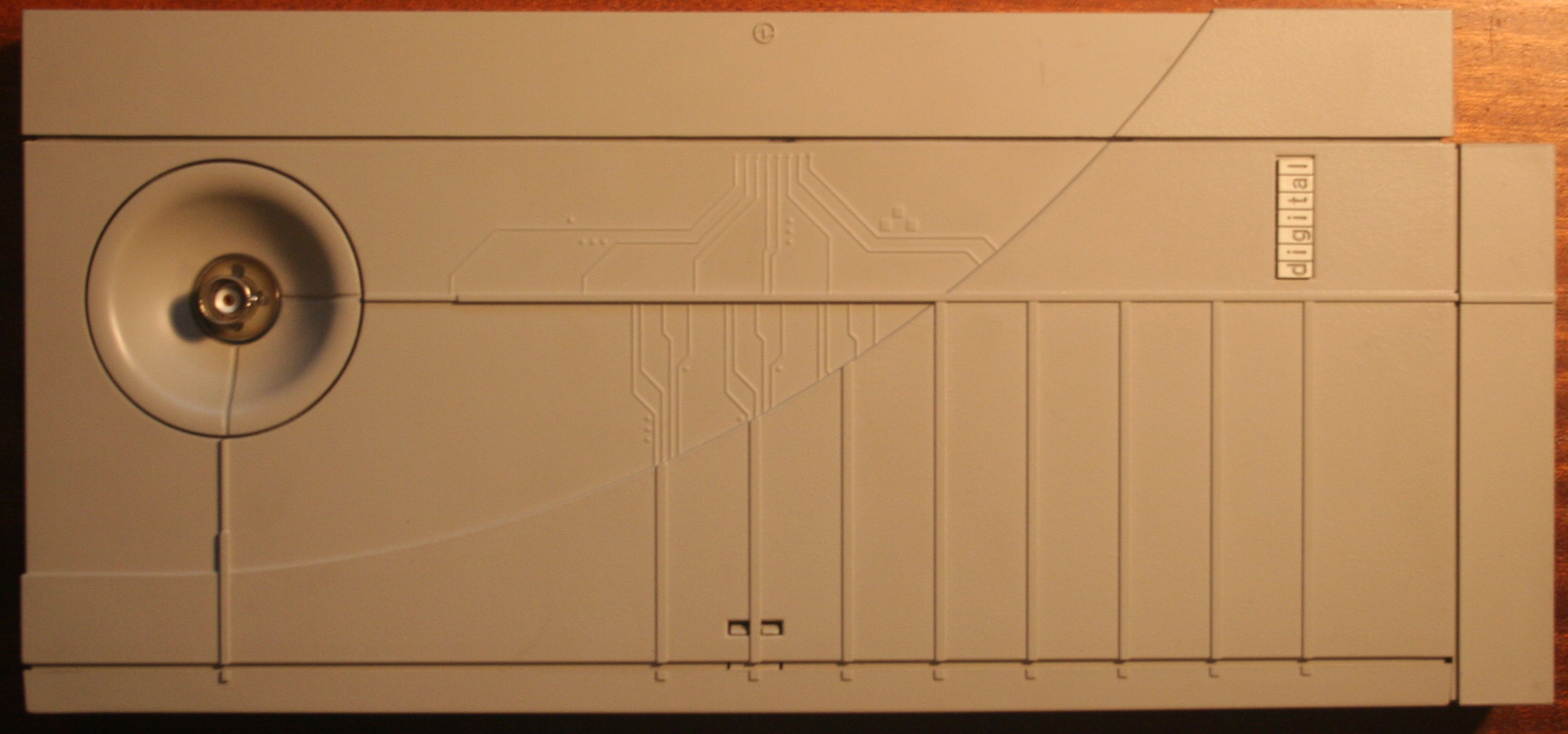

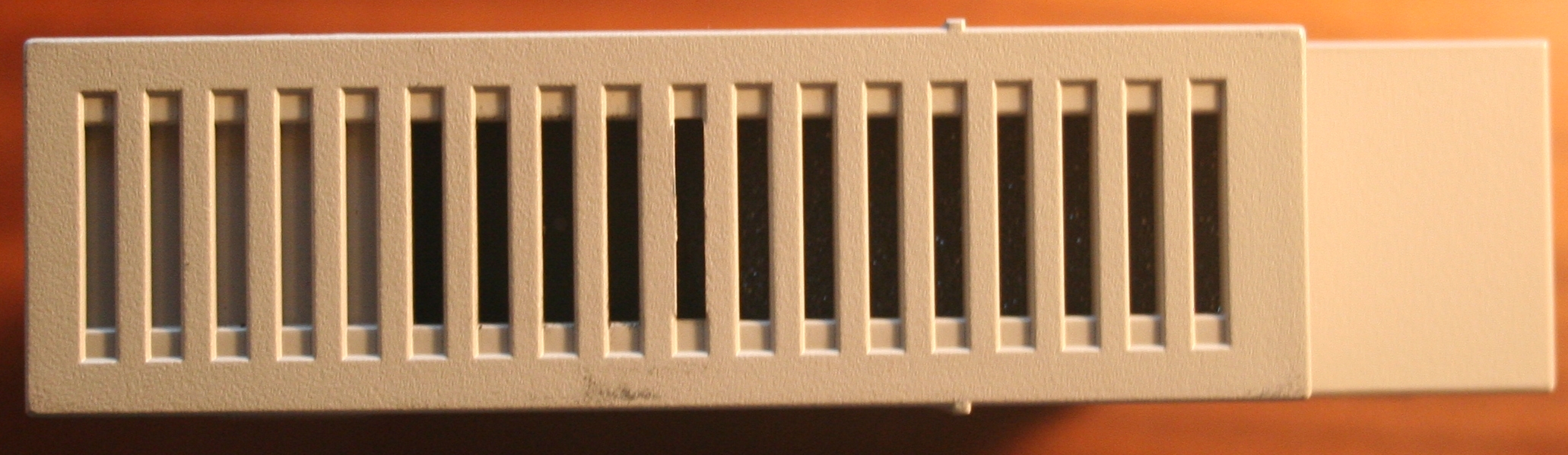

Front | Back | Right Side | Top | Underside

Cables

I currently have the following cables for this thing:

• BC12G-06 - 6ft V.35 cable
• BC12F-06 - 6ft X.21 cable

Documentation

• DECbrouter 90
  • DECbrouter 90 Release Notes, Version 11.1(6), January 1997
  • DECbrouter 90 Read Me First, Version 10.3(10), May 1996
  • DECbrouter 90T Operator's Manuals
• System Software
  • DECbrouter 90 Debug Command Reference Manual
  • DECbrouter 90 Command Summary
  • DECbrouter 90 Internetwork Design Guide
  • DECbrouter 90 MIB Quick Reference
  • Protocol Translator Configuration Guide
  • DECbrouter 90 Command Reference, Volume 1
  • DECbrouter 90 Command Reference, Volume 2
  • DECbrouter 90 Command Reference, Volume 3
  • DECbrouter 90 Getting Started Guide
  • DECbrouter 90 System Error Messages
  • DECbrouter 90 Troubleshooting Internetworking Systems
  • DECbrouter 90 Configuration Guide, Volume 1
  • DECbrouter 90 Configuration Guide, Volume 2

Software

• ctl3d32.dll - DLL missing from DECbrouter 90 Documentation CD

Links

• DECbrouter90 Tech Tips
• Other DECbrouter90 stuff
