DEChub 90: DECserver 90M

The DECserver 90M is a terminal/console server with eight MJ8 plugs. These do not use CISCO wiring. It can be connected to both 10base2 and 10baseT networks. See pages A-4, A-5 and A-6 of the owners manual for serial port wiring diagrams.

Photos (90L+)

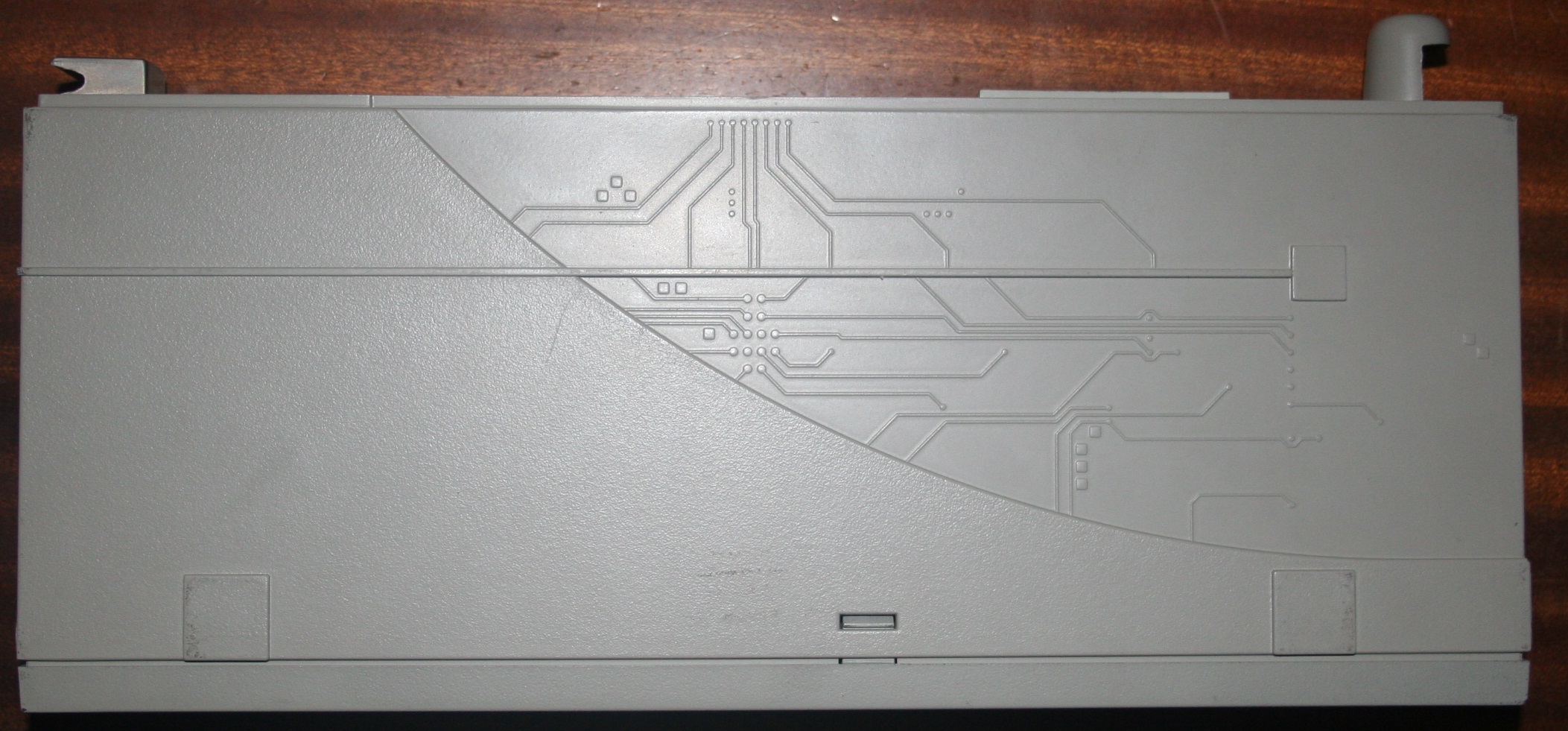

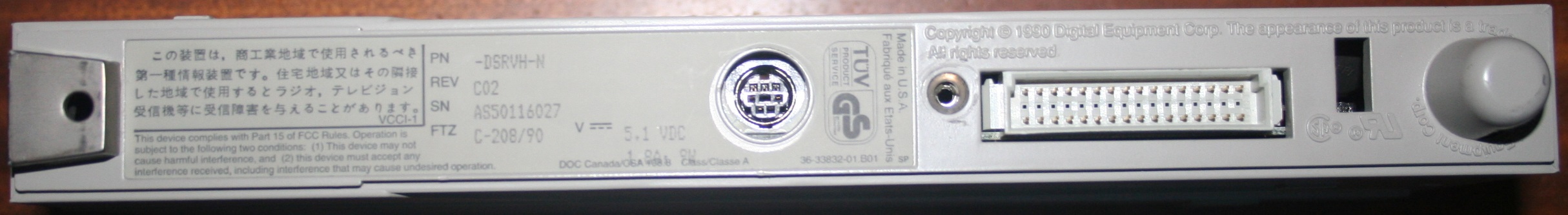

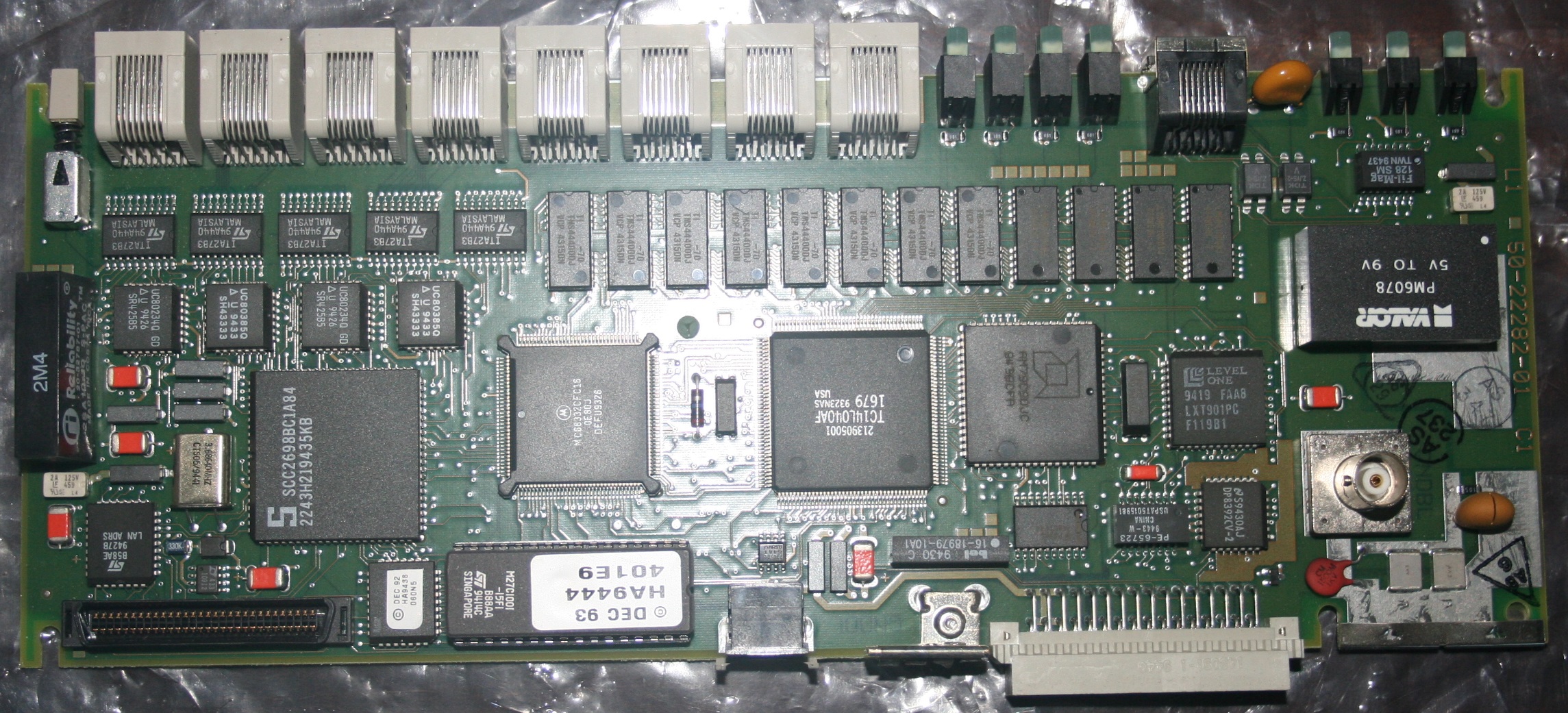

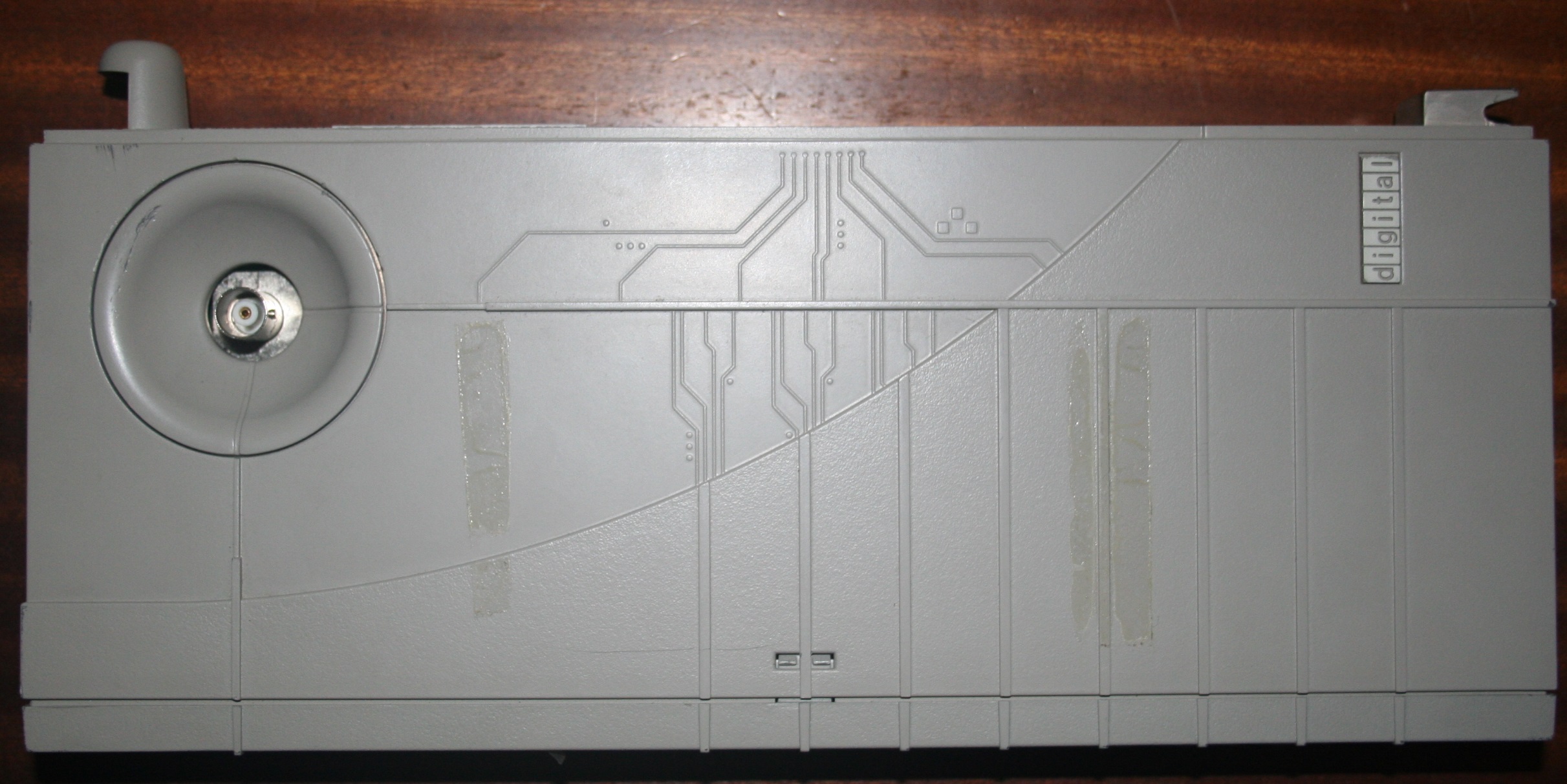

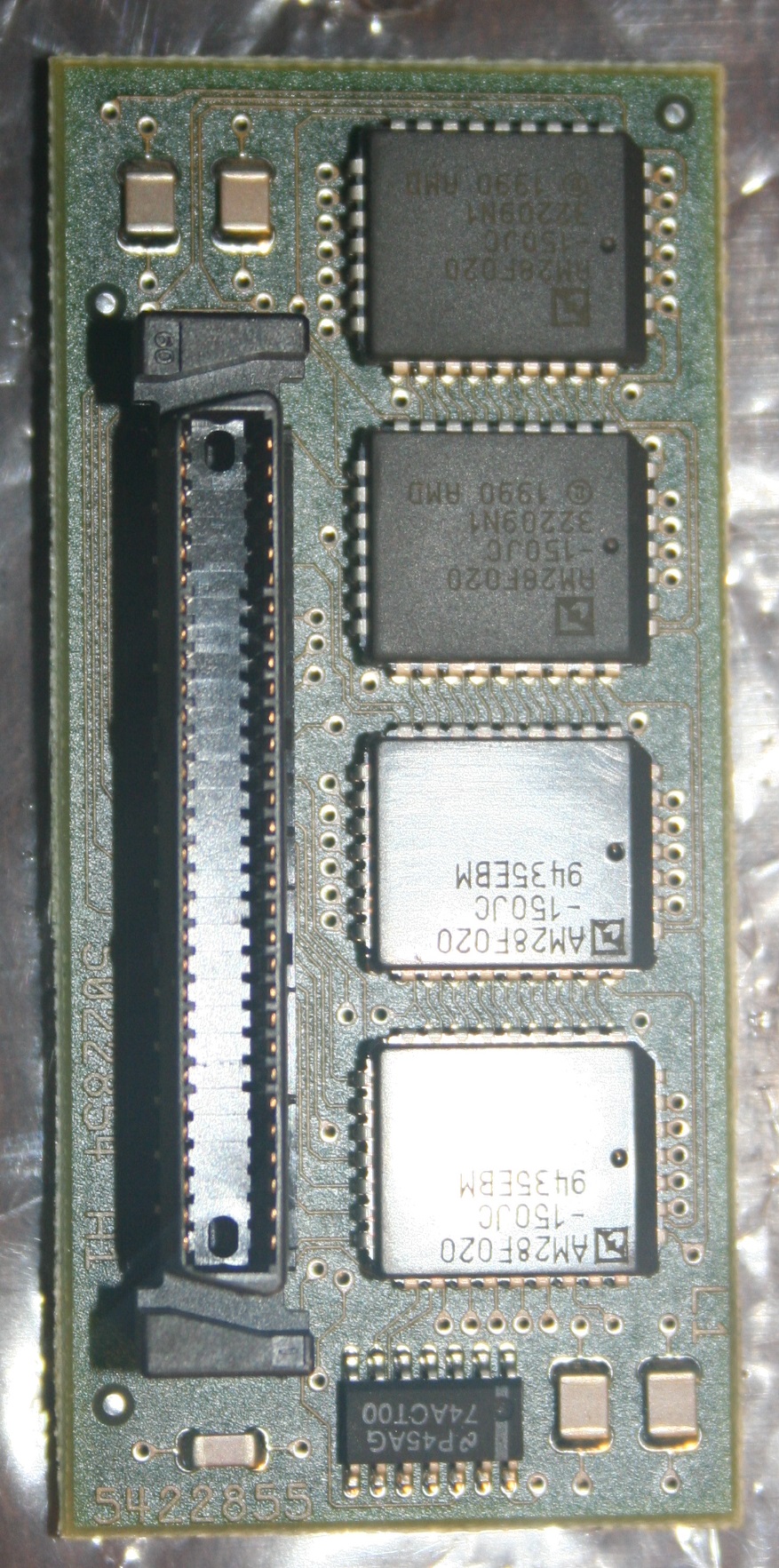

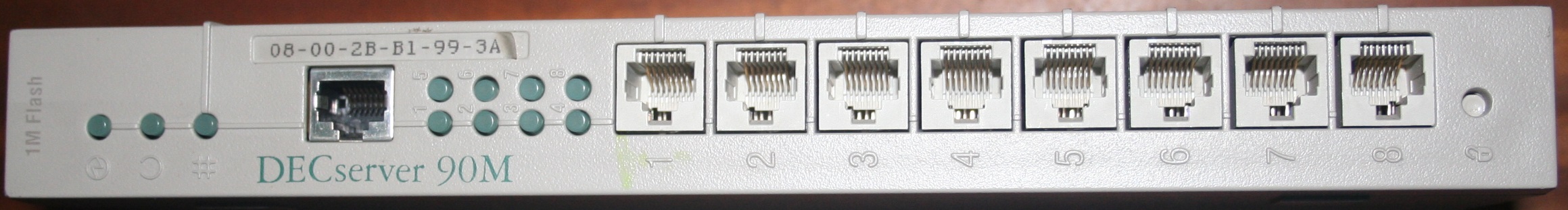

Front | Back | Top | Underside | PCB | Module

Documentation

• DECserver 90M Operator's Manual, Revision A01
