Creator Series 1 24-Bit Color Frame Buffer (FFB)

The Creator Series 1 (S1) is the base model in the Creator Graphics Accelerator family. The S2 adds performance and additional screen resolutions. The S3 adds further performance and additional screen resolutions plus configurable gamma and overlay options.

Compatibility

This card goes in the UPA slot of an Ultra 1E ("Creator", red logo on front) and Ultra 2 - the standard Ultra 1 doesn't have a UPA slot making it incompatible. Part 501-4127 is also compatible with the following Servers: Enterprise 3x00, 4x00, 5x00, 6x00

Supported Screen Resolutions

• 640x480 60Hz NTSC
• 768x575 50Hz PAL
• 960x680 108Hz Stereo
• 960x680 112Hz Stereo
• 1024x768 60Hz, 70Hz, 77Hz
• 1024x800 84Hz
• 1152x900 66Hz, 76Hz
• 1280x1024 67Hz, 76Hz

Useful Links

• Sun System Handbook entry
• Creator Graphics Accelerator - Chapter 4 of the Solaris Handbook for Sun Frame Buffers. Lists supported resolutions, configuration commands, etc.

Photos

Photo	Title

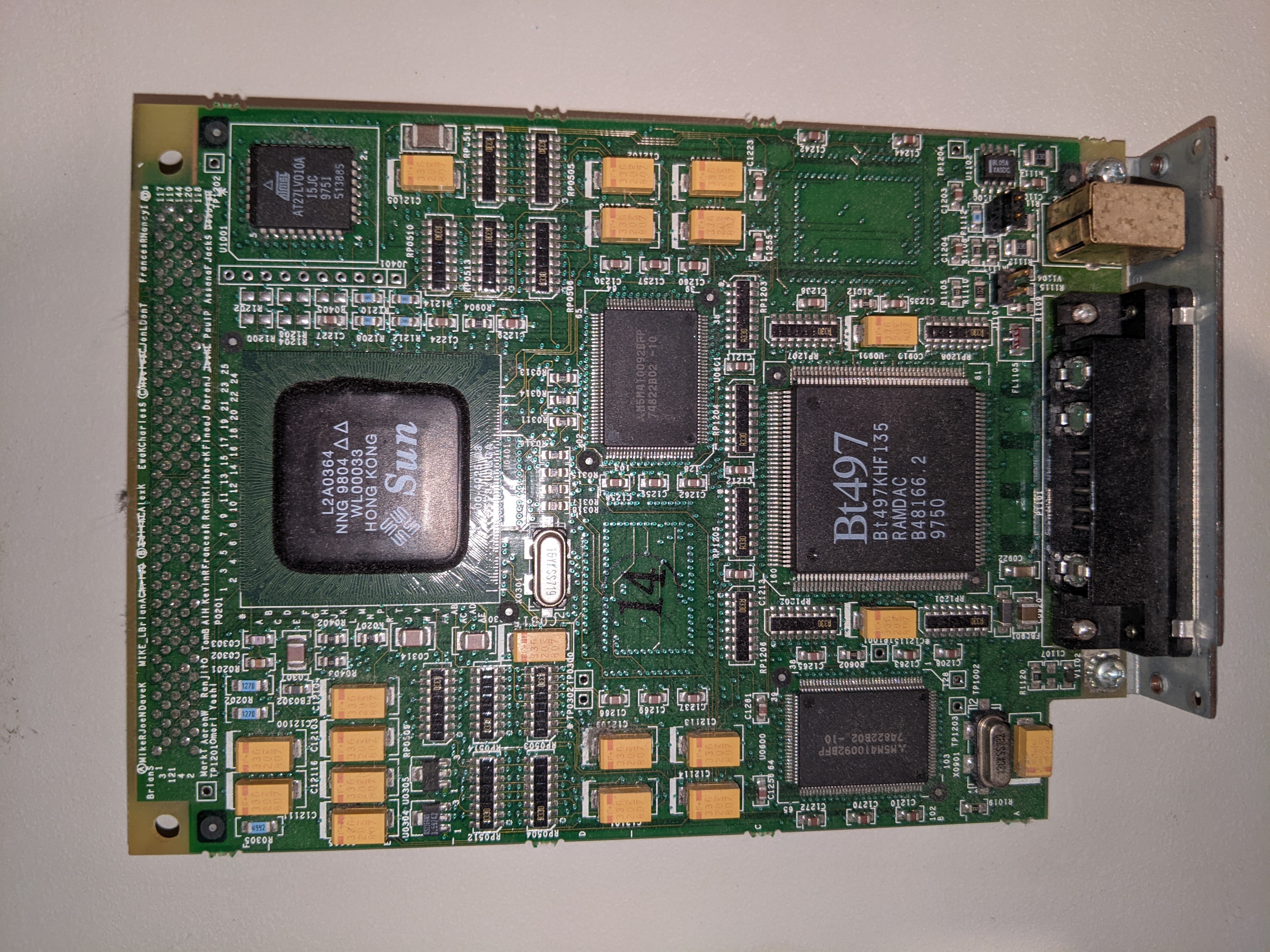

	Top

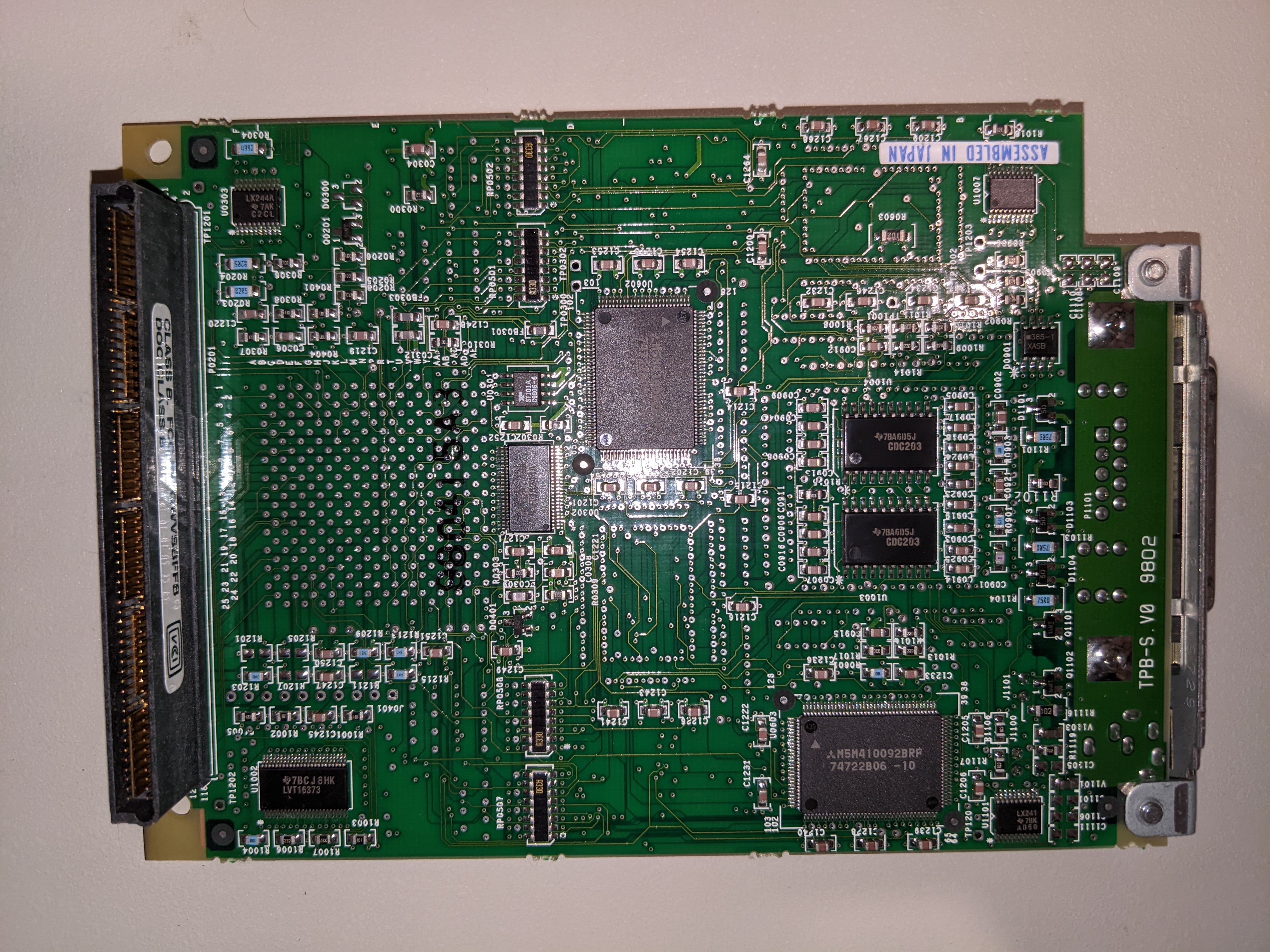

	Underside

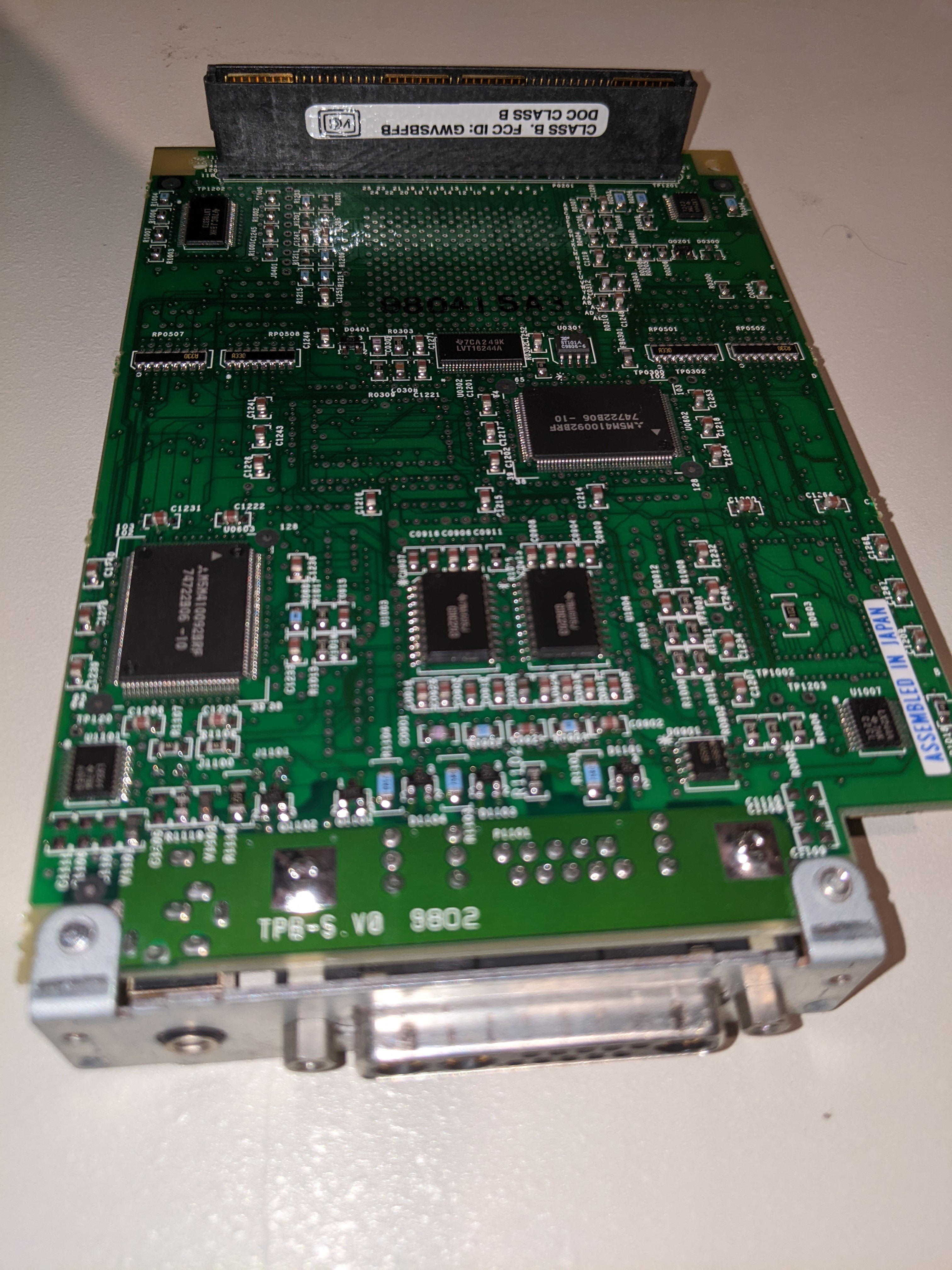

	Label

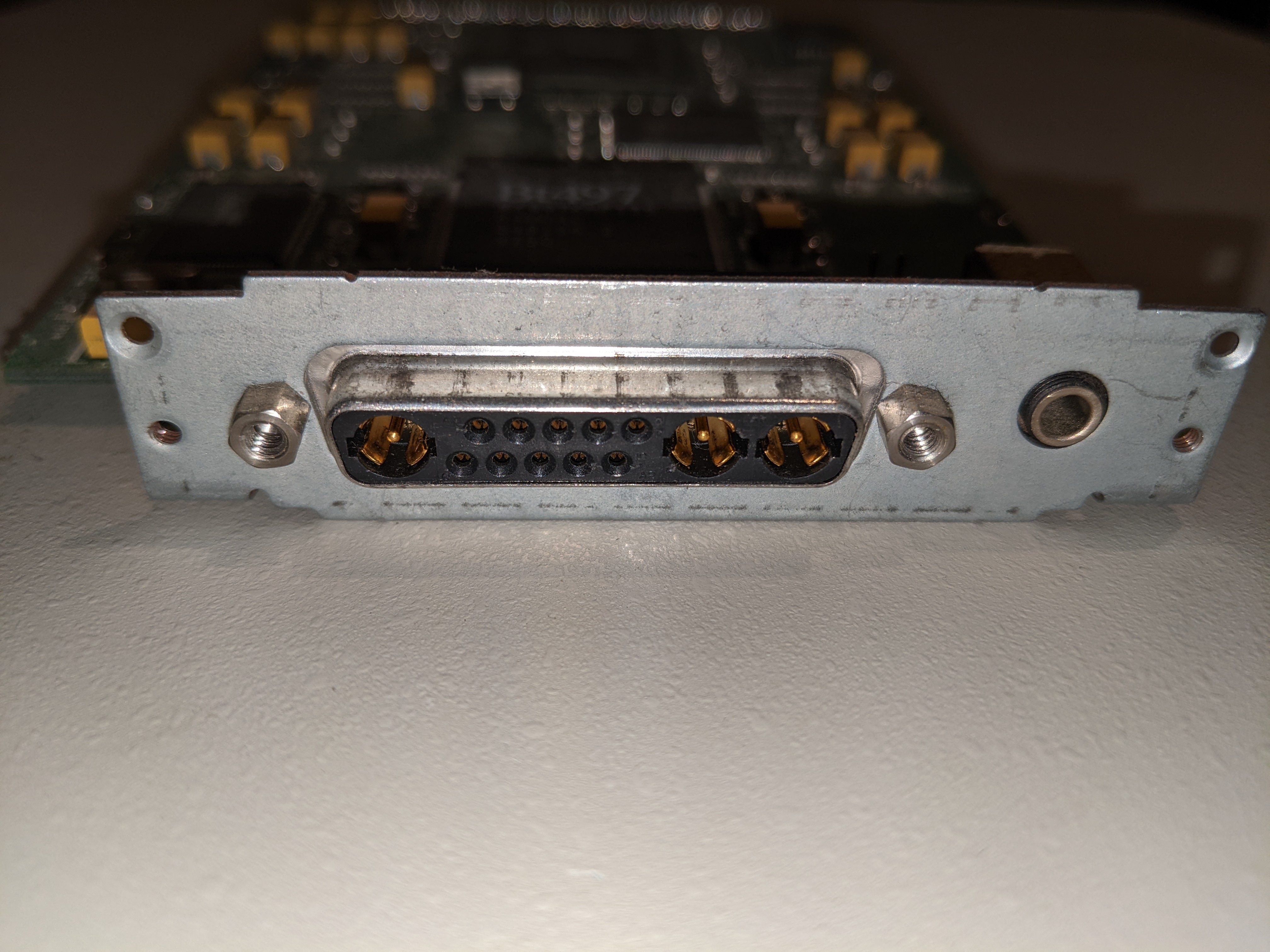

	Interface

Notable ICs & part numbers

• FCCID: GWVSBFFB
• Option: 3651
• Option: 3653
• Option: 3669
• Part Number: 501-2634
• Part Number: 501-4127 (Barcode starts with 5014127
