ZXnet

Ethernet Controller

This is just a NIC using the AMD Lance ethernet chip, same as you get onboard in the SPARCstation IPC and other Sun machines. It has a builtin 10base2 MAU (BNC) plus an AUI port for an external MAU.

501-1450 Switch Settings

501-1881 Switch Settings

Useful Links

• Sun Systems Handbook entry

Photos

Photo	Title

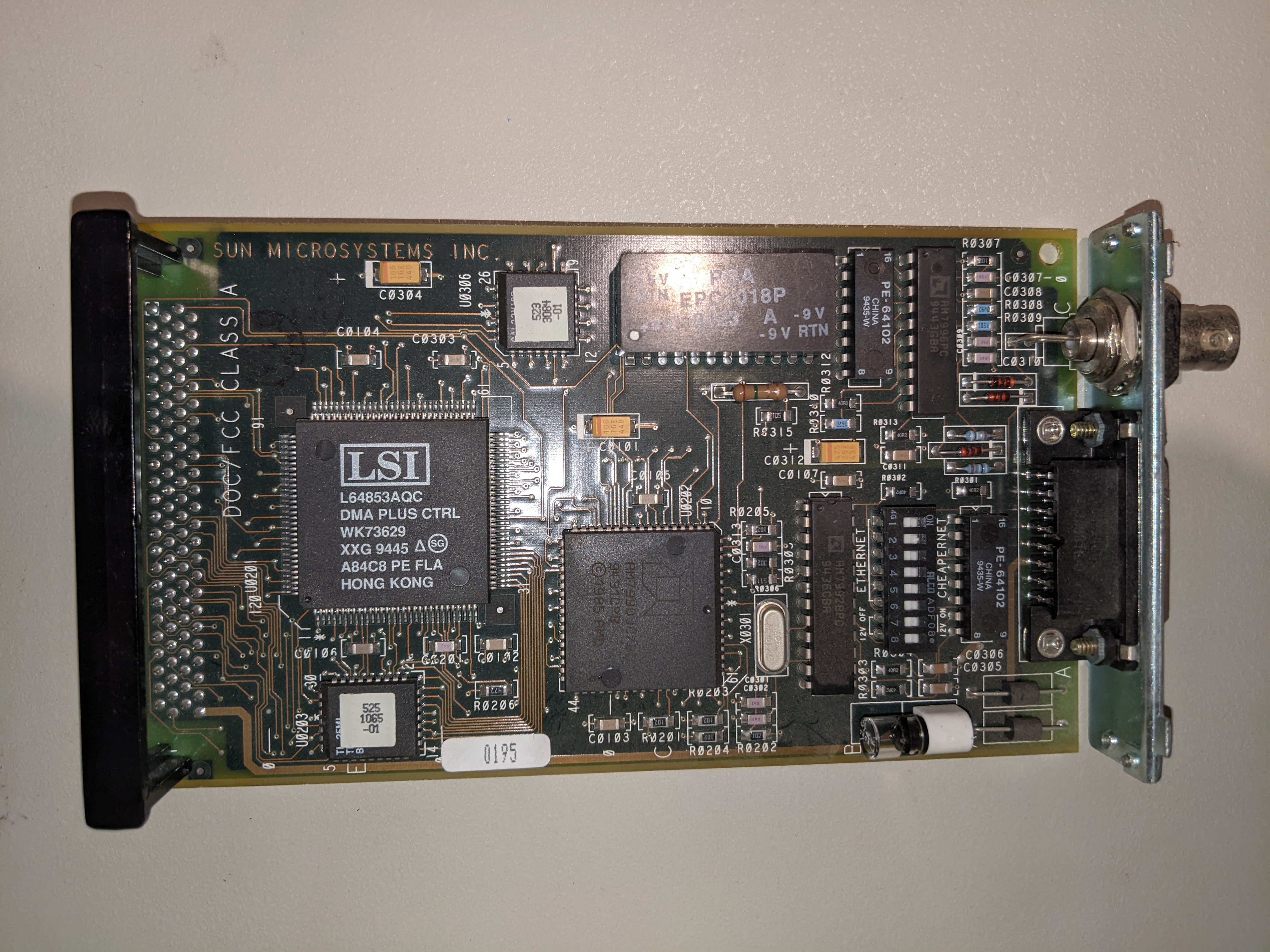

	Top

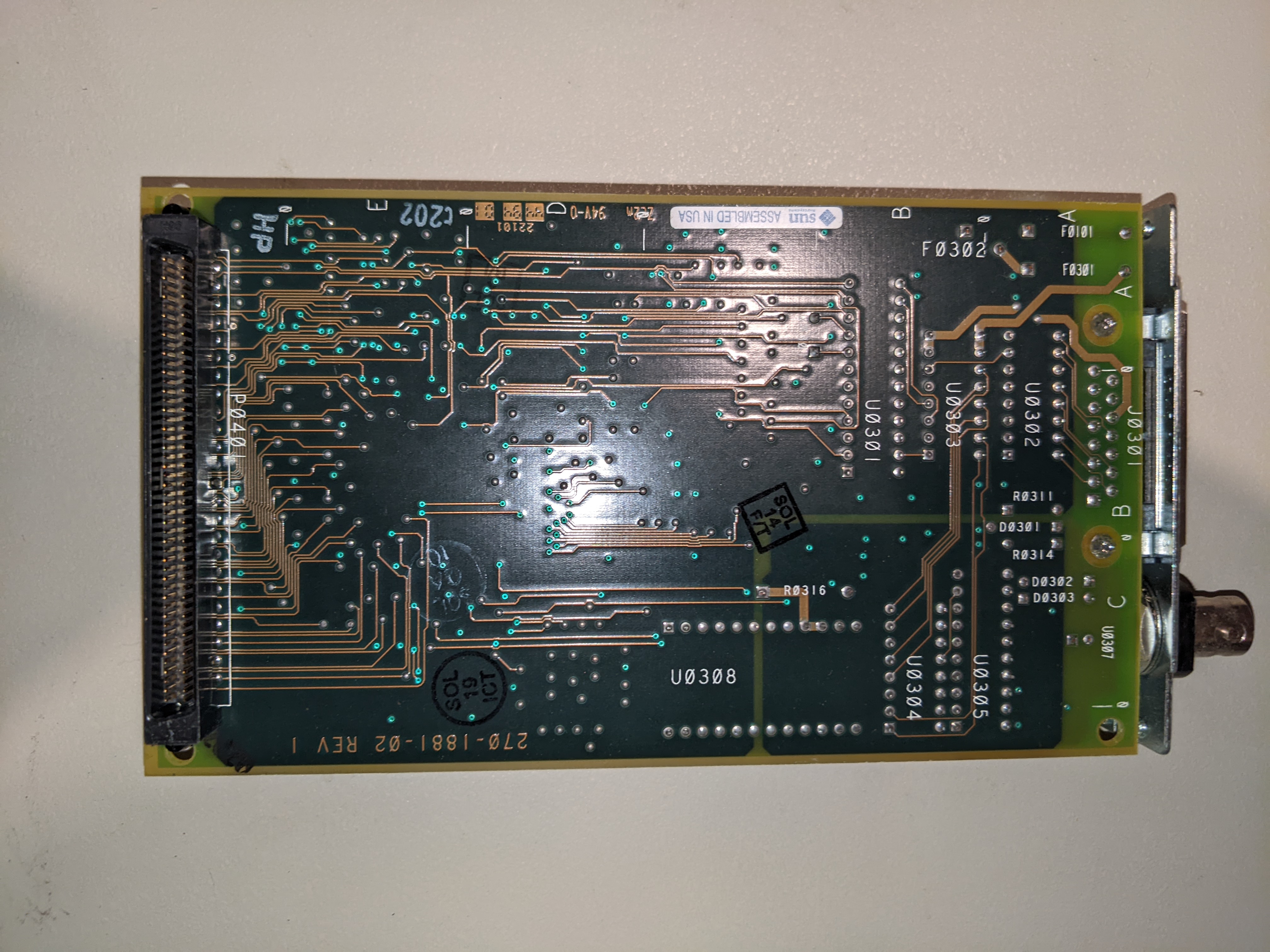

	Underside

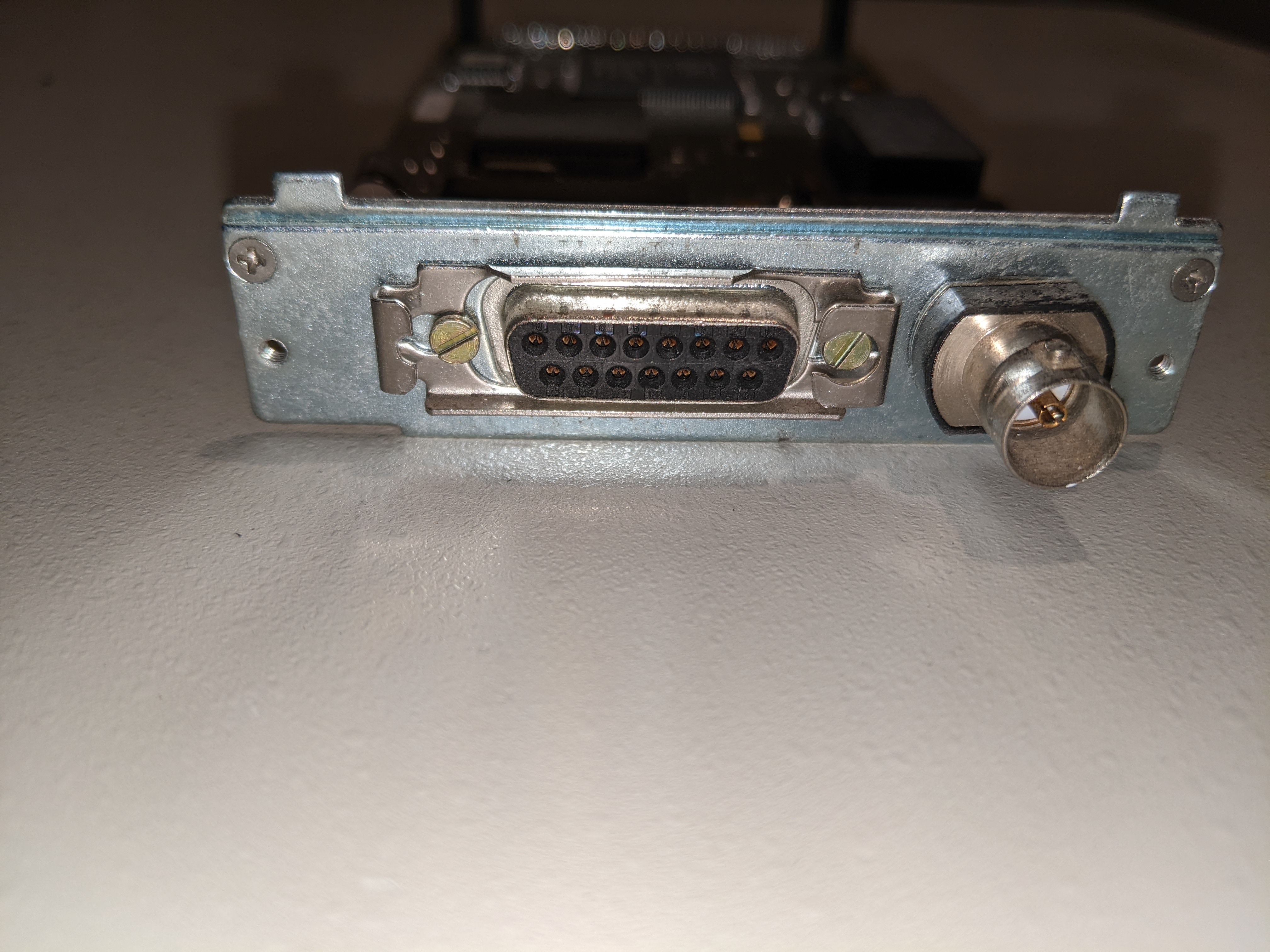

	Interface

Notable ICs & part numbers

• Option: 450 (old version)
• Option: 453
• Part Number: 501-1450 (old version)
• Part Number: 501-1881 (barcode starts with 5011881)
• IC: AM7990
• PCB: 270-1881-02
