SunVideo

This is a video capture device supporting both PAL and NTSC. It requires the SUNWrtvc and XIL runtime packages to be installed.

Useful Links

• Sun System Handbook entry
• SunVideo users Guide, 801-1318

Photos

Photo	Title
	Top

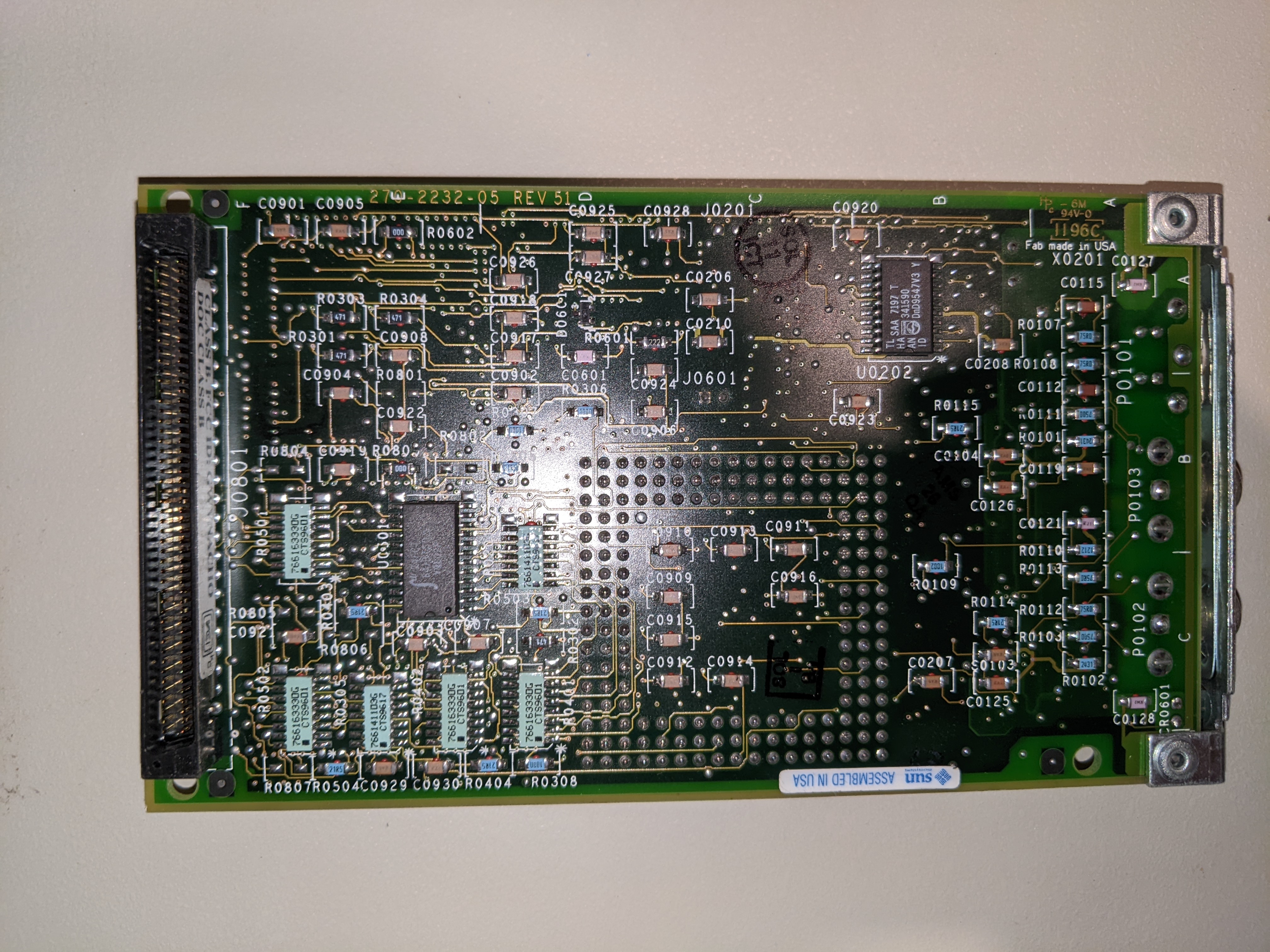

	Underside

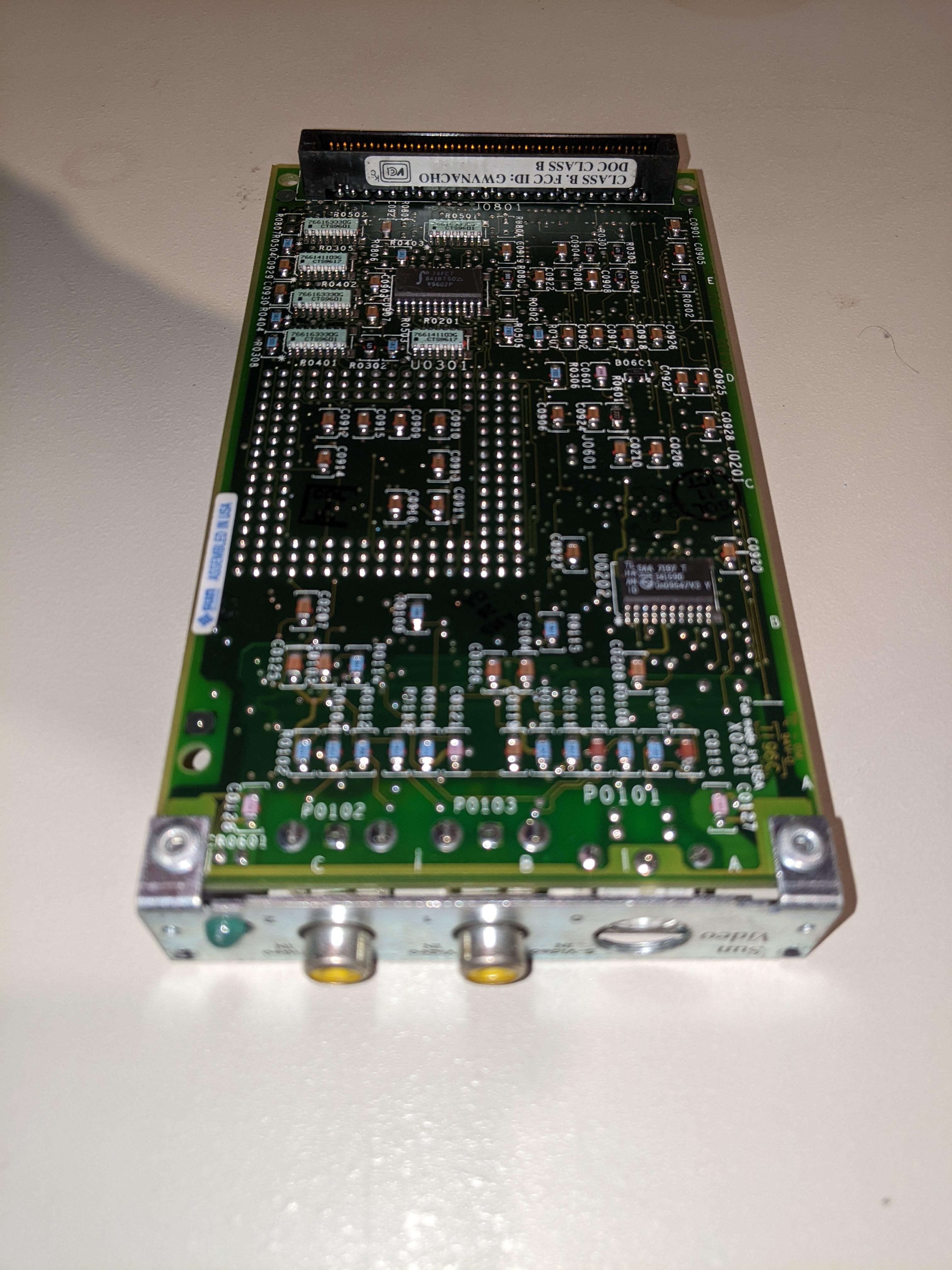

	Label

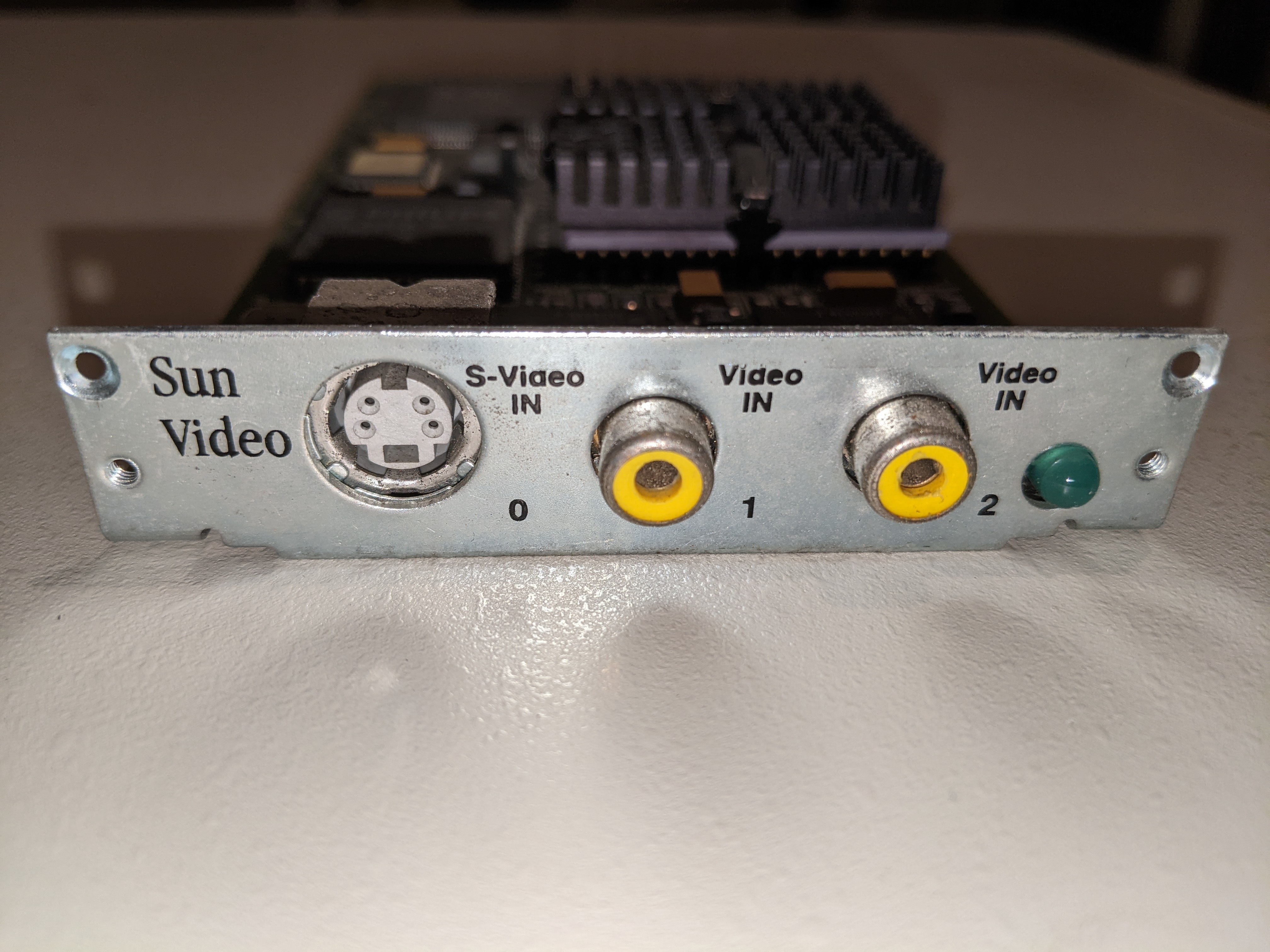

	Interface

Notable ICs & part numbers

• FCCID: GWVNACHO
• Option: 1085
• Part Number: 501-2232 (Barcode starts with 5012232
• IC: L1A9862PZFAA 100-3701-03 JALAPENO
• PCB: 270-2232-05
