10.9.5 EX1009---Detail Report Program

Example 10-9 (EX1009) is a Report Writer program that uses the REPORT HEADING, PAGE HEADING, DETAIL, PAGE FOOTING, CONTROL FOOTING, and REPORT FOOTING report groups. The program also uses the TYPE DETAIL clause---GROUP INDICATE. The program produces a detail report---EX1009.LIS (shown in Figure 10-18).

Example 10-9 Sample Program EX1009

IDENTIFICATION DIVISION.
PROGRAM-ID. EX1009.
ENVIRONMENT DIVISION.
CONFIGURATION SECTION.
INPUT-OUTPUT SECTION.
FILE-CONTROL.
        SELECT CUSTOMER-FILE ASSIGN TO "MASTER.DAT".
        SELECT SORT-FILE     ASSIGN TO "EX1009-SORTIN.TMP".
        SELECT SORTED-FILE   ASSIGN TO "EX1009-SORTOUT.TMP".
        SELECT PRINTER-FILE  ASSIGN TO "EX1009.LIS".

DATA DIVISION.
FILE SECTION.
SD      SORT-FILE.
01      SORTED-CUSTOMER-MASTER-FILE.
        02  SORT-NAME                   PIC X(26).
        02                              PIC X(73).
FD      CUSTOMER-FILE.
01      CUSTOMER-MASTER-FILE            PIC X(99).

FD      SORTED-FILE.
01      CUSTOMER-MASTER-FILE.
        02  NAME.
                03  LAST-NAME           PIC X(15).
                03  FIRST-NAME          PIC X(10).
                03  MIDDLE-INIT         PIC X.
        02  ADDRESS                     PIC X(20).
        02  CITY                        PIC X(20).
        02  STATE                       PIC XX.
        02  ZIP                         PIC 99999.
        02  SALESMAN-NUMBER             PIC 99999.
        02  INVOICE-DATA.
                03  INVOICE-NUMBER      PIC 999999.
                03  INVOICE-SALES       PIC S9(5)V99.
                03  INVOICE-DATE.
                        04  INV-DAY     PIC 99.
                        04  INV-MO      PIC 99.
                        04  INV-YR      PIC 9999.

FD      PRINTER-FILE
        REPORT IS MASTER-LIST.
WORKING-STORAGE SECTION.
01      UNEDITED-DATE.
        02  UE-YEAR      PIC 9999.
        02  UE-MONTH     PIC 99.
        02  UE-DAY       PIC 99.
        02  FILLER       PIC X(6).

01      ONE-COUNT PIC 9 VALUE 1.
REPORT SECTION.
RD MASTER-LIST
        PAGE LIMIT IS 66
        HEADING       1
        FIRST DETAIL  13
        LAST DETAIL   55
        FOOTING       58
        CONTROLS ARE FINAL
                     NAME.
01      REPORT-HEADER TYPE IS REPORT HEADING NEXT GROUP NEXT PAGE.
        02      LINE 24.
                03      COLUMN 45
                        PIC X(31) VALUE ALL "*".
        02      LINE 25.
                03      COLUMN 45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 26.
                03      COLUMN 45
                        PIC X(31) VALUE "*    Customer Master File     *".
        02      LINE 27.
                03      COLUMN 45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 28.
                03      COLUMN 45
                        PIC X VALUE "*".
                03      COLUMN 55
                        PIC Z9
                        SOURCE UE-DAY.
                03      COLUMN 57
                        PIC X   VALUE "-".
                03      COLUMN 58
                        PIC 99
                        SOURCE UE-MONTH.
                03      COLUMN 60
                        PIC X   VALUE "-".
                03      COLUMN 61
                        PIC 9999
                        SOURCE UE-YEAR.
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 29.
                03      COLUMN  45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 30.
                03      COLUMN  45
                        PIC X(31) VALUE "*       GROUP INDICATE        *".
        02      LINE 31.
                03      COLUMN  45
                        PIC X(31) VALUE "*     Detail Report EX1009    *".
        02      LINE 32.
                03      COLUMN  45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".

        02      LINE 33.
                03      COLUMN  45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 34.
                03      COLUMN  45
                        PIC X(31) VALUE ALL "*".
01      TYPE IS PAGE HEADING.
        02      LINE  5.
                03      COLUMN 1
                        PIC X(27) VALUE "CUSTOMER MASTER FILE REPORT".
                03      COLUMN 105
                        PIC X(4)  VALUE "PAGE".
                03      COLUMN 109
                        PIC ZZZ9
                        SOURCE PAGE-COUNTER.
        02      LINE  7.
                03      COLUMN  1
                        PIC X VALUE "+".
                03      COLUMN 2
                        PIC X(110) VALUE ALL "-".
                03      COLUMN 112
                        PIC X VALUE "+".
        02      LINE  8.
                03      COLUMN  1
                        PIC X VALUE "|".
                03      COLUMN 10
                        PIC X(4) VALUE "NAME".
                03      COLUMN  29
                        PIC X VALUE "|".
                03      COLUMN 43
                        PIC X(7) VALUE "ADDRESS".
                03      COLUMN  81
                        PIC X VALUE "|".
                03      COLUMN  91
                        PIC X(7) VALUE "INVOICE".
                03      COLUMN 112
                        PIC X VALUE "|".
        02      LINE  9.
                03      COLUMN  1
                        PIC X VALUE "|".
                03      COLUMN 2
                        PIC X(110) VALUE ALL "-".
                03      COLUMN 112
                        PIC X VALUE "|".
        02      LINE  10.
                03      COLUMN  1
                        PIC X(6) VALUE "| LAST".
                03      COLUMN 16
                        PIC X(7) VALUE "| FIRST".
                03      COLUMN 26
                        PIC X(4) VALUE "|MI|".
                03      COLUMN  35
                        PIC X(6) VALUE "STREET".
                03      COLUMN 48
                        PIC X VALUE "|".
                03      COLUMN 52
                        PIC X(4) VALUE "CITY".
                03      COLUMN  71
                        PIC X VALUE "|".
                03      COLUMN 72
                        PIC X(2) VALUE "ST".
                03      COLUMN 74
                        PIC X VALUE "|".
                03      COLUMN 76
                        PIC X(3) VALUE "ZIP".
                03      COLUMN 81
                        PIC X VALUE "|".
                03      COLUMN 83
                        PIC X(4) VALUE "DATE".
                03      COLUMN 90
                        PIC X VALUE "|".
                03      COLUMN  92
                        PIC X(6) VALUE "NUMBER".
                03      COLUMN 98
                        PIC X VALUE "|".
                03      COLUMN 103
                        PIC X(6) VALUE "AMOUNT".
                03      COLUMN 112
                        PIC X VALUE "|".
        02      LINE  11.
                03      COLUMN 1
                        PIC X VALUE "+".
                03      COLUMN 2
                        PIC X(110) VALUE ALL "-".
                03      COLUMN 112
                        PIC X VALUE "+".
01      DETAIL-LINE
        TYPE DETAIL
        LINE PLUS 1.
        02 COLUMN 1     PIC X(15) SOURCE LAST-NAME               GROUP INDICATE.
        02 COLUMN 17    PIC X(10) SOURCE FIRST-NAME              GROUP INDICATE.
        02 COLUMN 28    PIC XX    SOURCE MIDDLE-INIT             GROUP INDICATE.
        02 COLUMN 30    PIC X(20) SOURCE ADDRESS.
        02 COLUMN 51    PIC X(20) SOURCE CITY.
        02 COLUMN 72    PIC XX    SOURCE STATE.
        02 COLUMN 75    PIC 99999 SOURCE ZIP.
        02 COLUMN 81    PIC Z9    SOURCE INV-DAY.
        02 COLUMN 83    PIC X     VALUE "-".
        02 COLUMN 84    PIC 99    SOURCE INV-MO.
        02 COLUMN 86    PIC X     VALUE "-".
        02 COLUMN 87    PIC 9999  SOURCE INV-YR.
        02 COLUMN 92    PIC 9(6)  SOURCE INVOICE-NUMBER.
        02 COLUMN 99    PIC $$$,$$$,$$$.99-
                                  SOURCE INVOICE-SALES.
        02 DETAIL-COUNT PIC S9(10) SOURCE ONE-COUNT.
        02 INV-AMOUNT   PIC S9(9)V99 SOURCE INVOICE-SALES.

01      PAGE-FOOTING TYPE IS PAGE FOOTING.
        02      LINE 59.
                03      COLUMN 45
                        PIC X(16) VALUE "C O M P A N Y  ".
                03      COLUMN  62
                        PIC X(25) VALUE  "C O N F I D E N T I A L  ".
        02      LINE 60.
                03      COLUMN 45
                        PIC X(16) VALUE "C O M P A N Y  ".
                03      COLUMN  62
                        PIC X(25) VALUE  "C O N F I D E N T I A L  ".

01      TYPE IS CONTROL FOOTING NAME
                NEXT GROUP IS PLUS 2.
        02      LINE IS PLUS 2.
                03      COLUMN  73
                        PIC X(39) VALUE ALL "*".
        02      LINE IS PLUS 1.
                03      COLUMN  20  PIC X(17) VALUE " TOTAL RECORDS: ".
                03 IDC  COLUMN  40  PIC ZZZ,ZZZ,ZZ9 SUM ONE-COUNT.
                03      COLUMN  73  PIC X(22) VALUE "*  INVOICE SUB TOTAL: ".
                03 IIA  COLUMN  96  PIC $$$,$$$,$$$.99- SUM INVOICE-SALES.
                03      COLUMN  111 PIC X VALUE "*".
        02      LINE IS PLUS 1.
                03      COLUMN  73
                        PIC X(39) VALUE ALL "*".

01      FINAL-FOOTING TYPE IS CONTROL FOOTING FINAL
                      NEXT GROUP NEXT PAGE.
        02      LINE IS PLUS 2.
                03      COLUMN  70
                        PIC X(42) VALUE ALL "*".
        02      LINE IS PLUS 1.
                03      COLUMN  14 PIC X(21) VALUE "GRAND TOTAL RECORDS: ".
                03 FDC  COLUMN  40 PIC ZZZ,ZZZ,ZZ9 SUM IDC.
                03      COLUMN  70 PIC X(24) VALUE "*  GRAND TOTAL INVOICES:".
                03 FIA  COLUMN  94 PIC $,$$$,$$$,$$$.99- SUM IIA.
                03      COLUMN  111 PIC X VALUE "*".
        02      LINE IS PLUS 1.
                03      COLUMN  70
                        PIC X(42) VALUE ALL "*".

01      REPORT-FOOTER TYPE IS REPORT FOOTING.
        02      LINE 24  ON NEXT PAGE COLUMN  45
                        PIC X(31) VALUE ALL "*".
        02      LINE 25.
                03      COLUMN  45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 26.
                03      COLUMN  45
                        PIC X(31) VALUE "*    Customer Master File     *".
        02      LINE 27.
                03      COLUMN  45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 28.
                03      COLUMN  45
                        PIC X VALUE "*".
                03      COLUMN  55
                        PIC Z9
                        SOURCE UE-DAY.
                03      COLUMN  57
                        PIC X   VALUE "-".
                03      COLUMN  58
                        PIC 99
                        SOURCE UE-MONTH.
                03      COLUMN  60
                        PIC X   VALUE "-".
                03      COLUMN  61
                        PIC 9999
                        SOURCE UE-YEAR.
                03      COLUMN  75
                        PIC X VALUE "*".
        02      LINE 29.
                03      COLUMN  45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 30 COLUMN  45
                        PIC X(31) VALUE "*     End of Report EX1009    *".
        02      LINE 31.
                03      COLUMN  45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 32 COLUMN  45
                        PIC X(31) VALUE ALL "*".
PROCEDURE DIVISION.
DECLARATIVES.
BOR SECTION.
        USE BEFORE REPORTING REPORT-HEADER.
EOR SECTION.
        USE BEFORE REPORTING REPORT-FOOTER.
EOR-A.
        DISPLAY "*** Created EX1009.LIS ***".
END DECLARATIVES.
MAIN SECTION.
000-DO-SORT.
        SORT SORT-FILE ON ASCENDING KEY SORT-NAME
             WITH DUPLICATES IN ORDER
             USING CUSTOMER-FILE
             GIVING SORTED-FILE.
000-START.
        DISPLAY "*** EX1009 ***".
        DISPLAY "Enter Current Date (YYYYMMDD) :".
        ACCEPT UNEDITED-DATE.
        OPEN INPUT  SORTED-FILE.
        OPEN OUTPUT PRINTER-FILE.
        INITIATE MASTER-LIST.
        PERFORM 200-READ-MASTER UNTIL NAME = HIGH-VALUES.
100-END-OF-FILE.
        TERMINATE MASTER-LIST.
        CLOSE SORTED-FILE, PRINTER-FILE.
        STOP RUN.
200-READ-MASTER.
        READ SORTED-FILE AT END MOVE HIGH-VALUES TO NAME.
        IF NAME NOT = HIGH-VALUES GENERATE DETAIL-LINE.

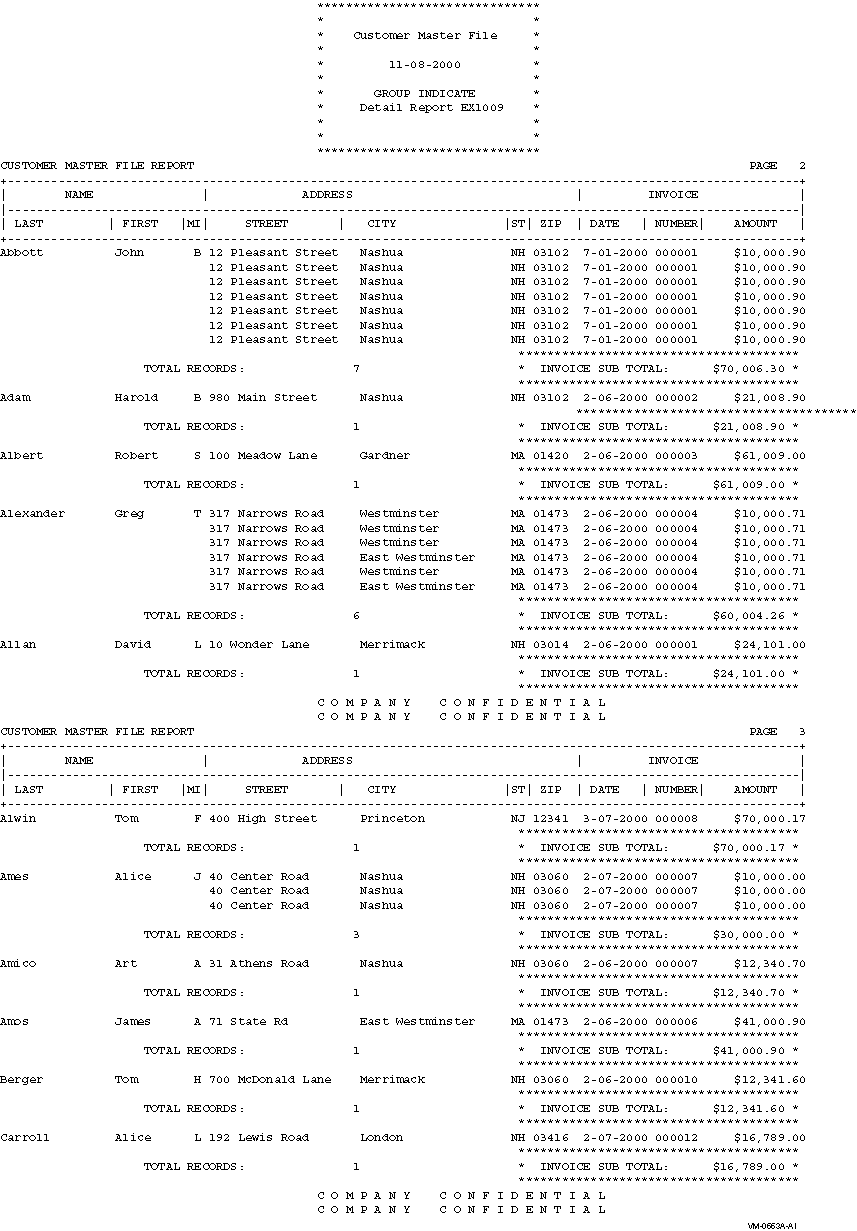

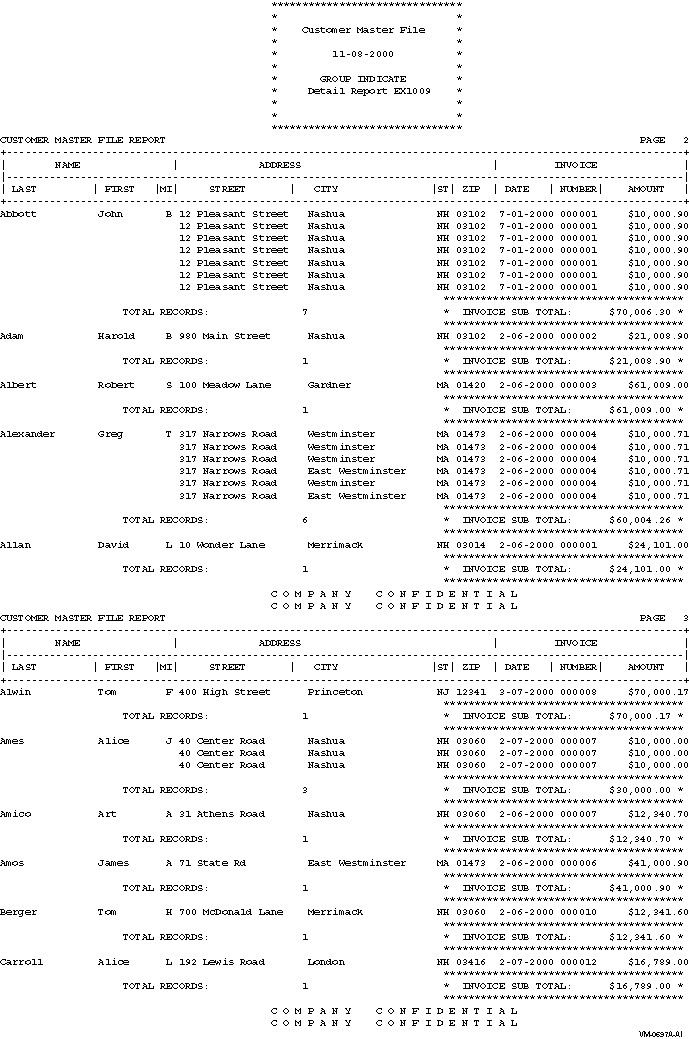

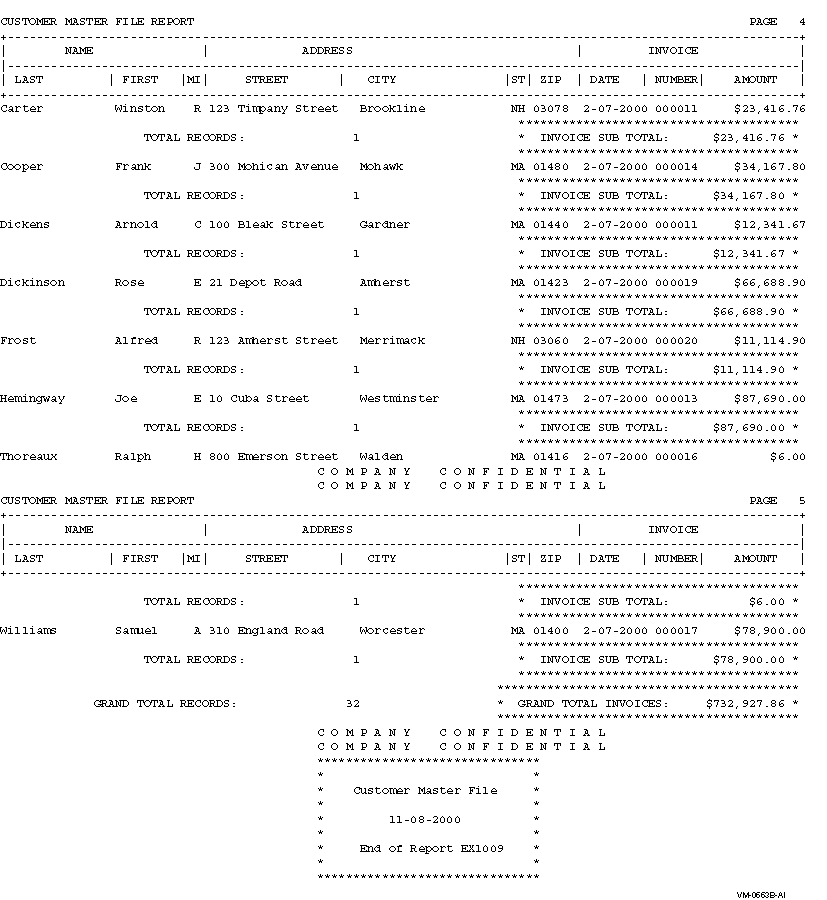

Figure 10-18 EX1009.LIS Listing





10.9.6 EX1010---Summary Report Program

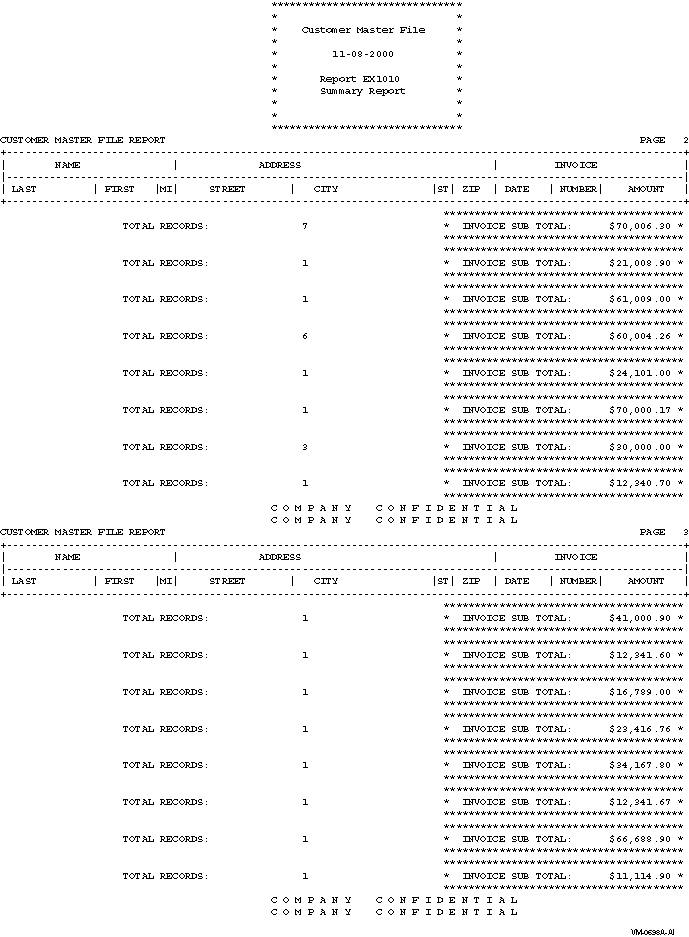

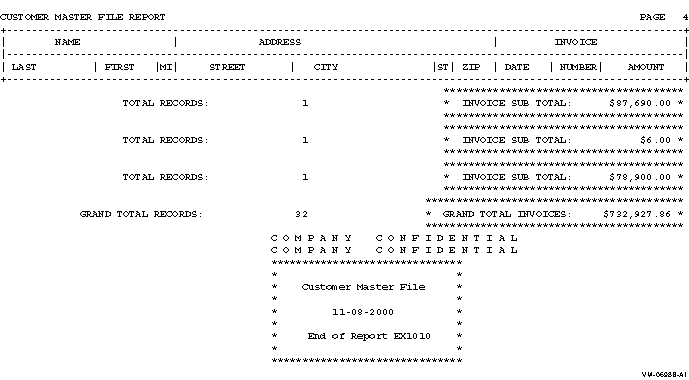

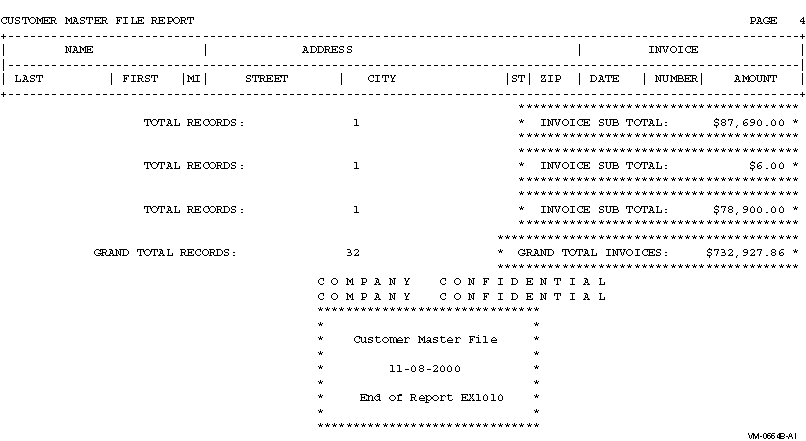

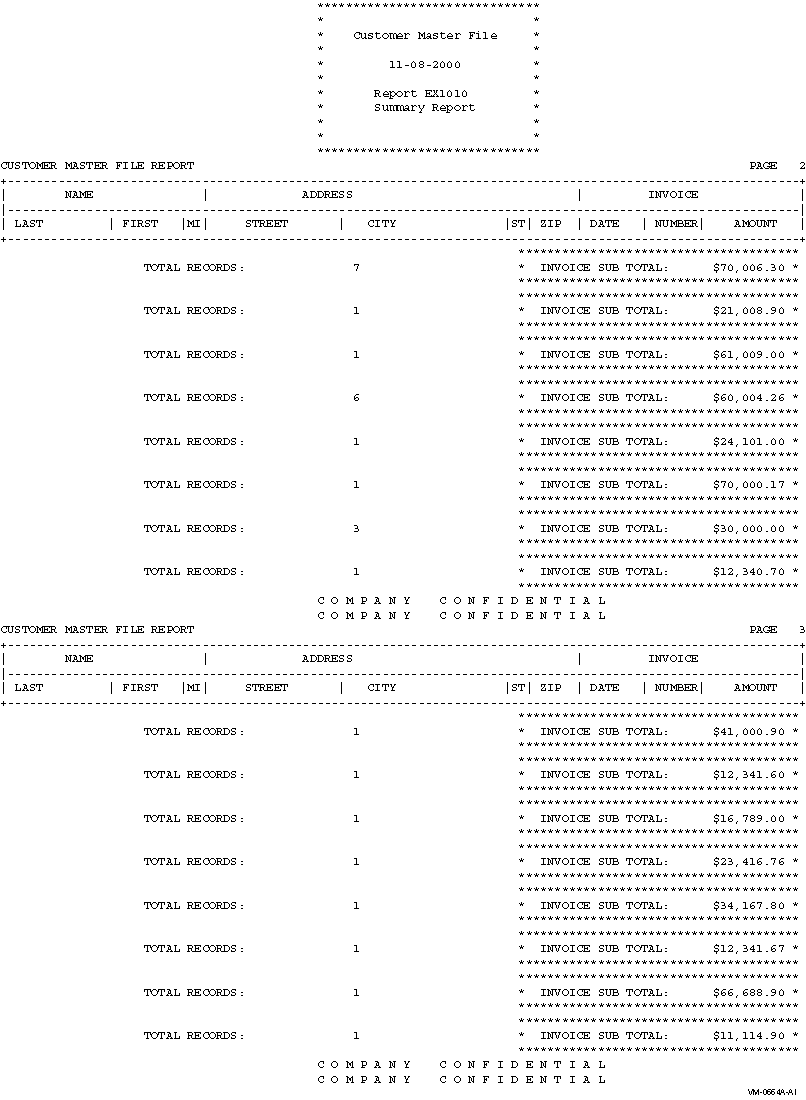

Example 10-10 (EX1010) is a Report Writer program that uses the REPORT HEADING, PAGE HEADING, DETAIL, CONTROL FOOTING, PAGE FOOTING, and REPORT FOOTING report groups. The program produces a summary report---EX1010.LIS (shown in Figure 10-19)---because the GENERATE statement specifies a report name (MASTER-LIST) rather than a DETAIL report group.

Example 10-10 Sample Program EX1010

IDENTIFICATION DIVISION.
PROGRAM-ID. EX1010.
ENVIRONMENT DIVISION.
CONFIGURATION SECTION.
INPUT-OUTPUT SECTION.
FILE-CONTROL.
        SELECT CUSTOMER-FILE ASSIGN TO "MASTER.DAT".
        SELECT SORT-FILE     ASSIGN TO "EX1010-SORTIN.TMP".
        SELECT SORTED-FILE   ASSIGN TO "EX1010-SORTOUT.TMP".
        SELECT PRINTER-FILE  ASSIGN TO "EX1010.LIS".

DATA DIVISION.
FILE SECTION.
SD      SORT-FILE.
01      SORTED-CUSTOMER-MASTER-FILE.
        02  SORT-NAME                   PIC X(26).
        02                              PIC X(73).

FD      CUSTOMER-FILE.
01      CUSTOMER-MASTER-FILE            PIC X(99).

FD      SORTED-FILE.
01      CUSTOMER-MASTER-FILE.
        02  NAME.
                03  LAST-NAME           PIC X(15).
                03  FIRST-NAME          PIC X(10).
                03  MIDDLE-INIT         PIC X.
        02  ADDRESS                     PIC X(20).
        02  CITY                        PIC X(20).
        02  STATE                       PIC XX.
        02  ZIP                         PIC 99999.
        02  SALESMAN-NUMBER             PIC 99999.
        02  INVOICE-DATA.
                03  INVOICE-NUMBER      PIC 999999.
                03  INVOICE-SALES       PIC S9(5)V99.
                03  INVOICE-DATE.
                        04  INV-DAY     PIC 99.
                        04  INV-MO      PIC 99.
                        04  INV-YR      PIC 9999.

FD      PRINTER-FILE
        REPORT IS MASTER-LIST.

WORKING-STORAGE SECTION.
01      UNEDITED-DATE.
        02  UE-YEAR     PIC 9999.
        02  UE-MONTH    PIC 99.
        02  UE-DAY      PIC 99.
        02  FILLER      PIC X(6).

01      ONE-COUNT       PIC 9 VALUE 1.
REPORT SECTION.
RD      MASTER-LIST
        PAGE LIMIT IS 66
        HEADING       1
        FIRST DETAIL  13
        LAST DETAIL   55
        FOOTING       58
        CONTROLS ARE FINAL
                    NAME.
01      REPORT-HEADER TYPE IS REPORT HEADING NEXT GROUP NEXT PAGE.
        02      LINE 24.
                03      COLUMN 45
                        PIC X(31) VALUE ALL "*".
        02      LINE 25.
                03      COLUMN 45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 26.
                03      COLUMN 45
                        PIC X(31) VALUE "*    Customer Master File     *".
        02      LINE 27.
                03      COLUMN 45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 28.
                03      COLUMN 45
                        PIC X VALUE "*".
                03      COLUMN 55
                        PIC Z9
                        SOURCE UE-DAY.
                03      COLUMN 57
                        PIC X   VALUE "-".
                03      COLUMN 58
                        PIC 99
                        SOURCE UE-MONTH.
                03      COLUMN 60
                        PIC X   VALUE "-".
                03      COLUMN 61
                        PIC 9999
                        SOURCE UE-YEAR.
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 29.
                03      COLUMN  45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 30.
                03      COLUMN  45
                        PIC X(31) VALUE "*       Report EX1010         *".
        02      LINE 31.
                03      COLUMN  45
                        PIC X(31) VALUE "*       Summary Report        *".
        02      LINE 32.
                03      COLUMN  45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 33.
                03      COLUMN  45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 34.
                03      COLUMN  45
                        PIC X(31) VALUE ALL "*".
01      TYPE IS PAGE HEADING.
        02      LINE  5.
                03      COLUMN 1
                        PIC X(27) VALUE "CUSTOMER MASTER FILE REPORT".
                03      COLUMN 105
                        PIC X(4)  VALUE "PAGE".
                03      COLUMN 109
                        PIC ZZZ9
                        SOURCE PAGE-COUNTER.
        02      LINE  7.
                03      COLUMN  1
                        PIC X VALUE "+".
                03      COLUMN 2
                        PIC X(110) VALUE ALL "-".
                03      COLUMN 112
                        PIC X VALUE "+".
        02      LINE  8.
                03      COLUMN  1
                        PIC X VALUE "|".
                03      COLUMN 10
                        PIC X(4) VALUE "NAME".
                03      COLUMN  29
                        PIC X VALUE "|".
                03      COLUMN 43
                        PIC X(7) VALUE "ADDRESS".
                03      COLUMN  81
                        PIC X VALUE "|".
                03      COLUMN  91
                        PIC X(7) VALUE "INVOICE".
                03      COLUMN 112
                        PIC X VALUE "|".
        02      LINE  9.
                03      COLUMN  1
                        PIC X VALUE "|".
                03      COLUMN 2
                        PIC X(110) VALUE ALL "-".
                03      COLUMN 112
                        PIC X VALUE "|".
        02      LINE  10.
                03      COLUMN  1
                        PIC X(6) VALUE "| LAST".
                03      COLUMN 16
                        PIC X(7) VALUE "| FIRST".
                03      COLUMN 26
                        PIC X(4) VALUE "|MI|".
                03      COLUMN  35
                        PIC X(6) VALUE "STREET".
                03      COLUMN 48
                        PIC X VALUE "|".
                03      COLUMN 52
                        PIC X(4) VALUE "CITY".
                03      COLUMN  71
                        PIC X VALUE "|".
                03      COLUMN 72
                        PIC X(2) VALUE "ST".
                03      COLUMN 74
                        PIC X VALUE "|".
                03      COLUMN 76
                        PIC X(3) VALUE "ZIP".
                03      COLUMN 81
                        PIC X VALUE "|".
                03      COLUMN 83
                        PIC X(4) VALUE "DATE".
                03      COLUMN 90
                        PIC X VALUE "|".
                03      COLUMN  92
                        PIC X(6) VALUE "NUMBER".
                03      COLUMN 98
                        PIC X VALUE "|".
                03      COLUMN 103
                        PIC X(6) VALUE "AMOUNT".
                03      COLUMN 112
                        PIC X VALUE "|".
        02      LINE  11.
                03      COLUMN 1
                        PIC X VALUE "+".
                03      COLUMN 2
                        PIC X(110) VALUE ALL "-".
                03      COLUMN 112
                        PIC X VALUE "+".
01      DETAIL-LINE
        TYPE DETAIL
        LINE PLUS 1.
        02 COLUMN 1     PIC X(15) SOURCE LAST-NAME        GROUP INDICATE.
        02 COLUMN 17    PIC X(10) SOURCE FIRST-NAME       GROUP INDICATE.
        02 COLUMN 28    PIC XX    SOURCE MIDDLE-INIT      GROUP INDICATE.
        02 COLUMN 30    PIC X(20) SOURCE ADDRESS.
        02 COLUMN 51    PIC X(20) SOURCE CITY.
        02 COLUMN 72    PIC XX    SOURCE STATE.
        02 COLUMN 75    PIC 99999 SOURCE ZIP.
        02 COLUMN 81    PIC Z9    SOURCE INV-DAY.
        02 COLUMN 83    PIC X     VALUE "-".
        02 COLUMN 84    PIC 99    SOURCE INV-MO.
        02 COLUMN 86    PIC X     VALUE "-".
        02 COLUMN 87    PIC 9999  SOURCE INV-YR.
        02 COLUMN 92    PIC 9(6)  SOURCE INVOICE-NUMBER.
        02 COLUMN 99    PIC $$$,$$$,$$$.99-
                                  SOURCE INVOICE-SALES.
        02 DETAIL-COUNT PIC S9(10) SOURCE ONE-COUNT.
        02 INV-AMOUNT   PIC S9(9)V99 SOURCE INVOICE-SALES.
01      TYPE IS CONTROL FOOTING NAME
                NEXT GROUP IS PLUS 2.
        02      LINE IS PLUS 2.
                03      COLUMN  73
                        PIC X(39) VALUE ALL "*".
        02      LINE IS PLUS 1.
                03      COLUMN  20  PIC X(17) VALUE " TOTAL RECORDS: ".
                03 IDC  COLUMN  40  PIC ZZZ,ZZZ,ZZ9 SUM ONE-COUNT.
                03      COLUMN  73  PIC X(22) VALUE "*  INVOICE SUB TOTAL: ".
                03 IIA  COLUMN  96  PIC $$$,$$$,$$$.99- SUM INVOICE-SALES.
                03      COLUMN  111 PIC X VALUE "*".
        02      LINE IS PLUS 1.
                03      COLUMN  73
                        PIC X(39) VALUE ALL "*".
01      FINAL-FOOTING TYPE IS CONTROL FOOTING FINAL
                      NEXT GROUP NEXT PAGE.
        02      LINE IS PLUS 2.
                03      COLUMN  70
                        PIC X(42) VALUE ALL "*".
        02      LINE IS PLUS 1.
                03      COLUMN  14 PIC X(21) VALUE "GRAND TOTAL RECORDS: ".
                03 FDC  COLUMN  40 PIC ZZZ,ZZZ,ZZ9 SUM IDC.
                03      COLUMN  70 PIC X(24) VALUE "*  GRAND TOTAL INVOICES:".
                03 FIA  COLUMN  94 PIC $,$$$,$$$,$$$.99- SUM IIA.
                03      COLUMN  111 PIC X VALUE "*".
        02      LINE IS PLUS 1.
                03      COLUMN  70
                        PIC X(42) VALUE ALL "*".
01      REPORT-FOOTER TYPE IS REPORT FOOTING.
        02      LINE 24  ON NEXT PAGE COLUMN  45
                        PIC X(31) VALUE ALL "*".
        02      LINE 25.
                03      COLUMN  45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 26.
                03      COLUMN  45
                        PIC X(31) VALUE "*    Customer Master File     *".
        02      LINE 27.
                03      COLUMN  45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 28.
                03      COLUMN  45
                        PIC X VALUE "*".
                03      COLUMN  55
                        PIC Z9
                        SOURCE UE-DAY.
                03      COLUMN  57
                        PIC X   VALUE "-".
                03      COLUMN  58
                        PIC 99
                        SOURCE UE-MONTH.
                03      COLUMN  60
                        PIC X   VALUE "-".
                03      COLUMN  61
                        PIC 9999
                        SOURCE UE-YEAR.
                03      COLUMN  75
                        PIC X VALUE "*".
        02      LINE 29.
                03      COLUMN  45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 30 COLUMN  45
                        PIC X(31) VALUE "*     End of Report EX1010    *".
        02      LINE 31.
                03      COLUMN  45
                        PIC X VALUE "*".
                03      COLUMN 75
                        PIC X VALUE "*".
        02      LINE 32 COLUMN  45
                        PIC X(31) VALUE ALL "*".

01      PAGE-FOOTING TYPE IS PAGE FOOTING.
        02      LINE 59.
                03      COLUMN 45
                        PIC X(16) VALUE "C O M P A N Y  ".
                03      COLUMN  62
                        PIC X(25) VALUE  "C O N F I D E N T I A L  ".
        02      LINE 60.
                03      COLUMN 45
                        PIC X(16) VALUE "C O M P A N Y  ".
                03      COLUMN  62
                        PIC X(25) VALUE  "C O N F I D E N T I A L  ".
PROCEDURE DIVISION.
DECLARATIVES.
BOR SECTION.
        USE BEFORE REPORTING REPORT-HEADER.
EOR SECTION.
        USE BEFORE REPORTING REPORT-FOOTER.
EOR-A.
        DISPLAY "*** Created EX1010.LIS ***".
END DECLARATIVES.

MAIN SECTION.
000-DO-SORT.

       SORT SORT-FILE ON ASCENDING KEY SORT-NAME
            WITH DUPLICATES IN ORDER
            USING CUSTOMER-FILE
            GIVING SORTED-FILE.
000-START.
        DISPLAY "*** EX1010 ***".
        DISPLAY "Enter Current Date (YYYYMMDD) :".
        ACCEPT UNEDITED-DATE.
        OPEN INPUT  SORTED-FILE.
        OPEN OUTPUT PRINTER-FILE.
        INITIATE MASTER-LIST.
        PERFORM 200-READ-MASTER UNTIL NAME = HIGH-VALUES.
100-END-OF-FILE.
        TERMINATE MASTER-LIST.
        CLOSE SORTED-FILE, PRINTER-FILE.
        STOP RUN.
200-READ-MASTER.
        READ SORTED-FILE AT END MOVE HIGH-VALUES TO NAME.
        IF NAME NOT = HIGH-VALUES GENERATE MASTER-LIST.


Figure 10-19 EX1010.LIS Listing






Previous Next Contents Index
