Several variations to the basic report format are discussed in the next sections.

10.10.1 Printing More Than One Logical Line on a Single Physical Line

When your report has only a few columns, you can print several logical lines on one physical line. If you were to print names and addresses on four-up self-sticking multilabel forms, you would print the form left to right and top to bottom, as shown in Figure 10-20 and Example 10-11. To print four-up self-sticking labels, you must format each logical line with four input records.

However, if the columns must be sorted by column, the task becomes more difficult. The last line at the end of the first column is continued at the top of the second column of the same page, indented to the right, and so forth, as shown in Figure 10_21 and Example 10-12. Example 10-12 defines a table containing all data to appear on the page. It reads the input records, stores the data in the table as it is to appear on the page, prints the contents of the table and then fills spaces. When it reaches the end of file, the remaining entries in the table are automatically blank. You can extend this technique to print any number of logical lines on a single physical line.

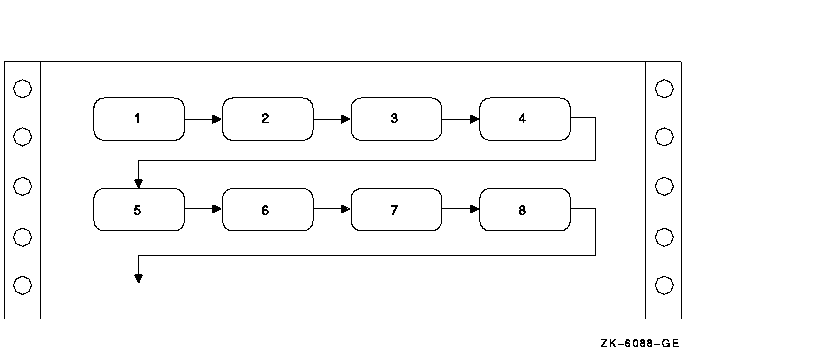

Figure 10-20 Printing Labels Four-Up

Example 10-11 Printing Labels Four-Up

IDENTIFICATION DIVISION. PROGRAM-ID. REP02. ENVIRONMENT DIVISION. INPUT-OUTPUT SECTION. FILE-CONTROL. SELECT INPUT-FILE ASSIGN TO "LABELS.DAT". SELECT REPORT-FILE ASSIGN TO "LABELS.REP". DATA DIVISION. FILE SECTION. FD INPUT-FILE. 01 INPUT-RECORD. 02 INPUT-NAME PIC X(20). 02 INPUT-ADDRESS PIC X(15). 02 INPUT-CITY PIC X(10). 02 INPUT-STATE PIC XX. 02 INPUT-ZIP PIC 99999. FD REPORT-FILE. 01 REPORT-RECORD PIC X(132). WORKING-STORAGE SECTION. 01 LABELS-TABLE. 03 NAME-LINE. 05 LINE-1 OCCURS 4 TIMES INDEXED BY INDEX-1. 07 LABEL-NAME PIC X(20). 07 FILLER PIC X(10). 03 ADDRESS-LINE. 05 LINE-2 OCCURS 4 TIMES INDEXED BY INDEX-2. 07 LABEL-ADDRESS PIC X(15). 07 FILLER PIC X(15). 03 CSZ-LINE. 05 LINE-3 OCCURS 4 TIMES INDEXED BY INDEX-3. 07 LABEL-CITY PIC X(10). 07 FILLER PIC XXXX. 07 LABEL-STATE PIC XX. 07 FILLER PIC XXXX. 07 LABEL-ZIP PIC 99999. 07 FILLER PIC XXXXX. 01 END-OF-FILE PIC X. PROCEDURE DIVISION. A000-BEGIN. OPEN INPUT INPUT-FILE OUTPUT REPORT-FILE. MOVE SPACES TO LABELS-TABLE. SET INDEX-1, INDEX-2, INDEX-3 TO 1. PERFORM A100-READ-INPUT UNTIL END-OF-FILE = "Y". A050-WRAP-UP. IF LABEL-NAME(1) IS NOT EQUAL TO SPACES PERFORM A300-PRINT-FOUR-LABELS. A050-END-OF-JOB. CLOSE INPUT-FILE REPORT-FILE. DISPLAY "END OF JOB". STOP RUN. * A100-READ-INPUT. READ INPUT-FILE AT END MOVE "Y" TO END-OF-FILE. IF END-OF-FILE = "Y" NEXT SENTENCE ELSE PERFORM A200-GENERATE-TABLE. * A200-GENERATE-TABLE. MOVE INPUT-NAME TO LABEL-NAME(INDEX-1) MOVE INPUT-ADDRESS TO LABEL-ADDRESS(INDEX-2) MOVE INPUT-CITY TO LABEL-CITY(INDEX-3) MOVE INPUT-STATE TO LABEL-STATE(INDEX-3) MOVE INPUT-ZIP TO LABEL-ZIP(INDEX-3) IF INDEX-1 = 4 PERFORM A300-PRINT-FOUR-LABELS ELSE SET INDEX-1, INDEX-2, INDEX-3 UP BY 1. * A300-PRINT-FOUR-LABELS. WRITE REPORT-RECORD FROM NAME-LINE AFTER ADVANCING 3. WRITE REPORT-RECORD FROM ADDRESS-LINE AFTER ADVANCING 1. WRITE REPORT-RECORD FROM CSZ-LINE AFTER ADVANCING 1. MOVE SPACES TO LABELS-TABLE. SET INDEX-1, INDEX-2, INDEX-3 TO 1.

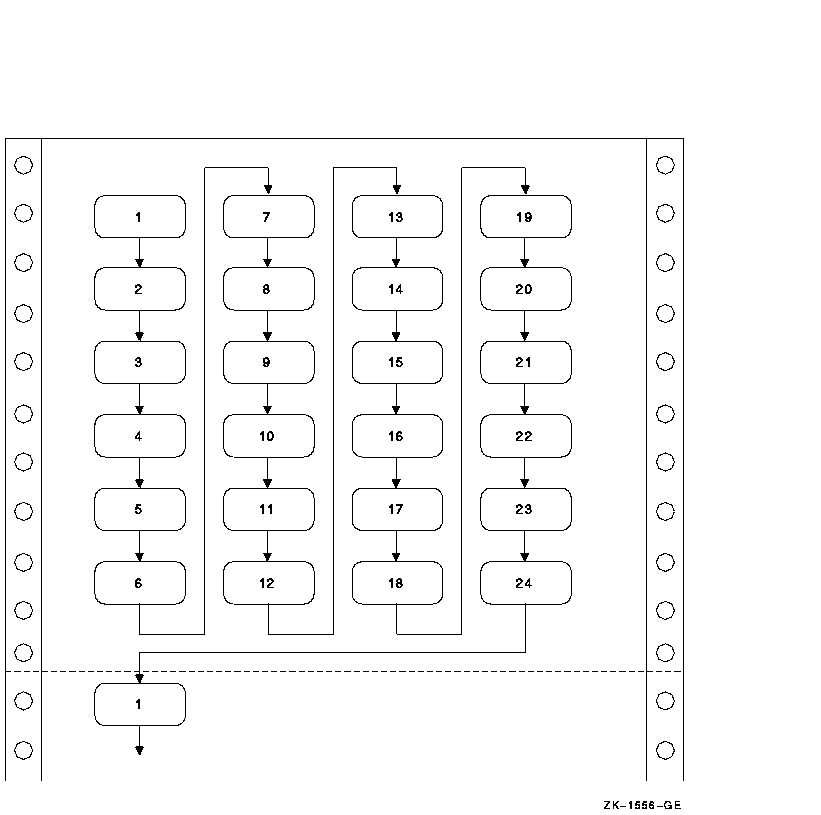

Figure 10-21 Printing Labels Four-Up in Sort Order

Example 10-12 Printing Labels Four-Up in Sort Order

IDENTIFICATION DIVISION. PROGRAM-ID. REP03. ENVIRONMENT DIVISION. INPUT-OUTPUT SECTION. FILE-CONTROL. SELECT INPUT-FILE ASSIGN TO "LABELS.DAT". SELECT REPORT-FILE ASSIGN TO "LABELS.REP". DATA DIVISION. FILE SECTION. FD INPUT-FILE. 01 INPUT-RECORD. 02 INPUT-NAME PIC X(20). 02 INPUT-ADDRESS PIC X(15). 02 INPUT-CITY PIC X(10). 02 INPUT-STATE PIC XX. 02 INPUT-ZIP PIC 99999. FD REPORT-FILE. 01 REPORT-RECORD PIC X(132). WORKING-STORAGE SECTION. 01 LABELS-TABLE. 03 FOUR-UP OCCURS 6 TIMES INDEXED BY ROW-INDEX. 04 NAME-LINE. 05 LINE-1 OCCURS 4 TIMES INDEXED BY NAME-INDEX. 07 LABEL-NAME PIC X(20). 07 FILLER PIC X(10). 04 ADDRESS-LINE. 05 LINE-2 OCCURS 4 TIMES INDEXED BY ADDRESS-INDEX. 07 LABEL-ADDRESS PIC X(15). 07 FILLER PIC X(15). 04 CSZ-LINE. 05 LINE-3 OCCURS 4 TIMES INDEXED BY CSZ-INDEX. 07 LABEL-CITY PIC X(10). 07 FILLER PIC XXXX. 07 LABEL-STATE PIC XX. 07 FILLER PIC XXXX. 07 LABEL-ZIP PIC 99999. 07 FILLER PIC XXXXX. 01 END-OF-FILE PIC X. PROCEDURE DIVISION. A000-BEGIN. OPEN INPUT INPUT-FILE OUTPUT REPORT-FILE. MOVE SPACES TO LABELS-TABLE. SET ROW-INDEX, NAME-INDEX, ADDRESS-INDEX, CSZ-INDEX TO 1. PERFORM A100-READ-INPUT UNTIL END-OF-FILE = "Y". A050-WRAP-UP. IF LABEL-NAME(1, 1) IS NOT EQUAL TO SPACES PERFORM A300-PRINT-PAGE-OF-LABELS VARYING ROW-INDEX FROM 1 BY 1 UNTIL ROW-INDEX IS GREATER THAN 6. A050-END-OF-JOB. CLOSE INPUT-FILE REPORT-FILE. DISPLAY "END OF JOB". STOP RUN. A100-READ-INPUT. READ INPUT-FILE AT END MOVE "Y" TO END-OF-FILE. IF END-OF-FILE = "Y" NEXT SENTENCE ELSE PERFORM A200-GENERATE-LABELS. A200-GENERATE-LABELS. MOVE INPUT-NAME TO LABEL-NAME(ROW-INDEX, NAME-INDEX) MOVE INPUT-ADDRESS TO LABEL-ADDRESS(ROW-INDEX, ADDRESS-INDEX) MOVE INPUT-CITY TO LABEL-CITY(ROW-INDEX, CSZ-INDEX) MOVE INPUT-STATE TO LABEL-STATE(ROW-INDEX, CSZ-INDEX) MOVE INPUT-ZIP TO LABEL-ZIP(ROW-INDEX, CSZ-INDEX) IF ROW-INDEX = 6 AND NAME-INDEX = 4 PERFORM A300-PRINT-PAGE-OF-LABELS VARYING ROW-INDEX FROM 1 BY 1 UNTIL ROW-INDEX IS GREATER THAN 6 MOVE SPACES TO LABELS-TABLE SET ROW-INDEX, NAME-INDEX, ADDRESS-INDEX, CSZ-INDEX TO 1 ELSE PERFORM A210-UPDATE-INDEXES. A210-UPDATE-INDEXES. IF ROW-INDEX = 6 SET ROW-INDEX TO 1 SET NAME-INDEX ADDRESS-INDEX CSZ-INDEX UP BY 1 ELSE SET ROW-INDEX UP BY 1. A300-PRINT-PAGE-OF-LABELS. WRITE REPORT-RECORD FROM NAME-LINE(ROW-INDEX) AFTER ADVANCING 3. WRITE REPORT-RECORD FROM ADDRESS-LINE(ROW-INDEX) AFTER ADVANCING 1. WRITE REPORT-RECORD FROM CSZ-LINE(ROW-INDEX) AFTER ADVANCING 1.

10.10.2 Group Indicating

The group indicating process greatly improves a report's readability where long sequences of entries have some element in common. You print the element once, then leave it blank for subsequent lines, as long as there is no change in that element. For example, if your sample file's sort sequence is State (major key) and City (minor key), you get sequences like those in Table 10-2.

Table 10-2 Results of Group Indicating

Without Group Indicating			With Group Indicating
STATE	CITY	STORE NUMBER	STATE	CITY	STORE NUMBER
Arizona	Grand Canyon	111111	Arizona	Grand Canyon	111111
Arizona	Grand Canyon	123456			123456
Arizona	Grand Canyon	222222			222222
Arizona	Tucson	333333	Arizona	Tucson	333333
Arizona	Tucson	444444			444444
Arizona	Tucson	555555			555555
Massachusetts	Maynard	111111	Massachusetts	Maynard	111111
Massachusetts	Maynard	222222			222222
Massachusetts	Maynard	333333			333333
Massachusetts	Maynard	444444			444444
Massachusetts	Tewksbury	111111	Massachusetts	Tewksbury	111111
Massachusetts	Tewksbury	222222			222222
New Hampshire	Manchester	111111	New Hampshire	Manchester	111111
New Hampshire	Manchester	222222			222222
New Hampshire	Merrimack	333333	New Hampshire	Merrimack	333333
New Hampshire	Merrimack	444444			444444
New Hampshire	Merrimack	555555			555555
New Hampshire	Nashua	666666	New Hampshire	Nashua	666666

10.10.3 Fitting Reports on the Page

If you need more columns than physically can fit on a page, you can do the following:

• Eliminate as many unused spaces as possible between columns. Columns should not be run together; however, you can use one blank space instead of several.
• Eliminate nonessential information.
• Print two or more lines with staggered headers and columns.
• Print two reports.

A report that must include totals at the top of the page before the detail lines has three solutions as follows:

• Store the logical print lines in a table, total the table, and then print from the table.
• Pass through the file twice. The first time, compute the totals. The second time, print the report. This method is slow and complicated if there are many subtotals.
• Write the lines into a file with a sort key containing the report, page, and line number. When your program writes the last line and computes the total, have it assign a page and line number to the total line's sort key. Use an appropriate page and line number to cause the total line to sort in front of its detail lines. After the program completes, sort the file, read it, drop the sort key, and produce the report.

The examples in this section apply only to printers that support overprinting.

Sometimes you must underline a column of numbers to denote a total and also underline the total to highlight it:

1234 1122 ---- 2356 ====

To print a single underline, use the underscore character and suppress line spacing. For example:

WRITE PRINT-LINE FROM SINGLE-UNDERLINE-TOTAL BEFORE ADVANCING 0 LINES.

This overprints the underscore (_) on the previous line, underlining the item: 1122. Use the equal sign (=) to simulate double underlines. Note that you must write the equal signs on the next line. For example:

WRITE PRINT-LINE FROM DOUBLE-UNDERLINE-TOTAL AFTER ADVANCING 1 LINE.

10.10.6 Bolding Items in Your Reports

The examples in this section apply only to printers that support overprinting.

To bold an entire line in a report:

1. Write the line as many times as you want, specifying the BEFORE ADVANCING 0 LINES phrase (three times is sufficient). This darkens the line but does not advance to the next line.
2. Write the line one last time without the BEFORE ADVANCING phrase. This overprints the line again and advances to the next print line.

For example:

WRITE PRINT-LINE FROM TOTAL-LINE BEFORE ADVANCING 0 LINES. WRITE PRINT-LINE FROM TOTAL-LINE BEFORE ADVANCING 0 LINES. WRITE PRINT-LINE FROM TOTAL-LINE BEFORE ADVANCING 0 LINES. WRITE PRINT-LINE FROM TOTAL-LINE.

This example produces a darker image in the report. You can use similar statements for characters and words, as well as complete lines. To bold only a word or only a character within a line, you must:

1. Write the print line and specify the BEFORE ADVANCING 0 LINES phrase.
2. Use reference modification to create a skeleton line containing only the items in the print line you want bolded.
3. Write the skeleton line as many times as you want and specify the BEFORE ADVANCING 0 LINES phrase. This darkens the items in the skeleton line but does not advance to the next line.
4. Write the skeleton line one last time without the BEFORE ADVANCING phrase. This overprints the line again and advances to the next print line.

For example:

WRITE PRINT-LINE FROM TOTAL-LINE BEFORE ADVANCING 0 LINES. * * Move spaces over the items in the source print line (TOTAL-LINE) * that are not to be bolded * MOVE SPACES TO ... WRITE PRINT-LINE FROM TOTAL-LINE BEFORE ADVANCING 0 LINES. WRITE PRINT-LINE FROM TOTAL-LINE BEFORE ADVANCING 0 LINES. WRITE PRINT-LINE FROM TOTAL-LINE.

ACCEPT and DISPLAY statements are used to make low-volume data available to specified devices. You will find the following information useful:

• Section 11.1 describes the use of the ACCEPT and DISPLAY statements for interactive I/O.
• Section 11.2 explains how you can design an online video form similar to a printed form by using the Compaq extensions to the ACCEPT and DISPLAY statements.
• Section 11.3 describes the X/Open Screen Section features. You can use it to design video forms easily and efficiently in a single section of your COBOL program, and then accept or display a full screen of data with a single ACCEPT statement or DISPLAY statement.

The COBOL language provides two statements, ACCEPT and DISPLAY, for low-volume I/O operations. The ACCEPT and DISPLAY statements transfer data between your program and the standard input and output devices. If you do not use the FROM or UPON phrases, or an environment variable, the default device for ACCEPT is the keyboard and the default device for DISPLAY is the terminal screen.

The FROM or UPON phrases refer to mnemonic names that you can define in the Environment Division SPECIAL-NAMES paragraph. You define a mnemonic name by equating it to a COBOL implementor name; for example, the following clause equates STATUS-REPORT to the device LINE-PRINTER:

LINE-PRINTER IS STATUS-REPORT

You can then use the mnemonic name in a DISPLAY statement:

DISPLAY "File contains " REC-COUNT UPON STATUS-REPORT.

The COBOL implementor names in the SPECIAL-NAMES paragraph refer to special Compaq COBOL environment variables or logical names. Environment variables or logical names do not always represent physical devices.

On the Tru64 UNIX operating system, you can assign an environment variable to a file name as follows:

% setenv COBOL_LINEPRINTER status.lis <>

On OpenVMS, you can assign a logical name to a file specification using the ASSIGN command (or the DEFINE command, with the arguments in reverse order):

$ ASSIGN [ALLSTATUS]STATUS.LIS COB$LINEPRINTER <>

If you use an environment variable or a logical name, you must define it appropriately for the ACCEPT or DISPLAY statement to succeed.

On OpenVMS, when you run an application, if input and output are both directed to terminals, they must be directed to the same terminal. If input and output are directed to different terminals, the output terminal is used and the input terminal is ignored. <>

For more information on the logical names or environment variables and the mnemonic names, refer to the SPECIAL-NAMES section in the Environment Division chapter in the Compaq COBOL Reference Manual.

ACCEPT Statement

On OpenVMS, the ACCEPT statement transfers data from the input device to a data item. If you do not use the FROM phrase, the system uses the logical name COB$INPUT if it is defined, otherwise SYS$INPUT. If you use the FROM phrase, it uses the logical name associated with the mnemonic-name in the FROM clause. <>

On Tru64 UNIX, the ACCEPT statement transfers data from the input device to a data item. If you do not use the FROM phrase, the system uses the environment variable COBOL_INPUT if it is defined, or stdin if COBOL_INPUT is not otherwise defined. If you use the FROM phrase, the system uses the environment variable associated with the mnemonic-name in the FROM clause. <>

The following example illustrates the FROM phrase used in conjunction with ACCEPT:

SPECIAL-NAMES. CARD-READER IS WHATS-THE-NAME . . . PROCEDURE DIVISION. . . . ACCEPT PARAMETER-AREA FROM WHATS-THE-NAME.

DISPLAY Statement

On OpenVMS, the DISPLAY statement transfers the contents of data items and literals to the output device. If you do not use the UPON phrase, the system uses the logical name COB$OUTPUT if it is defined, or SYS$OUTPUT if it is not defined. If you use the UPON phrase, the system uses the logical name associated with the mnemonic-name in the FROM clause. <>

On Tru64 UNIX, the DISPLAY statement transfers the contents of data items and literals to the output device. If you do not use the UPON phrase, the system uses the environment variable COBOL_OUTPUT if it is defined, or stdout if it is not defined. If you use the UPON phrase, the system uses the environment variable associated with the mnemonic-name in the UPON clause.

The following example illustrates the UPON phrase used in conjunction with DISPLAY:

SPECIAL-NAMES. LINE-PRINTER IS ERROR-LOG . . . PROCEDURE DIVISION. . . . DISPLAY ERROR-COUNT, " phase 2 errors, ", ERROR-MSG UPON ERROR-LOG.

11.2 Designing Video Forms with ACCEPT and DISPLAY Statement Extensions

The extended Compaq COBOL options to the ACCEPT and DISPLAY statements provide video forms features. You can develop video forms on VT100 and later series terminals and faithful emulators and write your application without regard to the type of terminal on which the application will eventually run. You can also run your forms application in the terminal emulator window of a workstation. ¹

Using the extended forms of the ACCEPT and DISPLAY statements, you can design video forms to:

• Make data entry applications, menu selections, and special control keys easier to use.
• Clarify the input expected from an operator.
• Improve the appearance of an application's terminal dialog.

Figure 11-1 is a sample form created by a Compaq COBOL program. It is for entry of employee information into a master file. This program prompts the user to type in data. Then the program writes it to the master file and displays a new form.

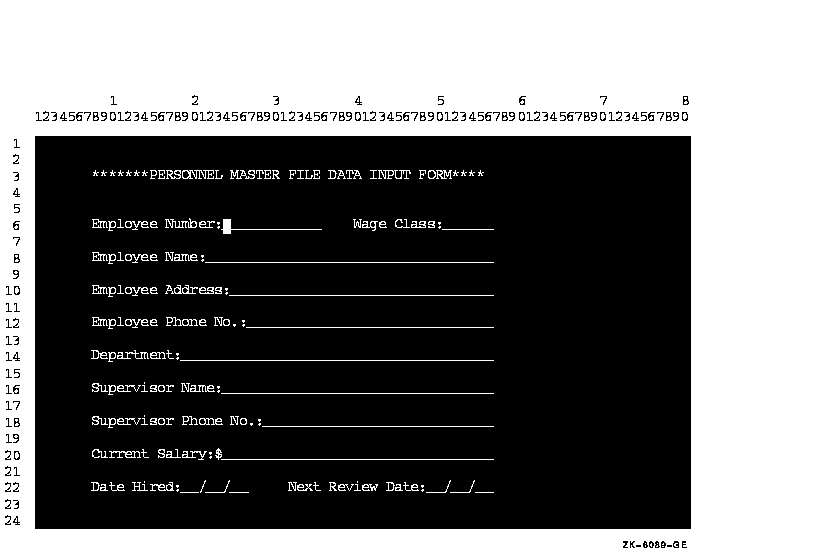

Figure 11-1 Video Form to Gather Information for a Master File Record

For information on differences between the Compaq COBOL and the Compaq COBOL for OpenVMS VAX implementations of screen management, see Appendix B. For complete reference information on the ACCEPT and DISPLAY statements, including syntax, refer to the Compaq COBOL Reference Manual.

Designing Your Form with ACCEPT and DISPLAY Options

When you design a video form, you can use the ACCEPT and DISPLAY options to do the following:

• Erase specific parts or the entire screen.
• Use relative and absolute cursor positioning.
• Specify video attributes of data to be displayed and accepted.
• Convert data to appropriate usage when accepting or displaying data.
• Handle error conditions when accepting and displaying data.
• Provide screen protection by limiting the number of characters typed on the terminal when accepting data.
• Accept data without echoing.
• Specify default values for ACCEPT statements.
• Define and handle special control keys for ACCEPT statements.
• Allow field editing.

The remainder of this chapter describes these topics.
