Document revision date: 10 November 2000

The Additional topics portion of the Help window allows users to get further help on the current Help topic or topics related to the current topic. Involve users in testing to determine how many and what type of additional topics are best.

To select and display an additional topic, users position the pointer over the topic, click MB1, and then choose the Go To menu item from the View menu. Users can also double click on the topic.

5.3.1.5 Push Buttons

The Help window includes two push buttons:

• Go Back, which displays the previous Help topic.
• Exit, which dismisses the current help display.

For more information on using the Help widget, see the DECwindows Motif Guide to Application Programming and the DECwindows Extensions to Motif.

5.3.2 Using the DECwindows Motif Help System

The DECwindows Motif Help System uses Bookreader to display the online help file. Digital provides three routines for allowing users to access online help files in Bookreader format. These routines are documented in the DECwindows Motif Guide to Application Programming. Users can invoke the DECwindows Motif Help System from the Help menu, the Help command, the Help push button or the Help key.

The DECwindows Motif Help System includes the following features:

• Proportional fonts, which are more legible than fixed fonts
• Graphics
• Formatted tables
• Hotspots (A way to move around in the help text by clicking on parts of the text)
• A means to create LinkWorks links between the online help and other pieces of information, such as mail messages and other Bookreader topics

For more information on Bookreader, see the DECwindows Motif Guide to Application Programming.

You can use any of the following tools to create DECwindows Motif Help System files:

• DECwrite
• VAX DOCUMENT (OpenVMS for VAX only)

Table 5-1 compares the features of the Help Widget to the features of the DECwindows Motif Help System, and Figure 5-9 shows some of the differences in the Help windows.

Table 5-1 Comparison of Help Widget and DECwindows Motif Help System Features

Feature	Help Widget	DECwindows Motif Help System
Text	Small, monospaced font	Multiple fonts, including italics and boldface and multiple point sizes
Performance	Adequate for large help libraries	Better for large help libraries
Graphics	No support	FSE binary file format for graphics
Navigation	Additional topics list	Hotspots
Tables	No support	Supported

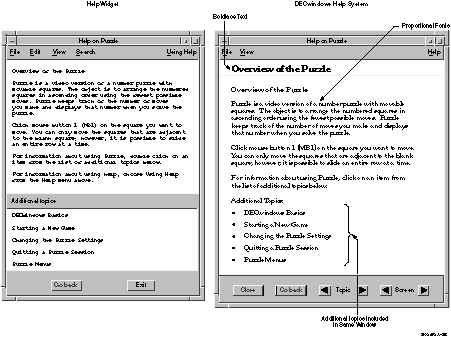

Figure 5-9 Comparison of Help Widget and DECwindows Motif Help System Windows

This chapter describes design and style considerations for the additional widgets that Digital provides with its offering of Motif, or that Digital sells as layered products. The additional widgets that Digital provides with its offering of Motif are the following:

• Color Mixing
  This widget is described in Chapter 4.
• Help
  This widget is described in Chapter 5.
• Print
  This widget is described in this chapter.
• Structured Visual Navigation (SVN)
  This widget is described in this chapter.

You can use Digital's Print widget in any application that allows users to print files on OpenVMS, UNIX, or Windows NT systems. It consists of a primary dialog box (as shown in Figure 6-1) and a secondary dialog box that is invoked by pressing the Options... push button. The secondary dialog box varies depending upon the operating system; Figure 6-2 shows the secondary dialog box on OpenVMS systems.

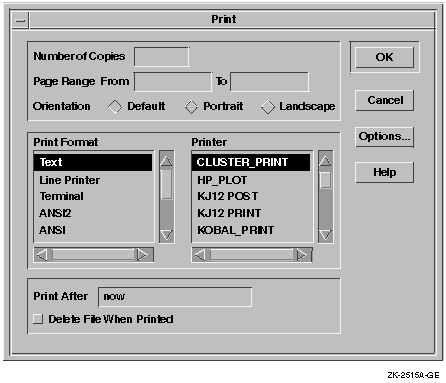

Figure 6-1 Print Widget's Primary Dialog Box

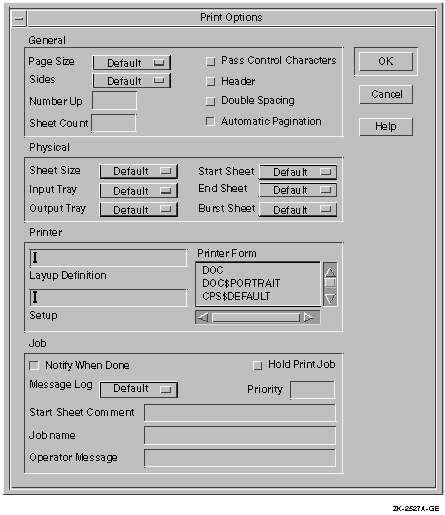

Figure 6-2 Print Widget's Secondary Dialog Box on OpenVMS Systems

In the primary Print dialog box, users can change any of the following settings:

• Number of copies
• Page range
• Orientation
• Print format
• Printer
• Time after which the file prints
• Whether to delete the file after it is printed

The secondary dialog box varies greatly depending on the operating system on which it is being used.

Customizing the Print Widget

You can customize the Print widget dialog boxes to meet the printing needs of your application. For example, in some applications the Delete File When Printed check button is not appropriate. The Print widget allows you to erase such tab groups easily so that they do not appear in the dialog box, as shown in Figure 6-3.

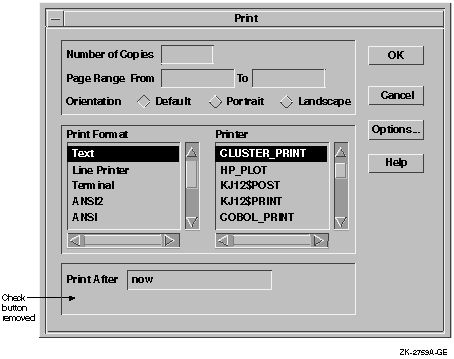

Figure 6-3 Erasing Tab Groups Users Do Not Need

Because the Print widget does not provide a mechanism for allowing users to save their print settings, provide a way for them to do so. For example, have the Save Options menu item from the Options menu automatically save print settings, or add a Save Print Options menu item to the Options menu.

For more information about the Print widget, see the DECwindows Motif Guide to Application Programming and the DECwindows Extensions to Motif.

6.2 Using the Structured Visual Navigation Widget

You can use the Structured Visual Navigation (SVN) widget to create hierarchies of information in an application; it allows users to access and restructure information in a hierarchical way. You can think of SVN as being able to display levels of information. Users can have it display only the top level of information, or they can expand that level to display the information under the top level.

For example, in OpenVMS DECwindows Mail, users can create drawers that contain folders, and folders that contain messages. In displaying this hierarchy, they can show just the drawers (the highest level of information hierarchy), they can "open" a drawer to display all the folders within it, and "open" a folder to display all the mail messages in the folder, as shown in Figure 6-4.

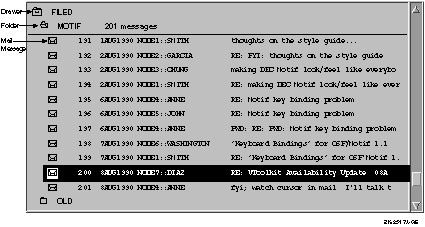

Figure 6-4 Using the Outline Format to Show SVN Hierarchy

• Outline format, shown in Figure 6-4
• Tree format, shown in Figure 6-5
• Column format, shown in Figure 6-6.
  The difference between the outline and the column format is that in column format, a window pane separates a set of components from the rest of the display. Users can scroll horizontally on each side, independently of the other side. However, there is only one vertical scroll bar.

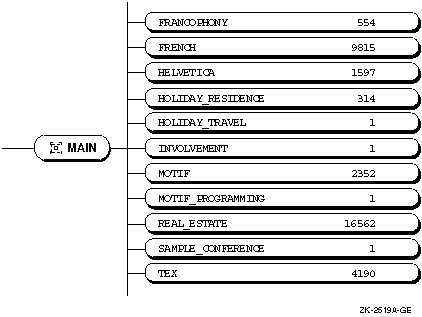

Figure 6-5 SVN Tree Format

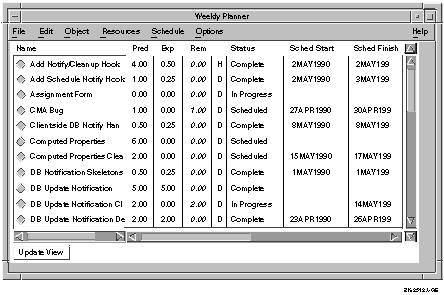

Figure 6-6 SVN Column Format

In addition to the three formats, SVN has other features that you can use to create an interface that helps users navigate through hierarchical information. For example, SVN allows you to create outer arrows on a scroll bar (shown in Figure 6-6), and an index window (shown in Figure 6-7).

Outer arrows perform operations that are a magnitude greater than the stepper (inner) arrows. Clicking on the upper stepper arrow moves the display up one unit. Clicking on the upper outer arrow moves the display to the top of the level of hierarchy that users are currently seeing. For example, if a screen displays messages 20 through 40 in a folder that contains 200 mail messages, clicking on the upper outer arrow would cause messages 1 to 20 to be displayed; clicking on the lower outer arrow would cause messages 180 to 200 to be displayed.

The index window is a special window, attached to the scroll bar that offers a guide to the material to be displayed in the window when users release the mouse button. In Figure 6-7, you can see an index window displaying book titles from a Bookreader library. In addition, SVN provides live scrolling, sometimes called smooth scrolling. When you enable live scrolling, the display changes dynamically when you move the slider; without live scrolling, when you move the slider on the scroll bar, the display does not move until after you move the slider.

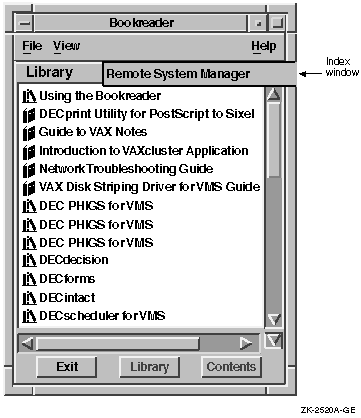

Figure 6-7 SVN Index Window

6.2.1 Determining the Components of an Entry

• Text
• Pixmap (for example, an icon)
• Widget (for example, a push button)

Figure 6-8 illustrates SVN entries using pixmaps (icons) and text.

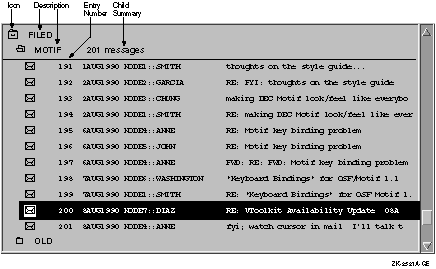

Figure 6-8 Components in an SVN Entry

The highlighted entry (near the bottom of the illustration) has four components:

• A pixmap (An envelope icon that depicts a mail message)
• Text (A text string showing the mail message number)
• Text (Another text string, which is a short line of text that describes whom the mail message is from)
• Text (Yet another text string, which shows the subject line of a mail message)

The appearance of the hierarchy greatly influences users' ability to grasp the information it contains. A hierarchy that displays entries in an organized manner is more likely to be understood than one that does not. The following elements help to create a well organized hierarchy:

• The states of icons
• The entry level spacing, that is, the way the entries are indented to show a lower level of hierarchy
• The number and type of fonts used
• The type of selection line presented

The icon must be able to represent either the expanded or collapsed state of the entry. An expanded entry displays the entries in the level below it. A collapsed entry does not. For example, the folder icon in OpenVMS DECwindows Mail can show a closed folder for an unexpanded entry, or an open folder for an expanded entry, as shown in Figure 6-9.

Figure 6-9 Expanded and Collapsed SVN Icon States

Align the children of an entry along a common line. This gives the hierarchy an even, ordered appearance and enables users to distinguish one level of hierarchy from another. For example, the hierarchy of mail messages to folders to drawers is clear because mail messages are indented under folders, and folders are indented under drawers, as shown in Figure 6-4.

6.2.2.3 Using Fonts Within a Hierarchy

The size and type of font style you use throughout your SVN hierarchy will determine how quickly and efficiently users perceive information. Although this choice is highly subjective, there are a few guidelines to follow when you design the appearance of the hierarchy.

• Limit the Number of Fonts
  Limit the number of different fonts and font sizes contained within a hierarchy. Use one font and one font size throughout the entire hierarchy, while altering the style of the font on different levels within the hierarchy.
  For example, use 14 point Helvetica with bold letters for the parent entries on one level of the hierarchy and 14 point Helvetica with plain letters for their children. This enables users to distinguish between the parent and child entries.
  Displays that contain many different fonts, font styles, and font sizes are confusing to users because they constantly draw their eyes from one element to another.
• Choose a Simple Font
  Choose a font that is easy to read on the screen. A commonly used style like Helvetica is a good choice because the characters are simple and clear. Be sure the characters are large enough to be seen. Characters displayed on a screen need to be larger than those in print to be clear. A good character size is 14 points. Avoid using characters that are smaller than 12 points.
• Using Additional Fonts and Font Sizes
  Some applications may require you to use several fonts or sizes of fonts to present your material clearly. If this is the case, organize your entries carefully, using the same type of font and font size for all entries on the same level of hierarchy. Preliminary tests indicate users prefer a gradient scale of font sizes, with the larger sizes at the top of the hierarchy and the smaller ones at the bottom.

There are two selection modes in SVN: full and limited selection. In full selection line mode, when users select any component in an entry line, the entire entry is selected; that is, every component of the entry is automatically selected. An example of full selection is shown in Figure 6-10.

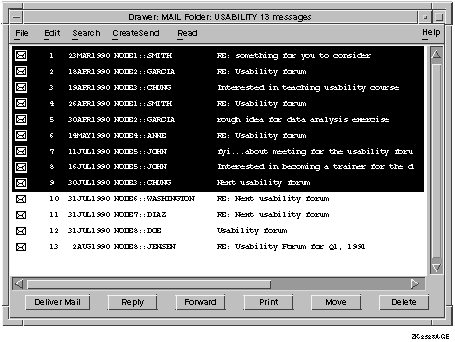

Figure 6-10 SVN Selection with a Full Selection Line

In limited selection line mode, users can select individual components within the entry, as shown in Figure 6-11. SVN does not support both selection modes within one application, so choose the selection mode that best suits the users' needs.

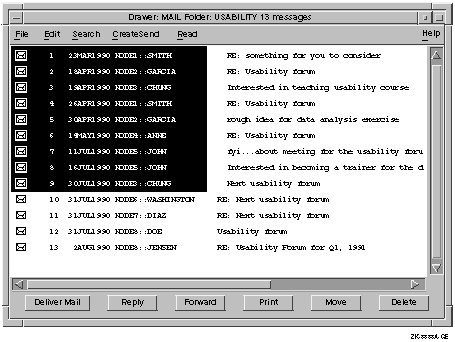

Figure 6-11 SVN Selection with a Limited Selection Line

Within each selection mode are two selection line lengths that you can choose: fixed and variable. With a fixed-length selection line, the entire length of the entry appears selected, as shown in Figure 6-10. However, with a variable-length selection line, only the part of the component field that displays user information appears selected, as shown in Figure 6-12.

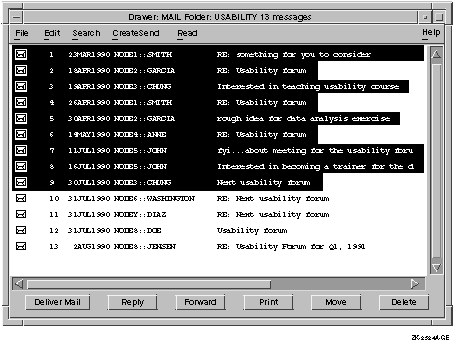

Figure 6-12 SVN with a Variable-Length Selection Line

When you use SVN in any window except a dialog box, allow users to quickly expand and collapse multiple entries by providing the following items in the View menu:

• Expand
  Expands the currently selected item one level deeper.
• Expand Full
  Expands the selected items to their full depth.
• Expand All
  Expands all items to their full depth.

• Collapse
  Contracts the selected items.
• Collapse All
  Contracts all items.

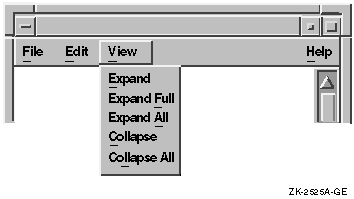

Figure 6-13 SVN Menu Items in the View Menu

This chapter describes LinkWorks and discusses user interface issues related to creating a hyperapplication (an application that participates in a LinkWorks environment). For more information on hyperapplication design and implementation, see the LinkWorks Developer's Guide. Note that LinksWorks is available on OpenVMS and Digital UNIX systems, but not on Windows NT systems.

7.1 What Is LinkWorks?

LinkWorks provides the ability to link related pieces of information, regardless of where this information is stored. Providing LinkWorks support in your application involves using a set of routines. You include calls to these routines to enable users of your application to make and follow links between pieces of information in your own application and in other applications that provide LinkWorks support. When your application includes calls to these routines, it can be called a hyperapplication.

For example, users who have made a link between a Mail message and a Calendar time slot can move directly from the time slot to the Mail message using LinkWorks.

Many applications provide LinkWorks support; your application may be a candidate for becoming part of the hyperinformation environment. If so, the essential tasks for you as an application developer are as follows:

• Identify linkable objects.
• Add the LinkWorks User Interface.
• Provide user interface callback routines.
• Register your linkable object types with LinkWorks during the installation of the application on a system.

LinkWorks is analogous to an online clipboard. Some of the similarities include the following:

• Both are used across a variety of applications.
• Both facilitate the integration of different applications without the applications knowing about each other.
• Both focus on interapplication activities rather than intra-application ones; however, both also permit intra-application activities.
  An important difference between LinkWorks and a clipboard is that the purpose of LinkWorks is to create and follow links between information, while the purpose of the clipboard is to move data between applications.
• Both use a standard application menu as the access mechanism.

As an application developer, you must decide what objects in your application you will support as linkable objects. That is, you must decide what types of information users will want to have connected. It is possible for every object in your application to be a linkable object, but this may not be feasible, nor is it necessarily helpful for the users. Allow only the most important application objects to be linkable.

Use the following questions to help guide your choice of linkable objects:

• What is the primary purpose of your application?
• What is the primary information that your application handles?
• How will users use your application to accomplish their tasks?
• How will links to and from your information help users to accomplish their tasks?

For example, Bookreader includes the following information as LinkWorks linkable objects:

• A bookshelf
• A book
• A topic
• A table
• A figure

When you are deciding what objects to support as linkable objects, remember that users may be making links both within your application and between your application and other applications.

7.3 Adding the Link Menu

To let users know that an application has LinkWorks support, add the Link menu in the menu bar of each window that can display a linkable object, as shown in Figure 7-1.

When you purchase the LinkWorks Developer's Tools, you receive the LinkWorks Services. These services provide the Link menu and associated dialog boxes. All you need to do is place this menu to the immediate right of Edit in the menu bar. If there is no Edit menu, place the Link menu to the right of the File menu and to the left of the View or Options menus.

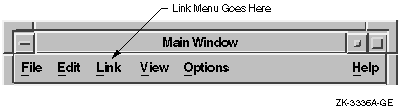

Figure 7-1 Link Menu

The standard Link menu allows users to follow established links and create new ones. Figure 7-2 shows that the LinkWorks menu is divided into sections that do the following:

• Follow links and paths
• Show links and navigation history
• Create new links
• Highlight linked information

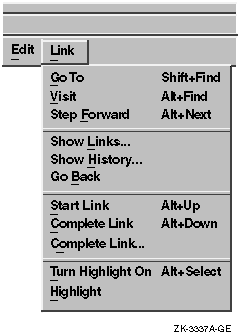

Figure 7-2 LinkWorks Menu Items

There are two ways that you might consider customizing the Link menu:

• Augment the operations that the given menu items perform, and instead have those menu items invoke your own application-specific operations. Be aware that if you choose to do this, you may confuse users who are accustomed to using these menu items in other applications.
• Provide additional items in the LinkWorks menu that add new functions. If you choose to do this, try to follow the guidelines for creating menus discussed in Chapter 2.

Users can request that linked objects be explicitly identified (highlighted) in your application displays. It is up to you to determine the most effective techniques for highlighting these linkable objects. Base the technique you use on the type of information being displayed.

7.4.1 Guidelines for Highlighting

The following are suggested guidelines for using highlighting. If you must violate these guidelines, try to minimize any disruptive impact.

• Avoid layout changes.
  Use a highlighting technique that does not affect the layout of your application window, because doing so can be visually disruptive and time consuming when users turn highlighting on and off.
• Use standard techniques.
  Have applications that display the same type of information (for example, formatted text, hierarchical list, scanned image) use the same highlighting technique. Check other hyperapplications to see how they use highlighting.
• Make the Link icon a hotspot.
  If you make the Link icon a hotspot, users can double click on the icon and visit the information they need; they can double click on the rest of the display to perform application-specific functions.
  Turn on the light bulb (make it look lit) to indicate to users that it is a hotspot; if you use the Link icon but do not make it a hotspot, do not turn it on. Figure 7-3 shows an example of one Link icon that is a hotspot and one that is not. The LinkWorks Developer's Tools includes sample light bulbs in several sizes.

  Figure 7-3 Two Link Icons

  ---
