Note

If you enter PAK information incorrectly, you receive an error message, and the license is not registered. A checksum error can result when you enter incorrect information for the other items on the PAK. If you get an error, carefully check all the data that you entered.

If the information is incorrect, enter N.
When the procedure displays the following question, enter Y:


Do you wish to make corrections? [YES]:

  • To make corrections, the procedure asks all of the questions again but supplies the data just entered as defaults for each data field.
    If you entered all the information correctly, the procedure displays the following message:


    Registering CRYPTICALMENT license in SYS$COMMON:[SYSEXE]LMF$LICENSE.LDB...


    If you entered some information incorrectly but did not choose YES to make corrections, the procedure may display the following message:


    Registering CRYPTICALMENT license in SYS$COMMON:[SYSEXE]LMF$LICENSE.LDB...
    %LICENSE-F-BADCHK, checksum does not validate for CRYPTICALMENT
    Please review all entered PAK data, including the checksum.
    Do you wish to make corrections? [YES]:

    To correct the data, enter Y.
    If you enter an incorrect checksum string, the procedure responds as follows:


     1-BGON-IAMA-GNOL-AIKO is not a valid license checksum string.
     Press RETURN for more information

        The license checksum is a 17-character verification string created by
        the PAK issuer for each PAK.  The checksum string is presented in
        the format n-cccc-cccc-cccc-cccc, where n is an integer and c is a
        character from A through P.  A PAK presents the checksum string with
        hyphen (-) characters for readability.  Because the LMF does not count
        them for authorization, you can leave them out.  Otherwise, you must
        enter the checksum string exactly as specified on your PAK.

        If a default value is displayed and you wish to use it just press
        the RETURN key.   To cancel the use of default data without
        entering new data, enter the backslash (\) character. The
        license checksum is a required field for the REGISTER and AMEND
        options.

                          Checksum []:


    Enter the correct checksum at the prompt.

  • After the license is successfully registered, the procedure asks if you want to load the license on the current node, as follows:


    Do you want to LOAD this license on this system? [YES]:


    If you registered the PAK on a standalone system and you want to make the software available (active) immediately, enter Y. If you registered the license in an OpenVMS Cluster environment but do not want to make it available (active) on the current node, enter N. After you exit this procedure, you can enter the LICENSE LOAD command to load the license on the desired node.
    If you enter Y and the license is successfully loaded, the procedure displays the following informational message and prompt:


     %LICENSE-I-LOADED, DEC CRYPTICALMENT was successfully loaded with 460 units

        VMS License Management Utility Options:

            1. REGISTER a Product Authorization Key
            2. AMEND an existing Product Authorization Key
            3. CANCEL an existing Product Authorization Key
            4. LIST the Product Authorization Keys
            5. MODIFY an existing Product Authorization Key
            6. DISABLE an existing Product Authorization Key
            7. DELETE an existing Product Authorization Key
            8. COPY an existing Product Authorization Key
            9. MOVE an existing Product Authorization Key
           10. ENABLE an existing Product Authorization Key
           11. SHOW the licenses loaded on this node
           12. SHOW the unit requirements for this node

           99. EXIT this procedure

        Type '?' at any prompt for a description of the information
        requested.  Press Ctrl/Z at any prompt to return to the main menu.

    Enter one of the above choices [1]



  • To register another PAK, enter 1. Then respond to the questions, again entering information from a license PAK.
  • Enter 99 to exit the procedure. You have registered the license for this product. The system may display an error message when the procedure attempts to load the license. This does not affect the license registration. Exit the procedure, and read the sections of this manual that describe loading a license. For example, read the LICENSE LOAD, LICENSE UNLOAD, and LICENSE MODIFY command descriptions.

    5.4.4.1 Using Data Files with VMSLICENSE.COM

    You can use VMSLICENSE.COM in batch mode as well as interactively. Instead of entering the PAK data interactively from your terminal or workstation, you can create a VMSLICENSE data file with an editor and enter data obtained from your product PAKs (Example 5-2 shows sample PAK data). You can then invoke VMSLICENSE.COM, specifying the name of the new VMSLICENSE data file as a parameter on the same command line. The procedure displays the license data and performs the requested operation or operations using data only from the VMSLICENSE data file.

    You can create a file that registers multiple licenses. VMSLICENSE.COM exits only when it reaches the end of the VMSLICENSE data file.

    5.4.4.2 Invoking VMSLICENSE.COM with a VMSLICENSE Data File

    To pass a VMSLICENSE data file to VMSLICENSE.COM, use the following format:


    $ @VMSLICENSE [license-option] vmslicense-data-file [license-database]


    When you invoke VMSLICENSE with a data file, you must specify REGISTER as the license-option. You cannot use data files with any of the other options that are available when using VMSLICENSE interactively.

    You can specify a License Database on the command line or in the data file. Any License Database you specify in the data file overrides a License Database you specify on the command line.

    For example, you can pass the data in the sample VMSLICENSE data file, shown in Example 5-2, with the following command line:


    $ @VMSLICENSE REGISTER NODES_A_AND_B_VMS_LICENSE.DAT


    Example 5-2 Sample VMSLICENSE Data File

    !
    ! License for COBOL on NODEA
    !
    DATABASE_FILE   = SYS$COMMON:[SYSEXE]LMF$LICENSE.LDB
    ISSUER          = DEC
    PRODUCT_NAME    = COBOL
    AUTHORIZATION   = USA00326
    UNITS           = 1200
    VERSION         = 7.3
    AVAILABILITY    = A
    OPTIONS         = MOD_UNITS,NO_SHARE
    CHECKSUM        = 1-DELM-EAHF-ONIH-MBAH
    INCLUDE_NODE    = NODEA
    !
    <NEXT>
    !
    ! License for COBOL on NODEB
    !
    AUTHORIZATION   = USA00327
    UNITS           = 800
    CHECKSUM        = 1-PATC-IDOH-EPOF-MOHG
    INCLUDE_NODE    = NODEB
    !


    5.4.4.3 Creating VMSLICENSE Data Files

    When you create a VMSLICENSE data file to be processed by VMSLICENSE.COM, you must follow these rules (refer to Example 5-2):

    Table 5-1 Parameters Used with VMSLICENSE.COM
    Parameter Description
    ACTIVITY License unit code that corresponds to a License Unit Requirement Table (LURT) or to a constant value.
    AUTHORIZATION String that, when used with the PAK issuer string, identifies the license you want to register.
    AVAILABILITY License unit code that corresponds to a LURT value or to a constant value.
    CHECKSUM Verification string of 17 characters created by the PAK issuer for each PAK with this format: n-cccc-cccc-cccc-cccc

    where:

    n is an integer and c is an alphabetic character from A through P.

    DATABASE_FILE Location of the License Database to be used. The default file specification is defined by the logical LMF$LICENSE, which points to SYS$COMMON:[SYSEXE]LMF$LICENSE.LDB on an unmodified OpenVMS system.
    DATE Product date specifying that the license authorizes use of all product versions released on or before the date.
    HARDWARE_ID Identification number of the hardware on which the product is licensed. On Integrity server systems, this field is used to specify the number of SOCKETS. If your PAK does not list SOCKETS= n in the HARDWARE_ID field, then your license is unlimited.
    INCLUDE_NODE Nodes in an OpenVMS Cluster environment that can access the licensed product. INCLUDE_NODE can specify one or more nodes in a clustered Galaxy.
    ISSUER Company that issued the PAK for this product.
    OPTIONS List of license options from a PAK.
    PRODUCER Company that owns this product.
    PRODUCT_NAME Product with a license to register.

    Use the product name exactly as it appears on the PAK.

    RESERVE_LIST Users (or activities) allowed to access the product license.
    TERMINATION_DATE Date on which the product license is no longer valid.
    TOKEN Product token string from a PAK.
    UNITS Number of license units from a PAK.
    VERSION Version limits from a PAK of the product for which you have a license.

    5.4.4.4 Using VMSLICENSE.COM Default Value Rules

    If you do not specify a value for a parameter in a VMSLICENSE data file, VMSLICENSE substitutes default values. The current default values are ISSUER=DEC and PRODUCER=DEC on OpenVMS Alpha and VAX systems and HP on OpenVMS Integrity server systems. All other license parameters have null values until you specify a value.

    After you specify a license parameter in the VMSLICENSE data file, the parameter becomes the new default value until the next occurrence of the parameter sets a new default value. To set or reset the value of a parameter to null, use a line of the following form:

    parameter = " "

    For example, if the most recent PAK data set the INCLUDE_NODE parameter to a specific node, reset the parameter to null for the current and subsequent PAKs by entering the following:


    INCLUDE_NODE = ""


    Example 5-2 shows how using default data can eliminate typing for the second PAK listed in the VMSLICENSE data file.

    5.4.5 Using the LICENSE REGISTER Command

    You can directly register (and load) a license with LICENSE commands. For example:


    $ LICENSE REGISTER CRYPTICALMENT /ISSUER=DEC -
    _$ /AUTHORIZATION=USA126087 /PRODUCER=DEC /UNITS=460 -
    _$ /VERSION=7.3 /TERMINATION_DATE=31-DEC-2001 /AVAILABILITY=E -
    _$ /OPTIONS=(MOD_UNITS) /CHECKSUM=1-BGON-IAMA-GNOL-AIKO
    $ LICENSE LOAD CRYPTICALMENT
    LICENSE-I-LOADED, DEC CRYPTICALMENT was successfully loaded with 460 units
    $


    After you successfully register a license in the License Database (the default file specification is SYS$COMMON:[SYSEXE]LMF$LICENSE.LDB), you can enter the LICENSE LIST/FULL command to display the data in the database (see Example 5-3).

    Example 5-3 Displaying License Database Information

    $  LICENSE LIST /FULL /AUTHORIZATION=USA126087 CRYPTICALMENT


    Use CTRL/Z to exit, PF3-PF4 for Previous-Next Screen and Arrow Keys to scroll.
     License Management Facility  V1.2

     License Database File:       SYS$COMMON:[SYSEXE]LMF$LICENSE.LDB
     Created on:                  28-AUG-2001
     Created by user:             GRAHAM
     Created by LMF Version:      V1.2

    ----------------------------------------------------------
     Issuer:                      DEC
     Authorization:               USA126087
     Product Name:                CRYPTICALMENT
     Producer:                    DEC
     Units:                       460
     Version:                     7.3
     Release Date:                (none)
     PAK Termination Date:        31-DEC-2001
     Availability:                E (System Integrated Products)
     Activity:                    0
     Options:                     MOD_UNITS
     Hardware ID:

     Revision Level:              1
     Status:                      Active
     Command:                     REGISTER
     Modified by user:            GRAHAM
     Modified on:                 23-SEP-2001 14:32:23.41


    When a license is successfully loaded with VMSLICENSE.COM or the LICENSE LOAD command, LMF displays an informational message.

    5.4.6 Displaying License Information

    To display information from the License Database about specific licenses, enter the LICENSE LIST command.

    To display information in memory about loaded licenses, enter the SHOW LICENSE command. This command displays licenses loaded on the current node, and displays any reservation list associated with each license.

    5.5 Loading a License

    To allow users to access a product, you must load each registered license. Loading a license transfers data from the on-disk License Database into system memory. The following table shows the methods of license loading for LMF:
    License Loading Options
    Status of Registered License Loading Method
    Registering with VMSLICENSE.COM Confirm the load option.
    Registered with the LICENSE REGISTER command Use the LICENSE LOAD command.
    Previously registered system starting up System loads the license automatically.

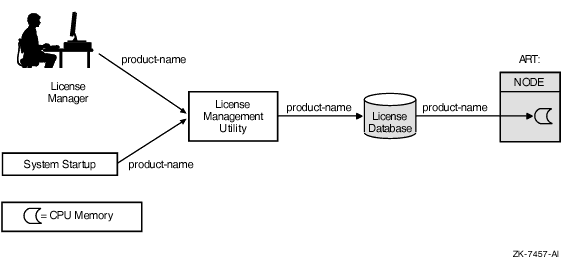

    Figure 5-4 illustrates the license loading process for a standalone system. Whether the license manager enters the LICENSE LOAD command or the system automatically loads all registered licenses during startup, the license information is transferred to the system memory of node ART.

    Figure 5-4 Loading a License


    5.5.1 Loading Licenses in an OpenVMS Cluster Environment

    In an OpenVMS Cluster environment, multiple nodes load licenses from a single common database. LMF provides this capability to let you share licenses as well as control access to a product on a node-by-node basis (provided this is allowed by the terms and conditions of the license).

    Typically, any node can load a license registered in the common License Database. For predictability, security, performance, or economic reasons, you can limit which nodes can access a product license intended to be shared among nodes. In an OpenVMS Cluster environment, you control access by modifying the license's include list. Use the LICENSE MODIFY command and either the /INCLUDE or /EXCLUDE qualifier to specify which cluster nodes can load the license. By changing the include list, you can create the effect of moving a product from node to node. Section 5.6.2 describes the process in detail. Note that you cannot share licenses that have the NO_SHARE option. They must be assigned to a single node.

    You can also control which users in an OpenVMS Cluster environment can access a product license. Control access by modifying the license's reservation list. Use the LICENSE MODIFY command with the /RESERVE qualifier to specify which users can access the license.

    In an OpenVMS Cluster environment, license loading involves transferring, or loading, license information from the on-disk License Database into system memory of the current node. The number and combination of licenses for an OpenVMS Cluster environment can be complex, which in turn makes the loading process complex and sometimes confusing. The general rule is that nodes specified on include lists or not specified on exclude lists of the LICENSE MODIFY command can load a registered license. As each system starts up, it loads any licenses to which it has access. If you need to load a license for all assigned nodes of a running cluster, you can use the OpenVMS System Management utility (SYSMAN), which is described in the HP OpenVMS System Manager's Manual. Figure 5-5 illustrates the loading process in an OpenVMS Cluster environment.

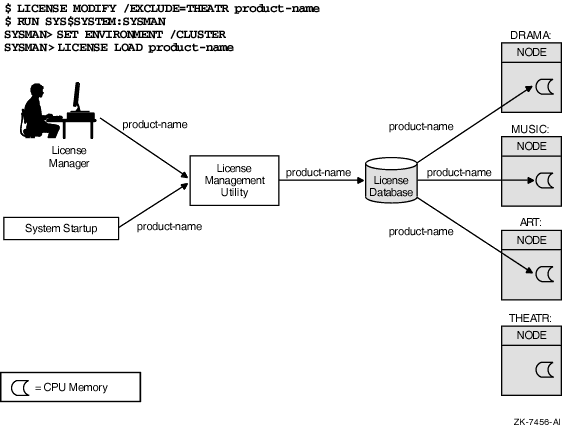

    Figure 5-5 Loading a License in an OpenVMS Cluster Environment


    See Section 5.6.2 for further details of license loading.

    5.6 Managing Licenses After Registration

    After you register licenses, you can manage them. While system managers can perform these tasks, managers of cluster environments and large multiple-user systems may also have an interest in managing products and product licenses.

    For example, a cluster manager can use LMF to control which nodes can access a database product using important data (see Section 5.6.2). All system managers, however, may want to monitor license data using LICENSE commands.

    VMSLICENSE.COM, LICENSE commands, and the DCL command SHOW LICENSE can perform most license management tasks, including:

    5.6.1 Restricting Product Use

    LMF provides the following commands and qualifiers for controlling access to licensed products.

    5.6.1.1 Fastest Method

    The quickest method to restrict access to products registered in the License Database is to unload the license with a LICENSE UNLOAD command. The product becomes unavailable to new users and unavailable to all users when the last process using the product finishes. The product remains inaccessible until either you or the system reloads the license.

    Although LICENSE UNLOAD is fast, it is not permanent. Typically, at system startup, LMF loads all the licenses registered in the License Database. In addition, a license that is loaded remains loaded until either the system is shut down or you intervene.

    5.6.1.2 For Inactive Licenses

    The following commands control license loading, which restricts product access. However, they do not unload loaded licenses or alter in-memory license data. For loaded licenses, use LICENSE UNLOAD.
