D.2 PTD$CREATE — Create a Pseudoterminal
| | |
| ||
| ||
Creates a new pseudoterminal with a unique device name.
Number of the channel that is assigned to the new pseudoterminal. This argument is the address of a word into which PTD$CREATE writes the channel number. This channel is only intended to be used for PTD$XXX operations.
Access mode to be associated with the channel. The most privileged access mode is the access mode of the caller. I/O operations on the channel can be performed only from equal and more privileged access modes.
charbuff
| OpenVMS usage: | device_characteristics |
| type: | longword (unsigned) |
| access: | read only |
| mechanism: | by reference |
Address of buffer containing the device characteristics. This information is used to set up the pseudoterminal's initial characteristics. This buffer can be 12, 16, or 20 bytes long.

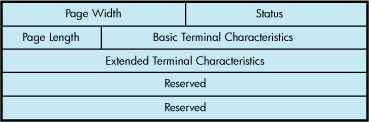

Figure D-1 shows the format of this buffer:
Length of the characteristics buffer (either 12, 16, or 20 bytes). This argument is required if you supply the charbuff argument.
astadr
| OpenVMS usage: | ast_procedure |
| type: | procedure value |
| access: | call without stack unwinding |
| mechanism: | by reference |
AST service routine to be executed when the terminal connection deassigns the last channel to the pseudoterminal. This argument is the procedure value of this routine. This is a repeating AST and is active until the control connection deletes the pseudoterminal.
AST parameter to be passed to the AST service routine specified by astadr.
Access mode for which the AST is to be declared. The most privileged access mode is the access mode of the caller. The resulting mode is the access mode at which the AST is declared.
Address of a two-longword array containing the starting and ending virtual addresses in the virtual address space of the process (either P0 or P1 regions) to be used as I/O buffers. The array contains, in order, the starting and ending virtual addresses. The addresses supplied to inadr must express an integral number of CPU-specific pages. The lower address must be on a CPU-specific page boundary, and the higher address must be one less than a CPU-specific page boundary. Together these addresses form a range from lowest to highest bytes. The pages must already exist and must be fully contained in either P0 or P1 space. All pages in the range must:
PTD$CREATE creates a new pseudoterminal with a unique device name. This device name is in the form FTAn:, where n is the unit number.
When a pseudoterminal is created, it inherits the current system terminal default attributes unless you specify an alternate set of characteristics.
SS$_NORMAL | Normal successful completion. |
| SS$_ACCVIO | Unable to read one of the arguments. |
| SS$_BADPARAM | Bad Parameter Value. |
| SS$_EXBYTLM | Insufficient BYTLM to create device or map buffers. |
SS$_EXQUOTA | Insufficient quota to create device. |
| SS$_EXASTLM | Insufficient AST quota for notification AST. |
SS$_INFMEM | Insufficient memory to create device. |
| SS$_INSFWSL | Insufficient working set limit to map buffers. |
SS$_IVSECFLG | Invalid process or global section flags. |
| SS$_NOPRIV | No privilege for attempted operation. |
| SS$_PAGPNWNVIO | Page owner violation. |
| SS$_VA_IN_USE | Virtual address already in use. |
