HP OpenVMS I/O User’s Reference Manual: OpenVMS Version 8.4 > Chapter 4 Mailbox Driver

4.4 I/O Status Block

The I/O status blocks (IOSB) for mailbox read, write, set protection, and get mailbox information QIO functions are shown in Figures Figure 4-8, Figure 4-9, Figure 4-10, and Figure 4-11.

Appendix A lists the I/O status returns for these functions. In addition to the IOSB return values, the following statuses can be returned in R0 by the call to the system service:

  • SS$_ACCVIO

  • SS$_EXQUOTA

  • SS$_ILLIOFUNC

  • SS$_INSFMEM

  • SS$_MBFULL

  • SS$_MBTOOSML

  • SS$_NOPRIV

  • SS$_NORMAL

(The OpenVMS system messages documentation provides explanations and suggested user actions for both types of returns.)

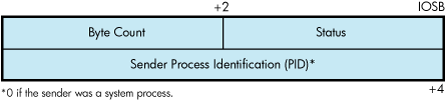

Figure 4-8 IOSB Contents — Read Function

IOSB Contents — Read Function

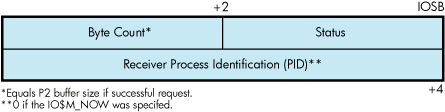

Figure 4-9 IOSB Contents— Write Function

IOSB Contents— Write Function

Figure 4-10 IOSB Contents— Set Protection Function

IOSB Contents— Set Protection Function

Figure 4-11 IOSB Contents — Get Mailbox Information Function

IOSB Contents — Get Mailbox Information Function
