The basic terminal I/O functions are read, write, set mode, set characteristics, sense mode, and sense characteristics. All I/O functions can take function modifiers.

5.3.1 Read

When a read function code is issued, the user-specified buffer is filled with characters from the associated terminal. The operating system provides the following read function codes:

  • IO$_READVBLK—Read virtual block

  • IO$_READLBLK—Read logical block

  • IO$_READPROMPT—Read with prompt

Read operations are terminated if either of the following two conditions occurs:

The following device- or function-dependent arguments are used with the read function codes. The codes can take all six arguments (P1 through P6) on QIO requests. The descriptions for these arguments differ when itemlist read operations are performed (see “Itemlist Read Operations”).

  • P1—The starting virtual address of the buffer that is to receive the data read.

  • P2—The size of the buffer that is to receive the data read in bytes. (The system generation parameter, MAXBUF, and the terminal driver limit the maximum size of the buffer. The terminal driver only functions with buffer sizes less than 32718 bytes.)

  • P3—Read with timeout, timeout count (see Table 5-6, IO$M_TIMED).

  • P4—The read terminator descriptor block address (see “Read Function Terminators”).

  • P5—The starting virtual address of the prompt buffer that is to be written to the terminal; for read with prompt operations using the IO$_READPROMPT function code. (This argument is specified as a value rather than an address as in the P1 argument.)

  • P6—The size of the prompt buffer that is to be written to the terminal; for read with prompt operations using the IO$_READPROMPT function code.

In a read with prompt operation, the P5 and P6 arguments specify the address and size of a prompt string buffer containing data to be written to the terminal before the input data is read. In a read with prompt operation, both read and write operations are performed on the specified terminal. The prompt string buffer is formatted like any other write buffer. If cursor position specifiers are supplied, they are not interpreted by the driver but passed to the terminal.

During a read with prompt operation, pressing Ctrl/O (which is turned off at the start of any read operation) stops the prompt string. If you press either Ctrl/U or Ctrl/X, the entire prompt string is written out again, and the current input is ignored. If you press Ctrl/R, the current prompt string and input are written to the terminal.

Depending on the terminal type and your input, the prompt string can be very simple or quite complex—from single command prompts to screen fills followed by input data. HP recommends that prompt strings contain only one leading line feed.

In PASTHRU mode, data received from the associated terminal is placed in the user buffer as binary information without interpretation. (Prompts are not refreshed after a broadcast in PASTHRU mode.)

5.3.1.1 Function Modifier Codes for Read QIO Functions

Eight function modifiers can be specified with IO$_READVBLK, IO$_READLBLK, and IO$_READPROMPT. Table 5-6 lists these function modifiers and IO$_EXTEND, which is described in Section “Itemlist Read Operations”. All read function modifiers are supported for LAT devices.

Table 5-6 Read QIO Function Modifiers for the Terminal Driver

CodeConsequence

IO$M_CVTLOW

Lowercase alphabetic characters (hexadecimal 61 to 7A) are converted to uppercase when transferred to the user buffer or echoed. This characteristic is used only for IO$_READLBLK, IO$_READVBLK, and IO$_READPROMPT.

IO$M_DSABLMBX

The mailbox is disabled for unsolicited data.

IO$M_ESCAPE

A valid ANSI escape sequence is recognized as a valid delimiter for the read operation. The TT$M_ESCAPE characteristic is overridden by this modifier for the current read operation.

IO$M_EXTEND

This characteristic provides additional functionality for read operations (see “Itemlist Read Operations”). Do not specify IO$M_EXTEND with other function modifiers.

IO$M_NOECHO

Characters are not echoed as they are entered at the keyboard. The terminal line can also be set to a “no echo” mode by the set mode characteristic TT$M_NOECHO, which inhibits all read operation echoing. Setting IO$M_NOECHO also disables line editing.

IO$M_NOFILTR

The terminal does not interpret Ctrl/U, Ctrl/R, or DEL. They are passed to the user. IO$M_NOFILTR explicitly disables line editing.

IO$M_PURGE

The type-ahead buffer is purged before the read operation begins.

IO$M_TIMED

The P3 argument specifies the maximum time (seconds) that can elapse between characters received from the terminal (the timeout value for the operation), only if IO$M_TIMED is specified as a modifier on the read function code.

Note that if you are using a timeout in an item list of a $QIO read to a terminal driver, the timeout on an extend read must go into the item list.

Because driver timing operates on a 1-second timer, a 2-second timeout must be specified to guarantee a 1-second wait. The timer starts when the prompt echo is started. If the read time exceeds the time specified in P3, a timeout error (SS$_TIMEOUT) is returned in the read IOSB. All input characters received before the read operation timed out are returned in the user's buffer.

A read with timeout operation, in which the timeout value is 0, empties the type-ahead buffer into the user buffer until the proper termination condition is reached (buffer full, termination character detected, or type-ahead buffer empty). The read operation then returns the count of characters read and, if a terminator is read, SS$_NORMAL; SS$_TIMEOUT is returned if no terminator is read. In either case the offset to terminator in the IOSB always indicates the number of characters read.

If a write request is active and there is no prompt string, the read request generally times out with zero bytes of data being returned.

If a read operation is interrupted by either a broadcast write or a synchronous write request, the timer operation is restarted.

IO$M_TRMNOECHO

The termination character (if any) is not echoed. There is no formal terminator if the buffer is filled before the terminator is typed.



5.3.1.2 Read Function Terminators

The P4 argument to a read QIO function either specifies the terminator set for the read function or points to the location containing the terminator set. If P4 is 0, all ASCII characters with a code in the range 0 through 31 (hexadecimal 0 through 1F), except LF, VT, FF, TAB, and BS, are terminators (see Appendix C). This is the RMS standard terminator set. The delete character (hexadecimal 7F) and 8-bit controls in the range 128 through 159, and 255 (hexadecimal 80 through 9F, and FF) are also terminators. If line editing is enabled, only Return, Ctrl/Z, or an escape sequence terminates a read operation.

If P4 does not equal 0, it contains the address of a quadword that either specifies a terminator character bit mask or points to a location containing that mask. (Note that if P4 references an address in a MACRO program, a number sign (#) must precede the address; for example, P4=#TMASK.) The quadword has a short form and a long form, as shown in Figure 5-3. In the short form, the correspondence is between the bit number and the binary value of the character; the character is a terminator if the bit is set. For example, if bit 0 is set, NULL is a terminator; if bit 9 is set, TAB is a terminator. If a character is not specified, it is not a terminator. Since ASCII control characters are in the range 0 through 31, the short form can be used in most cases.

The long form allows use of a more comprehensive set of terminator characters. Any mask equal to or greater than 1 byte is acceptable. For example, a mask size of 16 bytes allows all 7-bit ASCII characters to be used as terminators; a mask size of 32 bytes allows all 8-bit characters to be used as terminators for 8-bit terminals.

If the terminator mask is all zeros, there are no specified terminators. The read operation ends when the specified number of bytes (characters) have been transferred to the input buffer.

Certain control keys will not act as terminators unless IO$M_NOFILTR is specified or the line has the TT2$M_PASTHRU characteristic (see “Control Characters and Special Keys”).

Figure 5-3 Short and Long Forms of Terminator Mask Quadwords

Short and Long Forms of Terminator Mask Quadwords

5.3.1.3 Itemlist Read Operations

Itemlist read operations provide expanded software features to read QIO requests. The operating system provides the following combination of function code and modifier:

  • IO$_READVBLK!IO$M_EXTEND—Itemlist read virtual block

No other function modifiers can be specified in an itemlist read request.

NOTE: Itemlist read features supported by the terminal driver are not supported by all DECnet terminal emulators.

The itemlist read function code and modifier combination takes the following device- or function-dependent arguments:

  • P1—The starting virtual address of the buffer that is to receive the data read.

  • P2—The size of the buffer that is to receive the data read in bytes. If required, the P2 size includes additional space for an overflow buffer to hold an escape sequence terminator (see item code TRM$_ESCTRMOVR in Table 5-7).

    NOTE: The IO$_READxBLK and IO$_WRITExBLK are limited by the system parameter MAXBUF as well as the terminal driver. The terminal driver only functions with buffer sizes less than 32718 bytes.
  • P3—The access mode at which the itemlist is to be probed (optional).

  • P5—The address of the itemlist buffer.

  • P6—The length in bytes of the itemlist buffer.

P4 is not meaningful for itemlist read operations. P5 points to a series of item descriptors. Figure 5-4 shows the format for these descriptors. You cannot repeat the same item code in the same item list.

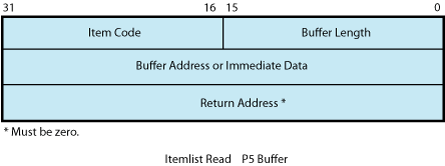

Figure 5-4 Itemlist Read Descriptor

Itemlist Read Descriptor

Table 5-7 lists the item codes that can be specified in the first longword of the item descriptors.

Table 5-7 Item Codes for Terminal Driver Itemlist Read Operations

Item CodeMeaning

TRM$_ALTECHSTR

Alternate echo string. The buffer length word contains the length of the string. The data address word contains the address of the string. The alternate echo string is written to the terminal after the first character is entered.

This item code for character validating read mode (TRM$K_EM_RDVERIFY) editing only.

TRM$_EDITMODE

Extended editing modes. The immediate data longword specifies extended editing mode values. The buffer length word must be zero. The following editing modes are supported:

 TRM$K_EM_DEFAULTNormal read mode. This is the default if TRM_EDITMODE is not present in the itemlist.
 TRM$K_EM_RDVERIFYCharacter Validating read mode. See “Read Verify Function”.
TRM$_ESCTRMOVR

Escape terminator overflow size. Specifies the number of bytes that may be used to hold an escape sequence terminator. This number should be included in P2, the buffer size argument, in addition to the space required for the data to be read. Note that this overflow area is for the terminator only; it is not available for user data.

TRM$_ESCTRMOVR is useful in preventing partial escape errors, which return SS$_PARTESCAPE. This overflow buffer ensures that all the characters in an escape sequence terminator fits in the user buffer, thus eliminating the need for additional single-character read operations.

TRM$_FILLCHR

A 2-byte value that indicates the fill and clear character for TRM$K_EM_RDVERIFY. The first byte of the immediate data longword specifies the clear character; the second byte specifies the fill character.

This item code is for character validating read mode (TRM$K_EM_RDVERIFY) editing only.

TRM$_INIOFFSET

Indicates the character in the initial string where echoing starts. The immediate data longword specifies the character.

TRM$_INISTRNG

Specifies a string to preload into the read buffer (P1). The buffer length word contains the length of the string. The data longword contains the address of the string. TRM$_INISTRNG must be specified if the edit mode is TRM$K_EM_RDVERIFY, and must be the same length as specified by TRM$_PICSTRNG.

TRM$_MODIFIERS

Read modifiers. The immediate data longword contains a 32-bit value that specifies modifiers to read operations. The read operations are defined in $TRMDEF. The buffer length word must be zero. The following bits are defined:



TRM$M_TM_ARROWS

The terminal interprets the left and right arrow keys (TRM$K_EM_RDVERIFY mode only). The arrow keys are not put in the buffer and do not terminate the read. TRM$_ESCTRMOVR must be greater than or equal to 5.



TRM$M_TM_AUTO_TAB

This bit creates an autotab mode field (TRM$K_EM_RDVERIFY mode only).



TRM$M_TM_CVTLOW

Lowercase alphabetic characters (hexadecimal 61 to 7A) are converted to uppercase when transferred to the user buffer or echoed.



TRM$M_TM_DSABLMBX

The mailbox is disabled for unsolicited data and for receiving hangup messages.



TRM$M_TM_ESCAPE

A valid ANSI escape sequence is recognized as a valid delimiter for the read operation.

 TRM$M_TM_NOCLEAR

Fill characters are not replaced with clear characters after a nonfill character occurs (TRM$K_EM_RDVERIFY mode only).



TRM$M_TM_NOECHO

Characters are not displayed as they are entered at the keyboard.
 TRM$M_TM_NOEDIT

This bit inhibits advanced editing for this read operation.



TRM$M_TM_NOFILTR

The terminal does not interpret DEL, Ctrl/U, or Ctrl/R, but passes them to you. This characteristic explicitly disables line editing.



TRM$M_TM_NORECALL

This bit inhibits command recall (Ctrl/B) by the terminal driver.



TRM$M_TM_OTHERWAY

This bit sets left-justify fields to insert mode and right-justify fields to overstrike mode (TRM$K_EM_RDVERIFY mode only). TRM$M_TM_TOGGLE must equal 1.



TRM$M_TM_PURGE

The type-ahead buffer is purged before the read operation begins.



TRM$M_TM_R_JUST

This bit creates a right-justified field (TRM$K_EM_RDVERIFY mode only).



TRM$M_TM_TERM_ARROW

The read operation is terminated when the left arrow key is pressed at the left margin or when the right arrow key is pressed at the right margin (TRM$K_EM_RDVERIFY mode only). TRM$M_TM_ARROWS must be enabled.



TRM$M_TM_TERM_DEL

The read operation is terminated when the DELETE key is pressed at the left margin (TRM$K_EM_RDVERIFY mode only).

 TRM$M_TM_TOGGLE

Enables Ctrl/A to function as a toggle key between insert mode and overstrike mode (TRM$K_EM_RDVERIFY mode only). Left-justify insert mode shifts characters to the right; right-justify insert mode shifts characters to the left. Shifted characters are not checked for validity in their new positions.



TRM$M_TM_TIMED

TRM$_TIMEOUT specifies the maximum time (seconds) that can elapse between characters received from the terminal; that is, the timeout value for the operation. TRM$M_TM_TIMED is assumed set if TRM$_TIMEOUT is included in the itemlist. See the description of IO$M_TIMED in Table 5-6.



TRM$M_TM_TRMNOECHO

The termination character (if any) is not displayed. There is no formal terminator if the buffer is filled before the terminator is typed.

All other bits must be zero.

TRM$_PICSTRNG

Character validation string. The buffer length word contains the length of the string, which must be the same as the length specified by TRM$_INISTRNG. The data address word contains the address of the string. TRM$_PICSTRNG must be specified if the edit mode is TRM$K_EM_RDVERIFY.

Note that this item code is for character validating read mode (TRM$K_EM_RDVERIFY) editing only.

The format of the character validation string is 1 byte per input character. Each byte is a bit mask. The following values are provided:

 ValueMeaning
 TRM$M_CV_UPPERUppercase alphabetic
 TRM$M_CV_LOWERLowercase alphabetic
 TRM$M_CV_NUMERICNumeric (0-9)
 TRM$M_CV_NUMPUNCNumeric punctuation (+ - .)
 TRM$M_CV_PRINTABLEPrintable ASCII character
 TRM$M_CV_ANYAny character


If no values are set, the corresponding character specified by TRM$_INISTRNG is used. Appendix C lists the multinational character set.

TRM$_PROMPT

Specifies a prompt string. The buffer length word contains the length of the prompt. The data address word contains the address of the prompt string. See “Read” for information on how carriage control specifiers in a prompt string are handled.

TRM$_TERM

The buffer length word determines the format of the nondefault terminator mask. If the buffer length word is zero, then the data longword is used as a short form mask. If the buffer length word is nonzero, then a mask n bytes long is available at the specified address.

TRM$_TIMEOUT

Read timeout. See the description of IO$M_TIMED in Table 5-6.



5.3.1.4 Read Verify Function

When using the read verify function, the terminal driver performs input validation based on character attributes. (Read verification bypasses the optionally specified termination mask (TRM$_TERM).) Validation is performed one character at a time as data is entered. Invalid characters are not echoed, and cause the read operation to complete. It is then up to the application program to handle the error appropriately.

The initial string describes the initial contents of the input field. This string may consist of data and marker characters. The clear character is displayed on the screen for each occurrence of the fill character in the initial string buffer.

The picture string is a string of bytes where each byte corresponds to one character of the field being entered. Each byte specifies a mask of legal character types for that character position. If the byte is left as zero, then that position is a marker character, and the character from the initial string is echoed for that position.

For left-justified fields, the prompt data is output to the terminal, followed by an optional number (TRM$_INIOFFSET) of initial string characters. Leading marker characters are always output following the prompt, leaving the cursor at the leftmost data position. As each character is entered, it is validated and then echoed, advancing the cursor position. Additional marker characters are skipped as they are encountered. If an input character fails the validation, the read operation is completed with the invalid character as the terminator.

For right-justified fields, the prompt is output and is followed by the initial string. (In general, TRM$_INIOFFSET is set to the length of TRM$_INISTRNG for right-justified fields.) The cursor position remains one position to the right of the initial string. For proper operation, right-justified fields cannot have mixed picture definitions. After each character is input, the entire prompt and input fields are output. Therefore, the prompt should include a cursor positioning escape sequence.

The definition of full field is different for left- and right-justified read operations. For left-justified fields, full field is detected when the character corresponding to the last nonmarker position in the picture string has been entered. For right-justified fields, full field is detected when a character other than the fill character is shifted into the leftmost, nonmarker position in the field.

If the modifier TRM$M_TM_AUTO_TAB is set in TRM$_MODIFIERS, then detection of a full field terminates the read operation. In the event of autotab termination, the terminator character in the IOSB is null. If the autotab option is not selected, then termination occurs when one more character is typed to a full field. Applications can detect this condition when the terminating character index is one character beyond the end of the field. The extra character is reported as the terminator. In a left-justified field, the IOSB index to the terminator is zero-based; in a right-justified field, this index is one-based.

If a read verify function is interrupted by an asynchronous write operation, the read verify is completed with status SS$_OPINCOMPL.

No line editing functions other than the delete character function are supported for read verify.

5.3.2 Write

Write operations display the contents of a user-specified buffer on the associated terminal. The operating system provides the following write I/O functions, which are listed with their function codes:

  • IO$_WRITEVBLK—Write virtual block

  • IO$_WRITELBLK—Write logical block

  • IO$_WRITEPBLK—Write physical block

The write function codes can take the following device- or function-dependent arguments:

  • P1—The starting virtual address of the buffer that is to be written to the terminal.

  • P2—The number of bytes that are to be written to the terminal. (The system generation parameter, MAXBUF, and the terminal driver limit the maximum size of the buffer. The terminal driver only functions with buffer sizes less than 32718 bytes.)

  • P4—Carriage control specifier except for write physical block operations. (Write function carriage control is described in “Write Function Carriage Control”.)

P3, P5, and P6 are not meaningful for terminal write operations.

In write virtual block and write logical block operations, the buffer (P1 and P2) is formatted for the selected terminal and includes the carriage control information specified by P4.

Unless TT$M_MECHFORM is specified, multiple line feeds are generated for form feeds. The number of line feeds generated depends on the current page position and the length of the page. By producing a carriage return after the last line feed, a form feed also moves the cursor to the left margin. Multiple spaces are generated for tabs if the characteristics of the selected terminal do not include TT$M_MECHTAB (this does not apply to write physical block operations). Tab stops occur every eight characters or positions.

CTDRIVER and Buffered Output

CTDRIVER, a component of the SET HOST facility, buffers output from remote terminals in order to package multiple output requests into a single network transfer. As a result, control is returned early to the user with a status of SS$_NORMAL when the output buffer has been filled and successfully queued.

Note that this output might not be displayed if the user enters an abort character or a Ctrl/O.

5.3.2.1 Function Modifier Codes for Write QIO Functions

Five function modifiers can be specified with IO$_WRITEVBLK, IO$_WRITELBLK, and IO$_WRITEPBLK. Table 5-8 lists these function modifiers. All write function modifiers are supported for LAT devices.

Table 5-8 Write QIO Function Modifiers for the Terminal Driver

CodeConsequence

IO$M_BREAKTHRU

Allows breakthrough read regardless of the current active state.

IO$M_CANCTRLO

Turns off Ctrl/O (if it is in effect) before the write operation. Otherwise, the data cannot be displayed.

IO$M_ENABLMBX

Enables use of the mailbox associated with the terminal for notification that unsolicited data is available.

IO$M_NOFORMAT

Allows you to specify write functions without interpretation or format; in effect, the terminal line is in a temporary PASTHRU mode.

IO$M_REFRESH

If a read operation is interrupted by a write operation (by either a write breakthrough[1] or any other type of write), the terminal displays the current read data when the read function is restarted.

[1] Any interruption caused by the execution of the $BRDCST or the $BRKTHRU system service broadcasting messages to terminals is referred to as a “write breakthrough.”



5.3.2.2 Write Function Carriage Control

The P4 argument is a longword that specifies carriage control. Carriage control determines the next printing position on the terminal. P4 is ignored in a write physical block operation. Figure 5-5 shows the P4 longword format.

Figure 5-5 P4 Carriage Control Specifier

P4 Carriage Control Specifier

Only bytes 0, 2, and 3 in the longword are used. Byte 1 is ignored. If the low-order byte (byte 0) is not 0, the contents of the longword are interpreted as a FORTRAN carriage control specifier. Table 5-9 lists the possible byte 0 values (in hexadecimal) and their meanings.

Table 5-9 FORTRAN Write Function Carriage Control

Byte 0 Value (hexadecimal)ASCII CharacterMeaning

20

(space)

Single-space carriage control (sequence: carriage-return/line-feed combination, print buffer contents, return[1]).

30

0

Double-space carriage control (sequence: carriage-return/line-feed combination, carriage-return/line-feed combination, print buffer contents, return[1]).

31

1

Page eject carriage control (sequence: form feed, print buffer contents, return).

2B

+

Overprint carriage control; allows double printing for emphasis or special effects (sequence: print buffer contents, return).

24

$

Prompt carriage control (sequence: carriage-return/line-feed combination, print buffer contents).

All other values



Same as ASCII space character: single-space carriage control.

[1] A carriage-return/line-feed combination is a carriage return followed by a line feed.



If the low-order byte (byte 0) is 0, bytes 2 and 3 of the P4 longword are interpreted as the prefix and postfix carriage control specifiers. The prefix (byte 2) specifies the carriage control before the buffer contents are printed. The postfix (byte 3) specifies the carriage control after the buffer contents are printed. The sequence is as follows:

  1. Prefix carriage control

  2. Print

  3. Postfix carriage control

The prefix and postfix bytes, although interpreted separately, use the same encoding scheme. Table 5-10 shows this encoding scheme in hexadecimal.

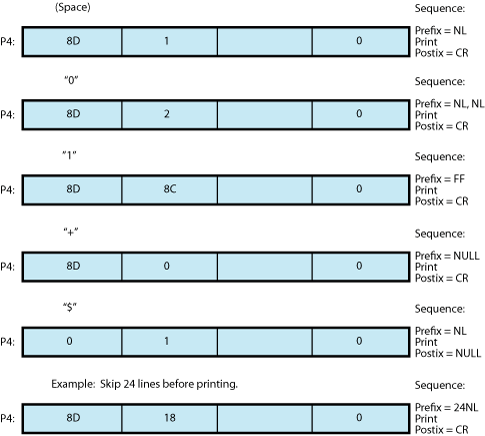

With several exceptions, Figure 5-6 shows the prefix and postfix hexadecimal coding that produces the carriage control functions listed in Table 5-9. Prefix and postfix coding provides an alternative way to achieve these controls.

In the first example in Figure 5-6, the prefix/postfix hexadecimal coding for a single-space carriage control (carriage-return/line-feed combination, print buffer contents, return) is obtained by placing the value 1 in the second (prefix) byte and the sum of the bit 7 value (80) and the return value (D) in the third postfix byte.

 80  (bit 7 = 1)
+ D  (return)
—-
 8D  (postfix = return)

Table 5-10 Write Function Carriage Control (P4 byte 0 = 0)

Prefix/Postfix Bytes (Hexadecimal)
Bit 7Bits 0—6Meaning

0



0



No carriage control is specified (NULL).

0



1—7F



Bits 0 through 6 are a count of carriage-return/line-feed combinations.

Bit 7Bit 6Bit 5Bits 0—4Meaning

1

0

0

0—1F

Output the single ASCII control character specified by the configuration of bits 0 through 4 (7-bit character set).

1

1

0

0—1F

Output the single ASCII control character specified by the configuration of bits 0 through 4, which are translated as ASCII characters 128 through 159 (8-bit character set; see Appendix C).

1

1

1

0—1F

Reserved.



Figure 5-6 Write Function Carriage Control (Prefix and Postfix Coding)

Write Function Carriage Control (Prefix and Postfix Coding)

5.3.3 Set Mode

Set mode operations affect the operation and characteristics of the associated terminal line. The operating system provides two types of set mode functions: set mode and set characteristics.

The set mode function affects the mode and temporary characteristics of the associated terminal line. Set mode is a logical I/O function and requires no privilege. (If you do not have LOG_IO or PHY_IO privilege, the terminal driver does not accept a set mode request to a terminal that does not have the extended terminal characteristic TT2$M_SETSPEED, even if no request for a change of speed is made. Privilege is not required if TT2$M_SETSPEED is set but no attempt to change the speed is made.) The following function code is provided:

  • IO$_SETMODE

The set characteristics function affects the permanent characteristics of the associated terminal line. Set characteristics is a physical I/O function and requires the privilege necessary to perform physical I/O. The following function code is provided:

  • IO$_SETCHAR

The set mode and set characteristics functions take the following device- or function-dependent arguments if no function modifiers are specified:

  • P1—Address of characteristics buffer

  • P2—Length of characteristics buffer (default length is 8 bytes, maximum is 16 bytes)

  • P3—Speed specifier (bits 0 through 7 = transmit; 8 through 15 = receive)

  • P4—Fill specifier (bits 0 through 7 = CR fill count; bits 8 through 15 = LF fill count)

  • P5—Parity flags

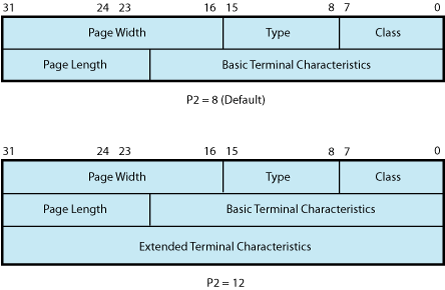

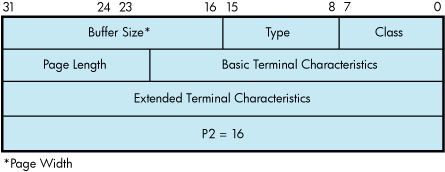

The P1 argument points to a variable-length block, as shown in Figure 5-7. With the exception of terminal characteristics, the contents of the block are the same for both the set mode and set characteristics functions.

Figure 5-7 Set Mode and Set Characteristics Buffers

Set Mode and Set Characteristics Buffers

In the buffer, the device class is DC$_TERM, which is defined by the $DCDEF macro. The terminal type is defined by the $TTDEF macro; for example, TT$_LA36. The page width is a value in the range of 1 through 511. The page length is a value in the range of 0 through 255. Table 5-4 lists the values for terminal characteristics. Table 5-5 lists the extended terminal characteristics. Characteristics values are defined by the $TTDEF, $TT2DEF, and $TT3DEF macros.

NOTE: Make sure that the selected device is a terminal before performing any set mode function, particularly when using SYS$INPUT or SYS$OUTPUT.

The P3 argument defines the device speed, such as TT$C_BAUD_300. The low eight bits specify the transmit speed, and the high eight bits specify the receive speed. If no receive speed is specified, the indicated transmit speed is used for both transmitting and receiving. If neither the transmit nor the receive speed is specified (P3 = 0), the baud rate is not changed. The terminal driver ignores the receive speed bits for interfaces that do not support split-speed operation. Though speeds up to 115.2 K baud can be specified, not all controllers support all speed combinations. See the associated hardware documentation to determine which speeds are supported by your controller.

P4 contains fill counts for the carriage-return and line-feed characters. Bits 0 through 7 specify the number of fill characters used after a carriage return. Bits 8 through 15 specify the number of fill characters used after a line feed.

P4 is applicable only if TT$M_CRFILL or TT$M_LFFILL is specified as a terminal characteristic for the current QIO request; see Table 5-4.

Several parity flags can be specified in the P5 argument:

  • TT$M_ALTRPAR—Alter parity. If set, check the state of TT$M_PARITY and TT$M_ODD and, if indicated, change the parity. Otherwise, ignore these bits.

  • TT$M_PARITY—Enable parity on terminal line if set, disable if clear.

  • TT$M_ODD—Parity is odd if set.

  • TT$M_ALTDISPAR—Alter dismiss parity errors. If set, check the state of TT$M_DISPARERR.

  • TT$M_DISPARERR—Dismiss parity errors. If this mode is set, a character with a parity error is passed to the reader. An error message is not reported.

    NOTE: If parity is enabled, the DZ11 generates a parity check bit to detect parity mismatch. Unless TT$M_DISPARERR is enabled, parity errors that occur during an I/O read operation are fatal to the operation. Parity errors that occur on input characters (that is, keys pressed on the keyboard) when no I/O operation is in progress might result in a character loss.
  • TT$M_BREAK—Generate a break if set. The break is in effect until this bit is turned off. TT$M_BREAK is supported by the LTDRIVER for terminal servers that support the break capability, such as the DECserver 200 and DECserver 500. However, in the case of LAT terminals, the terminal server controls the duration of the break.

  • TT$M_ALTFRAME—If set, the four low-order bits of P5 become the frame size. Note that the frame size is for data bits only and is exclusive of parity. TT$M_ALTFRAME is supported for frame sizes of 7 and 8 for LAT devices.

To take the existing parity settings, modify them, and use them in the set mode or set characteristic function, move the byte starting at the second nibble of the buffer that is going to be used in the P5 argument. For example, the following instructions change the parity from even to odd:

insv    iosb+6, #4, #8, flags
bisl    #tt$m_altrpar!tt$m_odd!tt$m_parity, flags

The following instruction then resets the parity to its original state:

bicl    #tt$m_odd!tt$m_parity, flags

See “Autobaud Detection” for information about the SET TERMINAL/FRAME command.

Application programs that change terminal characteristics should perform the following steps:

  1. Use the IO$_SENSEMODE function to read the current characteristics.

  2. Modify the characteristics.

  3. Use the set mode function to write back the results.

  4. If the characteristic is intended to be reset when the image exits, the application must perform this operation.

Failure to follow this sequence results in clearing any previously set characteristic.

Two stop bits are used only for data rates less than or equal to 150 baud; higher data rates default to one stop bit.

The set mode and set characteristics functions can take the enable Ctrl/C AST, enable Ctrl/Y AST, enable out-of-band AST, hangup, set modem, broadcast, and loopback function modifiers that are described in the following sections.

NOTE: If an attempt is made to turn on TT2$V_FALLBACK for a disconnected virtual terminal (_VTAx:) or if the Terminal Fallback facility has not been activated, the status code SS$_BADPARAM is returned. For more information on TFF, see the OpenVMS Terminal Fallback Utility Manual (available on the Documentation CD-ROM).

5.3.3.1 Hangup Function Modifier

The hangup function disconnects a terminal that is on a dialup line. (Dialup lines are described in “Set Mode”.) The following combinations of function code and modifier are provided:

  • IO$_SETMODE!IO$M_HANGUP

  • IO$_SETCHAR!IO$M_HANGUP

The hangup function modifier takes no arguments. SS$_NORMAL is returned in the I/O status block.

NOTE: For remote terminals, the hangup function breaks the network connection to the local system, ending the remote terminal session.

5.3.3.2 Enable Ctrl/C AST and Enable Ctrl/Y AST Function Modifiers

Both set mode functions can take the enable Ctrl/C AST and enable Ctrl/Y AST function modifiers. These function modifiers request the terminal driver to queue an AST for the requesting process when you press Ctrl/C or Ctrl/Y. The following combinations of function code and modifier are provided:

  • IO$_SETMODE!IO$M_CTRLCAST—Enable Ctrl/C AST

  • IO$_SETMODE!IO$M_CTRLYAST—Enable Ctrl/Y AST

These function code modifier pairs take the following device- or function-dependent arguments:

  • P1—Address of the AST service or 0 if the corresponding AST is disabled

  • P2—AST parameter

  • P3—Access mode to deliver AST (maximized with caller's access mode)

If the respective enabling is in effect, pressing Ctrl/C or Ctrl/Y gains the attention of the enabling process (see Table 5-1).

Enable Ctrl/C and Ctrl/Y AST are one-time enabling function modifiers. After the AST occurs, it must be explicitly reenabled by one of the two function code combinations before an AST can occur again. This function code is also used to disable the AST. The function is subject to AST quotas.

You can have more than one Ctrl/C or Ctrl/Y enabled; pressing Ctrl/C, for example, results in the delivery of all Ctrl/C ASTs. ASTs are queued and delivered to the user process on a first-in/first-out basis for each access mode. However, ASTs are processed in the reverse order of the Ctrl/C AST or Ctrl/Y AST requests that have been issued to the terminal driver (on a last-in/first-out basis).

If no enable Ctrl/C AST is present, the holder of an enable Ctrl/Y AST receives an AST when Ctrl/C is pressed; carriage-return/line-feed combination, Ctrl/Y, and Return are echoed.

Figure 5-9 shows the relationship of Ctrl/C and Ctrl/Y with the out-of-band function. If Ctrl/C or Ctrl/Y is an enabled out-of-band character, any out-of-band ASTs specified for this character are delivered. If IO$M_INCLUDE function modifier is included in the out-of-band AST request for this character, an enabled Ctrl/C or Ctrl/Y AST is also delivered.

Enable Ctrl/C AST requests are flushed by the Cancel I/O on the Channel ($CANCEL) system service. Enable Ctrl/Y AST requests are flushed by the Deassign I/O Channel ($DASSGN) system service.

Ctrl/Y is normally used to gain the attention of the command interpreter and to input special commands such as DEBUG, STOP, and CONTINUE. Programs that are run from a command interpreter should not enable Ctrl/Y. Because ASTs are delivered on a first-in/first-out basis, the command interpreter's AST routine gets control first, and might not allow the program's AST to be delivered at all. Programs that require the use of Ctrl/Y should use the LIB$DISABLE_CTRL RTL routine to disable DCL recognition of Ctrl/Y.

See Example 5-4 for a programming example that demonstrates Ctrl/Y and Ctrl/C handling under OpenVMS.

“Control Characters and Special Keys” describes other effects of Ctrl/C and Ctrl/Y.

5.3.3.3 Set Modem Function Modifier

The set modem function modifier is used in maintenance operations to allow a process to activate and deactivate modem control signals. Both set mode and set characteristics functions can take the set modem function modifier. The following combinations of function code and modifier are provided:

  • IO$_SETMODE!IO$M_SET_MODEM!IO$M_MAINT

  • IO$_SETCHAR!IO$M_SET_MODEM!IO$M_MAINT

NOTE: For LAT devices, the set modem field for maintenance operations of the IO$M_SET_MODEM!IO$M_MAINT function modifier is unsupported and may return unpredictable results.

These function code modifier pairs take the following device- or function-dependent argument:

  • P1—The address of a quadword block that specifies which modem control signals to activate or deactivate

Figure 5-8 shows the format of this block.

The modem on and modem off fields, in combination or separately, can specify one or more of the following values:

  • TT$M_DS_RTS—Request to send (RTS)

  • TT$M_DS_DTR—Data terminal ready (DTR)

    Figure 5-8 Set Mode P1 Block

    Set Mode P1 Block
  • TT$M_DS_SECTX—Transmitted backward channel data (Sec Txd)

The $TTDEF macro defines the values for these values. These values can only be specified if the terminal characteristic TT$M_MODEM is not set. Otherwise, an error (SS$_ABORT) occurs.

NOTE: The set modem function is not supported for remote terminals. The status SS$_DEVREQERR is returned in the I/O status block.

Because the DMF32 does not provide the secondary transmitted data signal (Sec Txd), the driver sets the secondary request to send the signal. Users should connect a jumper cable between pins 14 and 19 on the DMF32.

5.3.3.4 Loopback Function Modifier

The loopback function modifier is used in maintenance operations to place the terminal line in a hardware loopback mode. Data transmitted to a line in this mode is returned as receive data. If the controller does not support loopback mode or the terminal line has the TT$M_MODEM characteristic set, an error status (SS$_ABORT) is returned. Both set mode functions can take the loopback function modifier.

NOTE: The loopback function is not supported for remote terminals. The status SS$_DEVREQERR is returned in the I/O status block.

The following combinations of function code and modifier are provided:

  • IO$_SETMODE!IO$M_LOOP!IO$M_MAINT

  • IO$_SETCHAR!IO$M_LOOP!IO$M_MAINT

Data transmitted in the loopback mode should only be written in records less than or equal to the size of the type-ahead buffer (see “Type-Ahead Feature”). Programs that use the loopback function modifier should incorporate a 1-second delay to allow the controller to enable the loopback mode after the request is posted. Write requests should also include the IO$M_NOFORMAT function modifier to prevent terminal driver from formatting input or output data.

The operating system provides another function modifier to reset a terminal line previously placed in loopback mode. The following combinations of function code and modifier are provided:

  • IO$_SETMODE!IO$M_UNLOOP!IO$M_MAINT

  • IO$_SETCHAR!IO$M_UNLOOP!IO$M_MAINT

Programs that use the unloop function modifier should incorporate a 1-second delay to allow the controller to reset the loopback mode after the request is posted.

NOTE: IO$M_LOOP and IO$M_UNLOOP are not supported for LAT devices.

5.3.3.5 Enable Out-of-Band AST Function Modifier

The enable out-of-band AST function modifier requests that the terminal driver queue an AST for the requesting process when you enter any one of 32 control characters. The following combinations of function code and modifier are provided:

  • IO$_SETMODE!IO$M_OUTBAND—Enable out-of-band AST

  • IO$_SETCHAR!IO$M_OUTBAND—Enable out-of-band AST

These function code modifier pairs take the following device- or function-dependent arguments:

  • P1—Address of the AST service or 0 if the AST entered on this channel is to be canceled. (The AST parameter is the out-of-band character.)

  • P2—Address of a character mask with the same format as the short form terminator mask (see “Read Function Terminators”).

  • P3—Access mode to deliver AST (maximized with the caller's access mode).

The IO$_SETMODE!IO$M_OUTBAND function can optionally take the following function modifiers:

  • IO$M_INCLUDE—Include the character typed in the data stream.

  • IO$M_TT_ABORT—Allow current read and write operations to be aborted. (The IOSB for aborted operations returns the status SS$_CONTROLC.)

If an out-of-band AST is in effect, pressing any control character specified in the P2 mask gains the attention of the enabling process. Figure 5-9 shows the relationship of the out-of-band function with some of the control characters.

You can have only one out-of-band AST enabled per channel.

Out-of-band ASTs are repeating ASTs; they continue to be delivered until specifically disabled. Out-of-band AST enables are flushed by the Cancel I/O on Channel ($CANCEL) system service.

Figure 5-9 Relationship of Out-of-Band Function with Control Characters

Relationship of Out-of-Band Function with Control Characters

5.3.3.6 Broadcast Function Modifier

The broadcast function modifier allows you to turn on or turn off selected broadcast requester identifiers (IDs). The following combination of function code and modifier is provided:

  • IO$_SETMODE!IO$M_BRDCST

This function code modifier pair takes the following device- or function-dependent arguments:

  • P1—A buffer that contains the bits that specify the requester IDs to be broadcast

  • P2—The length of the P1 buffer (default is 8 bytes)

The first longword of P1 is reserved for use by HP facilities, as shown in Table 5-11. The symbols are defined in the system macro library ($BRKDEF). The second longword is for customer use to specify selected bits. If any bit is set in the P1 buffer, that particular requester ID is turned off for broadcast.

Table 5-11 Broadcast Requester IDs

Bit Meaning

BRK$C_DCL

Disables broadcasts by Ctrl/T

BRK$C_GENERAL

Disables broadcasts by the DCL command REPLY and the SYS$BRDCST system service

BRK$C_MAIL

Disables broadcasts by the Mail utility

BRK$C_PHONE

Disables broadcasts by the Phone utility

BRC$C_QUEUE

Disables broadcasts about batch and print queues

BRK$C_SHUTDOWN

Disables broadcasts about system shutdown

BRK$C_URGENT

Disables broadcasts labeled URGENT by the REPLY command

BRK$C_USERn

Disables broadcasts by images associated with the specified value; n can be any decimal integer between 1 and 16



5.3.4 LAT Port Driver QIO Interface

The LAT port driver (LTDRIVER) accommodates I/O requests from application programs for connections to remote devices on one or more terminal servers; for connections to remote services; and for configuring LTDRIVER and retrieving configuration information about LTDRIVER. A remote device, such as a printer, can be shared in a LAT configuration. Before an application program can access a remote device, the system manager must create logical devices and map them to physical devices connected to terminal servers. Creating and mapping these logical devices can be done either with the LAT Control Program (LATCP) utility or with a $QIO request from a program that has OPER privilege. Once mapped, application programs can establish and terminate connections to these remote devices.

This section describes the capabilities of the QIO interface to the LAT port driver (LTDRIVER). The QIO interface allows application programs to access and modify information contained in the LTDRIVER data structures and to initiate events and obtain status information. You must use these QIO functions to establish a connection to a remote device or service from an application program. HP does not support any other methods of connection.

The LTDRIVER responds to TEST SERVICE commands issued at terminal servers that support the TEST SERVICE command, such as the DECserver 200 and DECserver 500 servers.

LAT devices can use all read and write function modifiers listed for the terminal driver function codes except those modifiers that apply to modems (see “Read” and “Write”).

The operating system does not support the following set mode or set characteristics function code modifiers for LAT devices:

  • IO$M_LOOP

  • IO$M_UNLOOP

  • TT$M_ALTRPAR

  • TT$M_ALTFRAME

  • TT$M_MODEM

  • TT$M_READSYNC

  • TT2$M_SETSPEED

With LAT devices, the terminal server, rather than the host, handles flow control to the physical device. A separate flow control mechanism exists between the server and the host.

5.3.4.1 LAT Port Types

QIO functions can be used to create the following LAT port types:

  • Application Port. This type of port can be used to connect to a remote device (typically a printer) on a terminal server or to a dedicated port on another LAT service node. This is the default port type. See “Programming Application Ports” for a description of programming an application port.

  • Dedicated Port. This type of port specifies that the logical port on your node is dedicated to an application service. When users on a terminal server (or on another node that supports outgoing connections) request a connection to this service name, they are connected to a dedicated port. See “Programming Application Services and Dedicated Ports” for a description of programming a dedicated port and application service.

  • Forward Port. This type of port is used for outgoing LAT connections (to remote services) and is created by assigning a channel to the LAT template device _LTA0: with the $ASSIGN system service.

    QIO functions can also be used to configure and read information about these ports; for more information:

5.3.4.2 LAT Port Driver Functions

The operating system provides the following combinations of function code and modifier:

  • IO$_TTY_PORT!IO$M_LT_CONNECT. Requests that the LAT port driver make a connection to a remote device on a server (or dedicated port on another LAT service node) or to a remote service, depending on whether the port is an application port or a forward port respectively. For dedicated ports, this QIO completes when an incoming connection to the port is established. See “Programming Application Ports” for a description of programming an application port, “Programming Application Services and Dedicated Ports” for a description of programming a dedicated port, and “Programming Forward Ports” for a description of programming a forward port.

  • IO$_TTY_PORT!IO$M_LT_DISCON. Depending on the port type, requests that the LAT port driver terminate the LAT connection to the remote device, service, or local application service. IO$M_FLUSH_DATA can be specified in the P2 argument to IO$M_LT_DISCON. The flush flag indicates that any data not delivered to the remote device is to be flushed when the disconnect is issued.

  • IO$_TTY_PORT!IO$M_LT_SETMODE. Requests that the LAT port driver create or configure a LAT entity. See “Creating and Configuring LAT Entities” for more information.

  • IO$_TTY_PORT!IO$M_LT_SENSEMODE. Requests that the LAT port driver return configuration information about a LAT entity. See “Obtaining Information About LAT Entities” for more information.

5.3.4.3 Creating and Configuring LAT Entities

The LAT SETMODE $QIO function (IO$_TTY_PORT!IO$M_LT_SETMODE) is used to create, delete, and modify LAT nodes, services, ports, and links.

Creation, deletion, or modification of any entity requires the OPER privilege.

The LAT SETMODE $QIO function accepts four arguments: P1, P2, P3, and P4. P1 is the address of an item list; P2 is the length of this item list.

P3 specifies the type of entity to which the SETMODE operation applies. The entity type can be one of five types:

  • Node (LAT$C_ENT_NODE). Only the local node name may be specified, with the exception of a SETMODE itemlist containing no item codes other than LAT$_ITM_COUNTERS.

  • Service (LAT$C_ENT_SERVICE). Only local service names may be specified, with the exception of a SETMODE itemlist containing no item codes other than LAT$_ITM_COUNTERS.

  • Link (LAT$C_ENT_LINK). The data link associated with the LAN.

  • Port (LAT$C_ENT_PORT).

  • Queue Entry (LAT$C_ENT_QUEUE_ENTRY). Indicates queue entry entities. When this entity is used, the only valid SETMODE operation is delete.

The value for the entity type occupies the low-order 16 bits (bits 0--15) of the P3 parameter. For all four entity types, bits 16--19 are used as a status field to indicate the expected current status of the entity. These bits are used to decide whether the entity needs to be created before its characteristics are set. The possible values for this field are:

  • LAT$C_ENTS_OLD—The entity must already exist. An SS$_NOSUCHDEV error is returned if the entity does not exist.

  • LAT$C_ENTS_NEW—The entity must be created. An SS$_DUPLNAM error is returned if the entity already exists.

  • LAT$C_ENTS_UNK—If the entity does not exist, it is created. If it does exist, its characteristics are modified.

  • LAT$C_ENTS_DEL—If the entity exists, delete it. Otherwise, an SS$_NOSUCHDEV error is returned and the item list is not used.

P4 may contain the address of an entity name string descriptor. If this parameter is omitted (contains a 0 or the address of a descriptor that points to an empty buffer), a default may be used in some cases. The defaults for each entity type are as follows:

  • LAT$C_ENT_NODE—The local node.

  • LAT$C_ENT_SERVICE—No default; you must specify the service name.

  • LAT$C_ENT_LINK—The string LAT$LINK.

  • LAT$C_ENT_PORT—The device name associated with the currently assigned channel (the CHAN parameter of the $QIO function).

SETMODE can return the following status codes:

  • SS$_NOPRIV—No privilege to complete the desired operation.

  • SS$_ACCVIO—Part of the argument list or itemlist is not addressable.

  • SS$_BADPARAM—One of the parameters in the itemlist is in error. If this value is returned, the second longword of the IOSB contains the item code of the parameter in error.

SETMODE Item Codes

Each item in the itemlist consists of a one-word (16-bit) item code, followed by a value associated with the item.

Item codes in which the bit named LAT$V_STRING is zero take a longword value. The associated value is contained in the longword immediately following the item code in the itemlist. Item codes in which this bit is 1 take a counted string for their value. The byte immediately following the item code contains a byte count, which describes the length of the string that immediately follows it.

If you set bit LAT$V_CLEAR in the item code to 1, the current value associated with the item code is cleared or set to its default value. In this case, the actual value specified in the itemlist is ignored, although the byte count field skips to the next item in the itemlist.

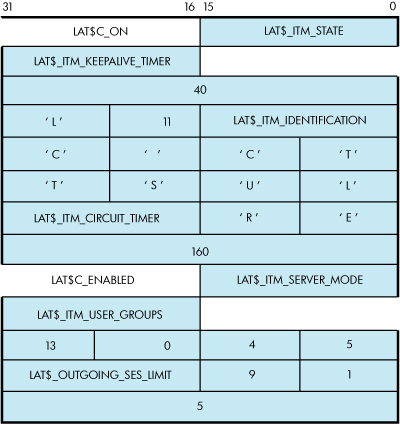

Figure 5-10 shows an example of a SETMODE itemlist.

Figure 5-10 Example SETMODE Itemlist

Example SETMODE Itemlist

This SETMODE itemlist is the P1 parameter for a $QIO SETMODE function on the local node. P4 is omitted, and P3 is #LAT$C_ENT_NODE!$C_ENTS_OLD@16>. P2 is the length of the itemlist (52). A $QIO SETMODE function for this itemlist would perform the following operations:

  1. Set the state of the node to on.

  2. Set the LAT keepalive timer to 40 seconds.

  3. Set the node identification to LTC CLUSTER.

  4. Set the LAT circuit timer to 160 milliseconds.

  5. Enable LAT outbound connections.

  6. Turn on user groups 2, 8, 10, 11, 12, 16, and 19. LAT$_ITM_USER_GROUPS is represented by a bit field.

  7. Set the outgoing session limit to five sessions.

For each entity type, only a subset of item codes may be set. Table 5-12 lists the item codes that may be set for the LAT$C_ENT_NODE entity type.

Table 5-12 LAT$C_ENT_NODE Item Codes

Item CodeMeaning

LAT$_ITM_STATE

Operating state of the LAT protocol. The following values are allowed:

 LAT$C_OFF

Turns off LAT protocol processing. No new connections allowed in either direction. Existing connections are terminated immediately. This is the default.



LAT$C_SHUT

Disallows new LAT connections in either direction. Existing connections are allowed to remain active.



LAT$C_ON

Turns on LAT protocol processing.

LAT$_ITM_CIRCUIT_TIMER

Circuit timer value in milliseconds. Valid values are 10 to 1000 milliseconds. The default is 80 milliseconds.

LAT$_ITM_CPU_RATING

CPU rating. Valid values are 0 to 100. If this value is 0, then the CPU rating value is not used in the rating calculation. See the HP OpenVMS System Management Utilities Reference Manual for a complete description of this feature.

LAT$_ITM_DEVICE_SEED

Overrides the default lower boundary for new LTA devices. Valid values are 0 to 9999; the default is 0. See the HP OpenVMS System Management Utilities Reference Manual for more information on this feature.

LAT$_ITM_KEEPALIVE_TIMER

Keepalive timer value in seconds. Valid values are 10 to 255 seconds. The default is 20 seconds.

LAT$_ITM_MULTICAST_TIMER

Multicast timer value in seconds. Valid values are 10 to 180 seconds. The default is 60 seconds.

LAT$_ITM_NODE_LIMIT

Maximum number of nodes in LAT database. The default is 0, where the maximum is determined by system resources.

LAT$_ITM_RETRANSMIT_LIMIT

LAT retransmit limit. Valid values are 4 to 120 retransmissions. The default is 8 retransmissions.

LAT$_ITM_SERVER_MODEControls whether the node allows the use of the MASTER side of the LAT protocol for outbound connections. Valid values are:


LAT$C_DISABLED

Server mode disabled (this is the default).



LAT$C_ENABLED

Server mode enabled.

LAT$_ITM_SERVICE_RESPONDER

Indicates whether the node is to respond to service inquiries originating from a remote system. These inquiries are not necessarily directed at services being offered by the node. See the HP OpenVMS System Management Utilities Reference Manual for a complete description of this feature. Valid values are:


LAT$C_DISABLED

Service responder disabled (this is the default).



LAT$C_ENABLED

Service responder enabled.

LAT$_ITM_OUTGOING_SES_LIMIT

Maximum number of outgoing LAT sessions. A value of 0, which is the default, indicates that the limit is determined by system resources.

LAT$_ITM_INCOMING_SES_LIMIT

Maximum number of interactive LAT sessions. A value of 0, which is the default, indicates that the limit is determined by system resources.

LAT$_ITM_CONNECTIONS

Controls whether inbound connections can be accepted. Valid values are:


LAT$C_DISABLED

Inbound connections disabled.

 LAT$C_ENABLED

Inbound connections enabled (this is the default).

LAT$_ITM_NODE_NAME

Causes the LAT node name to be set to the given name. This item code may be specified only if the entity status field of the P3 parameter is LAT$C_ENTS_NEW; otherwise, a LAT$_ENTNOTFOU error results.

LAT$_ITM_IDENTIFICATION

Node identification string. The default is the translation of SYS$ANNOUNCE.

LAT$_ITM_SERVICE_GROUPS

Specifies a default service group code bit mask. This mask is then used when creating new local services. The default is group code 0 enabled and all others disabled when the LAT software is initialized.

Note that the use of the LAT$V_CLEAR bit is an exception for this parameter code. If you clear bit LAT$V_CLEAR, group codes corresponding to the group code mask, as specified in the itemlist, are set. Alternatively, if you set LAT$V_CLEAR, group codes corresponding to the group code mask, as specified in the itemlist, are cleared.

LAT$_ITM_USER_GROUPS

LAT group codes to be used when attempting outbound connections using the MASTER side of the LAT protocol. The default is all group codes disabled when the LAT software is initialized.

Note that the use of the LAT$V_CLEAR bit is an exception for this parameter code. If you clear bit LAT$V_CLEAR, group codes corresponding to the group code mask, as specified in the itemlist, are set. Alternatively, if you set LAT$V_CLEAR, group codes corresponding to the group code mask, as specified in the itemlist, are cleared.

LAT$_ITM_COUNTERS

Node counters block. Allows for zeroing of all node counters. This item code may be specified only if the entity status field of the P3 parameter is LAT$C_ENTS_OLD and the LAT$V_CLEAR bit is set. Violating either of these two rules results in a returned status of SS$_BADPARAM.

LAT$_ITM_MAXIMUM_UNITS

Maximum unit number. Sets the highest value for a LTA unit number. Must be between 1 and 9999; defaults to 9999.

LAT$_ITM_HI_CIRCUITS[1]

Indicates the highest number the resource attained since the host was initialized for LAT connections to node.

LAT$_ITM_CUR_CIRCUITS[1]

Indicates current count of active connections to node.

LAT$_ITM_MAX_CIRCUITS[1]

Indicates maximum allowed virtual circuits to node.

LAT$_ITM_HI_SESSIONS[1]

Indicates highest number the resource attained since the host was initialized for LAT sessions.

LAT$_ITM_CUR_SESSIONS[1]

Indicates current number of active sessions.

LAT$_ITM_MAX_SESSIONS[1]

Indicates maximum possible sessions.

LAT$_ITM_HI_OUT_QUEUE[1]

Indicates highest number the resource attained since the host was initialized of outgoing queued connect requests.

LAT$_ITM_CUR_OUT_QUEUE[1]

Indicates current count of outgoing queued connect requests.

LAT$_ITM_MAX_OUT_QUEUE[1]

Indicates maximum number of simultaneous outgoing queued connect requests.

LAT$_TIM_HI_IN_QUEUE[1]

Indicates highest number the resource attained since the host was initialized of incoming queued requests.

LAT$_ITM_CUR_IN_QUEUE[1]

Indicates current number of entries in the incoming connect queue.

LAT$_ITM_CUR_IN_QUEUE[1]

Indicates maximum number of entries allowed on the incoming connect queue.

LAT$_ITM_HI_SAMS_QUEUED[1]

Indicates highest number the resource attained since the host was initialized of outstanding, unprocessed service announcement messages by LATACP.

LAT$_ITM_CUR_SAMS_QUEUED[1]

Indicates current number of outstanding, unprocessed service announcement messages on LATACP's queue.

LAT$_ITM_MAX_SAMS_QUEUED[1]

Indicates maximum number of outstanding, unprocessed service announcement messages allowed on LATACP's queue. If this limit is ever reached, subsequent service announcement messages are not delivered or processed by LATACP.

LAT$_ITM_HI_SOL_QUEUED[1]

Indicates highest number the resource attained since the host was initialized of outstanding, unprocessed solicit information messages by LATACP.

LAT$_ITM_CUR_SOL_QUEUED

Indicates current number of outstanding, unprocessed solicit information messages on LATACP's queue.

LAT$_ITM_MAX_SOL_QUEUED[1]

Indicates maximum number of outstanding, unprocessed solicit information messages allowed on LATACP's queue. If this limit is ever reached, subsequent solicit information messages are not delivered or processed by LATACP.

LAT$_ITM_HI_AVAIL_SVCS[1]

Indicates highest number the resource attained since the host was initialized by the number of available services in LATACP database.

LAT$_ITM_CUR_AVAIL_SVCS[1]

Indicates count of currently available LAT services in LATACP database.

LAT$_ITM_MAX_AVAIL_SVCS[1]

Indicates maximum number of available services possible in LATACP database.

LAT$_ITM_HI_REACH_NODES[1]

Indicates highest number the resource attained since the host was initialized of reachable nodes in LATACP database.

LAT$_ITM_CUR_REACH_NODES[1]

Indicates current number of reachable nodes in LATACP database.

LAT$_ITM_MAX_REACH_NODES[1]

Indicates maximum number of nodes allowed in LATACP database.

LAT$_ITM_HI_LCL_SVCS

Indicates highest number the resource attained since the host was initialized of locally offered services.

LAT$_ITM_CUR_LCL_SVCS[1]

Indicates current count of locally offered service.

LAT$_ITM_MAX_LCL_SVCS[1]

Indicates maximum number of locally offered services.

LAT$_ITM_DISCARDED_NODES[1]

Indicates number of discarded service announcement messages.

LAT$_ITM_SERVICE_CLASSES[1]

Indicates returned service class bit mask for supported service classes on node. It is returned for both local and remote nodes. If service class 1 is enabled, then bit 1 is set in this mask. When bit setting equals 1, this indicates the corresponding service class for that bit is enabled. That is, when bit 3 equal 1, then service class 3 is enabled.

LAT$_ITM_LARGE_BUFFERS

Indicates in Boolean logic whether or not the LAT software is using large packet support by default.

LAT$_ITM_ANNOUNCEMENTS

Indicates in Boolean logic whether or not the LAT software is transmitting LAT service advertisement messages.

[1] Alpha and Integrity servers specific



Table 5-13 lists the item codes that may be set for the LAT$C_ENT_SERVICE entity type.

Table 5-13 LAT$C_ENT_SERVICE Item Codes

Item Code

Meaning

LAT$_ITM_RATING

Static LAT service rating. The default is the dynamic rating calculation. Static ratings can be between 0 and 255.

LAT$_IETEM_IDENTIFICATION

Service identification string. The default is the translation of SYS$ANNOUNCE.

LAT$_ITM_SERVICE_TYPE

Defines the type of service. Valid values are:



LAT$C_ST_GENERAL

Creates a general timesharing service.



LAT$C_ST_APPLICATION

Creates a special application service that must then be associated with ports dedicated to accepting connections to this service (dedicated ports).



LAT$C_ST_LIMITED[1]

Indicates that the service is limited.

LAT$_ITM_COUNTERS

Service counters block. Allows for zeroing of all service counters. This item code may be specified only if the entity status field is LAT$C_ENTS_OLD and the LAT$V_CLEAR bit is set. Violating either of these two rules results in a returned status of SS$_BADPARAM.

LAT$_ITM_PASSWORD[1]

Indicates that if a value of LAT$C_ENABLED is indicated, then the service is password protected. Indicates that if a value of LAT$C_DISABLED is indicated, then the service is not password protected.

LAT$_ITM_LIM_PORT_BLOCK[1]

Indicates a subblock contained in an itemlist, which has a list of limited ports associated with the named service. This subblock may be repeated several times; that is, once for each limited LAT device associated with the specified service.

[1] Alpha and Integrity servers specific



Table 5-14 lists the item codes that may be set for the LAT$C_ENT_LINK entity type.

Table 5-14 LAT$C_ENT_LINK Item Codes

Item CodeMeaning

LAT$_ITM_STATE

Operating state of the LAT protocol. Valid values are:


LAT$C_OFF

Turns off LAT protocol processing. No new connections allowed in either direction. Existing connections are terminated immediately.



LAT$C_SHUT

Disallows new LAT connections in either direction. Existing connections are allowed to remain active.



LAT$C_ON

Turns on LAT protocol processing. This is the default.

LAT$_ITM_DEVICE_NAME

The name of the local area network (LAN) device to be used for this link. The default is hardware-dependent.

LAT$_ITM_DECNET_ADDRESS

Specifies whether to use the DECnet address when starting the LAT protocol on the LAN controller associated with this link. Valid values are:



LAT$C_DISABLED

DECnet address use disabled.



LAT$C_ENABLED

DECnet address use enabled (this is the default).

LAT$_ITM_COUNTERS

Link counters block. Allows for zeroing of all link counters. This item code may be specified only if the entity status field is LAT$C_ENTS_OLD and the LAT$V_CLEAR bit is set. Violating either of these two rules results in a returned status of SS$_BADPARAM.



Table 5-15 lists the item codes that may be set for the LAT$C_ENT_PORT entity type.

Table 5-15 LAT$C_ENT_PORT Item Codes

Item Code

Meaning

LAT$_ITM_PORT_TYPE

Type of port. Valid values are:



LAT$C_PT_APPLICATION

Application port for solicited connections.



LAT$C_PT_DEDICATED

Dedicated port associated with a local application service.



LAT$C_PT_LIMITED[1]

Indicates that the port type is limited.

LAT$_ITM_QUEUED

Controls whether the solicited connection requests queued or nonqueued access. Valid values are:



LAT$C_DISABLED

Queued access disabled.



LAT$C_ENABLED

Queued access enabled (this is the default).

LAT$_ITM_SERVICE_CLASS

Controls the class driver that the LAT driver communicates with when a connection is established. This item code can be used only with an entity status of LAT$C_ENTS_NEW. Therefore, the service class must be specified when the device is created. An attempt to change the service class of an existing device returns SS$_BADPARAM. Valid values are:



LAT$C_SERVCLASS_INTERACTIVE

Service class 1, TTDRIVER (this is the default).



LAT$C_SERVCLASS_XTRANSPORT

Service class 3, X Protocol.



LAT$C_SERVCLASS_FONT

Service class 4, X fonts.

LAT$_ITM_DISPLAY_NUMBER

For X devices, this is the binary value of the display number, which may need to be transmitted in some LAT messages. Values range from 0--255, with a default of 0. This item code has meaning only when used with service classes 3 and 4 (LAT$C_SERVCLASS_XTRANSPORT AND LAT$C_SERVCLASS_FONT).

LAT$_ITM_TARGET_NODE_NAME

Target node name for connection. This parameter must be specified for application ports and may optionally be specified for forward ports.

LAT$_ITM_TARGET_SERVICE_NAME

Target service name for connection. This parameter must be specified for forward ports and may optionally be specified for application ports. For dedicated ports, this parameter specifies the local application service to which the port should be associated.

LAT$_ITM_TARGET_PORT_NAME

Target port name for connection. This parameter may optionally be specified for application ports or forward ports; it is ignored for all other kinds of ports.

LAT$_ITM_SERVICE_PASSWORD

Password string for remote service on forward ports. This parameter must be specified to access services that are protected with a password. This parameter is ignored if it is specified for a service that is not protected with a password.

LAT$_ITM_DIALUP[1]

Indicates if an LAT device tells a remote node that the connection is coming from a dialing source. Possible values are LAT$C_ENABLED or LAT$C_DISABLED.

LAT$_ITM_AUTOPROMPT[1]

Indicates if a connect request has autoprompt enabled. Possible values are LAT$C_ENABLED or LAT$C_DISABLED.

[1] Alpha and Integrity servers specific.



5.3.4.4 Obtaining Information About LAT Entities

The LAT SENSEMODE $QIO function (IO$_TTY_PORT!IO$M_LT_SENSEMODE) is used to obtain information about LAT nodes, services, ports, and links.

The LAT SENSEMODE $QIO function accepts four arguments: P1, P2, P3, and P4. P1 is the address of a buffer into which information about the desired entity is returned. The information is returned in the form of an item list. Unlike system services such as $GETDVI or $GETJPI, you do not select which items of information are returned. P2 is the length of the buffer specified in P1, in bytes. The number of bytes of information returned in the P1 buffer is returned in IOSB+2.

P3 specifies the type of entity to which the SENSEMODE operation applies. The entity type can be one of five types:

  • Node (LAT$C_ENT_NODE). Node, including the local node.

  • Service (LAT$C_ENT_SERVICE). Service, including local services.

  • Link (LAT$C_ENT_LINK). Data link associated with the LAN.

  • Port (LAT$C_ENT_PORT).

  • Queue Entry (LAT$C_ENT_QUEUE_ENTRY). Indicates queue entry entities.

The value for the entity type occupies the low-order 16 bits (bits 0--15) of the P3 parameter. Bits 16--23 are used as a flag field. Two bits are currently defined within this field: LAT$V_SENSE_NEXT and LAT$V_SENSE_FULL. If the LAT$V_SENSE_NEXT bit is 0, information about the current entity described by the P3 and P4 parameters is returned to the user; if this bit is 1, information about the next entity that logically follows the one described by P4 is returned. If LAT$V_SENSE_FULL is 0, only those item codes marked SUMMARY in the following tables are returned; if this bit is 1, all item codes that describe the entity specified by the P3 and P4 parameters are returned.

P4 may contain the address of an entity name string descriptor. If this parameter is omitted (contains a zero or the address of a descriptor that points to an empty string) and the LAT$V_SENSE_NEXT bit is set, information about the first entity that matches the entity type supplied by P3 is returned.

If P4 is omitted and the LAT$V_SENSE_NEXT bit is 0, a default entity name may be used in some cases. The defaults for each entity type are as follows:

  • LAT$C_ENT_NODE—The local node.

  • LAT$C_ENT_SERVICE—No default; you must specify the service name.

  • LAT$C_ENT_LINK—The string LAT$LINK.

  • LAT$C_ENT_PORT—The device name associated with the currently assigned channel (the CHAN parameter of the $QIO function.)

SENSEMODE can return the following failure return codes:

  • SS$_NOPRIV—No privilege to complete the desired operation

  • SS$_ACCVIO—Part of the argument list or item list is not addressable

5.3.4.4.1 SENSEMODE Item Codes

Each item in the itemlist starts with a one-word (16-bit) item code that describes the type of information contained in the item. The item code is followed by a value associated with the item.

Item codes in which the bit named LAT$V_STRING is 0 take a longword value. The associated value is contained in the longword immediately following the item code in the itemlist. Item codes in which this bit is 1 take a counted string for their value. The byte immediately following the item code contains a byte count, which describes the length of the string that immediately follows it.

Table 5-16 lists the item codes that are returned for the LAT$C_ENT_NODE entity type. Item codes noted as LOCAL are returned only if the information being returned is for the local node. Item codes noted as REMOTE are returned only if the information being returned is for a remote node. Item codes noted as BOTH are returned for both types of nodes.

Table 5-16 LAT$C_ENT_NODE Item Codes

Item CodeMeaning

LAT$_ITM_NODE_NAME (BOTH, SUMMARY)

LAT node name for the node.

LAT$_ITM_IDENTIFICATION (BOTH, SUMMARY)

Node identification string.

LAT$_ITM_NODE_TYPE (BOTH, SUMMARY)

Type of node. Possible values are:



LAT$C_NT_LOCAL

Node is local node.



LAT$C_NT_REMOTE

Node is remote node.

LAT$_ITM_STATE (LOCAL,SUMMARY)Operating state of the LAT protocol. Possible values are:


LAT$C_ON

New connections are allowed and the LAT protocol is running.



LAT$C_OFF

New connections are not allowed. The LAT protocol is not running.



No new connections are allowed. Currently active connections are still maintained. The LAT protocol remains running only until the last active session is disconnected, at which time the node is placed in the OFF state.

LAT$_ITM_NODE_STATUS (REMOTE, SUMMARY)Current status of remote node. This item code is present only if a LAT virtual circuit does not currently exist between the local node and this remote node. Possible values are:


LAT$C_REACHABLE

Remote node is reachable.



LAT$C_UNREACHABLE

Remote node is unreachable.


LAT$C_UNKNOWN

Remote node status is unknown.

LAT$_ITM_CONNECTED_COUNT (REMOTE, SUMMARY)

Number of LAT sessions from the local node to this remote node. This item code replaces the LAT$_ITM_NODE_STATUS item code for remote nodes to which a LAT virtual circuit currently exists.

LAT$_ITM_SERVICE_GROUPS (BOTH)

A bit mask of LAT group codes that are serviced by the node.

LAT$_ITM_PROTOCOL_VERSION (BOTH)

LAT protocol version string.

LAT$_ITM_DATALINK_

ADDRESS (REMOTE)

LAN address used by the node.
LAT$_ITM_NODE_LIMIT

Maximum number of nodes in LAT database. The default is 0, where the maximum is determined by system resources.

LAT$_ITM_RETRANSMIT_

LIMIT

LAT retransmit limit. Possible values are 4 to 120 retransmissions. The default is 8 retransmissions.

LAT$_ITM_MAXIMUM_UNITS (LOCAL)

Maximum LTA unit number.

LAT$_ITM_SERVER_MODE (LOCAL)

Controls whether the node allows the use of the MASTER side of the LAT protocol for outbound connections. Possible values are:


LAT$C_DISABLED

Server mode disabled (this is the default).



LAT$C_ENABLED

Server mode enabled.

LAT$_ITM_SERVICE_RESPONDER (LOCAL)

Indicates whether the node is to respond to service inquiries originating from a remote system. These inquiries are not necessarily directed at services being offered by the node. See the HP OpenVMS System Management Utilities Reference Manual for more information on this feature. Possible values are:
 LAT$C_DISABLED

Service responder disabled (this is the default).

 LAT$C_ENABLED

Service responder enabled.

LAT$_ITM_OUTGOING_SES_LIMIT (LOCAL)

Maximum number of outgoing LAT sessions. A value of 0, which is the default, indicates that the limit is determined by system resources.

LAT$_ITM_INCOMING_SES_LIMIT (LOCAL)

Maximum number of interactive LAT sessions. A value of 0, which is the default, indicates that the limit is determined by system resources.

LAT$_ITM_USER_GROUPS (LOCAL)

Bit mask of LAT group codes to be used when attempting outbound connections using the MASTER side of the LAT protocol.

LAT$_ITM_CIRCUIT_TIMER (BOTH)

Circuit timer value in milliseconds. Possible values are 10 to 1000 milliseconds. The default is 80 milliseconds.

LAT$_ITM_CPU_RATING (LOCAL)

CPU rating.

LAT$_ITM_KEEPALIVE_TIMER (LOCAL)

Keepalive timer value in seconds. Possible values are 10 to 255 seconds. The default is 20 seconds.

LAT$_ITM_MULTICAST_TIMER (BOTH)

Multicast timer value in seconds. Possible values are 10 to 180 seconds. The default is 20 seconds.

LAT$_ITM_CONNECTIONS (BOTH)

Indicates whether inbound connections (interactive sessions) can be accepted. Possible values are:



LAT$C_DISABLED

Inbound connections disabled.



LAT$C_ENABLED

Inbound connections enabled (this is the default).

LAT$C_ITM_LARGE_BUFFERS

Indicates in Boolean logic whether the LAT software is using large packet support by default.

LAT$C_ITM_

ANNOUNCEMENTS

Indicates in Boolean logic whether the LAT software is transmitting LAT service advertisement messages.



Node service information is presented as a list of node service subblocks, with each subblock containing information about one particular service offered by the node. The subblock item code LAT$_ITM_NODE_SVC_BLOCK has the LAT$V_STRING bit set to 1, and the string length byte actually contains the length of the entire subblock. Each subblock itself is an itemlist and consists of the item codes listed in Table 5-17.

Table 5-17 Node Service Subblock Item Codes

Item Code

Meaning

LAT$_ITM_SERVICE_NAME (BOTH)

Name of a LAT service offered by the node.

LAT$_ITM_SERVICE_STATUS (BOTH)

Status of the service. Possible values are:



LAT$C_AVAILABLE

Service available.


LAT$C_UNAVAILABLE

Service unavailable.

LAT$_ITM_SERVICE_TYPE (LOCAL)

Type of service. Possible values are:



LAT$C_ST_GENERAL

Creates a general timesharing service.



LAT$C_ST_APPLICATION

Creates a special application service that must then be associated with ports dedicated to accepting connections to this service (dedicated ports).

LAT$_ITM_RATING (BOTH)

LAT service rating associated with the service.

LAT$_ITM_RATING_TYPE (LOCAL)

Type of LAT rating calculation being done by this node. Possible values are:



LAT$C_STATIC

Static rating calculation



LAT$C_DYNAMIC

Dynamic rating calculation

LAT$_ITM_IDENTIFICATION (BOTH)

Identification string associated with the service.



On Alpha and Integrity server systems, port counters information is presented as a counters subblock. The subblock item code LAT$_ITM_COUNTERS has the LAT$V_STRING bit set to 1, and the string length byte actually contains the length of the entire subblock. The subblock itself is an itemlist and consists of the item codes listed in Table 5-18.

Table 5-18 Node Counters Item Codes

Item CodesMeaning

LAT$_ITM_CTPRT_LCL

Indicates number of local accesses to port.

LAT$_ITM_CTPRT_SLCA

Indicates number of solicitations accepted.

LAT$_ITM_CTPRT_SLCR

Indicates number of solicitations rejected.

LAT$_ITM_CTPRT_ISOLA

Indicates number of incoming solicitations accepted.

LAT$_ITM_CTPRT_ISOLR

Indicates number of incoming solicitations rejected.

LAT$_ITM_CTPRT_FRAMERR

Indicates number of framing errors for named port. Returned in port counter subblock.

LAT$_ITM_CTPRT_PARERR

Indicates number of parity errors for named port. Returned in port counter subblock.

LAT$_ITM_CTPRT_OVERRUN

Indicates number of data overruns for named port. Returned in port counter subblock.

LAT$_ITM_PASSWORD_FAILURES

Indicates password failures.



Node counters information is presented as a counters subblock. The subblock item code LAT$_ITM_COUNTERS has the LAT$V_STRING bit set to 1, and the string length byte actually contains the length of the entire subblock. The subblock itself is an itemlist and consists of the item codes listed in Table 5-19.

Table 5-19 Node Counters Item Codes

Item CodesMeaning

LAT$_ITM_CTNOD_SSZ (BOTH)

Seconds since zeroed

LAT$_ITM_CTNOD_MSGR (BOTH)

Messages received

LAT$_ITM_CTNOD_MSGT (BOTH)

Messages transmitted

LAT$_ITM_CTNOD_SLTR (BOTH)

Slots received

LAT$_ITM_CTNOD_SLTT (BOTH)

Slots transmitted

LAT$_ITM_CTNOD_BYTR (BOTH)

Bytes received

LAT$_ITM_CTNOD_MNA (BOTH)

Multiple node addresses

LAT$_ITM_CTNOD_DUP (BOTH)

Duplicates received

LAT$_ITM_CTNOD_MRT (BOTH)

Messages retransmitted

LAT$_ITM_CTNOD_ILM (BOTH)

Illegal messages received

LAT$_ITM_CTNOD_ILS (BOTH)

Illegal slots received

LAT$_ITM_CTNOD_SLCA (BOTH)

Solicitations accepted

LAT$_ITM_CTNOD_SLCR (BOTH)

Solicitations rejected

LAT$_ITM_CTNOD_TER (LOCAL)

Transmit errors

LAT$_ITM_CTNOD_RES (LOCAL)

Resource errors

LAT$_ITM_CTNOD_NTB (LOCAL)

No transmit buffer

LAT$_ITM_CTNOD_TMO (LOCAL)

Virtual circuit timeout

LAT$_ITM_CTNOD_DOB (LOCAL)

Discarded output bytes

LAT$_ITM_CTNOD_LSTER (LOCAL)

Last transmit error

LAT$_ITM_CTNOD_MCBXMT (LOCAL)

Number of multicast bytes transmitted

LAT$_ITM_CTNOD_MCBRCV (LOCAL)

Number of multicast bytes received

LAT$_ITM_CTNOD_MCMXMT (LOCAL)

Number of multicast messages transmitted

LAT$_ITM_CTNOD_MCMRCV (LOCAL)

Number of multicast messages received

LAT$_ITM_CTNOD_SOLFAIL (LOCAL)

Number of solicitation failures

LAT$_ITM_CTNOD_ATLOS (LOCAL)

Number of times attention slot data was lost

LAT$_ITM_CTNOD_DATLOS (LOCAL)

Number of times user data was lost

LAT$_ITM_CTNOD_NOREJ (LOCAL)

Number of times a reject slot could not be sent

LAT$_ITM_CTNOD_LOSCT (LOCAL)

Number of times remote node counters were lost

LAT$_ITM_CTNOD_LOSSAM (LOCAL)

Number of service announcement messages lost

LAT$_ITM_CTNOD_NOSAM (LOCAL)

Number of times a service announcement message could not be sent

LAT$_ITM_CTNOD_NOSTS (LOCAL)

Number of times node status was lost

LAT$_ITM_CTNOD_NOXMT (LOCAL)

Number of times no link was available for a transmit

LAT$_ITM_CTNOD_CTLERR (LOCAL)

Number of controller errors

LAT$_ITM_CTNOD_CERRCOD (LOCAL)

Lost controller error

LAT$_ITM_CTNOD_ISOLA (LOCAL)

Number of incoming solicitations accepted

LAT$_ITM_CTNOD_ISOLR (LOCAL)

Number of incoming solicitations rejected

LAT$_ITM_CTNOD_PROTO (LOCAL)

Protocol error count

LAT$_ITM_CTNOD_XSTR (REMOTE)[1]

Indicates that the node attempted to start up too many LAT sessions for a specific virtual circuit

[1] Alpha and Integrity servers specific.



Several protocol errors are also included in a separate subblock. The protocol errors item code is LAT$_ITM_PROTOCOL_ERRORS and has LAT$V_STRING set (the size of the subblock is contained in the first byte following the item code). The item codes and the events they represent are listed in Table 5-20.

Table 5-20 Protocol Error Item Codes

Item Codes Meaning

LAT$_ITM_CTPRO_IVM (LOCAL)

Invalid message type received.

LAT$_ITM_CTPRO_ISM (LOCAL)

Invalid start message received.

LAT$_ITM_CTPRO_IVS (LOCAL)

Invalid sequence number received.

LAT$_ITM_CTPRO_NIZ (LOCAL)

Zero-node index received.

LAT$_ITM_CTPRO_ICI (LOCAL)

Node circuit index out of range.

LAT$_ITM_CTPRO_CSI (LOCAL)

Node circuit sequence invalid.

LAT$_ITM_CTPRO_NLV (LOCAL)

Node circuit index no longer valid.

LAT$_ITM_CTPRO_HALT (LOCAL)

Circuit was forced to halt.

LAT$_ITM_CTPRO_MIZ (LOCAL)

Invalid master slot index.

LAT$_ITM_CTPRO_SIZ (LOCAL)

Invalid slave slot index.

LAT$_ITM_CTPRO_CRED (LOCAL)

Invalid credit field.

LAT$_ITM_CTPRO_RCSM (LOCAL)

Repeat creation of slot by master.

LAT$_ITM_CTPRO_RDSM (LOCAL)

Repeat disconnection of slot by master.

LAT$_ITM_CTPRO_INVCLASS (LOCAL)

Indicates the number of times a LAT message was received with an invalid service class specified in that message (local node only).

LAT$_ITM_CTPRO_EXCSTART (LOCAL)[1]

Indicates that a remote node attempted to start up too many LAT sessions. When a virtual circuit is started between two LAT nodes, the maximum number of sessions on that virtual circuit is negotiated. If the master node attempts to create more sessions than the maximum number of sessions on a virtual circuit, then the operating system rejects the excess connections and increments this counter.

[1] Alpha and Integrity servers specific.



Table 5-21 lists the item codes that are returned for the LAT$C_ENT_SERVICE entity type. As in Table 5-16, item codes noted as LOCAL are returned only if the information being returned is for a locally offered service. Item codes noted as REMOTE are returned only if the information being returned is for a service offered by a remote node. Item codes noted as BOTH are returned for both types of services.

Table 5-21 LAT$C_ENT_SERVICE Item Codes

Item CodeMeaning

LAT$_ITM_SERVICE_NAME (BOTH, SUMMARY)

Service name.


LAT$_ITM_SERVICE_STATUS (BOTH, SUMMARY)

Status of the specified service. Possible values are:

 LAT$C_AVAILABLEService available.
 LAT$C_UNAVAILABLEService unavailable.

LAT$_ITM_SERVICE_TYPE (LOCAL,SUMMARY)

Type of service. Possible values are:


 LAT$C_ST_GENERALGeneral timesharing service.
 LAT$C_ST_APPLICATIONSpecial application service associated with ports dedicated to accepting connections to this service.

LAT$_ITM_IDENTIFICATION (BOTH, SUMMARY)

Service identification string, as advertised by the highest rated node that currently offers the service.



Service node information is presented as a list of service node subblocks, with each subblock containing information about one particular node that offers the service. The subblock item code LAT$_ITM_SVC_NODE_BLOCK has the LAT$V_STRING bit set to 1, and the string length byte actually contains the length of the entire subblock. Each subblock itself is an itemlist and consists of the item codes listed in Table 5-22.

Table 5-22 Service Node Subblock Item Codes

Item CodeMeaning
LAT$C_ITM_NODE_NAME (BOTH)Name of a LAT node that offers the selected service.
LAT$_ITM_STATE (LOCAL)Current state of the LAT protocol on the local node. Possible values are:
 LAT$C_ONNew connections are allowed, and the LAT protocol is running.
 LAT$C_OFFNew connections are not allowed, and any current connections are abnormally terminated. The LAT protocol is not running.
 LAT$C_SHUTNo new connections are allowed. Currently active connections are still maintained. The LAT protocol remains running only until the last active sessions is disconnected, at which time the node is placed in the OFF state.

LAT$_ITM_NODE_STATUS (REMOTE)

Current status of the remote node. This item code is present only if a LAT virtual circuit does not currently exist to the remote node. Possible values are:


LAT$C_REACHABLE

Remote node is reachable.



LAT$C_UNREACHABLE

Remote node is unreachable.



LAT$C_UNKNOWN

Remote node status is unknown.

LAT$_ITM_CONNECTED_COUNT (REMOTE)

Number of LAT sessions from the local node to this remote node. This item code replaces the LAT$_ITM_NODE_STATUS item code for remote nodes to which a LAT virtual circuit currently exists.

LAT$_ITM_RATING (BOTH)

LAT service rating associated with the service.

LAT$_ITM_RATING_TYPE (LOCAL)

Type of LAT rating calculation being done by this node. Possible values are LAT$C_STATIC and LAT$C_DYNAMIC.

LAT$_ITM_IDENTIFICATION (BOTH)

Identification string associated with the service.



Service counters information is presented as a counters subblock. The subblock item code LAT$_ITM_COUNTERS has the LAT$V_STRING bit set, and the string length byte actually contains the length of the entire subblock. Each subblock itself is an itemlist and consists of the item codes listed in Table 5-23.

Table 5-23 Service Counters Subblock Item Codes

Item CodesMeaning

LAT$_ITM_CTSRV_SSZ (BOTH)

Seconds since zeroed.

LAT$_ITM_CTSRV_MCNA (BOTH)

Outgoing connections attempted (the number of times the local node has attempted to connect to the service offered on a remote node).

Outgoing connections completed (the number of times the local node successfully connected to the service offered on a remote node).

LAT$_ITM_CTSRV_MCNC (BOTH)

LAT$_ITM_CTSRV_SCNA (BOTH)

Incoming connections accepted (the number of times the local node has accepted a connection request from a remote node to the locally offered service).

LAT$_ITM_CTSRV_SCNR (BOTH)

Incoming connections rejected (the number of times the local node rejected a connection request from a remote node to the locally offered service).

LAT$_ITM_DED_PORT_BLOCK (LOCAL)

If the selected service is an application service offered by the local node, a list of one or more port subblocks is included in the itemlist. These subblocks describe the dedicated port or ports associated with this application service, with each subblock describing one particular port. The subblock item code LAT$_ITM_DED_PORT_BLOCK has the LAT$V_STRING bit set, and the string length byte actually contains the length of the entire subblock. Each subblock itself is an itemlist and currently consists only of the following item code:



LAT$_ITM_PORT_NAME (LOCAL)

Name of the dedicated port.

LAT$_ITM_PASSWORD_

FAILURE

Indicates password failures.



Table 5-24 lists the item codes that are returned for the LAT$C_ENT_LINK entity type.

Table 5-24 LAT$C_ENT_LINK Item Codes

Item CodesMeaning

LAT$_ITM_LINK_NAME (SUMMARY)

Link name (such as LAT$LINK).

LAT$_ITM_STATE (SUMMARY)

State of the link. Possible values are:



LAT$C_ON

New connections are allowed, and the LAT protocol is running.
 LAT$C_OFFNew connections are not allowed, and any current connections are abnormally terminated. The LAT protocol is not running.
 LAT$C_SHUTNo new connections are allowed. Currently active connections are still maintained. The LAT protocol remains running only until the last active session is disconnected, at which time the node is placed in the OFF state.

LAT$_ITM_DEVICE_NAME (SUMMARY)

The name of the LAN device used for the link.

LAT$_ITM_DATALINK_ADDRESS

The LAN device's current physical address for the link.

LAT$_ITM_DECNET_ADDRESS

Indicates whether the link attempts to use the default DECnet LAN address when starting the data link controller (enabling the LAT protocol). Possible values are:



LAT$C_DISABLED

DECnet LAN address use disabled.
 LAT$C_ENABLEDDECnet LAN address use enabled (this is the default.



Link counters information is presented as a counters subblock. The subblock item code LAT$_ITM_COUNTERS has the LAT$V_STRING bit set, and the string length byte actually contains the length of the entire subblock. Because the link counters are independent of the protocol type, they include not only LAT messages and events, but also all other protocol messages and events (that is, DECnet) associated with the same LAN device. The counters are actually maintained by the LAN device driver and are identified within the subblock by the nonprotocol-specific item codes listed in Table 5-25.

Table 5-25 Link Counters Item Codes

Item CodesMeaning

NMA$C_CTLIN_ZER

Seconds since zeroed

NMA$C_CTLIN_DBR

Messages received

NMA$C_CTLIN_DBS

Messages transmitted

NMA$C_CTLIN_MBL

Multicast messages received

NMA$C_CTLIN_MBS

Multicast messages transmitted

NMA$C_CTLIN_BRC

Bytes received

NMA$C_CTLIN_BSN

Bytes transmitted

NMA$C_CTLIN_MBY

Multicast bytes received

NMA$C_CTLIN_MSN

Multicast bytes transmitted

NMA$C_CTLIN_RFL

Receive errors

NMA$C_CTLIN_SFL

Transmit errors

NMA$C_CTLIN_OVR

Data overrun

NMA$C_CTLIN_UBU

User buffer unavailable

NMA$C_CTLIN_SBU

System buffer unavailable

NMA$C_CTLIN_LBE

Local buffer errors

NMA$C_CTLIN_BS1

Messages sent, single collisions

NMA$C_CTLIN_BSM

Messages sent, multiple collisions

NMA$C_CTLIN_BID

Messages sent, initially deferred

NMA$C_CTLIN_CDC

Transmit collision detection check failure



Table 5-26 lists additional link counter item codes of the LINK entity.

Table 5-26 Additional Link Counters Item Codes

Item Codes Meaning

LAT$_ITM_CTLAT_RMSG

Count of LAT messages received through link

LAT$_ITM_CTLAT_RBYT

Count of bytes for LAT received through link

LAT$_ITM_CTLAT_XMSG

Count of LAT messages transmitted through link

LAT$_ITM_CTLAT_XBYT

Count of bytes for LAT transmitted through link

LAT$_ITM_CTLAT_MUL_RMSG

Count of LAT multicast messages received through link

LAT$_ITM_CTLAT_MUL_RBYT

Count of multicast bytes for LAT received through link

LAT$_ITM_CTLAT_MUL_XMSG

Count of LAT multicast messages transmitted through link

LAT$_ITM_CTLAT_MUL_XBYT

Count of multicast bytes for LAT transmitted through link

LAT$_ITM_LAT_DEV_CTR_BLOCK

This block contains the LAT-specific counters for the specified link. Counters returned in this block are the ones defined above (with CTLAT in their name). These counters are LAT-specific for the link (device). They do not include counts from other protocols using the same adapter.



The counter item codes listed in Table 5-26 are used by LATCP in the display generated by the command:

$SHOW LINK /COUNTER

The display looks similar to the following:

Link Name:    LAT$LINK
Device Name:  _XQA1:

Seconds Since Zeroed:              65535
Messages Received:               7080630   Messages Sent:               2135394
LAT Messages Received:           1484817   LAT Messages Sent:           2086167
Multicast Msgs Received:         5578139   Multicast Msgs Sent:           10775
LAT Multicast Msgs Received:     5093417   LAT Multicast Msgs Sent:        9142
Bytes Received:                678189475   Bytes Sent:               1312778402
LAT Bytes Received:            107809441   LAT Bytes Sent:           1278118808
Multicast Bytes Received:      602984574   Multicast Bytes Sent:        1696264
LAT Multicast Bytes Received:  565264261   LAT Multicast Bytes Sent:    1448342
System Buffer Unavailable:       1638401   User Buffer Unavailable:           1
Unrecognized Destination:          65537   Data Overrun:                      1
Receive Errors:                        7   Transmit Errors:                   1

Receive Errors (bitmask = 001) -          Transmit Errors (bitmask = 001) -
   Block Check Error:               Yes       Excessive Collisions:        Yes
   Framing Error:                   No        Carrier Check Failure:       No
   Frame Too Long:                  No        Short Circuit:               No
   Frame Status Error:              No        Open Circuit:                No
   Frame Length Error:              No        Frame Too Long:              No
                                              Remote Failure To Defer:     No
                                              Transmit Underrun:           No
                                              Transmit Failure:            No

CSMACD Specific Counters
————————

Transmit CDC Failure:                1

Messages Transmitted -
   Single Collision:              5208
   Multiple Collisions:           4732
   Initially Deferred:               0

Table 5-27 lists the item codes that are returned for the LAT$C_ENT_PORT entity type.

Table 5-27 LAT$C_ENT_PORT Item Codes

Item Code

Meaning

LAT$_ITM_PORT_NAME_SUMMARY

Name of the port (such as _LTA15:).

LAT$_ITM_PORT_TYPE_SUMMARY

Type of port.



Possible values are:




LAT$_PT_FORWARD

Forward port used for outgoing LAT connections or for management functions.



LAT$_PT_INTERACTIVE

Interactive port created as the result of an incoming LAT connection request.



LAT$_PT_APPLICATION

Application port for solicited connections.



LAT$_PT_DEDICATED

Dedicated port associated with a local service.

LAT$_ITM_QUEUED

Controls whether the solicited connection requests queued or nonqueued access.



Possible values are:




LAT$C_DISABLED

Queued access disabled.



LAT$C_ENABLED

Queued access enabled (this is the default).

LAT$_ITM_SERVICE_CLASS

Indicates the class driver with which the device is communicating. This item code can be used only with an entity status of LAT$C_ENTS_NEW. Therefore, the service class must be specified when the device is created. An attempt to change the service class of an existing device returns SS$_BADPARAM.



Possible values are:




LAT$C_SERVCLASS_INTERACTIVE

Service class 1, TTDRIVER (this is the default).



LAT$C_SERVCLASS_TESTSERVICE

Service class 2, TEST SERVICE.



LAT$C_SERVCLASS_XTRANSPORT

Service class 3, X Protocol.



LAT$C_SERVCLASS_FONT

Service class 4, X fonts.

LAT$_ITM_DISPLAY_NUMBER

Display number value for the device. This field has meaning for services classes 3 and 4 (X) only. It returns a value of 0 for all other service classes.

LAT$_ITM_DISCONNECT_REASON

Reason (if any) for the last disconnect on the port. If it is not a 0--19 LAT rejection code, it is a LAT message code. The 0--19 LAT rejection code meanings are listed in Table 5-31.

LAT$C_PT_STATE_DISCONNECTING[1]

Name of service to which this port is connected. For forward and application ports, this is the name of the remote service to which the port is connected (if any). For interactive and dedicated ports, this is the name of the local service that accepted the remote-initiated connection.

LAT$_ITM_CONNECTED_NODE_NAME[1]

Name of remote node to which this port is connected.

LAT$_ITM_CONNECTED_PORT_NAME[1]

Name of remote port to which this port is connected.

LAT$_ITM_CONNECTED_LINK_NAME[1]

Name of the link on which the LAT connection exists.

LAT$_ITM_TARGET_SERVICE_NAME[2]

Target service name for connection of forward or application ports. For dedicated ports, this item code specifies the local service with which the port is associated.

LAT$_ITM_TARGET_NODE_NAME[2]

Target node name for connection of forward or application ports.

LAT$_ITM_TARGET_PORT_NAME[2]

Target port name for connection of forward or application ports.

LAT$_ITM_NODE_QUEUE_POSITION[3]

Indicates current node queue position for connect request. Returned during SENSEMODE of port entity.

LAT$_ITM_SERVICE_QUEUE_POSITION[3]

Indicates current service queue position for connect request. Returned during SENSEMODE of port entity.

LAT$_ITM_PORT_STATE

Current port state.



Possible values are:




LAT$C_PT_STATE_INACTIVE

Port is inactive.


LAT$C_PT_STATE_CONNECTING

Port connection in progress but not complete.



LAT$C_PT_STATE_ACTIVE

Port has active LAT connection.



LAT$C_PT_STATE_DISCONNECTING

Port LAT connection in process of terminating.

[1] Returned only when the LTA port has an active LAT connection.

[2] Shows information about how the port is set up. May be returned even if there is no current LAT connection.

[3] Alpha and Integrity servers specific.



On Alpha and Integrity server systems, the item codes for queue entries are listed in Table 5-28.

Table 5-28 LAT SENSEMODE Queue Entries

Item CodeMeaning

LAT$_ITM_QUEUED_ENTRY_ID (SUMMARY)

Indicates by string the queue entry ID name.

LAT$_ITM_NODE_QUEUE_POSITION (SUMMARY)

Indicates the current position of entry in node wide queue.

LAT$_ITM_SERVICE_QUEUE_POSITION (SUMMARY)

Indicates the current position of entry in service wide queue.
LAT$_ITM_NODE_NAME (SUMMARY)Indicates where the remote node name queue entry came from.
LAT$_ITM_SERVICE_NAME (SUMMARY)Indicates the target service name to which the queue entry is queued (if specified).
LAT$_ITM_PORT_NAME (SUMMARY)Indicates the target port name to which the entry is queued (if specified).
LAT$_ITM_LINK_NAMEReturns the link name on which the queued request is active.
LAT$_ITM_DATALINK_ADDRESSReturns the remote node that issued the request’s data link address.



5.3.4.5 Programming Application Ports

An application port is used to connect to a remote device (typically a printer) on a terminal server or to a dedicated port on another LAT service node. The LAT port driver can only connect to a remote device if the device is currently not in use. Table 5-29 lists the conditions that can occur when an application program issues an IO$M_LT_CONNECT request for a connection to a remote device. After a request is queued on the terminal server (or dedicated port on another LAT service node), the QIO request is not completed until the connection is established, rejected, or times out.

Table 5-29 IO$M_LT_CONNECT Request Status

Event IOSB StatusExplanation

Connection established

SS$_NORMAL

The connection is successful, and the port is ready for use.

Connection timeout

SS$_TIMEOUT

The connection did not complete because communication was never established with the remote end. IOSB+2 contains LAT$_CONTIMEOUT.

Connection rejected

SS$_ABORT. IOSB+2 contains LAT rejection code or LAT facility message code.

The connection cannot be made. The LAT port driver updates the I/O status block. The LAT rejection codes (0--19) are listed in Table 5-31.

Connection request

SS$_ILLIOFUNC

The QIO request is not to an application, dedicated, or forward port. The LAT port driver rejects the request immediately.

Connection already established on port

SS$_DEVACTIVE

The QIO request is for a port already in use. The LAT port driver rejects the request immediately.

Incorrectly configured LAT port

SS$_DEVREQERR

The LAT port is incorrectly configured. This may mean that the port type was neither forward nor application nor dedicated, because a forward port had no service name mapped or because an application port had no node name mapped.

Insufficient resources

SS$_INS FMEM

The QIO request failed because the LAT port driver could not get system memory to complete the connection.



Before the application port can be used, it must be mapped to a remote node name, and either the port name or the service name of the remote terminal server port. (These names must be defined locally on the terminal server.) The application port is mapped with the IO$M_LT_SETMODE modifier, specifying the following items in the P1 itemlist parameter:

  • LAT$_ITM_TARGET_NODE_NAME—The node name. The node name is the name of the terminal server where the application device is located.

  • LAT$_ITM_TARGET_PORT_NAME—The port name.

  • LAT$_ITM_TARGET_SERVICE_NAME—The service name.

The queued status of the connection can also be mapped to the port by specifying the LAT$_ITM_QUEUED item in the P1 itemlist parameter. Valid values for this item are:

  • LAT$C_ENABLED—Port has queued status. This is the default.

  • LAT$C_DISABLED—The port does not have queued status.

5.3.4.6 Programming Application Services and Dedicated Ports

Rather than the normal timesharing service offered by the operating system, application programs can make use of LAT application services that allow terminal server users (or users on systems with outgoing connections) to connect to a specialized application. To do this, the system manager must create LAT ports that are dedicated to a particular application service. (Alternatively, this LAT port creation can be done from a program using the QIOs discussed in previous sections, providing OPER privilege.) When the remote user makes the connection to the application service, the connection is directly to the application program that controls a LAT port (LTA device) associated with the service. In this case the prompt, Username:, is not received. HP recommends that you follow these steps to create an application service:

  1. Define the dedicated ports in LAT$SYSTARTUP.COM and execute the command procedure in SYSTARTUP_VMS.COM. (For additional information, see the HP OpenVMS System Management Utilities Reference Manual and the HP OpenVMS System Manager's Manual.)

  2. Run the application program. Within the application program, allocate dedicated ports with the same name as those defined in LAT$SYSTARTUP.COM. Use the Assign I/O Channel ($ASSIGN) system service to assign service channels to the ports.

  3. Post a read request to the dedicated ports. When the terminal user connects to the service and presses the Return key, the application program can perform I/O to the dedicated port.

  4. To break the connection, use the Deassign I/O Channel ($DASSGN) system service to deassign the channel and the Deallocate Device ($DALLOC) system service to deallocate the device. The application program must reallocate the port and reassign the channel in preparation for the next connection.

An example of the application service concept is a program that provides the time of day. For this example, the system manager includes the following lines in LAT$SYSTARTUP.COM (or enters them manually in the LATCP program):

CREATE SERVICE TIME/ID="At the tone, the time will be"/APPLICATION
CREATE PORT LTA99:/DEDICATED
SET PORT LTA99:/SERVICE=TIME

An application program then assigns a channel to device LTA99. When a terminal server user types CONNECT TIME, the user is connected to this application program, and the program prints out the time of day. The program then deassigns the channel, which disconnects the server user.

A system manager may associate more than one LAT port with the same service. In that case, the application program that offers the service should assign channels to all of the LTA devices created for that service.

5.3.4.7 Programming Forward Ports

An outbound LAT connection to a remote service node can be made using a forward port. The LAT port driver can connect to a remote service node only if outgoing connections are enabled on the local node. Outgoing connections can be enabled with LATCP or with a LAT SETMODE QIO to the local node. In addition, user group codes on the local node must match the service group codes of the service to which they are being connected. LATCP can list the services to which the local node can connect. (For additional information, see the HP OpenVMS System Management Utilities Reference Manual.) Before the forward port can be used to make an outbound LAT connection, it must be mapped to a service and optionally, a node and port. The forward port is mapped with the IO$M_LT_SETMODE modifier, specifying the following items in the P1 item list parameter:

  • LAT$_ITM_TARGET_SERVICE_NAME—The service name. The service name is the name of the service to which to connect.

  • LAT$_ITM_TARGET_NODE_NAME—The node name. The node name is the name of a specific service node offering the service.

  • LAT$_ITM_TARGET_PORT_NAME—The port name. The port name is the name of a specific port on the target node. The LAT$_ITM_TARGET_NODE_NAME item must be supplied when supplying this item.

  • LAT$_ITM_SERVICE_PASSWORD—The password. The password is required for access to a password-protected service.

A LAT SETMODE QIO on a forward port does not require OPER privilege if the port name is not specified in the P4 parameter. In other words, the LAT SETMODE QIO must be to the port corresponding to the CHAN parameter (the forward port attained by assigning a channel to _LTA0:). Note that SS$_NOPRIV is returned if you attempt to change the port type by specifying the LAT$_ITM_PORT_TYPE item code in the P1 itemlist parameter. If the P4 parameter is specified, the LAT port driver also returns SS$_NOPRIV.

Table 5-29 lists the conditions that can occur when an application program issues an IO$M_LT_CONNECT request for a connection to a remote service node. The QIO request is completed when a session is established with the service node. Once the connection completes, data can be read and written to the port with the QIO read and write functions.

5.3.4.8 Queue Change Notification

On Alpha and Integrity server systems, the IO$M_LT_QUE_CHG_NOTIF function modifier for $QIO allows a process to enable an attention asynchronous system trap (AST), which is used with the LAT $QIO connect request. The IO$M_LT_QUE_CHG_NOTIF function is available only for APPLICATION and FORWARD LAT devices.

If a $QIO connect request has been issued to a remote node and that request has been queued, this attention AST is set each time the queue position changes. This AST can be used as long as the $QIO connect request is queued. Like a Ctrl/Y AST, it is set only once; it must be reenabled after each completion.

If the LAT $QIO connect succeeds or if a LAT connection exists for the intended service, the AST completes with the SS$_DEVACTIVE status code.

If the LAT device does not have the queued characteristic, issuing the IO$M_LT_QUE_CHG_NOTIF function results in the return of SS$_DEVREQERR status code.

The implementation of IO$M_LT_QUE_CHG_NOTIF is shown in the following C example:


status - sys$qiow  (
                0,                 /* efn                */
                ltchannel,         /* channel            */
                IO$_TTY_PORT|IO$M_LT_QUE_CHG_NOTIF,
                                   /* function           */
                q_iosb,            /* iosb               */
                0,                 /* astadr             */
                0,                 /* astprm             */
                queue_pos_change,  /* P1 = ast routine   */
                0, 0, 0, 0, 0);    /* P2 through P6 not used */

When a queue position change occurs, the AST routine is called with a 32-bit value. If this value is 0, then the LAT connect $QIO is about to complete, if it has not already. If the value is not 0, the lower word of 16 bits indicates the service queue position, and the upper word of 16 bits indicates the node queue position.

5.3.4.9 Hangup Notification

To allow notification by the terminal driver of abnormal termination during I/O operations, enable a Ctrl/Y AST on the channel. This ensures that the terminal driver notifies application programs of an abnormal connection termination. Note that the operating system does not return an AST parameter to the Ctrl/Y AST routine.

When an application with a pending read or write request has an abnormal LAT connection completion, the terminal driver returns a SS$_HANGUP status in the first word of the IOSB. The reason for the abnormal LAT connection completion can be attained with a LAT SENSEMODE QIO request to the port. Search the resulting P1 itemlist for the value corresponding to the LAT$_ITM_DISCONNECT_REASON item code. The value is either a LAT reject code or a LAT facility message. The LAT$V_SENSE_FULL bit must be set in the P3 parameter in order to receive this information.

If IOSB indicates an abnormal completion (SS$_ABORT, see Table 5-29) on a IO$M_LT_CONNECT modifier QIO, the LAT port driver returns the reason for the abnormal completion in IOSB+2. The reason can also be attained with the LAT SENSEMODE QIO function.

5.3.4.10 Sense Mode and Sense Characteristics

The sense mode and sense characteristics functions sense the characteristics of the terminal and return them to the caller in the I/O status block. The following function codes are provided:

  • IO$_SENSEMODE

  • IO$_SENSECHAR

IO$_SENSEMODE returns the temporary characteristics of the terminal (the characteristics associated with the current process), and IO$_SENSECHAR returns the permanent characteristics of the terminal. IO$_SENSEMODE is a logical I/O function and requires no privilege. IO$_SENSECHAR is a physical I/O function and requires the privilege necessary to perform physical I/O.

These function codes take the following device- or function-dependent arguments:

  • P1—Address of a characteristics buffer

  • P2—Length of characteristics buffer (default length is 8 bytes)

    For remote terminals, specify a P2 value of 8 or 12 only.

The P1 argument points to a variable-length block, as shown in Figure 5-11.

Figure 5-11 Sense Mode Characteristics Buffer

Sense Mode Characteristics Buffer

In the buffer, the device class is DC$_TERM, which is defined by the $DCDEF macro. The terminal type is defined by the $TTDEF macro, such as TT$_LA36. The maximum entry for the buffer size (page width) is 255. Table 5-4 lists the values for terminal characteristics. Table 5-5 lists the extended terminal characteristics. Characteristics values are defined by the $TTDEF macro.

The sense mode and sense characteristics functions can take the type-ahead count, read modem, and broadcast function modifiers described in the following sections.

5.3.4.10.1 Type-ahead Count Function Modifier

The type-ahead count function modifier returns the count of characters presently in the type-ahead buffer and a copy of the first character in the buffer. In this case, the P1 argument points to a characteristics buffer returned by IO$M_TYPEAHDCNT. Figure 5-12 shows the format of this buffer.

Figure 5-12 Sense Mode Characteristics Buffer (type-ahead)

Sense Mode Characteristics Buffer (type-ahead)
5.3.4.10.2 Read Modem Function Modifier

The read modem function modifier allows access to controller-dependent information. The following combinations of function code and modifier are provided:

  • IO$_SENSEMODE!IO$M_RD_MODEM

  • IO$_SENSECHAR!IO$M_RD_MODEM

These function code modifier pairs take the following device- or function-dependent argument:

  • P1—The address of a quadword block

Figure 5-13 shows the format of this block.

Figure 5-13 Sense Mode P1 Block

Sense Mode P1 Block

The receive modem field returns the value of the current input modem signals. Any or all of the following signals can be returned:

  • TT$M_DS_DSR—Data set ready (DSR)

  • TT$M_DS_RING—Calling indicator (RING)

  • TT$M_DS_CARRIER—Data channel received line signal detector (CARRIER)

  • TT$M_DS_CTS—Ready for sending (CTS)

  • TT$M_DS_SECREC—Received backward channel data (Sec RxD)

The $TTDEF macro defines the symbols for the receive modem field.

The controller type field returns the type of terminal controller in use by the currently active terminal line. The $DCDEF macro defines the symbols for the following types of controllers:

  • DT$_DZ11—DZ11 and DZV11

  • DT$_DZ32—DZ32

  • DT$_DMF32—DMF32

  • DT$_DMB32—DMB32

  • DT$_DMZ32—DMZ32

  • DT$_DHV—DHV11

  • DT$_DHU—DHU11

  • DT$_LAT—LAT server

NOTE: For LAT devices, the receive modem field of the IO$M_RD_MODEM function modifier does not return any valid modem signal data.

The IO$M_RD_MODEM function modifier is not supported for remote terminals. The status SS$_DEVREQERR is returned in the I/O status block.

5.3.4.10.3 Broadcast Function Modifier

The broadcast function modifier returns those bits that have been set by the set mode function modifier IO$M_BRDCST (see Table 5-11 in “Broadcast Function Modifier”). The following combination of function code and modifier is provided:

  • IO$_SENSEMODE!IO$M_BRDCST

This function code modifier pair takes the following device- or function-dependent arguments:

  • P1—A buffer that contains the bits that specify the requester IDs to be broadcast. (If the bit is set in the first longword, that particular command is turned off for broadcast.)

  • P2—The length of the P1 buffer.
