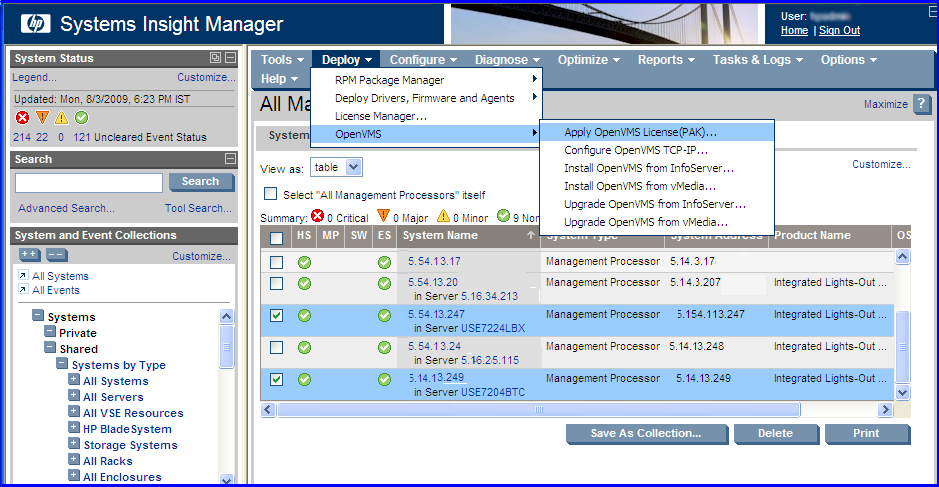

At least one system in the LAN must be designated as the InfoServer server. This is the system that hosts the DVD drive from which network booting is performed. To deploy OpenVMS Version 8.4, the InfoServer server must be running OpenVMS Integrity Version 8.4 or later. Perform these basic steps to set up InfoServer:

1. Copy the SYS$STARTUP:ESS$LAD_STARTUP.TEMPLATE file to the SYS$STARTUP:ESS$LAD_STARTUP.DAT file. If any changes are necessary for your environment (typically none are required), modify the SYS$STARTUP:ESS$LAD_STARTUP.DAT file.

2. Copy the SYS$STARTUP:ESS$LAST_STARTUP.TEMPLATE file to the SYS$STARTUP:ESS$LAST_STARTUP.DAT file. Modify the SYS$STARTUP:ESS$LAST_STARTUP.DAT file as follows, along with any other changes necessary for your environment:

   1. Remove the comment (!) character from the line that has the following text: DEVICE = (). Within the parentheses, specify the device name. For example: DEVICE = (EIA).

   2. Comment out the line that specifies ALL_CONTROLLERS = ON (comment out a line by inserting an exclamation point (!) at the beginning of the line).

3. Optionally, add the following two lines to the SYS$MANAGER:SYSTARTUP_VMS.COM system startup file:

   @SYS$STARTUP:ESS$LAD_STARTUP.COM
   @SYS$STARTUP:LD$STARTUP

   	NOTE: Invoke these commands manually to start these services immediately rather than initiating a reboot.

Set up the BOOTP server and TFTP server on the InfoServer server:

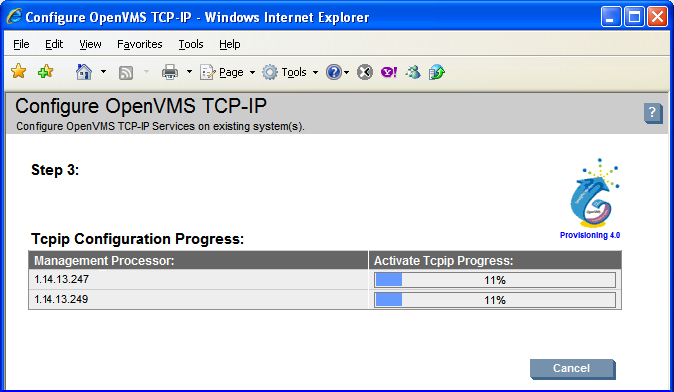

1. Make sure TCP/IP Services for OpenVMS is installed and that:

   • At least one IP interface is defined.

   • The BOOTP server and TFTP server are configured and started.

   • Optionally, make sure TELNET and FTP are configured and started.

   To display IP interface information, use the TCPIP SHOW INTERFACE command.

   	NOTE: If you are currently using the DHCP service, you must disable it. The BOOTP service must be enabled instead. For information about disabling or enabling services, see the HP TCP/IP Services for OpenVMS Management manual.

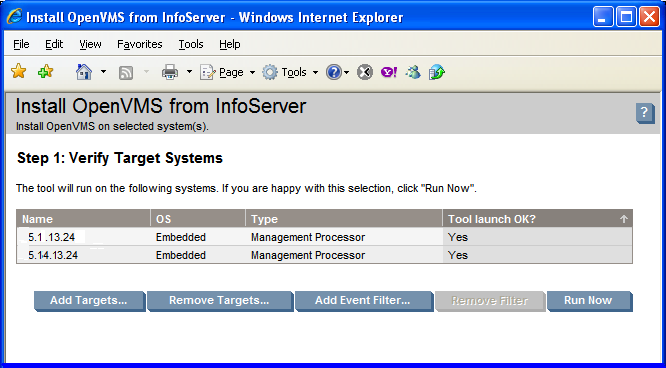

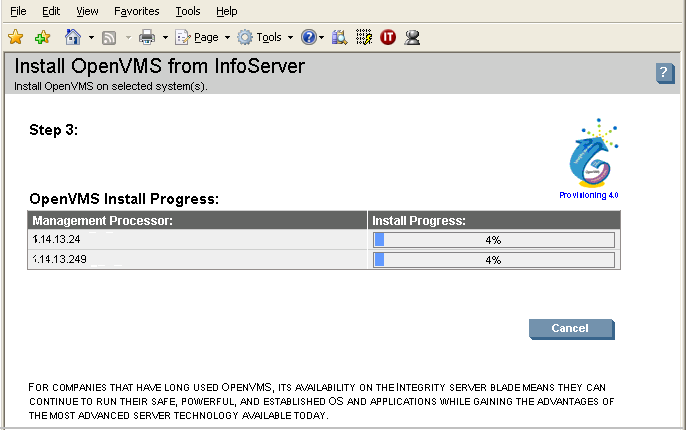

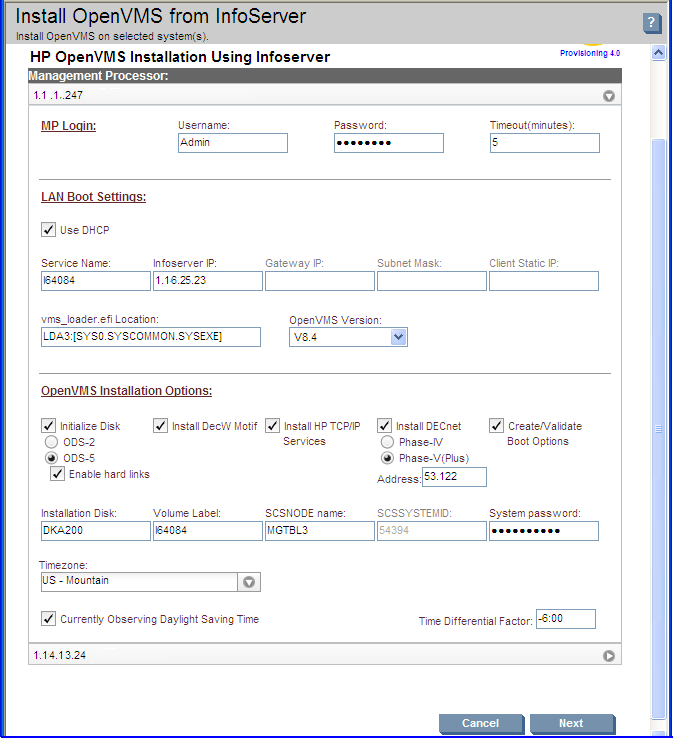

   	IMPORTANT: When you install or upgrade to OpenVMS Integrity servers Version 8.4 or later from an InfoServer through Provisioning, OpenVMS is booted on the target server through a memory disk. So, you need not complete steps b and c for OpenVMS Integrity servers Version 8.4 systems. Complete steps b and c only for OpenVMS systems of version 8.3-1H1 and lower.

2. Set up a location for the OpenVMS Integrity servers boot files by creating the directory accessible by TFTP, as in the following example. HP recommends that you create a separate boot file directory for each version of the operating system.

   $ CREATE/DIRECTORY TCPIP$TFTP_ROOT:[V831H1]

   	IMPORTANT: For each subsequent upgrade of OpenVMS, you must create a separate directory for the boot files specific to the OpenVMS version and, where appropriate, modify the path specified for each client’s boot files. To make subsequent upgrades easier, you can use systemwide or clusterwide logical names.

3. Copy the following two files from the DVD to the TCPIP$TFTP_ROOT:[V831H1] directory:

   • [SYS0.SYSCOMMON.SYSEXE]VMS_LOADER.EFI

   • [SYS0.SYSCOMMON.SYSEXE]IPB.EXE

4. Gather data for each boot client (each node that is going to be provisioned, hereafter referred to as a provisioning/boot client), including the IP address of the network device (the Integrity server core I/O card).

5. Define each provisioning/boot client’s host name in the TCP/IP Services for OpenVMS local host database using the TCPIP SET HOST command.

   In the following example, hostname is the host name of the provisioning/boot client and ipaddress is its IP address:

   $ TCPIP SET HOST hostname /ADDRESS=ipaddress

6. For each provisioning/boot client, you might need to add an entry in the BOOTP database to specify a gateway and network mask.

   To do so, use the SET BOOTP command in the following format, where hostname specified the host name of the boot client, MACAddress specifies the MAC address of the network port of the boot client used for LAN booting, gateways-ip specifies the gateways used for routing, ip-network-mask specifies the subnet mask, and diskname specifies either the DVD or LD device containing the OpenVMS OS image

   To determine the names of the gateways and the subnet information, consult your network administrator. For more information on this command, see the TCP/IP Services for OpenVMS documentation.

   For V8.3-1H1 or lower:

   $ TCPIP SET BOOTP hostname /HARDWARE=ADDRESS=MACAddress –
   /GATEWAYS=gateways-ip –
   /NETWORK_MASK=ip-network-mask –
   /FILE=TCPIP$TFTP_ROOT:[V831H1]VMS_LOADER.EFI

   For Version 8.4 or later:

   $ TCPIP SET BOOTP hostname /HARDWARE=ADDRESS=MACAddress –
   /GATEWAYS=gateways-ip –
   /NETWORK_MASK=ip-network-mask –
   /FILE = <disk_name>[SYS0.SYSCOMMON.SYSEXE]VMS_LOADER.EFI

   To display and verify your BOOTP server configuration, use the TCPIP SHOW BOOTP/FULL command.

   	IMPORTANT: For each new version of OpenVMS Integrity server, you must modify the client entry in the BOOTP database to point to the new, version-specific boot file. As shown in the previous examples, the boot file for OpenVMS Version 8.3–1H1 is [V831H1]VMS_LOADER.EFI and for Version 8.4 and later it is the actual path to VMS_LOADER which is either in the DVD or the LD device created.

Create a copy of the OpenVMS OE DVD on an LD device (logical disk or virtual drive) that is accessible to the InfoServer utility. The following example shows how to establish an LD device and copy the OpenVMS DVD (DNA0:) to the device on an OpenVMS system that is the InfoServer server:

$ @SYS$STARTUP:LD$STARTUP
$ LD CREATE I64084.DSK/SIZE=6005000
$ LD CONNECT I64084.DSK
$ MOUNT/FOREIGN/NOASSIST LDA1:
$ MOUNT/OVERRIDE=IDENTIFICATION DNA0:
$ BACKUP/IMAGE/VERIFY DNA0: LDA1:
$ DISMOUNT DNA0:
$ DISMOUNT LDA1:

For more information about InfoServer commands, including how to work with LD devices, see the InfoServer help (at the InfoServer prompt, type HELP) or the HP OpenVMS System Management Utilities Reference Manual.

Start the InfoServer client on your Integrity servers, and on any other systems that are to be provisioned, by entering the following command:

$ @SYS$STARTUP:ESS$STARTUP DISK

To have the InfoServer start at system boot, include the preceding command in the SYS$MANAGER:SYSTARTUP_VMS.COM file.

Enable the LD device as the InfoServer service, as in the following example:

$ MOUNT/SYSTEM/NOWRITE LDA1: I64084
$ INFOSERVER :== $ESS$INFOSERVER
$ INFOSERVER
INFOSERVER> CREATE SERVICE I64084 LDA1:
INFOSERVER> EXIT

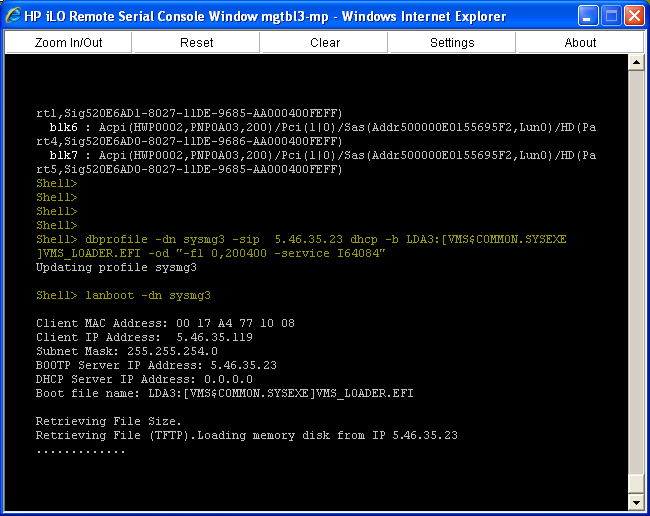

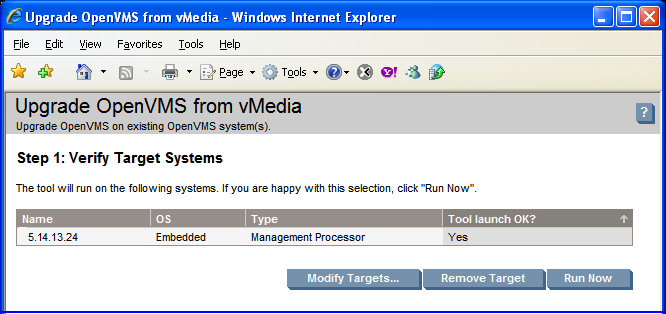

Insert the OpenVMS OE DVD into the DVD drive on your PC or Windows server.

Make sure your Integrity servers iLO 2 MP and vMedia are set up as documented in your Integrity server hardware documentation (for example, see the HP Integrity iLO 2 MP Operations Guide). Enable the right to use the vMedia applet.

Make sure your Integrity server is powered on. Once you connect to your server's iLO 2 MP and log in, you can check the status and power on your Integrity servers from your browser. Select the Virtual Devices tab and access the Power & Reset screen by selecting Power Management (on the left of the screen).

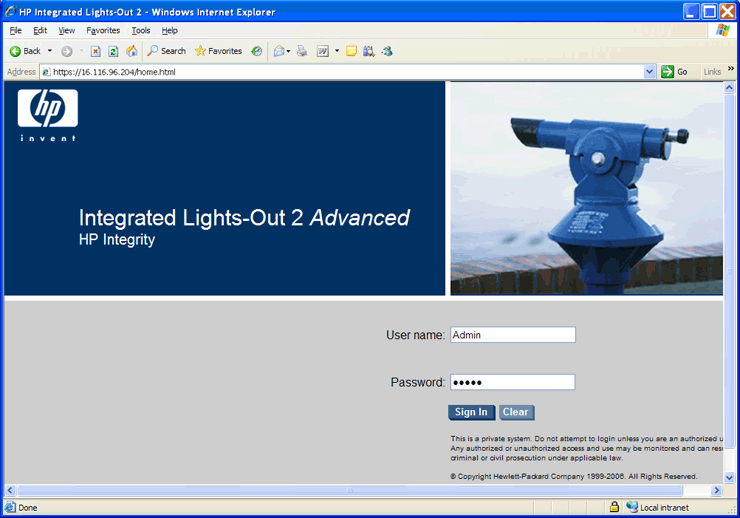

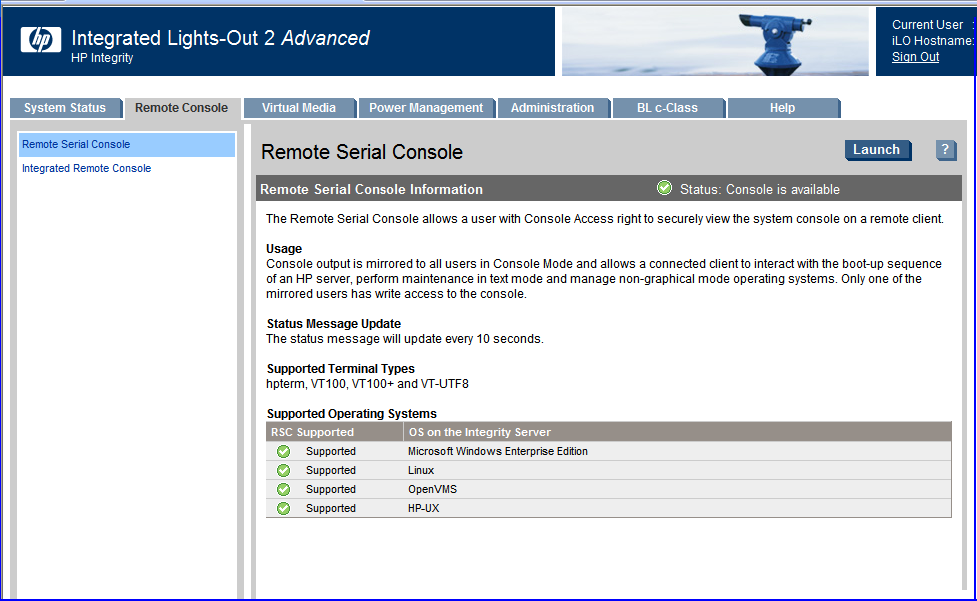

From a browser on a Windows-based PC or server in the same network as your Integrity servers, access your Integrity server's iLO 2 MP by specifying the DNS name or IP address. Then log in as shown in the following example (in this example, the IP address is entered):

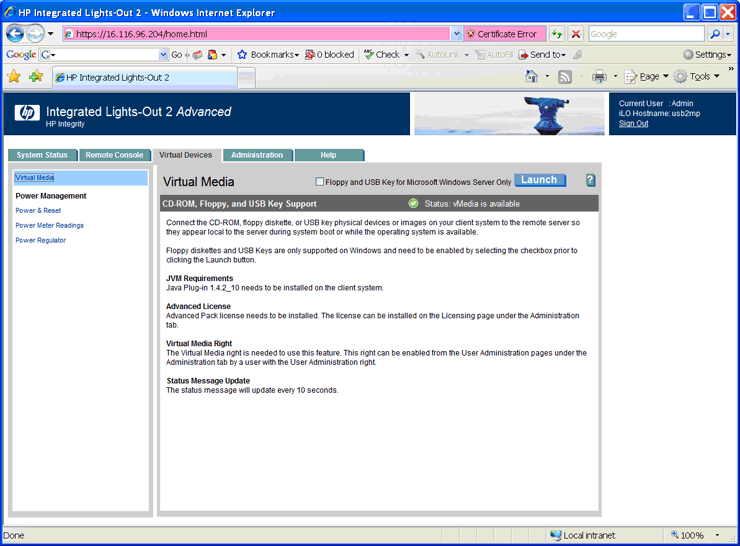

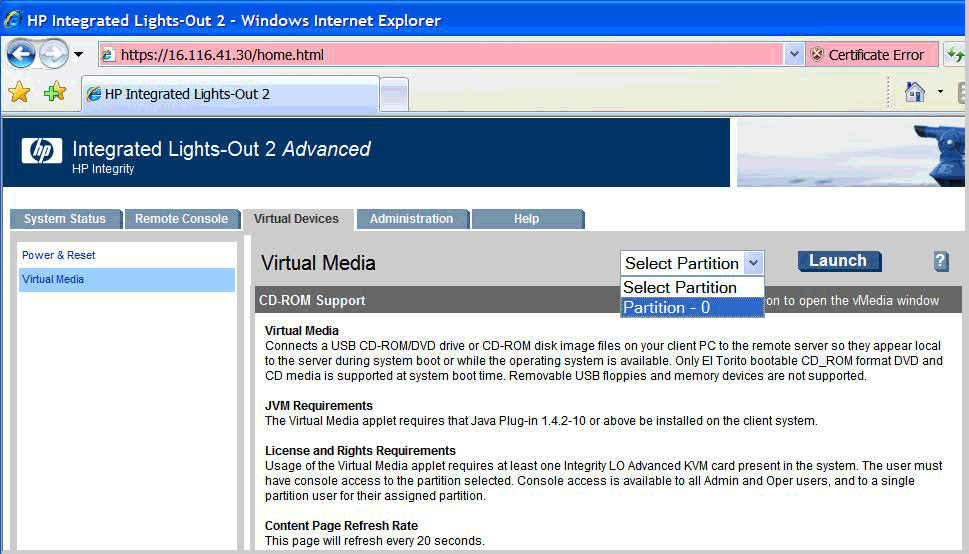

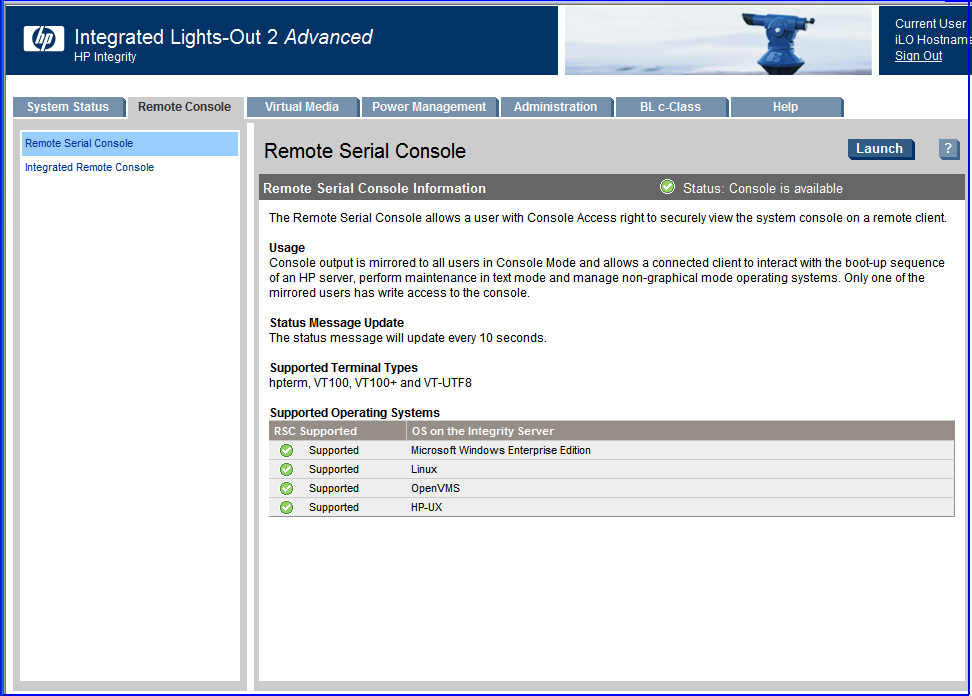

Select the Virtual Devices tab and then select Virtual Media from the list on the left. If your Integrity server is not a cell-based system, skip to the next step. If your server is a cell-based system, you must select the partition before launching the vMedia application, as in the following example:

Click Launch in the upper right corner of the Virtual Media screen, as shown in the following example:

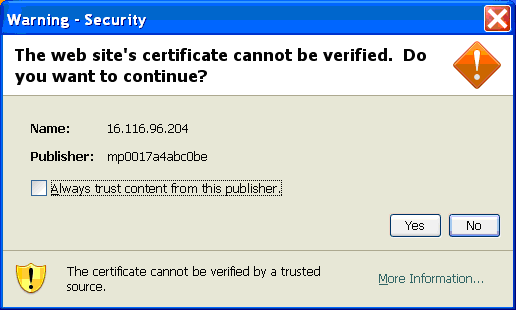

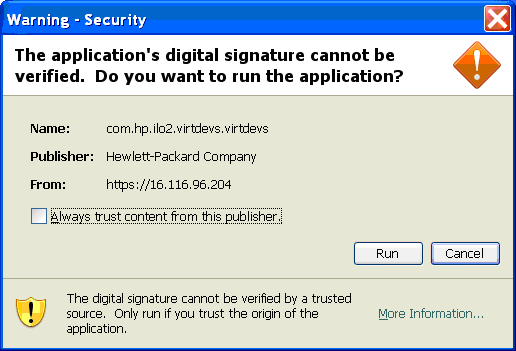

You might see the following warning or similar warnings or informational messages regarding security. In the security warning shown here, you can check the box to always trust content, and then click Yes. (To avoid certification warnings, install valid certificates for the iLO 2 MP. For more information, see the HP Integrity iLO 2 MP Operations Guide. In addition, see the online help provided by your browser.)

A screen similar to the following might appear next. Check the box to always trust content, and then click Run.

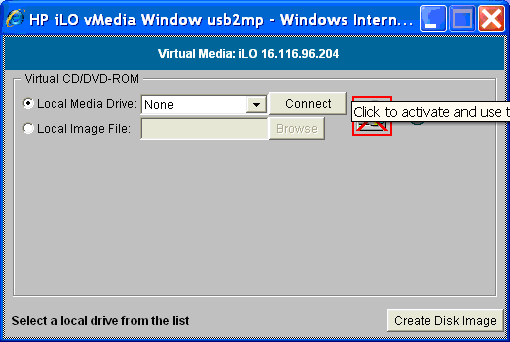

From the Virtual CD/DVD-ROM dialog box that appears next, make sure the Local Media Drive option is selected, and then click Create Disk Image, as in the following example:

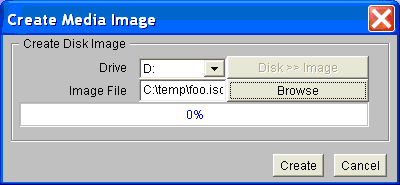

The Create Disk Image dialog box appears, as in the following example. Specify a path or file name for the image to be created, and then click Create.

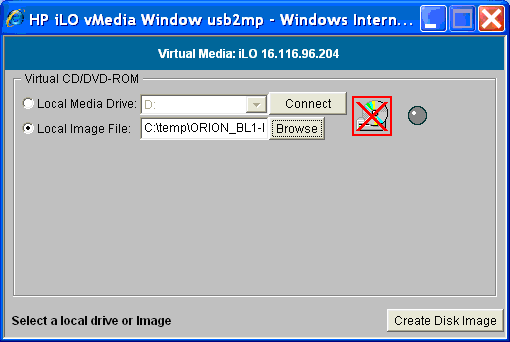

This brings up the Virtual CD/DVD-ROM dialog box, as in the following example. Select the Local Image File option, browse for the created ISO image file that you want vMedia to access, and then click Connect.

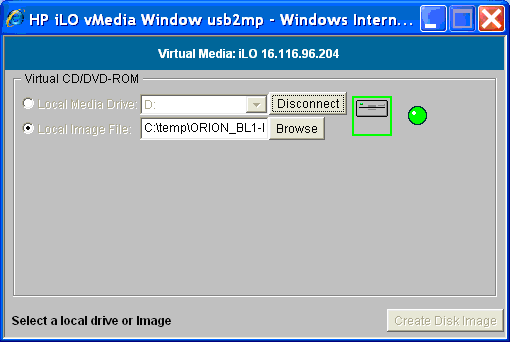

The screen should then indicate the image is connected to vMedia, as in the following example. Now the targeted Integrity server is ready to be booted using the ISO image file.
