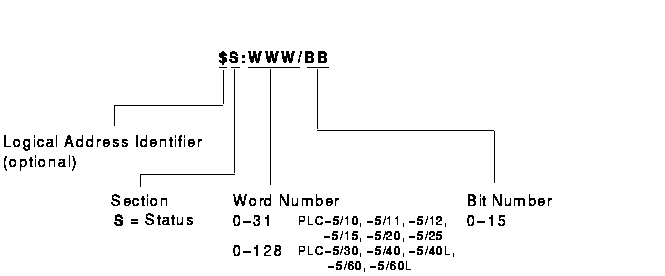

Figure 3-11 shows the structure of a legal Status data table address for the PLC-5.

Table 3-14 shows examples of legal Status data table addresses for the PLC-5.

Figure 3-11 PLC-5 Status Data Table Address Format

Table 3-14 Example PLC-5 Status Data Table Addresses

Example Address	MMS Type1	Description
S:20	UNSIGNED_16	Word 20 of the status file
S:12	INTEGER_16	Word 12 of the status file
$S:125/1	BIT_STRING	Bit 1 of word 125 of the status file
S:0	Array of 10 UNSIGNED_16	Ten words beginning at word 0
