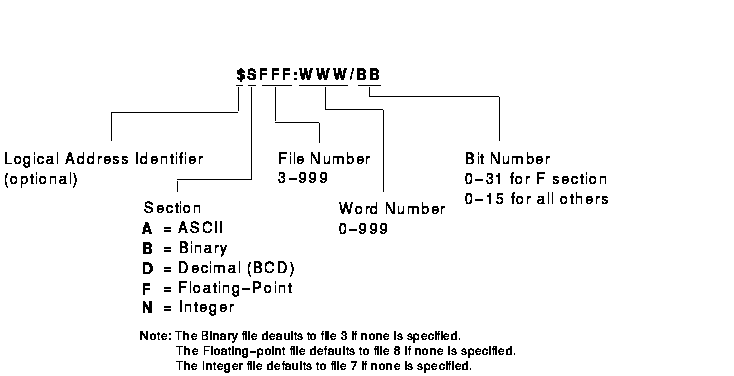

Figure 3-12 shows the structure of a legal ASCII, Binary, Decimal, Floating-Point or Integer data table address for the PLC-5.

Table 3-15 shows examples of legal ASCII, Binary, Decimal, Floating-Point and Integer data table addresses for the PLC-5.

Figure 3-12 PLC-5 ASCII, Binary, Decimal, Floating-Point and Integer Data Table Address Format

Table 3-15 Example PLC-5 ASCII, Binary, Decimal, Floating-Point and Integer Data Table Address Format

Example Address	MMS Type1	Description
$N20:0	INTEGER_16	Word 0 of integer file 20
D20:780	BCD4 2	Word 780 of decimal (BCD) file 20
F39:19	FLOAT 3	Word 19 of floating-point file 39
A10:20	VISIBLE_STRING 5	Word 20 of ASCII file 10
A11:0	OCTET_STRING 4	Word 0 of ASCII file 11
B91:20/10	BIT_STRING 5	Bit 10 of word 20 of binary file 91
B:33	UNSIGNED_16	Word 33 of the default binary file (3)
N:91	UNSIGNED_16	Word 91 of the default integer file (7)
F:3	FLOAT	Word 3 of the default floating-point file (8)
B/155	BIT_STRING	Bit 11 of word 9 in the default binary file (3)
