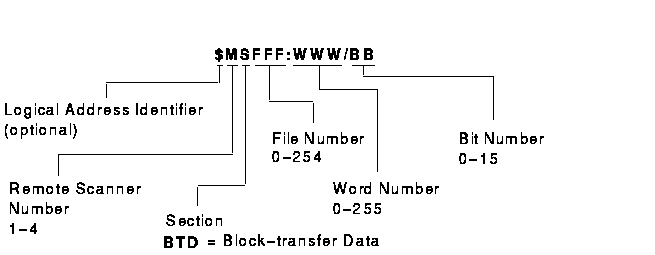

Figure 3-33 shows the structure of a legal Block-Transfer data table address for the PLC-5/250.
Table 3-20 shows examples of legal Block-Transfer data table addresses for the PLC-5/250.
Figure 3-33 PLC-5 / 250 Block-Transfer Data Address Format
| Example Address | MMS Type1 | Description |
|---|---|---|
| 1BTD0:20 | UNSIGNED_16 | Word 20 of file 0 in remote scanner 1 |
| 1BTD2:12 | INTEGER_16 | Word 12 of file 2 in remote scanner 1 |
| $2BTD30:125/1 | BIT_STRING | Bit 1 of word 125 of file 30 in remote scanner 2 |
| 1BTD0:0 | Array of 10 UNSIGNED_16 | Ten words beginning at word 0 of file 0 in remote scanner 1 |
