Figure 3-38 shows the structure of a legal Internal Storage data table address for the PLC-5/250.
Table 3-24 shows examples of legal Internal Storage data table addresses for the PLC-5/250.

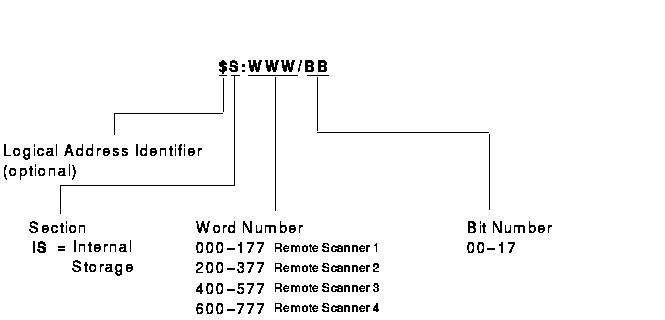

Figure 3-38 PLC-5 / 250 Internal Storage Address Format
| Example Address | MMS Type1 | Description |
|---|---|---|
| IS:20 | UNSIGNED_16 | Word 20 in remote scanner 1 |
| IS:12 | INTEGER_16 | Word 12 in remote scanner 1 |
| $IS:203/10 | BIT_STRING | Bit 10 octal of word 203 octal in remote scanner 2 |
| IS:0 | Array of 10 UNSIGNED_16 | Ten words beginning at word 0 in remote scanner 1 |
