BASEstar^tm Open DAS
for Allen-Bradley Data Highway^tm
on Tru64^tm UNIX
Installation and User's Guide

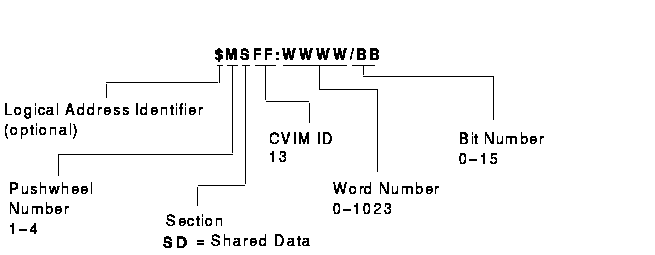

Figure 3-39 shows the structure of a legal Shared Data data table address for the PLC-5/250.

Table 3-25 shows examples of legal Shared Data data table addresses for the PLC-5/250.

Figure 3-39 PLC-5 / 250 Shared Data Address Format

Table 3-25 Example PLC-5 / 250 Shared Data Addresses

Example Address	MMS Type1	Description
1SD13:20	UNSIGNED_16	Word 20 in CVIM module 1
2SD13:155	INTEGER_16	Word 155 in CVIM module 2
$1SD13:0/10	BIT_STRING	Bit 10 of word 0 in CVIM module 1
1SD13:100	Array of 10 UNSIGNED_16	Ten words beginning at word 100 in CVIM module 1
