OpenVMS Programming Concepts Manual


Previous Contents Index

9.4.1.1 Integer Overflow and Floating-Point Overflow

Although the hardware normally detects integer overflow and floating-point overflow errors, run-time library mathematics routines are programmed with a software check to trap these conditions before the hardware signaling process can occur. This means that they call LIB$SIGNAL instead of allowing the hardware to initiate signaling.

The software check is needed because JSB routines cannot set up condition handlers. The check permits the JSB mathematics routines to add an extra stack frame so that the error message and stack traceback appear as if a CALL instruction had been performed. Because of the software check, JSB routines do not cause a hardware exception condition even when the calling program has enabled the detection of integer overflow. On the other hand, detection of floating-point overflow is always enabled and cannot be disabled.

If an integer or floating-point overflow occurs during a CALL or a JSB routine, the routine signals a mathematics-specific error such as MTH$_FLOOVEMAT (Floating Overflow in Math Library) by calling LIB$SIGNAL explicitly.

9.4.1.2 Floating-Point Underflow

All mathematics routines are programmed to avoid floating-point underflow conditions. Software checks are made to determine if a floating-point underflow condition would occur. If so, the software makes an additional check:

  • If the immediate calling program (CALL or JSB) has enabled floating-point underflow traps, a mathematics-specific error condition is signaled.
  • Otherwise, the result is corrected to zero and execution continues with no error condition.

The user can enable or disable detection of floating-point underflow at run time by calling the routine LIB$FLT_UNDER.

9.4.2 System-Defined Arithmetic Condition Handlers

On VAX systems, you can use the following run-time library routines as arithmetic condition handlers to enable or disable the signaling of decimal overflow, floating-point underflow, and integer overflow:

  • LIB$DEC_OVER---Enables or disables the signaling of a decimal overflow. By default, signaling is disabled.
  • LIB$FLT_UNDER---Enables or disables the signaling of a floating-point underflow. By default, signaling is disabled.

  • LIB$INT_OVER---Enables or disables the signaling of an integer overflow. By default, signaling is enabled.

You can establish these handlers in one of two ways:

  • Invoke the appropriate handler as a function specifying the first argument as 1 to enable signaling.
  • Invoke the handler with command qualifiers when you compile your program. (Refer to your program language manuals.)

You cannot disable the signaling of integer divide-by-zero, floating-point overflow, and floating-point or decimal divide-by-zero.

When the signaling of a hardware condition is enabled, the occurrence of the exception condition causes the operating system to signal the condition as a severe error. When the signaling of a hardware condition is disabled, the occurrence of the condition is ignored, and the processor executes the next instruction in the sequence.

The signaling of overflow and underflow detection is enabled independently for activation of each routine, because the call instruction saves the state of the calling program's hardware enable operations in the stack and then initializes the enable operations for the called routine. A return instruction restores the calling program's enable operations.

These run-time library routines are intended primarily for high-level languages, because you can achieve the same effect in MACRO with the single Bit Set PSW (BISPSW) or Bit Clear PSW (BICPSW) VAX instructions.

These routines allow you to enable and disable detection of decimal overflow, floating-point underflow, and integer overflow for a portion of your routine's execution. Note that the VAX BASIC and Compaq Fortran compilers provide a compile-time qualifier that permits you to enable or disable integer overflow for your entire routine.

On Alpha systems, certain RTL routines that process conditions do not exist because the exception conditions defined by the Alpha architecture differ somewhat from those defined by the VAX architecture. Table 9-4 lists the run-time library condition-handling support routines available on VAX systems and indicates which are supported on Alpha systems.

Table 9-4 Run-Time Library Condition-Handling Support Routines
Routine Availability on Alpha Systems
Arithmetic Exception Support Routines
LIB$DEC_OVER--Enables or disables signaling of decimal overflow Not supported
LIB$FIXUP_FLT--Changes floating-point reserved operand to a specified value Not supported
LIB$FLT_UNDER--Enables or disables signaling of floating-point underflow Not supported
LIB$INT_OVER--Enables or disables signaling of integer overflow Not supported
General Condition-Handling Support Routines
LIB$DECODE_FAULT---Analyzes instruction context for fault Not supported
LIB$ESTABLISH---Establishes a condition handler Not supported (languages may support for compatibility)
LIB$MATCH_COND---Matches condition value Supported
LIB$REVERT--Deletes a condition handler Not supported (languages may support for compatibility)
LIB$SIG_TO_STOP---Converts a signaled condition to a condition that cannot be continued Supported
LIB$SIG_TO_RET---Converts a signal to a return status Supported
LIB$SIM_TRAP---Simulates a floating-point trap Not supported
LIB$SIGNAL---Signals an exception condition Supported
LIB$STOP---Stops execution by using signaling Supported

9.5 Condition Values

Error conditions are identified by integer values called condition codes or condition values. The operating system defines condition values to identify errors that might occur during execution of system-defined procedures. Each exception condition has associated with it a unique, 32-bit condition value that identifies the exception condition, and each condition value has a unique, systemwide symbol and an associated message. The condition value is used in both methods of indicating exception conditions, returning a status and signaling.

From a condition value you can determine whether an error has occurred, which error has occurred, and the severity of the error. Table 9-5 describes the fields of a condition value.

Table 9-5 Fields of a Condition Value
Field Bits Meaning
FAC_NO <27:16> Indicates the system facility in which the condition occurred
MSG_NO <15:3> Indicates the condition that occurred
SEVERITY <2:0> Indicates whether the condition is a success (bit <0> = 1) or a failure (bit <0> = 0) as well as the severity of the error, if any

Figure 9-3 shows the format of a condition value.

Figure 9-3 Format of a Condition Value



Condition Value Fields

severity

The severity of the error condition. Bit <0> indicates success (logical true) when set and failure (logical false) when clear. Bits <1> and <2> distinguish degrees of success or failure. The three bits, when taken as an unsigned integer, are interpreted as described in Table 9-6. The symbolic names are defined in module $STSDEF.

Table 9-6 Severity of Error Conditions
Value Symbol Severity Response
0 STS$K_WARNING Warning Execution continues, unpredictable results
1 STS$K_SUCCESS Success Execution continues, expected results
2 STS$K_ERROR Error Execution continues, erroneous results
3 STS$K_INFO Information Execution continues, informational message displayed
4 STS$K_SEVERE Severe error Execution terminates, no output
5     Reserved for Compaq
6     Reserved for Compaq
7     Reserved for Compaq

condition identification

Identifies the condition uniquely on a systemwide basis.

control

Four control bits. Bit <28> inhibits the message associated with the condition value from being printed by the SYS$EXIT system service. After using the SYS$PUTMSG system service to display an error message, the system default handler sets this bit. It is also set in the condition value returned by a routine as a function value, if the routine has also signaled the condition, so that the condition has been either printed or suppressed. Bits <29:31> must be zero; they are reserved for Compaq.

When a software component completes execution, it returns a condition value in this format. When a severity value of warning, error, or severe error has been generated, the status value returned describes the nature of the problem. Your program can test this value to change the flow of control or to generate a message. Your program can also generate condition values to be examined by other routines and by the command language interpreter. Condition values defined by customers must set bits <27> and <15> so that these values do not conflict with values defined by Compaq.

message number

The number identifying the message associated with the error condition. It is a status identification, that is, a description of the hardware exception condition that occurred or a software-defined value. Message numbers with bit <15> set are specific to a single facility. Message numbers with bit <15> clear are systemwide status values.

facility number

Identifies the software component generating the condition value. Bit <27> is set for user facilities and clear for Compaq facilities.

9.5.1 Return Status Convention

Most system-defined procedures are functions of longwords, where the function value is equated to a condition value. In this capacity, the condition value is referred to as a return status. You can write your own routines to follow this convention. See Section 9.14.3 for information about how to change a signal to a return status. Each routine description in the OpenVMS System Services Reference Manual, OpenVMS RTL Library (LIB$) Manual, OpenVMS Record Management Utilities Reference Manual, and OpenVMS Utility Routines Manual lists the condition values that can be returned by that procedure.

9.5.1.1 Testing Returned Condition Values

When a function returns a condition value to your program unit, you should always examine the returned condition value. To check for a failure condition (warning, error, or severe error), test the returned condition value for a logical value of false. The following program segment invokes the run-time library procedure LIB$DATE_TIME, checks the returned condition value (returned in the variable STATUS), and, if an error has occurred, signals the condition value by calling the run-time library procedure LIB$SIGNAL ( Section 9.8 describes signaling):


INTEGER*4 STATUS,
2         LIB$DATE_TIME
CHARACTER*23 DATE

STATUS = LIB$DATE_TIME (DATE)
IF (.NOT. STATUS) CALL LIB$SIGNAL (%VAL (STATUS))

To check for a specific error, test the return status for a particular condition value. For example, LIB$DATE_TIME returns a success value (LIB$_STRTRU) when it truncates the string. If you want to take special action when truncation occurs, specify the condition as shown in the following example (the special action would follow the IF statement):


INTEGER*4 STATUS,
2         LIB$DATE_TIME
CHARACTER*23 DATE

INCLUDE '($LIBDEF)'
   .
   .
   .
STATUS = LIB$DATE_TIME (DATE)
IF (STATUS .EQ. LIB$_STRTRU) THEN
   .
   .
   .

9.5.1.2 Testing SS$_NOPRIV and SS$_EXQUOTA Condition Values

The SS$_NOPRIV and SS$_EXQUOTA condition values returned by a number of system service procedures require special checking. Any system service that is listed as returning SS$_NOPRIV or SS$_EXQUOTA can instead return a more specific condition value that indicates the privilege or quota in question. Table 9-7 list the specific privilege errors, and Table 9-8 lists the quota errors.

Table 9-7 Privilege Errors
SS$_NOACNT SS$_NOALLSPOOL SS$_NOALTPRI
SS$_NOBUGCHK SS$_NOBYPASS SS$_NOCMEXEC
SS$_NOCMKRNL SS$_NODETACH SS$_NODIAGNOSE
SS$_NODOWNGRADE SS$_NOEXQUOTA SS$_NOGROUP
SS$_NOGRPNAM SS$_NOGRPPRV SS$_NOLOGIO
SS$_NOMOUNT SS$_NONETMBX SS$_NOOPER
SS$_NOPFNMAP SS$_NOPHYIO SS$_NOPRMCEB
SS$_NOPRMGBL SS$_NOPRMMBX SS$_NOPSWAPM
SS$_NOREADALL SS$_NOSECURITY SS$_NOSETPRV
SS$_NOSHARE SS$_NOSHMEM SS$_NOSYSGBL
SS$_NOSYSLCK SS$_NOSYSNAM SS$_NOSYSPRV
SS$_NOTMPMBX SS$_NOUPGRADE SS$_NOVOLPRO
SS$_NOWORLD

Table 9-8 Quota Errors
SS$_EXASTLM SS$_EXBIOLM SS$_EXBYTLM
SS$_EXDIOLM SS$_EXENQLM SS$_EXFILLM
SS$_EXPGFLQUOTA SS$_EXPRCLM SS$_EXTQELM

Because either a general or a specific value can be returned, your program must test for both. The following four symbols provide a starting and ending point with which you can compare the returned condition value:

  • SS$_NOPRIVSTRT---First specific value for SS$_NOPRIV
  • SS$_NOPRIVEND---Last specific value for SS$_NOPRIV
  • SS$_NOQUOTASTRT---First specific value for SS$_EXQUOTA
  • SS$_NOQUOTAEND---Last specific value for SS$_EXQUOTA

The following Compaq Fortran example tests for a privilege error by comparing STATUS (the returned condition value) with the specific condition value SS$_NOPRIV and the range provided by SS$_NOPRIVSTRT and SS$_NOPRIVEND. You would test for SS$_NOEXQUOTA in a similar fashion.


   .
   .
   .
! Declare status and status values
INTEGER STATUS
INCLUDE '($SSDEF)'
   .
   .
   .
IF (.NOT. STATUS) THEN
  IF ((STATUS .EQ. SS$_NOPRIV) .OR.
2     ((STATUS .GE. SS$_NOPRIVSTRT) .AND.
2      (STATUS .LE. SS$_NOPRIVEND))) THEN
   .
   .
   .
  ELSE
   CALL LIB$SIGNAL (%VAL(STATUS))
  END IF
END IF

9.5.2 Modifying Condition Values

To modify a condition value, copy a series of bits from one longword to another longword. For example, the following statement copies the first three bits (bits <2:0>) of STS$K_INFO to the first three bits of the signaled condition code, which is in the second element of the signal array named SIGARGS. As shown in Table 9-6, STS$K_INFO contains the symbolic severity code for an informational message.


! Declare STS$K_ symbols
INCLUDE '($STSDEF)'
   .
   .
   .
! Change the severity of the condition code
! in SIGARGS(2) to informational
CALL MVBITS (STS$K_INFO,
2            0,
2            3,
2            SIGARGS(2),
2            0)

Once you modify the condition value, you can resignal the condition value and either let the default condition handler display the associated message or use the SYS$PUTMSG system service to display the message. If your condition handler displays the message, do not resignal the condition value, or the default condition handler will display the message a second time.

In the following example, the condition handler verifies that the signaled condition value is LIB$_NOSUCHSYM. If it is, the handler changes its severity from error to informational and then resignals the modified condition value. As a result of the handler's actions, the program displays an informational message indicating that the specified symbol does not exist, and then continues executing.


INTEGER FUNCTION SYMBOL (SIGARGS,
2                        MECHARGS)
! Changes LIB$_NOSUCHSYM to an informational message

! Declare dummy arguments
INTEGER*4 SIGARGS(*),
2         MECHARGS(*)
! Declare index variable for LIB$MATCH_COND
INTEGER INDEX
! Declare condition codes
INCLUDE '($LIBDEF)'
INCLUDE '($STSDEF)'
INCLUDE '($SSDEF)'
! Declare library procedures
INTEGER LIB$MATCH_COND
INDEX = LIB$MATCH_COND (SIGARGS(2),
2                       LIB$NO_SUCHSYM)
! If the signaled condition code is LIB$NO_SUCHSYM,
! change its severity to informational.
IF (INDEX .GT. 0)
2  CALL MVBITS (STS$K_INFO,
2               0,
2               3,
2               SIGARGS(2),
2               0)

SYMBOL = SS$_RESIGNAL

END

9.6 Exception Dispatcher

When an exception occurs, control is passed to the operating system's exception-dispatching routine. The exception dispatcher searches for a condition-handling routine invoking the first handler it finds and passes the information to the handler about the condition code and the state of the program when the condition code was signaled. If the handler resignals, the operating system searches for another handler; otherwise, the search for a condition handler ends.

The operating system searches for condition handlers in the following sequence:

  1. Primary exception vectors---Four vectors (lists) of one or more condition handlers; each vector is associated with an access mode. By default, all of the primary exception vectors are empty. Exception vectors are used primarily for system programming, not application programming. The debugger uses the primary exception vector associated with user mode.
    When an exception occurs, the operating system searches the primary exception associated with the access mode at which the exception occurred. To enter or cancel a condition handler in an exception vector, use the SYS$SETEXV system service. Condition handlers that are entered into the exception vectors associated with kernel, executive, and supervisor modes remain in effect either until they are canceled or until you log out. Condition handlers that are entered into the exception vector associated with user mode remain in effect either until they are canceled or until the image that entered them exits.
  2. Secondary exception vectors---A set of exception vectors with the same structure as the primary exception vectors. Exception vectors are primarily used for system programming, not application programming. By default, all of the secondary exception vectors are empty.
  3. Call frame condition handlers---Each program unit can establish one condition handler (the address of the handler is placed in the call frame of the program unit). The operating system searches for condition handlers established by your program, beginning with the current program unit. If the current program unit has not established a condition handler, the operating system searches for a handler that was established by the program unit that invoked the current program unit, and so on back to the main program.
  4. Traceback handler---If you do not establish any condition handlers and link your program with the /TRACEBACK qualifier of the LINK command (the default), the operating system finds and invokes the traceback handler.
  5. Catchall handler---If you do not establish any condition handlers and you link your program with the /NOTRACEBACK qualifier to the LINK command, the operating system finds and invokes the catchall handler. The catchall handler is at the bottom of the user stack and in the last-chance exception vector.
  6. Last-chance exception vectors---A set of exception vectors with the same structure as the primary and secondary exception vectors. Exception vectors are used primarily for system programming, not application programming. By default, the user- and supervisor-mode last-chance exception vectors are empty. The executive- and kernel-mode last-chance exception vectors contain procedures that cause a bugcheck (a nonfatal bugcheck results in an error log entry; a fatal bugcheck results in a system shutdown). The debugger uses the user-mode last-chance exception vector, and DCL uses the supervisor-mode last-chance exception vector.

The search is terminated when the dispatcher finds a condition handler. If the dispatcher cannot find a user-specified condition handler, it calls the condition handler whose address is stored in the last-chance exception vector. If the image was activated by the command language interpreter, the last-chance vector points to the catchall condition handler. The catchall handler issues a message and either continues program execution or causes the image to exit, depending on whether the condition was a warning or an error condition, respectively.

You can call the catchall handler in two ways:

  • If the last-chance exception vector either returns to the dispatcher or is empty, then it calls the catchall condition handler and exits with the return status code SS$_NOHANDLER.
  • If the exception dispatcher detects an access violation, it calls the catchall condition handler and exits with the return status code SS$_ACCVIO.

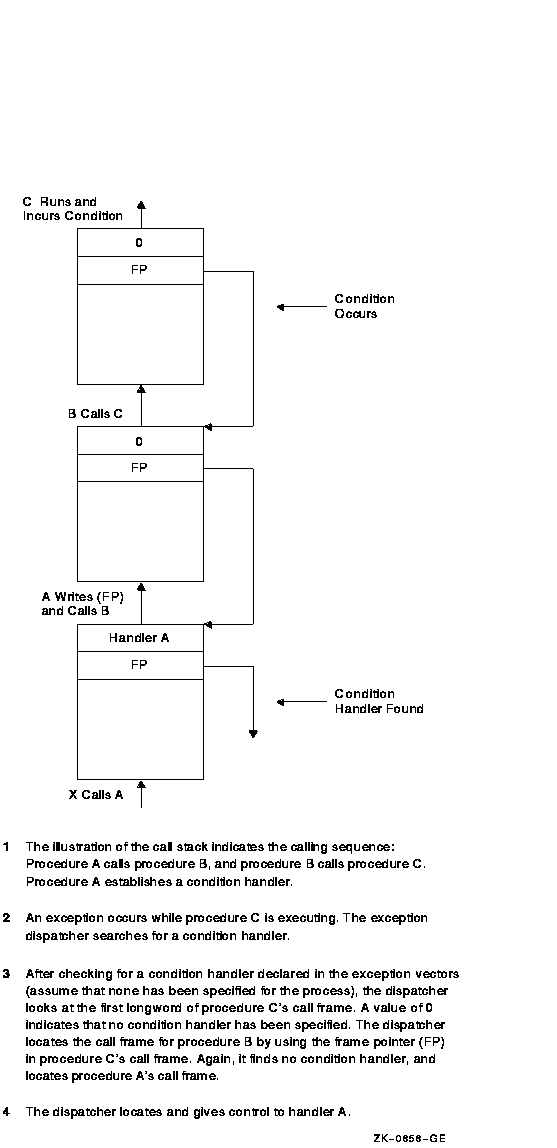

Figure 9-4 illustrates the exception dispatcher's search of the call stack for a condition handler.

Figure 9-4 Searching the Stack for a Condition Handler


In cases where the default condition handling is insufficient, you can establish your own handler by one of the mechanisms described in Section 9.2.1. Typically, you need condition handlers only if your program must perform one of the following operations:

  • Respond to condition values that are signaled rather than returned, such as an integer overflow error. ( Section 9.14.3 describes the system-defined handler LIB$SIG_TO_RET that allows you to treat signals as return values; Section 9.4.2 describes other useful system-defined handlers for arithmetic errors.)
  • Modify part of a condition code, such as the severity. See Section 9.5.2 for more information. If you want to change the severity of any condition code to a severe error, you can use the run-time library procedure LIB$STOP instead of writing your own condition handler.
  • Add messages to the one associated with the originally signaled condition code or log the messages associated with the originally signaled condition code.
