OpenVMS Programming Concepts Manual

You can exit from a condition handler in one of three ways:

• Continue execution of the program---If you equate the function value of the condition handler to SS$_CONTINUE, the condition handler returns control to the program at the statement that signaled the condition (fault) or the statement following the one that signaled the condition (trap). The RTL routine LIB$SIGNAL generates a trap so that control is returned to the statement following the call to LIB$SIGNAL.
  In the following example, if the condition code is one of the expected codes, the condition handler displays a message and then returns the value SS$_CONTINUE to resume program execution. ( Section 9.11 describes how to display a message.)

  INTEGER FUNCTION HANDLER (SIGARGS, 2 MECHARGS) ! Declare dummy arguments INTEGER*4 SIGARGS(*), 2 MECHARGS(*) INCLUDE '($FORDEF)' INCLUDE '($SSDEF)' INTEGER*4 INDEX, 2 LIB$MATCH_COND INDEX = LIB$MATCH_COND (SIGARGS(2), 2 FOR$_FILNOTFOU, 2 FOR$_OPEFAI, 2 FOR$_NO_SUCDEV, 2 FOR$_FILNAMSPE) IF (INDEX .GT. 0) THEN . . . ! Display the message . . . HANDLER = SS$_CONTINUE END IF

• Resignal the condition code---If you equate the function value of the condition handler to SS$_RESIGNAL or do not specify a function value (function value of 0), the handler allows the operating system to execute the next condition handler. If you modify the signal array or mechanism array before resignaling, the modified arrays are passed to the next condition handler.
  In the following example, if the condition code is not one of the expected codes, the handler resignals:

  INDEX = LIB$MATCH_COND (SIGARGS(2), 2 FOR$_FILNOTFOU, 2 FOR$_OPEFAI, 2 FOR$_NO_SUCDEV, 2 FOR$_FILNAMSPE) IF (INDEX .EQ. 0) THEN HANDLER = SS$_RESIGNAL END IF

• Continue execution of the program at a previous location---If you call the SYS$UNWIND system service, the condition handler can return control to any point in the program unit that incurred the exception, the program unit that invoked the program unit that incurred the exception, and so on back to the program unit that established the condition handler.

Your handlers should return control either to the program unit that established the handler or to the program unit that invoked the program unit that established the handler.

To return control to the program unit that established the handler, invoke SYS$UNWIND and pass the call depth (third element of the mechanism array) as the first argument with no second argument.

! Declare dummy arguments
INTEGER*4 SIGARGS(*),
2         MECHARGS(*)
   .
   .
   .
CALL SYS$UNWIND (MECHARGS(3),)

To return control to the caller of the program unit that established the handler, invoke SYS$UNWIND without passing any arguments.

! Declare dummy arguments
INTEGER*4 SIGARGS(*),
2         MECHARGS(*)
   .
   .
   .
CALL SYS$UNWIND (,)

The first argument SYS$UNWIND specifies the number of program units to unwind (remove from the stack). If you specify this argument at all, you should do so as shown in the previous example. (MECHARGS(3) contains the number of program units that must be unwound to reach the program unit that established the handler that invoked SYS$UNWIND.) The second argument SYS$UNWIND contains the location of the next statement to be executed. Typically, you omit the second argument to indicate that the program should resume execution at the statement following the last statement executed in the program unit that is regaining control.

Each time SYS$UNWIND removes a program unit from the stack, it invokes any condition handler established by that program unit and passes the condition handler the SS$_UNWIND condition code. To prevent the condition handler from resignaling the SS$_UNWIND condition code (and so complicating the unwind operation), include SS$_UNWIND as an expected condition code when you invoke LIB$MATCH_COND. When the condition code is SS$_UNWIND, your condition handler might perform necessary cleanup operations or do nothing.

In the following example, if the condition code is SS$_UNWIND, no action is performed. If the condition code is another of the expected codes, the handler displays the message and then returns control to the program unit that called the program unit that established the condition handler.

INTEGER FUNCTION HANDLER (SIGARGS,
2                         MECHARGS)

! Declare dummy arguments
INTEGER*4 SIGARGS(*),
2         MECHARGS(*)
INCLUDE '($FORDEF)'
INCLUDE '($SSDEF)'
INTEGER*4 INDEX,
2         LIB$MATCH_COND
INDEX = LIB$MATCH_COND (SIGARGS(2),
2                       SS$_UNWIND,
2                       FOR$_FILNOTFOU,
2                       FOR$_OPEFAI,
2                       FOR$_NO_SUCDEV,
2                       FOR$_FILNAMSPE)
IF (INDEX .EQ. 0) THEN
  ! Unexpected condition, resignal
  HANDLER = SS$_RESIGNAL
ELSE IF (INDEX .EQ. 1) THEN
  ! Unwinding, do nothing
ELSE IF (INDEX .GT. 1) THEN
   .
   .
   .
              ! Display the message
   .
   .
   .
  CALL SYS$UNWIND (,)
END IF

The following example shows two procedures, A and B, that have declared condition handlers. The notes describe the sequence of events that would occur if a call to a system service failed during the execution of procedure B.

/* PGMA */

#include <stdio.h>
#include <ssdef.h>

unsigned int sigargs[],mechargs[];

main() {
        unsigned int status, vector=0, old_handler;

        old_handler = LIB$ESTABLISH( handlera );               (1)

        status = pgmb (arglst);                                (2)
   .
   .
   .
}

/* PGMB */

#include <stdio.h>
#include <ssdef.h>

main() {

 old_handler = LIB$ESTABLISH( handlerb );                      (3)
   .
   .
   .

}                                                              (4)

/* Handler A */                                                (5)

int handlera( sigargs, mechargs ) {

/* Compare condition value signalled with expected value */
                                                               (6)
                        if (sigargs[1] != SS$_SSFAIL)
                                goto no_fail;
   .
   .
   .
/* Signal to continue */

                        return SS$_CONTINUE;

/* Signal to resignal */
no_fail:
                        return SS$_RESIGNAL;

}

/* Handler B */

int handlerb( sigargs, mechargs ) {

/* Compare condition value signalled with expected value */
                        if (sigargs[1] != SS$_BREAK)              (7)
                                goto no_fail;
   .
   .
   .
                        return SS$_CONTINUE;

no_fail:
                        return SS$_RESIGNAL;


}

1. Procedure A executes and establishes condition handler HANDLERA. HANDLERA is set up to respond to exceptions caused by failures in system service calls.
2. During its execution, procedure A calls procedure B.
3. Procedure B establishes condition handler HANDLERB. HANDLERB is set up to respond to breakpoint faults.
4. While procedure B is executing, an exception occurs caused by a system service failure.
5. The dispatcher returns control to procedure B, and execution of procedure B resumes at the instruction following the system service failure.
6. The exception dispatcher resumes its search for a condition handler and calls HANDLERA.
7. HANDLERA handles the system service failure exception, corrects the condition, places the return value SS$_CONTINUE in R0, and returns control to the exception dispatcher.

You can debug a condition handler as you would any subprogram, except that you cannot use the DEBUG command STEP/INTO to enter a condition handler. You must set a breakpoint in the handler and wait for the debugger to invoke the handler.

Typically, to trace execution of a condition handler, you set breakpoints at the statement in your program that should signal the condition code, at the statement following the one that should signal, and at the first executable statement in your condition handler.

The SET BREAK debugger command with the /HANDLER qualifier causes the debugger to scan the call stack and attempt to set a breakpoint on every established frame-based handler whenever the program being debugged has an exception. The debugger does not discriminate between standard RTL handlers and user-defined handlers.

9.14 Run-Time Library Condition-Handling Routines

The following sections present information about Alpha systems RTL jacket handlers, and RTL routines that can be either established as condition handlers or called from a condition handler to handle signaled exception conditions.

9.14.1 RTL Jacket Handlers (Alpha Only)

On Alpha systems, many RTLs establish a jacket RTL handler on a frame where the user program has defined its own handler. This RTL jacket does some setup and argument manipulation before actually calling the handler defined by the user. When processing the exception, the debugger sets the breakpoint on the jacket RTL jacket handler, because that is the address on the call stack. If the debugger suspends program execution at a jacket RTL handler, it is usually possible to reach the user-defined handler by entering a STEP/CALL command followed by a STEP/INTO command. Some cases might require that additional sequences of STEP/CALL and STEP/INTO commands be entered. For more information on frame-based handlers, see OpenVMS Calling Standard.

If the jacket RTL handler is part of an installed shared image such as ALPHA LIBOTS, the debugger cannot set a breakpoint on it. In this case, activate the RTL as a private image by defining the RTL as a logical name, as in the following example:

$DEFINE LIBOTS SYS$SHARE:LIBOTS.EXE;

On VAX systems, a trap is an exception condition that is signaled after the instruction that caused it has finished executing. A fault is an exception condition that is signaled during the execution of the instruction. When a trap is signaled, the program counter (PC) in the signal argument vector points to the next instruction after the one that caused the exception condition. When a fault is signaled, the PC in the signal argument vector points to the instruction that caused the exception condition. See the VAX Architecture Reference Manual for more information about faults and traps.

LIB$SIM_TRAP can be established as a condition handler or be called from a condition handler to convert a floating-point fault to a floating-point trap. After LIB$SIM_TRAP is called, the PC points to the instruction after the one that caused the exception condition. Thus, your program can continue execution without fixing up the original condition. LIB$SIM_TRAP intercepts only floating-point overflow, floating-point underflow, and divide-by-zero faults.

9.14.3 Changing a Signal to a Return Status

When it is preferable to detect errors by signaling but the calling routine expects a returned status, LIB$SIG_TO_RET can be used by the routine that signals. For instance, if you expect a particular condition code to be signaled, you can prevent the operating system from invoking the default condition handler by establishing a different condition handler. LIB$SIG_TO_RET is a condition handler that converts any signaled condition to a return status. The status is returned to the caller of the routine that established LIB$SIG_TO_RET. You may establish LIB$SIG_TO_RET as a condition handler by specifying it in a call to LIB$ESTABLISH.

On Alpha systems, LIB$ESTABLISH is not supported, though high-level languages may support it for compatibility.

LIB$SIG_TO_RET can also be called from another condition handler. If LIB$SIG_TO_RET is called from a condition handler, the signaled condition is returned as a function value to the caller of the establisher of that handler when the handler returns to the OpenVMS Condition Handling facility. When a signaled exception condition occurs, LIB$SIG_TO_RET routine does the following:

• Places the signaled condition value in the image of R0 that is saved as part of the mechanism argument vector.
• Calls the Unwind (SYS$UNWIND) system service with the default arguments. After returning from LIB$SIG_TO_RET (when it is established as a condition handler) or after returning from the condition handler that called LIB$SIG_TO_RET (when LIB$SIG_TO_RET is called from a condition handler), the stack unwinds to the caller of the routine that established the handler.

Your calling routine can now both test R0, as if the called routine had returned a status, and specify an error recovery action.

The following paragraphs describe how to establish and use the system-defined condition handler LIB$SIG_TO_RET, which changes a signal to a return status that your program can examine.

To change a signal to a return status, you must put any code that might signal a condition code into a function where the function value is a return status. The function containing the code must perform the following operations:

• Declare LIB$SIG_TO_RET---Declare the condition handler LIB$SIG_TO_RET.
• Establish LIB$SIG_TO_RET---Invoke the run-time library procedure LIB$ESTABLISH to establish a condition handler for the current program unit. Specify the name of the condition handler LIB$SIG_TO_RET as the only argument.
• Initialize the function value---Initialize the function value to SS$_NORMAL so that, if no condition code is signaled, the function returns a success status to the invoking program unit.
• Declare necessary dummy arguments---If any statement that might signal a condition code is a subprogram that requires dummy arguments, pass the necessary arguments to the function. In the function, declare each dummy argument exactly as it is declared in the subprogram that requires it and specify the dummy arguments in the subprogram invocation.

If the program unit GET_1_STAT in the following function signals a condition code, LIB$SIG_TO_RET changes the signal to the return status of the INTERCEPT_SIGNAL function and returns control to the program unit that invoked INTERCEPT_SIGNAL. (If GET_1_STAT has a condition handler established, the operating system invokes that handler before invoking LIB$SIG_TO_RET.)

FUNCTION INTERCEPT_SIGNAL (STAT,
2                          ROW,
2                          COLUMN)

! Dummy arguments for GET_1_STAT
INTEGER STAT,
2       ROW,
2       COLUMN
! Declare SS$_NORMAL
INCLUDE '($SSDEF)'
! Declare condition handler
EXTERNAL LIB$SIG_TO_RET
! Declare user routine
INTEGER GET_1_STAT
! Establish LIB$SIG_TO_RET
CALL LIB$ESTABLISH (LIB$SIG_TO_RET)
! Set return status to success
INTERCEPT_SIGNAL = SS$_NORMAL
! Statements and/or subprograms that
! signal expected error condition codes
STAT = GET_1_STAT (ROW,
2                  COLUMN)

END

When the program unit that invoked INTERCEPT_SIGNAL regains control, it should check the return status (as shown in Section 9.5.1) to determine which condition code, if any, was signaled during execution of INTERCEPT_SIGNAL.

9.14.4 Changing a Signal to a Stop

LIB$SIG_TO_STOP causes a signal to appear as though it had been signaled by a call to LIB$STOP.

LIB$SIG_TO_STOP can be enabled as a condition handler for a routine or be called from a condition handler. When a signal is generated by LIB$STOP, the severity code is forced to severe, and control cannot return to the routine that signaled the condition. See Section 9.12.1 for a description of continuing normal execution after a signal.

9.14.5 Matching Condition Values

LIB$MATCH_COND checks for a match between two condition values to allow a program to branch according to the condition found. If no match is found, the routine returns zero. The routine matches only the condition identification field (STS$V_COND_ID) of the condition value; it ignores the control bits and the severity field. If the facility-specific bit (STS$V_FAC_SP = bit <15>) is clear in cond-val (meaning that the condition value is systemwide), LIB$MATCH_COND ignores the facility code field (STS$V_FAC_NO = bits <27:17>) and compares only the STS$V_MSG_ID fields (bits <15:3>).

9.14.6 Correcting a Reserved Operand Condition (VAX Only)

On VAX systems, after a signal of SS$_ROPRAND during a floating-point instruction, LIB$FIXUP_FLT finds the operand and changes it from --0.0 to a new value or to +0.0.

9.14.7 Decoding the Instruction That Generated a Fault (VAX Only)

On VAX systems, LIB$DECODE_FAULT locates the operands for an instruction that caused a fault and passes the information to a user action routine. When called from a condition handler, LIB$DECODE_FAULT locates all the operands and calls an action routine that you supply. Your action routine performs the steps necessary to handle the exception condition and returns control to LIB$DECODE_FAULT. LIB$DECODE_FAULT then restores the operands and the environment, as modified by the action routine, and continues execution of the instruction.

9.15 Exit Handlers

When an image exits, the operating system performs the following operations:

• Invokes any user-defined exit handlers.
• Invokes the system-defined default exit handler, which closes any files that were left open by the program or by user-defined exit handlers.
• Executes a number of cleanup operations collectively known as image rundown. The following is a list of some of these cleanup operations:
  • Canceling outstanding ASTs and timer requests.
  • Deassigning any channel assigned by your program and not already deassigned by your program or the system.
  • Deallocating devices allocated by the program.
  • Disassociating common event flag clusters associated with the program.
  • Deleting user-mode logical names created by the program. (Unless you specify otherwise, logical names created by SYS$CRELNM are user-mode logical names.)
  • Restoring internal storage (for example, stacks or mapped sections) to its original state.

If any exit handler exits using the EXIT (SYS$EXIT) system service, none of the remaining handlers is executed. In addition, if an image is aborted by the DCL command STOP (the user presses Ctrl/Y and then enters STOP), the system performs image rundown and does not invoke any exit handlers. Like the DCL STOP/ID, SYS$DELPRC bypasses all exit handlers, except the rundown specified in the privileged library vector (PLV) privileged shareable images, and deletes the process. (The DCL command EXIT invokes the exit handlers before running down the image.)

When a routine is active under OpenVMS, it has available to it temporary storage on a stack, in a construct known as a stack frame, or call frame. Each time a subroutine call is made, another call frame is pushed onto the stack and storage is made available to that subroutine. Each time a subroutine returns to its caller, the subroutine's call frame is pulled off the stack, and the storage is made available for reuse by other subroutines. Call frames therefore are nested. Outer call frames remain active longer, and the outermost call frame, the call frame associated with the main routine, is normally always available.

A primary exception to this call frame condition is when an exit handler runs. With an exit handler running, only static data is available. The exit handler effectively has its own call frame. Exit handlers are declared with the SYS$DCLEXH system service.

The use of call frames for storage means that all routine-local data is reentrant; that is, each subroutine has its own storage for the routine-local data.

The allocation of storage that is known to the exit handler must be in memory that is not volatile over the possible interval the exit handler might be pending. This means you must be familiar with how the compilers allocate routine-local storage using the stack pointer and the frame pointer. This storage is valid only while the stack frame is active. Should the routine that is associated with the stack frame return, the exit handler cannot write to this storage without having the potential for some severe application data corruptions.

A hang-up to a terminal line causes DCL to delete the master process's subprocesses. However, if the subprocesses's exit handler is in a main image installed with privilege, then that exit handler is run even with the DCL command STOP. Also, if the subprocess was spawned NOWAIT, then the spawning process's exit handler is run as well.

Use exit handlers to perform any cleanup that your program requires in addition to the normal rundown operations performed by the operating system. In particular, if your program must perform some final action regardless of whether it exits normally or is aborted, you should write and establish an exit handler to perform that action.

9.15.1 Establishing an Exit Handler

To establish an exit handler, use the SYS$DCLEXH system service. The SYS$DCLEXH system service requires one argument---a variable-length data structure that describes the exit handler. Figure 9-16 illustrates the structure of an exit handler.

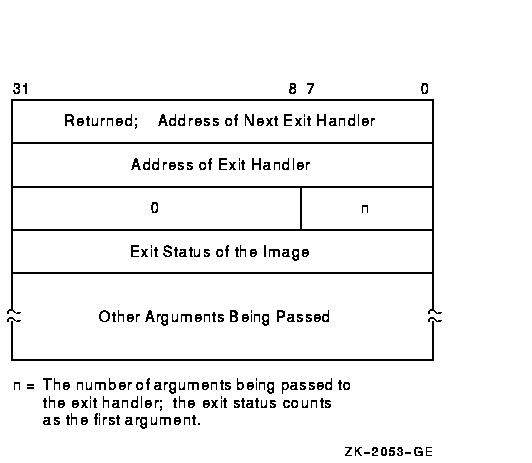

Figure 9-16 Structure of an Exit Handler

The first longword of the structure contains the address of the next handler. The operating system uses this argument to keep track of the established exit handlers; do not modify this value. The second longword of the structure contains the address of the exit handler being established. The low-order byte of the third longword contains the number of arguments to be passed to the exit handler. Each of the remaining longwords contains the address of an argument.

The first argument passed to an exit handler is an integer value containing the final status of the exiting program. The status argument is mandatory. However, do not supply the final status value; when the operating system invokes an exit handler, it passes the handler the final status value of the exiting program.

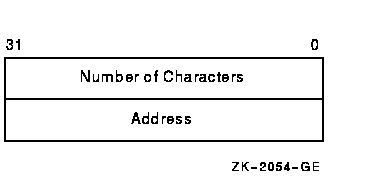

To pass an argument with a numeric data type, use programming language statements to assign the address of a numeric variable to one of the longwords in the exit-handler data structure. To pass an argument with a character data type, create a descriptor of the following form:

Use the language statements to assign the address of the descriptor to one of the longwords in the exit-handler data structure.

The following program segment establishes an exit handler with two arguments, the mandatory status argument and a character argument:

   .
   .
   .
! Arguments for exit handler
INTEGER EXIT_STATUS       ! Status
CHARACTER*12 STRING       ! String
STRUCTURE /DESCRIPTOR/
  INTEGER SIZE,
2         ADDRESS
END STRUCTURE
RECORD /DESCRIPTOR/ EXIT_STRING
! Setup for exit handler
STRUCTURE /EXIT_DESCRIPTOR/
 INTEGER LINK,
2        ADDR,
2        ARGS /2/,
2        STATUS_ADDR,
2        STRING_ADDR
END STRUCTURE
RECORD /EXIT_DESCRIPTOR/ HANDLER
! Exit handler
EXTERNAL EXIT_HANDLER
   .
   .
   .
! Set up descriptor
EXIT_STRING.SIZE = 12     ! Pass entire string
EXIT_STRING.ADDRESS = %LOC (STRING)
! Enter the handler and argument addresses
! into the exit handler description
HANDLER.ADDR = %LOC(EXIT_HANDLER)
HANDLER.STATUS_ADDR = %LOC(EXIT_STATUS)
HANDLER.STRING_ADDR = %LOC(EXIT_STRING)
! Establish the exit handler
CALL SYS$DCLEXH (HANDLER)
   .
   .
   .

An exit handler can be established at any time during your program and remains in effect until it is canceled (with SYS$CANEXH) or executed. If you establish more than one handler, the handlers are executed in reverse order: the handler established last is executed first; the handler established first is executed last.
