OpenVMS Alpha System Analysis Tools Manual
SHOW GLOBAL_SECTION_TABLE, SHOW GST
Displays information contained in the global section table, including
pageable sections of loadable images.
Format
SHOW GLOBAL_SECTION_TABLE or SHOW GST [/SECTION_INDEX=n]
Parameters
None.
Qualifiers
/SECTION_INDEX=n
Displays only the global section table entry for the specified section.
Description
Displays the entire contents of the global section table, unless you
specify the qualifier /SECTION_INDEX. This command is equivalent to
SHOW PROCESS/PROCESS_SECTION_TABLE/SYSTEM. SDA displays the information
in Table 4-3 for each GST entry.
Table 4-3 Global Section Table Entry Information
| Part |
Definition |
|
INDEX
|
Index number of the entry. Entries in the global section table begin at
the highest location in the table, and the table expands toward lower
addresses.
|
|
ADDRESS
|
Address of the global section table entry.
|
|
SECT/GPTE
|
Virtual address that marks the beginning of the first of the section
described by this entry, if a loadable image; or the virtual address of
the global page table entry for the first page, if a global section.
|
|
CCB
|
Address of the channel control block on which the section file is open.
This field is zero for loadable images.
|
|
PAGELETS
|
Length of the global section. This is in units of pagelets, except for
a PFN-mapped section in which the units are pages.
|
|
VBN
|
Virtual block number. The number of the file's virtual block that is
mapped into the section's first page.
|
|
WINDOW
|
Address of the window control block on which the section file is open.
|
|
REFCNT
|
Number of pages of this section that are currently mapped.
|
|
FLINK
|
Forward link. The pointer to the next entry in the GST list.
|
|
BLINK
|
Backward link. The pointer to the previous entry in the GST list.
|
|
FLAGS
|
Flags that describe the access that the system and processes have to
the global section.
|

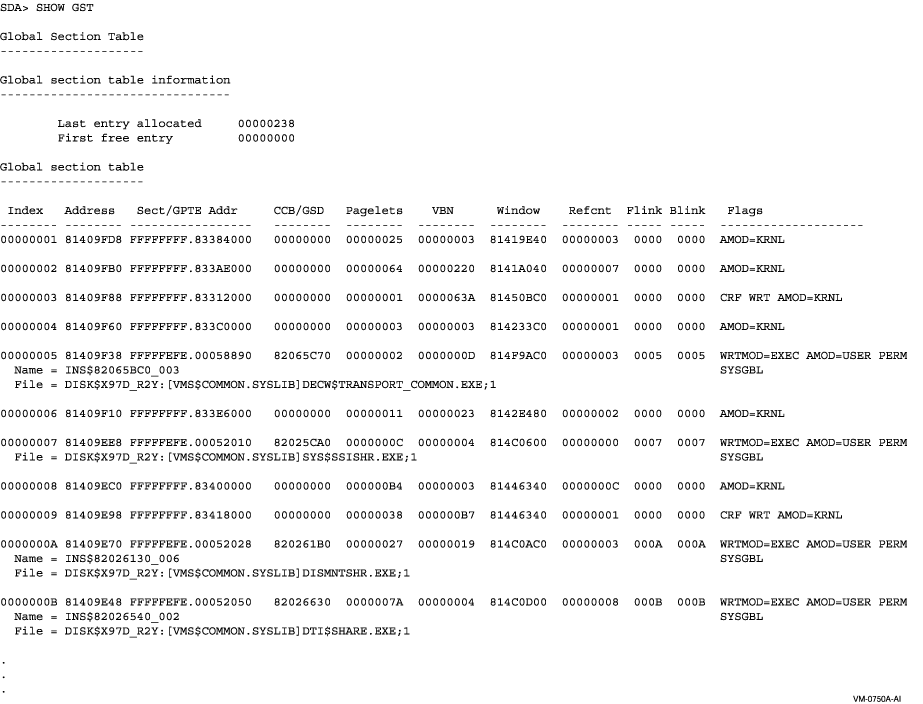

Example
SHOW GLOCK
Displays the Galaxy locks for the Galaxy Management Database (GMDB),
process tables, and/or system tables.
Format
SHOW GLOCK [/BRIEF]
[/GMDB_TABLE]
[/PROCESS_TABLE [=n ]]
[/SYSTEM_TABLE [=n ]]
[/ALL]
[/ADDRESS=n [/PHYSICAL]]
[/HANDLE=n [/LINKED]]
Parameters
None.
Qualifiers
/BRIEF
Displays a single line for each Galaxy lock, regardless of any other
qualifiers.
/GMDB_TABLE
Displays the Galaxy lock table for the Galaxy Management Database
(GMDB) including the embedded and attached Galaxy locks.
/PROCESS_TABLE [=n]
Displays all the process Galaxy lock tables with the embedded and
attached Galaxy locks, as well as a summary table. The
/PROCESS_TABLE=n qualifier displays the single Galaxy lock
table without a summary page.
/SYSTEM_TABLE [=n]
Displays all the system Galaxy lock tables with the embedded and
attached Galaxy locks, as well as a summary table. The
/SYSTEM_TABLE=n qualifier displays the single Galaxy lock
table without a summary page.
/ALL
Displays information provided by the /GMDB_TABLE, /PROCESS_TABLE, and
/SYSTEM_TABLE qualifiers. The /ALL qualifier also displays information
from the base GMDB Galaxy lock.
/ADDRESS=n [/PHYSICAL]
Displays the single Galaxy lock at address n. Because process
Galaxy locks are located by their physical address, you must use the
/PHYSICAL qualifier to enter such an address.
/HANDLE=n [/LINKED]
Displays the single Galaxy lock whose handle is n. The
optional qualifier /LINKED causes SDA to display all Galaxy locks
linked to the one specified.
Examples
| #1 |
SDA> SHOW GLOCK
Galaxy Lock Database
--------------------
Base address of GLock segment of GMDB: FFFFFFFF.7F238000
Length: 00000000.00082000
Nodes: 00000000.00000007 Flags: 00000000.00000000
Process tables: 00000000.00000400 System tables: 00000000.00000400
First free: 00000002 00000001
First used: 00000001 00000000
Embedded GLocks:
GLock address: FFFFFFFF.7F238020 Handle: 80000000.00000805
GLock name: GMDB_GLOCK_LOCK Flags: 00
Owner count: 00 Owner node: 00
Node sequence: 0000 Owner: 000000
IPL: 08 Previous IPL: 00
Wait bitmask: 00000000.00000000 Timeout: 00000000
Thread ID: 00000000.00000000
GLock address: FFFFFFFF.7F238190 Handle: 80000000.00000833
GLock name: PRC_LCKTBL_LOCK Flags: 00
Owner count: 00 Owner node: 00
Node sequence: 0000 Owner: 000000
IPL: 08 Previous IPL: 00
Wait bitmask: 00000000.00000000 Timeout: 00000000
Thread ID: 00000000.00000000
GLock address: FFFFFFFF.7F2381D0 Handle: 80000000.0000083B
GLock name: SYS_LCKTBL_LOCK Flags: 00
Owner count: 00 Owner node: 00
Node sequence: 0000 Owner: 000000
IPL: 08 Previous IPL: 00
Wait bitmask: 00000000.00000000 Timeout: 00000000
Thread ID: 00000000.00000000
|
This example shows the summary of the Galaxy lock database.
| #2 |
SDA> SHOW GLOCK/PROCESS_TABLE
Galaxy Lock Database: Process Lock Table #0001
----------------------------------------------
Base address of Process Lock Table #0001: FFFFFFFF.7F23A000
Lock size: 0040 Flags: 01 VALID
Region Index/Sequence: 0008/00000001 Access mode: 03
Region physical size: 00000000.00002000 Virtual size: 00000000.00002000
Number of locks: 00000000.00000080 Nodes: 00000000.00000007
Per-node reference counts:
Node Count
---- -----
0000 0001
0001 0001
0002 0001
Embedded GLock:
GLock address: FFFFFFFF.7F23A040 Handle: 80000000.00000C09
GLock name: PLCKTBL_LOCK001 Flags: 00
Owner count: 00 Owner node: 00
Node sequence: 0000 Owner: 000000
IPL: 00 Previous IPL: 00
Wait bitmask: 00000000.00000000 Timeout: 00000000
Thread ID: 00000000.00000000
Attached GLocks:
GLock address: P00000000.C05EC7C0 Handle: 00000001.000000F9
GLock name: CPU_BAL_LOCK Flags: 00
Owner count: 00 Owner node: 00
Node sequence: 0000 Owner: 000000
IPL: 00 Previous IPL: 00
Wait bitmask: 00000000.00000000 Timeout: 00000000
Thread ID: 00000000.00000000
.
.
.
GLock address: P00000000.C05EC000 Handle: 00000001.00000001
GLock name: CPU_BAL_LOCK Flags: 00
Owner count: 00 Owner node: 00
Node sequence: 0000 Owner: 000000
IPL: 00 Previous IPL: 00
Wait bitmask: 00000000.00000000 Timeout: 00000000
Thread ID: 00000000.00000000
Used GLock count = 0020
Free GLock count = 0060
Galaxy Lock Database: Process Lock Table Summary
------------------------------------------------
Total used Process Lock Tables: 00000001
Total free Process Lock Tables: 000003FF
|
This example shows the Galaxy locks for all processes.
SHOW GMDB
Displays the contents of the Galaxy Management Database (GMDB) and/or
the node blocks of the instances in the Galaxy system.
Format
SHOW GMDB [/ALL]
[/NODE [=name |=n|/ADDRESS=n ] [/SUMMARY]
Parameters
None.
Qualifiers
/ADDRESS
Specifies the address of a single node block to be displayed when used
with the /NODE qualifier. See the description of the /NODE qualifier.
/ALL
Displays the contents of the Galaxy Management Database and all node
blocks that have ever been used (contents nonzero).
/NODE [=name|=n|/ADDRESS=n]
Displays the contents of the specified node block, given by either the
name of the instance, the partition number, or the address of the node
block. If the /NODE qualifier is given alone, then the node block for
the current instance is displayed.
/SUMMARY
Displays a one-page summary of the GMDB and all node blocks.
Note
The default action displays the contents of the Galaxy Management
Database.
|
Examples
1. SDA> SHOW GMDB
Galaxy Management Database
-------------------------
Base address of GMDB: FFFFFFFF.7F234000
Base address of NODEB for this instance: FFFFFFFF.7F236000
Revision: 1.0 Maximum node ID: 00000003
Creation time: 31-MAR-1999 13:15:08.08 Incarnation: 00000000.00000003
State: OPERATIONAL Creator node: 00000001
Base size: 00000000.00004000 Total size: 00000000.000A6000
Last joiner ID: 00000002 Remover node ID: FFFFFFFF
Last leaver ID: 00000002 Node timeout (msec) 5000.
Lock owner 00000002 Lock flags: 0000
Break owner: FFFFFFFF Breaker ID: FFFFFFFF
Version Information:
Min Version Operational 1.0 Min Version Allowed 1.0
Max Version Operational 1.0
Membership bitmask: FFFFFFFF.7F236800
Valid bits: 00000004 State: 00000000.0000001E AUTO_LOCK TIMEOUT_CRASH....
Unit count: 0001 Unit size: QUADWORD
Lock IPL: 16 Saved IPL: 00000008
Count of bits set: 00000003
Timeout count: 000186A0
Summary bitmask: 00000000.00000001
Unit bitmask:
........ ........ ........ .......7 00000000
Remove node bitmask: FFFFFFFF.7F236880
Valid bits: 00000004 State: 00000000.00000018 SUMMARY_BITS SET_COUNT
Unit count: 0001 Unit size: QUADWORD
Count of bits set: 00000000
Summary bitmask: 00000000.00000000
Unit bitmask:
........ ........ ........ .......0 00000000
Subfacility validation flags: 00000000
Galaxy locks segment: FFFFFFFF.7F238000 Length: 00000000.00082000
Shared memory segment: FFFFFFFF.7F2BA000 Length: 00000000.0000A000
CPU comms segment: FFFFFFFF.7F2C4000 Length: 00000000.00014000
CPU info segment: FFFFFFFF.7F2D8000 Length: 00000000.00002000
Membership segment: FFFFFFFF.7F2DA000 Length: (empty)
MMAP address: FFFFFFFF.7F234200
Level count: 0000 Flags: 0001 VALID
Top page count: 00000053 Virtual size: 00000000.000A6000
PFN list page count: 00000000 First PFN: 00060000
Data page count: 00000053)
|
This example shows the overall summary of the Galaxy Management
Database.
2. SDA> SHOW GMDB/NODE=0
GMDB: Node ID 00000000 (current instance)
-----------------------------------------
Base address of node block: FFFFFFFF.7F236000
Version: 1.0 Node name: ANDA1A
Join time: 31-MAR-1999 14:11:09.08 Incarnation: 00000000.00000005
State: MEMBER Crash_all acknowledge: 00000000
Validation done: 00000000 Reform done: 00000000
IP interrupt mask: 00000000.00000000
Little brother: 00000002 Heartbeat: 00000000.0019EAD1
Big brother: 00000001 Last watched_node: 00000000
Watched_node #0: FFFFFFFF.7F236078 Node watched: 00000002
Last heartbeat: 00000000.0017C1AD Miss count: 00000000)
|
This example shows Galaxy Management Database information for the
specified instance.
SHOW GSD
Displays information contained in the global section descriptors.
Format
SHOW GSD [/ADDRESS=n|/ALL|/DELETED|/GLXGRP
|/GLXSYS|/GROUP|/SYSTEM]
Parameters
None.
Qualifiers
/ADDRESS=n
Displays a specific global section descriptor entry, given its address.
/ALL
Displays information in all the global section descriptors, that is,
the system, group, and deleted global section descriptors, plus the
Galaxy group and Galaxy system global section descriptors, if the
system or dump being analyzed is a member of an OpenVMS Galaxy system.
This qualifier is the default.
/DELETED
Displays information in the deleted (that is, delete pending) global
section descriptors.
/GLXGRP
Displays information in the group global section descriptors of a
Galaxy system.
/GLXSYS
Displays information in the system global section descriptors of a
Galaxy system.
/GROUP
Displays information in the group global section descriptors.
/SYSTEM
Displays information in the system global section descriptors.
Description
The SHOW GSD command displays information that resides in the global
section descriptors. Table 4-4 shows the fields and their meaning.

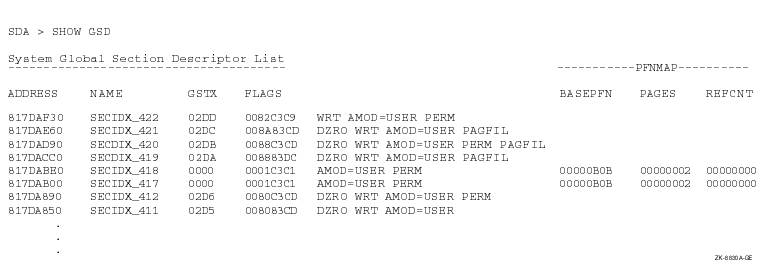

Table 4-4 GSD Fields
| Field |
Meaning |
|
ADDRESS
|
Gives the address of the global section descriptor.
|
|
NAME
|
Gives the name of the global section.
|
|
GSTX
|
Gives the global section table index.
|
|
FLAGS
|
Gives the settings of flags for specified global section, as a
hexadecimal number; also displays key flag bits by name.
|
|
BASEPFN
1
|
Gives physical page frame number at which the section starts.
|
|
PAGES
1
|
Gives number of pages (not pagelets) in section.
|
|
REFCNT
1
|
Gives number of times this global section is mapped.
|
1This field applies only to PFN mapped global sections.
Example
SHOW HEADER
Displays the header of the dump file.
Format
SHOW HEADER
Parameters
None.
Qualifiers
None.
Description
The SHOW HEADER command produces a 10-column display, each line of
which displays both the hexadecimal and ASCII representation of the
contents of the dump file header in 32-byte intervals. Thus, the first
eight columns, when read right to left, represent the hexadecimal
contents of 32 bytes of the header; the ninth column, when read left to
right, records the ASCII equivalent of the contents. (The period [.] in
this column indicates an ASCII character that cannot be displayed.)
After it displays the contents of the header blocks, the SHOW HEADER
command displays the hexadecimal contents of the saved error log
buffers.
See the OpenVMS AXP Internals and Data Structures manual for a discussion of the information
contained in the dump file header. See also the SHOW DUMP and CLUE
ERRLOG commands, which you can use to obtain formatted displays of the
dump header and error log buffers.
Example

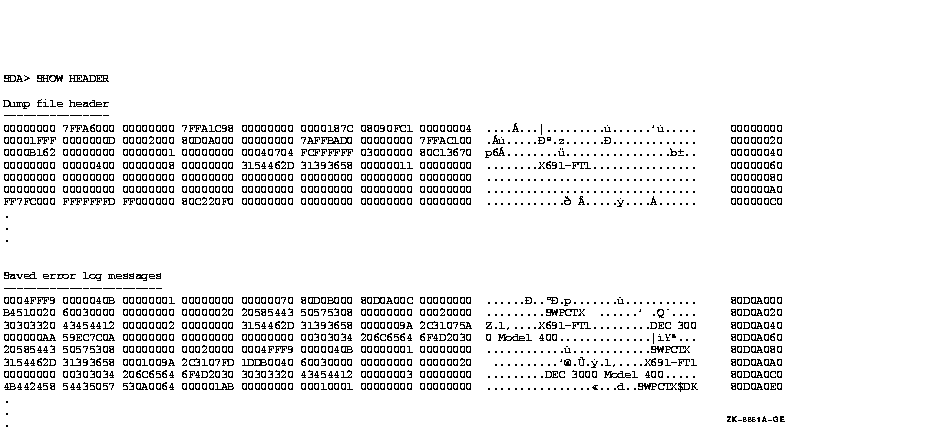

The SHOW HEADER command displays the contents of the dump file's
header. Ellipses indicate hexadecimal information omitted from the
display.
SHOW LAN
Displays information contained in various local area network (LAN) data
structures.
Format
SHOW LAN [/qualifier[,...]]
Parameters
None.
Qualifiers
/CLIENT=name
Specifies that information be displayed for the specified client. Valid
client designators are SCA, DECNET, LAT, MOPRC, TCPIP, DIAG, ELN, BIOS,
LAST, USER, ARP, MOPDL, LOOP, BRIDGE, DNAME, ENCRY, DTIME, and LTM. The
/CLIENT, /DEVICE, and /UNIT qualifiers are synonymous and mutually
exclusive.
/CLUEXIT
Specifies that cluster protocol information be displayed.
/COUNTERS
Specifies that the LAN station block (LSB) and unit control block (UCB)
counters be displayed.
/CSMACD
Specifies that Carrier Sense Multiple Access with Collision Detect
(CSMA/CD) information for the LAN be displayed. By default, both
CSMA/CD and Fiber Distributed Data Interface (FDDI) information is
displayed.
/DEVICE=name
Specifies that information be displayed for the specified device, unit,
or client. For each LAN adapter on the system, there is one
device and multiple users of that device called,
units or clients. Device designators
are specified in the format XXdn, where
XX is the type of device, d is the
device letter, and n is the unit number. The device
letter and unit number are optional. The first unit, which is always
present, is the template unit. These are specified as indicated in this
example for a DEMNA called EX:
/DEVICE=EX---display all EX devices on the system
/DEVICE=EXA---display the first EX device only
/DEVICE=EXA0---display the first EXA unit
/DEVICE=SCA---display SCA unit
/DEVICE=LAT---display LAT units
Valid client names are listed in the /CLIENT=name qualifier.
The /CLIENT, /DEVICE, and /UNIT qualifiers are synonymous and mutually
exclusive.
/ELAN
Specifies information from an Emulated LAN (ELAN) that runs over an
asynchronous transfer mode (ATM) network. The /ELAN qualifier displays
the LAN Station Block (LSB) address, device state, and the LSB fields
pertinent to an ELAN for both the parent ATM device and the ELAN
pseudo-device drivers. It also specifies the name, description, parent
device, state, and LAN emulation client (LEC) attributes of the ELAN.
The qualifier /ELAN used with the device qualifier (/ELAN/DEVICE=ELA)
will only display information for the specified device or pseudo-device.
/ERRORS
Specifies that the LSB and UCB error counters be displayed.
/FDDI
Specifies that Fiber Distributed Data Interface (FDDI) information for
the LAN be displayed. By default, both CSMA/CD and FDDI information is
displayed.
/FULL
Specifies that all information from the LAN, LSB, and UCB data
structures be displayed.
/COUNTERS
Specifies internal counters of the drivers by displaying the internal
counters. If the /ICOUNTERS qualifier is used with the /DEVICE
qualifier, the /ICOUNTERS specifies the internal counters of a specific
driver.
/QUEUE
Specifies a listing of all queues, whether their status is valid or
invalid, and all elements of the queues. If the /QUEUE qualifier is
used with the /DEVICE qualifier, the /QUEUE specifies a specific queue.
/SUMMARY
Specifies that only a summary of LAN information (a list of flags,
LSBs, UCBs, and base addresses) be printed. This is the default.
/TIMESTAMPS
Specifies that time information (such as start and stop times and error
times) from the device and unit data structures be printed. SDA
displays the data in chronological order.
/UNIT=name
Specifies that information be displayed for the specified unit. See the
descriptions for /CLIENT=name and /DEVICE=name
qualifiers.
/VCI
Specifies that information be displayed for the VMS Communication
Interface Block (VCIB) for each LAN device with an active VCI user. If
you use the /VCI qualifier with the /DEVICE qualifier, the VCIB is only
displayed for the specified device.
Description
The SHOW LAN command displays information contained in various local
area network (LAN) data structures. By default, or when the /SUMMARY
qualifier is specified, SHOW LAN displays a list of flags, LSBs, UCBs,
and base addresses. When the /FULL qualifier is specified, SHOW LAN
displays all information found in the LAN, LSB, and UCB data structures.
Examples
| #1 |
SDA> SHOW LAN/FULL
LAN Data Structures
-------------------
-- LAN Information Summary 23-MAY-1996 13:07:52 --
LAN flags: 00000004 LAN_INIT
LAN block address 80DB7140 Timer DELTA time 1000000
0
Number of stations 2 DAT sequence number
1
LAN module version 1 First SVAPTE FFDF60F
0
LANIDEF version 51 Number of PTEs
3
LANUDEF version 26 SVA of first page 8183C00
0
First LSB address 80DCA980
-- LAN CSMACD Network Management 23-MAY-1996 13:07:52 --
Creation time None Times created
0
Deletion time None Times deleted
0
Module EAB 00000000 Latest EIB 0000000
0
Port EAB 00000000
Station EAB 00000000
NM flags: 00000000
-- LAN FDDI Network Management 23-MAY-1996 13:07:52 --
Creation time None Times created
0
Deletion time None Times deleted
0
Module EAB 00000000 Link EAB 00000000
Port EAB 00000000 PHY port EAB 0000000 0
Station EAB 00000000 Module EIB 0000000 0
NM flags: 00000000
LAN Data Structures
-------------------
-- ESA Device Information 23-MAY-1996 13:07:52 --
LSB address 80DCA980 Driver code address 80CAE83 8
Driver version 00000001.07010037 Device1 code address 0000000 0
Device1 version 00000000.00000000 Device2 code address 0000000
0
Device2 version 00000000.00000000 LAN code address 80CAFA0 0
LAN version 00000001.07010112 DLL type CSMAC D
Device name EY_NITC2 MOP name MX E
MOP ID 94 HW serial Not supplie d
HW version 00000000 Promiscuous mode OF F
Controller mode NORMAL Promiscuous UCB 0000000 0
Internal loopback OFF All multicast state OFF
Hardware address 08-00-03-DE-00-12 CRC generation mode ON
Physical address AA-00-04-00-88-FE Full Duplex Enable OF
F
Active unit count 1 Full Duplex State OF
F
Line speed 10
Flags: 00000000
Char: 00000000
Status: 00000003 RUN,INITED
LAN Data Structures
-------------------
-- ESA Device Information (cont) 23-MAY-1996 13:07:52 --
Put rcv ptr/index 00000000 Get rcv ptr/index 0000001 5
Put xmt ptr/index 80DCB620 Get xmt ptr/index 80DCB62 0
Put cmd ptr/index 00000000 Get cmd ptr/index 0000000 0
Put uns ptr/index 00000000 Get uns ptr/index 0000000 0
Put smt ptr/index 00000000 Get smt ptr/index 0000000 0
RBufs owned by dev 0 Rcv packet limit 3 2
XEnts owned by dev 0 XEnts owned by host 4
CEnts owned by dev 0 Transmit timer 0
UEnts owned by dev 0 Control timer 0
SEnts owned by dev 0 Periodic SYSID timer 59 9
Current rcv buffers 17 Ring unavail timer 0
Rqst MAX rcv buffers 32 USB timer 2 6
Rqst MIN rcv buffers 16 Receive alignment 0
Curr MAX rcv buffers 32 Receive buffer size 151 8
Curr MIN rcv buffers 16 Min 1st chain segment 0
FILL rcv buffers 16 Min transmit length 0
ADD rcv buffers 32 Dev xmt header size 0
LAN Data Structures
-------------------
-- ESA Device Information (cont) 23-MAY-1996 13:07:52 --
Last receive 23-MAY 13:07:51 Last transmit 23-MAY 13:07:5 0
ADP address 80D4B280 IDB address 80DCA88 0
DAT stage 00000000 DAT xmt status 0000003C.003C000 1
DAT number started 1 DAT xmt complete 23-MAY 13:07:19
DAT number failed 0 DAT rcv found Non e
DAT VCRP 80DCBB80 DAT UCB 0000000 0
Mailbox enable flag 0 CRAM read comman 0000000 0
CSR base phys addr 00000000.00000000 CRAM write comma 0000000 0
Mailboxes in use 0 Media UND F
2nd LW status flags 00000000
LAN Data Structures
-------------------
-- ESA Network Management Information 23-MAY-1996 13:07:52 --
Creation time None Create count 0
Deletion time None Enable count 0
Deletion time None Enable count 0
Enabled time None Number of ports 0
Disabled time None Events logged 0
EIB address 00000000 NMgmt assigned addr Non e
LLB address 00000000 Station name itmlst 00000000
LHB address 00000000 Station itmlst len 0
First LPB address 00000000
LAN Data Structures
-------------------
-- ESA Fork Information 23-MAY-1996 13:07:52 --
ISR FKB sched 23-MAY 13:07:51 ISR FKB in use flag FRE E
ISR FKB time 23-MAY 13:07:51 ISR FKB count 200
IPL8 FKB sched 23-MAY 13:07:20 IPL8 FKB in use flag FRE E
IPL8 FKB time 23-MAY 13:07:20 IPL8 FKB count 1
RESET FKB sched None RESET FKB in use flag FRE E
RESET FKB time None RESET FKB count 0
NM FKB sched None NM FKB in use flag FRE E
NM FKB time None NM FKB count 0
Fork status code 0
LAN Data Structures
-------------------
-- ESA Queue Information 23-MAY-1996 13:07:52 --
Control hold queue 80DCACF0 Status: Valid, empty
Control request queue 80DCACF8 Status: Valid, empty
Control pending queue 80DCAD00 Status: Valid, empty
Transmit request queue 80DCACE8 Status: Valid, empty
Transmit pending queue 80DCAD18 Status: Valid, empty
Receive buffer list 80DCAD38 Status: Valid, 17 elements
Receive pending queue 80DCAD20 Status: Valid, empty
Post process queue 80DCAD08 Status: Valid, empty
Delay queue 80DCAD10 Status: Valid, empty
Auto restart queue 80DCAD28 Status: Valid, empty
Netwrk mgmt hold queue 80DCAD30 Status: Valid, empty
-- ESA Multicast Address Information 23-MAY-1996 13:07:52 --
AB-00-00-04-00-00
-- ESA Unit Summary 23-MAY-1996 13:07:52 --
UCB UCB Addr Fmt Value Client State
--- -------- --- ----- ------ -----------
ESA0 80D4F6C0
ESA1 80E35400 Eth 60-03 DECNET 0017 STRTN,LEN,UNIQ,STRTD
LAN Data Structures
-------------------
-- ESA Counters Information 23-MAY-1996 13:07:52 --
Octets received 596 Octets sent 23 0
PDUs received 8 PDUs sent 5
Mcast octets received 596 Mcast octets sent 13 8
Mcast PDUs received 8 Mcast PDUs sent 3
Unrec indiv dest PDUs 0 PDUs sent, deferred 0
Unrec mcast dest PDUs 1 PDUs sent, one coll 0
Data overruns 0 PDUs sent, mul coll 0
Unavail station buffs 0 Excessive collisions 0
Unavail user buffers 0 Late collisions 0
CRC errors 0 Carrier check failure Noner failure Non
Rcv data length err 0 Coll detect chk fail 0
Frame size errors 0 Short circuit failure 0
Frames too long 0 Open circuit failure 0
Seconds since zeroed 34 Transmits too long 0
Station failures 0 Send data length err 0
LAN Data Structures
-------------------
-- ESA Counters Information (cont) 23-MAY-1996 13:07:52 --
No work transmits 0 Ring avail transitions 0
Buffer_Addr transmits 0 Ring unavail transitions 0
SVAPTE/BOFF transmits 0 Loopback sent 0
Global page transmits 0 System ID sent 0
Bad PTE transmits 0 ReqCounters sent 0
Restart pending counter 0 Internal counters size 4 0
+00 MCA not enabled 187 +2C Generic (or unused) 0000000 0
+04 Xmt underflows 0 +30 Generic (or unused) 0000000 0
+08 Rcv overflows 0 +34 Generic (or unused) 0000000 0
+0C Memory errors 0 +38 Generic (or unused) 80DCAD1 0
+10 Babbling errors 0 +3C Generic (or unused) 80DCAD1 0
+14 Local buffer errors 0 +40 Generic (or unused) 004E084 0
+18 LANCE interrupts 202 +44 Generic (or unused) 6161616 0
+1C Xmt ring <31:0> 00000000 +48 Generic (or unused) 6161616 0
+20 Xmt ring <63:32> 00000000 +4C Generic (or unused) 6161616 0
+24 Soft errors handled 0 +50 Generic (or unused) 6161616 0
+28 Generic (or unused) 00000000 +54 Generic (or unused) 6161616 0
LAN Data Structures
-------------------
-- ESA Error Information 23-MAY-1996 13:07:52 --
Fatal error count 0 Last error CSR 0000000 0
Fatal error code None Last fatal error Non e
Prev error code None Prev fatal error Non e
Transmit timeouts 0 Last USB time Non e
Control timeouts 0 Last UUB time Non e
Restart failures 0 Last CRC time Non e
Power failures 0 Last CRC srcadr Non e
Bad PTE transmits 0 Last length erro Non e
Loopback failures 0 Last exc collisi Non e
System ID failures 0 Last carrier fai Non e
ReqCounters failures 0 Last late collis Non e
LAN Data Structures
-------------------
-- ESA0 Template Unit Information 23-MAY-1996 13:07:52 --
LSB address 80DCA980 Error count 0
VCIB address 00000000 Parameter mask 0000000 0
Stop IRP address 00000000 Promiscuous mode OF F
Restart IRP address 00000000 All multicast mode OF F
LAN medium CSMACD Source Routing mode TRANSPAREN T
Packet format Ethernet Access mode EXCLUSIV E
Eth protocol type 00-00 Shared user DES Non e
802E protocol ID 00-00-00-00-00 Padding mode O 0
802.2 SAP 00 Automatic restart DISABLE D
802.2 Group SAPs 00,00,00,00 Allow prom client O 0
Controller mode NORMAL Can change address OF F
Internal loopback OFF 802.2 service Use r
CRC generation mode ON Rcv buffers to save 1
Functional Addr mod ON Minimum rcv buffers 4
Hardware address 08-00-03-DE-00-12 User transmit FC/AC O N
Physical address FF-FF-FF-FF-FF-FF User receive FC/AC OF F
LAN Data Structures
-------------------
-- ESA1 60-03 (DECNET) Unit Information 23-MAY-1996 13:07:52 --
LSB address 80DCA980 Error count 0
VCIB address 00000000 Parameter mask 00DA869 5
Stop IRP address 80E047C0 Promiscuous mode OF F
Restart IRP address 00000000 All multicast mode OF F
LAN medium CSMACD Source Routing mode TRANSPAREN T
Packet format Ethernet Access mode EXCLUSIV E
Eth protocol type 60-03 Shared user DES Non e
802E protocol ID 00-00-00-00-00 Padding mode O 0
802.2 SAP 00 Automatic restart DISABLE D
802.2 Group SAPs 00,00,00,00 Allow prom client O 0
Controller mode NORMAL Can change address OF F
Internal loopback OFF 802.2 service Use r
CRC generation mode ON Rcv buffers to save 1 0
Functional Addr mod ON Minimum rcv buffers 4
Hardware address 08-00-03-DE-00-12 User transmit FC/AC O N
Physical address AA-00-04-00-88-FE User receive FC/AC OF F
LAN Data Structures
-------------------
-- ESA1 60-03 (DECNET) Unit Information (cont) 23-MAY-1996 13:07:52 --
Last receive 23-MAY 13:07:47 Starter's PID 0001000 F
Last transmit 23-MAY 13:07:50 Maximum header size 1 6
Last start attempt 23-MAY 13:07:20 Maximum buffer size 149 8
Last start done 23-MAY 13:07:20 Rcv quota charged 1504 0
Last start failed None Default FC value 0 0
MCA match enabled 01 Default AC value 0 0
Last MCA filtered AB-00-00-04-00-00 Maintenance state ON
UCB status: 00000017 STRTN,LEN,UNIQ,STRTD
Receive IRP queue 80E356E8 Status: Valid, 1 element
Receive pending queue 80E356E0 Status: Valid, empty
Multicast address table, embedded:
AB-00-00-04-00-00
LAN Data Structures
-------------------
-- ESA1 60-03 (DECNET) Counters Information 23-MAY-1996 13:07:52 --
Octets received 483 Octets sent 180
PDUs received 7 PDUs sent 3
Mcast PDUs received 7 Mcast PDUs sent 180
Unavail user buffer 0 Multicast not enabled 0
Last UUB time None User buffer too small 0
|
|
