This manual describes a set of routines that the HP OPENVMS operatingsystem uses to control resources, to allow process communication, tocontrol I/O, and to perform other such operating system functions.

Revision/Update Information:This manual supersedes the
HP OpenVMS System Services Reference Manual, Version 7.3-1

Software Version:OpenVMS Version 7.3-2

Hewlett-Packard Company
Palo Alto, California

© Copyright 2003 Hewlett-Packard Development Company, L.P.

Microsoft^®, MS-DOS^®, VisualC++^®, Windows^®, and WindowsNT^® are U.S. registered trademarks of MicrosoftCorporation.

Intel and Intel Inside are trademarks or registered trademarks of IntelCorporation in the U.S. and other countries and are used under license.Pentium^® is a U.S. registered trademark of IntelCorporation.

Motif and OSF/1 are trademarks of The Open Group in the U.S. and othercountries. UNIX^® is a registered trademark of The OpenGroup.

The information contained herein is subject to change without notice.The only warranties for HP products and services are set forth in theexpress warranty statements accompanying such products and services.Nothing herein should be construed as constituting an additionalwarranty. HP shall not be liable for technical or editorial errors oromissions contained herein.

Proprietary computer software. Valid license from HP required forpossession, use or copying. Consistent with FAR 12.211 and 12.212,Commercial Computer Software, Computer Software Documentation, andTechnical Data for Commercial Items are licensed to the U.S. Governmentunder vendor's standard commercial license.

ZK4527

The HP OpenVMS documentation set is available on CD-ROM.

Intended Audience

This manual is intended for system and application programmers who wantto call system services.

System Services Support for HP OpenVMS Alpha64-bit Addressing

As of Version 7.0, the HP OpenVMS Alpha operating system providessupport for 64-bit virtual memory addresses. This support makes the64-bit virtual address space defined by the Alpha architectureavailable to the OpenVMS Alpha operating system and to applicationprograms. In the 64-bit virtual address space, both process-private andsystem virtual address space extend beyond 2 GB. By using 64-bitaddress features, programmers can create images that map and accessdata beyond the previous limits of 32-bit virtual addresses.

New OpenVMS system services are available, and many existing serviceshave been enhanced to manage 64-bit address space. The system servicesdescriptions in this manual indicate the services that accept 64-bitaddresses. A list of the OpenVMS system services that accept 64-bitaddresses is available in the OpenVMS Programming Concepts Manual.

The following section briefly describes how 64-bit addressing supportaffects OpenVMS system services. For complete information about OpenVMSAlpha 64-bit addressing features, refer to the OpenVMS Programming Concepts Manual.

64-Bit System Services Terminology

32-Bit System Service

A 32-bit system service only supports 32-bit addresses on any of itsarguments that specify addresses. If passed by value on OpenVMS Alpha,a 32-bit virtual address is actually a 64-bit address that issign-extended from 32 bits.

64-Bit Friendly Interface

A 64-bit friendly interface can be called with all 64-bit addresses. A32-bit system service interface is 64-bit friendly if, without a changein the interface, it needs no modification to handle 64-bit addresses.The internal code that implements the system service might needmodification, but the system service interface will not.

64-Bit System Service

A 64-bit system service is defined to accept all address arguments as64-bit addresses (not necessarily 32-bit sign-extended values). A64-bit system service also uses the entire 64 bits of all virtualaddresses passed to it.

Sign-Extension Checking

The OpenVMS system services that do not support 64-bit addresses andall user-written system services that are not explicitly enhanced toaccept 64-bit addresses receive sign-extension checking. Any argumentpassed to these services that is not properly sign-extended causes theerror status SS$_ARG_GTR_32_BITS to be returned.

Related Documents

The OpenVMS Programming Concepts Manual contains useful information for anyone who wants tocall system services.

High-level language programmers can find additional information aboutcalling system services in the language reference manual and languageuser's guide provided with the OpenVMS language.

Application developers using XA-compliant or other resource managersshould refer to the OpenVMS Programming Concepts Manual.

The following documents might also be useful:

• OpenVMS Programming Concepts Manual
• Guide to OpenVMS File Applications
• HP OpenVMS Guide to System Security
• DECnet-Plus for OpenVMS Introduction and User's Guide
• OpenVMS Record Management Services Reference Manual
• HP OpenVMS I/O User's Reference Manual
• OpenVMS Alpha Guide to Upgrading Privileged-Code Applications

For additional information about HP OpenVMS products and services,visit the following World Wide Web address:

http://www.hp.com/products/openvms

Reader's Comments

HP welcomes your comments on this manual. Please send comments toeither of the following addresses:

How To Order Additional Documentation

For information about how to order additional documentation, visit thefollowing World Wide Web address:

http://www.hp.com/go/openvms/doc/order

Conventions

The following conventions are used in this manual:

Condition values returned by system services not only indicate whetherthe service completed successfully, but can also provide otherinformation. While the usual condition value indicating success isSS$_NORMAL, other values are also defined. For example, the conditionvalue SS$_BUFFEROVERF, which is returned when a character stringreturned by a service is longer than the buffer provided to receive it,is a success code, but it also provides additional information.

Warning returns and some error returns indicate that the service mayhave performed some, but not all, of the requested function.

The particular condition values that each service can return aredescribed in the Condition Values Returned section of each individualservice description.

Returns

Longword condition value. All system services (except $EXIT) return byimmediate value a condition value in R0.

Ends a transaction by aborting it.

Format

SYS$ABORT_TRANS [efn] ,[flags] ,iosb [,[astadr] ,[astprm] ,[tid],[reason] ,[bid]]

C Prototype

int sys$abort_trans (unsigned int efn, unsigned int flags, struct _iosb*iosb,...);

Arguments

efn

OpenVMS usage:	ef_number
type:	longword (unsigned)
access:	read only
mechanism:	by value

Number of the event flag that is set when the service completes. Ifthis argument is omitted, event flag 0 is used.

flags

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Flags specifying options for the service. The flagsargument is a longword bit mask in which each bit corresponds to anoption flag. The $DDTMDEF macro defines symbolic names for these optionflags, described in Table SYS-1. All undefined bits must be 0. If thisargument is omitted, no flags are used.

Table SYS-1 $ABORT_TRANS Option Flags

Flag	Description
DDTM$M_NOWAIT	Set this flag to indicate that the service should return to the caller without waiting for final cleanup. Note that $ABORT_TRANSW with the DDTM$M_NOWAIT flag set is not equivalent to $ABORT_TRANS. $ABORT_TRANS returns when the operation has been queued. The former does not return until the operation has been initiated. The latter returns as soon as the operation has been queued. The full range of status values may be returned from a nowait call.
DDTM$M_SYNC	Set this flag to specify that successful synchronous completion is to be indicated by returning SS$_SYNCH. When SS$_SYNCH is returned, the AST routine is not called, the event flag is not set, and the I/O status block is not filled in.

iosb

OpenVMS usage:	io_status_block
type:	quadword (unsigned)
access:	write only
mechanism:	by reference

I/O status block in which the following information is returned:

• The completion status of the service, returned as a condition value. See the Condition Values Returned section.
• An abort reason code that gives one reason why the transaction aborted, if the completion status of the service is SS$_NORMAL.
  Note that, if there are multiple reasons why the transaction aborted, the abort reason code returned in the I/O status block might not be the same as the abort reason code passed in the reason argument. The DECdtm transaction manager returns one of the reasons in the I/O status block. It may return different reasons to different branches of the transaction.
  For example, if the call to $ABORT_TRANS gives DDTM$_ABORTED as the reason and the transaction timeout expires at about the same time as the call to $ABORT_TRANS, then either the DDTM$_TIMEOUT or DDTM$_ABORTED reason code can be returned in the I/O status block.

The $DDTMMSGDEF macro defines symbolic names for abort reason codes,which are defined in Table SYS-2:

Table SYS-2 Abort Reason Codes

Symbolic Name	Description
DDTM$_ABORTED	The application aborted the transaction without giving a reason.
DDTM$_COMM_FAIL	A communications link failed.
DDTM$_INTEGRITY	A resource manager integrity constraint check failed.
DDTM$_LOG_FAIL	A write operation to the transaction log failed.
DDTM$_ORPHAN_BRANCH	An unauthorized branch caused failure.
DDTM$_PART_SERIAL	A resource manager serialization check failed.
DDTM$_PART_TIMEOUT	The timeout specified by a resource manager expired.
DDTM$_SEG_FAIL	A process or image terminated.
DDTM$_SERIALIZATION	A DECdtm transaction manager serialization check failed.
DDTM$_SYNC_FAIL	The transaction was not globally synchronized; an authorized branch was not added to the transaction.
DDTM$_TIMEOUT	The timeout specified on $START_TRANS expired.
DDTM$_UNKNOWN	The reason is unknown.
DDTM$_VETOED	A resource manager was unable to commit the transaction.

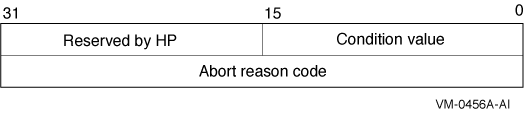

The following diagram shows the structure of the I/O status block:

astadr

astprm

tid

If this argument is omitted, $ABORT_TRANS aborts the defaulttransaction of the calling process.

reason

The default value for this argument is DDTM$_ABORTED.

bid

The default value of this argument is zero, which is the BID of thebranch that started the transaction.

Description

The Abort Transaction service ends a transaction by aborting it.

The $ABORT_TRANS system service:

• Initiates abort processing for the specified transaction, if it has not already been initiated.
  If abort processing has not already been initiated, the DECdtm transaction manager instructs the resource managers to abort (roll back) the transaction operations so that none of those operations ever take effect. It delivers an abort event to each RM participant in the transaction that is associated with an RMI that requested abort events.
• Removes the specified branch from the specified transaction in this process.

Preconditions for the successful completion of $ABORT_TRANS include:

• If the BID is zero, the calling process must have started the transaction.
• If the BID is nonzero, the calling process must contain the specified branch of the specified transaction.
• If the BID is nonzero, the tid argument must not be omitted. If you explicitly pass the BID, you must also explicitly pass the TID.

$ABORT_TRANS may fail for various reasons, including:

• The preconditions were not met.
• There has already been a call to $ABORT_TRANS, $END_TRANS, or $END_BRANCH for the specified branch.

Postconditions on successful completion of $ABORT_TRANS are listed inTable SYS-3:

Table SYS-3 Postconditions When$ABORT_TRANS Completes Successfully

Postcondition	Meaning
The transaction is ended.	If DDTM$M_NOWAIT is clear: The TID of the transaction is invalid; calls to any DECdtm system services except $GETDTI and $SETDTI that pass the TID will fail, and calls to resource managers that pass the TID will fail. The transaction no longer has any application or RM participants on the local node. All communications about the transaction between the local DECdtm transaction manager and other DECdtm transaction managers are finished (including the final "cleanup" acknowledgment).
The outcome of the transaction is abort.	None of the operations of the transaction will ever take effect.
DECdtm quotas are returned.	If DDTM$M_NOWAIT is clear, all quotas allocated for the transaction by calls on the local node to DECdtm services are now returned.
The transaction is not the default transaction of the calling process.	If DDTM$M_NOWAIT is clear, then, if the transaction was the default transaction of the calling process, it is now no longer the default.

$ABORT_TRANS will not complete successfully (that is, the event flagwill not be set, the AST routine will not be called, and the I/O statusblock will not be filled in) until all branches on the local node havebeen removed from the transaction. Thus this call to $ABORT_TRANScannot complete successfully until every authorized and synchronizedbranch on the local node has initiated a call to $END_TRANS,$END_BRANCH, or $ABORT_TRANS.

$ABORT_TRANS must deliver notification ASTs to resource managersparticipating in the transaction. Therefore it will not completesuccessfully while the calling process is either:

• In an access mode that is more privileged than the DECdtm calls made by any resource manager participating in the transaction. RMS journaling calls DECdtm in executive mode. Oracle Rdb and Oracle CODASYL DBMS call DECdtm in user mode.
• At AST level in the same access mode as the least privileged DECdtm calls made by any resource manager participating in the transaction.

For example, if Oracle Rdb is a participant in the transaction,$ABORT_TRANS will not complete successfully while the calling processis in supervisor, executive, or kernel mode, or while the callingprocess is at AST level.

Note that successful completion of $ABORT_TRANS is not indefinitelypostponed by network failure.

Required Access or Privileges

None

Required Quotas

ASTLM

Related Services

$ABORT_TRANSW, $ACK_EVENT, $ADD_BRANCH, $ADD_BRANCHW, $CREATE_UID,$DECLARE_RM, $DECLARE_RMW, $END_BRANCH, $END_BRANCHW, $END_TRANS,$END_TRANSW, $FORGET_RM, $FORGET_RMW, $GETDTI, $GETDTIW,$GET_DEFAULT_TRANS, $JOIN_RM, $JOIN_RMW, $SETDTI, $SETDTIW,$SET_DEFAULT_TRANS, $SET_DEFAULT_TRANSW, $START_BRANCH, $START_BRANCHW,$START_TRANS, $START_TRANSW, $TRANS_EVENT, $TRANS_EVENTW

Condition Values Returned

SS$_NORMAL	If this was returned in R0, the request was successfully queued. If it was returned in the I/O status block, the service completed successfully.
SS$_SYNCH	The service completed successfully and synchronously (returned only if the DDTM$M_SYNC flag is set).
SS$_ACCVIO	An argument was not accessible by the caller.
SS$_BADPARAM	The options flags were invalid or the tid argument was omitted and the bid argument was not zero.
SS$_BADREASON	The abort reason code was invalid.
SS$_CURTIDCHANGE	The tid argument was omitted and a call to change the default transaction of the calling process was in progress.
SS$_EXASTLM	The process AST limit (ASTLM) was exceeded.
SS$_ILLEFC	The event flag number was invalid.
SS$_INSFARGS	A required argument was missing.
SS$_INSFMEM	There was insufficient system dynamic memory for the operation.
SS$_NOCURTID	An attempt was made to abort the default transaction (the tid argument was omitted), but the calling process did not have a default transaction.
SS$_NOLOG	The local node did not have a transaction log.
SS$_NOSUCHBID	The calling process did not contain the branch identified by the BID passed in the bid argument (possibly because there has already been a call to $ABORT_TRANS, $END_TRANS, or $END_BRANCH for that branch). This error is returned only if the bid argument is not zero.
SS$_NOSUCHTID	A transaction with the specified transaction identifier does not exist.
SS$_NOTORIGIN	A bid of zero was specified and the calling process did not start the transaction.
SS$_TPDISABLED	The TP_SERVER process was not running on the local node.
SS$_WRONGSTATE	Commit processing for the transaction had already started. This can occur if bid is zero or the specified branch was unsynchronized.

Ends a transaction by aborting it.

$ABORT_TRANSW always waits for the request to complete before returningto the caller. Other than this, it is identical to $ABORT_TRANS.

Do not call $ABORT_TRANSW from AST level, or from an access mode thatis more privileged than the DECdtm calls made by any resource managerparticipant in the transaction. If you do, the $ABORT_TRANSW servicewill wait indefinitely.

Format

SYS$ABORT_TRANSW [efn] ,[flags] ,iosb [,[astadr] ,[astprm] ,[tid],[reason] ,[bid]]

C Prototype

int sys$abort_transw (unsigned int efn, unsigned int flags, struct_iosb *iosb,...);

Acknowledges an event reported to a Resource Manager (RM) participantor Resource Manager instance (RMI).

Format

SYS$ACK_EVENT [flags] ,report_id ,report_reply [,[reason] ,[beftime],[afttime] ,[part_name] ,[rm_context], [timout]]

C Prototype

int sys$ack_event (unsigned int flags, unsigned int report_id, intreport_reply,...);

Arguments

flags

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Reserved to HP. This argument must be zero.

report_id

OpenVMS usage:	identifier
type:	longword (unsigned)
access:	read only
mechanism:	by value

The identifier of the event report being acknowledged by this call to$ACK_EVENT.

report_reply

OpenVMS usage:	cond_value
type:	longword (unsigned)
access:	read only
mechanism:	by value

Acknowledgment code appropriate to the event being acknowledged by thiscall to $ACK_EVENT. The following tables give the valid acknowledgmentcodes for the various events. The title of each table gives the event,and in brackets, its event code. The event code is passed in the eventreport block (see $DECLARE_RM).

Acknowledgment of prepare or one-phase commit events gives a vote onthe outcome of the transaction---either to commit or to abort. Thetables for these events have a column labeled "Vote". A "yes" votemeans that the RM participant wants to commit the transaction, while a"no" vote means that the RM participant cannot commit. The transactionwill be committed only if all participants vote "yes".

Table SYS-4 Replies to an Abort Event Report (DDTM$K_ABORT)

report_reply

Description

SS$_FORGET

RM participant guarantees that the effects of its transaction operations will never be detected by any transaction that commits. Side effects: On successful completion of the call to $ACK_EVENT, the RM participant is removed from the transaction, and the ASTLM quota consumed by the call to $JOIN_RM or $ACK_EVENT that added it to the transaction is returned. DECdtm also releases any application threads that are waiting for the transaction to end (necessary but not sufficient condition). Any call to $END_TRANS, $END_BRANCH, or $ABORT_TRANS on a node for a transaction whose outcome is abort is not allowed to complete until after all abort event reports delivered to RM participants on that node have been acknowledged.

Table SYS-5 Replies to a Commit Event Report (DDTM$K_COMMIT)

report_reply	Description
SS$_FORGET	Allows the DECdtm transaction manager to forget the RM participant. The RM participant must not give this reply until it has either: Completed the commit processing for its transaction operations. Safely stored enough information to ensure that this commit processing will inevitably complete (for example, logged that the transaction has committed in a private log). If the RM participant is associated with a nonvolatile RMI, then at some point after receiving this reply, the DECdtm transaction manager will delete the name of the RM participant from the transaction database. After SS$_FORGET replies have been given for all the RM participants in a transaction, that transaction ceases to be recoverable (some time after all these replies are given, the transaction is deleted from the transaction database). A subsequent call to $GETDTI can lead the resource manager to wrongly assume that the transaction had aborted. If there is a failure after this reply is sent, a recoverable resource manager must be able to rely on its own safely stored information to determine if any of the commit processing associated with the RM participant needs to be restarted. Side effects: On successful completion of the call to $ACK_EVENT, the RM participant is removed from the transaction, and the ASTLM quota consumed by the call to $JOIN_RM or $ACK_EVENT that added it to the transaction is returned. DECdtm also releases any application threads that are waiting for the transaction to end (necessary but not sufficient condition). Any call to $END_TRANS or $END_BRANCH on a node for a transaction whose outcome is commit cannot complete successfully until all commit event reports delivered to RM participants on that node have been acknowledged.
SS$_REMEMBER	The RM participant requires that the DECdtm transaction manager stores its name and the outcome of the transaction (commit) in the transaction database. Note that for an RM participant associated with a volatile RMI, SS$_REMEMBER is treated in the same way as SS$_FORGET. Side effects: On successful completion of the call to $ACK_EVENT, the RM participant is removed from the transaction, and the ASTLM quota consumed by the call to $JOIN_RM or $ACK_EVENT that added it to the transaction is returned. DECdtm also releases any application threads that are waiting for the transaction to end (necessary but not sufficient condition). Any call to $END_TRANS or $END_BRANCH on a node for a transaction whose outcome is commit cannot complete successfully until all commit event reports delivered to RM participants on that node have been acknowledged.

Table SYS-6 Replies to a One-phase Commit Event Report (DDTM$K_ONE_PHASE_COMMIT)

report_reply	Vote	Meaning
SS$_NORMAL	Yes	The RM participant decided to commit the transaction, and has safely stored enough information to be able to keep this guarantee even if there is a recoverable failure, caused, for example, by a node crash. The DECdtm transaction manager does not log any information about the transaction. Side effects: On successful completion of the call to $ACK_EVENT, the RM participant is removed from the transaction, the transaction is ended, and the ASTLM quota consumed by the call to $JOIN_RM or $ACK_EVENT that added the RM participant to the transaction is returned. DECdtm also allows the call to $END_TRANS to complete (necessary and sufficient condition).
SS$_PREPARED	Yes	RM participant decided not to accept the opportunity to decide the outcome of the transaction. It has performed only prepare processing for the transaction and requires full two-phase commit processing. This is equivalent to voting SS$_PREPARED on a prepare event. The RM participant can either commit or abort the operations of the transaction, and guarantees that it will abide by the DECdtm transaction manager's decision on whether the transaction (and therefore these operations) are committed or aborted. A recoverable resource manager must not give this vote until it has safely stored enough information to be able to keep this guarantee even if there is a recoverable failure, caused, for example, by a node crash. The DECdtm transaction manager will decide the outcome of the transaction, then inform the resource manager of the decision with a commit or abort event report delivered to the RM participant (assuming that it is associated with an RMI that requested these event reports). Note that an application or other failure can cause the DECdtm transaction manager to decide to abort the transaction.
SS$_VETO	No	RM participant requires that the transaction be aborted and guarantees that the effects of that transaction on its resources will never be detected by any transaction that commits. The reason argument gives the reason why the RM participant is aborting the transaction. The DECdtm transaction manager does not log any information about the transaction. Side effects: On successful completion of the call to $ACK_EVENT, the RM participant is removed from the transaction, the transaction is ended, and the ASTLM quota consumed by the call to $JOIN_RM or $ACK_EVENT that added the RM participant to the transaction is returned. DECdtm also allows the call to $END_TRANS to complete (necessary and sufficient condition).

Table SYS-7 Replies to a Prepare Event Report (DDTM$K_PREPARE)

report_reply	Vote	Meaning
SS$_FORGET	Yes	This is called a read-only vote. It is an optimization that allows an RM participant to vote "yes" and not receive a commit or abort event report. Side effects: On successful completion of the call to $ACK_EVENT, the RM participant is removed from the transaction, and the ASTLM quota consumed by the call to $JOIN_RM or $ACK_EVENT that added it to the transaction is returned.
SS$_PREPARED	Yes	The RM participant can either commit or abort the operations of the transaction, and guarantees that it will abide by the DECdtm transaction manager's decision on whether the transaction (and therefore these operations) are committed or aborted. In other words, the RM participant guarantees that the behavior of its resources will never be inconsistent with that decision, insofar as that behavior is detected by any transactions that commit. A recoverable resource manager must not give this vote until it has safely stored enough information to be able to keep this guarantee even if there is a recoverable failure, caused, for example, by a node crash. The DECdtm transaction manager will decide the outcome of the transaction, then inform the resource manager of the decision with a commit or abort event report delivered to the RM participant (assuming that it is associated with an RMI that requested these event reports) or, in the event of a failure, using the resource manager's recovery mechanism.
SS$_VETO	No	RM participant requires that the transaction be aborted. The reason argument gives the reason why the RM participant is aborting the transaction. The RM participant guarantees that the effects of its transaction operations will never be detected by any transaction that commits. Side effects: The DECdtm transaction manager will deliver an abort event report for the transaction to the RM participant.

Table SYS-8 Replies to a Default Transaction Started Event Report (DDTM$K_STARTED_DEFAULT)

report_reply	Description
SS$_NORMAL	Adds a new RM participant running in the calling process to the transaction to which a new branch is being added. The new RM participant is associated with the RMI to which the default transaction started event was reported. The part_name and rm_context arguments specify the name of the new RM participant and its context. Side effects: The postconditions on successful completion of the call to $ACK_EVENT are the same as those for $JOIN_RM. DECdtm also allows the call to $START_TRANS or $START_BRANCH that is adding the new branch to complete (necessary but not sufficient condition). That call cannot complete successfully until all default transaction-started event reports delivered to RMIs in that process have been acknowledged.
SS$_FORGET	Acknowledgment of the event report. Side effects: DECdtm allows the call to $START_TRANS or $START_BRANCH that is adding the new branch to complete (necessary but not sufficient condition). That call cannot complete successfully until all default transaction-started event reports delivered to RMIs in that process have been acknowledged.

Table SYS-9 Replies to a Nondefault Transaction Started Event Report (DDTM$K_STARTED_NONDEFAULT)

report_reply	Description
SS$_NORMAL	Adds a new RM participant running in the calling process to the transaction to which a new branch is being added. The new RM participant is associated with the RMI to which the nondefault transaction started event was reported. The part_name and rm_context arguments specify the name of the new RM participant and its context. Side effects: The postconditions on successful completion of the call to $ACK_EVENT are the same as those for $JOIN_RM. DECdtm also allows the call to $START_TRANS or $START_BRANCH that is adding the new branch to complete (necessary but not sufficient condition). That call cannot complete successfully until all default transaction-started event reports delivered to RMIs in that process have been acknowledged.
SS$_FORGET	Acknowledgment of the event report. Side effects: DECdtm allows the call to $START_TRANS or $START_BRANCH that is adding the new branch to complete (necessary but not sufficient condition). That call cannot complete successfully until all default transaction-started event reports delivered to RMIs in that process have been acknowledged.

reason

OpenVMS usage:	cond_value
type:	longword (unsigned)
access:	read only
mechanism:	by value

A code that gives the reason why the RM participant is aborting thetransaction.

This argument is ignored unless the value in thereport_reply argument is SS$_VETO and the event beingacknowledged is a prepare or one-phase commit event.

The $DDTMMSGDEF macro defines symbolic names for abort reason codesdescribed in Table SYS-10. The default value for this argument isDDTM$_VETOED.

Table SYS-10 Abort Reason Codes

Symbolic Name	Description
DDTM$_ABORTED	Application aborted the transaction without giving a reason.
DDTM$_COMM_FAIL	Transaction aborted because a communications link failed.
DDTM$_INTEGRITY	Transaction aborted because a resource manager integrity constraint check failed.
DDTM$_LOG_FAIL	Transaction aborted because an attempt to write to the transaction log failed.
DDTM$_ORPHAN_BRANCH	Transaction aborted because it had an unauthorized branch.
DDTM$_PART_SERIAL	Transaction aborted because a resource manager serialization check failed.
DDTM$_PART_TIMEOUT	Transaction aborted because a resource manager timeout expired.
DDTM$_SEG_FAIL	Transaction aborted because a process or image terminated.
DDTM$_SERIALIZATION	Transaction aborted because a serialization check failed.
DDTM$_SYNC_FAIL	Transaction aborted because a branch had been authorized for it but had not been added to it.
DDTM$_TIMEOUT	Transaction aborted because its timeout expired.
DDTM$_UNKNOWN	Transaction aborted; reason unknown.
DDTM$_VETOED	Transaction aborted because a resource manager was unable to commit it.

beftime

OpenVMS usage:	utc_date_time
type:	octaword (unsigned)
access:	read only
mechanism:	by reference

Reserved to HP.

afttime

OpenVMS usage:	utc_date_time
type:	octaword (unsigned)
access:	read only
mechanism:	by reference

Reserved to HP.

part_name

OpenVMS usage:	char_string
type:	character-coded text string
access:	read only
mechanism:	by descriptor--fixed-length string descriptor

The name of the new RM participant that is added to the transaction bythis call to $ACK_EVENT. This argument is ignored unless the eventbeing acknowledged is of type Transaction Started and the value of thereport_reply argument is SS$_NORMAL.

If this argument is omitted (the default) or its value is zero, thename of the new RM participant is the same of that of the RMI withwhich it is associated.

The string passed in this argument must be no longer than 32 characters.

To ensure smooth operation in a mixed-network environment, refer to thechapter entitled Managing DECdtm Services in the HP OpenVMS System Manager's Manual, forinformation on defining node names.

rm_context

OpenVMS usage:	userarg
type:	longword (unsigned)
access:	read only
mechanism:	by value

The context associated with the new RM participant. This argument isignored unless the value of the report_reply argumentis SS$_NORMAL, and the event being acknowledged is of type TransactionStarted.

The context of the new RM participant is passed in the event reportssubsequently delivered to that RM participant.

The context is used to pass information specific to the new RMparticipant from the main line code into the event handler specified inthe call to $DECLARE_RM that created the RMI with which the new RMparticipant is associated.

If this argument is omitted (the default) or is zero, the contextassociated with the new RM participant is the same of that of the RMIwith which it is associated.

timout

OpenVMS usage:	date_time
type:	quadword (unsigned)
access:	read only
mechanism:	by reference

Reserved to HP.

Description

The $ACK_EVENT system service:

• Acknowledges an event report delivered by the DECdtm transaction manager to an RM participant or RMI in the calling process.
  Every event report delivered by the DECdtm transaction manager to an RM participant or RMI must be acknowledged by a call to $ACK_EVENT specifying the identifier of the event report. This acknowledgment need not come from AST context. The caller of $ACK_EVENT must be in the same access mode as, or a more privileged access mode than, that in which the event handler AST was delivered.
  The DECdtm transaction manager may deliver multiple event reports to an RMI, but delivers only one event report at a time to an RM participant. For example, if a prepare event report has been delivered to an RM participant, and the transaction is aborted while the RM participant is doing its prepare processing, then the DECdtm transaction manager does not deliver an abort event report to that RM participant until it has acknowledged the prepare event report by a call to $ACK_EVENT.
  After acknowledging the event report, the RMI or RM participant should no longer access the event report block.
• Adds a new RM participant to a transaction, if the event being acknowledged is of type Transaction Started and the value of the report_reply argument is SS$_NORMAL.
  Note that the new RM participant cannot be the coordinator of the transaction.
• Removes an RM participant from a transaction if the event being acknowledged is one of the events listed in the following table and the report_reply argument is as listed in this table:

  Event	report_reply
  Abort	SS$_FORGET
  Commit	SS$_FORGET or SS$_REMEMBER
  Prepare	SS$_FORGET or SS$_VETO
  One-phase commit	SS$_NORMAL or SS$_VETO

Required Privileges

None

Required Quotas

None

Related Services

$ABORT_TRANS, $ABORT_TRANSW, $ADD_BRANCH, $ADD_BRANCHW, $CREATE_UID,$DECLARE_RM, $DECLARE_RMW, $END_BRANCH, $END_BRANCHW, $END_TRANS,$END_TRANSW, $FORGET_RM, $FORGET_RMW, $GETDTI, $GETDTIW,$GET_DEFAULT_TRANS, $JOIN_RM, $JOIN_RMW, $SETDTI, $SETDTIW,$SET_DEFAULT_TRANS, $SET_DEFAULT_TRANSW, $START_BRANCH, $START_BRANCHW,$START_TRANS, $START_TRANSW, $TRANS_EVENT, $TRANS_EVENTW

Condition Values Returned

SS$_NORMAL	The request was successful.
SS$_ACCVIO	An argument was not accessible to the caller.
SS$_BADPARAM	Either the options flags were invalid, or the reply passed in the report_reply argument was invalid for the type of event being acknowledged.
SS$_BADREASON	The abort reason code passed in the reason argument was invalid.
SS$_EXASTLM	The process AST limit (ASTLM) was exceeded.
SS$_ILLEFC	The event flag number was invalid.
SS$_INSFARGS	A required argument was missing.
SS$_INSFMEM	There was insufficient system dynamic memory for the operation.
SS$_INVBUFLEN	The string passed in the part_name argument was too long.
SS$_NOSUCHREPORT	Either an event report with the specified report identifier had not been delivered to any RM participant or RMI in the calling process, or that event report had already been acknowledged.
SS$_WRONGACMODE	The caller was in a less privileged access mode than that of the RMI whose event handler was used to deliver the event report that is being acknowledged by this call to $ACK_EVENT.

The $ACM service provides a common interface to all functions supportedby the Authentication and Credential Management (ACM) authority.

The caller must specify the function code and any applicable functionmodifiers and item codes for the requested operation.

The $ACM service completes asynchronously; for synchronous completion,use the $ACMW form of the service.

Format

SYS$ACM [efn], func, [context], itmlst, acmsb, [astadr], [astprm]

C Prototype

int sys$acm (unsigned int efn, unsigned int func, struct _acmecb**context, void *itmlst, struct _acmesb *acmsb, void(*astadr)(__unknown_params), int astprm);

Arguments

efn

OpenVMS usage:	ef_number
type:	longword (unsigned)
access:	read only
mechanism:	by value

Number of the event flag that is set when the $ACM request completes.The efn argument is a longword containing this number;however, $ACM uses only the low-order byte.

When the request is queued, $ACM clears the specified event flag. Then,when the request completes, the specified event flag is set.

func

OpenVMS usage:	function_code
type:	longword (unsigned)
access:	read only
mechanism:	by value

Function code and modifiers specifying the operation that $ACM is toperform. The func argument is a longword containingthe function code, logically 'OR'ed together with the modifiers. Forsome programming languages this may be defined as a record structure.

Function codes have symbolic names of the following format:

ACME$_FC_code

Function modifiers have symbolic names of the following format:

ACME$M_modifier

The language support mechanisms specific to each programming languagedefine the names of each function code and modifier. Only one functioncode can be specified across a dialogue sequence of related calls to$ACM.

Most function codes require or allow additional information to bepassed in the call. This information is passed using theitmlst argument, which specifies a list of one or moreitem descriptors. Each item descriptor in turn specifies an item code,which either controls the action to be performed, or requests specificinformation to be returned.

context

OpenVMS usage:	context
type:	longword pointer (signed)
access:	modify
mechanism:	by 32- or 64-bit reference

Address of a longword to receive the 32-bit address of an ACMcommunications buffer.

$ACM uses the ACM communications buffer for dialogue functions(ACME$_FC_AUTHENTICATE_PRINCIPAL and ACME$_FC_CHANGE_PASSWORD) torequest that the caller provide additional information in a subsequentcall.

The context argument on a continuation call mustcontain the same ACM communications buffer address returned by $ACM onthe previous call. The itmlst provided on acontinuation call must contain entries to fulfill each of the inputitem set entries in the ACM communications buffer returned by $ACM onthe previous call.

The longword specified must contain a -1 on the first call in adialogue sequence of related calls. If additional information isrequired to complete the request, $ACM returns a pointer in thecontext argument to an ACM communications buffer thatdescribes the information. To continue with the particular operationcall, $ACM again specifying the function argumentpreviously provided.

The ACM communications buffer is user readable, but not user writable.It consists of a structure header, an item set, and a string buffersegment. The item set is an array of item set entries, each describingan item of information that is needed to complete the request orinformation that can be reported to a human user.

$ACM presents the item set entries in the logical presentation orderfor a sequential interface, so calling programs that give a sequentialview to the user should process the item set entries in that $ACMorder. More advanced GUI programs may use simultaneous presentationwith distinctive placement for various message types.

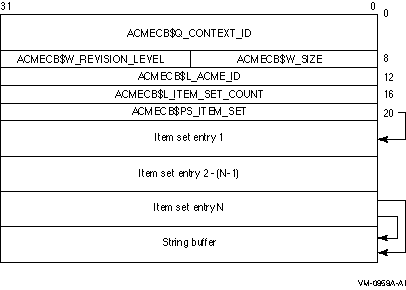

The following diagram depicts the overall format of an ACMcommunications buffer:

ACM Communications Buffer

The following table defines the ACM communications buffer header fields:

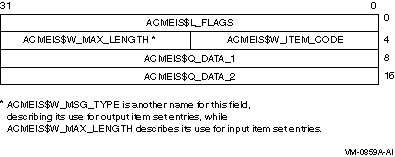

The following diagram depicts the format of an item set entry:

The following table defines the item set entry fields:

itmlst

The item list can be composed of up to 32 segments, connected by achain item (using item code ACME$_CHAIN) at the end of all but the lastsegment pointing to the start of the next segment. All item descriptorsin a single segment must be of the same format (32-bit or 64-bit), buta single item list can contain a mixture of segments composed of 32-bititem descriptors and segments composed of 64-bit item descriptors.

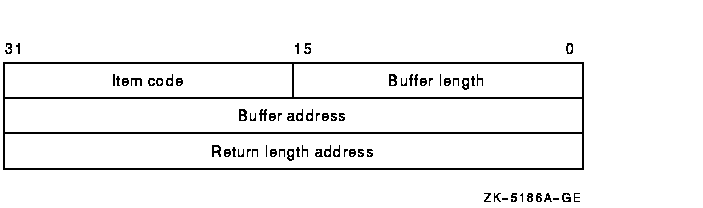

The following diagram depicts the 32-bit format of a single itemdescriptor:

The following table defines the item descriptor fields for 32-bit itemlist entries:

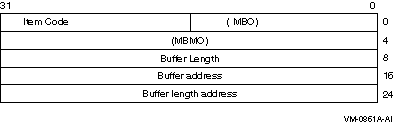

The following diagram depicts the 64-bit format of a single itemdescriptor:

The following table defines the item descriptor fields for 64-bit itemlist entries:

In an item list, no ACME-specific item codes can be included in an itemlist until the ACME Context has been set with one of the followingcodes:

ACME$_CONTEXT_ACME_ID
ACME$_CONTEXT_ACME_NAME

You can also implicitly set the ACME Context with one of the followingcodes:

ACME$_TARGET_DOI_ID
ACME$_TARGET_DOI_NAME

These codes are described in the OpenVMS Programming Concepts Manual.

acmsb

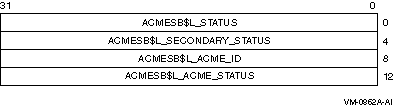

The following diagram depicts the structure of an ACM status block:

The following table defines the ACM status block fields:

Upon request initiation, $ACM sets the value of all fields within theACM status block to 0. When the requested operation completes. The $ACMservice writes condition values into the ACMESB$L_STATUS andACMESB$L_SECONDARY_STATUS fields.

If the status in the ACMESB$L_STATUS field is ACME$_AUTHFAILURE, thatis the only result that should be displayed or otherwise made known toa user. The status in ACMESB$L_SECONDARY_STATUS (when the caller hasthe SECURITY privilege, or is calling from kernel or executive mode)contains the detailed reason for the failure, which may be used forpurposes that do not disclose the code to the user, such as the processtermination code supplied to $DELPRC (but not the image exit codesupplied to $EXIT).

Otherwise, the status in ACMESB$L_SECONDARY_STATUS should be consideredas subsidiary to that in ACMESB$L_STATUS and used to form a chainedmessage, unless the two cells contain identical values.

In either case, the caller of $ACM[W] can rely on the success bit (bit0) of the ACMESB$L_STATUS and the ACMESB$L_SECONDARY_STATUS fieldhaving the same setting. Either both low-order bits will be set(success) or both will be clear (failure).

The ACMESB$L_ACME_STATUS field is valid only when the contents of theACMESB$L_ACME_ID field are nonzero, indicating which ACME agentsupplied the (possibly zero) value in ACMESB$L_ACME_STATUS.

There is one special format for such data in ACMESB$L_ACME_STATUS. If$ACM rejects the request because of a bad entry in the item list, thenACMESB$L_STATUS contains one of the following codes:

If ACMESB$L_STATUS contains one of the listed returns, thenACME$L_ACME_STATUS contains the item code from the incorrect item,which is an aid to debugging.

In all other cases, the value delivered in ACME$L_ACME_STATUS isspecific to the ACME agent that failed the request. An ACME agent canreturn a longword value that indicates additional information about theoperation. $ACM writes this value in the ACMESB$L_ACME_STATUS field ofthe ACM status block.

In these cases, you can expect the success of a valid value (one whereACMESB$L_ACME_ID is not zero) in field ACMESB$L_ACME_STATUS to matchthe "success" bits (bit 0) in fields ACMESB$L_STATUS andACMESB$L_SECONDARY_STATUS, although what constitutes a "success" valuein ACMESB$L_ACME_STATUS is subject to that interpretation specified forthe ACME agent that set the value. In particular, the values in theACMESB$L_ACME_STATUS field from certain ACME Agents might not be aVMS-style message code.

astadr

astprm

See the Description section for information relating to the modes ofoperation and privilege requirements.

ACME$_FC_AUTHENTICATE_PRINCIPAL

The ACME$_FC_AUTHENTICATE_PRINCIPAL function requests authentication ofa principal based on standard or site-specific authentication criteriaand optionally requests credentials authorized for that principal.

You can specify the principal name using the ACME$_PRINCIPAL_NAME itemcode. If you do not specify it on the initial call to $ACM, the ACMEagents supporting $ACM will try to use another method for determiningthe principal name. For example, traditional VMS autologin processingdetermines a principal name based on your terminal name. Of if yourcall to $ACM was in dialogue mode, the ACM communication bufferreturned may prompt you to supply a principal name.

You can also guide how your request is to be processed by directing ittoward a specific domain of interpretation (DOI) with either theACME$_TARGET_DOI_NAME or ACME$_TARGET_DOI_ID item code. Using thattechnique ensures that your request will be handled by the ACME agentsthat support the specified domain of interpretation. If that domain ofinterpretation is not configured on the system at the time of yourcall, however, your request will fail. Leaving the domain ofinterpretation to be defaulted increases your chance of successfulauthentication, but does not guarantee any particular set ofcredentials beyond the normal VMS credentials.

When the domain of interpretation under which your request is handledis anything other than VMS, the ACME agents that support that domain ofinterpretation will indicate an OpenVMS user name to which theprincipal name should be mapped. In this case, the OpenVMS user namemust correspond to a valid entry in the OpenVMS authorization database(SYSUAF.DAT) that has the UAF$V_EXTAUTH flag set. (When theIGNORE_EXTAUTH flag is set in system parameter SECURITY_POLICY, theUAF$V_EXTAUTH flag requirement does not apply.)

The VMS ACME agent uses that OpenVMS user name to provide supplementalauthorization processing (for example, account disabled or expired, ormodel restrictions) and to provide security profile and quotainformation applicable after a successful authentication.

You can use the ACME$M_ACQUIRE_CREDENTIALS function modifier to specifythat, if your authentication call is successful, you want credentialsreturned. $ACM will return those credentials via persona extensionsattached to a persona whose handle is returned to a location specifiedby item code ACME$_PERSONA_HANDLE_OUT.

If you want that persona to be based on some persona you already have,specify the existing persona handle with the item codeACME$_PERSONA_HANDLE_IN and, in addition to the function modifierACME$M_ACQUIRE_CREDENTIALS, specify one of the following two functionmodifiers:

• ACME$M_MERGE_PERSONA---Requests that additional credentials you acquire be added into the existing persona
• ACME$M_COPY_PERSONA---Requests that additional credentials you acquire be added into a copy of the existing persona

In either case, a handle to the resulting persona will be returned asspecified by item code ACME$_PERSONA_HANDLE_OUT.

When a new persona is created, the ISS$_PRIMARY_EXTENSION designatorindicates which persona extension representing the domain ofinterpretation was responsible for authenticating the user.

On a subsequent call $ACM will use that designator to guide processingof the ACME$M_DEFAULT_PRINCIPAL function modifier, for instance whenthere is an ACME$_FC_CHANGE_PASSWORD request.

ACME$_FC_CHANGE_PASSWORD

The ACME$_FC_CHANGE_PASSWORD function performs a password changeoperation. All aspects of the ACME$FC_CHANGE_PASSWORD function can alsobe performed as part of the ACME$_FC_AUTHENTICATE_PRINCIPAL function.Some degree of the ACME$_FC_AUTHENTICATE_PRINCIPAL function is alsoperformed as part of ACME$_FC_CHANGE_PASSWORD to ensure the identity ofthe user changing the password. The primary and secondary passwords canbe changed independently.

This function requires the ACME$_NEW_PASSWORD_FLAGS item code.

ACME$_FC_EVENT

The ACME$_FC_EVENT function provides a simple logging feature that canbe used to generate certain events related to the policy of a domain ofinterpretation. To log an event, supply the desired "event type" itemcode followed by the appropriate "data" item codes pertaining to the"target" domain of interpretation.

To determine what event processing might be available, refer to thedocumentation provided by the vendors of the supporting ACME agents.

ACME$_FC_FREE_CONTEXT

The ACME$_FC_FREE_CONTEXT function is used to terminate iterativeprocessing of a request. The address of the ACM communications bufferassociated with the request must be specified using thecontext argument.

ACME$_FC_QUERY

The ACME$_FC_QUERY function provides a simple key-based query featurethat can be used to obtain certain information related to the policy ofa domain of interpretation. To look up an item of information, supplythe desired "key" item code followed by the appropriate "data" itemcode.

To determine what query processing might be available, refer to thedocumentation provided by the vendors of the supporting ACME agents.

ACME$_FC_RELEASE_CREDENTIALS

The ACME$_FC_RELEASE_CREDENTIALS function removes credentials for aparticular domain of interpretation from the specified persona. Whenthe domain of interpretation is specified as "VMS", all non-nativecredentials are released and the persona is deleted. The "VMS"credentials cannot be removed from either the currently active or theprocess' natural persona. Thus, you cannot use the $ACM service todelete these personae.

Table SYS-11 indicates which Function Modifiers are applicable to thevarious Function Codes:

<>---Permitted
IP---IMPERSONATE Privilege Required for the MAPPED_VMS_USERNAMEto differ from the one current when the initial call to$ACM is made
IR---IMPERSONATE Privilege Required to override default values
SR---SECURITY Privilege Required

ACME$M_ACQUIRE_CREDENTIALS

The ACME$M_ACQUIRE_CREDENTIALS function modifier requests credentialsbe acquired during a successful authentication.

ACME$M_COPY_PERSONA

The ACME$M_COPY_PERSONA function modifier requests acquired credentialsbe attached to a copy of the persona specified with item codeACME$_PERSONA_HANDLE_IN.

ACME$M_DEFAULT_PRINCIPAL

The ACME$M_DEFAULT_PRINCIPAL specifies that the principal name andtarget domain of interpretation should be taken from the input persona,such as for changing the password of the logged-in user orreauthenticating the logged-in user.

ACME$M_FOREIGN_POLICY_HINTS

The ACME$M_FOREIGN_POLICY_HINTS function modifier indicates ACME agentsshould honor the ACME$M_NOAUDIT and ACME$M_NOAUTHORIZATION functionmodifiers for non-VMS domains of interpretation.

ACME$M_MERGE_PERSONA

The ACME$M_MERGE_PERSONA function modifier requests acquiredcredentials be attached to the persona specified with item codeACME$_PERSONA_HANDLE_IN.

ACME$M_NOAUDIT

The ACME$M_NOAUDIT function modifier indicates that auditing actionsshould not be performed. Unless the ACME$M_FOREIGN_POLICY_HINTSfunction modifier is also specified, this modifier applies only to theVMS domain of interpretation.

ACME$M_NOAUTHORIZATION

The ACME$M_NOAUTHORIZATION function modifier indicates authorizationrestrictions, such as the enforcement of modal constraints, should notapply. This provides a mechanism for performing pure authenticationoperations. Unless the ACME$M_FOREIGN_POLICY_HINTS function modifier isalso specified, this modifier applies only to the VMS domain ofinterpretation.

ACME$M_OVERRIDE_MAPPING

The ACME$M_OVERRIDE_MAPPING function modifier allows for theacquisition of non-VMS credentials during a persona merge or copyoperation. This occurs when an externally authorized principal namemaps to an OpenVMS user name that differs from the user name associatedwith the native (VMS) credentials. By default, mixing credentials isprohibited.

ACME$M_TIMEOUT

The ACME$M_TIMEOUT modifier indicates that the caller requests timeoutprocessing. The timeout interval is specified by theACME$_TIMEOUT_INTERVAL item code.

Timeout processing is always enforced for non-privileged callers.Privileged callers (those running in exec mode or kernel mode orpossessing SECURITY privilege) must explicitly specify ACME$M_TIMEOUTfor timeout processing to be enforced.

ACME$M_UCS2_4

The ACME$M_UCS2_4 function modifier indicates item codes that specifystring values use a 4-byte UCS-2 (Unicode) representation rather than8-bit ASCII.

Item Code Encoding

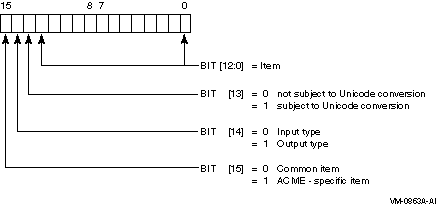

Item codes are 16-bit unsigned values and are encoded as follows:

The item codes can be categorized in three different ways and aredescribed as follows:

• Common and ACME-specific Item Codes
  • Common item codes
    These item codes are defined for the $ACM system service itself and are available to all ACME agents.
  • ACME-specific item codes
    These item codes are defined separately for each ACME agent.
• Input and Output Item Codes
  • Input item code
    Input item codes specify a buffer that contains information provided to $ACM. The buffer length and buffer address fields in the item descriptor must be nonzero; the return length field is ignored.
  • Output item code
    Output item codes specify a buffer in which $ACM is to return information. The buffer length and buffer address fields of the item descriptor must be nonzero; the return length field can be zero or nonzero.
• Subject and Not Subject to Unicode Conversion
  • Subject to Unicode Conversion
    Text strings can be specified as Latin1 or 4-byte UCS-2 characters, depending on the setting of the ACME$M_UCS2_4 function modifier. An item code that is subject to Unicode conversion indicates it is a text item.
  • Not subject to Unicode Conversion
    Item codes that are not subject to Unicode conversion have a data format implied by the item code, and the nature of the data format must be explicitly understood by the programmer who calls $ACM.

See the Item Codes section for a description of the common item codesand their data formats.

Documentation of ACME-specific codes in general comes in thedocumentation from the vendor of each ACME agent.

For documentation of ACME-specific codes for the VMS ACME, see the VMSACME-specific Item Codes section of this description. Common Item CodesThis section describes the common item codes for the function codessupported by the $ACM service.

The item code space is partitioned into common items and ACME-specificitems. ACME-specific items are used to request information that isunique to a particular domain of interpretation. The item codesdescribed in this section fall into the common item code space.

Table SYS-12 indicates which Common Item Codes are applicable to thevarious Function Codes:

<>---Permitted
IR---IMPERSONATE Privilege Required to override default values
SR---SECURITY Privilege Required
O---Output item code
U---Subject to Unicode Conversion

ACME$_ACCESS_MODE

The ACME$_ACCESS_MODE item code is an input item code. It specifies theaccess mode at which a new persona, resulting from credentialacquisition processing, is to be created. The buffer must contain alongword value specifying the access mode.

The $PSLDEF macro defines the following symbols for the four accessmodes:

PSL$C_KERNEL
PSL$C_EXEC
PSL$C_SUPER
PSL$C_USER

The most privileged access mode used is the access mode of the caller.The specified access mode and the access mode of the caller arecompared. The less privileged of the two access modes becomes theaccess mode at which the persona is created.

ACME$_ACCESS_PORT

The ACME$_ACCESS_PORT item code is an input item code. It specifies thename of local device (for example, a terminal) applicable to anauthentication request. The buffer must contain a case-insensitive namestring.

If not specified, $ACM passes the name string contained in thePCB$T_TERMINAL field of the process control block for the process, or,if that is empty, for the nearest ancestor process (if any) where thePCB$T_TERMINAL field is not empty.

ACME$_AUTH_MECHANISM

The ACME$_AUTH_MECHANISM item code is an input item code. It specifiesthe authentication mechanism applicable to an authentication request.The buffer must contain a longword value specifying the desiredmechanism code. If not specified, the authenticating domain ofinterpretation applies its default mechanism.

The $ACMEDEF macro defines the following symbols for the standardmechanism types:

ACMEMECH$K_CHALLENGE_RESPONSE
ACMEMECH$K_PASSWORD

Individual ACME agents may define their own authentication mechanismsspecific to their domain of interpretation.

ACME$_AUTHENTICATING_DOI_ID

The ACME$_AUTHENTICATING_DOI_ID item code is an output item code. Itspecifies the buffer to receive the agent ID of the domain ofinterpretation that successfully authenticated the principal.

ACME$_AUTHENTICATING_DOI_NAME

The ACME$_AUTHENTICATING_DOI_NAME item code is an output item code. Itspecifies the buffer to receive the name of the domain ofinterpretation that successfully authenticated the principal.

The maximum data returned for this item code is the number ofcharacters represented by the symbol, ACME$K_MAXCHAR_DOI_NAME, so acaller's buffer should be at least that long, with the number of bytesallocated dependent on whether the ACME$M_UCS2_4 function code modifierwas specified on the call to $ACM[W].

ACME$_CHAIN

The ACME$_CHAIN item code is an input item code. It specifies theaddress of the next item list segment to process immediately afterprocessing the current list segment.

The buffer address field in the item descriptor specifies the addressof the next item list segment to be processed. The ACME$_CHAIN itemcode must be last in the item list segment; $ACM treats this as thelogical end of the current item list segment. Any item list entriesfollowing the ACME$_CHAIN item code are ignored.

On the Alpha platform, both 32-bit and 64-bit item lists can be chainedtogether.

ACME$_CHALLENGE_DATA

The ACME$_CHALLENGE_DATA item code is an input item code. It specifiesthe challenge data that was used as the basis for generating theresponse data specified by the ACME$_RESPONSE_DATA item code. Themeaning of this data is specific to the domain of interpretation forwhich it is used.

If this item code is specified, the ACME$_AUTH_MECHANISM andACME$_RESPONSE_DATA item codes must also be specified. (The VMS domainof interpretation does not support this mechanism type.)

ACME$_CONTEXT_ACME_ID

The ACME$_CONTEXT_ACME_ID item code is an input item code. Itestablishes the ACME agent context within which ACME-specific itemcodes are interpreted. This item code has an effect on the parsing ofthe list of ACME-specific item codes, and takes effect immediately. Itis in effect until the next instance of code ACME$_CONTEXT_ACME_ID,code ACME$_CONTEXT_ACME_NAME, code ACME$_TARGET_DOI_ID, or codeACME$_TARGET_DOI_NAME. The buffer must contain a longword valuespecifying the agent ID of an ACME agent.

ACME$_CONTEXT_ACME_NAME

The ACME$_CONTEXT_ACME_NAME item code is an input item code. Itestablishes the ACME agent context within which ACME-specific itemcodes are interpreted. This item code has an effect on the parsing ofthe list of ACME-specific item codes, and takes effect immediately. Itis in effect until the next instance of code ACME$_CONTEXT_ACME_ID,code ACME$_CONTEXT_ACME_NAME, code ACME_TARGET_DOI_ID, or codeACME$_TARGET_DOI_NAME. The buffer must contain the case-insensitivename string of an ACME agent.

ACME$_CREDENTIALS_NAME

The ACME$_CREDENTIALS_NAME item code is an input item code. Itspecifies the name of the persona extension holding the set ofcredentials upon which to operate. The buffer must contain thecase-insensitive name string of a persona extension that has beenregistered on the system.

ACME$_CREDENTIALS_TYPE

The ACME$_CREDENTIALS_TYPE item code is an input item code. Itspecifies the extension ID of the persona extension holding the set ofcredentials upon which to operate. The buffer must contain a longwordvalue specifying the extension ID of a persona extension that has beenregistered on the system.

ACME$_DIALOGUE_SUPPORT

The ACME$_DIALOGUE_SUPPORT item code is an input item code. Itspecifies which dialogue mode features are supported by the caller. Thebuffer must contain a longword bit vector of applicable flags.

The $ACMEDEF macros defines the following symbols for the valid flags:

ACMEDLOGFLG$V_INPUT---character string input/output capabilities
ACMEDLOGFLG$V_NOECHO---"no echo" input capabilities

These are the same as those for the ACMEIS$L_FLAGS field on an item setentry. See the description of the context argument forfurther information.

Specify the ACME$_DIALOGUE_SUPPORT item code to indicate theinteractive capabilities of the user interface. If the caller is unableto support features necessary to complete a given request, the requestultimately fails. The caller receives a condition valueACME$_INSFDIALSUPPORT for insufficient dialogue support.

ACME$_EVENT_DATA_IN

The ACME$_EVENT_DATA_IN item code is an input item code. It specifiesthe buffer containing information applicable to an event operation.

The meaning of this data is specific to the domain of interpretationfor which it is used.

ACME$_EVENT_DATA_OUT

The ACME$_EVENT_DATA_OUT item code is an output item code. It specifiesthe buffer to receive information returned from an event operation.

The meaning of this data is specific to the domain of interpretationfor which it is used.

ACME$_EVENT_TYPE

The ACME$_EVENT_TYPE item code is an input item code. It specifies thetype of event being reported. The buffer must contain a longword value.Interpretation of the value is specific to the domain of interpretationto which the event is being reported.

ACME$_LOCALE

The ACME$_LOCALE item code is an input item code. It specifies thecollection of data and rules applicable to a language and culture. Thebuffer must contain a name string that reflects a locale supported bythe system.

The buffer must contain a string in the following case-insensitivesyntax:

language-country

language is a 2-letter language code (ISO 639)
country is a 2-letter country code (ISO 3166)

The default is EN-US, and cannot be overridden by the specified locale.Locale information may be interpreted by ACME agents to determinecountry and language requirements.

ACME$_LOGON_INFORMATION

The ACME$_LOGON_INFORMATION item code is an output item code. Itspecifies the buffer to receive an ACM logon information structure,which contains statistics pertaining to the authenticated principalname within the contexts of the authenticating and native (VMS) domainsof interpretation.

The size of the buffer must be sufficient to handle data from whateverVMS versions are used, as described in the ACME$_LOGON_INFORMATIONstructure found in the OpenVMS Programming Concepts Manual.

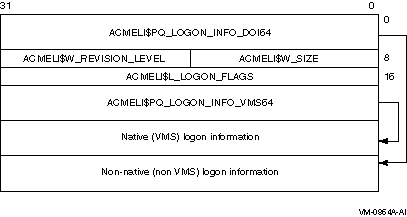

The following diagram depicts the overall format of an ACM logoninformation structure:

The following table defines the ACM logon information structure headerfields:

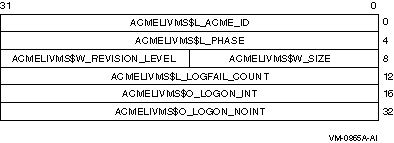

The following diagram depicts the format of the ACM logon structuresegment containing information about the VMS domain of interpretation:

The following table defines the fields for the ACM logon structuresegment containing logon information about the native (VMS) domain ofinterpretation:

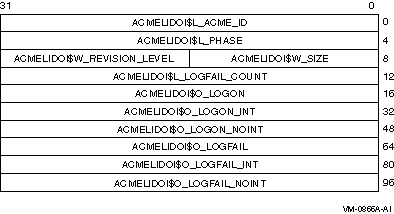

The following diagram depicts the format of the ACM logon structuresegment containing information about the authenticating domain ofinterpretation:

The following table defines the fields for the ACM logon structuresegment containing logon information about the authenticating domain ofinterpretation:

ACME$_LOGON_TYPE

The $ACMEDEF macro defines the following symbols for the valid logontypes:

ACME$K_DIALUP
ACME$K_LOCAL
ACME$K_REMOTE
ACME$K_BATCH
ACME$K_NETWORK

The values ACME$K_BATCH and zero (0) for batch and detached processes,respectively, are reserved to LOGINOUT.EXE. If either of these valuesis defaulted or specified by non-LOGINOUT clients, the service returnsACME$_INVREQUEST.

ACME$_MAPPED_VMS_USERNAME

The maximum data returned for this item code is the number ofcharacters represented by the symbol, ACMEVMS$S_MAX_VMS_USERNAME, so acaller's buffer should be at least that long, with the number of bytesallocated dependent on whether the ACME$M_UCS2_4 function code modifierwas specified on the call to $ACM[W].

ACME$_MAPPING_ACME_ID

ACME$_MAPPING_ACME_NAME

Data returned for this item code is the number of charactersrepresented by the symbol, ACME$K_MAXCHAR_DOI_NAME, so a caller'sbuffer should be at least that long, with the number of bytes allocateddependent on whether the ACME$M_UCS2_4 function code modifier wasspecified on the call to $ACM[W].

ACME$_NEW_PASSWORD_1

This item code might be requested in a dialogue step.

ACME$_NEW_PASSWORD_2

This item code might be requested in a dialogue step.

ACME$_NEW_PASSWORD_FLAGS

The $ACMEDEF macros defines the following symbols for the valid flags:

ACMEPWDFLG$V_SYSTEM
ACMEPWDFLG$V_PASSWORD_1
ACMEPWDFLG$V_PASSWORD_2

ACME$_NEW_PASSWORD_SYSTEM

This item code might be requested in a dialogue step.

ACME$_NULL

ACME$_PASSWORD_1

This item code might be requested in a dialogue step.

ACME$_PASSWORD_2

This item code might be requested in a dialogue step.

ACME$_PASSWORD_SYSTEM

This item code might be requested in a dialogue step.

ACME$_PERSONA_HANDLE_IN

ACME$_PERSONA_HANDLE_OUT

If no ACME$_PERSONA_HANDLE_OUT item is specified but function modifierACME$M_ACQUIRE_CREDENTIALS is specified, a persona that is created canbe located with the $PERSONA_FIND system service.

ACME$_PHASE_TRANSITION

Use of this item code is reserved to HP.

ACME$_PRINCIPAL_NAME_IN

This item code might be requested in a dialogue step.

ACME$_PRINCIPAL_NAME_OUT

The maximum data returned for this item code is the number ofcharacters represented by the symbol, ACME$K_MAXCHAR_PRINCIPAL_NAME, soa caller's buffer should be at least that long, with the number ofbytes allocated dependent on whether the ACME$M_UCS2_4 function codemodifier was specified on the call to $ACM[W].

ACME$_QUERY_DATA

The ACME$_QUERY_DATA item code requires that an ACME$_QUERY_TYPE itemcode immediately precede it in the item list.

ACME$_QUERY_KEY_TYPE

An ACME$_QUERY_KEY_TYPE item requires an ACME$_QUERY_KEY_VALUE itemimmediately following it in the item list.

ACME$_QUERY_KEY_VALUE

An ACME$_QUERY_KEY_VALUE item requires that an ACME$_QUERY_KEY_TYPEitem immediately precede it in the item list.

ACME$_QUERY_TYPE

The ACME$_QUERY_TYPE item code requires that an ACME$_QUERY_DATA itemcode immediately follow it in the item list.

ACME$_REMOTE_HOST_ADDRESS

ACME$_REMOTE_HOST_ADDRESS_TYPE

The $ACMEDEF macro defines the following symbols for the standardaddress types:

ACME$_REMOTE_HOST_FULLNAME

ACME$_REMOTE_HOST_NAME

ACME$_REMOTE_USERNAME

ACME$_RESPONSE_DATA

Interpretation of this data is specific to a domain of interpretation.This item code may be requested in a dialogue step.

ACME$_SERVER_NAME_IN

ACME$_SERVER_NAME_OUT

ACME$_SERVICE_NAME

Names beginning with x- are reserved for local use.

ACME$_TARGET_DOI_ID

This item code also has an effect on the parsing of the list ofACME-specific item codes and takes effect immediately. It is in effectuntil the next instance of code ACME$_CONTEXT_ACME_ID, codeACME$_CONTEXT_ACME_NAME, code ACME$_TARGET_DOI_ID, or codeACME$_TARGET_DOI_NAME. It also specifies which ACME is to beresponsible for the authentication.

The buffer must contain a longword value specifying the agent ID of adomain of interpretation.

ACME$_TARGET_DOI_NAME

This item code also has an effect on the parsing of the list ofACME-specific item codes, and takes effect immediately. It is in effectuntil the next instance of code ACME$_CONTEXT_ACME_ID, codeACME$_CONTEXT_ACME_NAME, code ACME$_TARGET_DOI_ID, or codeACME$_TARGET_DOI_NAME. It also specifies which ACME is to beresponsible for the authentication.

The buffer must contain the case-insensitive name string of a domain ofinterpretation.

ACME$_TIMEOUT_INTERVAL

Timeout interval values are specified in seconds and must be between 1and 300 seconds. If an invalid value is specified, the service returnsSS$_IVTIME.

The default timeout interval is 30 seconds. This value may be adjustedby defining the exec mode logical name ACME$TIMEOUT_DEFAULT in theLNM$SYSTEM_TABLE logical name table. This timeout is enforced fornon-dialogue requests and for the first request in a sequence ofdialogue calls. The default value for subsequent dialogue requests canbe adjusted by defining the exec mode logical nameACME$DIALOGUE_TIMEOUT_DEFAULT in the LNM$SYSTEM_TABLE logical nametable.

Unprivileged clients can specify only timeout interval values less thanor equal to the default value. Values greater than the default areignored.Output Message Categories This section describes the various outputmessage categories supported by the $ACM service.

Message Types are 16-bit unsigned values, encoded as follows:

Function-Independent Common Output Message Categories

The following table lists the function-independent common outputmessages and their meanings:

Authentication Common Output Message Categories

The following table lists the authentication common output messagecategories and their meanings:

Description

The Authentication and Credential Management ($ACM) service presents aunified interface for performing authentication-related operations in amanner independent of applicable policy.

On a given OpenVMS system, multiple authentication policies may beapplicable. The system may be configured to augment the native (localOpenVMS) policy with alternatives pertaining to external environments,such as LAN Manager. Each policy, together with the operatingenvironment to which it pertains, constitutes a domain ofinterpretation. Within a given domain, any entity, such as a user, thatis subject to the applicable authentication policy, is referred to as aprincipal.

The $ACM service can be used to authenticate a principal, initiate apassword change request on behalf of a principal, query informationabout a particular domain, or report event data within a particulardomain.

The $ACM service completes asynchronously; that is, it returns to thecaller after queuing the request, without waiting for the operation tocomplete.

To synchronize completion of an operation, use the Authentication andCredential Management and Wait ($ACMW) service. The $ACMW service isidentical to $ACM in every way except that $ACMW returns to the callerafter the operation has completed.

Modes of Operation

The typical authentication policy employs the traditional reusablepassword; however, various alternative mechanisms exist for formingstronger policies. Some of these mechanisms, such aschallenge-response, require interaction. The $ACM service is designedto accommodate these mechanisms.

The authentication and change_password functions are capable ofoperating in a dialogue (iterative) mode to support different types ofinteractive authentication mechanisms. The query, event, andfree_context functions only support the nondialogue (noniterative) modeof operation.

Nondialogue (Noniterative) Mode

The default nature of the $ACM service is to operate in a noniterativemode. All information needed to complete the request must be providedin a single call; otherwise, the request ultimately fails. Thisrequires the caller to know beforehand what information is required tocomplete the request.

The following list summarizes the control flow for a typicalnondialogue mode authentication request. For simplicity, the scenarioassumes a single domain of interpretation with a traditional user nameand password policy. Also, error processing is ignored.

1. The caller of $ACM prompts the user for the principal name and password, builds an item list specifying the principal name and password, and then calls $ACM specifying the authenticate principal function, the item list with the principal name and password, and a zero address for the context argument.
2. $ACM processes the request and ultimately returns control to the caller with the final status for the operation.

Dialogue (Iterative) Mode

The caller can use the interactive capabilities of the $ACM service forauthentication and password change operations by specifying theACME$_DIALOGUE_SUPPORT item code and a valid contextargument. In this mode, ACME agents can request additional informationfrom the caller to complete the request. In effect, the $ACM service iscalled in an iterative fashion until all information required tocomplete the request has been provided. The sequence of calls arelinked together by passing the context argumentreturned in one call back in the next call.

In this scenario, when an ACME agent requires additional information,it builds an item set that describes the nature of the information. Theitem set is passed back to the caller in the communications buffer (seethe description for the context argument regarding theformat of the communications buffer) and the service returns with theACME$_OPINCOMPL status. The caller processes each item set entry,gathers the requested information, and then passes it back to the ACMEagent using the itmlst argument in the next call. Thesequence continues until the call returns with a status code other thanACME$_OPINCOMPL.

The following list summarizes the control flow for a typicaldialogue-mode authentication sequence. For simplicity, the scenarioassumes a single domain of interpretation with a traditional user nameand password policy. Also, error processing is ignored.

1. Make an initial call to $ACM specifying the authenticate principal function code, an item list that merely contains the ACME$_DIALOGUE_SUPPORT item code, and a context argument that has been initialized to -1.
2. $ACM builds a communications buffer containing an item set in the buffer requesting the principal name (user name), sets the context argument to reference the buffer, and returns control to the caller with a status code of ACME$_OPINCOMPL.
3. The caller processes the item set, prompts for the principal name, builds an item list specifying the principal name, and then calls $ACM again specifying the authenticate principal function as before, the item list with the principal name, and a context argument that contains the buffer address returned in the previous call.
4. $ACM validates the context argument, processes the username then builds another communications buffer to contain an item set list requesting the password, sets the context argument to reference the buffer, and returns control to the caller again with a status code of ACME$_OPINCOMPL.
5. The caller processes the item set, prompts for the password, builds an item list specifying the password, and then calls $ACM again specifying the authenticate principal functions as before, the item list with the password, and a context argument that contains the buffer address returned in the previous call.
6. $ACM validates the context argument again, clears it, and then completes the processing of the request, now that it has all the necessary information, and ultimately returns control to the caller with the final status for the operation.

Unprivileged callers (those running in user mode and not possessingSECURITY privilege) are limited by the number of iterative requeststhey can make in a dialogue sequence of calls. The default is set at 26dialogue requests. The default can be overridden by defining the execmode logical name ACME$DIALOGUE_ITERATIVE_LIMIT in the LNM$SYSTEM_TABLElogical name table. Valid values are 1 through 100.

Determining an ACME Name Based on an ACME ID

The identity of the ACME that supplied the ACME$L_ACME_STATUS contentsis indicated in the ACMEID$V_ACME_NUM subfield of the ACMESB$L_ACME_IDfield. This value is consistent for the duration of one boot of thesystem, but may have a different value on the next boot. The name of aparticular ACME agent can be determined from the ACME ID by calling$ACM with function code ACME$_FC_QUERY and the following item listentries:

• Special ACM Dispatch query---ID value zero:

  ITMCOD = ACME$_TARGET_DOI_ID
  BUFSIZ = 4
  BUFADR = Address of longword containing 0

• Query ACME name based on ACME ID:

  ITMCOD = ACME$_QUERY_KEY_TYPE
  BUFSIZ = 4
  BUFADR = Address of longword containing ACME$K_QUERY_ACME_ID

• Specify ACME ID value:

  ITMCOD = ACME$_QUERY_KEY_VALUE
  BUFSIZ = 4
  BUFADR = Address of longword containing the ACME_ID

• Specify ACME name for the return value:

  ITMCOD = ACME$_QUERY_TYPE
  BUFSIZ = 4
  BUFADR = Address of longword containing ACME$K_QUERY_ACME_NAME

• Specify the output buffer:

  ITMCOD = ACME$_QUERY_DATA
  BUFSIZ = ACME$K_MAXCHAR_DOI_NAME or (ACME$K_MAXCHAR_DOI_NAME*4) depending on whether function modifier ACME$M_UCS2_4 has been specified
  BUFADR = Address of buffer large enough to hold ACME$K_MAXCHAR_DOI_NAME bytes or (ACME$K_MAXCHAR_DOI_NAME*4) depending on whether function modifier ACME$M_UCS2_4 has been specified

Privileges and Restrictions

The $ACM service constitutes a trusted interface. It restrictsoperations that override the security policy applicable to a givendomain of interpretation to those callers who are suitably privileged.The status returned in the ACMESB$L_STATUS field of the ACM StatusBlock for a failed authentication operation is typically nonspecific,so as not to reveal sensitive information to untrusted callers.

If the caller has the SECURITY privilege, the ACMESB$L_SECONDARY_STATUSfield of the ACM Status Block may contain a detailed status that moreaccurately reflects the actual nature of the failure.

To specify the following function modifiers, the caller must have theSECURITY privilege:

ACME$M_NOAUDIT
ACME$M_NOAUTHORIZATION
ACME$M_FOREIGN_POLICY_HINTS

To specify the following function modifier, the caller must have theIMPERSONATE privilege:

ACME$M_OVERRIDE_MAPPING

To specify the following item code, the caller must have the SECURITYprivilege:

ACME$_NEW_PASSWORD_SYSTEM

To specify the following item codes, the caller must have theIMPERSONATE privilege:

ACME$_ACCESS_PORT
ACME$_CHALLENGE_DATA
ACME$_REMOTE_HOST_ADDRESS
ACME$_REMOTE_HOST_ADDRESS_TYPE
ACME$_REMOTE_HOST_FULLNAME
ACME$_REMOTE_HOST_NAME
ACME$_REMOTE_USERNAME
ACME$_SERVICE_NAME

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The item list or an input buffer cannot be read in the access mode of the caller; or an output buffer, a return length buffer, or the I/O status block cannot be written in the access mode of the caller.
SS$_ARG_GTR_32_BITS	A 64-bit address was passed in a context requiring a 32-bit address.
SS$_BADBUFADR	The buffer address associated with an entry in the item list is inappropriate in the context of the call. The address may be invalid (for example, 0).
SS$_BADBUFLEN	The buffer length associated with an entry in the item list is inappropriate in the context of the call. The length may be invalid (for example, 0) or outside the range of acceptable values.
SS$_BADCHAIN	A chained item list is inaccessible, or the chain is circular.
SS$_BADCONTEXT	The context argument does not specify a valid context buffer.
SS$_BADITMCOD	A specified item code is invalid or out-of-range.
SS$_BADPARAM	The item list contains an invalid item code.
SS$_BADRETLEN	The return length address associated with an entry in the item list is inappropriate in the context of the call. The address may be invalid (for example, 0).
SS$_EXASTLM	The astadr argument was specified and the process has exceeded its ASTLM quota.
SS$_EXQUOTA	A process quota was exceeded.
SS$_ILLEFC	The efn argument specifies an illegal event flag number.
SS$_ILLMODIFIER	The func argument specifies function modifiers that are inappropriate in the context of the call.
SS$_INSFMEM	Insufficient space exists for completing the request.
SS$_IVTIME	An invalid value was specified for the ACME$_TIMEOUT_INTERVAL item code.
SS$_NOEXTAUTH	External authentication is not available.
SS$_NOPRIV	The caller does not have the necessary privileges to complete the requested operation.
SS$_TOOMUCHDATA	The request size exceeds $ACM messaging constraints.
SS$_UNASEFC	The efn argument specifies an unassociated event flag cluster.
SS$_UNSUPPORTED	The func argument specifies an unsupported function.

Condition Values Returned in the ACM Status Block

ACME$_NORMAL	The service completed successfully.
ACME$_ACCOUNTLOCK	The account associated with specified principal name is disabled.
ACME$_AUTHFAILURE	Authorization failed.
ACME$_BUFFEROVF	An output item returned by the service is larger than the user buffer provided to receive the item; the item is truncated.
ACME$_DOIUNAVAILABLE	The specified domain of interpretation is not processing requests.
ACME$_INCONSTATE	The ACME server detected an internal consistency error.
ACME$_INSFDIALSUPPORT	Caller dialogue capabilities specified with the ACME$DIALOGUE_SUPPORT item code are inadequate to meet the needs of one or more ACME agents.
ACME$_INTRUDER	A record matching the request was found in the intrusion database.
ACME$_INVALIDCTX	The context argument is not consistent with the itmlst argument.
ACME$_INVALIDPWD	The specified password is invalid.
ACME$_INVITMSEQ	The service encountered a query type or query key item code without a corresponding query data or query key value item code.
ACME$_INVMAPPING	The OpenVMS user name to which the principal name was mapped is invalid.
ACME$_INVNEWPWD	The new password provided during a change password request does not pass qualification checks.
ACME$_INVPERSONA	The persona handle specified by the itmlst argument is invalid.
ACME$_INVREQUEST	A parameter is invalid in the context of the request. This error code is returned when the caller either defaults or specifies ACME$_BATCH or the value zero (0) for ACME$_LOGON_TYPE.
ACME$_MAPCONFLICT	An attempt was made to merge credentials for a principal name, which maps to an OpenVMS user name that differs from the one associated with existing credentials.
ACME$_NOACMECTX	The service encountered an ACME-specific item code when no ACME context had been established.
ACME$_NOCREDENTIALS	The ACME agent did not issue any credentials.
ACME$_NOEXTAUTH	The specified principal name cannot be authenticated externally.
ACME$_NOPRIV	The caller does not have the necessary privileges to complete the requested operation.
ACME$_NOSUCHDOI	The specified domain of interpretation does not exist.
ACME$_NOSUCHUSER	The specified principal name does not exist.
ACME$_NOTARGETCRED	The persona does not contain credentials for the specified domain of interpretation.
ACME$_NOTAUTHORIZED	Authorization failed due to account restrictions.
ACME$_OPINCOMPL	Interaction is required to complete the request. The context buffer contains information describing how to proceed.
ACME$_PWDEXPIRED	The password provided during an authentication request has expired and a new password is required to complete the request.
ACME$_TIMEOUT	The server did not respond within the designated time-out interval.
ACME$_UNSUPPORTED	The requested operation or an item code is not supported with the selected domain of interpretation.

Table SYS-13 lists status codes and their function codes:

<>---Permitted

VMS ACME Use of Function Codes The VMS ACME use of the Event functionis reserved to HP.

The VMS ACME does not support the Query function. VMS ACME-SpecificItem Codes This section describes the $ACM item codes that areACME-specific for the VMS ACME.

Table SYS-14 indicates which VMS ACME-specific Item Codes areapplicable to the various Function Codes:

<>---Permitted
IR---IMPERSONATE Privilege Required to override default values
SR---SECURITY Privilege Required
O---Output item code
U---Subject to Unicode Conversion
BC---Backward Compatibility---Reserved for HP support of historical interface

SYS$CREPRC-Ready Item Codes

For users that need to create a process based on quotas and privilegesfrom System User Authorization (SYSUAF) data, the following item codesreturn data in a form ready to be used in a call to SYS$CREPRC:

To receive results of these item codes without authentication requiresyou to use the ACMEVMS$_PREAUTHENTICATION_FLAG, which in turn requiresthe IMPERSONATE privilege. No additional privilege for these item codesis required.

ACMEVMS$_CREPRC_BASPRI

This output item code requests UAI data in a format suitable forpassing to SYS$CREPRC.

This output item code request UAI data in a format suitable for passingto SYS$CREPRC.

ACMEVMS$_CREPRC_IMAGE

This output item code requests UAI data in a format suitable forpassing to SYS$CREPRC. The $ACM[W] client is responsible for creating adescriptor for this string.

ACMEVMS$_CREPRC_PRCNAM

This output item code requests UAI data in a format suitable forpassing to SYS$CREPRC. The $ACM[W] client is responsible for creating adescriptor for this string.

ACMEVMS$_CREPRC_PRVADR

This output item code requests UAI data in a format suitable forpassing to SYS$CREPRC.

ACMEVMS$_CREPRC_QUOTA

This output item code requests UAI data in a format suitable forpassing to SYS$CREPRC, regardless of what quota might be handled bythis service in the future.

ACMEVMS$_CREPRC_UIC

This output item code requests UAI data in a format suitable forpassing to SYS$CREPRC.

Generated Password Item Codes

Any generated password list is returned in the ACM CommunicationsBuffer, which is accessed by the context parameter. The following itemcodes are used to affect this password list:

Item Code	Direction	Size	Data Provided
ACMEVMS$_GENPWD_COUNT	Input	Longword	Unsigned
ACMEVMS$_GENPWD_MANDATORY_FLAG	Input	Longword	Boolean
ACMEVMS$_GENPWD_MAXLENGTH	Input	Longword	Unsigned
ACMEVMS$_GENPWD_MINLENGTH	Input	Longword	Unsigned

ACMEVMS$_GENPWD_COUNT

The value of this item code indicates the number of any passwords thatare generated, regardless of whether generation is due to theUAI$V_GENPWD bit or the presence of the ACMEVMS$_GENPWD_MANDATORY_FLAGinput item code.

ACMEVMS$_GENPWD_MANDATORY_FLAG

The caller of SYS$AMCW requests password generation if this item codeis present. A value whose low bit is set indicates the caller wants toforce the use of the generated passwords, with the VMS ACME rejectingany provided passwords that do not match a password on the list. Avalue whose low bit is clear indicates that the generated password listis just advisory, with no enforcement by the VMS ACME. However, VMSACME might actually enforce generated passwords anyway, depending onthe setting of the UAI$V_GENPWD bit within the UAI_FLAGS longword bitmask.

ACMEVMS$_GENPWD_MAXLENGTH

The value of this item code indicates the maximum length of anypasswords that are generated, regardless of whether generation is dueto the UAI$V_GENPWD bit or the presence of theACMEVMS$_GENPWD_MANDATORY_FLAG input item code.

ACMEVMS$_GENPWD_MINLENGTH

The value of this item code indicates the minimum length of anypasswords that are generated, regardless of whether generation is dueto the UAI$V_GENPWD bit or the presence of theACMEVMS$_GENPWD_MANDATORY_FLAG input item code.

Backward Compatibility Item Codes

The ACME-specific item codes that provide backward compatibility arelisted in the following table:

Item Code	Direction	Size	Data Provided
ACMEVMS$_LOGINOUT_CLI_FLAGS	Input	Longword	Boolean
ACMEVMS$_LOGINOUT_CREPRC_FLAGS	Input	Longword	Bit mask
ACMEVMS$_OLD_CONNECTION_FLAG	Input	Longword	Boolean
ACMEVMS$_OLD_DECWINDOWS_FLAG	Input	Longword	Boolean
ACMEVMS$_OLD_HASHED_PASSWORD_1	Input	Variable	String
ACMEVMS$_OLD_HASHED_PASSWORD_2	Input	Variable	String
ACMEVMS$_OLD_LGI_PHASE	Input	Longword	Code value
ACMEVMS$_OLD_LGI_STATUS	Input	Longword	Message code
ACMEVMS$_OLD_PROCESS_NAME	Input	Variable	String

ACMEVMS$_LOGINOUT_CLI_FLAGS

This input item code supplies the traditional LOGINOUT qualifiers tothe VMS ACME, including particularly the /LOCAL_PASSWORD and /CONNECTqualifiers. This item is never provided on an initial call. It is onlyprovided in response to a dialogue step.

Use of this item code is reserved to LOGINOUT, and is enforced by theVMS ACME to prevent spoofing.

ACMEVMS$_LOGINOUT_CREPRC_FLAGS

This input item code provides the CTL$GL_CREPRC_FLAGS longwordcorresponding to the FLAGS argument used for process creation. The useof this item code is reserved to LOGINOUT and is enforced by the VMSACME to prevent spoofing.

ACMEVMS$_OLD_CONNECTION_FLAG

This input item code is used by LOGINOUT to indicate to the VMS ACMEthat a terminal user logging in has chosen to connect to a disconnectedprocess rather than proceed with a new process.

Use of this item code is reserved to LOGINOUT, and is enforced by theVMS ACME to prevent spoofing.

ACMEVMS$_OLD_DECWINDOWS_FLAG

This input item code indicates the old DECwindows callout interface isbeing used. Use of this item code is reserved to LOGINOUT, and isenforced by the VMS ACME to prevent spoofing.

ACMEVMS$_OLD_HASHED_PASSWORD_1

This input item code specifies a primary password in an alternate form.You can only use this item code when specifying a value ofACMEVMS$_ARGUS for ACME$_AUTH_MECHANISM.

To use this item code, you need the IMPERSONATE privilege.

ACMEVMS$_OLD_HASHED_PASSWORD_2

This input item code specifies a secondary password in an alternateform. You can only use this item code when specifying a value ofACMEVMS$_ARGUS for ACME$_AUTH_MECHANISM.

To use this item code, you need the IMPERSONATE privilege.

ACMEVMS$_OLD_LGI_PHASE

This input item code specifies the phase of the latest LGI-callout. Itis used to provide processing equivalent so that when authentication isperformed inside LOGINOUT, the following actions occur:

• Allows LGI$_SKIPRELATED from an LGI-callout routine to be honored by ACMEs.
• Allows the VMS ACME to update UAF$W_LOGFAILS and possibly UAF$V_DISACNT even for a failure declared by an LGI-callout routine.

Use of this item code is reserved to LOGINOUT and is enforced by theVMS ACME to prevent LGI$_SKIPRELATED spoofing. If you want to perform asimilar function, you should write an ACME.

ACMEVMS$_OLD_LGI_STATUS

This input item code specifies the status returned from the latestLGI-callout. It is used to provide processing equivalent so that whenauthentication is performed inside LOGINOUT, the following actionsoccur.

• Allows LGI$_SKIPRELATED from an LGI-callout routine to be honored by ACMEs.
• Allows the VMS ACME to update UAF$W_LOGFAILS and possibly UAF$V_DISACNT even for a failure declared by an LGI-callout routine.

Use of this item code is reserved to LOGINOUT, enforced by the VMS ACMEto prevent LGI$_SKIPRELATED spoofing. If you want to perform a similarfunction, you should write an ACME.

ACMEVMS$_OLD_PROCESS_NAME

This input item code is used by LOGINOUT to indicate to the VMS ACMEthe process name after it has attempted to change the process name tomatch the username.

Use of this item code is reserved to LOGINOUT, and is enforced by theVMS ACME to prevent spoofing.

User Authorization Information (UAI) Item Codes

The VMS ACME supports the UAI codes that return SYSUAF values. SYSUAFcontents are required for authorization, initialization, and auditing.The UAI codes are transmitted to the VMS ACME as ACME-specific codes.For the definition of these item codes, refer to the SYS$GETUAI systemservice in the HP OpenVMS System Services Reference Manual: GETUTC--Z.

When in dialogue mode and when you ask for the value in the fields, theVMS ACME returns the value from that of the previous login, that is,the login before the current login.

The following ACME UAI item codes are supported:

ACMEVMS$_UAI_ACCOUNTS	ACMEVMS$_UAI_NETWORK_ACCESS_P
ACMEVMS$_UAI_ACCOUNT_LIM	ACMEVMS$_UAI_NETWORK_ACCESS_S
ACMEVMS$_UAI_ASTLM	ACMEVMS$_UAI_OWNER
ACMEVMS$_UAI_AUDIT_FLAGS (*)	ACMEVMS$_UAI_PARENT_ID
ACMEVMS$_UAI_BATCH_ACCESS_P	ACMEVMS$_UAI_PASSWORD (*)
ACMEVMS$_UAI_BATCH_ACCESS_S	ACMEVMS$_UAI_PASSWORD2 (*)
ACMEVMS$_UAI_BIOLM	ACMEVMS$_UAI_PBYTLM
ACMEVMS$_UAI_BYTLM	ACMEVMS$_UAI_PGFLQUOTA
ACMEVMS$_UAI_CLITABLES	ACMEVMS$_UAI_PRCCNT
ACMEVMS$_UAI_CPUTIM	ACMEVMS$_UAI_PRI
ACMEVMS$_UAI_DEF_CLASS	ACMEVMS$_UAI_PRIMEDAYS
ACMEVMS$_UAI_DEFCLI	ACMEVMS$_UAI_PRIV
ACMEVMS$_UAI_DEFDEV	ACMEVMS$_UAI_PROXYIES
ACMEVMS$_UAI_DEFDIR	ACMEVMS$_UAI_PROXY_LIM
ACMEVMS$_UAI_DEF_PRIV	ACMEVMS$_UAI_PWD
ACMEVMS$_UAI_DFWSCNT	ACMEVMS$_UAI_PWD2
ACMEVMS$_UAI_DIOLM	ACMEVMS$_UAI_PWD_DATE
ACMEVMS$_UAI_DIALUP_ACCESS_P	ACMEVMS$_UAI_PWD2_DATE
ACMEVMS$_UAI_DIALUP_ACCESS_S	ACMEVMS$_UAI_PWD_LENGTH
ACMEVMS$_UAI_ENCRYPT	ACMEVMS$_UAI_PWD_LIFETIME
ACMEVMS$_UAI_ENCRYPT2	ACMEVMS$_UAI_QUEPRI
ACMEVMS$_UAI_ENQLM	ACMEVMS$_UAI_REMOTE_ACCESS_P
ACMEVMS$_UAI_EXPIRATION	ACMEVMS$_UAI_REMOTE_ACCESS_S
ACMEVMS$_UAI_FILLM	ACMEVMS$_UAI_RTYPE
ACMEVMS$_UAI_FLAGS	ACMEVMS$_UAI_SALT
ACMEVMS$_UAI_GRP	ACMEVMS$_UAI_SHRFILLM
ACMEVMS$_UAI_JTQUOTA	ACMEVMS$_UAI_SUB_ID
ACMEVMS$_UAI_LASTLOGIN_I	ACMEVMS$_UAI_TQCNT
ACMEVMS$_UAI_LASTLOGIN_N	ACMEVMS$_UAI_UIC
ACMEVMS$_UAI_LGICMD	ACMEVMS$_UAI_USER_DATA
ACMEVMS$_UAI_LOCAL_ACCESS_P	ACMEVMS$_UAI_USRDATOFF
ACMEVMS$_UAI_LOCAL_ACCESS_S	ACMEVMS$_UAI_USERNAME
ACMEVMS$_UAI_LOGFAILS	ACMEVMS$_UAI_USERNAME_TAG
ACMEVMS$_UAI_MAXACCTJOBS	ACMEVMS$_UAI_JSVERSION
ACMEVMS$_UAI_MAX_CLASS	ACMEVMS$_UAI_WSQUOTA
ACMEVMS$_UAI_MAXDETACH
ACMEVMS$_UAI_MAXJOBS
ACMEVMS$_UAI_MEM
ACMEVMS$_UAI_MIN_CLASS

* These items are defined for the following numeric calculationspurposes because the base for the ACME-specific UAI item codes isACMEVMS$K_UAI_BASE. ACMEVMS$K_UAI_BASE can be added to a UAI$_* code toproduce the corresponding ACMEVMS$_UAI_* code.

Class Scheduling Item Codes

The following table lists class scheduling item codes:

Item Code	Direction	Size	Data Provided
ACMEVMS$_CLASS_DAYS	Output	Byte	Bit-mask
ACMEVMS$_CLASS_FLAGS	Output	Longword	Bit-mask
ACMEVMS$_CLASS_NAME	Output	Variable	String
ACMEVMS$_CLASS_NUMBER	Output	Word	Integer
ACMEVMS$_CLASS_PRIMEDAY_LIMIT	Output	24 bytes	Integer Array
ACMEVMS$_CLASS_SECONDAY_LIMIT	Output	24 bytes	Integer Array

ACMEVMS$_CLASS_DAYS

This item returns a 7-bit array, one for each day of the week startingwith Monday as the low-order bit.

If a given bit is set, it means the corresponding day of the week is tobe treated as a Secondary Day for purposes of class scheduling. If agiven bit is clear, the corresponding day of the week is to be treatedas a Primary Day for purposes of class scheduling. These designationsare overridden if the $GETSYI item code SYI$_DAY_OVERRIDE is set.

This data is intended primarily for LOGINOUT in setting up any classscheduling required for a new process, although other callers of $ACMare free to request it for their own purposes.

Data returned for this item code is 1 byte long, so a caller's buffershould be at least that long.

ACMEVMS$_CLASS_FLAGS

This item code returns a 32-bit mask of flags used for class scheduling.

This data is intended primarily for LOGINOUT in setting up any classscheduling required for a new process, although other callers of $ACMare free to request it for their own purposes.

Data returned for this item code is 4 bytes long, so a caller's buffershould be at least that long.

ACMEVMS$_CLASS_NAME

This item code returns a string indicating the Class Name for classscheduling the VMS Username just authenticated.

This data is intended primarily for LOGINOUT in setting up any classscheduling required for a new process, although other callers of $ACMare free to request it for their own purposes.

Data returned for this item code is up to 16 characters long, so acaller's buffer should be at least that long, with the number of bytesallocated dependent on whether the ACME$M_UCS2_4 function code modifierwas specified on the call to $ACM[W].

ACMEVMS$_CLASS_NUMBER

This item code returns the Class Number for class scheduling the VMSUsername just authenticated. A Class Number of zero means no Classapplies to this VMS Username.

This data is intended primarily for LOGINOUT in setting up any classscheduling required for a new process, although other callers of $ACMare free to request it for their own purposes.

Data returned for this item code is 2 bytes long, so a caller's buffershould be at least that long.

ACMEVMS$_CLASS_PRIMEDAY_LIMIT

This item code returns an array of 24 bytes, one for each hour of aPrimary Day, each containing a number from 1 to 100 indicating thepercentage of the overall system CPU time reserved for members of thatclass.

This data is intended primarily for LOGINOUT in setting up any classscheduling required for a new process, although other callers of $ACMare free to request it for their own purposes.

Data returned for this item code is 24 bytes long, so a caller's buffershould be at least that long.

ACMEVMS$_CLASS_SECONDAY_LIMIT

This item code returns an array of 24 bytes, one for each hour of aSecondary Day, each containing a number from 1 to 100 indicating thepercentage of the overall system CPU time reserved for members of thatclass.

This data is intended primarily for LOGINOUT in setting up any classscheduling required for a new process, although other callers of $ACMare free to request it for their own purposes.

Data returned for this item code is 24 bytes long, so a caller's buffershould be at least that long.

Miscellaneous Item Codes

The following ACME-specific item codes cannot be classified into any ofthe previous categories:

Item Code	Direction	Size	Data Provided
ACMEVMS$_AUTOLOGIN_ALLOWED_FLAG	Input	Longword	Boolean
ACMEVMS$_CONFIRM_PASSWORD_1	Input	Variable	String
ACMEVMS$_CONFIRM_PASSWORD_2	Input	Variable	String
ACMEVMS$_CONFIRM_PASSWORD_SYS	Input	Variable	String
ACMEVMS$_NET_PROXY	Input	Variable	String
ACMEVMS$_PREAUTHENTICATION_FLAG	Input	Longword	Boolean
ACMEVMS$_REQUESTOR_PID	Input	Longword	Hexadecimal
ACMEVMS$_REQUESTOR_UIC	Input	Longword	Hexadecimal
ACMEVMS$_REQUESTOR_USERNAME	Input	Variable	String
ACMEVMS$_USES_SYSTEM_PASSWORD	Input	Longword	Boolean

ACMEVMS$_AUTOLOGIN_ALLOWED_FLAG

This input item code specifies that a particular access port is of atype eligible for VMS Autologin. If the port is not specified in theAutologin file read by the VMS ACME, then this item code has no effect.

ACMEVMS$_CONFIRM_PASSWORD_1

The VMS ACME uses this input item code as a separate verificationprompt when a new primary password is being specified. Use of aseparate dialogue step rather than the verification method built intothe Item Set definition allows some initial checking to be done foracceptability of the proposed password before the user is asked to typethe password in again.

Some networked ACME agents are tied to network protocols that do notallow independent checking of the acceptability of a proposed password,so even when an item set with this item code is returned, the proposedpassword could be rejected later.

This item code might be requested in a dialogue step.

ACMEVMS$_CONFIRM_PASSWORD_2

The VMS ACME uses this input item code as a separate verificationprompt when a new secondary password is being specified. Use of aseparate dialogue step rather than the verification method built intothe Item Set definition allows some initial checking to be done foracceptability of the proposed password before the user is asked to typethe password again.

Some networked ACME agents are tied to network protocols that do notallow independent checking of the acceptability of a proposed password,so even when an item set with this item code is returned, the proposedpassword could be rejected later. Most networked ACME agents do notsupport secondary passwords, so after an item set with this item codehas been returned, rejection later is unlikely, though possible.

This item code might be requested in a dialogue step.

ACMEVMS$_CONFIRM_PASSWORD_SYS

The VMS ACME uses this input item code as a separate verificationprompt when a new system password is being specified. Use of a separatedialogue step rather than the verification method built into the ItemSet definition allows full initial checking to be done foracceptability of the proposed system password before the user is askedto type the entire password in again.

This item code might be requested in a dialogue step.

ACMEVMS$_NET_PROXY

This input item code specifies the proxy user name for which a networklogin is to be processed, without authentication information, just asfor a batch login or preauthenticated network login.

This item code requires the IMPERSONATE privilege.

ACMEVMS$_PREAUTHENTICATION_FLAG

This input item code specifies a login that is to be processed withoutauthentication information, such as for a batch login. When firstreceived by the VMS ACME, this item code causes the setting of theWQE_PREAUTHENTICATED flag in the Work Queue Entry Context, which ishonored by all ACMEs.

To use this item code, you need the IMPERSONATE privilege.

ACMEVMS$_REQUESTOR_PID

This input item code specifies the Requestor Processor ID for use bythe VMS ACME in auditing and breakin detection. Combined with the codesACMEVMS$_REQUESTOR_UIC and ACMEVMS$_REQUESTOR_USERNAME, it is used whenthe process calling $ACM is not actually the process to which theauthentication should be attributed. When first received by the VMSACME, the value of this item is stored in the REQUESTOR_PID longword inthe Request Context for later use. This item code is available tosupport LGI-callout operations and other callers toLGI$AUTHENTICATE_USER.

To use this item code, you need the IMPERSONATE privilege to guardagainst spoofing.

ACMEVMS$_REQUESTOR_UIC

This input item code specifies the Requestor UIC for use by the VMSACME in auditing and breakin detection. When first received by the VMSACME, the value of this item is stored in the REQUESTOR_UIC longword inthe Request Context for later use. This item code is available tosupport LGI-callout operations and other callers ofLGI$AUTHENTICATE_USER.

This item allows the caller of $ACM to provide an accurate valuebecause a call to SYS$GETJPI, based on the ACMEVMS$_REQUESTOR_PIDACME-specific item code value, might produce inaccurate results due toa subsequent assumption of a different persona in the requestor process.

To use this item code, you need the IMPERSONATE privilege to guardagainst spoofing.

ACMEVMS$_REQUESTOR_USERNAME

This input item code specifies the Requestor Username for use by theVMS ACME in auditing and breakin detection. When first received by theVMS ACME, the value of this item is stored in the OWNER_USERNAMEvarying string descriptor in the Request Context for later use. Thisitem code supports LGI-callout operations and other callers ofLGI$AUTHENTICATE_USER.

This item allows the caller of $ACM to provide an accurate valuebecause a call to SYS$GETJPI, based on the ACMEVMS$_REQUESTOR_PID itemcode value, might produce inaccurate results due to a subsequentassumption of a different persona in the requestor process.

To use this item code, you need the IMPERSONATE privilege to guardagainst spoofing.

ACMEVMS$_USES_SYSTEM_PASSWORD

This input item code specifies that a particular access port is enabledfor use of the System Password. Other conditions, such as not having aSystem Password defined, may mean that no Item Set requesting a SystemPassword is actually returned to the client. When first received by theVMS ACME, the value of this item is stored in theUSES_SYSTEM_PASSWORD_FLAG boolean in the Request Context for later use.

To use this item code, you need the SECURITY privilege to guard againstpassword guessing.

VMS ACME-Specific---Output Message Categories

The following table lists the output message categories specific to theVMS ACME and their meanings:

These categories appear in output item set entries and are speciallyinterpreted by LOGINOUT.

These categories are restricted to the LOGINOUT client since they existonly for supporting the old style DECwindows and LGI-callouts.

ACMEVMS$K_OLD_AUTH_FLAGS

This output message category provides a series of flags that are usedto construct the Authentication Flags indicating what passwords arerequired for the mapped user name.

These flags are used directly for DECwindows V1.2-4 and earlier inLGI$AUTHENTICATE_USER, and for calculations that are passed toLGI-callouts in cell ICR_PWDCOUNT by INTERACT/INTERACITVE_VALIDATION.It provides data abstraction from the specific SYSUAF fields.

The following table lists the flags, their bit number, and meaning:

Name	Bit Number	Meaning
OPENACCT	0	No password
PASSWORD_1	1	Primary password exists
PASSWORD_2	2	Secondary password exists
GENPWD	3	Passwords are not generated

This data is only supplied to LOGINOUT to support previous LGI-calloutand DECwindows callout models. Other clients should follow the ACMEmodel for user interaction.

This output item category provides a buffer that is to be filled withACMEVMS$K_OLD_AUTH_FLAGS output message category data.

ACMEVMS$K_OLD_DECW_PWD_EXP_1

This output message category is a binary quadword indicating futurepassword expiration.

It is provided only for compatibility with older versions ofDECwindows. Its use is restricted to LOGINOUT, which is enforced by theVMS ACME.

ACMEVMS$K_OLD_DECW_PWD_EXP_2

This output message category is a binary quadword indicating futurepassword expiration.

This data is provided only for compatibility with older versions ofDECwindows. Its use is restricted to LOGINOUT, which is enforced by theVMS ACME.

ACMEVMS$K_OLD_DECW_PWD_QUALITY Output Message Category

This output message category is a binary longword indicating thefailure category on password change.

This data is provided only for compatibility with older versions ofDECwindows. Its use is restricted to LOGINOUT, which is enforced by theVMS ACME.

ACMEVMS$K_SYSUAF_070

This output message category provides a buffer that is to be filledwith UAF070$ data. LOGINOUT now uses the $ACMW service, relyingexclusively on UAI$_information rather than the direct manipulation ofSYSUAF records. This output message category provides the sameinformation as various UAI$_xxxx codes, but in the format ofthe OpenVMS V7.0 SYSUAF record. This item code allows LOGINOUT tocontinue supporting the LGI-callout interface. Your new software shoulduse UAI$_xxxx item codes and avoid the ACMEVMS$K_SYSUAF_070output message category.

This data is only supplied to LOGINOUT to support previous LGI-calloutand DECwindows callout models. Other clients should follow the ACMEmodel for user interaction.

ACMEVMS$K_OLD_TERMINAL_CONNECT

This output message category is passed from the VMS ACME to LOGINOUT toallow for changing the process name prior to auditing and to give anopportunity for the users to reconnect to any disconnected job they mayhave.

This data is provided only for compatibility with the historic behaviorof LOGINOUT. Its use is restricted to LOGINOUT, which is enforced bythe VMS ACME.

ACMEVMS$K_AUTH_MECH_ARGUS

This authentication mechanism is used by the TNT Server component usedfor system management from Intel machines. Its use is restricted tothat client, enforced by the VMS ACME.

The $ACM service provides a common interface to all functions supportedby the Authentication and Credentials Management (ACM) authority.

The caller must specify the function code and any applicable functionmodifiers and item codes for the requested operation.

The $ACM service completes asynchronously; for synchronous completion,use the $ACMW form of the service.

Format

SYS$ACMW [efn], func, [context], itmlst, acmsb, [astadr], [astprm]

C Prototype

int sys$acmw (unsigned int efn, unsigned int func, struct _acmecb*context, void *itmlst, struct _acmesb *acmsb, void(*astadr)(__unknown_params), int astprm);

Acquires ownership of an OpenVMS Galaxy lock.

Note that this system service is supported only in an OpenVMS AlphaGalaxy environment.

For more information about programming with OpenVMS Galaxy systemservices, refer to the HP OpenVMS Alpha Partitioning and Galaxy Guide.

Format

SYS$ACQUIRE_GALAXY_LOCK handle ,timeout ,flags

C Prototype

int sys$acquire_galaxy_lock (unsigned __int64 lock_handle, unsigned inttimeout, unsigned int flags);

Arguments

handle

OpenVMS usage:	galaxy lock handle
type:	quadword (unsigned)
access:	read
mechanism:	input by value

The 64-bit lock handle that identifies the lock to be acquired. Thisvalue is returned by SYS$CREATE_GALAXY_LOCK.

timeout

OpenVMS usage:	wait timeout
type:	longword (unsigned)
access:	read
mechanism:	input by value

The 32-bit wait or spin timeout specified in 10 microsecond units. Ifnot specified, defaults to 10 microseconds.

flags

OpenVMS usage:	bit mask
type:	longword (unsigned)
access:	read
mechanism:	input by value

Control flags defined by the GLOCKDEF macro: GLOCK$C_NOBREAK,GLOCK$C_NOSPIN, and GLOCK$C_NOWAIT.

Description

This service is used to acquire ownership of an OpenVMS Galaxy lock. Ifthe lock is free, the caller becomes the owner and control returnsimmediately. If the lock is owned, based on the input flags and thetimeout value, either the caller will wait or an error will be returned.

The default behavior when an attempt is made to acquire a lock that isowned, is to spin for 10 microseconds and then to wait. If a waittimeout value was specified in the call, it is used. Otherwise thetimeout value set in the lock by $CREATE_GALAXY_LOCK will be used. Thisbehavior can be changed with the input flags.

If just GLOCK$C_NOSPIN is specified and the lock is owned, no spin willbe done.

If just GLOCK$C_NOWAIT is specified and the lock is owned, the callerwill only spin on the lock. If a timeout value is specified in thecall, it is used as the spin time. Otherwise, the caller will spin for10 microseconds. If the lock does not become available during the spin,the lock is not acquired and SS$_NOWAIT is returned.

If both GLOCK$C_NOSPIN and GLOCK$C_NOWAIT are specified and the lock isowned, control returns immediately. The lock is not acquired andSS$_NOWAIT is returned.

Due to system events such an OpenVMS Galaxy instance shutting down, alock may become owned by a non-existent entity. If this occurs, thedefault behavior of $ACQUIRE_GALAXY_LOCK is to break the old lockownership. The caller becomes the new owner and the service returnsSS$_BROKEN. If GLOCK$C_NOBREAK is specified, $ACQUIRE_GALAXY_LOCK willnot break the lock ownership and returns SS$_NOBREAK.

Required Access or Privileges

Write access to OpenVMS Galaxy lock table contains lock to acquire.

Required Quota

None

Related Services

$CREATE_GALAXY_LOCK, $CREATE_GALAXY_LOCK_TABLE, $DELETE_GALAXY_LOCK,$DELETE_GALAXY_LOCK_TABLE, $GET_GALAXY_LOCK_INFO,$GET_GALAXY_LOCK_SIZE, $RELEASE_GALAXY_LOCK

Condition Values Returned

SS$_NORMAL	Normal completion.
SS$_BADPARAM	Bad parameter value.
SS$_BROKEN	Lock acquired after lock ownership was broken.
SS$_IVLOCKID	Invalid lock id.
SS$_IVLOCKOP	Invalid lock operation.
SS$_IVLOCKTBL	Invalid lock table.
SS$_LOCK_TIMEOUT	Failed to acquire lock; request has timed out.
SS$_NOBREAK	Failed to acquire lock; lock ownership is broken.
SS$_NOWAIT	Failed to acquire lock; NOWAIT was specified.

Authorizes a new branch to be added to a transaction.

Format

SYS$ADD_BRANCH [efn] ,[flags] ,iosb ,[astadr] ,[astprm] ,tid ,tm_name,bid

C Prototype

int sys$add_branch (unsigned int efn, unsigned int flags, struct _iosb*iosb, void (*astadr)(__unknown_params), int astprm, unsigned int tid[4], void *tmname, unsigned int bid [4]);

Arguments

efn

OpenVMS usage:	ef_number
type:	longword (unsigned)
access:	read only
mechanism:	by value

Number of the event flag that is set when the service completes. Ifthis argument is omitted, event flag 0 is used.

flags

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Flags specifying options for the service. The flagsargument is a longword bit mask in which each bit corresponds to anoption flag. The $DDTMDEF macro defines symbolic names for the optionflag, which is described in Table SYS-15. All undefined bits must be 0.If this argument is omitted, no flags are used.

Table SYS-15 $ADD_BRANCH Option Flag

Flag Name	Description
DDTM$M_SYNC	Specifies successful synchronous completion by returning SS$_SYNCH. When SS$_SYNCH is returned, the AST routine is not called, the event flag is not set, and the I/O status block is not filled in.

iosb

OpenVMS usage:	io_status_block
type:	quadword (unsigned)
access:	write only
mechanism:	by reference

The I/O status block in which the completion status of the service isreturned as a condition value. See the Condition Values Returnedsection.

The following diagram shows the structure of the I/O status block:

astadr

astprm

tid

tm_name

To ensure smooth operation in a mixed-network environment, refer to thechapter entitled Managing DECdtm Services in the HP OpenVMS System Manager's Manual, forinformation on defining node names.

bid

Description

The $ADD_BRANCH system service:

• Authorizes a new branch to be added to the specified transaction.
• Checks, if the tm_name argument specifies a remote node, that there is a communications link between the DECdtm transaction manager on that node and the DECdtm transaction manager on the local node.

The precondition for the successful completion of $ADD_BRANCH is thatthe calling process must contain at least one branch of the specifiedtransaction.

$ADD_BRANCH may fail for several reasons, including:

• The precondition was not satisfied.
• An abort event has occurred for the transaction.
• A call to $END_TRANS to end the transaction is in progress and it is now too late to authorize a new branch for the transaction.
• The node specified by the tm_name argument was a remote node and a failure was detected by the IPC mechanism.

Postconditions on successful completion of $ADD_BRANCH are described inTable SYS-16:

Table SYS-16 Postconditions When$ADD_BRANCH Completes Successfully

Postcondition	Meaning
A new branch is authorized for the transaction and its identifier is returned.	The identifier (BID) of the new branch is returned in the octaword to which the bid argument points. $ADD_BRANCH uses the $CREATE_UID system service to generate the BID. No other call to $ADD_BRANCH or $CREATE_UID on any node ever returns the same BID value.
The transaction cannot commit until the new branch has been added to the transaction by a matching call to $START_BRANCH.	See the description of $START_BRANCH for the definition of a "matching" call to $START_BRANCH.

There is also a wait form of the service, $ADD_BRANCHW.

Required Privileges

None

Required Quotas

BYTLM, ASTLM

Related Services

$ABORT_TRANS, $ABORT_TRANSW, $ACK_EVENT, $ADD_BRANCHW, $CREATE_UID,$DECLARE_RM, $DECLARE_RMW, $END_BRANCH, $END_BRANCHW, $END_TRANS,$END_TRANSW, $FORGET_RM, $FORGET_RMW, $GETDTI, $GETDTIW,$GET_DEFAULT_TRANS, $JOIN_RM, $JOIN_RMW, $SETDTI, $SETDTIW,$SET_DEFAULT_TRANS, $SET_DEFAULT_TRANSW, $START_BRANCH, $START_BRANCHW,$START_TRANS, $START_TRANSW, $TRANS_EVENT, $TRANS_EVENTW

Condition Values Returned

SS$_NORMAL	If returned in R0, the request was successfully queued. If returned in the I/O status block, the service completed successfully.
SS$_SYNCH	The service completed successfully and synchronously (returned only if the DDTM$M_SYNC flag is set).
SS$_ACCVIO	An argument was not accessible to the caller.
SS$_BADPARAM	The options flags were invalid.
SS$_EXASTLM	The process AST limit (ASTLM) was exceeded.
SS$_EXQUOTA	The job buffered I/O byte limit quota (BYTLM) was exceeded.
SS$_ILLEFC	The event flag number was invalid.
SS$_INSFARGS	A required argument was missing.
SS$_INSFMEM	There was insufficient system dynamic memory for the operation.
SS$_INVBUFLEN	The string passed in the tm_name argument was longer than 256 characters.
SS$_NOSUCHTID	The calling process did not contain any branches in the transaction.
SS$_WRONGSTATE	The transaction was in the wrong state for the attempted operation because either an abort event has occurred for the transaction, or a call to $END_TRANS to end the transaction is in progress and it is now too late to authorize new branches for the transaction.
Any IPC status	An error has occurred while attempting to communicate with the node specified by the tm_name argument. The set of IPC statuses includes the set of DECnet errors.

Authorizes a new branch to be added to a transaction. $ADD_BRANCHWalways waits for the request to complete before returning to thecaller. Other than this, it is identical to $ADD_BRANCH.

Format

SYS$ADD_BRANCHW [efn] ,[flags] ,iosb ,[astadr] ,[astprm] ,tid ,tm_name,bid

C Prototype

int sys$add_branchw (unsigned int efn, unsigned int flags, struct _iosb*iosb, void (*astadr)(__unknown_params), int astprm, unsigned int tid[4], void *tmname, unsigned int bid [4]);

Adds a specified holder record to a target identifier.

Format

SYS$ADD_HOLDER id ,holder ,[attrib]

C Prototype

int sys$add_holder (unsigned int id, struct _generic_64 *holder,unsigned int attrib);

Arguments

id

OpenVMS usage:	rights_id
type:	longword (unsigned)
access:	read only
mechanism:	by value

Target identifier granted to the specified holder when $ADD_HOLDERcompletes execution. The id argument is a longwordcontaining the binary value of the target identifier.

holder

OpenVMS usage:	rights_holder
type:	quadword (unsigned)
access:	read only
mechanism:	by reference

Holder identifier that is granted access to the target identifier when$ADD_HOLDER completes execution. The holder argumentis the address of a quadword data structure that consists of a longwordcontaining the holder's UIC identifier followed by a longwordcontaining a value of 0.

attrib

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Attributes to be placed in the holder record when $ADD_HOLDER completesexecution. The attrib argument is a longwordcontaining a bit mask specifying the attributes. A holder is granted aspecified attribute only if the target identifier has the attribute.

Symbol values are offsets to the bits within the longword. You can alsoobtain the values as masks with the appropriate bit set using theprefix KGB$M rather than KGB$V. The symbols are defined in the systemmacro library ($KGBDEF). The symbolic name for each bit position islisted in the following table:

Bit Position	Meaning When Set
KGB$V_DYNAMIC	Allows holders of the identifier to remove it from or add it to the process rights database by using the DCL command SET RIGHTS_LIST.
KGB$V_HOLDER_HIDDEN	Prevents someone from getting a list of users who hold an identifier, unless they own the identifier themselves.
KGB$V_NAME_HIDDEN	Allows holders of an identifier to have it translated---either from binary to ASCII or vice versa---but prevents unauthorized users from translating the identifier.
KGB$V_NOACCESS	Makes any access rights of the identifier null and void. This attribute is intended as a modifier for a resource identifier or the Subsystem attribute.
KGB$V_RESOURCE	Allows holders of an identifier to charge disk space to the identifier. It is used only for file objects.
KGB$V_SUBSYSTEM	Allows holders of the identifier to create and maintain protected subsystems by assigning the Subsystem ACE to the application images in the subsystem.

Description

The Add Holder Record to Rights Database service registers thespecified user as a holder of the specified identifier with the rightsdatabase.

Required Access or Privileges

Write access to the rights database is required.

Required Quota

None

Related Services

$ADD_IDENT, $ASCTOID, $CREATE_RDB, $FIND_HELD, $FIND_HOLDER,$FINISH_RDB, $GRANTID, $IDTOASC, $MOD_HOLDER, $MOD_IDENT, $REM_HOLDER,$REM_IDENT, $REVOKID

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The holder argument cannot be read by the caller.
SS$_BADPARAM	The specified attributes contain invalid attribute flags.
SS$_DUPIDENT	The specified holder already exists in the rights database for this identifier.
SS$_INSFMEM	The process dynamic memory is insufficient for opening the rights database.
SS$_IVIDENT	The specified identifier or holder is of an invalid format, the specified holder is 0, or the specified identifier and holder are equal.
SS$_NORIGHTSDB	The rights database does not exist.
SS$_NOSUCHID	The specified identifier does not exist in the rights database, or the specified holder identifier does not exist in the rights database.
RMS$_PRV	The user does not have write access to the rights database.

Because the rights database is an indexed file accessed with OpenVMSRMS, this service can also return RMS status codes associated withoperations on indexed files. For descriptions of these status codes,refer to the OpenVMS Record Management Services Reference Manual.

Adds the specified identifier to the rights database.

Format

SYS$ADD_IDENT name ,[id] ,[attrib] ,[resid]

C Prototype

int sys$add_ident (void *name, unsigned int id, unsigned int attrib,unsigned int *resid);

Arguments

name

OpenVMS usage:	char-string
type:	character-coded text string
access:	read only
mechanism:	by descriptor--fixed-length string descriptor

Identifier name to be added to the rights database when $ADD_IDENTcompletes execution. The name argument is the addressof a character-string descriptor pointing to the identifier name string.

An identifier name consists of 1 to 31 alphanumeric characters,including dollar signs ($) and underscores (_), and must contain atleast one nonnumeric character. Any lowercase characters specified areautomatically converted to uppercase.

id

OpenVMS usage:	rights_id
type:	longword (unsigned)
access:	read only
mechanism:	by value

Identifier to be created when $ADD_IDENT completes execution. Theid argument is a longword containing the binary valueof the identifier to be created.

If the id argument is omitted, $ADD_IDENT selects aunique available value from the general identifier space and returns itin resid, if it is specified.

attrib

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Attributes placed in the identifier's record when $ADD_IDENT completesexecution. The attrib argument is a longwordcontaining a bit mask that specifies the attributes.

Symbol values are offsets to the bits within the longword. You can alsoobtain the values as masks with the appropriate bit set using theprefix KGB$M rather than KGB$V. The symbols are defined in the systemmacro library ($KGBDEF). The symbolic name for each bit position islisted in the following table:

Bit Position	Meaning When Set
KGB$V_DYNAMIC	Allows holders of the identifier to remove it from or add it to the process rights database by using the DCL command SET RIGHTS_LIST.
KGB$V_HOLDER_HIDDEN	Prevents someone from getting a list of users who hold an identifier, unless they own the identifier themselves.
KGB$V_NAME_HIDDEN	Allows holders of an identifier to have it translated---either from binary to ASCII or vice versa---but prevents unauthorized users from translating the identifier.
KGB$V_NOACCESS	Makes any access rights of the identifier null and void. This attribute is intended as a modifier for a resource identifier or the Subsystem attribute.
KGB$V_RESOURCE	Allows holders of an identifier to charge disk space to the identifier. It is used only for file objects.
KGB$V_SUBSYSTEM	Allows holders of the identifier to create and maintain protected subsystems by assigning the Subsystem ACE to the application images in the subsystem.

resid

OpenVMS usage:	rights_id
type:	longword (unsigned)
access:	write only
mechanism:	by reference

Identifier value assigned by the system when $ADD_IDENT completesexecution. The resid argument is the address of alongword in which the system-assigned identifier value is written.

Description

The Add Identifier to Rights Database service adds the specifiedidentifier to the rights database.

Required Access or Privileges

Write access to the rights database is required.

Required Quota

None

Related Services

$ADD_HOLDER, $ASCTOID, $CREATE_RDB, $FIND_HELD, $FIND_HOLDER,$FINISH_RDB, $GRANTID, $IDTOASC, $MOD_HOLDER, $MOD_IDENT, $REM_HOLDER,$REM_IDENT, $REVOKID

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The name argument cannot be read by the caller, or the resid argument cannot be written by the caller.
SS$_BADPARAM	The specified attributes contain invalid attribute flags.
SS$_DUPIDENT	The specified identifier already exists in the rights database.
SS$_DUPLNAM	The specified identifier name already exists in the rights database.
SS$_INSFMEM	The process dynamic memory is insufficient for opening the rights database.
SS$_IVIDENT	The format of the specified identifier is invalid.
SS$_NORIGHTSDB	The rights database does not exist.
RMS$_PRV	The user does not have write access to the rights database.

Because the rights database is an indexed file accessed with OpenVMSRMS, this service can also return RMS status codes associated withoperations on indexed files. For descriptions of these status codes,refer to the OpenVMS Record Management Services Reference Manual.

Adds a new proxy to, or modifies an existing proxy in, the proxydatabase.

Format

SYS$ADD_PROXY rem_node ,rem_user ,local_user ,[flags]

C Prototype

int sys$add_proxy (void *rem_node, void *rem_user, void *local_user,unsigned int flags);

Arguments

rem_node

OpenVMS usage:	char_string
type:	character-coded text string
access:	read only
mechanism:	by descriptor--fixed-length string descriptor

Remote node name of the proxy to be added to or modified in the proxydatabase. The rem_node argument is the address of acharacter-string descriptor pointing to the remote node name string.

A remote node name consists of 1 to 1024 characters. No specificcharacters, format, or case are required for a remote node name string.Node names are converted to their DECnet for OpenVMS full name unlessthe PRX$M_BYPASS_EXPAND flag is set with the flagsargument.

If you specify a single asterisk (*) for the rem_nodeargument, the user name specified by the rem_userargument on all nodes is served by the proxy.

rem_user

OpenVMS usage:	char_string
type:	character-coded text string
access:	read only
mechanism:	by descriptor--fixed-length string descriptor

Remote user name of the proxy to be added to or modified in the proxydatabase. The rem_user argument is the address of acharacter-string descriptor pointing to the user name string.

A remote user name consists of 1 to 32 alphanumeric characters,including dollar signs ($), underscores (_), and brackets ([ ]). Anylowercase characters specified are automatically converted to uppercase.

The rem_user argument can be specified in useridentification code (UIC) format ([group, member]).Brackets are allowed only if the remote user name string specifies aUIC. Group and member are character-string representations of octalnumbers with no leading zeros.

If you specify a single asterisk (*) for the rem_userargument, all users from the node specified by therem_node argument are served by the same user namesspecified by the local_user argument.

local_user

OpenVMS usage:	char_string
type:	character-coded text string
access:	read only
mechanism:	by descriptor--fixed-length string descriptor

Local user name to add to the proxy record specified by therem_node and rem_user arguments inthe proxy database as either the default user or local user. Thelocal_user argument is the address of acharacter-string descriptor pointing to the local user name.

A local user name consists of 1 to 32 alphanumeric characters,including dollar signs ($) and underscores (_). Any lowercasecharacters specified are automatically converted to uppercase.

The user name specified by the local_user argumentmust be a user name known to the local system.

If the PRX$M_DEFAULT flag is specified in the flagsargument, the user name specified by the local_userargument will be added to the proxy record in the proxy database as thedefault user. If a default user already exists for the specified proxyrecord, the default user is placed into the proxy's local user list andis replaced by the user name specified by thelocal_user argument.

Proxy records can contain no more than 16 local users and 1 defaultuser. To add multiple users to a single proxy, you must call thisservice once for each local user.

flags

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Functional specification for the service and type of user thelocal_user argument represents. Theflags argument is a longword bit mask wherein each bitcorresponds to an option.

Each flag option has a symbolic name. The $PRXDEF macro defines thefollowing symbolic names:

Symbolic Name	Description
PRX$M_BYPASS_EXPAND	The service should not convert the node name specified in the rem_node argument to its corresponding DECnet for OpenVMS full name. If this flag is set, it is the caller's responsibility to ensure that the fully expanded node name is passed into the service.
PRX$M_DEFAULT	The user name specified by the local_user argument is the default user for the proxy. If this flag is not specified, the user name specified by the local_user argument is added to the proxy record's local user list.
PRX$M_IGNORE_RETURN	The service should not wait for a return status from the security server. No return status from the server's function will be returned to the caller.

Description

The Add Proxy service adds a new proxy to, or modifies an existingproxy in, the proxy database.

Required Access or Privileges

The caller must have either SYSPRV privilege or a UIC group less thanor equal to the MAXSYSGRP system parameter.

Required Quota

None

Related Services

$DELETE_PROXY, $DISPLAY_PROXY, $VERIFY_PROXY

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The rem_node, rem_user, local_user, or flags argument cannot be read by the service.
SS$_BADPARAM	An invalid flag was specified in the flags argument.
SS$_BADBUFLEN	The length of the rem_node, rem_user, or local_user argument was out of range.
SS$_NOSYSPRV	The caller does not have access to the proxy database.
This service can also return any of the following messages passed from the security server, or any OpenVMS RMS error message encountered during operations on the proxy database:
SECSRV$_BADLOCALUSERLEN	The local user name length is out of range.
SECSRV$_BADNODENAMELEN	The node name length is out of range.
SECSRV$_BADREMUSERLEN	The remote user name length is out of range.
SECSRV$_DUPLICATEUSER	The user name specified by the local_user argument already exists in the proxy record's local user list.
SECSRV$_PROXYNOTACTIVE	Proxy processing is currently stopped. Try the request again later.
SECSRV$_SERVERNOTACTIVE	The security server is not currently active. Try the request again later.
SECSRV$_TOOMANYUSERS	The specified proxy already has 16 local users and cannot accommodate any more.

Modifies the stack pointer for a less privileged access mode. Theoperating system uses this service to modify a stack pointer for a lessprivileged access mode after placing arguments on the stack.

Format

SYS$ADJSTK [acmode] ,[adjust] ,newadr

C Prototype

int sys$adjstk (unsigned int acmode, short int adjust, void*(*(newadr)));

Arguments

acmode

OpenVMS usage:	access_mode
type:	longword (unsigned)
access:	read only
mechanism:	by value

Access mode for which the stack pointer is to be adjusted. Theacmode argument is this longword value. If notspecified, the default value 0 (kernel access mode) is used.

adjust

OpenVMS usage:	word_signed
type:	word (signed)
access:	read only
mechanism:	by value

Signed adjustment value used to modify the value specified by thenewadr argument. The adjust argumentis a signed longword, which is the adjustment value.

Only the low-order word of this argument is used. The value specifiedby the low-order word is added to or subtracted from (depending on thesign) the value specified by the newadr argument. Theresult is loaded into the stack pointer for the specified access mode.

If the adjust argument is not specified or isspecified as 0, the stack pointer is loaded with the value specified bythe newadr argument.

For additional information about the various combinations of values foradjust and newadr, see theDescription section.

newadr

OpenVMS usage:	address
type:	longword (unsigned)
access:	modify
mechanism:	by reference

Value that adjust is to adjust. Thenewadr argument is the address of this longword value.

The value specified by this argument is both read and written by$ADJSTK. The $ADJSTK service reads the value specified and adjusts itby the value of the adjust argument (if specified).After this adjustment is made, $ADJSTK writes the adjusted value backinto the longword specified by newadr and then loadsthe stack pointer with the adjusted value.

If the value specified by newadr is 0, the currentvalue of the stack pointer is adjusted by the value specified byadjust. This new value is then written back intonewadr, and the stack pointer is modified.

For additional information about the various combinations of values foradjust and newadr, see theDescription section.

Description

The Adjust Outer Mode Stack Pointer service modifies the stack pointerfor a less privileged access mode. The operating system uses thisservice to modify a stack pointer for a less privileged access modeafter placing arguments on the stack.

Combinations of zero and nonzero values for the adjustand newadr arguments provide the following results:

If the adjust argument specifies:	And the value specified by newadr is:	The stack pointer is:
0	0	Not changed
0	An address	Loaded with the address specified
A value	0	Adjusted by the specified value
A value	An address	Loaded with the specified address, adjusted by the specified value

In all cases, the updated stack pointer value is written into the valuespecified by the newadr argument.

Required Access or Privileges

None

Required Quota

None

Related Services

$ADJWSL, $CRETVA, $CRMPSC, $DELTVA, $DGBLSC $EXPREG, $LCKPAG, $LKWSET,$MGBLSC, $PURGWS, $SETPRT, $SETSTK, $SETSWM, $ULKPAG, $ULWSET, $UPDSEC,$UPDSECW

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The value specified by newadr or a portion of the new stack segment cannot be written by the caller.
SS$_NOPRIV	The specified access mode is equal to or more privileged than the calling access mode.

Adjusts a process's current working set limit by the specified numberof pages (on VAX systems) or pagelets (on Alpha systems) and returnsthe new value to the caller. The working set limit specifies themaximum number of process pages or pagelets that can be resident inphysical memory.

On Alpha systems, this service accepts 64-bit addresses.

Format

SYS$ADJWSL [pagcnt] ,[wsetlm]

C Prototype

int sys$adjwsl (int pagcnt, unsigned int *wsetlm);

Arguments

pagcnt

OpenVMS usage:	longword_signed
type:	longword (signed)
access:	read only
mechanism:	by value

Signed adjustment value specifying the number of pages (on VAX systems)or pagelets (on Alpha systems) to add to (if positive) or subtract from(if negative) the current working set limit. Thepagcnt argument is this signed longword value.

Note that, on Alpha systems, the specified value is rounded up to aneven multiple of the CPU-specific page size.

If pagcnt is not specified or is specified as 0, noadjustment is made and the current working set limit is returned in thelongword specified by the wsetlm argument (if thisargument is specified).

wsetlm

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	write only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

Value of the working set limit, in pages (on VAX systems) or pagelets(on Alpha systems), returned by $ADJWSL. The wsetlmargument is the 32-bit address (on VAX systems) or the 32- or 64-bitaddress (on Alpha systems) of this longword value. Thewsetlm argument receives the newly adjusted value ifpagcnt is specified, and it receives the prior,unadjusted value if pagcnt is not specified.

Description

The Adjust Working Set Limit service adjusts a process's currentworking set limit by the specified number of pages (on VAX systems) orpagelets (rounded up or down to a whole page count on Alpha systems)and returns the new value to the caller. The working set limitspecifies the maximum number of process pages that can be resident inphysical memory.

If a program attempts to adjust the working set limit beyond thesystem-defined upper and lower limits, no error condition is returned;instead, the working set limit is adjusted to the maximum or minimumsize allowed.

Required Access or Privileges

None

Required Quota

The initial value of a process's working set limit is controlled by theworking set default (WSDEFAULT) quota. The maximum value to which itcan be increased is controlled by the working set extent (WSEXTENT)quota; the minimum value to which it can be decreased is limited by thesystem parameter MINWSCNT.

Related Services

$ADJSTK, $CRETVA, $CRMPSC, $DELTVA, $DGBLSC, $EXPREG, $LCKPAG, $LKWSET,$MGBLSC, $PURGWS, $SETPRT, $SETSTK, $SETSWM, $ULKPAG, $ULWSET, $UPDSEC,$UPDSECW

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The longword specified by wsetlm cannot be written by the caller.

Allocates a device for exclusive use by a process and its subprocesses.No other process can allocate the device or assign channels to it untilthe image that called $ALLOC exits or explicitly deallocates the devicewith the Deallocate Device ($DALLOC) service.

Format

SYS$ALLOC devnam ,[phylen] ,[phybuf] ,[acmode] ,[flags]

C Prototype

int sys$alloc (void *devnam, unsigned short int *phylen, void *phybuf,unsigned int acmode, unsigned int flags);

Arguments

devnam

OpenVMS usage:	device_name
type:	character-coded text string
access:	read only
mechanism:	by descriptor--fixed-length string descriptor

Device name of the device to be allocated. The devnamargument is the address of a character string descriptor pointing tothe device name string.

The string can be either a physical device name or a logical name. Ifit is a logical name, it must translate to a physical device name.

phylen

OpenVMS usage:	word_unsigned
type:	word (unsigned)
access:	write only
mechanism:	by reference

Word into which $ALLOC writes the length of the device name string forthe device it has allocated. The phylen argument isthe address of this word.

phybuf

OpenVMS usage:	device_name
type:	character-coded text string
access:	write only
mechanism:	by descriptor--fixed-length string descriptor

Buffer into which $ALLOC writes the device name string for the deviceit has allocated. The phybuf argument is the addressof a character string descriptor pointing to this buffer.

acmode

OpenVMS usage:	access_mode
type:	longword (unsigned)
access:	read only
mechanism:	by value

Access mode to be associated with the allocated device. Theacmode argument is a longword containing the accessmode.

The most privileged access mode used is the access mode of the caller.Only equal or more privileged access modes can deallocate the device.

flags

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Longword of status flags indicating whether to interpret thedevnam argument as the type of device to be allocated.Only one flag exists, bit 0. When it is set, the $ALLOC serviceallocates the first available device that has the type specified in thedevnam argument.

This feature is available for the following mass storage devices:

RA60	RA80	RA81	RC25
RCF25	RK06	RK07	RL01
RL02	RM03	RM05	RM80
RP04	RP05	RP06	RP07
RX01	RX02	TA78	TA81
TS11	TU16	TU58	TU77
TU78	TU80	TU81

Description

The Allocate Device service allocates a device for exclusive use by aprocess and its subprocesses. No other process can allocate the deviceor assign channels to it until the image that called $ALLOC exits orexplicitly deallocates the device with the Deallocate Device ($DALLOC)service.

When a process calls the Assign I/O Channel ($ASSIGN) service to assigna channel to a nonshareable, nonspooled device, such as a terminal orline printer, the device is implicitly allocated to the process.

You can use this service only to allocate devices that either exist onthe host system or are made available to the host system in an OpenVMSCluster environment.

Required Access or Privileges

Read, write, or control access to the device is required.

Required Quota

None

Related Services

$ASSIGN, $BRKTHRU, $BRKTHRUW, $CANCEL, $CREMBX, $DALLOC, $DASSGN,$DELMBX, $DEVICE_SCAN, $DISMOU, $GETDVI, $GETDVIW, $GETMSG, $GETQUI,$GETQUIW, $INIT_VOL, $MOUNT, $PUTMSG, $QIO, $QIOW, $SNDERR, $SNDJBC,$SNDJBCW, $SNDOPR

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_BUFFEROVF	The service completed successfully. The physical name returned overflowed the buffer provided, and was truncated.
SS$_DEVALRALLOC	The service completed successfully. The device was already allocated to the calling process.
SS$_ACCVIO	The device name string, string descriptor, or physical name buffer descriptor cannot be read by the caller, or the physical name buffer cannot be written by the caller.
SS$_DEVALLOC	The device is already allocated to another process, or an attempt to allocate an unmounted shareable device failed because other processes had channels assigned to the device.
SS$_DEVMOUNT	The specified device is currently mounted and cannot be allocated, or the device is a mailbox.
SS$_DEVOFFLINE	The specified device is marked off line.
SS$_IVDEVNAM	The device name string contains invalid characters, or no device name string was specified.
SS$_IVLOGNAM	The device name string has a length of 0 or has more than 63 characters.
SS$_IVSTSFLG	The bits set in the longword of status flags are invalid.
SS$_NODEVAVL	The specified device in a generic search exists but is allocated to another user.
SS$_NONLOCAL	The device is on a remote node.
SS$_NOPRIV	The requesting process attempted to allocate a spooled device and does not have the required privilege, or the device protection or access control list (or both) denies access.
SS$_NOSUCHDEV	The specified device does not exist in the host system. This error is usually the result of a typographical error.
SS$_TEMPLATEDEV	The process attempted to allocate a template device; a template device cannot be allocated.

The $ALLOC service can also return any condition value returned by$ENQ. For a list of these condition values, see the description of $ENQ.

Associates a named common event flag cluster with a process to executethe current image and to be assigned a process-local cluster number foruse with other event flag services. If the named cluster does not existbut the process has suitable privilege, the service creates the cluster.

Format

SYS$ASCEFC efn ,name ,[prot] ,[perm]

C Prototype

int sys$ascefc (unsigned int efn, void *name, char prot, char perm);

Arguments

efn

OpenVMS usage:	ef_number
type:	longword (unsigned)
access:	read only
mechanism:	by value

Number of any event flag contained within the desired common event flagcluster. The efn argument is a longword valuespecifying this number; however, $ASCEFC uses only the low-order byte.

There are two common event flag clusters: cluster 2 and cluster 3.Cluster 2 contains event flag numbers 64 to 95, and cluster 3 containsevent flag numbers 96 to 127. (Clusters 0 and 1 are process-local eventflag clusters.)

To associate with common event flag cluster 2, specify any flag numberin the cluster (64 to 95); to associate with common event flag cluster3, specify any event flag number in the cluster (96 to 127).

name

OpenVMS usage:	ef_cluster_name
type:	character-coded text string
access:	read only
mechanism:	by descriptor--fixed-length string descriptor

Name of the common event flag cluster with which to associate. Thename argument is the address of a character stringdescriptor pointing to this name string.

The character string descriptor can be 1 to 15 bytes in length, andeach byte can be any 8-bit value.

Common event flag clusters are accessible only to processes having thesame UIC group number, and each such process must associate with thecluster using the same name (specified in the nameargument). The operating system implicitly associates the group UICnumber with the name, making the name unique to a UIC group.

You can specify any name from 1 to 43 characters. All processes mappingto the same global section must specify the same name. Note that thename is case sensitive.

Use of characters valid in logical names is strongly encouraged. Validvalues include alphanumeric characters, the dollar sign ($), and theunderscore (_). If the name string begins with an underscore (_), theunderscore is stripped and the resultant string is considered to be theactual name. Use of the colon (:) is not permitted.

Names are first subject to a logical name translation, after theapplication of the prefix GBL$ to the name. If the result translates,it is used as the name of the section. If the resulting name does nottranslate, the name specified by the caller is used as the name of thesection.

Additional information on logical name translations and on section nameprocessing is available in the OpenVMS Programming Concepts Manual.

prot

OpenVMS usage:	Boolean
type:	byte (unsigned)
access:	read only
mechanism:	by value

Protection specifier that allows or disallows access to the commonevent flag cluster for processes with the same UIC group number as thecreating process. The prot argument is a longwordvalue, which is interpreted as Boolean.

The default value 0 specifies that any process with the same UIC groupnumber as the creating process can access the event flag cluster. Thevalue 1 specifies that only processes having the UIC of the creatingprocess can access the event flag cluster.

When the prot argument is 1, all access to the Groupcategory is denied.

The process must have associate access to access an existing commonevent flag cluster.

perm

OpenVMS usage:	Boolean
type:	byte (unsigned)
access:	read only
mechanism:	by value

Permanent specifier that marks a common event flag cluster as eitherpermanent or temporary. The perm argument is alongword value, which is interpreted as Boolean.

The default value 0 specifies that the cluster is temporary. The value1 specifies that the cluster is permanent.

Description

The Associate Common Event Flag Cluster service associates a namedcommon event flag cluster with a process for the execution of thecurrent image and to assign it a process-local cluster number for usewith other event flag services. A process needs associate access tocall the $ASCEFC service.

When a process associates with a common event flag cluster, thatcluster's reference count is increased by 1. The reference count isdecreased when a process disassociates from the cluster, whetherexplicitly with the Disassociate Common Event Flag Cluster ($DACEFC)service or implicitly at image exit.

Temporary clusters are automatically deleted when their reference countgoes to 0; you must explicitly mark permanent clusters for deletionwith the Delete Common Event Flag Cluster ($DLCEFC) service.

When a new cluster is created, a security profile is created with theprocess UIC as the owner of the common event flag cluster; theremaining characteristics are taken from theCOMMON_EVENT_CLUSTER.DEFAULT template profile.

Because the $ASCEFC service automatically creates the common event flagcluster if it does not already exist, cooperating processes need not beconcerned with which process executes first to create the cluster. Thefirst process to call $ASCEFC creates the cluster and the othersassociate with it regardless of the order in which they call theservice.

The initial state for all event flags in a newly created common eventflag cluster is 0.

If a process has already associated a cluster number with a namedcommon event flag cluster and then issues another call to $ASCEFC withthe same cluster number, the service disassociates the number from itsfirst assignment before associating it with its second.

If you previously called any system service that will set an event flag(and the event flag is contained within the cluster being reassigned),the event flag will be set in the newly associated named cluster, notin the previously associated named cluster.

Required Access or Privileges

The calling process must have PRMCEB privilege to create a permanentcommon event flag cluster.

Required Quota

Creation of temporary common event flag clusters uses the quota of theprocess for timer queue entries (TQELM); the creation of a permanentcluster does not affect the quota. The quota is restored to the creatorof the cluster when all processes associated with the cluster havedisassociated.

Related Services

$CLREF, $DACEFC, $DLCEFC, $READEF, $SETEF, $WAITFR, $WFLAND, $WFLOR

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The cluster name string or string descriptor cannot be read by the caller.
SS$_EXPORTQUOTA	The process has exceeded the number of event flag clusters with which processes on this port of the multiport (shared) memory can associate.
SS$_EXQUOTA	The process has exceeded its timer queue entry quota; this quota controls the creation of temporary common event flag clusters.
SS$_INSFMEM	The system dynamic memory is insufficient for completing the service.
SS$_ILLEFC	You specified an illegal event flag number. The cluster number must be in the range of event flags 64 through 127.
SS$_INTERLOCK	The bit map lock for allocating common event flag clusters from the specified shared memory is locked by another process.
SS$_IVLOGNAM	The cluster name string has a length of 0 or has more than 15 characters.
SS$_NOPRIV	The process does not have the privilege to create a permanent cluster; the process does not have the privilege to create a common event flag cluster in memory shared by multiple processors; or the protection applied to an existing cluster by its creator prohibits association.
SS$_NOSHMBLOCK	The common event flag cluster has no shared memory control block available.
SS$_SHMNOTCNT+	The shared memory named in the name argument is not known to the system. This error can be caused by a spelling error in the string, an improperly assigned logical name, or the failure to identify the multiport memory as shared at system generation time.

Converts an absolute or delta time from 64-bit system time format to anASCII string.

On Alpha systems, this service accepts 64-bit addresses.

Format

SYS$ASCTIM [timlen] ,timbuf ,[timadr] ,[cvtflg]

C Prototype

int sys$asctim (unsigned short int *timlen, void *timbuf, struct_generic_64 *timadr, char cvtflg);

Arguments

timlen

OpenVMS usage:	word_unsigned
type:	word (unsigned)
access:	write only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

Length (in bytes) of the ASCII string returned by $ASCTIM. Thetimlen argument is the 32-bit address (on VAX systems)or the 32- or 64-bit address (on Alpha systems) of a word containingthis length.

timbuf

OpenVMS usage:	time_name
type:	character-coded text string
access:	write only
mechanism:	by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha)
mechanism:	by 32-bit descriptor (VAX)

Buffer into which $ASCTIM writes the ASCII string. Thetimbuf argument is the 32-bit address (on VAX systems)or the 32- or 64-bit address (on Alpha systems) of a character stringdescriptor pointing to the buffer.

The buffer length specified in the timbuf argument,together with the cvtflg argument, controls whatinformation is returned.

timadr

OpenVMS usage:	date_time
type:	quadword
access:	read only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

Time value that $ASCTIM is to convert. The timadrargument is the 32-bit address (on VAX systems) or the 32- or 64-bitaddress (on Alpha systems) of this 64-bit time value. A positive timevalue represents an absolute time. A negative time value represents adelta time. If you specify a delta time, it must be less than 10,000days.

If timadr is not specified or is specified as 0 (thedefault), $ASCTIM returns the current date and time.

cvtflg

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	read only
mechanism:	by value

Conversion indicator specifying which date and time fields $ASCTIMshould return. The cvtflg argument is a longwordvalue, which is interpreted as Boolean. The value 1 specifies that$ASCTIM should return only the hour, minute, second, andhundredths-of-second fields. The default value 0 specifies that $ASCTIMshould return the full date and time.

Description

The Convert Binary Time to ASCII String service converts an absolute ordelta time from 64-bit system time format to an ASCII string. Theservice executes at the access mode of the caller and does not checkwhether address arguments are accessible before it executes. Therefore,an access violation causes an exception condition if the input timevalue cannot be read or the output buffer or buffer length cannot bewritten.

This service returns the SS$_INSFARG (insufficient arguments) conditionvalue if one or both of the required arguments are not supplied.

The ASCII strings returned have the following formats:

• Absolute Time: dd-mmm-yyyy hh:mm:ss.cc
• Delta Time: dddd hh:mm:ss.cc

The following table lists the length (in bytes), contents, and range ofvalues for each field in the absolute time and delta time formats:

Field	Length (Bytes)	Contents	Range of Values
dd	2	Day of month	1--31
--	1	Hyphen	Required syntax
mmm	3	Month	JAN, FEB, MAR, APR, MAY, JUN, JUL, AUG, SEP, OCT, NOV, DEC
--	1	Hyphen	Required syntax
yyyy	4	Year	1858--9999
blank	n	Blank	Required syntax
hh	2	Hour	00--23
:	1	Colon	Required syntax
mm	2	Minutes	00--59
:	1	Colon	Required syntax
ss	2	Seconds	00--59
.	1	Period	Required syntax
cc	2	Hundredths-of-second	00--99
dddd	4	Number of days (in 24-hr units)	000--9999

Month abbreviations must be uppercase.

The hundredths-of-second field now represents a true fraction. Forexample, the string .1 represents ten-hundredths of a second (one-tenthof a second), and the string .01 represents one-hundredth of a second.

Also, you can add a third digit to the hundredths-of-second field; thisthousandths-of-second digit is used to round the hundredths-of-secondvalue. Digits beyond the thousandths-of-second digits are ignored.

The results of specifying some possible combinations for the values ofthe cvtflg and timbuf arguments areas follows:

Time Value	Buffer Length Specified	CVTFLG Argument	Information Returned
Absolute	23	0	Date and time
Absolute	12	0	Date
Absolute	11	1	Time
Delta	16	0	Days and time
Delta	11	1	Time

Required Access or Privileges

None

Required Quota

None

Related Services

$BINTIM, $CANTIM, $CANWAK, $GETTIM, $NUMTIM, $SCHDWK, $SETIME, $SETIMR

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_BUFFEROVF	The buffer length specified in the timbuf argument is too small.
SS$_INSFARG	Required argument is missing.
SS$_IVTIME	The specified delta time is equal to or greater than 10,000 days.

Translates the specified identifier name into its binary identifiervalue.

On Alpha systems, this service accepts 64-bit addresses.

Format

SYS$ASCTOID name ,[id] ,[attrib]

C Prototype

int sys$asctoid (void *name, unsigned int *id, unsigned int *attrib);

Arguments

name

OpenVMS usage:	char_string
type:	character-coded text string
access:	read only
mechanism:	by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha)
mechanism:	by 32-bit descriptor--fixed-length string descriptor (VAX)

Identifier name translated when $ASCTOID completes execution. Thename argument is the 32- or 64-bit address (on Alphasystems) or the 32-bit address (on VAX systems) of a character-stringdescriptor pointing to the identifier name.

id

OpenVMS usage:	rights_id
type:	longword (unsigned)
access:	write only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

Identifier value resulting when $ASCTOID completes execution. Theid argument is the 32- or 64-bit address (on Alphasystems) or the 32-bit address (on VAX systems) of a longword in whichthe identifier value is written.

attrib

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	write only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

Attributes associated with the identifier returned inid when $ASCTOID completes execution. Theattrib argument is the 32- or 64-bit address (on Alphasystems) or the 32-bit address (on VAX systems) of a longwordcontaining a bit mask specifying the attributes.

Symbol values are offsets to the bits within the longword. You can alsoobtain the values as masks with the appropriate bit set using theprefix KGB$M rather than KGB$V. The symbols are defined in the systemmacro $KGBDEF library. The symbolic names for each bit position arelisted in the following table:

Bit Position	Meaning When Set
KGB$V_DYNAMIC	Allows holders of the identifier to remove it from or add it to the process rights database by using the DCL command SET RIGHTS_LIST.
KGB$V_HOLDER_HIDDEN	Prevents someone from getting a list of users who hold an identifier, unless they own the identifier themselves. Special privilege is required to translate hidden names.
KGB$V_NAME_HIDDEN	Allows holders of an identifier to have it translated---either from binary to ASCII or vice versa---but prevents unauthorized users from translating the identifier. Special privilege is required to translate hidden names.
KGB$V_NOACCESS	Makes any access rights of the identifier null and void. This attribute is intended as a modifier for a resource identifier or the Subsystem attribute.
KGB$V_RESOURCE	Allows the holder to charge resources, such as disk blocks, to the identifier.
KGB$V_SUBSYSTEM	Allows holders of the identifier to create and maintain protected subsystems by assigning the Subsystem access control entry (ACE) to the application images in the subsystem.

Description

The Translate Identifier Name to Identifier service converts thespecified identifier name to its binary identifier value.

Required Access or Privileges

None, unless the id is KGB$V_NAME_HIDDEN, in whichcase you must hold the id or have access to the rightsdatabase.

Required Quota

None

Related Services

$ADD_HOLDER, $ADD_IDENT, $CREATE_RDB, $FIND_HELD, $FIND_HOLDER,$FINISH_RDB, $GRANTID, $IDTOASC, $MOD_HOLDER, $MOD_IDENT, $REM_HOLDER,$REM_IDENT, $REVOKID

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The name argument cannot be read by the caller, or the id or attrib arguments cannot be written by the caller.
SS$_INSFMEM	The process dynamic memory is insufficient for opening the rights database.
SS$_IVIDENT	The format of the specified identifier is invalid.
SS$_NOSUCHID	The specified identifier name does not exist in the rights database, or the identifier is hidden and you do not have access to the rights database.
SS$_NORIGHTSDB	The rights database does not exist.

Because the rights database is an indexed file accessed with OpenVMSRMS, this service can also return RMS status codes associated withoperations on indexed files. For descriptions of these status codes,refer to the OpenVMS Record Management Services Reference Manual.

Converts an absolute time from 128-bit UTC format to an ASCII string.

On Alpha systems, this service accepts 64-bit addresses.

Format

SYS$ASCUTC [timlen] ,timbuf ,[utcadr] ,[cvtflg]

C Prototype

int sys$ascutc (unsigned short int *timlen, void *timbuf, unsigned int*utcadr [4], char cvtflg);

Arguments

timlen

OpenVMS usage:	word_unsigned
type:	word (unsigned)
access:	write only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

Length (in bytes) of the ASCII string returned by $ASCUTC. Thetimlen argument is the 32-bit address (on VAX systems)or the 32- or 64-bit address (on Alpha systems) of a word containingthis length.

timbuf

OpenVMS usage:	time_name
type:	character-coded string text
access:	write only
mechanism:	by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha)
mechanism:	by 32-bit descriptor--fixed-length string descriptor (VAX)

Buffer into which $ASCUTC writes the ASCII string. Thetimbuf argument is the 32-bit address (on VAX systems)or the 32- or 64-bit address (on Alpha systems) of a character stringdescriptor pointing to the buffer. The buffer length specified in thetimbuf argument, together with thecvtflg argument, controls what information is returned.

utcadr

OpenVMS usage:	coordinated universal time
type:	utc_date_time
access:	read only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

Time value that $ASCUTC is to convert. The timadrargument is the 32-bit address (on VAX systems) or the 32- or 64-bitaddress (on Alpha systems) of this 128-bit time value. Relative timesare not permitted. If the timadr argument is notspecified, it defaults to 0 and $ASCUTC returns the current date andtime.

cvtflg

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	read only
mechanism:	by value

Conversion indicator specifying which date and time fields $ASCUTCshould return. The cvtflg argument is a longword valuethat is interpreted as Boolean. The value 1 specifies that $ASCUTCshould return only the time, including hour, minute, second, andhundredths-of-second fields. The default value 0 specifies that $ASCUTCshould return the full date and time.

Description

The Convert UTC to ASCII service converts an absolute time from 128-bitUTC format to an ASCII string. The service executes at the access modeof the caller and does not check whether address arguments areaccessible before it executes; therefore, an access violation causes anexception condition if the input time value cannot be read or theoutput buffer or buffer length cannot be written.

The $ASCUTC service uses the time zone differential factor encoded inthe 128-bit UTC to convert the UTC to an ASCII string.

This service does not check the length of the argument list, andtherefore cannot return the SS$_INSFARG condition value.

The ASCII strings returned have the following format:

• Absolute Time: dd-mmm-yyyy hh:mm:ss.cc

The following table lists the length (in bytes), contents, and range ofvalues for each field in the absolute time format:

Field	Length (Bytes)	Contents	Range of Values
dd	2	Day of month	1--31
--	1	Hyphen	Required syntax
mmm	3	Month	JAN, FEB, MAR, APR, MAY, JUN, JUL, AUG, SEP, OCT, NOV, DEC
--	1	Hyphen	Required syntax
yyyy	4	Year	1858--9999
blank	n	Blank	Required syntax
hh	2	Hour	00--23
:	1	Colon	Required syntax
mm	2	Minutes	00--59
:	1	Colon	Required syntax
ss	2	Seconds	00--59
.	1	Period	Required syntax
cc	2	Hundredths-of-second	00--99

The results of specifying some possible combinations for the values ofthe cvtflg and timbuf arguments areas follows:

Time Value	Buffer Length Specified	CVTFLG Argument	Information Returned
Absolute	23	0	Date and time
Absolute	12	0	Date
Absolute	11	1	Time

Required Access or Privileges

None

Required Quota

None

Related Services

$BINUTC, $GETUTC, $NUMUTC, $TIMCON

Condition Values Returned

SS_$NORMAL	The service completed successfully.
SS_$BUFFEROVF	The buffer length specified in the timbuf argument is too small.
SS_$INVTIME	The UTC time supplied is too small to be represented as a Smithsonian Time, or the UTC time is not valid.

Provides a process with an I/O channel so input/output operations canbe performed on a device, or establishes a logical link with a remotenode on a network.

On Alpha systems, this service accepts 64-bit addresses.

Format

SYS$ASSIGN devnam ,chan ,[acmode] ,[mbxnam] ,[flags]

C Prototype

int sys$assign (void *devnam, unsigned short int *chan, unsigned intacmode, void *mbxnam,...);

Arguments

devnam

OpenVMS usage:	device_name
type:	character-coded text string
access:	read only
mechanism:	by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha)
mechanism:	by 32-bit descriptor--fixed-length string descriptor (VAX)

Name of the device to which $ASSIGN is to assign a channel. Thedevnam argument is the 32- or 64-bit address (on Alphasystems) or the 32-bit address (on VAX systems) of a character stringdescriptor pointing to the device name string.

If the device name contains a double colon (::), the system assigns achannel to the first available network device (NET:) and performs anaccess function on the network.

chan

OpenVMS usage:	channel
type:	word (unsigned)
access:	write only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

Number of the channel that is assigned. The chanargument is the 32- or 64-bit address (on Alpha systems) or the 32-bitaddress (on VAX systems) of a word into which $ASSIGN writes thechannel number.

acmode

OpenVMS usage:	access_mode
type:	longword (unsigned)
access:	read only
mechanism:	by value

Access mode to be associated with the channel. Theacmode argument specifies the access mode. The $PSLDEFmacro defines the following symbols for the four access modes:

Symbol	Access Mode	Numeric Value
PSL$C_KERNEL	Kernel	0
PSL$C_EXEC	Executive	1
PSL$C_SUPER	Supervisor	2
PSL$C_USER	User	3

The specified access mode and the access mode of the caller arecompared. The less privileged (but the higher numeric valued) of thetwo access modes becomes the access mode associated with the assignedchannel. I/O operations on the channel can be performed only from equaland more privileged access modes. For more information, refer to thesection on access modes in the OpenVMS Programming Concepts Manual.

mbxnam

OpenVMS usage:	device_name
type:	character-coded text string
access:	read only
mechanism:	by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha)
mechanism:	by 32-bit descriptor--fixed-length string descriptor (VAX)

Logical name of the mailbox to be associated with the device. Thembxnam argument is the 32- or 64-bit address (on Alphasystems) or the 32-bit address (on VAX systems) of a character stringdescriptor pointing to the logical name string.

If you specify mbxnam as 0, no mailbox is associatedwith the device. This is the default.

You must specify the mbxnam argument when performing anontransparent, task-to-task, network operation.

Only the owner of a device can associate a mailbox with the device; theowner of a device is the process that has allocated the device, whetherimplicitly or explicitly. Only one mailbox can be associated with adevice at any one time.

For unshareable, nonspooled devices, an implicit $ALLOCATE is done.This requires read, write, or control access to the device.

A mailbox cannot be associated with a device if the device has foreign(DEV$M_FOR) or shareable (DEV$M_SHR) characteristics.

A mailbox is disassociated from a device when the channel thatassociated it is deassigned.

If a mailbox is associated with a device, the device driver can sendstatus information to the mailbox. For example, if the device is aterminal, this information might indicate dialup, hangup, or thereception of unsolicited input; if the device is a network device, itmight indicate that the network is connected or perhaps that the lineis down.

For details on the nature and format of the information returned to themailbox, refer to the HP OpenVMS I/O User's Reference Manual.

flags

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

An optional device-specific argument. The flagsargument is a longword bit mask.

For more information on the applicability of the flagsargument for a particular device, refer to the HP OpenVMS I/O User's Reference Manual.

Description

The Assign I/O Channel service provides a process with an I/O channelso input/output operations can be performed on a device. This servicealso establishes a logical link with a remote node on a network.

Channels remain assigned until they are explicitly deassigned with theDeassign I/O Channel ($DASSGN) service or, if they are user-modechannels, until the image that assigned the channel exits.

The $ASSIGN service establishes a path to a device but does not checkwhether the caller can actually perform input/output operations to thedevice. Privilege and protection restrictions can be applied by thedevice drivers.

Required Access or Privileges

The calling process must have NETMBX privilege to perform networkoperations, and system dynamic memory is required if the target deviceis on a remote system.

Note that you should use the SHARE privilege with caution.Applications, application protocols, and device drivers coded to expectonly exclusive access can encounter unexpected and errant behavior whenaccess to the device is unexpectedly shared. Unless the SHARE privilegeis explicitly supported by the application, the application protocol,and the device driver, its use is generally discouraged. Refer to theOpenVMS Programming Concepts Manual for additional information.

Required Quota

If the target of the assignment is on a remote node, the process needssufficient buffer quota to allocate a network control block.

Related Services

$ALLOC, $BRKTHRU, $BRKTHRUW, $CANCEL, $CREMBX, $DALLOC, $DASSGN,$DELMBX, $DEVICE_SCAN, $DISMOU, $GETDVI, $GETDVIW, $GETMSG, $GETQUI,$GETQUIW, $INIT_VOL, $MOUNT, $PUTMSG, $QIO, $QIOW, $SNDERR, $SNDJBC,$SNDJBCW, $SNDOPR

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_REMOTE	The service completed successfully. A logical link is established with the target on a remote node.
SS$_ABORT	A physical line went down during a network connect operation.
SS$_ACCVIO	The device or mailbox name string or string descriptor cannot be read by the caller, or the channel number cannot be written by the caller.
SS$_CONNECFAIL	For network operations, the connection to a network object timed out or failed.
SS$_DEVACTIVE	You specified a mailbox name, but a mailbox is already associated with the device.
SS$_DEVALLOC	The device is allocated to another process.
SS$_DEVNOTMBX	You specified a logical name for the associated mailbox, but the logical name refers to a device that is not a mailbox.
SS$_DEVOFFLINE	For network operations, the physical link is shutting down.
SS$_EXBYTLM	The process has exceeded the byte count quota.
SS$_EXQUOTA	The target of the assignment is on a remote node and the process has insufficient buffer quota to allocate a network control block.
SS$_FILALRACC	For network operations, a logical link already exists on the channel.
SS$_INSFMEM	The target of the assignment is on a remote node and there is insufficient system dynamic memory to complete the request.
SS$_INVLOGIN	For network operations, the access control information was found to be invalid at the remote node.
SS$_IVDEVNAM	No device name was specified, the logical name translation failed, or the device or mailbox name string contains invalid characters. If the device name is a target on a remote node, this status code indicates that the network connect block has an invalid format.
SS$_IVLOGNAM	The device or mailbox name string has a length of 0 or has more than 63 characters.
SS$_LINKEXIT	For network operations, the network partner task was started, but exited before confirming the logical link (that is, $ASSIGN to SYS$NET).
SS$_NOIOCHAN	No I/O channel is available for assignment.
SS$_NOLINKS	For network operations, no logical links are available. The maximum number of logical links as set for the Network Control Program (NCP) executor MAXIMUM LINKS parameter was exceeded.
SS$_NOPRIV	For network operations, the issuing task does not have the required privilege to perform network operations or to confirm the specified logical link.
SS$_NOSUCHDEV	The specified device or mailbox does not exist, or, for DECnet for OpenVMS operations, the network device driver is not loaded (for example, the DECnet for OpenVMS software is not currently running on the local node).
SS$_NOSUCHNODE	The specified network node is nonexistent or unavailable.
SS$_NOSUCHOBJ	For network operations, the network object number is unknown at the remote node; for a TASK= connect, the named DCL command procedure file cannot be found at the remote node.
SS$_NOSUCHUSER	For network operations, the remote node could not recognize the login information supplied with the connection request.
SS$_PROTOCOL	For network operations, a network protocol error occurred, most likely because of a network software error.
SS$_REJECT	The network connect was rejected by the network software or by the partner at the remote node, or the target image exited before the connect confirm could be issued.
SS$_REMRSRC	For network operations, the link could not be established because system resources at the remote node were insufficient.
SS$_SHUT	For network operations, the local or remote node is no longer accepting connections.
SS$_THIRDPARTY	For network operations, the logical link connection was terminated by a third party (for example, the system manager).
SS$_TOOMUCHDATA	For network operations, the task specified too much optional or interrupt data.
SS$_UNREACHABLE	For network operations, the remote node is currently unreachable.

Appends an event message to the system security audit log file or sendsan alarm to a security operator terminal.

Format

SYS$AUDIT_EVENT [efn] ,[flags] ,itmlst ,[audsts] ,[astadr] ,[astprm]

C Prototype

int sys$audit_event (unsigned int efn, unsigned int flags, void*itmlst, unsigned int *audsts, void (*astadr)(__unknown_params), intastprm);

Arguments

efn

OpenVMS usage:	ef_number
type:	longword (unsigned)
access:	read only
mechanism:	by value

Number of the event flag to be set when the audit completes. Theefn argument is a longword containing the number ofthe event flag; however, $AUDIT_EVENT uses only the low-order byte. Ifefn is not specified, event flag 0 is used.

Upon request initiation, $AUDIT_EVENT clears the specified event flag.

flags

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Flags specifying options for the $AUDIT_EVENT system operation. Theflags argument is a longword bit mask, where each bitcorresponds to an option.

Each flag option has a symbolic name. The $NSADEF macro defines thefollowing symbolic names:

Symbolic Name	Description
NSA$M_ACL	Specifies an event generated by an Alarm ACE or Audit ACE. This flag is reserved to HP.
NSA$M_FLUSH	Specifies that all messages in the audit server buffer be written to the audit log file.
NSA$M_INTERNAL	Specifies that the $AUDIT_EVENT call originates in the context of a trusted computing base (TCB) component. The auditing components use this flag to indicate that internal auditing failures should result in a SECAUDTCB bugcheck. This flag is reserved to HP.
NSA$M_MANDATORY	Specifies that an audit is to be performed, regardless of system alarm and audit settings.
NSA$M_NOEVTCHECK	Specifies that an audit is to be performed, regardless of the system alarm or audit settings. This flag is similar to the NSA$M_MANDATORY bit but, unlike the NSA$M_MANDATORY bit, this flag is not reflected in the NSA$W_FLAGS field in the resulting audit record on disk.
NSA$M_SERVER	Indicates that the call originates in a TCB server process and that the event should be audited regardless of the state of a process-specific, no-audit bit. Trusted servers use this flag to override the no-audit bit when they want to perform explicit auditing on behalf of a client process. This flag is reserved to HP.

itmlst

OpenVMS usage:	item_list_3
type:	longword (unsigned)
access:	read only
mechanism:	by reference

Item list specifying information to include in the audit record. Theitmlst argument is the address of a list of itemdescriptors. The list of item descriptors is terminated by a longwordof 0.

The item list for all calls to $AUDIT_EVENT must include the followingitem codes:

• NSA$_EVENT_TYPE (see Table SYS-17)
• NSA$_EVENT_SUBTYPE (see Table SYS-17)
• At least one of the NSA$_ALARM_NAME item code or the NSA$_AUDIT_NAME item code.
• If the event being reported is an object access (NSA$C_MSG_OBJ_ACCESS) or an object delete (NSA$C_MSG_OBJ_DELETE), the NSA$_FINAL_STATUS, NSA$_ACCESS_DESIRED, and NSA$_OBJECT_CLASS item codes must be specified.
• If the event being reported is an object create (NSA$C_MSG_OBJ_CREATE), the NSA$_FINAL_STATUS and NSA$_OBJECT_CLASS item codes must be specified.
• If the event being reported is a privilege audit (NSA$C_MSG_PRVAUD), the NSA$_PRIVS_USED or the NSA$_PRIVS_MISSING item code must be specified.
• If the audit event being reported is a deaccess event (NSA$C_MSG_OBJ_DEACCESS), the NSA$_OBJECT_CLASS item code must be specified.

The item list is a standard format item list. The following diagramdepicts the general structure of an item descriptor:

The following table defines the item descriptor fields:

See the Item Codes section for a description of the $AUDIT_EVENT itemcodes.

audsts

The audsts argument is valid only when the servicereturns success and the status is not SS$_EVTNOTENAB. In addition, thecaller must either make use of the astadr argument oruse the $AUDIT_EVENTW service before attempting to accessaudsts.

astadr

The AST routine executes in the access mode of the caller of$AUDIT_EVENT.

astprm

NSA$_ALARM_NAME

NSA$_ALARM_NAME is a string of 1 to 32 characters specifying an alarmjournal name to receive the record. To direct an event to the systemalarm journal (that is, all enabled security operator terminals), usethe string SECURITY.

NSA$_AUDIT_NAME

NSA$_AUDIT_NAME is a string of 1 to 65 characters specifying thejournal file to receive the audit record. To direct an event to thesystem audit journal, use the string SECURITY.

NSA$_CHAIN

NSA$_CHAIN is a longword value specifying the item list to processimmediately after the current one. The buffer address field in the itemdescriptor specifies the address of the next item list to be processed.Anything after NSA$_CHAIN is ignored.

NSA$_EVENT_FACILITY

NSA$_EVENT_FACILITY is a word value specifying the facility generatingthe event. All operating system events are audited as facility zero.

NSA$_EVENT_SUBTYPE

NSA$_EVENT_SUBTYPE is a longword value specifying an event messagesubtype. See Table SYS-17 for a list of valid event subtypes.

NSA$_EVENT_TYPE

NSA$_EVENT_TYPE is a longword value specifying an event message type.See Table SYS-17 for a list of valid event types.

Table SYS-17 Description of$AUDIT_EVENT Types and Subtypes

Symbol of Event Type	Meaning
NSA$C_MSG_AUDIT	Systemwide change to auditing
Subtype and Meaning NSA$C_AUDIT_DISABLED NSA$C_AUDIT_ENABLED NSA$C_AUDIT_INITIATE NSA$C_AUDIT_TERMINATE NSA$C_AUDIT_LOG_FINAL NSA$C_AUDIT_LOG_FIRST	Audit events disabled Audit events enabled Audit server startup Audit server shutdown Final entry in audit log (forward link) First entry in audit log (backward link)
NSA$C_MSG_BREAKIN	Break-in attempt detected
Subtype and Meaning NSA$C_DETACHED NSA$C_DIALUP NSA$C_LOCAL NSA$C_NETWORK NSA$C_REMOTE	Detached process Dialup interactive process Local interactive process Network server process Interactive process from another network node
NSA$C_MSG_CONNECTION	Logical link connection or termination
Subtype and Meaning NSA$C_CNX_ABORT NSA$C_CNX_ACCEPT NSA$C_CNX_DECNET_CREATE NSA$C_CNX_DECNET_DELETE NSA$C_CNX_DISCONNECT NSA$C_CNX_IPC_CLOSE NSA$C_CNX_IPC_OPEN NSA$C_CNX_REJECT NSA$C_CNX_REQUEST NSA$C_CNX_INC_REQUEST NSA$C_CNX_INC_ACCEPT NSA$C_CNX_INC_REJECT NSA$C_CNX_INC_DISCONNECT NSA$C_CNX_INC_ABORT	Connection aborted Connection accepted DECnet for OpenVMS logical link created DECnet for OpenVMS logical link disconnected Connection disconnected Interprocess communication association closed Interprocess communication association opened Connection rejected Connection requested Incoming connection requested Incoming connection accepted Incoming connection rejected Incoming connection disconnected Incoming connection aborted
NSA$C_MSG_INSTALL	Use of the Install utility (INSTALL)
Subtype and Meaning NSA$C_INSTALL_ADD NSA$C_INSTALL_REMOVE	Known image installed Known image deleted
NSA$C_MSG_LOGFAIL	Login failure
Subtype and Meaning NSA$C_BATCH NSA$C_DETACHED NSA$C_DIALUP NSA$C_LOCAL NSA$C_NETWORK NSA$C_REMOTE NSA$C_SUBPROCESS	Batch process Detached process Dialup interactive process Local interactive process Network server process Interactive process from another network node Subprocess
NSA$C_MSG_LOGIN	Successful login
Subtype and Meaning See subtypes for NSA$C_MSG_ LOGFAIL
NSA$C_MSG_LOGOUT	Successful logout
Subtype and Meaning See subtypes for NSA$C_MSG_ LOGFAIL
NSA$C_MSG_MOUNT	Volume mount or dismount
Subtype and Meaning NSA$C_VOL_DISMOUNT NSA$C_VOL_MOUNT	Volume dismount Volume mount
NSA$C_MSG_NCP	Modification to network configuration database
Subtype and Meaning NSA$C_NCP_COMMAND	Network Control Program (NCP) command issued
NSA$C_MSG_NETPROXY	Modification to network proxy database
Subtype and Meaning NSA$C_NETPROXY_ADD NSA$C_NETPROXY_DELETE NSA$C_NETPROXY_MODIFY	Record added to network proxy database Record removed from network proxy database Record modified in network proxy database
NSA$C_MSG_OBJ_ACCESS	Object access attempted
Subtype and Meaning NSA$C_OBJ_ACCESS	Object access attempted
NSA$C_MSG_OBJ_CREATE	Object created
Subtype and Meaning NSA$C_OBJ_CREATE	Object created
NSA$C_MSG_OBJ_DEACCESS	Object deaccessed
Subtype and Meaning NSA$C_OBJ_DEACCESS	Object deaccessed
NSA$C_MSG_OBJ_DELETE	Object deleted
Subtype and Meaning NSA$C_OBJ_DELETE	Object deleted
NSA$C_MSG_PROCESS	Process control system service issued
Subtype and Meaning NSA$C_PRC_CANWAK NSA$C_PRC_CREPRC NSA$C_PRC_DELPRC NSA$C_PRC_FORCEX NSA$C_PRC_GETJPI NSA$C_PRC_GRANTID NSA$C_PRC_RESUME NSA$C_PRC_REVOKID NSA$C_PRC_SCHDWK NSA$C_PRC_SETPRI NSA$C_PRC_SIGPRC NSA$C_PRC_SUSPND NSA$C_PRC_WAKE NSA$C_PRC_PRCTERM	Process wakeup canceled Process created Process deleted Process exit forced Process information gathered Process identifier granted Process resumed Process identifier revoked Process wakeup scheduled Process priority altered Process exception issued Process suspended Process wakeup issued Process termination notification requested
NSA$C_MSG_PRVAUD	Attempt to use privilege
Subtype and Meaning NSA$C_PRVAUD_FAILURE NSA$C_PRVAUD_SUCCESS	Unsuccessful use of privilege Successful use of privilege
NSA$C_MSG_RIGHTSDB	Modification to rights database
Subtype and Meaning NSA$C_RDB_ADD_ID NSA$C_RDB_CREATE NSA$C_RDB_GRANT_ID NSA$C_RDB_MOD_HOLDER NSA$C_RDB_MOD_ID NSA$C_RDB_REM_ID NSA$C_RDB_REVOKE_ID	Identifier added to rights database Rights database created Identifier given to user List of identifier holders modified Identifier name or attributes modified Identifier removed from rights database Identifier revoked from user
NSA$C_MSG_SYSGEN	Modification of a system parameter using the System Generation utility (SYSGEN)
Subtype and Meaning NSA$C_SYSGEN_SET	System parameter modified
NSA$C_MSG_SYSTIME	Modification to system time
Subtype and Meaning NSA$C_SYSTIM_SET NSA$C_SYSTIM_CAL	System time set System time calibrated
NSA$C_MSG_SYSUAF	Modification to system user authorization file (SYSUAF)
Subtype and Meaning NSA$C_SYSUAF_ADD NSA$C_SYSUAF_COPY NSA$C_SYSUAF_DELETE NSA$C_SYSUAF_MODIFY NSA$C_SYSUAF_RENAME	Record added to SYSUAF Record copied in SYSUAF Record deleted from SYSUAF Record modified in SYSUAF Record renamed in SYSUAF

NSA$_FIELD_NAME

NSA$_FIELD_NAME is a string of 1 to 256 characters specifying the nameof the field being modified. This is used in combination withNSA$_ORIGINAL_DATA and NSA$_NEW_DATA.

NSA$_MESSAGE

NSA$_MESSAGE specifies a system message code. The $FORMAT_AUDIT servicewill use the $GETMSG service to translate the message into text. Theresulting text is inserted into the formatted audit message, with the"Event information:" prefix. For example, the operatingsystem uses this item code to supply the privilege audit textassociated with privilege audit events; this keeps the audit recordssmall. By default, the $GETMSG service can only translate residentsystem messages. You can use the NSA$_MSGFILNAM item code to specifythe name of an application or site-specific message file.

NSA$_MSGFILNAM

NSA$_MSGFILNAM is a string of 1 to 255 characters specifying themessage file containing the translation for the message code inNSA$_MESSAGE. The default file specification is SYS$MESSAGE:.EXE. Bydefault, $FORMAT_AUDIT uses the resident system message file.

NSA$_NEW_DATA

NSA$_NEW_DATA is a string of 1 to n characters specifying thecontents of the field named in NSA$_FIELD_NAME after the eventoccurred. NSA$_ORIGINAL_DATA contains the field contents prior to theevent.

NSA$_NOP

NSA$_NOP specifies that the item list entry should be ignored. Thisitem code allows you to build a static item list and then remove thoseentries that do not apply to the current event.

NSA$_ORIGINAL_DATA

NSA$_ORIGINAL_DATA is a string of 1 to n characters specifyingthe contents of the field named in NSA$_FIELD_NAME before the eventoccurred. NSA$_NEW_DATA contains the field contents following the event.

NSA$_SENSITIVE_FIELD_NAME

NSA$_SENSITIVE_FIELD_NAME is a string of 1 to 256 characters specifyingthe name of the field being modified. This is used in combination withNSA$_SENSITIVE_ORIG_DATA and NSA$_SENSITIVE_NEW_DATA. UseNSA$_SENSITIVE_FIELD_NAME to prevent sensitive information, such aspasswords, from being displayed in an alarm message. Sensitiveinformation is written to the audit log.

NSA$_SENSITIVE_NEW_DATA

NSA$_SENSITIVE_NEW_DATA is a string of 1 to n charactersspecifying the contents of the field named in NSA$_SENSITIVE_FIELD_NAMEafter the event occurred. NSA$_SENSITIVE_ORIG_DATA contains the fieldcontents prior to the event. Use NSA$_SENSITIVE_NEW_DATA to preventsensitive information from being displayed in an alarm message.Sensitive information is written to the audit log.

NSA$_SENSITIVE_ORIG_DATA

NSA$_SENSITIVE_ORIG_DATA is a string of 1 to n charactersspecifying the contents of the field named in NSA$_SENSITIVE_FIELD_NAMEbefore the event occurred. NSA$_SENSITIVE_NEW_DATA contains the fieldcontents following the event. Use NSA$_SENSITIVE_FIELD_NAME to preventsensitive information from being displayed in an alarm message.Sensitive information is written to the audit log.

NSA$_SUPPRESS

NSA$_SUPPRESS is a longword bit mask directing $AUDIT_EVENT to ignorethe defaults for the following values and either omit the informationfrom the event record or use the value provided in another parameter.The bits in the mask inhibit the use of default values for thefollowing item codes:

NSA$V_ACCOUNT_NAME	NAS$V_PROCESS_NAME
NSA$V_FINAL_STATUS	NSA$V_SUBJECT_CLASS
NSA$V_IMAGE_NAME	NSA$V_SUBJECT_OWNER
NSA$V_PARENT_ID	NSA$V_SYSTEM_ID
NSA$V_PARENT_NAME	NSA$V_SYSTEM_OWNER
NSA$V_PARENT_OWNER	NSA$V_TERMINAL
NSA$V_PARENT_USERNAME	NSA$V_TIME_STAMP
NSA$V_PROCESS_ID	NSA$V_USERNAME

Use NSA$_SUPPRESS, for example, when auditing events from serverprocesses when the default values for many of these items need toexplicitly reference the client context rather than be defaulted fromthe environment of the server.

The following section provides a list of additional item codes that arevalid as an item descriptor in the itmlst argument.

NSA$_ACCESS_DESIRED

NSA$_ACCESS_DESIRED is a longword value specifying the access requestmask as defined in $ARMDEF.

NSA$_ACCESS_MODE

NSA$_ACCESS_MODE is a byte value specifying an access mode associatedwith the event.

NSA$_ACCOUNT

NSA$_ACCOUNT is a string of 1 to 32 characters specifying the accountname associated with the event.

NSA$_ASSOCIATION_NAME

NSA$_ASSOCIATION_NAME is a string of 1 to 256 characters specifying anassociation name.

NSA$_COMMAND_LINE

NSA$_COMMAND_LINE is a string of 1 to 2048 characters specifying acommand line.

NSA$_CONNECTION_ID

NSA$_CONNECTION_ID is a longword value specifying a connectionidentification.

NSA$_DECNET_LINK_ID

NSA$_DECNET_LINK_ID is a longword value specifying a DECnet for OpenVMSlogical link identification.

NSA$_DECNET_OBJECT_NAME

NSA$_DECNET_OBJECT_NAME is a string of 1 to 16 characters specifying aDECnet for OpenVMS object name.

NSA$_DECNET_OBJECT_NUMBER

NSA$_DECNET_OBJECT_NUMBER is a longword value specifying a DECnet forOpenVMS object number.

NSA$_DEFAULT_USERNAME

NSA$_DEFAULT_USERNAME is a string of 1 to 32 characters specifying adefault local user name for incoming network proxy requests.

NSA$_DEVICE_NAME

NSA$_DEVICE_NAME is a string of 1 to 64 characters specifying the nameof the device where the volume resides.

NSA$_DIRECTORY_ENTRY

NSA$_DIRECTORY_ENTRY is a string of 1 to 256 characters specifying thename of the directory entry associated with an XQP operation.

NSA$_DIRECTORY_ID

NSA$_DIRECTORY_ID is an array of three words specifying the directoryfile identification.

NSA$_DISMOUNT_FLAGS

NSA$_DISMOUNT_FLAGS is a longword value specifying the dismount flagsthat are defined by the $DMTDEF macro in STARLET.

NSA$_EFC_NAME

NSA$_EFC_NAME is a string of 1 to 16 characters specifying the eventflag cluster name.

NSA$_FILE_ID

NSA$_FILE_ID is an array of three words specifying the fileidentification.

NSA$_FINAL_STATUS

NSA$_FINAL_STATUS is a longword value specifying the successful orunsuccessful status that caused the auditing facility to be invoked.

NSA$_HOLDER_NAME

NSA$_HOLDER_NAME is a string of 1 to 32 characters specifying the nameof the user holding the identifier.

NSA$_HOLDER_OWNER

NSA$_HOLDER_OWNER is a longword value specifying the owner (UIC) of theholder.

NSA$_ID_ATTRIBUTES

NSA$_ID_ATTRIBUTES is a longword value specifying the attributes of theidentifier, which are defined by the $KGBDEF macro in STARLET.

NSA$_IDENTIFIERS_USED

NSA$_IDENTIFIERS_USED is an array of longwords specifying theidentifiers (from the access control entry [ACE] granting access) thatwere used to gain access to the object.

NSA$_ID_NAME

NSA$_ID_NAME is a string of 1 to 32 characters specifying the name ofthe identifier.

NSA$_ID_NEW_ATTRIBUTES

NSA$_ID_NEW_ATTRIBUTES is a longword value specifying the newattributes of the identifier, which are defined by the $KGBDEF macro inSTARLET.

NSA$_ID_NEW_NAME

NSA$_ID_NEW_NAME is a string of 1 to 32 characters specifying the newname of the identifier.

NSA$_ID_NEW_VALUE

NSA$_ID_NEW_VALUE is a longword value specifying the new value of theidentifier.

NSA$_ID_VALUE

NSA$_ID_VALUE is a longword value specifying the value of theidentifier.

NSA$_ID_VALUE_ASCII

NSA$_ID_VALUE_ASCII is a longword specifying the value of theidentifier.

NSA$_IMAGE_NAME

NSA$_IMAGE_NAME is a string of 1 to 1024 characters specifying the nameof the image being executed when the event took place.

NSA$_INSTALL_FILE

NSA$_INSTALL_FILE is a string of 1 to 255 characters specifying thename of the installed file.

NSA$_INSTALL_FLAGS

NSA$_INSTALL_FLAGS is a longword value specifying the INSTALL flags.They correspond to qualifiers for the Install utility; for example,NSA$M_INS_EXECUTE_ONLY.

NSA$_LNM_PARENT_NAME

NSA$_LNM_PARENT_NAME is a string of 1 to 31 characters specifying thename of the parent logical name table.

NSA$_LNM_TABLE_NAME

NSA$_LNM_TABLE_NAME is a string of 1 to 31 characters specifying thename of the logical name table.

NSA$_LOCAL_USERNAME

NSA$_LOCAL_USERNAME is a string of 1 to 32 characters specifying usernames of the accounts available for incoming network proxy requests.

NSA$_LOGICAL_NAME

NSA$_LOGICAL_NAME is a string of 1 to 255 characters specifying thelogical name associated with the device.

NSA$_MAILBOX_UNIT

NSA$_MAILBOX_UNIT is a longword value specifying the mailbox unitnumber.

NSA$_MATCHING_ACE

NSA$_MATCHING_ACE is an array of bytes specifying the ACE granting ordenying access.

NSA$_MOUNT_FLAGS

NSA$_MOUNT_FLAGS is a quadword value specifying mount flags that aredefined by the $MNTDEF macro in STARLET.

NSA$_NEW_IMAGE_NAME

NSA$_NEW_IMAGE_NAME is a string of 1 to 1024 characters specifying thename of the new image.

NSA$_NEW_OWNER

NSA$_NEW_OWNER is a longword value specifying the new process owner(UIC).

NSA$_NEW_PRIORITY

NSA$_NEW_PRIORITY is a longword value specifying the new processpriority.

NSA$_NEW_PRIVILEGES

NSA$_NEW_PRIVILEGES is a quadword privilege mask specifying the newprivileges. The $PRVDEF macro defines the list of available privileges.

NSA$_NEW_PROCESS_ID

NSA$_NEW_PROCESS_ID is a longword value specifying the new processidentification.

NSA$_NEW_PROCESS_NAME

NSA$_NEW_PROCESS_NAME is a string of 1 to 15 characters specifying thename of the new process.

NSA$_NEW_PROCESS_OWNER

NSA$_NEW_PROCESS_OWNER is a longword value specifying the owner (UIC)of the new process.

NSA$_NEW_USERNAME

NSA$_NEW_USERNAME is a string of 1 to 32 characters specifying the newuser name.

NSA$_OBJECT_CLASS

NSA$_OBJECT_CLASS is a string of 1 to 23 characters specifying thesecurity object class associated with the event; for example, FILE.

NSA$_OBJECT_ID

NSA$_OBJECT_ID is an array of three words specifying the unique objectidentification code, which is currently applicable only to files;therefore, it is the file identification.

NSA$_OBJECT_MAX_CLASS

NSA$_OBJECT_MAX_CLASS is a 20-byte record specifying the maximum accessclassification of the object.

NSA$_OBJECT_MIN_CLASS

NSA$_OBJECT_MIN_CLASS is a 20-byte record specifying the minimum accessclassification of the object.

NSA$_OBJECT_NAME

NSA$_OBJECT_NAME is a string of 1 to 255 characters specifying anobject's name.

NSA$_OBJECT_NAME_2

NSA$_OBJECT_NAME_2 is a string of 1 to 255 characters specifying analternate object name; currently it applies to file-backed globalsections where the alternate name of a global section is the file name.

NSA$_OBJECT_OWNER

NSA$_OBJECT_OWNER is a longword value specifying the UIC or generalidentifier of the process causing the auditable event.

NSA$_OBJECT_PROTECTION

NSA$_OBJECT_PROTECTION is a word, or an array of four longwords,specifying the UIC-based protection of the object.

NSA$_OLD_PRIORITY

NSA$_OLD_PRIORITY is a longword value specifying the former processpriority.

NSA$_OLD_PRIVILEGES

NSA$_OLD_PRIVILEGES is a quadword privilege mask specifying the formerprivileges. The $PRVDEF macro defines the list of available privileges.

NSA$_PARAMS_INUSE

NSA$_PARAMS_INUSE is a string of 1 to 255 characters specifying thename of the parameter file given to the SYSGEN command USE.

NSA$_PARAMS_WRITE

NSA$_PARAMS_WRITE is a string of 1 to 255 characters specifying thefile name for the SYSGEN command WRITE.

NSA$_PARENT_ID

NSA$_PARENT_ID is a longword value specifying the processidentification (PID) of the parent process. It is used only whenauditing events pertaining to a subprocess.

NSA$_PARENT_NAME

NSA$_PARENT_NAME is a string of 1 to 15 characters specifying theparent's process name. It is used only when auditing events pertainingto a subprocess.

NSA$_PARENT_OWNER

NSA$_PARENT_OWNER is longword value specifying the owner (UIC) of theparent process. It is used only when auditing events pertaining to asubprocess.

NSA$_PARENT_USERNAME

NSA$_PARENT_USERNAME is a string of 1 to 32 characters specifying theuser name associated with the parent process. It is used only whenauditing events pertaining to a subprocess.

NSA$_PASSWORD

NSA$_PASSWORD is a string of 1 to 32 characters specifying the passwordused in an unsuccessful break-in attempt. By default, system securityalarms do not include break-in passwords.

NSA$_PRIVILEGES

NSA$_PRIVILEGES is a quadword privilege mask specifying the privilegesused to gain access. The $PRVDEF macro defines the list of availableprivileges.

NSA$_PRIVS_MISSING

NSA$_PRIVS_MISSING is a longword or a quadword privilege maskspecifying the privileges that are needed. The privileges are definedby a macro in STARLET; see the $CHPDEF macro for definition as alongword mask, and see the $PRVDEF macro for definition as a quadwordprivilege mask.

NSA$_PRIVS_USED

NSA$_PRIVS_USED is a longword or a quadword privilege mask specifyingthe privileges used to gain access to the object. The privileges aredefined by a macro in STARLET; see the $CHPDEF macro for definition asa longword mask and see the $PRVDEF macro for definition as a quadwordprivilege mask.

NSA$_PROCESS_ID

NSA$_PROCESS_ID is a longword value specifying the PID of the processcausing the auditable event.

NSA$_PROCESS_NAME

NSA$_PROCESS_NAME is a string of 1 to 15 characters specifying theprocess name that caused the auditable event.

NSA$_REM_ASSOCIATION_NAME

NSA$_REM_ASSOCIATION_NAME is a string of 1 to 256 characters specifyingthe interprocess communication (IPC) remote association name.

NSA$_REMOTE_LINK_ID

NSA$_REMOTE_LINK_ID is a longword value specifying the remote logicallink ID.

NSA$_REMOTE_NODE_FULLNAME

NSA$_REMOTE_NODE_FULLNAME is a string of 1 to 255 characters specifyingthe fully expanded DECnet for OpenVMS node name of the remote process.

NSA$_REMOTE_NODE_ID

NSA$_REMOTE_NODE_ID is a string of 4 to 24 characters specifying theDECnet for OpenVMS node address of the remote process. A value 4 bytesin length is a DECnet Phase IV node address. A value with lengthgreater than 4 bytes is a DECnet/OSI NSAP address.

NSA$_REMOTE_NODENAME

NSA$_REMOTE_NODENAME is a string of 1 to 6 characters specifying theDECnet for OpenVMS node name of the remote process.

NSA$_REMOTE_USERNAME

NSA$_REMOTE_USERNAME is a string of 1 to 32 characters specifying theuser name of the remote process.

NSA$_REQUEST_NUMBER

NSA$_REQUEST_NUMBER is a longword value specifying the request numberassociated with the system service call.

NSA$_RESOURCE_NAME

NSA$_RESOURCE_NAME is a string of 1 to 32 characters specifying thelock resource name.

NSA$_SECTION_NAME

NSA$_SECTION_NAME is a string of 1 to 42 characters specifying theglobal section name.

NSA$_SNAPSHOT_BOOTFILE

NSA$_SNAPSHOT_BOOTFILE is a string of 1 to 255 characters specifying the name of the snapshot boot file, the saved system image file from which the system just booted.

NSA$_SNAPSHOT_SAVE_FILNAM

NSA$_SNAPSHOT_SAVE_FILNAM is a string of 1 to 255 characters specifyingthe name of the snapshot save file, which is the original location ofthe snapshot file at the time that the system was saved.

NSA$_SNAPSHOT_TIME

NSA$_SNAPSHOT_TIME is a quadword value specifying the time the pictureof the configuration was taken and saved in the snapshot boot file.

NSA$_SOURCE_PROCESS_ID

NSA$_SOURCE_PROCESS_ID is a longword value specifying the processidentification of the process originating the request.

NSA$_SUBJECT_CLASS

NSA$_SUBJECT_CLASS is a 20-byte record specifying the current accessclass of the process causing the auditable event.

NSA$_SUBJECT_OWNER

NSA$_SUBJECT_OWNER is a longword value specifying the owner (UIC) ofthe process causing the event.

NSA$_SYSTEM_ID

NSA$_SYSTEM_ID is a longword value specifying the SCS identification ofthe cluster node where the event took place (system parameterSCSSYSTEMID).

NSA$_SYSTEM_NAME

NSA$_SYSTEM_NAME is a string of 1 to 6 characters specifying the SystemCommunications Services (SCS) node name where the event took place(system parameter SCSNODE).

NSA$_SYSTEM_SERVICE_NAME

NSA$_SYSTEM_SERVICE_NAME is a string of 1 to 256 characters specifyingthe name of the system service associated with the event.

NSA$_SYSTIM_NEW

NSA$_SYSTIM_NEW is a quadword value specifying the new system time.

NSA$_SYSTIM_OLD

NSA$_SYSTIM_OLD is a quadword value specifying the old system time.

NSA$_TARGET_DEVICE_NAME

NSA$_TARGET_DEVICE_NAME is a string of 1 to 64 characters specifyingthe target device name.

NSA$_TARGET_PROCESS_CLASS

NSA$_TARGET_PROCESS_CLASS is a 20-byte record specifying the targetprocess classification.

NSA$_TARGET_PROCESS_ID

NSA$_TARGET_PROCESS_ID is a longword value specifying the targetprocess identifier (PID).

NSA$_TARGET_PROCESS_NAME

NSA$_TARGET_PROCESS_NAME is a string of 1 to 64 characters specifyingthe target process name.

NSA$_TARGET_PROCESS_OWNER

NSA$_TARGET_PROCESS_OWNER is a longword value specifying the targetowner (UIC).

NSA$_TARGET_USERNAME

NSA$_TARGET_USERNAME is a string of 1 to 32 characters specifying thetarget process user name.

NSA$_TERMINAL

NSA$_TERMINAL is a string of 1 to 256 characters specifying the name ofthe terminal to which the process was connected when the auditableevent occurred.

NSA$_TIME_STAMP

NSA$_TIME_STAMP is a quadword value specifying the time when the eventoccurred.

NSA$_TRANSPORT_NAME

NSA$_TRANSPORT_NAME is a string of 1 to 256 characters specifying thename of the transport: interprocess communication, DECnet for OpenVMS,or System Management Integrator (SMI), which handles requests fromSYSMAN (ASCII string).

NSA$_UAF_ADD

NSA$_UAF_ADD is a string of 1 to 32 characters specifying the name ofthe authorization record being added.

NSA$_UAF_COPY

NSA$_UAF_COPY is a string of 1 to 32 characters specifying the new nameof the authorization record being copied from NSA$_UAF_SOURCE.

NSA$_UAF_DELETE

NSA$_UAF_DELETE is a string of 1 to 32 characters specifying the nameof the authorization record being removed.

NSA$_UAF_MODIFY

NSA$_UAF_MODIFY is a string of 1 to 32 characters specifying the nameof the authorization record being modified.

NSA$_UAF_RENAME

NSA$_UAF_RENAME is a string of 1 to 32 characters specifying the nameof the authorization record being renamed.

NSA$_UAF_SOURCE

NSA$_UAF_SOURCE is a string of 1 to 32 characters specifying the username of the source record for an Authorize utility (AUTHORIZE) copyoperation.

NSA$_USERNAME

NSA$_USERNAME is a string of 1 to 32 characters specifying the username of the process causing the auditable event.

NSA$_VOLUME_NAME

NSA$_VOLUME_NAME is a string of 1 to 15 characters specifying a volumename.

NSA$_VOLUME_SET_NAME

NSA$_VOLUME_SET_NAME is a string of 1 to 15 characters specifying avolume set name.

Description

The Audit Event service can be called by any program that enforces asecurity policy to append an event message to the audit log file orsend an alarm to an operator terminal. For example, AUTHORIZE calls$AUDIT_EVENT whenever a UAF record is altered, and LOGINOUT calls theservice whenever a user logs in.

$AUDIT_EVENT takes the event message, checks the auditing database todetermine whether a class of event is being audited, and, if the eventclass is enabled, creates an alarm or audit record.

$AUDIT_EVENT completes asynchronously; that is, it does not wait forfinal status. For synchronous completion, use the $AUDIT_EVENTW service.

Required Access or Privileges

AUDIT

Required Quota

None

Related Services

$CHECK_ACCESS, $CHECK_PRIVILEGE, $CHKPRO

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	A parameter is not accessible.
SS$_BADBUFADR	The buffer address is invalid or not readable.
SS$_BADBUFLEN	The specified buffer length is invalid or out of range.
SS$_BADCHAIN	The address of the next item list to be processed, as identified in the buffer address field, is either not readable or points to itself.
SS$_BADITMCOD	The specified item code is invalid or out of range.
SS$_EVTNOTENAB	The event is not enabled.
SS$_INSFARG	A required item code or parameter is missing.
SS$_INVAJLNAM	The alarm or audit journal name is invalid.
SS$_IVSTSFLG	The specified system service flags are invalid.
SS$_NOAUDIT	The caller does not have the required privilege to perform the audit.
SS$_OVRMAXAUD	There is insufficient memory to perform the audit.
SS$_SYNCH	An audit was not required.
