Determines whether a security-related event should be reported. If theevent should be reported, the service sends the event report to theaudit server.

The $AUDIT_EVENTW service completes synchronously; that is, it returnsonly after receiving an explicit confirmation from the audit serverthat the associated audit, if enabled, has been performed.

For asynchronous completion, use the Audit Event ($AUDIT_EVENT)service. In all other respects, $AUDIT_EVENTW is identical to$AUDIT_EVENT. For additional information about $AUDIT_EVENTW, refer tothe $AUDIT_EVENT service.

Format

SYS$AUDIT_EVENTW efn ,[flags] ,itmlst ,audsts ,[astadr] ,[astprm]

C Prototype

int sys$audit_eventw (unsigned int efn, unsigned int flags, void*itmlst, unsigned int *audsts, void (*astadr)(__unknown_params), intastprm);

Requests that the EXEC avoid preempting the calling process or thread.

Format

SYS$AVOID_PREEMPT enable

C Prototype

int sys$avoid_preempt (int enable);

Arguments

enable

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	read only
mechanism:	by value

Enables or disables preemption avoidance. If theenable argument is set to 1, preemption avoidance isenabled; if 0, preemption avoidance is disabled.

Description

The Avoid Process Preemption service is a caller's mode service thatsets a thread-specific bit that informs the scheduler that this threaddesires to avoid preemption. Before setting the bit, it checks if theprocess or thread has already benefited from preemption avoidanceduring this time on the processor, and if it has, calls the $RESCHEDsystem service to give up the processor.

If quantum end is reached when this bit is set, the scheduler will"borrow" the next quantum for this process or thread. It willgive the process or thread another quantum immediately and allow it toresume execution. The next time that the process or thread is eligiblefor scheduling, it will be placed at the end of the scheduling queuewithout any execution time, skipping its next quantum.

If another process or thread of the same base priority attempts topreempt a process or thread that has this bit set, this preemption canbe avoided if the process had the ALTPRI privilege when the$SETUP_AVOID_PREEMPT service was called. In this case, the priority ofthe current thread is boosted to the same level as the threadattempting preemption, denying the attempted preemption.

Required Access or Privileges

ALTPRI

Required Quota

None

Related Services

$RESCHED, $SETUP_AVOID_PREEMPT

Condition Values Returned

SS$_NORMAL

The service completed successfully.

Converts an ASCII string to an absolute or delta time value in thesystem 64-bit time format suitable for input to the Set Timer ($SETIMR)or Schedule Wakeup ($SCHDWK) service.

On Alpha systems, this service accepts 64-bit addresses.

Format

SYS$BINTIM timbuf ,timadr

C Prototype

int sys$bintim (void *timbuf, struct _generic_64 *timadr);

Arguments

timbuf

OpenVMS usage:	time_name
type:	character-coded text string
access:	read only
mechanism:	by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha)
mechanism:	by 32-bit descriptor--fixed-length string descriptor (VAX)

Buffer that holds the ASCII time to be converted. Thetimbuf argument specifies the 32-bit address (on VAXsystems) or the 32- or 64-bit address (on Alpha systems) of a characterstring descriptor pointing to the time string. The time stringspecifies the absolute or delta time to be converted by $BINTIM. Thedata type table describes the time string.

timadr

OpenVMS usage:	date_time
type:	quadword
access:	write only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

Time value that $BINTIM has converted. The timadrargument is the 32-bit address (on VAX systems) or the 32- or 64-bitaddress (on Alpha systems) of the quadword system time, which receivesthe converted time.

Description

The Convert ASCII String to Binary Time service converts an ASCIIstring to an absolute or delta time value in the system 64-bit timeformat suitable for input to the Set Timer ($SETIMR) or Schedule Wakeup($SCHDWK) service. The service executes at the access mode of thecaller and does not check whether address arguments are accessiblebefore it executes. Therefore, an access violation causes an exceptioncondition if the input buffer or buffer descriptor cannot be read orthe output buffer cannot be written.

This service does not check the length of the argument list andtherefore cannot return the SS$_INSFARG (insufficient arguments) errorstatus code. If the service does not receive enough arguments (forexample, if you omit required commas in the call), errors can result.

The required ASCII input strings have the following format:

• Absolute Time: dd-mmm-yyyy hh:mm:ss.cc
• Delta Time: dddd hh:mm:ss.cc

The following table lists the length (in bytes), contents, and range ofvalues for each field in the absolute time and delta time formats:

Field	Length (Bytes)	Contents	Range of Values
dd	2	Day of month	1--31
--	1	Hyphen	Required syntax
mmm	3	Month	JAN, FEB, MAR, APR, MAY, JUN, JUL, AUG, SEP, OCT, NOV, DEC
--	1	Hyphen	Required syntax
yyyy	4	Year	1858--9999
blank	n	Blank	Required syntax
hh	2	Hour	00--23
:	1	Colon	Required syntax
mm	2	Minutes	00--59
:	1	Colon	Required syntax
ss	2	Seconds	00--59
.	1	Period	Required syntax
cc	2	Hundredths of a second	00--99
dddd	4	Number of days (in 24-hour units)	000--9999

Month abbreviations must be uppercase.

The hundredths-of-second field represents a true fraction. For example,the string .1 represents ten-hundredths of a second (one-tenth of asecond) and the string .01 represents one-hundredth of a second. Also,you can add a third digit to the hundredths-of-second field; thisthousandths-of-second digit is used to round the hundredths-of-secondvalue. Digits beyond the thousandths-of-second digit are ignored.

The following two syntax rules apply to specifying the ASCII inputstring:

• You can omit any of the date and time fields.
  For absolute time values, the $BINTIM service supplies the current system date and time for nonspecified fields. Trailing fields can be truncated. If leading fields are omitted, you must specify the punctuation (hyphens, blanks, colons, periods). For example, the following string results in an absolute time of 12:00 on the current day:

  -- 12:00:00.00


  For delta time values, the $BINTIM service uses a default value of 0 for unspecified hours, minutes, and seconds fields. Trailing fields can be truncated. If you omit leading fields from the time value, you must specify the punctuation (blanks, colons, periods). If the number of days in the delta time is 0, you must specify a 0. For example, the following string results in a delta time of 10 seconds:

  0 ::10


  Note the space between the 0 in the day field and the two colons.
• For both absolute and delta time values, there can be any number of leading blanks, and any number of blanks between fields normally delimited by blanks; however, there can be no embedded blanks within either the date or time field.

Required Access or Privileges

None

Required Quota

None

Related Services

$ASCTIM, $CANTIM, $CANWAK, $GETTIM, $NUMTIM, $SCHDWK, $SETIME, $SETIMR

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_IVTIME	The syntax of the specified ASCII string is invalid, or the time component is out of range.

Example

Column 1 of the following table lists legal input strings to the$BINTIM service; column 2 lists the $BINTIM output of these stringstranslated through the Convert Binary Time to ASCII String ($ASCTIM)system service. The current date is assumed to be 30-DEC-199404:15:28.00.

Input to $BINTIM	$ASCTIM Output String
-- :50	30-DEC-1994 04:50:28.00
-- 1994 0:0:0.0	29-DEC-1994 00:00:00.00
30-DEC-1994 12:32:1.1161	30-DEC-1994 12:32:01.12
29-DEC-1994 16:35:0.0	29-DEC-1994 16:35:00.00
0 ::.1	0 00:00:00.10
0 ::.06	0 00:00:00.06
5 3:18:32.068	5 03:18:32:07
20 12:	20 12:00:00.00
0 5	0 05:00:00.00

Converts an ASCII string to an absolute time value in the 128-bit UTCformat.

On Alpha systems, this service accepts 64-bit addresses.

Format

SYS$BINUTC timbuf ,utcadr

C Prototype

int sys$binutc (void *timbuf, unsigned int *utcadr [4]);

Arguments

timbuf

OpenVMS usage:	time_name
type:	character-coded text string
access:	read only
mechanism:	by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha)
mechanism:	by 32-bit descriptor--fixed-length string descriptor (VAX)

Buffer that holds the ASCII time to be converted. Thetimbuf argument specifies the 32-bit address (on VAXsystems) or the 32- or 64-bit address (on Alpha systems) of a characterstring descriptor pointing to a local time string. The time stringspecifies the absolute time to be converted by $BINUTC.

utcadr

OpenVMS usage:	coordinated universal time
type:	utc_date_time
access:	write only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

Time value that $BINUTC has converted. The utcadrargument is the 32-bit address (on VAX systems) or the 32- or 64-bitaddress (on Alpha systems) of a 16-byte location to receive theconverted time.

Description

The Convert ASCII String to UTC Binary Time service converts an ASCIIstring to an absolute time in the 128-bit UTC format. The serviceexecutes at the access mode of the caller and does not check whetheraddress arguments are accessible before it executes. Therefore, anaccess violation causes an exception condition if the input buffer orbuffer descriptor cannot be read or the output buffer cannot be written.

This service does not check the length of the argument list andtherefore cannot return the SS$_INSFARG (insufficient arguments) errorstatus code. If the service does not receive enough arguments (forexample, if you omit required commas in the call), errors can result.

$BINUTC uses the time zone differential factor of the local system toencode the 128-bit UTC.

The required ASCII input strings have the following format:

• Absolute Time: dd-mmm-yyyy hh:mm:ss.cc

The following table lists the length (in bytes), contents, and range ofvalues for each field in the absolute time format:

Field	Length (Bytes)	Contents	Range of Values
dd	2	Day of month	1--31
--	1	Hyphen	Required syntax
mmm	3	Month	JAN, FEB, MAR, APR, MAY, JUN, JUL, AUG, SEP, OCT, NOV, DEC
--	1	Hyphen	Required syntax
yyyy	4	Year	1858--9999
blank	n	Blank	Required syntax
hh	2	Hour	00--23
:	1	Colon	Required syntax
mm	2	Minutes	00--59
:	1	Colon	Required syntax
ss	2	Seconds	00--59
.	1	Period	Required syntax
cc	2	Hundredths of a second	00--99

Note that month abbreviations must be uppercase and that thehundredths-of-second field represents a true fraction. For example, thestring .1 represents ten-hundredths of a second (one-tenth of a second)and the string .01 represents one-hundredth of a second. Note also thatyou can add a third digit to the hundredths-of-second field; thisthousandths-of-second digit is used to round the hundredths-of-secondvalue. Digits beyond the thousandths-of-second digit are ignored.

The following two syntax rules apply to specifying the ASCII inputstring:

• You can omit any of the date and time fields.
  For absolute time values, the $BINUTC service supplies the current system date and time for nonspecified fields. Trailing fields can be truncated. If leading fields are omitted, you must specify the punctuation (hyphens, blanks, colons, periods). For example, the following string results in an absolute time of 12:00 on the current day:

  -- 12:00:00.00

• For absolute time values, there can be any number of leading blanks, and any number of blanks between fields normally delimited by blanks; however, there can be no embedded blanks within either the date or time field.

Required Access or Privileges

None

Required Quota

None

Related Services

$ASCUTC, $GETUTC, $NUMUTC, $TIMCON

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_IVTIME	The syntax of the specified ASCII string is invalid, the specified time is a delta time, or the time component is out of range.

Sends a message to one or more terminals. The $BRKTHRU servicecompletes asynchronously; that is, it returns to the caller afterqueuing the message request, without waiting for the message to bewritten to the specified terminals.

For synchronous completion, use the Breakthrough and Wait ($BRKTHRUW)service. The $BRKTHRUW service is identical to the $BRKTHRU service inevery way except that $BRKTHRUW returns to the caller after the messageis written to the specified terminals.

For additional information about system service completion, refer tothe Synchronize ($SYNCH) service.

The $BRKTHRU service supersedes the Broadcast ($BRDCST) service. Whenwriting new programs, you should use $BRKTHRU instead of $BRDCST. Whenupdating old programs, you should change all uses of $BRDCST to$BRKTHRU.

Format

SYS$BRKTHRU [efn] ,msgbuf [,sendto] [,sndtyp] [,iosb] [,carcon][,flags] [,reqid] [,timout] [,astadr] [,astprm]

C Prototype

int sys$brkthru (unsigned int efn, void *msgbuf, void *sendto, unsignedint sndtyp, struct _iosb *iosb, unsigned int carcon, unsigned intflags, unsigned int reqid, unsigned int timout, void(*astadr)(__unknown_params), int astprm);

Arguments

efn

OpenVMS usage:	ef_number
type:	longword (unsigned)
access:	read only
mechanism:	by value

Number of the event flag to be set when the message has been written tothe specified terminals. The efn argument is alongword containing this number; however, $BRKTHRU uses only thelow-order byte.

When the message request is queued, $BRKTHRU clears the specified eventflag (or event flag 0 if efn is not specified). Then,after the message is sent, $BRKTHRU sets the specified event flag (orevent flag 0).

msgbuf

OpenVMS usage:	char_string
type:	character-coded text string
access:	read only
mechanism:	by descriptor--fixed-length string descriptor

Message text to be sent to the specified terminals. Themsgbuf argument is the address of a descriptorpointing to this message text.

The $BRKTHRU service allows the message text to be as long as 16,350bytes; however, both the system parameter MAXBUF and the caller'savailable process space can affect the maximum length of the messagetext.

sendto

OpenVMS usage:	char_string
type:	character-coded text string
access:	read only
mechanism:	by descriptor--fixed-length string descriptor

Name of a single device (terminal) or single user name to which themessage is to be sent. The sendto argument is theaddress of a descriptor pointing to this name.

The sendto argument is used in conjunction with thesndtyp argument. When sndtypspecifies BRK$C_DEVICE or BRK$C_USERNAME, the sendtoargument is required.

If you do not specify sndtyp or ifsndtyp does not specify BRK$C_DEVICE orBRK$C_USERNAME, you should not specify sendto; ifsendto is specified, $BRKTHRU ignores it.

sndtyp

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	read only
mechanism:	by value

Terminal type to which $BRKTHRU is to send the message. Thesndtyp argument is a longword value specifying theterminal type.

Each terminal type has a symbolic name, which is defined by the $BRKDEFmacro. The following table describes each terminal type:

Terminal Type	Description
BRK$C_ALLTERMS	When specified, $BRKTHRU sends the message to all terminals at which users are logged in and to all other terminals that are connected to the system except those with the AUTOBAUD characteristic set.
BRK$C_ALLUSERS	When specified, $BRKTHRU sends the message to all users who are currently logged in to the system.
BRK$C_DEVICE	When specified, $BRKTHRU sends the message to a single terminal; you must specify the name of the terminal by using the sendto argument.
BRK$C_USERNAME	When specified, $BRKTHRU sends the message to a user with a specified user name; you must specify the user name by using the sendto argument.

iosb

OpenVMS usage:	io_status_block
type:	quadword (unsigned)
access:	write only
mechanism:	by reference

I/O status block that is to receive the final completion status. Theiosb argument is the address of this quadword block.

When the iosb argument is specified, $BRKTHRU sets thequadword to 0 when it queues the message request. Then, after themessage is sent to the specified terminals, $BRKTHRU returns fourinformational items, one item per word, in the quadword I/O statusblock.

These informational items indicate the status of the messages sent onlyto terminals and mailboxes on the local node; these items do notinclude the status of messages sent to terminals and mailboxes on othernodes in an OpenVMS Cluster system.

The following table shows each word of the quadword block and theinformational item it contains:

Word	Informational Item
1	A condition value describing the final completion status.
2	A decimal number indicating the number of terminals and mailboxes to which $BRKTHRU successfully sent the message.
3	A decimal number indicating the number of terminals to which $BRKTHRU failed to send the message because the write to the terminals timed out.
4	A decimal number indicating the number of terminals to which $BRKTHRU failed to send the message because the terminals were set to the NOBROADCAST characteristic (by using the DCL command SET TERMINAL/NOBROADCAST).

carcon

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	read only
mechanism:	by value

Carriage control specifier indicating the carriage control sequence tofollow the message that $BRKTHRU sends to the terminals. Thecarcon argument is a longword containing the carriagecontrol specifier.

For a list of the carriage control specifiers that you can use in thecarcon argument, refer to the HP OpenVMS I/O User's Reference Manual.

If you do not specify the carcon argument, $BRKTHRUuses a default value of 32, which represents a space in the ASCIIcharacter set. The message format resulting from this default value isa line feed, the message text, and a carriage return.

The carcon argument has no effect on messageformatting specified by the BRK$M_SCREEN flag in theflags argument. See the description of theflags argument.

flags

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Flag bit mask specifying options for the $BRKTHRU operation. Theflags argument is a longword value that is the logicalOR of each desired flag option.

Each flag option has a symbolic name. The $BRKDEF macro defines thefollowing symbolic names:

Symbolic Name	Description
BRK$V_ERASE_LINES	When specified with the BRK$M_SCREEN flag, BRK$V_ERASE_LINES causes a specified number of lines to be cleared from the screen before the message is displayed. When BRK$M_SCREEN is not also specified, BRK$V_ERASE_LINES is ignored. Unlike the other Boolean flags, BRK$V_ERASE_LINES specifies a 1-byte integer in the range 0 to 24. It occupies the first byte in the longword flag mask. In coding the call to $BRKTHRU, specify the desired integer value in the OR operation with any other desired flags.
BRK$M_SCREEN	When specified, $BRKTHRU sends screen-formatted messages as well as messages formatted through the use of the carcon argument. $BRKTHRU sends screen-formatted messages to terminals with the DEC_CRT characteristic, and it sends messages formatted by carcon to those without the DEC_CRT characteristic. You set the DEC_CRT characteristic for the terminal by using the DCL command SET TERMINAL/DEC_CRT. A screen-formatted message is displayed at the top of the terminal screen, and the cursor is repositioned at the point it was prior to the broadcast message. However, the BRK$V_ERASE_LINES and BRK$M_BOTTOM flags also affect the display.
BRK$M_BOTTOM	When BRK$M_BOTTOM is specified and BRK$M_SCREEN is also specified, $BRKTHRU writes the message to the bottom of the terminal screen instead of the top. BRK$M_BOTTOM is ignored if the BRK$M_SCREEN flag is not set.
BRK$M_NOREFRESH	When BRK$M_NOREFRESH is specified, $BRKTHRU, after writing the message to the screen, does not redisplay the last line of a read operation that was interrupted by the broadcast message. This flag is useful only when the BRK$M_SCREEN flag is not specified, because BRK$M_NOREFRESH is the default for screen-formatted messages.
BRK$M_CLUSTER	Specifying BRK$M_CLUSTER enables $BRKTHRU to send the message to terminals or mailboxes on other nodes in an OpenVMS Cluster system. If BRK$M_CLUSTER is not specified, $BRKTHRU sends messages only to terminals or mailboxes on the local node.

reqid

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	read only
mechanism:	by value

Class requester identification, which identifies to $BRKTHRU theapplication (or image) that is calling $BRKTHRU. Thereqid argument is this longword identification value.

The reqid argument is used by several images that sendmessages to terminals and can be used by as many as 16 different userimages as well.

When such an image calls $BRKTHRU, specifying reqid,$BRKTHRU notifies the terminal that this image wants to write to theterminal. This makes it possible for you to allow the image to write orprevent it from writing to the terminal.

To prevent a particular image from writing to your terminal, you usethe image's name in the DCL command SETTERMINAL/NOBROADCAST=image-name. Note that image-namein this DCL command is the same as the value of thereqid argument that the image passed to $BRKTHRU.

For example, you can prevent the Mail utility (which is an image) fromwriting to the terminal by entering the DCL command SETBROADCAST=NOMAIL.

The $BRKDEF macro defines class names that are used by several OpenVMScomponents. These components specify their class names by using thereqid argument in calls to $BRKTHRU. The $BRKDEF macroalso defines 16 class names (BRK$C_USER1 through BRK$C_USER16) for theuse of user images that call $BRKTHRU. The class names and thecomponents to which they correspond are as follows:

Class Name	Component
BRK$C_GENERAL	This class name is used by the image invoked by the DCL command REPLY and the callers of the $BRKTHRU service. This is the default if the reqid argument is not specified.
BRK$C_PHONE	This class name is used by the OpenVMS Phone utility.
BRK$C_MAIL	This class name is used by the OpenVMS Mail utility.
BRK$C_DCL	This class name is used by the DIGITAL Command Language (DCL) interpreter for the Ctrl/T command, which displays the process status.
BRK$C_QUEUE	This class name is used by the queue manager, which manages print and batch jobs.
BRK$C_SHUTDOWN	This class name is used by the system shutdown image, which is invoked by the DCL command REPLY/ID=SHUTDOWN.
BRK$C_URGENT	This class name is used by the image invoked by the DCL command REPLY/ID=URGENT.
BRK$C_USER1 through BRK$C_USER16	These class names can be used by user-written images.

timout

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	read only
mechanism:	by value

Timeout value, which is the number of seconds that must elapse beforean attempted write by $BRKTHRU to a terminal is considered to havefailed. The timout argument is this longword value (inseconds).

Because $BRKTHRU calls the $QIO service to perform write operations tothe terminal, the timeout value specifies the number of secondsallotted to $QIO to perform a single write operation to the terminal.

If you do not specify the timout argument, $BRKTHRUuses a default value of 0 seconds, which specifies infinite time (notimeout occurs).

The value specified by timout can be 0 or any numbergreater than 4; the numbers 1, 2, 3, and 4 are illegal.

When you press Ctrl/S or the No Scroll key, $BRKTHRU cannot send amessage to the terminal. In such a case, the value oftimout is usually exceeded and the attempted write tothe terminal fails.

astadr

OpenVMS usage:	ast_procedure
type:	procedure value
access:	call without stack unwinding
mechanism:	by reference

AST service routine to be executed after $BRKTHRU has sent the messageto the specified terminals. The astadr argument is theaddress of this routine.

If you specify astadr, the AST routine executes at thesame access mode as the caller of $BRKTHRU.

astprm

OpenVMS usage:	user_arg
type:	longword (unsigned)
access:	read only
mechanism:	by value

AST parameter to be passed to the AST routine specified by theastadr argument. The astprm argumentspecifies this longword parameter.

Description

The Breakthrough service sends a message to one or more terminals. The$BRKTHRU service completes asynchronously; that is, it returns to thecaller after queuing the message request without waiting for themessage to be written to the specified terminals.

The $BRKTHRU service operates by assigning a channel (by using the$ASSIGN service) to the terminal and then writing to the terminal (byusing the $QIO service). When calling $QIO, $BRKTHRU specifies theIO$_WRITEVBLK function code, together with the IO$M_BREAKTHRU,IO$M_CANCTRLO, and (optionally) IO$M_REFRESH function modifiers.

The current state of the terminal determines if and when the broadcastmessage is displayed on the screen. For example:

• If the terminal is performing a read operation when $BRKTHRU sends the message, the read operation is suspended, the message is displayed, and then the line that was being read when the read operation was suspended is redisplayed (equivalent to the action produced by Ctrl/R).
• If the terminal is performing a write operation when $BRKTHRU sends the message, the message is displayed after the current write operation has completed.
• If the terminal has the NOBROADCAST characteristic set for all images, or if you have disabled the receiving of messages from the image that is issuing the $BRKTHRU call (see the description of the reqid argument), the message is not displayed.

After the message is displayed, the terminal is returned to the stateit was in prior to receiving the message.

Required Access or Privileges

The calling process must have OPER privilege for the followingconditions:

• To send a message to more than one terminal
• To send a message to a terminal that is allocated to another user
• To send a message to a specific user that has a different user name than the current process

To send a message to a specific user that is the same as your processrequires no privileges.

Required Quota

The $BRKTHRU service allows the message text to be as long as 16,350bytes; however, both the system parameter MAXBUF and the caller'savailable process buffered I/O byte count limit (BYTLM) quota must besufficient to handle the message.

Related Services

$ALLOC, $ASSIGN, $BRKTHRUW, $CANCEL, $CREMBX, $DALLOC, $DASSGN,$DELMBX, $DEVICE_SCAN, $DISMOU, $GETDVI, $GETDVIW, $GETMSG, $GETQUI,$GETQUIW, $INIT_VOL, $MOUNT, $PUTMSG, $QIO, $QIOW, $SNDERR, $SNDJBC,$SNDJBCW, $SNDOPR

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The message buffer, message buffer descriptor, device name string, or device name string descriptor cannot be read by the caller.
SS$_BADPARAM	The message length exceeds 16,350 bytes; the process's buffered I/O byte count limit (BYTLM) quota is insufficient; the message length exceeds the value specified by the system parameter MAXBUF; the value of the TIMOUT parameter is nonzero and less than 4 seconds; the value of the REQID is outside the range 0 to 63; or the value of the SNDTYP is not one of the legal ones listed.
SS$_EXQUOTA	The process has exceeded its buffer space quota and has disabled resource wait mode with the Set Resource Wait Mode ($SETRWM) service.
SS$_INSFMEM	The system dynamic memory is insufficient for completing the request and the process has disabled resource wait mode with the Set Resource Wait Mode ($SETRWM) service.
SS$_NONLOCAL	The device is on a remote node.
SS$_NOOPER	The process does not have the necessary OPER privilege.
SS$_NOSUCHDEV	The specified terminal does not exist, or it cannot receive the message.

Condition Values Returned in the I/O Status Block

Any condition values returned by the $ASSIGN, $FAO, $GETDVI, $GETJPI,or $QIO service.

Sends a message to one or more terminals. The $BRKTHRUW serviceoperates synchronously; that is, it returns to the caller after themessage has been sent to the specified terminals.

For asynchronous operations, use the Breakthrough ($BRKTHRU) service;$BRKTHRU returns to the caller after queuing the message request,without waiting for the message to be delivered.

Aside from the preceding, $BRKTHRUW is identical to $BRKTHRU. For allother information about the $BRKTHRUW service, refer to the descriptionof $BRKTHRU.

For additional information about system service completion, refer tothe documentation of the Synchronize ($SYNCH) service.

The $BRKTHRU and $BRKTHRUW services supersede the Broadcast ($BRDCST)service. When writing new programs, you should use $BRKTHRU or$BRKTHRUW instead of $BRDCST. When updating old programs, you shouldchange all uses of $BRDCST to $BRKTHRU or $BRKTHRUW. $BRDCST is now anobsolete system service and is no longer being enhanced.

Format

SYS$BRKTHRUW [efn] ,msgbuf [,sendto] [,sndtyp] [,iosb] [,carcon][,flags] [,reqid] [,timout] [,astadr] [,astprm]

C Prototype

int sys$brkthruw (unsigned int efn, void *msgbuf, void *sendto,unsigned int sndtyp, struct _iosb *iosb, unsigned int carcon, unsignedint flags, unsigned int reqid, unsigned int timout, void(*astadr)(__unknown_params),int astprm);

Cancels all pending I/O requests on a specified channel. In general,this includes all I/O requests that are queued, as well as the requestcurrently in progress.

Format

SYS$CANCEL chan

C Prototype

int sys$cancel (unsigned short int chan);

Argument

chan

OpenVMS usage:	channel
type:	word (unsigned)
access:	read only
mechanism:	by value

I/O channel on which I/O is to be canceled. The chanargument is a word containing the channel number.

Description

The Cancel I/O on Channel service cancels all pending I/O requests on aspecified channel. In general, this includes all I/O requests that arequeued, as well as the request currently in progress.

When you cancel a request currently in progress, the driver is notifiedimmediately. The actual cancellation might occur immediately, dependingon the logical state of the driver. When cancellation does occur, thefollowing action for I/O in progress, similar to that for queuedrequests, takes place:

1. The specified event flag is set.
2. The first word of the I/O status block, if specified, is set to SS$_CANCEL if the I/O request is queued, or to SS$_ABORT if the I/O is in progress.
3. The AST, if specified, is queued.

Proper synchronization between this service and the actual canceling ofI/O requests requires the issuing process to wait for I/O completion inthe normal manner and then note that the I/O has been canceled.

If the I/O operation is a virtual I/O operation involving a disk ortape ancilliary control process (ACP), the I/O cannot be canceled. Inthe case of a magnetic tape, however, cancellation might occur if thedevice driver is hung.

Outstanding I/O requests are automatically canceled at image exit.

Required Access or Privileges

To cancel I/O on a channel, the access mode of the calling process mustbe equal to or more privileged than the access mode that the processhad when it originally made the channel assignment.

Required Quota

The $CANCEL service requires system dynamic memory and uses theprocess's buffered I/O limit (BIOLM) quota.

Related Services

$ALLOC, $ASSIGN, $BRKTHRU, $BRKTHRUW, $CREMBX, $DALLOC, $DASSGN,$DELMBX, $DEVICE_SCAN, $DISMOU, $GETDVI, $GETDVIW, $GETMSG, $GETQUI,$GETQUIW, $INIT_VOL, $MOUNT, $PUTMSG, $QIO, $QIOW, $SNDERR, $SNDJBC,$SNDJBCW, $SNDOPR

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_EXQUOTA	The process has exceeded its buffered I/O limit (BIOLM) quota.
SS$_INSFMEM	The system dynamic memory is insufficient for canceling the I/O.
SS$_IVCHAN	You specified an invalid channel, that is, a channel number of 0 or a number larger than the number of channels available.
SS$_NOPRIV	The specified channel is not assigned or was assigned from a more privileged access mode.

Deletes an exit control block from the list of control blocks for thecalling access mode. Exit control blocks are declared by the DeclareExit Handler ($DCLEXH) service and are queued according to access modein a last-in first-out order.

Format

SYS$CANEXH [desblk]

C Prototype

int sys$canexh (void *desblk);

Argument

desblk

OpenVMS usage:	exit_handler_block
type:	longword (unsigned)
access:	read only
mechanism:	by reference

Control block describing the exit handler to be canceled. If you do notspecify the desblk argument or specify it as 0, allexit control blocks are canceled for the current access mode. Thedesblk argument is the address of this control block.

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The first longword of the exit control block or the first longword of a previous exit control block in the list cannot be read by the caller, or the first longword of the preceding control block cannot be written by the caller.
SS$_IVSSRQ	The call to the service is invalid because it was made from kernel mode.
SS$_NOHANDLER	The specified exit handler does not exist.

Cancels all or a selected subset of the Set Timer requests previouslyissued by the current image executing in a process. Cancellation isbased on the request identification specified in the Set Timer($SETIMR) service. If you give the same request identification to morethan one timer request, all requests with that request identificationare canceled.

Format

SYS$CANTIM [reqidt] ,[acmode]

C Prototype

int sys$cantim (unsigned __int64 reqidt, unsigned int acmode);

Arguments

reqidt

OpenVMS usage:	user_arg
type:	longword (unsigned)
access:	read only
mechanism:	by value

Request identification of the timer requests to be canceled. If youspecify it as 0 (the default), all timer requests are canceled. Thereqidt argument is a longword containing thisidentification.

acmode

OpenVMS usage:	access_mode
type:	longword (unsigned)
access:	read only
mechanism:	by value

Access mode of the requests to be canceled. The acmodeargument is a longword containing the access mode.

The $PSLDEF macro defines the following symbols for the four accessmodes:

Symbol	Access Mode
PSL$C_KERNEL	Kernel
PSL$C_EXEC	Executive
PSL$C_SUPER	Supervisor
PSL$C_USER	User

The most privileged access mode used is the access mode of the caller.

Description

The Cancel Timer service cancels all or a selected subset of the SetTimer requests previously issued by the current image executing in aprocess. Cancellation is based on the request identification specifiedin the Set Timer ($SETIMR) service. If you give the same requestidentification to more than one timer request, all requests with thatrequest identification are canceled.

Outstanding timer requests are automatically canceled at image exit.

Required Access or Privileges

The calling process can cancel only timer requests that are issued by aprocess whose access mode is equal to or less privileged than that ofthe calling process.

Required Quota

Canceled timer requests are restored to the process's quota for timerqueue entries (TQELM quota).

Related Services

$ASCTIM, $BINTIM, $CANWAK, $GETTIM, $NUMTIM, $SCHDWK, $SETIME, $SETIMR

Condition Values Returned

SS$_NORMAL

The service completed successfully.

Removes all scheduled wakeup requests for a process from the timerqueue, including those made by the caller or by other processes. TheSchedule Wakeup ($SCHDWK) service makes scheduled wakeup requests.

Format

SYS$CANWAK [pidadr] ,[prcnam]

C Prototype

int sys$canwak (unsigned int *pidadr, void *prcnam);

Arguments

pidadr

OpenVMS usage:	process_id
type:	longword (unsigned)
access:	modify
mechanism:	by reference

Process identification (PID) of the process for which wakeups are to becanceled. The pidadr argument is the address of alongword specifying the PID. The pidadr argument canrefer to a process running on the local node or a process running onanother node in the OpenVMS Cluster system.

prcnam

OpenVMS usage:	process_name
type:	character-coded text string
access:	read only
mechanism:	by descriptor--fixed-length string descriptor

Name of the process for which wakeups are to be canceled. Theprcnam argument is the address of a character stringdescriptor pointing to the process name string.

A process running on the local node can be identified with a 1- to15-character string. To identify a process on a specific node in acluster, specify the full process name, which includes the node name aswell as the process name. The full process name can contain up to 23characters.

The operating system interprets the UIC group number of the callingprocess as part of the process name; the names of processes are uniqueto UIC groups. Because of this, you can use the prcnamargument only on behalf of processes in the same group as the callingprocess.

Description

The Cancel Wakeup service removes from the timer queue all scheduledwakeup requests for a process, including those made by the caller or byother processes. The Schedule Wakeup ($SCHDWK) service makes scheduledwakeup requests.

If the longword at address pidadr is 0, the PID of thetarget process is returned.

If you specify neither the pidadr nor theprcnam argument, scheduled wakeup requests for thecalling process are canceled.

Pending wakeup requests issued by the current image are automaticallycanceled at image exit.

This service cancels only wakeup requests that have been scheduled; itdoes not cancel wakeup requests made with the Wake Process fromHibernation ($WAKE) service.

Required Access or Privileges

Depending on the operation, the calling process might need one of thelisted privileges to use $CANWAK:

• You need GROUP privilege to cancel wakeups for processes in the same group that do not have the same UIC.
• You need WORLD privilege to cancel wakeups for any process in the system.

Required Quota

Canceled wakeup requests are restored to the process's AST limit(ASTLM) quota.

Related Services

$ASCTIM, $BINTIM, $CANTIM, $GETTIM, $NUMTIM, $SCHDWK, $SETIME, $SETIMR

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The process name string or string descriptor cannot be read by the caller, or the process identification cannot be written by the caller.
SS$_INCOMPAT	The remote node is running an incompatible version of the operating system.
SS$_IVLOGNAM	The process name string has a length of 0 or has more than 15 characters.
SS$_NONEXPR	The specified process does not exist, or you specified an invalid process identification.
SS$_NOPRIV	The process does not have the privilege to cancel wakeups for the specified process.
SS$_NOSUCHNODE	The process name refers to a node that is not currently recognized as part of the cluster.
SS$_REMRSRC	The remote node has insufficient resources to respond to the request. (Bring this error to the attention of your system manager.)
SS$_UNREACHABLE	The remote node is a member of the cluster but is not accepting requests. (This is normal for a brief period early in the system boot process.)

Determines on behalf of a third-party user whether a named user canaccess the object specified.

Format

SYS$CHECK_ACCESS [objtyp], [objnam], [usrnam], itmlst, [contxt],[clsnam], [objpro], [usrpro]

C Prototype

int sys$check_access (unsigned int *objtyp, void *objnam, void *usrnam,void *itmlst, unsigned int *contxt, void *clsnam, void *objpro, void*usrpro);

Arguments

objtyp

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	read only
mechanism:	by reference

Type of object being accessed. The objtyp argument isthe address of a longword containing a value specifying the type ofobject.

The appropriate symbols are listed in the following table and aredefined in the system macro $ACLDEF library:

Symbol	Meaning
ACL$C_CAPABILITY	Object is a restricted resource; use the reserved name VECTOR.
ACL$C_DEVICE	Object is a device.
ACL$C_FILE	Object is a Files-11 On-Disk Structure Level 2 file.
ACL$C_GROUP_GLOBAL_SECTION	Object is a group global section.
ACL$C_JOBCTL_QUEUE	Object is a batch, print, or server queue.
ACL$C_LOGICAL_NAME_TABLE	Object is a logical name table.
ACL$C_SYSTEM_GLOBAL_SECTION	Object is a system global section.

For further information about these symbols, see the description of theclsnam argument.

objnam

OpenVMS usage:	char_string
type:	character-coded text string
access:	read only
mechanism:	by descriptor--fixed-length string descriptor

Name of the object being accessed. The objnam argumentis the address of a character-string descriptor pointing to the objectname.

usrnam

OpenVMS usage:	char_string
type:	character-coded text string
access:	read only
mechanism:	by descriptor--fixed-length string descriptor

Name of the user attempting access. The usrnamargument is the address of a descriptor that points to a characterstring that contains the name of the user attempting to gain access tothe specified object. The user name string can contain a maximum of 12alphanumeric characters.

itmlst

OpenVMS usage:	item_list_3
type:	longword (unsigned)
access:	read only
mechanism:	by reference

Attributes describing how the object is to be accessed and informationreturned after $CHECK_ACCESS performs the protection check (forinstance, security alarm information).

For each item code, you must include a set of four elements and end thelist with a longword containing the value 0 (CHP$_END). This is shownin the following diagram:

The following table defines the item descriptor fields:

contxt

Using the contxt argument keeps the UAF open acrossall calls, thereby improving the performance of the system onsubsequent calls. To close the UAF, you must run down the image.

The resulting contxt value from a $CHECK_ACCESS callcan also be used as the input contxt argument to the$GETUAI system service, and vice versa.

clsnam

objpro

Object handles vary according to the associated security object class.Currently, the only supported object handles are for the file anddevice class objects where the object handle is a word or longwordchannel.

The objpro and objnam arguments aremutually exclusive unless the objpro argument is asimple object handle. The objpro andusrpro arguments are also mutually exclusive unlessthe objpro argument is an object handle.

usrpro

The $CREATE_USER_PROFILE service can be used to construct a usersecurity profile. The usrpro andusrnam arguments are mutually exclusive. Theobjpro and usrpro arguments are alsomutually exclusive unless the objpro argument is anobject handle.

The item codes used with $CHECK_ACCESS are described in the followinglist and are defined in the $CHPDEF system macro library.

Item Codes

CHP$_ACCESS

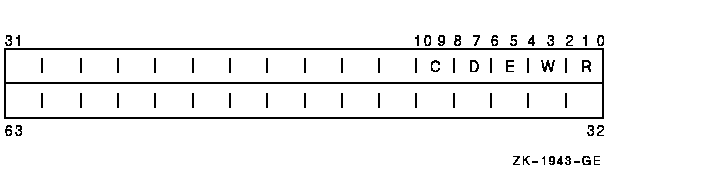

A longword bit mask that represents the desired access ($ARMDEF). Onlythose bits set in CHP$_ACCESS are checked against the protection of theobject to determine whether access is granted.

The default for CHP$_ACCESS is read. Symbolic representations for theaccess types associated with the built-in protected classes are foundin the $ARMDEF macro.

For example, ARM$M_MANAGE specifies Manage access for the queue classobject. Access type names are object class specific and vary from classto class. Because $CHECK_ACCESS performs only a bitwise comparison ofaccess desired to object protection, the original Read, Write, Execute,and Delete names can also be used to specify the first four accesstypes for any object class.

The following table shows the access types available and lists theircommon interpretations. These symbols are defined in the $ARMDEF systemmacro library. For more information, refer to the HP OpenVMS Guide to System Security.

Access Type	Access Permitted
ARM$M_READ	Allows holders to read an object, perform wildcard directory lookups, display jobs in a queue, or use an associated vector processor.
ARM$M_WRITE	Allows holders to alter the contents of an object, remove a directory entry, write or extend existing files on a volume, or submit a job to a queue.
ARM$M_EXECUTE	Allows holders to run an image or command procedure, perform exact directory lookups, issue physical I/O requests to a device, create new files on a volume, or act as operator for a queue.
ARM$M_DELETE	Allows holders to delete an object, perform logical I/O to a device, or delete a job in a queue.
ARM$M_CONTROL	Allows holders to display or alter the security characteristics of an object.

CHP$_ACMODE

A byte that defines the accessor's processor access mode ($PSLDEF). Thefollowing access modes and their symbols are defined in the systemmacro library ($PSLDEF). Objects supported by the operating system donot consider access mode in determining object access.

Symbol	Access Mode
PSL$C_USER	User
PSL$C_SUPER	Supervisor
PSL$C_EXEC	Executive
PSL$C_KERNEL	Kernel

If CHP$_ACMODE is not specified, access mode is not used to determineaccess.

CHP$_ALARMNAME

Address of a buffer to receive the alarm name from any Alarm ACEcontained in the object's ACL. Currently, if a matching Alarm ACEexists, the string SECURITY will be returned. The string returned byCHP$_ALARMNAME can be used as input to the $AUDIT_EVENT system service,using the NSA$_ALARM_NAME item code.

CHP$_AUDIT_LIST

A list containing information to be added to any resulting securityaudit. The bufadr argument points to the beginning ofan $AUDIT_EVENT item list. See the itmlst argument ofthe $AUDIT_EVENT system service for a list of valid security auditingitem codes. Note that the NSA$_EVENT_TYPE and NSA$_EVENT_SUBTYPE itemsare ignored when auditing with $CHECK_ACCESS. The CHP$V_AUDIT flag mustbe specified.

CHP$_AUDITNAME

Address of a buffer to receive the audit name from any Audit ACEcontained in the object's ACL. Currently, if a matching Audit ACEexists, the string SECURITY will be returned. The string returned byCHP$_AUDITNAME can be used as input to the $AUDIT_EVENT system service,using the NSA$_AUDIT_NAME item code.

CHP$_FLAG

A longword that controls various aspects of the protection check. Thesymbols in the following table are offsets to the bits within thelongword. You can also obtain the values as masks with the appropriatebit set by using the prefix CHP$M rather than CHP$V. These symbols aredefined in the system macro library ($CHPDEF).

Symbol	Access
CHP$V_ALTER	Accessor desires write access to object.
CHP$V_AUDIT	Access audit requested.
CHP$V_CREATE	Perform the audit as an object creation event.
CHP$V_DELETE	Perform the audit as an object deletion event.
CHP$V_FLUSH	Force audit buffer flush.
CHP$V_INTERNAL	Audit on behalf of the Trusted Computing Base (TCB). Reserved to HP.
CHP$V_MANDATORY	Force the object access event to be audited.
CHP$V_NOFAILAUD	Do not perform audits for failed access.
CHP$V_NOSUCCAUD	Do not perform audits for successful access.
CHP$V_OBSERVE	Accessor desires read access to object.
CHP$V_SERVER	Audit on behalf of a TCB server process.
CHP$V_USEREADALL	Accessor is eligible for READALL privilege.

The default for CHP$_FLAG is CHP$V_OBSERVE.

The primary purpose of the CHP$V_OBSERVE and CHP$V_ALTER flags is aslatent support for a mandatory (lattice) security policy, such as thatprovided by the Security Enhanced VMS (SEVMS) offering.

CHP$_MATCHEDACE

A variable-length data structure containing the first Identifier ACE inthe ACL that granted or denied access to the object. The $FORMAT_ACLsystem service describes the format of an Identifier ACE.

CHP$_PRIVUSED

A longword mask of flags that represent the privileges used to gainaccess.

You can also obtain the values as masks with the appropriate bit set byusing the prefix CHP$M rather than CHP$V. The symbols are defined inthe system macro library ($CHPDEF). The following symbols are offsetsto the bits within the longword:

Symbol	Meaning
CHP$V_SYSPRV	SYSPRV was used to gain the requested access.
CHP$V_GRPPRV	GRPPRV was used to gain the requested access.
CHP$V_BYPASS	BYPASS was used to gain the requested access.
CHP$V_READALL	READALL was used to gain the requested access.
CHP$V_OPER	OPER was used to gain the requested access.
CHP$V_GRPNAM	GRPNAM was used to gain the requested access.
CHP$V_SYSNAM	SYSNAM was used to gain the requested access.
CHP$V_GROUP	GROUP was used to gain the requested access.
CHP$V_WORLD	WORLD was used to gain the requested access.
CHP$V_PRMCEB	PRMCEB was used to gain the requested access.
CHP$V_UPGRADE	UPGRADE was used to gain the requested access.
CHP$V_DOWNGRADE	DOWNGRADE was used to gain the requested access.

Description

The Check Access service invokes the operating system controlprotection check mechanism, $CHKPRO, to determine whether a named useris allowed the described access to the named object. A file server, forexample, might check the access attributes of a user who attempts toaccess a file (the object).

If the user can access the object, $CHECK_ACCESS returns the SS$_NORMALstatus code; otherwise, $CHECK_ACCESS returns SS$_NOPRIV.

The arguments accepted by this service specify the name and class ofobject being accessed, the name of the user requesting access to theobject, the type of access desired, and the type of information to bereturned.

The caller can also request that an object access audit be performed ifsecurity auditing has been enabled for the object class or if AuditACEs are contained in the object's ACL. Auditing ACEs include bothAlarm ACEs and Audit ACEs. The CHP$V_AUDIT flag requests an accessaudit. This requires that the caller be in executive or kernel mode orpossess the AUDIT privilege.

Normally, $CHECK_ACCESS generates an object access audit when an auditis required. The caller can specify the CHP$V_CREATE flag to force anobject creation audit instead of an object access audit. Similarly, theCHP$V_DELETE flag forces an object deletion audit. The CHP$_AUDIT_LISTitem code can be used to specify additional information to be includedin any resulting audit records.

With certain types of devices, $CHECK_ACCESS can return a falsenegative, but never a false positive. This is due to additional LOG_IOand PHY_IO privilege checking in the $QIO system service that mightoverride an otherwise unsuccessful access attempt. These privilegechecks are not mirrored by the $CHECK_ACCESS system service. Theaffected devices are those that are non-file-structured or mountedforeign and also either spooled, file-oriented, or shareable. Forexample, mailbox devices fall into this category because they arenon-file-structured and shareable. To accurately duplicate the resultthat would be obtained if the user had issued a read or write againstthese devices, it might be necessary to test for these additionalprivileges using the $CHECK_PRIVILEGE system service. Refer to theHP OpenVMS I/O User's Reference Manual for further information on access requirements for devices.

Required Access or Privileges

Access to SYSUAF.DAT and RIGHTSLIST.DAT is required. AUDIT privilege isrequired when requesting a user mode audit.

Required Quota

None

Related Services

$CHKPRO, $CREATE_USER_PROFILE, $FORMAT_ACL

Condition Values Returned

SS$_NORMAL	The service completed successfully; the desired access is granted.
SS$_ACCVIO	The item list cannot be read by the caller, one of the buffers specified in the item list cannot be written by the caller, or one of the arguments could not be read or written.
SS$_BADPARAM	Invalid or conflicting combination of parameters.
SS$_INSFARG	Insufficient information to identify object or user.
SS$_INSFMEM	Insufficient process memory to execute service.
SS$_NOAUDIT	Caller lacks privilege to request audit.
SS$_NOCALLPRIV	Caller lacks privilege to access authorization database.
SS$_NOCLASS	No matching object class was located.
SS$_NOPRIV	The desired access is not granted.
SS$_UNSUPPORTED	Operations on remote object are not supported.

If CHP$V_AUDIT is specified, any error from the $AUDIT_EVENT systemservice can also be returned.

On Alpha systems, indicates whether floating point is enabled for thecurrent image.

Format

SYS$CHECK_FEN

C Prototype

int sys$check_fen (void);

Arguments

None.

Description

The Check Floating Point service returns a Boolean value in R0indicating whether floating point is enabled for the current image.

The $CHECK_FEN service returns a value of 1 if the floating point isenabled for the current image. A value of 0 is returned if the floatingpoint is disabled.

Required Access or Privileges

None

Required Quota

None

Determines whether the caller has the specified privileges oridentifier. In addition to checking for a privilege or an identifier,$CHECK_PRIVILEGE determines if the caller's use of privilege needs tobe audited.

Format

SYS$CHECK_PRIVILEGE [efn] ,prvadr ,[altprv] ,[flags] ,[itmlst],[audsts] ,[astadr] ,[astprm]

C Prototype

int sys$check_privilege (unsigned int efn, struct _generic_64 *prvadr,struct _generic_64 *altprv, unsigned int flags, void *itmlst, unsignedint *audsts, void (*astadr)(__unknown_params), int astprm);

Arguments

efn

OpenVMS usage:	ef_number
type:	longword (unsigned)
access:	read only
mechanism:	by value

Number of the event flag to be set when the audit completes. Theefn argument is a longword containing the number ofthe event flag; however, $CHECK_PRIVILEGE uses only the low-order byte.If efn is not specified, event flag 0 is used.

Upon request initiation, $CHECK_PRIVILEGE clears the specified eventflag.

prvadr

OpenVMS usage:	mask_quadword
type:	quadword (unsigned)
access:	read only
mechanism:	by reference

The privilege, privileges, or identifier that the calling process mustpossess.

The prvadr argument is either the address of aquadword bit array, where each bit corresponds to a privilege, or theaddress of a quadword identifier.

When the array lists privileges, each bit has a symbolic name. The$PRVDEF macro defines these names. You form the bit array by specifyingthe symbolic name of each desired privilege in a logical OR operation.See the $SETPRV system service for the symbolic name and description ofeach privilege.

If the caller passes an identifier, the caller must set theNSA$M_IDENTIFIER bit in the flags longword. Theidentifier structure is defined by the $KGBDEF macro. The identifierattributes (KGB$) are reserved for future use and should be set to 0.

altprv

OpenVMS usage:	mask_quadword
type:	quadword (unsigned)
access:	read only
mechanism:	by reference

Alternate privilege mask to check against. The altprvargument is the address of a quadword privilege mask, where each bitcorresponds to a privilege. This argument and the flags NSA$M_AUTHPRIV,NSA$M_IDENTIFIER, and NSA$M_PROCPRIV are mutually exclusive.

With this argument, $CHECK_PRIVILEGE uses the supplied set ofprivileges instead of the current, active privileges. Each bit in themask has a symbolic name, defined by the $PRVDEF macro. You form thebit array by specifying the symbolic name of each desired privilege ina logical OR operation. See the $SETPRV system service for the symbolicname and description of each privilege.

flags

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Flags that specify options for the $CHECK_PRIVILEGE operation. Theflags argument is a longword bit mask, where each bitcorresponds to an option.

Each flag option has a symbolic name. The $NSADEF macro defines thefollowing symbolic names. Be aware that the flags NSA$M_AUTHPRIV,NSA$M_IDENTIFIER, and NSA$M_PROCPRIV are mutually exclusive; therefore,you can specify only one of these flag options.

Symbolic Name	Description
NSA$M_AUTHPRIV	Checks the authorized privileges of the process instead of the current (active) privileges.
NSA$M_FLUSH	Specifies that all messages in the audit server buffer be written to the audit log file.
NSA$M_IDENTIFIER	Interprets the prvadr argument as the address of an identifier instead of a privilege mask.
NSA$M_INTERNAL	Specifies that the $CHECK_PRIVILEGE call originates in the context of a trusted computing base (TCB) component. The auditing components use this flag to indicate that internal auditing failures should result in a SECAUDTCB bugcheck. This flag is reserved to HP.
NSA$M_MANDATORY	Specifies that an audit is to be performed, regardless of system alarm and audit settings.
NSA$M_PROCPRIV	Checks the permanent privileges of the process, instead of the privileges in the current (active) mask.
NSA$M_SERVER	Indicates that the call originates in a TCB server process and that the event should be audited regardless of the state of a process-specific no-audit bit. Trusted servers use this flag to override the no-audit bit when they want to perform explicit auditing on behalf of a client process. This flag is reserved to HP.

itmlst

OpenVMS usage:	item_list_3
type:	longword (unsigned)
access:	read only
mechanism:	by reference

Item list specifying additional security auditing information to beincluded in any security audit that is generated by the service. Theitmlst argument is the address of a list of itemdescriptors, each of which describes an item of information. The listof item descriptors is terminated by a longword of 0.

The item list is a standard format item list. The following diagramdepicts the format of a single item descriptor.

The following table defines the item descriptor fields:

All item codes listed in the Item Codes section of the $AUDIT_EVENTservice are valid within the item list used by the $CHECK_PRIVILEGEservice except for the NSA$_EVENT_TYPE and NSA$_EVENT_SUBTYPE itemcodes, which are supplied internally by the $CHECK_PRIVILEGE service.

$CHECK_PRIVILEGE should be called with an item list identifying thealarm and audit journals, and does not need to use the NSA$_PRIVS_USEDitem code. NSA$_PRIVS_USED is supplied automatically by the$CHECK_PRIVILEGE service. Note that $CHECK_PRIVILEGE returnsSS$_BADPARAM if you supply either NSA$_EVENT_TYPE orNSA$_EVENT_SUBTYPE. These items are supplied internally by$CHECK_PRIVILEGE.

audsts

The audsts argument is valid only when the servicereturns success and the status is not SS$_EVTNOTENAB. In addition, thecaller must either make use of the astadr argument oruse the $CHECK_PRIVILEGEW service before attempting to accessaudsts.

astadr

The AST routine executes in the access mode of the caller of$CHECK_PRIVILEGE.

astprm

Description

The Check Privilege service determines whether a user has theprivileges or identifier that an operation requires. In addition,$CHECK_PRIVILEGE audits the use of privilege if privilege auditing hasbeen enabled by the site security administrator. The caller does notneed to determine whether privilege auditing has been enabled.

Required Access or Privileges

AUDIT privilege is required.

Required Quota

None

Related Services

$AUDIT_EVENT, $SETPRV

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The specified parameter of the item list buffer is not accessible.
SS$_BADBUFADR	The buffer address is invalid or not readable.
SS$_BADBUFLEN	The specified buffer length is invalid or out of range.
SS$_BADCHAIN	The address of the next item list to be processed, as identified in the buffer address field, is either not readable or points to itself.
SS$_BADITMCOD	The specified item code is invalid or out of range.
SS$_BADPARAM	The specified list entry is invalid or out of range.
SS$_EVTNOTENAB	No audit required; privilege granted.
SS$_ILLEFC	You specified an illegal event flag number.
SS$_INSFARG	The argument list contains too few arguments for the service.
SS$_INVAJLNAM	The alarm or audit journal name is invalid.
SS$_IVSTSFLG	The specified system service flags are invalid.
SS$_NOAUDIT	The caller does not have the required privilege to perform the audit.
SS$_NOPRIV	The subject does not have the required privileges or identifier.
SS$_NO[privilege-name]	The subject does not have a specific privilege.
SS$_OVRMAXAUD	There is insufficient memory to perform the audit.
SS$_TOOMANYAJL	Too many alarm or audit journals were specified.
SS$_UNASEFC	An unassociated event flag cluster was specified.

Determines whether the caller has the specified privileges oridentifier. In addition to checking for a privilege or an identifier,the Check Privilege and Wait service determines if the caller's use ofprivilege needs to be audited.

$CHECK_PRIVILEGEW completes synchronously; that is, it returns thefinal status to the caller only after receiving an explicitconfirmation from the audit server that the associated audit, ifenabled, has been performed.

Format

SYS$CHECK_PRIVILEGEW efn ,prvadr ,[altprv] ,[flags] ,[itmlst] ,audsts,[astadr] ,[astprm]

C Prototype

int sys$check_privilegew (unsigned int efn, struct _generic_64 *prvadr,struct _generic_64 *altprv, unsigned int flags, void *itmlst, unsignedint *audsts, void (*astadr)(__unknown_params), int astprm);

Determines whether an accessor with the specified rights and privilegescan access an object with the specified attributes.

Format

SYS$CHKPRO itmlst ,[objpro] ,[usrpro]

C Prototype

int sys$chkpro (void *itmlst, void *objpro, void *usrpro);

Argument

itmlst

OpenVMS usage:	item_list_3
type:	longword (unsigned)
access:	read only
mechanism:	by reference

Protection attributes of the object and the rights and privileges ofthe accessor. The itmlst argument is the address of anitem list of descriptors used to specify the protection attributes ofthe object and the rights and privileges of the accessor.

The following diagram depicts the format of a single item descriptor:

The following table defines the item descriptor fields:

Specifying any specific protection attribute causes that protectioncheck to be made; any protection attribute not specified is notchecked. Rights and privileges specified are used as needed. If aprotection check requires any right or privilege not specified in theitem list, the right or privilege of the caller's process is used.

objpro

usrpro

The $CREATE_USER_PROFILE service can be used to construct a usersecurity profile. When the usrpro argument isspecified, any component user profile attributes specified in the$CHKPRO item list replace those contained in the user security profile.

The item codes used with $CHKPRO are described in the following listand are defined in the $CHPDEF system macro library.

Item Codes

CHP$_ACCESS

A longword bit mask representing the type of access desired ($ARMDEF).Be aware that the $CHKPRO service does not interpret the bits in theaccess mask; instead, it compares them to the object's protection mask(CHP$_PROT). Any bits not specified by CHP$_ACCESS or CHP$_PROT areassumed to be clear, which grants access.

CHP$_ACL

A vector that points to an object's access control list. The bufferaddress, bufadr, specifies a buffer containing one ormore ACEs. The number that specifies the length of the CHP$_ACL buffer,buflen, must be equal to the sum of all ACE lengths.The format of the ACE structure depends on the value of the second bytein the structure, which specifies the ACE type. The $FORMAT_ACL systemservice description describes each ACE type and its format.

You can specify the CHP$_ACL item multiple times to point to multiplesegments of an access control list. You can specify a maximum of 20segments. The segments are processed in the order specified.

CHP$_ACMODE

A byte that defines the accessor's processor access mode. The followingaccess modes and their symbols are defined in the $PSLDEF macro:

Symbol	Access Mode
PSL$C_USER	User
PSL$C_SUPER	Supervisor
PSL$C_EXEC	Executive
PSL$C_KERNEL	Kernel

If CHP$_ACMODE is not specified, access mode is not used to determineaccess.

CHP$_ADDRIGHTS

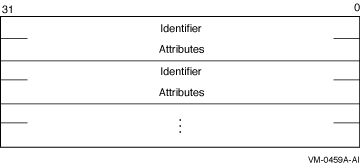

A vector that points to an additional rights list segment to beappended to the existing rights list. Each entry of the rights list isa quadword data structure consisting of a longword containing theidentifier value, followed by a longword containing a mask identifyingthe attributes of the holder. The $CHKPRO service ignores theattributes.

A maximum of 11 rights descriptors is allowed. If you specifyCHP$_ADDRIGHTS without specifying CHP$_RIGHTS, the accessor's rightslist consists of the rights list specified by the CHP$_ADDRIGHTS itemcodes and the rights list of the current process.

If you specify CHP$_RIGHTS and CHP$_ADDRIGHTS, you should be aware ofthe following:

• CHP$_RIGHTS must come first.
• The accessor's UIC is the identifier of the first entry in the rights list specified by the CHP$_RIGHTS item code.
• The accessor's rights list consists of the rights list specified by the CHP$_RIGHTS item code and the CHP$_ADDRIGHTS item codes.

CHP$_ALARMNAME

Address of a buffer to receive the alarm name from any Alarm ACEcontained in the object's ACL. If the object does not have securityalarms enabled, $CHKPRO returns retlenadr as 0. If amatching Alarm ACE exists, the string SECURITY will be returned.

CHP$_AUDIT_LIST

A security auditing item list containing additional information to beincluded in any resulting security audit. The bufadrargument points to the beginning of an $AUDIT_EVENT item list. See theitmlst argument of the $AUDIT_EVENT system service fora list of valid security auditing item codes. Note that theNSA$_EVENT_TYPE and NSA$_EVENT_SUBTYPE items are ignored when auditingwith $CHKPRO. The CHP$V_AUDIT flag must be specified.

CHP$_AUDITNAME

Address of a buffer to receive the audit name from any Audit ACEcontained in the object's ACL. If the object does not have auditingenabled, $CHKPRO returns retlenadr as 0. If a matchingAudit ACE exists, the string SECURITY will be returned.

CHP$_FLAGS

A longword that defines various aspects of the protection check. Thesymbols in the following table are offsets to the bits within thelongword. You can also obtain the values as masks with the appropriatebit set by using the prefix CHP$M rather than CHP$V. The followingsymbols are defined only in the system macro library ($CHPDEF):

Symbol	Access
CHP$V_ALTER	Accessor desires write access to object.
CHP$V_AUDIT	Access audit requested.
CHP$V_CREATE	Perform the audit as an object creation event.
CHP$V_DELETE	Perform the audit as an object deletion event.
CHP$V_FLUSH	Force audit buffer flush.
CHP$V_INTERNAL	Audit on behalf of the Trusted Computing Base (TCB). Reserved to HP.
CHP$V_MANDATORY	Force the object access event to be audited.
CHP$V_NOFAILAUD	Do not perform audits for failed access.
CHP$V_NOSUCCAUD	Do not perform audits for successful access.
CHP$V_OBSERVE	Accessor desires read access to object.
CHP$V_SERVER	Audit on behalf of a TCB server process.
CHP$V_USEREADALL	Accessor is eligible for READALL privilege.

The default for CHP$_FLAG is CHP$M_OBSERVE and CHP$M_ALTER.

The primary purpose of the CHP$V_OBSERVE and CHP$V_ALTER flags is aslatent support for a mandatory (lattice) security policy, such as thatprovided by the Security Enhanced VMS (SEVMS) offering.

CHP$_MATCHEDACE

This output item is a variable-length data structure containing thefirst Identifier ACE in the object's ACL that allowed or denied theaccessor to access the object. See the $FORMAT_ACL system service for adescription of an Identifier ACE format.

CHP$_MODE

A byte that defines the object's owner access mode. The followingaccess modes of the object's owner and their symbols are defined in thesystem macro library ($PSLDEF):

Symbol	Access Mode
PSL$C_USER	User
PSL$C_SUPER	Supervisor
PSL$C_EXEC	Executive
PSL$C_KERNEL	Kernel

CHP$_MODES

A quadword that defines the object's access mode protection. Youspecify a 2-bit access mode as shown in CHP$_MODE for each possibleaccess type. The following diagram illustrates the format of an accessmode vector for bit numbers:

Each pair of bits in the access mode vector represents the access modefor the specific type of access. For example, bits <6:7>represent the access mode value used to check for delete access.

CHP$_OBJECT_CLASS

CHP$_OBJECT_NAME

CHP$_OWNER

CHP$_PRIV

CHP$_PRIVUSED

You can also obtain the values as masks with the appropriate bit set byusing the prefix CHP$M rather than CHP$V. The symbols are defined inthe system macro library ($CHPDEF). The following symbols are used asoffsets to the bits within the longword:

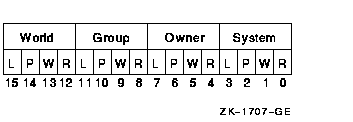

CHP$_PROT

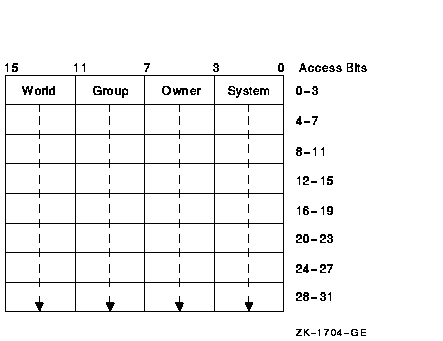

The first word contains the first four protection bits for each field,the second word the next four protection bits, and so on. If a bit isclear, access is granted. By convention, the first five protection bitsare (from right to left in each field of the first word) read, write,execute, delete, and (in the low-order bit in each field of the secondword) control access. You can specify the CHP$_PROT item in incrementsof words; if a short buffer is given, zeros are assumed for theremainder.

The $CHKPRO service compares the low-order four bits of CHP$_ACCESSagainst one of the 4-bit fields in the low-order word of CHP$_PROT, thenext four bits of CHP$_ACCESS against one of the 4-bit fields in thenext word of CHP$_PROT, and so on. The $CHKPRO service chooses a fieldof CHP$_PROT based on the privileges specified for the accessor(CHP$_PRIV), the UICs of the accessor (CHP$_RIGHTS or CHP$_ADDRIGHTS,or both), and the object's owner (CHP$_OWNER).

You must also specify the identifier of the object's owner withCHP$_OWNER when you use CHP$_PROT.

CHP$_RIGHTS

CHP$_UIC

Description

The Check Access Protection service determines whether an accessor withthe specified rights and privileges can access an object with thespecified attributes. The service invokes the system's accessprotection check, which permits layered products and other subsystemsto build protected structures that are consistent with the protectionfacilities provided by the base operating system. The service alsoallows a privileged subsystem to perform protection checks on behalf ofa requester.

If the accessor can access the object, $CHKPRO returns the SS$_NORMALstatus code; otherwise, $CHKPRO returns SS$_NOPRIV.

The item list arguments accepted by this service permit you to specifythe protection of the object being accessed, the rights and privilegesof the accessor, and the type of access desired.

At minimum, the following item codes should be specified to perform athird-party protection check:

CHP$_ACCESS
CHP$_OWNER
CHP$_PRIV
CHP$_PROT
CHP$_UIC

The default for information relating to the subject is to use thecurrent process information (for example, privileges). The default formissing object information is a representation of 0.

The caller can also request that an object access audit be performed ifsecurity auditing has been enabled for the object class or if auditingACEs are contained in the object's ACL. The CHP$V_AUDIT flag requestsan access audit. This requires that the caller be in executive orkernel mode or possess the AUDIT privilege.

Normally, $CHKPRO generates an object access audit when an audit isrequired. The caller can specify the CHP$V_CREATE flag to force anobject creation audit instead of an object access audit. Similarly, theCHP$V_DELETE flag forces an object deletion audit. The CHP$_AUDIT_LISTitem code can be used to specify additional information to be includedin any resulting audit records.

Required Access or Privileges

AUDIT privilege is required when requesting an audit.

Required Quota

None

Related Services

$AUDIT_EVENT, $CHECK_ACCESS, $CREATE_USER_PROFILE, $FORMAT_ACL

Condition Values Returned

SS$_NORMAL	The service completed successfully; the desired access is granted.
SS$_ACCVIO	The item list cannot be read by the caller, or one of the buffers specified in the item list cannot be written by the caller.
SS$_ACLFULL	More than 20 CHP$_ACL items were given.
SS$_BADPARAM	The argument is invalid.
SS$_BUFFEROVF	The output buffer is too small and the protection check succeeded.
SS$_IVACL	You supplied an invalid ACL segment with the CHP$_ACL item.
SS$_IVBUFLEN	The output buffer is too small and the protection check failed.
SS$_NOAUDIT	Caller lacks privilege to request audit.
SS$_NOPRIV	The desired access is not granted.
SS$_RIGHTSFULL	More than 11 CHP$_ADDRIGHTS items were given.

Removes one or more notification requiests previously established by acall to $SET_SYSTEM_EVENT.

This service does not allow you to specify a handle and an event. Youmust pass a zero as one of these parameters. You can either clear byhandle or request that all events for the user be cleared.

Format

SYS$CLEAR_SYSTEM_EVENT [handle] ,[acmode] ,event

C Prototype

int sys$clear_system_event (struct _generic_64 * handle, unsigned intacmode, unsigned int event);

Arguments

handle

OpenVMS usage:	identifier
type:	quadword (unsigned)
access:	read only
mechanism:	by reference

Identification of the AST request to be cleared. Thehandle argument uniquely identifies the request and isreturned when the $SET_SYSTEM_EVENT service is called. Thehandle argument may be omitted by specifying a zeroaddress.

acmode

OpenVMS usage:	access_mode
type:	longword (unsigned)
access:	read only
mechanism:	by value

Access mode of the system event to be cleared. Theacmode argument is a longword containing the accessmode. The value of the access mode is maximized with the access mode ofthe caller.

event

OpenVMS usage:	event_code
type:	longword (unsigned)
access:	read only
mechanism:	by value

The event argument is a value indicating the type ofsystem event to be cleared. SYSEVT$C_ALL_EVENTS may be specified toclear all event types.

Description

The Clear System Event service removes one or more event types ornotification objects previously established by a call to the$SET_SYSTEM_EVENT service.

A valid request specifies either the handle for aspecific notification request, or is a wildcard clear of allnotification objects whose is access mode is greater than or equal toacmode.

If the handle argument is specified, caller's accessmode must be less than or equal to the access mode of the object to becleared.

If SYSEVT$C_ALL_EVENTS is specified, or the set of events enabled forthe object(s) becomes empty, the notification object is deleted.

Required Access or Privileges

None

Required Quota

None

Related Services

$SET_SYSTEM_EVENT

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The service cannot access the location specified by the handle.
SS$_BADPARAM	One or more arguments has an invalid value, such as an invalid handle.
SS$_NOSUCHOBJ	No request was found that matches the description supplied.

The Close service terminates file processing and closes the file. Thisservice performs an implicit Disconnect service for all record streamsassociated with the file.

Refer to the OpenVMS Record Management Services Reference Manual for additional information about this service.

Clears the "AST active" status.

This enables delivery of asynchronous system traps (ASTs) for theaccess mode from which the service call was issued, while an ASTroutine is active.

Note The explicit use of $CLRAST is strongly discouraged, as it complicatessynchronization issues and may lead to the unbounded consumption ofstack space.

Format

SYS$CLRAST

Arguments

None.

Description

Normally, AST delivery for a particular access mode is deferred whilean AST routine is executing in that access mode. When the AST routinereturns, an implicit call is made to $CLRAST to re-enable AST delivery.

Explicitly calling $CLRAST within an AST routine allows the delivery ofASTs for the access mode from which the service call was issued, priorto completion of the active AST routine.

Required Access or Privileges

None

Required Quota

None

Related Services

$SETAST

Condition Values Returned

None	The return value is undefined.

Removes one or more notification requests previously established by acall to SYS$SETCLUEVT.

Format

SYS$CLRCLUEVT [handle] ,[acmode] ,[event]

C Prototype

int sys$clrcluevt (struct _cluevthndl *handle, unsigned int acmode,unsigned int event);

Arguments

handle

OpenVMS usage:	identifier
type:	quadword (unsigned)
access:	read only
mechanism:	by reference

Identification of the AST request to be canceled. Thehandle argument uniquely identifies the request and isreturned when the $SETCLUEVT service is called.

acmode

OpenVMS usage:	access_mode
type:	longword (unsigned)
access:	read only
mechanism:	by value

Access mode of the cluster configuration event to be canceled. Theacmode argument is a longword containing the accessmode.

Each access mode has a symbolic name. The $PSLDEF macro defines thefollowing symbols for the four access types:

Symbol	Access Mode
PSL$C_KERNEL	Kernel
PSL$C_EXEC	Executive
PSL$C_SUPER	Supervisor
PSL$C_USER	User

event

OpenVMS usage:	event_code
type:	longword (unsigned)
access:	read only
mechanism:	by value

Event code indicating the type of cluster configuration event for whichan AST is no longer to be delivered. The eventargument is a value indicating which type of event is no longer ofinterest.

Each event type has a symbolic name. The $CLUEVTDEF macro defines thefollowing symbolic names:

Symbolic Name	Description
CLUEVT$C_ADD	One or more OpenVMS nodes have been added to the OpenVMS Cluster system.
CLUEVT$C_REMOVE	One or more OpenVMS nodes have been removed from the OpenVMS Cluster system.

Description

The Clear Cluster Event service removes one or more notificationrequests previously established by a call to the $SETCLUEVT service.$CLRCLUEVT verifies that the parameters specify a valid request, anddequeues and deallocates the request.

A valid request specifies either the handle argumentor the event argument. If the handleargument is specified, the acmode argument must matchthe value recorded when $SETCLUEVT was called. If theevent argument is specified, all requests matching theaccess mode are canceled, provided that the access mode is not greaterthan the caller's mode. If the access mode parameter is more privilegedthan the mode of the caller, the mode of the caller will be used.

Required Access or Privileges

None

Required Quota

None

Related Services

$SETCLUEVT, $TSTCLUEVT

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_BADPARAM	There is an unsatisfactory combination of event and handle parameters, or the event was specified incorrectly.
SS$_NOSUCHOBJ	No request was found that matches the description supplied.

Clears (sets to 0) an event flag in a local or common event flagcluster.

Format

SYS$CLREF efn

C Prototype

int sys$clref (unsigned int efn);

Argument

efn

OpenVMS usage:	ef_number
type:	longword (unsigned)
access:	read only
mechanism:	by value

Number of the event flag to be cleared. The efnargument is a longword containing this number; however, $CLREF usesonly the low-order byte.

Condition Values Returned

SS$_WASCLR	The service completed successfully. The specified event flag was previously 0. Note that this is also the same value as SS$_NORMAL.
SS$_WASSET	The service completed successfully. The specified event flag was previously 1. Note that while the message id is the same as SS$_ACCVIO, the severity bits are different.
SS$_ILLEFC	You specified an illegal event flag number.
SS$_UNASEFC	The process is not associated with the cluster containing the specified event flag.

Changes the access mode of the calling process to executive mode.

Format

SYS$CMEXEC routin ,[arglst]

C Prototype

int sys$cmexec (int (*routin)(__unknown_params), unsigned int *arglst);

Arguments

routin

OpenVMS usage:	procedure
type:	procedure value
access:	call without stack unwinding
mechanism:	by reference

Routine to be executed while the process is in executive mode. Theroutin argument is the address of this routine.

arglst

OpenVMS usage:	arg_list
type:	longword (unsigned)
access:	read only
mechanism:	by reference

Argument list to be passed to the routine specified by theroutin argument. The arglst argumentis the address of this argument list.

If the arglst value is nonzero and is not accessibleas an address or if the routine is inaccessible, the service returnsSS$_ACCVIO.

Alpha systems require a pointer to a valid argument list or a value of0 in the arglst argument. This means that thearglst argument must contain an accessible virtualaddress for an argument list, the first longword of which must be avalid list size.

Description

The Change to Executive Mode service allows a process to change itsaccess mode to executive, execute a specified routine, and then returnto the access mode in effect before the call was issued.

The $CMEXEC service uses standard procedure calling conventions to passcontrol to the specified routine.

On Alpha systems, to conform to the OpenVMS calling standard, you mustnot omit the arglst argument.

On VAX systems, if no argument list is specified, the argument pointer(AP) contains a 0. However, to conform to the OpenVMS calling standard,you must not omit the arglst argument.

On Alpha and VAX systems, when you use the $CMEXEC service, the systemservice dispatcher modifies the registers before entry into the targetroutine. The specified routine must exit with a RET instruction andshould place a status value in R0 before returning.

All of the Change Mode system services are intended to allow for theexecution of a routine at an access mode more (not less) privilegedthan the access mode from which the call is made. If $CMEXEC is calledwhile a process is executing in kernel mode, the routine specified bythe routin argument executes in kernel mode, notexecutive mode.

Required Access or Privileges

To call this service, the process must either have CMEXEC or CMKRNLprivilege or be currently executing in executive or kernel mode.

Required Quota

None

Related Services

None

Condition Values Returned

SS$_ACCVIO	The arglst or routine argument is not accessible.
SS$_BADPARAM	The routine specified is in a translated image.
SS$_NOPRIV	The process does not have the privilege to change mode to executive.
All other values	The routine executed returns all other values.

On Alpha systems, changes the access mode of the calling process toexecutive mode.

This service accepts 64-bit addresses.

Format

SYS$CMEXEC_64 routin_64 ,arglst_64

C Prototype

int sys$cmexec_64 (int (*routin_64)(__unknown_params), unsigned __int64*arglst_64);

Arguments

routin_64

OpenVMS usage:	procedure
type:	procedure value
access:	call without stack unwinding
mechanism:	by 32- or 64-bit reference

Routine to be executed while the process is in executive mode. Theroutin_64 argument is the 32- or 64-bit address ofthis routine.

arglst_64

OpenVMS usage:	arg_list
type:	quadword (unsigned)
access:	read only
mechanism:	by 32- or 64-bit reference

Argument list to be passed to the routine specified by theroutin_64 argument. The arglst_64argument is the 32- or 64-bit address of this argument list.

If the arglst value is nonzero and is not accessibleas an address or if the routine is inaccessible, the service returnsSS$_ACCVIO.

Alpha systems require a pointer to a valid argument list or a value of0 in the arglst_64 argument. This means that thearglst_64 argument, if nonzero, must contain anaccessible virtual address for an argument list, the first quadword ofwhich must be a number between 0 and 255 specifying the number ofquadwords that follow it on the list.

Description

The Change to Executive Mode with Quadword Argument List service allowsa process to change its access mode to executive, execute a specifiedroutine, and then return to the access mode in effect before the callwas issued.

The $CMEXEC_64 service uses standard procedure-calling conventions topass control to the specified routine.

When you use the $CMEXEC_64 service, the system modifies the registersbefore entry into the target routine. The specified routine must exitwith a RET instruction.

All of the Change Mode system services are intended to allow for theexecution of a routine at an access mode more (not less) privilegedthan the access mode from which the call is made. If $CMEXEC_64 iscalled while a process is executing in kernel mode, the routinespecified by the routin_64 argument executes in kernelmode, not executive mode.

Required Access or Privileges

To call this service, the process must either have CMEXEC or CMKRNLprivilege or be currently executing in executive or kernel mode.

Required Quota

None

Related Services

$CMEXEC, $CMKRNL, $CMKRNL_64

Condition Values Returned

SS$_ACCVIO	The arglst argument or routine is not accessible.
SS$_BADPARAM	The routine specified is in a translated image.
SS$_NOCMEXEC	The process does not have the privilege to change mode to executive.
All other values	The routine executed returns all other values.

Changes the access mode of the calling process to kernel mode. Thisservice allows a process to change its access mode to kernel, execute aspecified routine, and then return to the access mode in effect beforethe call was issued.

Format

SYS$CMKRNL routin ,[arglst]

C Prototype

int sys$cmkrnl (int (*routin)(__unknown_params), unsigned int *arglst);

Arguments

routin

OpenVMS usage:	procedure
type:	procedure value
access:	call without stack unwinding
mechanism:	by reference

Routine to be executed while the process is in kernel mode. Theroutin argument is the address of this routine.

arglst

OpenVMS usage:	arg_list
type:	longword (unsigned)
access:	read only
mechanism:	by reference

Argument list to be passed to the routine specified by theroutin argument. The arglst argumentis the address of this argument list.

If the arglst value is nonzero and is not accessibleas an address or if the routine is inaccessible, the service returnsSS$_ACCVIO.

Alpha systems require a pointer to a valid argument list or a value of0 in the arglst argument. This means that thearglst argument must contain an accessible virtualaddress for an argument list, the first longword of which must be avalid list size.

Description

The Change Mode to Kernel ($CMKRNL) and the Change Mode to Executive($CMEXEC) system services provide a simple and secure path forapplications to execute code in the privileged kernel and executiveprocessor modes. These services first check for the necessary CMKRNL orCMEXEC privileges, and then call the routine specified in the argumentlist in the specified processor mode.

When code is executing in a privileged processor mode, such asexecutive or kernel mode, the code executes with full OpenVMSprivileges. Furthermore, specific protection checks can also bebypassed. For example, $CMKRNL bypasses the check for CMKRNL privilegethat is normally required when $CMKRNL is called from executive mode,and $SETPRV calls are processed without SETPRV privilege when calledfrom executive or kernel mode.

The condition value returned from the procedure specified in theargument list is used as the return status from the $CMKRNL or $CMEXECsystem service call. Based on the OpenVMS calling standard, thiscondition value is returned by register R0, using a language-specificmechanism.

Note The $CMKRNL and $CMEXEC system services are typically used to accessprivileged or internal OpenVMS routines or data structures. The code toaccess these data structures can be OpenVMS version-dependent,particularly if the internal routines or data structures change. Errorsthat occur in code executing in a privileged processor mode can lead toone or more possible situations: data corruptions, process deletions,or system crashes. The particular library routines and libraries that can be called fromcode executing in executive or kernel mode can also be limited, becausenot all library routines accessible from user mode can be called fromkernel mode.

Code Example

The following code example shows how to call a specified routine inkernel mode using this service:

/*// cmkrnl.c//// OpenVMS example of calling a specified routine in kernel mode,// using the SYS$CMKRNL system service.//// Requires CMKRNL privilege.//// Errors in kernel-mode code can corrupt critical data structures,// can cause process deletions, and can potentially crash the OpenVMS// operating system.//// To build://// $ CC/DECC CMKRNL// $ LINK CMKRNL// $ RUN CMKRNL*/#include <ssdef.h>#include <starlet.h>#include <stdio.h>#include <stdlib.h>#include <string.h>#include <stsdef.h>/*// The KernelRoutine routine executes in kernel mode, but does// absolutely nothing useful.*/int KernelRoutine( int *UsrArg1, int *UsrArg2) { return SS$_NORMAL; }main() { int RetStat; int ArgList[3]; int i = 0; printf("OpenVMS Alpha example of calling sys$cmkrnl\n"); /* // Build the routine argument list in an array -- the KernelRoutine // call expects two arguments, necessitating an array containing the // count and the two arguments. */ ArgList[++i] = 1; ArgList[++i] = 2; ArgList[0] = i; /* // Now invoke the KernelRoutine in kernel mode... */ RetStat = sys$cmkrnl( KernelRoutine, ArgList ); if (!$VMS_STATUS_SUCCESS( RetStat )) return RetStat; printf("Now successfully back in user mode.\n"); return SS$_NORMAL; }

Required Access or Privileges

To call the $CMKRNL service, a process must either have CMKRNLprivilege or be currently executing in executive or kernel mode.

Required Quota

None

Related Services

$CMEXEC, $CMEXEC_64, $CMKRNL_64, $SETPRV

Condition Values Returned

SS$_ACCVIO	The arglst argument or routine is not accessible.
SS$_BADPARAM	The routine specified is in a translated image.
SS$_NOCMKRNL	The process does not have the privilege to change mode to kernel.
All other values	The routine executed returns all other values.

On Alpha systems, changes the access mode of the calling process tokernel mode. This service allows a process to change its access mode tokernel, execute a specified routine, and then return to the access modein effect before the call was issued.

This service accepts 64-bit addresses.

Format

SYS$CMKRNL_64 routin_64 ,arglst_64

C Prototype

int sys$cmkrnl_64 (int (*routin_64)(__unknown_params), unsigned __int64*arglst_64);

Arguments

routin_64

OpenVMS usage:	procedure
type:	procedure value
access:	call without stack unwinding
mechanism:	by 32- or 64-bit reference

Routine to be executed while the process is in kernel mode. Theroutin_64 argument is the 32- or 64-bit address ofthis routine.

arglst_64

OpenVMS usage:	arg_list
type:	quadword (unsigned)
access:	read only
mechanism:	by 32- or 64-bit reference

Quadword argument list to be passed to the routine specified by theroutin_64 argument. The routin_64argument is the 32- or 64-bit address of this routine.

If the arglst value is nonzero and is not accessibleas an address or if the routine is inaccessible, the service returnsSS$_ACCVIO.

Alpha systems require a pointer to a valid argument list or a value of0 in the arglst_64 argument. This means that thearglst_64 argument, if nonzero, must contain anaccessible virtual address for an argument list, the first quadword ofwhich must be a number between 0 and 255 specifying the number ofquadwords that follow it on the list.

Description

The Change to Kernel Mode with Quadword Argument List service allows aprocess to change its access mode to kernel, execute a specifiedroutine, and then return to the access mode in effect before the callwas issued.

The $CMKRNL_64 service uses standard procedure calling conventions topass control to the specified routine.

When you use the $CMKRNL_64 service, the system modifies the registersbefore entry into the target routine. The system loads R4 with theaddress of the process control block (PCB). The specified routine (ifprogrammed in MACRO-32) must exit with a RET instruction.

Required Access or Privileges

To call the $CMKRNL_64 service, a process must either have CMKRNLprivilege or be currently executing in executive or kernel mode.

Required Quota

None

Related Services

$CMEXEC, $CMEXEC_64, $CMKRNL, $SETPRV

Condition Values Returned

SS$_ACCVIO	The arglst argument or routine is not accessible.
SS$_BADPARAM	The routine specified is in a translated image.
SS$_NOCMKRNL	The process does not have the privilege to change mode to kernel.
All other values	The routine executed returns all other values.

The Connect service establishes a record stream by associating andconnecting a RAB with a FAB. You can invoke the Connect service onlyfor files that are already open.

Refer to the OpenVMS Record Management Services Reference Manual for additional information about this service.

On Alpha systems, allows modification of the user capability set for aspecified CPU, or for the global user capability CPU default.

This service accepts 64-bit addresses.

Format

SYS$CPU_CAPABILITIES cpu_id [,select_mask] [,modify_mask] [,prev_mask][,flags]

C Prototype

int sys$cpu_capabilities (int cpu_id, struct _generic_64 *select_mask,struct _generic_64 *modify_mask, struct _generic_64 *prev_mask, struct_generic_64 *flags);

Arguments

cpu_id

OpenVMS usage:	longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Identifier of the CPU whose user capability mask is to be modified orreturned. The cpu_id argument is a longword containingthis number, which is in the supported range of individual CPUs from 0to SYI$_MAX_CPUS - 1 .

Specifying the constant CAP$K_ALL_ACTIVE_CPUS applies the currentmodification operation to all CPUs currently in the active set, and tothe default CPU initialization context in SCH$GL_DEFAULT_CPU_CAP. Ifthe prev_mask argument is also supplied, the previousdefault CPU initialization context in SCH$GL_DEFAULT_CPU_CAP will bereturned rather than any specific CPU state.

To modify only the user capabilities in SCH$GL_DEFAULT_CPU_CAP, theflags argument has a bit constantCAP$M_FLAG_DEFAULT_ONLY. When this bit is set, all service operationsare performed on the global cell rather than on an individual CPUspecified in the cpu_id argument. This bit does notsupersede the CAP$K_ALL_ACTIVE_CPUS constant, however. If bothconstants are specified, CAP$K_ALL_ACTIVE_CPUS take precedence;nevertheless, the operations to SCH$GL_DEFAULT_CPU are identicalbecause that function is a direct subset of the other.

select_mask

OpenVMS usage:	mask_quadword
type:	quadword (unsigned)
access:	read only
mechanism:	by 32- or 64-bit reference

Mask specifying which bits of the specified CPU's user capability maskare to be modified. The select_mask argument is the32- or 64-bit address of a quadword bit vector wherein a bit, when set,specifies that the corresponding user capability is to be modified.

The individual user capability bits in select_mask canbe referenced by their symbolic constant names, CAP$M_USER1 throughCAP$M_USER16. These constants (not zero-relative) specify the positionin the mask quadword that corresponds to the bit name. Multiplecapabilities can be selected by connecting the appropriate bits with alogical OR operation.

The constant CAP$K_ALL_USER, when specified in theselect_mask argument, selects all user capability bits.

modify_mask

OpenVMS usage:	mask_quadword
type:	quadword (unsigned)
access:	read only
mechanism:	by 32- or 64-bit reference

Mask specifying the settings for those capabilities selected in theselect_mask argument. The modify_maskargument is the 32- or 64-bit address of a quadword bit vector whereina bit, when set, specifies that the corresponding user capability is tobe added to the specified CPU; when clear, the corresponding usercapability is to be removed from the specified CPU.

The bit constants CAP$M_USER1 through CAP$M_USER16 can be used tomodify the appropriate bit position in modify_mask.Multiple capabilities can be modified by connecting the appropriatebits with OR.

To add a specific user capability to the specified CPU, that bitposition must be set in both select_mask andmodify_mask. To remove a specific user capability fromthe specified CPU, that bit position must be set inselect_mask and cleared inmodify_mask.

The symbolic constant CAP$K_ALL_USER_ADD, when specified inmodify_mask, indicates that all capabilities specifiedin select_mask are to be added to the current usercapability set. The constant CAP$K_ALL_USER_REMOVE indicates that allcapabilities specified are to be cleared from the set.

prev_mask

OpenVMS usage:	mask_quadword
type:	quadword (unsigned)
access:	write only
mechanism:	by 32- or 64-bit reference

Previous user capability mask for the specified CPU before execution ofthis call to $CPU_CAPABILITIES. The prev_mask argumentis the 32- or 64-bit address of a quadword into which $CPU_CAPABILITIESwrites a quadword bit mask specifying the previous user capabilities.

If this argument is specified in conjunction with CAP$K_ALL_ACTIVE_CPUSas the cpu_id selection constant or withCAP$M_FLAG_DEFAULT_ONLY, the user capability portion of the defaultboot initialization state context SCH$GL_DEFAULT_CPU_CAP will bereturned.

flags

OpenVMS usage:	mask_quadword
type:	quadword (unsigned)
access:	read only
mechanism:	by 32- or 64-bit reference

Options selected for the user capability modification. Theflags argument is a quadword bit vector wherein a bitcorresponds to an option. Only the bits specified in the followingtable are used; the remainder of the quadword bits are reserved andmust be 0.

Each option (bit) has a symbolic name, defined by the $CAPDEF macro.The flags argument is constructed by performing alogical OR operation using the symbolic names of each desired option.

The following table describes the symbolic name of each option:

Symbolic Name	Description
CAP$M_FLAG_DEFAULT_ONLY	Indicates that the specified operations are to be performed on the global context cell instead of on a specific CPU. This bit supersedes any individual CPU specified in cpu_id but does not override the all active set behavior (CAP$K_ALL_ACTIVE_CPUS). Specifying this bit constant applies this operation to the default startup capabilities for all CPUs booted for the first time.
CAP$M_FLAG_CHECK_CPU	Determines whether the kernel thread can be left in a nonrunnable state under some circumstances. No operation of this service allows a transition from a runnable to blocked state; however, if the kernel thread is already at a blocked state, this bit determines whether the result of the operation must leave it runnable. If CAP$M_FLAG_CHECK_CPU is set or flags is not specified, the kernel thread is checked to ensure that it can safely run on one of the CPUs in the active set. If CAP$M_FLAG_CHECK_CPU is not set, any state operations on kernel threads already in a blocked state are allowed.

Description

The Modify CPU User Capabilities system service, based on the argumentsselect_mask and modify_mask, adds orremoves user capabilities for the specified cpu_id. Ifspecified, the previous capability mask is returned inprev_mask. With the modify_maskargument, multiple user capabilities for a CPU can be added or removedin the same system service call.

Either modify_mask or prev_mask, orboth, must be specified as arguments. If modify_maskis specified, select_mask must be specified as anargument. If modify_mask is not specified, nomodifications are made to the user capability mask for the specifiedCPU. In this case, select_mask is ignored. Ifprev_mask is not specified, no previous mask isreturned.

No service state changes that will place any currently runnable kernelthread into a blocked state are allowed.

If CAP$K_ALL_ACTIVE_CPUS is specified in cpu_id, theuser capability modifications are performed on all CPUs currently inthe active set, as well as the global initialization cell. If the bitconstant CAP$M_FLAG_DEFAULT_ONLY is set in the flagsargument, the user capability modifications are made only to the globalinitialization cell, regardless of what individual CPU is specified incpu_id.

Required Access or Privileges

The caller must have both ALTPRI and WORLD privileges to callSYS$CPU_CAPABILITIES to modify CPU user capabilities.

No privileges are required if SYS$CPU_CAPABILITIES is called only toretrieve the current user capabilities mask from the specified CPU orglobal default.

Related Services

$PROCESS_CAPABILITIES

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_BADPARAM	One or more arguments has an invalid value, or the specified CPU is not in the configuration.
SS$_ACCVIO	The service cannot access the locations specified by one or more arguments.
SS$_NOPRIV	Insufficient privilege for attempted operation.
SS$_CPUCAP	Attempted operation would place one or more processes in an unrunnable state.
SS$_INSFARG	Fewer than the required number of arguments were specified, or no operation was specified.

On Alpha systems, changes the current processing state of a CPU in theconfigure set of the current system or an unassigned CPU in an OpenVMSGalaxy configuration. This service completes asynchronously. Forsynchronous completion, use the $CPU_TRANSITIONW service.

This service accepts 64-bit addresses. Parameter and bit definitionsare resolved in $CSTDEF in the appropriate STARLET library.

Refer to the HP OpenVMS Alpha Partitioning and Galaxy Guide for more information.

Format

SYS$CPU_TRANSITION tran_code ,cpu_id ,nodename ,node_id ,flags ,efn,iosb ,astadr_64 ,astprm_64

C Prototype

int sys$cpu_transition (int tran_code, int cpu_id,dsc64$descriptor_s_pq nodename, int node_id, uint32 flags, int efn,IOSB *iosb, VOID_PQ astadr, uint64 astprm, uint32 timout);

Arguments

tran_code

OpenVMS usage:	longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Identifier specifying the type of state change to be initiated on thetarget CPU. The tran_code argument is a longwordcontaining one of the following values:

Symbolic Name	Description
CST$K_CPU_STOP	The target CPU is to be removed from the active set and halted into console mode. It remains in the configure set of the current partition.
CST$K_CPU_MIGRATE	The target CPU is removed from the configure set of the local partition and the console is requested to add it to the configure set of the partition specified in node_id. If the CPU is currently in the active set, it is automatically brought to console mode through the CST$K_CPU_STOP function first.
CST$K_CPU_START	The target CPU is requested to exit console mode and join the active set of the current partition. The CPU must already be part of the configure set.
CST$K_CPU_FAILOVER	The CPU is assigned a default target partition where it will automatically migrate on system failure. This assignment persists until it is superseded. To remove an assignment or partition name, the current partition ID should be specified.
CST$K_CPU_POWER_OFF	The requested operation is initiated on the target CPU to bring the electrical power to the OFF state. If the CPU is currently in the active set, it is automatically brought to console mode through the CST$K_CPU_STOP function first.
CST$K_CPU_POWER_ON	The requested operation is initiated on the target CPU to bring the electrical power to the ON state.

Each $K code represents an end state operation, each of which has aspecific start state that the CPU must be in, in order to initiate thetransition.

This service may automatically initiate a successful completion of therequested operation by initiating one or more transparent transitions.This operation takes place if the CPU is not in that specific startstate, and there are an obvious and unique set of transitions that canbe initiated prior to the specified end state.

Multiple transitions can also be initiated simultaneously through thesystem service tran_code parameter. Each transitioncode has a $M form as shown in the following list, that can be or'dwith a specific end state $K code:

• CST$M_CPU_STOP
• CST$M_CPU_MIGRATE
• CST$M_CPU_START
• CST$M_CPU_FAILOVER
• CST$M_CPU_POWER_OFF
• CST$M_CPU_POWER_ON

Any legal combination of transitions can be specified with the $M form,however no more than one $K code is allowed.

cpu_id

OpenVMS usage:	longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Identifier of the CPU whose state is to be modified. Thecpu_id argument is a longword number in the supportedrange of individual CPUs from 0 to SYI$_MAX_CPUS - 1.

Generic identifiers can also be used to allow OpenVMS to select themost appropriate resource. The following table lists these codes:

Code	Description
CST$K_ANY_OWNED_CPU	Any CPU in the configure set, regardless of the active set state
CST$K_ANY_ACTIVE_CPU	Any CPU in the active set
CST$K_ANY_STOPPED_CPU	Any CPU in the configure set, but not the active set

node_id

OpenVMS usage:	longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Identifier of the target Galaxy partition in CST$K_CPU_ASSIGN,CST$K_CPU_FAILOVER, or CST$K_CPU_MIGRATE transition. Thenode_id argument is a longword containing a number inthe supported range of IDs provided by the console for the currenthardware platform. If the nodename parameter isspecified, node_id is ignored.

flags

OpenVMS usage:	longword_mask
type:	longword (unsigned)
access:	read only
mechanism:	by value

Options selected for the CPU state transition. Theflags argument is a longword bit vector wherein a bitcorresponds to an option. Only the bits specified below are used; theremainder of the longword bits are reserved and must be 0.

Each option (bit) has a symbolic name. The flagsargument is constructed by performing a logical OR operation using thesymbolic names of the following options:

Symbolic Name	Description
CST$V_CPU_DEFAULT_CAPABILITIES	At the completion of the transition, the CPU's user capabilities are set back to the default system value. If this option is not specified, modified user capabilities are maintained across STOP and START transitions as long as the CPU remains in the local partition configure set.
CST$V_CPU_ALLOW_ORPHANS	The transition is to be allowed even though it will leave at least one thread in the system unable to execute on any CPU in the active set.

efn

OpenVMS usage:	ef_number
type:	longword (unsigned)
access:	read only
mechanism:	by value

The event flag to be set when the state transition attempt hascompleted. The efn argument is a longword specifyingthe number of the event flag; however, this service only uses thelow-order byte.

When you invoke $CPU_TRANSITION, the specified event flag is cleared;when the operation is complete, the event flag is set.

iosb

OpenVMS usage:	io_status_area
type:	IOSB structure
access:	write only
mechanism:	by 32-bit or 64-bit reference

The I/O status area to receive the final completion status of thetransition operation. The iosb argument is the 32-bitor 64-bit virtual address of the I/O status area. The I/O status areastructure is 32 bytes in length; its definition can be found in$IOSBDEF in STARLET.MLB for macro and in the file IOSBDEF.H inSYS$STARLET_C.TLB for C.

When you call $CPU_TRANSITION, the I/O status area is cleared. Afterthe transition operation is complete, the block is modified as follows:

Symbolic Name	Description
iosb$w_status	The first word contains the condition value return, indicating the final completion status of the operation.
	The first bit in the second word of the IOSB is set only if an error occurred during the operation; the remaining bits are zeroes.

astadr_64

OpenVMS usage:	ast_procedure
type:	procedure value
access:	call without stack unwinding
mechanism:	by 32-bit or 64-bit reference

The AST routine to be executed when the requested transition attempthas completed. The astadr_64 argument is the 32-bit or64-bit virtual address of this routine. If you specify theastadr_64 argument, the AST routine executes at theaccess mode from which the state transition was requested.

astprm_64

OpenVMS usage:	user_arg
type:	quadword
access:	read only
mechanism:	by value

The quadword AST parameter to be passed to the AST routine.

Description

The state transition in tran_id is requested for thetarget cpu_id.

A CPU currently in the active set can transition:

• To the STOPPED state; removed from the active set and left in the configure set, halted in console mode.

A CPU in the configure set can transition:

• To the UNASSIGNED state by STOPPING it and then DEASSIGNING it back to the console.
• To the ACTIVE state; warm rebooted and a full member of the symmetric multiprocessing (SMP) active set on the requesting partition.
• To another partition through MIGRATION; the target CPU is removed from the configure set and added to the configure set of the partition specified by node_id.

A CPU in the Galaxy unassigned state (not in the configure set of anypartition in the platform) can transition:

• To the ASSIGNED state; in the configure set of the partition. specified by node_id. Any partition can make the assignment, but the CPU must be unassigned.

CPU state transition is a two-phase operation in the OpenVMS schedulingmodel. This service initiates the request in the process context of thecaller and returns the setup status in the service condition value.Phase 2 proceeds asynchronously; the efn andiosb arguments can be used to indicate the completionof the transition through the standard wait system services. Additionalnotification of the completion can be made through the OpenVMS ASTmechanisms using a routine specified in astadr_64 anda user-supplied parameter in astprm_64.

Required Privileges

The caller must have the CMKRNL privilege to call SYS$CPU_TRANSITION tomodify CPU states.

Related Services

$CPU_TRANSITIONW

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_BADPARAM	One of more arguments has an invalid value or the specified CPU is not in the configuration.
SS$_ACCVIO	The service cannot access the locations specified by one or more arguments.
SS$_NOCMKRNL	Caller does not have CMKRNL privilege needed to complete operation.
SS$_INSFARG	Fewer than the required number of arguments were specified or no operation was specified.
SS$_TOO_MANY_ARGS	More arguments were specified than are allowed by the service.
SS$_INVCOMPID	The target partition ID is not valid in this configuration.
SS$_CPUNOTACT	The specified CPU is not part of the current partition's active set.
SS$_NOSUCHCPU	The specified CPU does not exist in the current hardware configuration, or is not in the configure set of the local partition.
SS$_CPUSTARTD	The specified CPU is already in the local active set, or is in the process of joining it.
SS$_CPUSTOPPING	The specified CPU is already STOPPED or in the processing of leaving the active set.

On Alpha systems, changes the current processing state of a CPU in theconfigure set or an unassigned CPU in a Galaxy configuration. Thisservice completes synchronously; that is, it returns to the caller onlyafter the final completion status of the operation is known.

In all other respects, $CPU_TRANSITIONW is identical to$CPU_TRANSITION. For all other information about the $CPU_TRANSITIONWservice, refer to the description of $CPU_TRANSITION in this manual.

This service accepts 64-bit addresses.

Refer to the HP OpenVMS Alpha Partitioning and Galaxy Guide for more information.

Format

SYS$CPU_TRANSITIONW tran_id ,cpu_id ,nodename ,node_id ,flags ,efn,iosb ,astadr_64 ,astprm_64

C Prototype

int sys$cpu_transitionw (int tran_code, int cpu_id,dsc64$descriptor_s_pq nodename, int node_id, uint32 flags, int efn,IOSB *iosb, UINT64_PQ astadr, uint64 astprm, uint32 timout);

The Create service constructs a new file according to the attributesyou specify in the FAB. If any XABs are chained to the FAB, then thecharacteristics described in the XABs are applied to the file. Thisservice performs implicit Open and Display services.

Refer to the OpenVMS Record Management Services Reference Manual for additional information about this service.

On Alpha systems, creates a buffer object out of a range of pages.

This service accepts 64-bit addresses.

Format

SYS$CREATE_BUFOBJ_64 start_va_64 ,length_64 ,acmode ,flags,return_va_64 ,return_length_64 ,buffer_handle_64

C Prototype

int sys$create_bufobj_64 (void *start_va_64, unsigned __int64length_64, unsigned int acmode, unsigned int flags, void*(*(return_va_64)), unsigned __int64 *return_length_64, struct_generic_64 *buffer_handle_64);

Arguments

start_va_64

OpenVMS usage:	address
type:	quadword address
access:	read only
mechanism:	by value

Starting virtual address of the pages to be included in the bufferobject. The specified virtual address will be rounded down to aCPU-specific page boundary.

The virtual address space must already exist.

length_64

OpenVMS usage:	byte count
type:	quadword (unsigned)
access:	read only
mechanism:	by value

Length of the virtual address space to be included in the bufferobject. The specified length will be rounded up to a CPU-specific pageboundary such that it includes all CPU-specific pages in the requestedrange.

acmode

OpenVMS usage:	access_mode
type:	longword (unsigned)
access:	read only
mechanism:	by value

Access mode on behalf of which the request is being made. Theacmode argument is a longword containing the accessmode.

The $PSLDEF macro in STARLET.MLB and the file PSLDEF.H inSYS$STARLET_C.TLB define the following symbols and their values for thefour access modes:

Value	Symbolic Name	Access Mode
0	PSL$C_KERNEL	Kernel
1	PSL$C_EXEC	Executive
2	PSL$C_SUPER	Supervisor
3	PSL$C_USER	User

The most privileged access mode used is the access mode of the caller.For the $CREATE_BUFOBJ_64 service to complete successfully, theresultant access mode must be equal to or more privileged than theaccess mode already associated with the pages in the specified inputrange.

flags

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Flag mask specifying the request options. The flagsargument is a longword bit vector in which each bit corresponds to aflag. The $CBODEF macro in STARLET.MLB and CBODEF.H file inSYS$STARLET_C.TLB define a symbolic name for each flag.

The following table describes each flag that is valid for the$CREATE_BUFOBJ_64 service:

Flag	Value	Description
CBO$M_RETSVA	1	If set, returns the system virtual address in the return_va_64 argument instead of the process virtual address range. (Valid for inner mode callers only.)
CBO$M_SVA_32	4	If set, creates the buffer object window in 32-bit S0/S1 space. (By default, this service creates the window in 64-bit S2 space.)

return_va_64

OpenVMS usage:	address
type:	quadword address
access:	write only
mechanism:	by 32- or 64-bit reference

The lowest process virtual address of the pages in the buffer object.The return_va_64 argument is the 32- or 64-bit virtualaddress of a naturally aligned quadword into which the service returnsthe virtual address.

return_length_64

OpenVMS usage:	byte count
type:	quadword (unsigned)
access:	write only
mechanism:	by 32- or 64-bit reference

The length of the virtual address range in the buffer object. Thereturn_length_64 argument is the 32- or 64-bit virtualaddress of a naturally aligned quadword into which the service returnsthe length of the virtual address range in bytes.

buffer_handle_64

OpenVMS usage:	handle
type:	quadword (unsigned)
access:	write only
mechanism:	by 32- or 64-bit reference

The 32- or 64-bit virtual address of a naturally aligned quadword intowhich a buffer handle is returned to be used when referencing thecreated buffer object.

Description

The Create Buffer Object service creates a buffer object for use by theI/O subsystem. The pages that constitute the buffer object arepermanently locked into physical memory (but not the process's workingset) and double mapped into system space. The net effect is thefollowing:

• I/O can be initiated to or from the buffer without the need to probe or lock the buffer pages.
• The process is still fully swappable.

If the condition value, SS$_ACCVIO, is returned by this service, avalue cannot be returned in the memory locations pointed to bythe return_va_64, return_length_64,and buffer_handle_64 arguments.

If a condition value other than SS$_ACCVIO is returned, the returnedaddress and returned length indicate the pages that were successfullymade part of the buffer object before the error occurred. If no pageswere made part of the buffer object, the return_va_64argument will contain the value -1, and a value is notreturned in the memory location pointed to by thereturn_length_64 argument.

Required Privileges

No privileges are required if calling $CREATE_BUFOBJ_64 from an innermode. If calling from user mode, the process must hold the rightsidentifier VMS$BUFFER_OBJECT_USER at the time of the call. Thisidentifier is normally granted by the system administrator via theAuthorize utility.

Required Quota

No process quota is charged, but the number of pages is limited by thesystem parameter MAXBOBMEM.

Related Services

$CRETVA_64, $DELETE_BUFOBJ, $EXPREG_64

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The return_va_64, return_length_64, or buffer_handle_64 argument cannot be written by the caller.
SS$_BADPARAM	Invalid flags options specified.
SS$_EXBUFOBJLM	Buffer object cannot be created because it would bring the total number of buffer object pages above the systemwide limit MAXBOBMEM.
SS$_INSFMEM	Insufficient dynamic memory.
SS$_INSFSPTS	Insufficient system page table entries.
SS$_NOBUFOBJID	The process attempted to create a buffer object from user mode but was not holding required rights identifier VMS$BUFFER_OBJECT_USER.
SS$_NOPRIV	Valid flag options were specified but from user mode.
SS$_PAGNOTWRITE	A page within the address range is not writable.
SS$_PAGOWNVIO	The pages could not be put into the buffer object because the access mode associated with the call to $CREATE_BUFOBJ_64 was less privileged than the access mode associated with the pages.

Allocates an OpenVMS Galaxy lock block from a lock table created withthe $CREATE_GALAXY_LOCK_TABLE service.

Note that this system service is supported only in an OpenVMS AlphaGalaxy environment.

For more information about programming with OpenVMS Galaxy systemservices, refer to the HP OpenVMS Alpha Partitioning and Galaxy Guide.

Format

SYS$CREATE_GALAXY_LOCK lcktbl_handle ,name ,size ,timeout ,ipl ,rank,handle

C Prototype

int sys$create_galaxy_lock (unsigned int lcktbl_handle, void *name,unsigned int size, unsigned int timeout, unsigned int ipl, unsigned intrank, unsigned __int64 *lock_handle);

Arguments

lcktbl_handle

OpenVMS usage:	lock table handle
type:	longword (unsigned)
access:	read
mechanism:	input by value

The 32-bit lock table handle that identifies the lock table in which tocreate the lock. This value is returned by SYS$CREATE_GALAXY_LOCK_TABLE.

name

OpenVMS usage:	address
type:	ASCID string
access:	read
mechanism:	input by reference

The name parameter is a pointer to an ASCID string(passed by descriptor). The name can be a maximum of 15 characters.Lock names are not checked for uniqueness; therefore, multiple lockscan be created with the same name.

timeout

OpenVMS usage:	wait timeout
type:	longword (unsigned)
access:	read
mechanism:	input by value

The 32-bit wait or spin timeout specified in 10 microsecond units. Ifnot specified, the timeout defaults to 10 microseconds.

size

OpenVMS usage:	byte count
type:	longword (unsigned)
access:	read
mechanism:	input by value

The size of the galaxy lock in bytes. Galaxy locks have two legalsizes. These values are returned by SYS$GET_GALAXY_LOCK_SIZE. The valuepassed to SYS$CREATE_GALAXY_LOCK must be equal to the value passed tothe call to SYS$CREATE_GALAXY_LOCK_TABLE.

ipl

OpenVMS usage:	IPL of lock
type:	longword (unsigned)
access:	read
mechanism:	input by value

For galaxy locks acquired in kernel mode, the IPL to raise to while thelock is held. This parameter is ignored for all other access mode.

rank

OpenVMS usage:	rank of lock
type:	longword (unsigned)
access:	read
mechanism:	input by value

Rank applied to a galaxy lock. Ranking is used to detect potentialdeadlocks. This parameter is currently ignored.

handle

OpenVMS usage:	address
type:	quadword (unsigned)
access:	write
mechanism:	output by reference

The handle parameter is a pointer to a quadword. The value returned isa 64-bit handle that uniquely identifies the lock galaxy-wide.

Description

This service allocates an OpenVMS Galaxy lock block from a lock tablecreated with the $CREATE_GALAXY_LOCK_TABLE service.

Required Access or Privileges

For System Lock: CMKRNL, SHMEM
For User Lock: SHMEM
Write access to Lock Table

Required Quota

None

Related Services

$ACQUIRE_GALAXY_LOCK, $CREATE_GALAXY_LOCK_TABLE, $DELETE_GALAXY_LOCK,$DELETE_GALAXY_LOCK_TABLE, $GET_GALAXY_LOCK_INFO,$GET_GALAXY_LOCK_SIZE, $RELEASE_GALAXY_LOCK

Condition Values Returned

SS$_NORMAL	Normal completion.
SS$_ACCVIO	Access violation on parameter.
SS$_BADLCKTBL	OpenVMS Galaxy lock table is corrupt.
SS$_BADPARAM	Bad parameter value.
SS$_IVLOCKID	Invalid lock id.
SS$_IVLOCKTBL	Invalid lock table.
SS$_INSFMEM	Insufficient memory in lock table.
SS$_NOCMKRNL	Operation requires CMKRNL privilege.
SS$_NOSHMEM	Operation requires SHMEM privilege.

Allocates an OpenVMS Galaxy lock table.

Note that this system service is supported only in an OpenVMS AlphaGalaxy environment.

For more information about programming with OpenVMS Galaxy systemservices, refer to the HP OpenVMS Alpha Partitioning and Galaxy Guide.

Format

SYS$CREATE_GALAXY_LOCK_TABLE name ,accmode ,section_size ,section_type,prot ,lock_size ,lcktbl_handle

C Prototype

int sys$create_galaxy_lock_table (void *name, unsigned int accmode,unsigned __int64 section_size, unsigned int section_type, unsigned intprot, unsigned int lock_size, unsigned int *lcktbl_handle);

Arguments

name

OpenVMS usage:	address
type:	ASCID string
access:	read
mechanism:	input by reference

The name parameter is a pointer to an ASCID string (passed bydescriptor). The name is given to the global section that is created tocontain the galaxy locks.

accmode

OpenVMS usage:	access mode
type:	longword (unsigned)
access:	read
mechanism:	input by value

Access mode that is to be the owner of the pages created during themapping. The accmode argument is a longword containingthe access mode.

section_size

OpenVMS usage:	byte count
type:	quadword (unsigned)
access:	read
mechanism:	input by value

Length of the global section to be created, in bytes. The size must bespecified as a multiple of the CPU-specific page size. A size of zerois illegal.

section_type

OpenVMS usage:	bit mask
type:	longword (unsigned)
access:	read
mechanism:	input by value

Used to control where in virtual memory the global section is created.If GLCKTBL$C_PROCESS is specified, the section is created in P2(process) space. If GLCKTBL$C_SYSTEM is specified, the section iscreated in S0/S1 (system) space. These constants are defined in theGLOCKDEF macro.

prot

OpenVMS usage:	protection
type:	longword (unsigned)
access:	read
mechanism:	input by value

Protection to be applied to the global section.

The mask contains four 4-bit fields. Bits are read from right to leftin each field. The following diagram depicts the mask:

Cleared bits indicate that read, write, execute, and delete access, inthat order, are granted to the particular category of user.

Only read and write access are meaningful for lock section protection.Delete access bits are ignored.

lock_size

lcktbl_handle

Description

This service allocates an OpenVMS Galaxy lock table. This structure isused to maintain information about a shared memory section, which thisservice also creates. The first caller of the service with a uniquelock table name creates the section. Additional callers map it. Thisshared memory section contains a set of Galaxy locks. All locksresiding in the section are of the same size. Once the lock table iscreated, the $CREATE_GALAXY_LOCK service can be used to create andallocate a lock from the table.

The flags GLCKTBL$C_PROCESS and GLCKTBL$C_SYSTEM specify whether theshared memory region is mapped into system space or process space.Creation of process space sections requires the SHMEM privilege.Creation of system space sections requires the SHMEM and CMKRNLprivileges.

Required Access or Privileges

CMKRNL, SHMEM

Required Quota

None

Related Services

$ACQUIRE_GALAXY_LOCK, $CREATE_GALAXY_LOCK, $DELETE_GALAXY_LOCK,$DELETE_GALAXY_LOCK_TABLE, $GET_GALAXY_LOCK_INFO,$GET_GALAXY_LOCK_SIZE, $RELEASE_GALAXY_LOCK

Condition Values Returned

SS$_NORMAL	Normal completion.
SS$_ACCVIO	Access violation on parameter.
SS$_BADPARAM	Bad parameter value.
SS$_CREATED	File or section did not exist; has been created.
SS$_IVLOCKID	Invalid lock id.
SS$_NOPRIV	No privilege for attempted operation.
SS$_NOCMKRNL	Operation requires CMKRNL privilege.
SS$_NOSHMEM	Operation requires SHMEM privilege.

On Alpha systems, creates a permanent, memory-resident, globaldemand-zero section to which processes can map. Shared page tablesections can also be created.

This service accepts 64-bit addresses.

Format

SYS$CREATE_GDZRO gs_name_64 ,ident_64 ,prot ,length_64 ,acmode ,flags[,reserved_length_64] [,rad_mask]

C Prototype

int sys$create_gdzro (void *gs_name_64, struct _secid *ident_64,unsigned int prot, unsigned __int64 length_64, unsigned int acmode,unsigned int flags,...);

Arguments

gs_name_64

OpenVMS usage:	section_name
type:	character-coded text string
access:	read only
mechanism:	by 32- or 64-bit descriptor--fixed-length string descriptor

Name of the global section. The gs_name_64 argument isthe 32- or 64-bit virtual address of a naturally aligned 32- or 64-bitstring descriptor pointing to this name string.

ident_64

OpenVMS usage:	section_id
type:	quadword (unsigned)
access:	read only
mechanism:	by 32- or 64-bit reference

Identification value specifying the version number of the globalsection. The ident_64 argument is a quadwordcontaining three fields. The ident_64 argument is the32- or 64-bit virtual address of a naturally aligned quadword thatcontains the identification value.

The first longword specifies the matching criteria in its low-order 2bits. Their meanings are as follows:

Value	Symbolic Name	Match Criteria
0	SEC$K_MATALL	Match all versions of the section.
1	SEC$K_MATEQU	Match only if major and minor identifications match.
2	SEC$K_MATLEQ	Match if the major identifications are equal and the minor identification of the mapper is less than or equal to the minor identification of the global section.

If you specify the ident_64 argument as 0, the versionnumber and match control fields default to 0.

The version number is in the second longword. The version numbercontains two fields: a minor identification in the low-order 24 bitsand a major identification in the high-order 8 bits. You can assignvalues for these fields by installation convention to differentiateversions of global sections. If no version number is specified when asection is created, processes that specify a version number whenmapping cannot access the global section.

prot

OpenVMS usage:	file_protection
type:	longword (unsigned)
access:	read only
mechanism:	by value

Protection to be applied to the global demand-zero section. The maskcontains four 4-bit fields. Bits are read from right to left in eachfield. The following diagram depicts the mask:

Cleared bits indicate that read, write, execute, and delete access, inthat order, are granted to the particular category of user. Only read,write, and execute access are meaningful for section protection. Deleteaccess bits are ignored. Read access also grants execute access forthose situations where execute access applies. If 0 is specified, readaccess and write access are granted to all users.

length_64

acmode

If the memory-resident global section is created with shared pagetables, this is the access mode that is stored in the owner, read, andwrite fields of the corresponding shared page table entries (PTEs).

The $PSLDEF macro in STARLET.MLB and the file PSLDEF.H inSYS$STARLET_C.TLB define the following symbols and their values for thefour access modes:

flags

The following table describes the flags that are valid for the$CREATE_GDZRO service:

All other bits in the flags argument are reserved forfuture use by HP and should be specified as 0. The condition valueSS$_IVSECFLG is returned if any undefined bits are set.

reserved_length_64

If reserved_length_64 is not specified or is specifiedas 0, no reserved length is returned to the caller.

If the memory-resident global section is not registered,reserved_length_64 is written with the value 0.

rad_mask

The rad_mask argument is considered only if theSEC$M_RAD_HINT flag is specified. Otherwise, this argument is ignored.

On a system that does not support resource affinity domains (RADs),specifying 1 for the rad_mask argument is allowed.

Note: OpenVMS support for RADs is available only on the AlphaServer GS series systems. For more information about using RADs, refer to the HP OpenVMS Alpha Partitioning and Galaxy Guide.

Description

The Create Permanent Global Demand-Zero Section service allows aprocess to create a permanent, memory-resident, global demand-zerosection. If you set the SEC$M_SHMGS flag, the section is created as aGalaxy-wide global demand-zero section in shared memory.

You must call either the $CREATE_GDZRO service or the $CRMPSC_GDZRO_64service on each instance where the Galaxy shared memory will beaccessed.

Memory-resident or Galaxy-wide global sections contain demand-zeroallocation pages that are writable and memory resident. All pages inthese types of global section are shared by all processes that map tothe global section.

The pages are always resident in memory and are not backed up by anyfile on any disk. The pages are not placed into the process's workingset list when the process maps to the global section and the virtualmemory is referenced by the process. The pages are also not chargedagainst the process's working set quota or against any page-file quota.

To create a memory-resident section, the process must have the rightsidentifier, VMS$MEM_RESIDENT_USER. The error status, SS$_NOMEMRESID, isreturned if the caller has not been granted this identifier. To createa Galaxy-wide shared section, the process must have the SHMEM privilege.

Only memory-resident sections can be registered with the ReservedMemory Registry in the SYSMAN facility. Memory for Galaxy-wide sharedsections is reserved through appropriate settings of the consoleenvironment parameters.

If the section is not registered in the Reserved Memory Registry, or ifthe /NOALLOCATE qualifier was specified when the global section wasregistered in the Reserved Memory Registry, invalid global PTEs arewritten to the global page table. When the global section is mapped,invalid page table entries are placed in the process page table.Physical memory is not allocated until the pages are referenced.

If the global section is registered in the Reserved Memory Registry,the size of the global section need not match the reserved size. If theglobal section is not registered in the Reserved Memory Registry, or ifthe reserved size is smaller than the size of the global section, theerror status SS$_INSFLPGS is returned if there are not enough fluidpages in the system to satisfy the request.

If the /ALLOCATE qualifier was specified when the global section wasregistered in the Reserved Memory Registry, contiguous, aligned,physical pages are preallocated during system initialization for thisglobal section. Valid page table entries are placed in the global pagetable and when the global section is mapped, valid page table entriesare placed in the process page table. With the proper virtualalignment, granularity hints (GH) are used to map to the global pages.

If the global section is not registered in the Reserved MemoryRegistry, or if the /PAGE_TABLES qualifier was specified when theglobal section was registered, shared page tables are created for thememory-resident global section.

If the /ALLOCATE and /PAGE_TABLE qualifiers were specified when theglobal section was registered in the Reserved Memory Registry,contiguous, aligned physical pages are preallocated during systeminitialization for this global section, and granularity hints are usedto map to the shared page table sections.

The following table lists the factors affecting the creation of sharedpage tables for memory-resident global sections. The /ALLOCATE and the/PAGE_TABLES qualifiers pertain to the Reserved Memory Registry commandRESERVED_MEMORY ADD entered for the memory-resident global sectionbeing created. For more information about using the SYSMAN utility tocreate entries to the Reserved Memory Registry, refer to theHP OpenVMS System Management Utilities Reference Manual.

/ALLOCATE	/PAGE_TABLES	Outcome
Not registered	Not registered	Shared page tables created. Shared page tables cannot use GH. Returns SS$_CREATED_SHPT.
No	No	No shared page tables created. Returns SS$_CREATED.
No	Yes	Shared page tables created. Shared page tables cannot use GH. Returns SS$CREATED_SHPT.
Yes	No	No shared page tables created. Returns SS$_CREATED.
Yes	Yes	Shared page tables created. Shared page tables can use GH. Returns SS$_CREATED_SHPT.

Shared page tables are always created for Galaxy-wide shared sectionsof at least 128 pages.

Shared page tables consume the same internal OpenVMS data structures asglobal sections. The system parameters GBLPAGES and GBLSECTIONS mustaccount for the additional global pages and the additional globalsection.

Note that only one set of shared page tables can be associated with anymemory-resident or Galaxy-wide section. By default, shared page tableswill allow write access. To create shared page tables that allow onlyread access, you must set the READ_ONLY_SHPT flag. A process thatrequires write access to a section where the shared page tables onlyallow read access must use private page tables to map the section.

To use the shared page tables associated with a memory-resident globalsection, a process must first create a shared page table region (with$CREATE_REGION_64). Additionally, a subsequent request to map to thememory-resident global section must do the following:

• Specify a shared page table region to the mapping request (see Table SYS-22 for additional information).
• Specify the same access mode as specified by the acmode argument to this service.
• Set the flag SEC$M_WRT in the mapping request only if shared page tables allow write access.
• Set the flag SEC$M_EXPREG in the mapping request or provide a CPU-specific page table page aligned virtual address. (See the description of the CREATE_REGION_64 service for information about calculating virtual addresses that are aligned to a CPU-specific page table page boundary.)

If a shared page table region is not specified, process-private pagetables are used to map to the global section.

If the service returns an error status value that is neitherSS$_INSFLPGS nor SS$_MRES_PFNSMALL, a value is not returned in thereserved_length_64 argument.

If the service returns a successful condition value or if SS$_INSFLPGSor SS$_MRES_PFNSMALL is returned and thereserved_length_64 argument is specified as a nonzeroaddress, the length in bytes of the global section as registered in theReserved Memory Registry is returned in thereserved_length_64 argument.

To map a Galaxy shared section or a memory resident section, see the$CRMPSC_GDZRO_64 service.

Refer to the HP OpenVMS Alpha Partitioning and Galaxy Guide for additional information.

Required Privileges

To create a permanent memory-resident global DZRO section, the processmust have the following privileges or rights identifiers:

• SYSGBL privilege to create a system global section (if flag SEC$M_SYSGBL is set)
• PRMGBL privilege to create a permanent global section
• VMS$MEM_RESIDENT_USER rights identifier to create a memory-resident section
• SHMEM privilege on OpenVMS Galaxy systems to create an object in Galaxy shared memory.

Required Quota

None

Related Services

$CRMPSC_GDZRO_64, $DGBLSC, $MGBLSC_64

Condition Values Returned

SS$_NORMAL	A Galaxy-wide section already existed and has been made available.
SS$_CREATED	Global section has been created.
SS$_CREATED_SHPT	Global section has been created with shared page tables.
SS$_ACCVIO	The gs_name_64 descriptor cannot be read by the caller, or the reserved_length_64 argument was specified as a nonzero value and cannot be written by the caller.
SS$_BADRAD	The specified RAD contains no memory, or if the specified RAD is greater than or equal to the maximum number of RADs on the system.
SS$_DUPLNAM	A global section of the same name already exists; a new global section was not created.
SS$_GPTFULL	There is no more room in the system global page table to set up page table entries for the global section or for the shared page tables.
SS$_GSDFULL	There is no more room in the system space allocated to maintain control information for global sections.
SS$_INSFLPGS	Insufficient fluid pages available.
SS$_INSFRPGS	Insufficient free shared pages or private pages.
SS$_INV_SHMEM	Shared memory is not valid.
SS$_IVLOGNAM	The specified global section name has a length of 0 or has more than 43 characters.
SS$_IVPROTECT	The protection argument format is invalid.
SS$_IVSECFLG	An invalid flag, a reserved flag, or an invalid combination of flags was specified.
SS$_IVSECIDCTL	The match control field of the global section identification is invalid.
SS$_LEN_NOTPAGMULT	The length_64 argument is not a multiple of CPU-specific pages.
SS$_LOCK_TIMEOUT	An OpenVMS Galaxy lock timed out.
SS$_MRES_PFNSMALL	Preallocated, contiguous, aligned physical memory specified in the Reserved Memory Registry is smaller than the length specified for the global section by the length_64 argument.
SS$_NOBREAK	An OpenVMS Galaxy lock is held by another node and was not broken.
SS$_NOMEMRESID	The process attempted to create a memory-resident section but was not holding the correct identifier (VMS$MEM_RESIDENT_USER).
SS$_NOPRMGBL	The process does not have the privileges to create or delete a permanent group global section (PRMGBL).
SS$_NOSYSGBL	The process does not have the privileges to create or delete a system global section (SYSGBL).
SS$_SECTBLFUL	There are no entries available in the system global section table for the global section or for the shared page tables.
SS$_TOOMANYLNAM	The logical name translation of the gs_name_64 argument exceeded the allowed depth of 10.

On Alpha systems, creates a permanent global disk file section to whichprocesses can map.

This service accepts 64-bit addresses.

Format

SYS$CREATE_GFILE gs_name_64 ,ident_64 ,file_offset_64 ,length_64 ,chan,acmode ,flags ,return_length_64 [,fault_cluster]

C Prototype

int sys$create_gfile (void *gs_nam_64, struct _secid *ident_64,unsigned __int64 file_offset_64, unsigned __int64 length_64, unsignedshort int chan, unsigned int acmode, unsigned int flags, unsigned__int64 *return_length_64,...);

Arguments

gs_name_64

OpenVMS usage:	section_name
type:	character-coded text string
access:	read only
mechanism:	by 32- or 64-bit descriptor--fixed-length string descriptor

Name of the global section. The gs_name_64 argument isthe 64-bit virtual address of a naturally aligned 32- or 64-bit stringdescriptor pointing to this name string.

ident_64

OpenVMS usage:	section_id
type:	quadword (unsigned)
access:	read only
mechanism:	by 32- or 64-bit reference

Identification value specifying the version number of a global section.The ident_64 argument is a quadword containing threefields. The ident_64 argument is the 32- or 64-bitvirtual address of a naturally aligned quadword that contains theidentification value.

The first longword specifies the matching criteria in its low-order twobits. The valid values, symbolic names by which they can be specified,and their meanings are as follows:

Value	Symbolic Name	Match Criteria
0	SEC$K_MATALL	Match all versions of the section.
1	SEC$K_MATEQU	Match only if major and minor identifications match.
2	SEC$K_MATLEQ	Match if the major identifications are equal and the minor identification of the mapper is less than or equal to the minor identification of the global section.

If you specify the ident_64 argument as 0, the versionnumber and match control fields default to 0.

The version number is in the second longword and contains two fields: aminor identification in the low-order 24 bits and a majoridentification in the high-order 8 bits. You can assign values forthese fields by installation convention to differentiate versions ofglobal sections. If no version number is specified when a section iscreated, processes that specify a version number when mapping cannotaccess the global section.

file_offset_64

OpenVMS usage:	byte offset
type:	quadword (unsigned)
access:	read only
mechanism:	by value

Byte offset into the file that marks the beginning of the section. Thefile_offset_64 argument is a quadword containing thisnumber. If you do not specify the file_offset_64argument or specify it as 0, the section is created beginning with thefirst byte in the file.

The file_offset_64 argument must be a multiple ofvirtual disk blocks.

length_64

OpenVMS usage:	byte count
type:	quadword (unsigned)
access:	read only
mechanism:	by value

Length, in bytes, of the global disk file section to be created. Thelength specified must be 0 or a multiple of virtual disk blocks. If thelength specified is 0 or extends beyond end-of-file (EOF), the globaldisk file section is created up to and including the virtual blocknumber that contains EOF.

chan

OpenVMS usage:	longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Number of the channel on which the file has been accessed. Thechan argument is a longword containing this number.The access mode at which the channel was opened must be equal to orless privileged than the access mode of the caller.

You can use the OpenVMS Record Management Services (RMS) macro $OPEN toaccess a file; the file options parameter in the file access block mustindicate a user file open (UFO keyword).

acmode

OpenVMS usage:	access_mode
type:	longword (unsigned)
access:	read only
mechanism:	by value

Access mode that is to be the owner of the pages created during themapping. The acmode argument is a longword containingthe access mode.

The $PSLDEF macro in STARLET.MLB and the file PSLDEF.H inSYS$STARLET_C.TLB define the following symbols and their values for thefour access modes:

Value	Symbolic Name	Access Mode
0	PSL$C_KERNEL	Kernel
1	PSL$C_EXEC	Executive
2	PSL$C_SUPER	Supervisor
3	PSL$C_USER	User

flags

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Flag mask specifying the type of global section to be created as wellas its characteristics. The flags argument is alongword bit vector in which each bit corresponds to a flag. The$SECDEF macro and the SECDEF.H file define a symbolic name for eachflag. You construct the flags argument by performing alogical OR operation on the symbol names for all desired flags.

The following table describes each flag that is valid for the$CREATE_GFILE service:

Flag	Description
SEC$M_CRF	Pages are copy-on-reference. By default, pages are shared.
SEC$M_DZRO	Pages are demand-zero pages. By default, they are not zeroed when copied. Note that SEC$M_DZRO and SEC$M_CRF cannot both be set and that SEC$M_DZRO set and SEC$M_WRT clear is an invalid combination.
SEC$M_GBL	Pages form a global section. By default, this flag is always present in this service and cannot be disabled.
SEC$M_PERM	Global section is permanent. By default, this flag is always present in this service and cannot be disabled.
SEC$M_SYSGBL	Pages form a system global section. By default, pages form a group global section.
SEC$M_WRT	Pages form a read/write section. By default, pages form a read-only section.

All other bits in the flags argument are reserved forfuture use by HP and should be specified as 0. The condition valueSS$_IVSECFLG is returned if any undefined bits are set or if an illegalcombination of flags is set.

return_length_64

OpenVMS usage:	byte count
type:	quadword (unsigned)
access:	write only
mechanism:	by 32- or 64-bit reference

The length of the global section created. Thereturn_length_64 argument is the 32- or 64-bit virtualaddress of a naturally aligned quadword into which the service returnsthe length of the global section in bytes.

fault_cluster

OpenVMS usage:	byte count
type:	longword (unsigned)
access:	read only
mechanism:	by value

Page fault cluster in byte units indicating how many pages are to bebrought into memory when a page fault occurs for a single page. Thefault cluster specified is rounded up to a multiple of CPU-specificpages.

If this argument is specified as 0, the system default page faultcluster is used. If this argument is specified as more than the maximumallowed for the system, no error is returned. The systemwide maximum isused.

Description

The Create Permanent Global Disk File Section service allows a processto create a permanent global disk file section.

Creating a global disk file section involves defining all or part of adisk file as a section. The global section is created as entire pages;however, the last page in the section might correspond to less than afull page of virtual disk blocks. Only the number of virtual diskblocks specified by the length_64 argument, or as manyas exist in the disk file, will be associated with the disk filesection.

Upon successful completion of this service, thereturn_length_64 argument will contain the length ofthe global section created in even multiples of virtual disk blocks.

The security profile of the file is used to determine access to theglobal section. For a global disk file section to allow write access tothe file during the mapping of the global section, the channel used toopen the file must allow write access to the file.

Required Privileges

To create a global section, the process must have the followingprivileges:

• SYSGBL privilege to create a system global section (if flag SEC$M_SYSGBL is set)
• PRMGBL privilege to create a permanent global section

Required Quota

None

Related Services

$CRMPSC, $CRMPSC_GFILE_64, $DGBLSC, $MGBLSC, $MGBLSC_64

Condition Values Returned

SS$_CREATED	The service completed successfully. The specified global section did not previously exist and has been created.
SS$_ACCVIO	The gs_name_64 argument or the return_length_64 argument cannot be read by the caller.
SS$_CHANVIO	The specified channel was assigned from a more privileged access mode.
SS$_DUPLNAM	A global section of the same name already exists; a new global section was not created.
SS$_ENDOFFILE	The file_offset_64 argument specified is beyond the logical end-of-file.
SS$_EXBYTLM	Process has exceeded the byte count quota; the system was unable to map the requested file.
SS$_GPTFULL	There is no more room in the system global page table to set up page table entries for the section.
SS$_GSDFULL	There is no more room in the system space allocated to maintain control information for global sections.
SS$_IVCHAN	An invalid channel number was specified; the channel number specified was 0 or a channel that is unassigned.
SS$_IVCHNLSEC	The channel number specified is currently active, or there are no files opened on the specified channel.
SS$_IVIDENT	An invalid channel number was specified; the channel number specified is larger than the number of channels available.
SS$_IVLOGNAM	The specified global section name has a length of 0 or has more than 43 characters.
SS$_IVLVEC	The specified section was not installed using the /PROTECT qualifier.
SS$_IVSECFLG	An invalid flag, a reserved flag, or an invalid combination of flags was specified.
SS$_IVSECIDCTL	The match control field of the global section identification is invalid.
SS$_LEN_NOTBLKMULT	The length_64 argument is not a multiple of virtual disk blocks.
SS$_NOPRMGBL	The process does not have the privileges to create or delete a permanent group global section (PRMGBL).
SS$_NOSYSGBL	The process does not have the privileges to create or delete a system global section (SYSGBL).
SS$_NOTFILEDEV	The device is not a file-oriented, random-access, or directory device.
SS$_NOWRT	The file is read only, and the flag bit SEC$M_CRF is not set.
SS$_OFF_NOTBLKALGN	The file_offset_64 argument is not a multiple of virtual disk blocks.
SS$_SECTBLFUL	There are no entries available in the system global section table.
SS$_TOOMANYLNAM	The logical name translation of the gs_name_64 argument exceeded the allowed depth of 10.

On Alpha systems, creates a permanent global page file section to whichprocesses can map.

This service accepts 64-bit addresses.

Format

SYS$CREATE_GPFILE gs_name_64 ,ident_64 ,prot ,length_64 ,acmode ,flags

C Prototype

int sys$create_gpfile (void *gs_name_64, struct _secid *ident_64,unsigned int prot, unsigned __int64 length_64, unsigned int acmode,unsigned int flags);

Arguments

gs_name_64

OpenVMS usage:	section_name
type:	character-coded text string
access:	read only
mechanism:	by 32- or 64-bit descriptor--fixed-length string descriptor

Name of the global section. The gs_name_64 argument isthe 32- or 64-bit virtual address of a naturally aligned 32- or 64-bitstring descriptor pointing to this name string.

ident_64

OpenVMS usage:	section_id
type:	quadword (unsigned)
access:	read only
mechanism:	by 32- or 64-bit reference

Identification value specifying the version number of a global section.The ident_64 argument is a quadword containing threefields. The ident_64 argument is the 32- or 64-bitvirtual address of a naturally aligned quadword that contains theidentification value.

The first longword specifies the matching criteria in its low-order 2bits. Their meanings are as follows:

Value	Symbolic Name	Match Criteria
0	SEC$K_MATALL	Match all versions of the section.
1	SEC$K_MATEQU	Match only if major and minor identifications match.
2	SEC$K_MATLEQ	Match if the major identifications are equal and the minor identification of the mapper is less than or equal to the minor identification of the global section.

If you specify the ident_64 argument as 0, the versionnumber and match control fields default to 0.

The version number is in the second longword. The version numbercontains two fields: a minor identification in the low-order 24 bitsand a major identification in the high-order 8 bits. You can assignvalues for these fields by installation convention to differentiateversions of global sections. If no version number is specified when asection is created, processes that specify a version number whenmapping cannot access the global section.

prot

OpenVMS usage:	file_protection
type:	longword (unsigned)
access:	read only
mechanism:	by value

Protection to be applied to the global page file section. The maskcontains four 4-bit fields. Bits are read from right to left in eachfield. The following diagram depicts the mask:

Cleared bits indicate that read, write, execute, and delete access, inthat order, are granted to the particular category of user. Only read,write, and execute access are meaningful for section protection. Deleteaccess bits are ignored. Read access also grants execute access forthose situations where execute access applies. If 0 is specified, readaccess and write access are granted to all users.

length_64

acmode

The $PSLDEF macro in STARLET.MLB and the file PSLDEF.H inSYS$STARLET_C.TLB define the following symbols and their values for thefour access modes:

flags

The following table describes the flags that are valid for the$CREATE_GPFILE service:

All other bits in the flags argument are reserved forfuture use by HP and should be specified as 0. The condition valueSS$_IVSECFLG is returned if any undefined bits are set.

Description

The Create Permanent Global Page File Section service allows a processto create a permanent global page file section. Global page filesections contain demand-zero allocation pages that are writable andbacked up by the system page file. All pages in the global page filesection are shared by all processes that map to the global section.

Required Privileges

To create a permanent global page file section, the process must havethe following privileges:

• SYSGBL privilege to create a system global section (if flag SEC$M_SYSGBL is set)
• PRMGBL privilege to create a permanent global section

Required Quota

The systemwide number of global page file pages is limited by thesystem parameter GBLPAGFIL.

Related Services

$CRMPSC, $CRMPSC_GPFILE_64, $DGBLSC, $MGBLSC, $MGBLSC_64

Condition Values Returned

SS$_CREATED	The service completed successfully. The specified global section did not previously exist and has been created.
SS$_ACCVIO	The gs_name_64 descriptor cannot be read by the caller.
SS$_DUPLNAM	A global section of the same name already exists; a new global section was not created.
SS$_GPTFULL	There is no more room in the system global page table to set up page table entries for the section.
SS$_GSDFULL	There is no more room in the system space allocated to maintain control information for global sections.
SS$_IVLOGNAM	The specified global section name has a length of 0 or has more than 43 characters.
SS$_IVSECFLG	An invalid flag, a reserved flag, or an invalid combination of flags was specified.
SS$_IVSECIDCTL	The match control field of the global section identification is invalid.
SS$_LEN_NOTPAGMULT	The length_64 argument is not a multiple of CPU-specific pages or was specified as 0.
SS$_NOPRMGBL	The process does not have the privileges to create or delete a permanent group global section (PRMGBL).
SS$_NOSYSGBL	The process does not have the privileges to create or delete a system global section (SYSGBL).
SS$_SECTBLFUL	There are no entries available in the system global section table.
SS$_TOOMANYLNAM	The logical name translation of the gs_name_64 argument exceeded the allowed depth of 10.

On Alpha systems, creates a permanent page frame section to whichprocesses can map.

This service accepts 64-bit addresses.

Format

SYS$CREATE_GPFN gs_name_64 ,ident_64 ,prot ,start_pfn ,page_count,acmode ,flags

C Prototype

int sys$create_gpfn (void *gs_name_64, struct _secid *ident_64,unsigned int prot, unsigned int start_pfn, unsigned int page_count,unsigned int acmode, unsigned int flags);

Arguments

gs_name_64

OpenVMS usage:	section_name
type:	character-coded text string
access:	read only
mechanism:	by 32- or 64-bit descriptor--fixed-length string descriptor

Name of the global section. The gs_name_64 argument isthe 32- or 64-bit virtual address of a naturally aligned 32- or 64-bitstring descriptor pointing to this name string.

ident_64

OpenVMS usage:	section_id
type:	quadword (unsigned)
access:	read only
mechanism:	by 32- or 64-bit reference

Identification value specifying the version number of a global section.The ident_64 argument is a quadword containing threefields. The ident_64 argument is the 32- or 64-bitvirtual address of a naturally aligned quadword that contains theidentification value.

The first longword specifies the matching criteria in its low-order twobits.

The valid values, symbolic names by which they can be specified, andtheir meanings are as follows:

Value	Symbolic Name	Match Criteria
0	SEC$K_MATALL	Match all versions of the section.
1	SEC$K_MATEQU	Match only if major and minor identifications match.
2	SEC$K_MATLEQ	Match if the major identifications are equal and the minor identification of the mapper is less than or equal to the minor identification of the global section.

If you specify the ident_64 argument as 0, the versionnumber and match control fields default to 0.

The version number is in the second longword. The version numbercontains two fields: a minor identification in the low-order 24 bitsand a major identification in the high-order 8 bits. You can assignvalues for these fields by installation convention to differentiateversions of global sections. If no version number is specified when asection is created, processes that specify a version number whenmapping cannot access the global section.

prot

OpenVMS usage:	file_protection
type:	longword (unsigned)
access:	read only
mechanism:	by value

Protection to be applied to the global page frame section. The maskcontains four 4-bit fields. Bits are read from right to left in eachfield. The following diagram depicts the mask:

Cleared bits indicate that read, write, execute, and delete access, inthat order, are granted to the particular category of user. Only read,write, and execute access are meaningful for section protection. Deleteaccess bits are ignored. Read access also grants execute access forthose situations where execute access applies. If zero is specified,read access and write access are granted to all users.

start_pfn

page_count

acmode

The $PSLDEF macro in STARLET.MLB and the file PSLDEF.H inSYS$STARLET_C.TLB define the following symbols and their values for thefour access modes:

flags

The following table describes the flags that are valid for the$CREATE_GPFN service:

All other bits in the flags argument are reserved forfuture use by HP and should be specified as 0. The condition valueSS$_IVSECFLG is returned if any undefined bits are set or if an illegalcombination of flags is set.

Description

The Create Permanent Global Page Frame Section service allows a processto create a global page frame section. All global page frame sectionsare permanent. Pages mapped to a global page frame section are notincluded in or charged against the process's working set; they arealways valid.

Do not lock these pages in the working set by using $LKWSET_64; thiscan result in a machine check if they are in I/O space.

Required Privileges

To create a permanent global page frame section, the process must havethe following privileges:

• SYSGBL privilege to create a system global section (if flag SEC$M_SYSGBL is set)
• PRMGBL privilege to create a permanent global section
• PFNMAP privilege to create a page frame section

Required Quota

None

Related Services

$CRMPSC, $CRMPSC_GPFN_64, $DGBLSC, $MGBLSC, $MGBLSC_GPFN_64

Condition Values Returned

SS$_CREATED	The service completed successfully. The specified global section did not previously exist and has been created.
SS$_ACCVIO	The gs_name_64 argument cannot be read by the caller.
SS$_DUPLNAM	A global section of the same name already exists; a new global section was not created.
SS$_GPTFULL	There is no more room in the system global page table to set up page table entries for the section.
SS$_GSDFULL	There is no more room in the system space allocated to maintain control information for global sections.
SS$_IVLOGNAM	The specified global section name has a length of 0 or has more than 43 characters.
SS$_IVSECFLG	An invalid flag, a reserved flag, or an invalid combination of flags was specified.
SS$_IVSECIDCTL	The match control field of the global section identification is invalid.
SS$_NOPRMGBL	The process does not have the privileges to create or delete a permanent group global section (PRMGBL).
SS$_NOSYSGBL	The process does not have the privileges to create or delete a system global section (SYSGBL).
SS$_TOOMANYLNAM	The logical name translation of the gs_name_64 argument exceeded the allowed depth of 10.

Initializes a rights database.

Format

SYS$CREATE_RDB [sysid]

C Prototype

int sys$create_rdb (struct _generic_64 *sysid);

Argument

sysid

OpenVMS usage:	system_access_id
type:	quadword (unsigned)
access:	read only
mechanism:	by reference

System identification value associated with the rights database when$CREATE_RDB completes execution. The sysid argument isthe address of a quadword containing the system identification value.If you omit sysid, the current system time in 64-bitformat is used.

Description

The Create Rights Database service initializes a rights database. Thedatabase name is the file equated to the logical name RIGHTSLIST, whichmust be defined as a system logical name from executive mode. If thelogical name does not exist, the database is created inSYS$COMMON:[SYSEXE] with the file name RIGHTSLIST.DAT. If the databasealready exists, $CREATE_RDB fails with the error RMS$_FEX.

The rights database is created with an owner of [1,4] and a protectionof (RWED, RWED, R).

Required Access or Privileges

Write access to the directory in which the file is being created isrequired.

Required Quota

None

Related Services

$ADD_HOLDER, $ADD_IDENT, $ASCTOID, $FIND_HELD, $FIND_HOLDER,$FINISH_RDB, $FORMAT_ACL, $GRANTID, $GET_SECURITY, $IDTOASC,$MOD_HOLDER, $MOD_IDENT, $PARSE_ACL, $REM_HOLDER, $REM_IDENT, $REVOKID,$SET_SECURITY

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The sysid argument cannot be read by the caller.
SS$_INSFMEM	The process dynamic memory is insufficient for opening the rights database.
RMS$_FEX	A rights database already exists. To create a new one, you must explicitly delete or rename the old one.
RMS$_PRV	The user does not have write access to SYS$SYSTEM.

Because the rights database is an indexed file accessed with OpenVMSRMS, this service can also return RMS status codes associated withoperations on indexed files. For descriptions of these status codes,refer to the OpenVMS Record Management Services Reference Manual.

On Alpha systems, creates a virtual region within the process's privateaddress space.

This service accepts 64-bit addresses.

Format

SYS$CREATE_REGION_64 length_64 ,region_prot ,flags ,return_region_id_64,return_va_64 ,return_length_64 [,start_va_64]

C Prototype

int sys$create_region_64 ( unsigned __int64 length_64, unsigned intregion_prot, unsigned int flags, struct _generic_64 *return_region_id,void *(*(return_va_64)), unsigned __int64 *return_length_64,...);

Arguments

length_64

OpenVMS usage:	byte count
type:	quadword (unsigned)
access:	read only
mechanism:	by value

Length of the virtual region to be created. The length specified mustbe a multiple of CPU-specific pages. This length is fixed at the timethe region is created.

If the flag VA$M_SHARED_PTS is set, this length is rounded up toinclude an even multiple of CPU-specific pages mapped by a page tablepage.

region_prot

OpenVMS usage:	region_protection
type:	longword (unsigned)
access:	read only
mechanism:	by value

Region protection to be associated with the region to be created. Theregion_prot argument is a longword containing thecreate and owner mode.

The file VADEF.H in SYS$STARLET_C.TLB and the $VADEF macro inSTARLET.MLB define the following symbols for valid combinations ofcreate and owner modes:

Symbol	Create and Owner Modes
VA$C_REGION_UCREATE_UOWN	User create mode and user owner mode
VA$C_REGION_UCREATE_SOWN	User create mode and supervisor owner mode
VA$C_REGION_UCREATE_EOWN	User create mode and executive owner mode
VA$C_REGION_UCREATE_KOWN	User create mode and kernel owner mode
VA$C_REGION_SCREATE_SOWN	Supervisor create mode and supervisor owner mode
VA$C_REGION_SCREATE_EOWN	Supervisor create mode and executive owner mode
VA$C_REGION_SCREATE_KOWN	Supervisor create mode and kernel owner mode
VA$C_REGION_ECREATE_EOWN	Executive create mode and executive owner mode
VA$C_REGION_ECREATE_KOWN	Executive create mode and kernel owner mode
VA$C_REGION_KCREATE_KOWN	Kernel create mode and kernel owner mode

For both create and owner mode, the $CREATE_REGION_64 service useswhichever of the following two access modes is least privileged:

• Access mode specified by the acmode argument
• Access mode of the caller

A subsequent call to any system service that created address spacewithin a region must be made from an access mode that is the same ormore privileged than the create mode associated with the region.

A subsequent call to $DELETE_REGION_64 to delete the region must bemade from an access mode that is the same or more privileged than theowner mode associated with the region.

All regions created by $CREATE_REGION_64 are automatically deleted whenthe image is run down on image exit.

flags

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Flag mask specifying the characteristics of the region to be created.The flags argument is a longword bit vector in whicheach bit corresponds to a flag. The file VADEF.H in SYS$STARLET_C.TLBand the $VADEF macro in STARLET.MLB define a symbolic name for eachflag. You construct the flags argument by performing alogical OR operation on the symbol names for all desired flags.

The following table describes the flags that are valid for the$CREATE_REGION_64 service:

Flag	Description
VA$M_DESCEND	Created region is a descending region; that is, allocation occurs toward decreasing virtual addresses. If VA$M_DESCEND is not specified, the region allocation occurs toward increasing virtual addresses.
VA$M_SHARED_PTS	Created region requires the virtual address space created within it to be capable of using shared page tables. If this flag is not specified, the virtual address space created within the region is mapped by process-private page tables only. By default, the region does not allow the use of shared page tables.
VA$M_P0_SPACE	Create region in P0 space. This flag cannot be set if VA$M_P1_SPACE is set.
VA$M_P1_SPACE	Create region in P1 space. This flag cannot be set if VA$M_P0_SPACE is set.

All other bits in the flags argument are reserved forfuture use by HP. The condition value SS$_IVREGFLG is returned if anyundefined bits are set.

return_region_id_64

OpenVMS usage:	region identifier
type:	quadword (unsigned)
access:	write only
mechanism:	by 32- or 64-bit reference

The region ID associated with the created region. Thereturn_region_id_64 argument is the 32- or 64-bitvirtual address of a naturally aligned quadword into which the servicereturns the region ID.

return_va_64

OpenVMS usage:	return address
type:	quadword address
access:	write only
mechanism:	by 32- or 64-bit reference

The lowest process virtual address of the region. Thereturn_va_64 argument is the 32- or 64-bit virtualaddress of a naturally aligned quadword into which the service returnsthe lowest virtual address of the region.

If the flag VA$M_SHARED_PTS is set, the returned virtual address isaligned to a CPU-specific page table page boundary. If the globalsection mapped by this shared page table region is large enough thatmultiple page table pages are required to map the global section, thepage tables themselves can be mapped with granularity hints; therefore,the alignment of the returned virtual address can be even greater thanthat of a single CPU-specific page table page boundary.

return_length_64

OpenVMS usage:	byte count
type:	quadword (unsigned)
access:	write only
mechanism:	by 32- or 64-bit reference

The length of the region actually created. Thereturn_length_64 argument is the 32- or 64-bit virtualaddress of a naturally aligned quadword into which the service returnsthe length of the region in bytes.

If the flag VA$M_SHARED_PTS is set, the returned length is the inputlength rounded up to an even multiple of bytes mapped by a singleCPU-specific page table page.

start_va_64

OpenVMS usage:	address
type:	quadword address
access:	read only
mechanism:	by value

The starting address for the created virtual region. The specifiedvirtual address must be a CPU-specific page aligned address.

If the start_va_64 argument is not specified or isspecified as 0, the region can be created anywhere within the followingaddress spaces:

• P2 space (if the flags VA$M_P0_SPACE and VA$M_P1_SPACE are clear)
• P0 space (if the flag VA$M_P0_SPACE is set and VA$M_P1_SPACE is clear)
• P1 space (if the flag VA$M_P1_SPACE is set and VA$M_P0_SPACE is clear)

If the flag VA$M_SHARED_PTS is set and this argument is specified, thespecified starting address must be aligned to a natural page table pageboundary or an error is returned.

Description

The Create Virtual Region service allows a process to create a virtualregion within its P0, P1, or P2 address space. Once a virtual regionhas been created, virtual address space can be created within it usingthe system services that accept a region identifier argument. Note thatthe virtual region is simply a reservation of virtual address space. Nophysical memory is occupied for a virtual region until virtual addressspace is created within the region.

If the VA$M_SHARED_PTS flag is set in the flagsargument, only memory-resident global sections can be mapped into thevirtual region. The $CRMPSC_GDZRO_64 and $MGBLSC_64 system services areavailable for mapping to memory-resident global sections. If amemory-resident global section was not created with shared page tables,private page tables are used to map to the global section.

If a memory-resident global section with shared page tables is mappedinto a virtual region that does not have the shared page tableattribute, the global section is mapped with process private pagetables. Other address-space creation services (see Table SYS-18) arenot allowed to create address space into a shared page table regionbecause they have an implicit dependency on process-private pagetables.

Table SYS-18 Services That Do Not Accept Shared Page Table Regions

Service	Description
$CRETVA[_64]	Adds a range of demand-zero allocation pages to a process's virtual address space for the execution of the current image. The new pages are added at the virtual address specified by the caller.
$CRMPSC	Allows a process to create a private or global section and to map a section of its address space to the private or global section.
$CRMPSC_FILE_64	Allows a process to map a section of its address space to a specified portion of a file. This service maps a private disk file section.
$CRMPSC_GFILE_64	Allows a process to create a global disk file section and to map a section of its address space to the global section.
$CRMPSC_GPFILE_64	Allows a process to create a global page file section and to map a section of its address space to the global section.
$CRMPSC_GPFN_64	Allows a process to create a permanent global page frame section and to map a section of its address space to the global page frame section.
$CRMPSC_PFN_64	Allows a process to map a section of its address space to a specified physical address range represented by page frame numbers. This service creates and maps a private page frame section.
$DELTVA	Deletes a specified number of pages from a process's virtual address space.
$EXPREG_[64] 1	Adds a specified number of demand-zero allocation pages to a process's virtual address space for the execution of the current image. Expansion occurs at the next free available address within the specified region.
$MGBLSC	Establishes a correspondence between pages in the virtual address space of the process and the pages occupied by a global section.
$MGBLSC_GPFN_64	Establishes a correspondence between pages in the virtual address space of the process and the pages occupied by a global page frame section.

$CREATE_REGION_64 creates the virtual region on a CPU-specific pagealigned boundary; however, if the VA$M_SHARED_PTS flag is set in theflags argument, the virtual region is created on aCPU-specific page table page aligned boundary.

HP recommends that you not specify the start_va_64argument when creating a shared page table region due to the particularalignment that must prevail for virtual addresses created within thevirtual region to exploit page table sharing. If thestart_va_64 argument does not contain the properalignment, $CREATE_REGION_64 returns SS$_VA_NOTPAGALGN.

If a starting virtual address must be specified for a shared page tableregion, use the following steps to compute a properly alignedstart_va_64:

1. Determine the CPU-specific page size by using the $GETSYI system service and specifying the SYI$_PAGE_SIZE item code.
2. Determine the number of CPU-specific pages mapped by a single page table page by using the $GETSYI system service and specifying the SYI$_PTES_PER_PAGE item code.
3. Multiply the CPU-specific page size by the number of pages mapped by a page table page. The product represents the minimum virtual alignment required for a shared page table region. It also represents the number of bytes mapped by a single CPU-specific page table page. Assuming a system with an 8 kilobyte page size, the alignment of the start_va_64 argument must be an even multiple of 8,388,608 (8 megabytes). The virtual address, therefore, must have 23 low-order zero bits.
4. If the shared page tables are to be mapped with granularity hints (GH), the address computed in the previous step should to be adjusted to account for the granularity hint factor. The Alpha architecture provides three granularity hint factors: 8, 64, and 512 pages.

The virtual address alignment factors required for shared page tableregions (and mappings using shared page tables) are more stringent thanthe simple CPU-specific page alignment. Global pages provide a level ofdata sharing in which the unit is a single CPU-specific page or, ontoday's systems, 8 kilobytes (KB). Shared page tables increase thelevel of sharing by an order of magnitude, such that the unit ofsharing is a CPU-specific page table page or, on today's systems, 8megabytes (MB); therefore, virtual regions that are to be used forshared page tables and mappings that use shared page tables require analignment of at least 8 MB.

Table SYS-19 highlights the values $CREATE_REGION_64 returns forvarious region lengths. When the length_64 argument is not an evenmultiple of 8 MB, the returned length is rounded up to an even multipleof 8 MB. This must occur so that a shared page table region ends on aneven CPU-specific page table page boundary.

The virtual alignment of the returned address is further biased by theability to map the shared page tables with granularity hints. Allvalues listed are based upon an 8 KB page size. All of the virtualaddresses in the return_va_64 column accommodate themaximum GH factor for 8 KB page table pages.

If the returned value of the service is not a successful conditionvalue, a value is not returned in the memory locations pointed to bythe return_region_id_64,return_va_64, or return_size_64arguments.

Required Privileges

None

Required Quota

None

Related Services

$CRETVA_64, $CRMPSC_GDZRO, $CRMPSC_FILE_64, $CRMPSC_GFILE_64,$CRMPSC_GPFILE_64, $CRMPSC_GPFN_64, $CRMPSC_PFN_64, $DELETE_REGION_64,$DELTVA_64, $EXPREG_64, $GET_REGION_INFO, $MGBLSC_64, $MGBLSC_GPFN_64

Condition Values Returned

SS$_NORMAL	The service completed successfully.
SS$_ACCVIO	The return_region_id_64 argument, the return_va_64 argument, or the return_length_64 argument cannot be written by the caller.
SS$_IVREGFLG	One or more of the reserved bits in the flags argument is set, or an illegal combination of flags bits are set.
SS$_LEN_NOTPAGMULT	The length_64 argument is not a multiple of CPU-specific pages.
SS$_VASFULL	The process private address space is full, or no space is available in the process private address space for a region of the specified size.
SS$_VA_IN_USE	A page in the specified virtual address range is within another virtual region or is otherwise inaccessible.
SS$_VA_NOTPAGALGN	The start_va_64 argument is not CPU-specific page aligned; or, if the flag VA$M_SHARED_PTS is set, the start_va_64 argument is not CPU-specific page table page aligned.

Generates a universally unique identifier (UID).

Format

SYS$CREATE_UID uid

C Prototype

int sys$create_uid (unsigned int uid [4]);

Arguments

uid

OpenVMS usage:	uid
type:	octaword (unsigned)
access:	write only
mechanism:	by reference

Address of an octaword in which the unique identifier is returned tothe calling process.

Description

Generates a identifier that is unique across all computer systems.

Note To access this service, DECdtm must be running. For information onenabling and disabling DECdtm services, refer to the chapter onmanaging DECdtm services in the HP OpenVMS System Manager's Manual.

Required Privileges

None

Required Quotas

None

Related Services

None

Condition Values Returned

SS$_NORMAL	The request was successful.
SS$_ACCVIO	An argument was not accessible to the caller.

Returns an encoded security profile for the specified user.

Format

SYS$CREATE_USER_PROFILE usrnam ,[itmlst] ,[flags] ,usrpro ,usrprolen,[contxt]

C Prototype

int sys$create_user_profile (void *usrnam, void *itmlst, unsigned intflags, void *usrpro, unsigned int *usrprolen, unsigned int *contxt);

Arguments

usrnam

OpenVMS usage:	char_string
type:	character-coded text string
access:	read only
mechanism:	by descriptor

Name of the user whose security profile is to be returned. Theusrnam argument is the address of a descriptorpointing to a text string containing the user name. The user namestring can contain a maximum of 12 alphanumeric characters.

For more information about user names, refer to the HP OpenVMS Guide to System Security.

itmlst

OpenVMS usage:	item_list_3
type:	longword (unsigned)
access:	read only
mechanism:	by reference

Item list specifying the portions of the user's security profile to bereplaced or augmented.

The item list is a standard format item list. The following figuredepicts the general format of an item descriptor. See the Item Codessection for a list of valid item codes for $CREATE_USER_PROFILE.

The following table defines the item descriptor fields:

flags

The following table describes each flag:

usrpro

usrprolen

contxt

Using the contxt argument keeps the UAF open acrossall calls, thereby improving the performance of the system onsubsequent calls. To close the UAF, you must run down the image.

The resulting context value from a $CREATE_USER_PROFILE call can alsobe used as the input contxt argument to the $GETUAIsystem service, and vice versa.

Item Codes

CHP$_ADDRIGHTS

A rights list segment containing additional identifiers to be appendedto the set of identifiers held by the user. A rights list segment is alist of quadword identifier/attributes pairs, each containing alongword identifier value, followed by a longword mask identifying theattributes of the holder. The buflen argument shouldbe set to the total size, in bytes, of the rights list segment. Thebufadr argument points to a descriptor that points tothe first byte in the rights list segment (that is, the first byte ofthe first identifier value).

This item code can be repeated to add up to 256 additional rights listsegments. If more than 256 identifiers are granted to the user,$CREATE_USER_PROFILE returns SS$_INSFMEM.

CHP$_CLASS

The classification to be associated with the created security profile.This item code is reserved to HP.

CHP$_PRIV

A quadword privilege mask specifying the user's privileges. The $PRVDEFmacro defines the list of available privileges.

CHP$_UIC

A longword describing the user identification code (UIC).

ISS$_ACCOUNT

Variable-length buffer containing the account name. The maximum size ofthis buffer is 32 bytes.

ISS$_ADD_RIGHTS

A rights list segment containing additional identifiers to be appendedto the set of identifiers held by the user. A rights list segment is alist of quadword identifier/attributes pairs, each containing alongword identifier value, followed by a longword mask identifying theattributes of the holder. The buflen argument shouldbe set to the total size, in bytes, of the rights list segment. Thebufadr argument points to a descriptor that points tothe first byte in the rights list segment (that is, the first byte ofthe first identifier value).

This item code can be repeated to add up to 256 additional rights listsegments. If more than 256 identifiers are granted to the user,$CREATE_USER_PROFILE returns SS$_INSFMEM.

ISS$_AUTHPRIV

Quadword containing the authorized privileges. See $PRVDEF macro fordefinitions.

ISS$_FLAGS

Longword containing user flags. The following flag is supported:

ISS$M_FLAG_SECAUDIT - Mandatory audit flag.

ISS$_MAXCLASS

Buffer containing the maximum classification. The maximum size of thisbuffer is CLS$K_LENGTH. This item code is reserved to HP. See the$CLSDEF macro for definitions.

ISS$_MINCLASS

Buffer containing the minimum classification. The maximum size of thisbuffer is CLS$K_LENGTH. This item code is reserved to HP. See the$CLSDEF macro for definitions.

ISS$_MODE

Longword containing the access mode. See $PSLDEF macro for definitions.

ISS$_PERMPRIV

Quadword containing the permanent privileges. See $PRVDEF macro fordefinitions.

ISS$_RIGHTS

Descriptor pointing to a vector of quadwords containingidentifier/attribute pairs used to initialize the rights identifierlist. See the $KGBDEF macro for definitions. Any identifiers specifiedby the ISS$_ADD_RIGHTS item code will be added to this list.

The format of this vector is as follows:

ISS$_UIC

ISS$_WORKCLASS

ISS$_WORKPRIV

Description

The Create User Profile service returns a security profile for a user.This profile can be generated in two ways:

• If the caller does not specify the CHP$_NOACCESS flag in the flags argument, $CREATE_USER_PROFILE accesses the system authorization database (SYSUAF.DAT) or the rights database (RIGHTSLIST.DAT) for the specified user name and builds a representation of the privileges and rights granted to that user. The security profile is returned as an opaque byte stream.
  $CREATE_USER_PROFILE returns a representation of the security profile that the user would have when logged in at the highest authorized classification with all authorized privileges enabled.
• When the caller specifies the CHP$M_NOACCESS flag in the flags argument, $CREATE_USER_PROFILE creates a security profile without accessing the user authorization file (SYSUAF.DAT) or the rights database (RIGHTSLIST.DAT). When CHP$M_NOACCESS is specified, all of the information is obtained from the item list. The caller must supply the CHP$_PRIV and CHP$_UIC items. In addition, an address of 0 can be specified for the usrnam argument.

In either case, the newly created security profile can be passed asinput to the $CHKPRO and $CHECK_ACCESS system services using theusrpro argument.

$CREATE_USER_PROFILE returns the set of identifiers associated with theuser's owner identifier. The CHP$_ADDRIGHTS item code can be used toadd additional identifiers to this set.

Required Access or Privileges

Access to SYSUAF.DAT and RIGHTSLIST.DAT is required unless you areconstructing the security profile for your own user name.

Required Quota

None

Related Services

$CHECK_ACCESS, $CHKPRO, $FIND_HELD, $FINISH_RDB, $GETUAI

Condition Values Returned

SS$_NORMAL	Profile created successfully.
SS$_BADITMCOD	Item list code is invalid.
SS$_BADBUFLEN	Size specified for item is invalid.
SS$_ACCVIO	Buffer address is invalid or inaccessible.
SS$_INSFARG	Insufficient call arguments.
SS$_INSFMEM	Insufficient memory.
SS$_IVSTSFLG	Invalid system service flags specified.
SS$_NOPRIV	Caller lacks privilege to access UAF.
RMS$_RNF	User name is not in UAF.

$CREATE_USER_PROFILE can also return any error returned by the $GETUAIor $FIND_HELD services.

Creates a logical name and specifies its equivalence names.

On Alpha systems, this service accepts 64-bit addresses.

Format

SYS$CRELNM [attr] ,tabnam ,lognam ,[acmode] ,[itmlst]

C Prototype

int sys$crelnm (unsigned int *attr, void *tabnam, void *lognam,unsigned char *acmode, void *itmlst);

Arguments

attr

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

Attributes to be associated with the logical name. Theattr argument is the 32-bit address (on VAX systems)or the 32- or 64-bit address (on Alpha systems) of a longword bit maskspecifying these attributes.

Each bit in the longword corresponds to an attribute and has a symbolicname. These symbolic names are defined by the $LNMDEF macro. To specifyan attribute, specify its symbolic name or set its corresponding bit.The longword bit mask is the logical OR of all desired attributes. Allundefined bits in the longword must be 0.

If you do not specify this argument or specify it as 0 (no bits set),no attributes are associated with the logical name.

The attributes are as follows:

Attribute	Description
LNM$M_CONFINE	If set, the logical name is not copied from the process to its spawned subprocesses. You create a subprocess with the DCL command SPAWN or the LIB$SPAWN Run-Time Library routine. If the logical name is placed into a process-private table that has the CONFINE attribute, the CONFINE attribute is automatically associated with the logical name. This applies only to process-private logical names.
LNM$M_NO_ALIAS	If set, the logical name cannot be duplicated in this table at an outer access mode. If another logical name with the same name already exists in the table at an outer access mode, it is deleted.

tabnam

OpenVMS usage:	logical_name
type:	character-coded text string
access:	read only
mechanism:	by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha)
mechanism:	by 32-bit descriptor--fixed-length string descriptor (VAX)

Name of the table in which to create the logical name. Thetabnam argument is the 32-bit address (on VAX systems)or the 32- or 64-bit address (on Alpha systems) of a descriptor thatpoints to the name of this table. This argument is required and must bespecified in uppercase.

The name must be entered in uppercase letters. (This requirementdiffers from the $CRELNT system service, which automatically changestabnam to uppercase.)

If tabnam is not the name of a logical name table, itis assumed to be a logical name and is translated iteratively untileither the name of a logical name table is found or the number oftranslations allowed by the system has been performed. Iftabnam translates to a list of logical name tables,the logical name is entered into the first table in the list.

lognam

OpenVMS usage:	logical_name
type:	character-coded text string
access:	read only
mechanism:	by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha)
mechanism:	by 32-bit descriptor--fixed-length string descriptor (VAX)

Name of the logical name to be created. The lognam argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha systems) of a descriptor that points to the logical name string.

Logical name strings of logical names created within either the systemor process directory table must consist of uppercase alphanumericcharacters, dollar signs ($), hyphens (-), and underscores (_); themaximum length is 31 characters. The maximum length of logical namestrings created within other tables is 255 characters with norestrictions on the types of characters that can be used. This argumentis required.

acmode

OpenVMS usage:	access_mode
type:	byte (unsigned)
access:	read only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

Access mode to be associated with the logical name. Theacmode argument is the 32-bit address (on VAX systems)or the 32- or 64-bit address (on Alpha systems) of a byte thatspecifies the access mode.

The access mode associated with the logical name is determined bymaximizing the access mode of the caller with the access modespecified by the acmode argument, which means that theless privileged of the two is used. Symbols for the four access modesare defined by the $PSLDEF macro.

You cannot specify an access mode more privileged than that of thecontaining table. However, if the caller has SYSNAM privilege, then thespecified access mode is associated with the logical name regardless ofthe access mode of the caller.

If you omit this argument or specify it as 0, the access mode of thecaller is associated with the logical name.

itmlst

OpenVMS usage:	32-bit item_list_3 or 64-bit item_list 64b
type:	longword (unsigned) for 32-bit; quadword (unsigned) for 64-bit
access:	read only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

Item list describing the equivalence names to be defined for thelogical name and information to be returned to the caller. Theitmlst argument is the 32-bit address (on VAX systems)or the 32- or 64-bit address (on Alpha systems) of a list of itemdescriptors, each of which specifies information about an equivalencename. An item list in 32-bit format is terminated by a longword of 0;an item list in 64-bit format is terminated by a quadword of 0. Allitems in an item list must be of the same format---either 32-bit or64-bit.

Note that it is possible to create a logical that has no equivalencenames. This is done by either omitting the itmlstargument to $CRELNM, or by not including the LNM$_STRING item code tothe itmlst data structure that is passed into $CRELNM.It is not possible to create this kind of logical using DCL.

The following diagram depicts the 32-bit format of a single itemdescriptor:

The following table defines the item descriptor fields for 32-bit itemlist entries:

The following diagram depicts the 64-bit format of a single itemdescriptor:

The following table defines the item descriptor fields for 64-bit itemlist entries:

Item Codes

LNM$_ATTRIBUTES

When you specify LNM$_ATTRIBUTES, the buffer address field of the itemdescriptor points to a longword bit mask that specifies the currenttranslation attributes for the logical name. The current translationattributes are applied to all subsequently specified equivalencestrings until another LNM$_ATTRIBUTES item descriptor is encountered inthe item list. The symbolic names for these attributes are defined bythe $LNMDEF macro. The symbolic name and description of each attributeare as follows:

Attribute	Description
LNM$M_CONCEALED	If set, OpenVMS RMS interprets the equivalence name as a device name or logical name with the LNM$M_CONCEALED attribute.
LNM$M_TERMINAL	If set, further iterative logical name translation on the equivalence name is not to be performed.

LNM$_CHAIN

When you specify LNM$_CHAIN, the buffer address field of the itemdescriptor points to another item list that $CRELNM is to processimmediately after it has processed the current item list.

If you specify the LNM$_CHAIN item code, it must be the last item codein the current item list.

You can chain together 32-bit and 64-bit item lists.

LNM$_STRING

When you specify LNM$_STRING, the buffer address field of the itemdescriptor points to a buffer containing a user-specified equivalencename for the logical name. The maximum length of the equivalence stringis 255 characters.

When $CRELNM encounters an item descriptor with the item codeLNM$_STRING, it creates an equivalence name entry for the logical nameusing the most recently specified values for LNM$_ATTRIBUTES. Theequivalence name entry includes the following information:

• Name specified by LNM$_STRING.
• Next available index value. Each equivalence is assigned a unique value from 0 to 127.
• Attributes specified by the most recently encountered item descriptor with item code LNM$_ATTRIBUTES (if these are present in the item list).

Therefore, you should construct the item list so that theLNM$_ATTRIBUTES item codes immediately precede the LNM$_STRING itemcode or codes to which they apply.

Note that it is possible to create a logical that has no equivalencenames. This is done by either omitting the itmlstargument to $CRELNM, or by not including the LNM$_STRING item code tothe itmlst data structure that is passed into $CRELNM.It is not possible to create this kind of logical using DCL.

LNM$_TABLE

When you specify LNM$_TABLE, the buffer address field of the itemdescriptor points to a buffer in which $CRELNM writes the name of thelogical name table in which it entered the logical name. The returnlength address field points to a word that contains a buffer thatspecifies the length in bytes of the information returned by $CRELNM.The maximum length of the name of a logical name table is 31 characters.

This item code can appear anywhere in the item list.

Description

The Create Logical Name service creates a logical name and specifiesits equivalence name. Note that logical names are case sensitive.

Required Access or Privileges

The calling process must have the following:

• Write access to shareable tables to create logical names in those tables
• GRPNAM or GRPPRV privilege to enter a logical name into the group logical name table
• SYSNAM or SYSPRV privilege to enter a logical name into the system logical name table

Required Quota

The quota for the specified logical name table must be sufficient forthe creation of the logical name.

Related Services

$CRELNT, $DELLNM, $TRNLNM

Condition Values Returned

SS$_NORMAL	The service completed successfully; the logical name has been created. However, if you attempted to create a new clusterwide logical name with the same access mode and identical equivalence names and attributes as an existing clusterwide logical name, this message indicates only that the service completed successfully. Because an identical clusterwide logical name already exists, and because a clusterwide update would adversely affect performance, the name is not created.
SS$_SUPERSEDE	The service completed successfully; the logical name has been created and a previously existing logical name with the same name has been deleted.
SS$_BUFFEROVF	The service completed successfully; the buffer length field in an item descriptor specified an insufficient value, so the buffer was not large enough to hold the requested data.
SS$_ACCVIO	The service cannot access the locations specified by one or more arguments.
SS$_BADPARAM	One or more arguments have an invalid value, or a logical name table name or logical name was not specified. Or, an item list containing both 32-bit and 64-bit item list entries was found.
SS$_DUPLNAM	An attempt was made to create a logical name with the same name as an already existing logical name, and the existing logical name was created at a more privileged access mode and with the LNM$M_NO_ALIAS attribute.
SS$_EXLNMQUOTA	The quota associated with the specified logical name table for the creation of the logical name is insufficient.
SS$_INSFMEM	The dynamic memory is insufficient for the creation of the logical name, or there is insufficient dynamic memory to build a message describing the creation of a clusterwide name.
SS$_IVLOGNAM	The tabnam argument, the lognam argument, or the equivalence string specifies a string whose length is not in the required range of 1 through 255 characters. The lognam argument specifies a string whose length is not in the required range of 1 to 31 characters for directory table entries.
SS$_IVLOGTAB	The tabnam argument does not specify a logical name table.
SS$_NOLOGTAB	Either the specified logical name table does not exist or the logical name translation of the table name exceeded the allowable depth of 10 translations.
SS$_NOPRIV	The caller lacks the necessary privilege to create the logical name.

Creates a process-private or shareable logical name table.

On Alpha systems, this service accepts 64-bit addresses.

Format

SYS$CRELNT [attr] ,[resnam] ,[reslen] ,[quota]
,[promsk] ,[tabnam],partab ,[acmode]

C Prototype

int sys$crelnt (unsigned int *attr, void *resnam, unsigned short int*reslen, unsigned int *quota, unsigned short int *promsk, void *tabnam,void *partab, unsigned char *acmode);

Arguments

attr

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

Attributes to affect the creation of the logical name table and to beassociated with the newly created logical name table. Theattr argument is the 32-bit address (on VAX systems)or the 32- or 64-bit address (on Alpha systems) of a longword bit maskspecifying these attributes.

Each bit in the longword corresponds to an attribute and has a symbolicname. These symbolic names are defined by the $LNMDEF macro. To specifyan attribute, specify its symbolic name or set its corresponding bit.The longword bit mask is the logical OR of all desired attributes. Allunused bits in the longword must be 0.

If you do not specify this argument or specify it as 0 (no bits set),no attributes are associated with the logical name table or affect thecreation of the new table.

The following table describes each attribute:

Attribute	Description
LNM$M_CONFINE	If set, the logical name table is not copied from the process to its spawned subprocesses. You create a subprocess with the DCL command SPAWN or the Run-Time Library LIB$SPAWN routine. You can specify this attribute only for process-private logical name tables; it is ignored for shareable tables.
	The state of this bit is also propagated from the parent table to the newly created table and can be overridden only if the parent table does not have the bit set. Thus, if the parent table has the LNM$M_CONFINE attribute, the newly created table will also have it, no matter what is specified in the attr argument. On the other hand, if the parent table does not have the LNM$M_CONFINE attribute, the newly created table can be given this attribute through the attr argument.
	The process-private directory table LNM$PROCESS_DIRECTORY does not have the LNM$M_CONFINE attribute.
LNM$M_CREATE_IF	This attribute applies to all types of logical name tables except clusterwide logical name tables. If set, a new logical name table is created only if the specified table name is not already entered at the specified access mode in the appropriate directory table. If the table name exists, a new table is not created and no modification is made to the existing table name. This holds true even if the existing name has differing attributes or quota values, or even if it is not the name of a logical name table. If LNM$M_CREATE_IF is not set, the new logical name table will supersede any existing table name with the same access mode within the appropriate directory table. Setting this attribute is useful when two or more users want to create and use the same table but do not want to synchronize its creation. Regardless of the setting of LNM$M_CREATE_IF: You cannot create a new clusterwide logical name table with the same name and the same mode as an existing clusterwide logical name table until you delete the existing one. If you specify a new clusterwide logical name table with the same name and access mode as an existing local logical name table, the new clusterwide logical name table is created, and the local table and its logical names are deleted.
LNM$M_NO_ALIAS	If set, the name of the logical name table cannot be duplicated at an outer access mode within the appropriate directory table. If this name already exists at an outer access mode, it is deleted.

resnam

OpenVMS usage:	logical_name
type:	character-coded text string
access:	write only
mechanism:	by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha)
mechanism:	by 32-bit descriptor--fixed-length string descriptor (VAX)

Name of the newly created logical name table, returned by $CRELNT. Theresnam argument is the 32-bit address (on VAX systems)or the 32- or 64-bit address (on Alpha systems) of a descriptorpointing to this name. The name is a character string whose maximumlength is 31 characters.

reslen

OpenVMS usage:	word_unsigned
type:	word (unsigned)
access:	write only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

Length in bytes of the name of the newly created logical name table,returned by $CRELNT. The reslen argument is the 32-bitaddress (on VAX systems) or the 32- or 64-bit address (on Alphasystems) of a word to receive this length.

quota

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	read only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

Maximum number of bytes of memory to be allocated for logical namescontained in this logical name table. The quotaargument is the 32-bit address (on VAX systems) or the 32- or 64-bitaddress (on Alpha systems) of a longword specifying this value.

If you specify no quota value, the logical name table has an infinitequota. Note that a shareable table created with infinite quota permitsusers with write access to that table to consume system dynamic memorywithout limit.

promsk

OpenVMS usage:	file_protection
type:	word (unsigned)
access:	read only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

Protection mask to be associated with the newly created shareablelogical name table. The promsk argument is the 32-bitaddress (on VAX systems) or the 32- or 64-bit address (on Alphasystems) of a word that contains a value that represents four 4-bitfields. Each field grants or denies the type of access, either delete,create, write, or read, allowed for system, owner, group, and worldusers.

The following diagram depicts these protection bits:

Create access is required to create a shareable table within anothershareable table.

Each field consists of 4 bits specifying protection for the logicalname table. The remaining bits in the protection mask are as follows:

• Read privileges allow access to names in the logical name table.
• Write privileges allow creation and deletion of names within the logical name table.
• Delete privileges allow deletion of the logical name table.

If a bit is clear, access is granted.

The initial security profile for any shared logical name table is takenfrom the logical name table template. The owner is then set to theprocess UIC and, if the promsk argument is nonzero,that value replaces the protection mask.

tabnam

This argument is required for clusterwide logical name tables. For allother logical name tables, if you do not specify this argument, adefault name in the format LNM$xxxx is used, wherexxxx is a unique hexadecimal number.

You need SYSPRV privilege or write access to LNM$SYSTEM_DIRECTORY tospecify the name of a shareable logical name table.

partab

If the parent table is shareable, then the newly created table isshareable and is entered into the system directoryLNM$SYSTEM_DIRECTORY. If the parent table is process-private, then thenewly created table is process-private and is entered in the processdirectory LNM$PROCESS_DIRECTORY.

You need SYSPRV privilege or write access to the system directory tableto create a named shareable table. This argument is required.

acmode

If you do not specify the acmode argument or specifyit as 0, the access mode of the caller is associated with the newlycreated logical name table.

The access mode associated with the logical name table is determined bymaximizing the access mode of the caller with the access modespecified by the acmode. The less privileged of thetwo access modes is used.

However, if the caller has SYSNAM privilege, then the specified accessmode is associated with the logical name table, regardless of theaccess mode of the caller.

Access modes associated with logical name tables govern logical nametable processing and provide a protection mechanism that prevents thedeletion of inner access mode logical name tables by nonprivilegedusers. You cannot specify an access mode more privileged than that ofthe parent table.

A logical name table with supervisor mode access can contain supervisormode and user mode logical names and can be a parent to supervisor modeand user mode logical name tables, but cannot contain executive orkernel mode logical names or be a parent to executive or kernel modelogical name tables.

You need SYSNAM privilege to specify executive or kernel mode accessfor a logical name table.

Description

The Create Logical Name Table service creates a process-private or ashareable logical name table.

The $CRELNT service uses the following system resources:

• System paged dynamic memory to create a shareable logical name table
• Process dynamic memory to create a process-private logical name table

The parent table governs whether the new table is process-private orshareable. If the parent table is process-private, so is the new table;if the parent table is shareable, so is the new table.

Note that logical names are case sensitive.

Required Access or Privileges

Create access to the parent table and either SYSPRV privilege or writeaccess to the system directory table are required.

You need the SYSNAM privilege to create a table at an access mode moreprivileged than that of the calling process.

Required Quota

The parent table must have sufficient quota for the creation of the newtable.

Related Services

$CRELNM, $DELLNM, $TRNLNM

Condition Values Returned

SS$_NORMAL	The service completed successfully; the logical name table already exists.
SS$_LNMCREATED	The service completed successfully; the logical name table was created.
SS$_SUPERSEDE	The service completed successfully; the logical name table was created and its logical name superseded the already existing logical names in the directory table.
SS$_ACCVIO	The service cannot access the locations specified by one or more arguments.
SS$_BADPARAM	One or more arguments have an invalid value, or a parent logical name table was not specified.
SS$_DUPLNAM	You attempted to create a logical name table with the same name as an already existing name within the appropriate directory table, and the existing name was created at a more privileged access mode with the LNM$M_NO_ALIAS attribute.
SS$_EXLNMQUOTA	The parent table has insufficient quota for the creation of the new table.
SS$_INSFMEM	The dynamic memory is insufficient for the creation of the table, or there is insufficient dynamic memory to build a message describing the creation of a clusterwide logical name table.
SS$_IVLOGNAM	The partab argument specifies a string whose length is not within the required range of 1 to 31 characters.
SS$_IVLOGTAB	The tabnam argument is not alphanumeric or specifies a string whose length is not within the required range of 1 to 31 characters, or the TABNAM argument is omitted from a clusterwide $CRELNT call.
SS$_NOLOGTAB	The parent logical name table does not exist.
SS$_NOPRIV	The caller lacks the necessary privilege to create the table.
SS$_PARENT_DEL	The creation of the new table would have resulted in the deletion of the parent table.
SS$_RESULTOVF	The table name buffer is not large enough to contain the name of the new table.

Creates a virtual mailbox device named MBAn and assigns an I/Ochannel to it. The system provides the unit number n when itcreates the mailbox. If a logical name is specified and a mailbox withthe specified name already exists, the $CREMBX service assigns achannel to the existing mailbox.

Format

SYS$CREMBX [prmflg] ,chan ,[maxmsg] ,[bufquo] ,[promsk] ,[acmode],[lognam] ,[flags] ,[nullarg]

C Prototype

int sys$crembx (char prmflg, unsigned short int *chan, unsigned intmaxmsg, unsigned int bufquo, unsigned int promsk, unsigned int acmode,void *lognam,...);

Arguments

prmflg

OpenVMS usage:	boolean
type:	longword (unsigned)
access:	read only
mechanism:	by value

Indicator specifying whether the created mailbox is to be permanent ortemporary. The prmflg argument is a longword value.The value 1 specifies a permanent mailbox; the value 0, which is thedefault, specifies a temporary mailbox. Any other values result in anerror.

chan

OpenVMS usage:	channel
type:	word
access:	write only
mechanism:	by reference

Channel number assigned by $CREMBX to the mailbox. Thechan argument is the address of a word into which$CREMBX writes the channel number.

maxmsg

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	read only
mechanism:	by value

Maximum size (in bytes) of a message that can be sent to the mailbox.The maxmsg argument is a longword value containingthis size.

The maximum value you can specify for the maxmsgargument is 65535. If you do not specify a value or specify the valueas 0, the operating system provides a default value from theDEFMBXBUFQUO system parameter.

bufquo

OpenVMS usage:	longword_unsigned
type:	longword (unsigned)
access:	read only
mechanism:	by value

Number of bytes of system dynamic memory that can be used to buffermessages sent to the mailbox. The bufquo argument is avalue containing this number. If you do not specify thebufquo argument or specify it as 0, the operatingsystem provides a default value from the DEFMBXBUFQUO system parameter.

For a temporary mailbox, this value must be less than or equal to theprocess buffer quota.

Note that as of Version 7.3-1, the maximum value limit for thebufquo argument is the amount of available non-pagedpool.

promsk

OpenVMS usage:	file_protection
type:	longword (unsigned)
access:	read only
mechanism:	by value

Protection mask to be associated with the created mailbox. Thepromsk argument is a longword value that is thecombined value of the bits set in the protection mask. Cleared bitsgrant access and set bits deny access to each of the four classes ofuser: world, group, owner, and system. The following diagram depictsthese protection bits:
