OpenVMS System Services Reference Manual
$ASSIGN
Provides a process with an I/O channel so input/output operations can
be performed on a device, or establishes a logical link with a remote
node on a network.
On Alpha systems, this service accepts 64-bit addresses.
Format
SYS$ASSIGN devnam ,chan ,[acmode] ,[mbxnam] ,[flags]
C Prototype
int sys$assign (void *devnam, unsigned short int *chan, unsigned int
acmode, void *mbxnam,...);
Arguments
devnam
| OpenVMS usage: |
device_name |
| type: |
character-coded text string |
| access: |
read only |
| mechanism: |
by 32- or 64-bit descriptor--fixed-length string descriptor
(Alpha) |
| mechanism: |
by 32-bit descriptor--fixed-length string descriptor
(VAX) |
Name of the device to which $ASSIGN is to assign a channel. The
devnam argument is the 32- or 64-bit address (on Alpha
systems) or the 32-bit address (on VAX systems) of a character string
descriptor pointing to the device name string.
If the device name contains a double colon (::), the system assigns a
channel to the first available network device (NET:) and performs an
access function on the network.
chan
| OpenVMS usage: |
channel |
| type: |
word (unsigned) |
| access: |
write only |
| mechanism: |
by 32- or 64-bit reference (Alpha) |
| mechanism: |
by 32-bit reference (VAX) |
Number of the channel that is assigned. The chan
argument is the 32- or 64-bit address (on Alpha systems) or the 32-bit
address (on VAX systems) of a word into which $ASSIGN writes the
channel number.
acmode
| OpenVMS usage: |
access_mode |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by value |
Access mode to be associated with the channel. The
acmode argument specifies the access mode. The $PSLDEF
macro defines the following symbols for the four access modes:
| Symbol |
Access Mode |
Numeric Value |
|
PSL$C_KERNEL
|
Kernel
|
0
|
|
PSL$C_EXEC
|
Executive
|
1
|
|
PSL$C_SUPER
|
Supervisor
|
2
|
|
PSL$C_USER
|
User
|
3
|
The specified access mode and the access mode of the caller are
compared. The less privileged (but the higher numeric valued) of the
two access modes becomes the access mode associated with the assigned
channel. I/O operations on the channel can be performed only from equal
and more privileged access modes. For more information, refer to the
section on access modes in the OpenVMS Programming Concepts Manual.
mbxnam
| OpenVMS usage: |
device_name |
| type: |
character-coded text string |
| access: |
read only |
| mechanism: |
by 32- or 64-bit descriptor--fixed-length string descriptor
(Alpha) |
| mechanism: |
by 32-bit descriptor--fixed-length string descriptor
(VAX) |
Logical name of the mailbox to be associated with the device. The
mbxnam argument is the 32- or 64-bit address (on Alpha
systems) or the 32-bit address (on VAX systems) of a character string
descriptor pointing to the logical name string.
If you specify mbxnam as 0, no mailbox is associated
with the device. This is the default.
You must specify the mbxnam argument when performing a
nontransparent, task-to-task, network operation.
Only the owner of a device can associate a mailbox with the device; the
owner of a device is the process that has allocated the device, whether
implicitly or explicitly. Only one mailbox can be associated with a
device at any one time.
For unshareable, nonspooled devices, an implicit $ALLOCATE is done.
This requires read, write, or control access to the device.
A mailbox cannot be associated with a device if the device has foreign
(DEV$M_FOR) or shareable (DEV$M_SHR) characteristics.
A mailbox is disassociated from a device when the channel that
associated it is deassigned.
If a mailbox is associated with a device, the device driver can send
status information to the mailbox. For example, if the device is a
terminal, this information might indicate dialup, hangup, or the
reception of unsolicited input; if the device is a network device, it
might indicate that the network is connected or perhaps that the line
is down.
For details on the nature and format of the information returned to the
mailbox, refer to the OpenVMS I/O User's Reference Manual.
flags
| OpenVMS usage: |
mask_longword |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by value |
An optional device-specific argument. The flags
argument is a longword bit mask.
For more information on the applicability of the flags
argument for a particular device, refer to the OpenVMS I/O User's Reference Manual.
Description
The Assign I/O Channel service provides a process with an I/O channel
so input/output operations can be performed on a device. This service
also establishes a logical link with a remote node on a network.
Channels remain assigned until they are explicitly deassigned with the
Deassign I/O Channel ($DASSGN) service or, if they are user-mode
channels, until the image that assigned the channel exits.
The $ASSIGN service establishes a path to a device but does not check
whether the caller can actually perform input/output operations to the
device. Privilege and protection restrictions can be applied by the
device drivers.
Required Access or Privileges
The calling process must have NETMBX privilege to perform network
operations, and system dynamic memory is required if the target device
is on a remote system.
Note that you should use the SHARE privilege with caution.
Applications, application protocols, and device drivers coded to expect
only exclusive access can encounter unexpected and errant behavior when
access to the device is unexpectedly shared. Unless the SHARE privilege
is explicitly supported by the application, the application protocol,
and the device driver, its use is generally discouraged. Refer to the
OpenVMS Programming Concepts Manual for additional information.
Required Quota
If the target of the assignment is on a remote node, the process needs
sufficient buffer quota to allocate a network control block.
Related Services
$ALLOC, $BRKTHRU, $BRKTHRUW, $CANCEL, $CREMBX, $DALLOC, $DASSGN,
$DELMBX, $DEVICE_SCAN, $DISMOU, $GETDVI, $GETDVIW, $GETMSG, $GETQUI,
$GETQUIW, $INIT_VOL, $MOUNT, $PUTMSG, $QIO, $QIOW, $SNDERR, $SNDJBC,
$SNDJBCW, $SNDOPR
Condition Values Returned
|
SS$_NORMAL
|
The service completed successfully.
|
|
SS$_REMOTE
|
The service completed successfully. A logical link is established with
the target on a remote node.
|
|
SS$_ABORT
|
A physical line went down during a network connect operation.
|
|
SS$_ACCVIO
|
The device or mailbox name string or string descriptor cannot be read
by the caller, or the channel number cannot be written by the caller.
|
|
SS$_CONNECFAIL
|
For network operations, the connection to a network object timed out or
failed.
|
|
SS$_DEVACTIVE
|
You specified a mailbox name, but a mailbox is already associated with
the device.
|
|
SS$_DEVALLOC
|
The device is allocated to another process.
|
|
SS$_DEVNOTMBX
|
You specified a logical name for the associated mailbox, but the
logical name refers to a device that is not a mailbox.
|
|
SS$_DEVOFFLINE
|
For network operations, the physical link is shutting down.
|
|
SS$_EXQUOTA
|
The target of the assignment is on a remote node and the process has
insufficient buffer quota to allocate a network control block.
|
|
SS$_FILALRACC
|
For network operations, a logical link already exists on the channel.
|
|
SS$_INSFMEM
|
The target of the assignment is on a remote node and there is
insufficient system dynamic memory to complete the request.
|
|
SS$_INVLOGIN
|
For network operations, the access control information was found to be
invalid at the remote node.
|
|
SS$_IVDEVNAM
|
No device name was specified, the logical name translation failed, or
the device or mailbox name string contains invalid characters. If the
device name is a target on a remote node, this status code indicates
that the network connect block has an invalid format.
|
|
SS$_IVLOGNAM
|
The device or mailbox name string has a length of 0 or has more than 63
characters.
|
|
SS$_LINKEXIT
|
For network operations, the network partner task was started, but
exited before confirming the logical link (that is, $ASSIGN to SYS$NET).
|
|
SS$_NOIOCHAN
|
No I/O channel is available for assignment.
|
|
SS$_NOLINKS
|
For network operations, no logical links are available. The maximum
number of logical links as set for the Network Control Program (NCP)
executor MAXIMUM LINKS parameter was exceeded.
|
|
SS$_NOPRIV
|
For network operations, the issuing task does not have the required
privilege to perform network operations or to confirm the specified
logical link.
|
|
SS$_NOSUCHDEV
|
The specified device or mailbox does not exist, or, for DECnet for
OpenVMS operations, the network device driver is not loaded (for
example, the DECnet for OpenVMS software is not currently running on
the local node).
|
|
SS$_NOSUCHNODE
|
The specified network node is nonexistent or unavailable.
|
|
SS$_NOSUCHOBJ
|
For network operations, the network object number is unknown at the
remote node; for a TASK= connect, the named DCL command procedure file
cannot be found at the remote node.
|
|
SS$_NOSUCHUSER
|
For network operations, the remote node could not recognize the login
information supplied with the connection request.
|
|
SS$_PROTOCOL
|
For network operations, a network protocol error occurred, most likely
because of a network software error.
|
|
SS$_REJECT
|
The network connect was rejected by the network software or by the
partner at the remote node, or the target image exited before the
connect confirm could be issued.
|
|
SS$_REMRSRC
|
For network operations, the link could not be established because
system resources at the remote node were insufficient.
|
|
SS$_SHUT
|
For network operations, the local or remote node is no longer accepting
connections.
|
|
SS$_THIRDPARTY
|
For network operations, the logical link connection was terminated by a
third party (for example, the system manager).
|
|
SS$_TOOMUCHDATA
|
For network operations, the task specified too much optional or
interrupt data.
|
|
SS$_UNREACHABLE
|
For network operations, the remote node is currently unreachable.
|
$AUDIT_EVENT
Appends an event message to the system security audit log file or sends
an alarm to a security operator terminal.
Format
SYS$AUDIT_EVENT [efn] ,[flags] ,itmlst ,[audsts] ,[astadr] ,[astprm]
C Prototype
int sys$audit_event (unsigned int efn, unsigned int flags, void
*itmlst, unsigned int *audsts, void (*astadr)(__unknown_params), int
astprm);
Arguments
efn
| OpenVMS usage: |
ef_number |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by value |
Number of the event flag to be set when the audit completes. The
efn argument is a longword containing the number of
the event flag; however, $AUDIT_EVENT uses only the low-order byte. If
efn is not specified, event flag 0 is used.
Upon request initiation, $AUDIT_EVENT clears the specified event flag.
flags
| OpenVMS usage: |
mask_longword |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by value |
Flags specifying options for the $AUDIT_EVENT system operation. The
flags argument is a longword bit mask, where each bit
corresponds to an option.
Each flag option has a symbolic name. The $NSADEF macro defines the
following symbolic names:
| Symbolic Name |
Description |
|
NSA$M_ACL
|
Specifies an event generated by an Alarm ACE or Audit ACE. This flag is
reserved to Compaq.
|
|
NSA$M_FLUSH
|
Specifies that all messages in the audit server buffer be written to
the audit log file.
|
|
NSA$M_INTERNAL
|
Specifies that the $AUDIT_EVENT call originates in the context of a
trusted computing base (TCB) component. The auditing components use
this flag to indicate that internal auditing failures should result in
a SECAUDTCB bugcheck. This flag is reserved to Compaq.
|
|
NSA$M_MANDATORY
|
Specifies that an audit is to be performed, regardless of system alarm
and audit settings.
|
|
NSA$M_NOEVTCHECK
|
Specifies that an audit is to be performed, regardless of the system
alarm or audit settings. This flag is similar to the NSA$M_MANDATORY
bit but, unlike the NSA$M_MANDATORY bit, this flag is not reflected in
the NSA$W_FLAGS field in the resulting audit record on disk.
|
|
NSA$M_SERVER
|
Indicates that the call originates in a TCB server process and that the
event should be audited regardless of the state of a process-specific,
no-audit bit.
Trusted servers use this flag to override the no-audit bit when
they want to perform explicit auditing on behalf of a client process.
This flag is reserved to Compaq.
|
itmlst
| OpenVMS usage: |
item_list_3 |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by reference |
Item list specifying information to include in the audit record. The
itmlst argument is the address of a list of item
descriptors. The list of item descriptors is terminated by a longword
of 0.
The item list for all calls to $AUDIT_EVENT must include the following
item codes:
- NSA$_EVENT_TYPE (see Table SYS-2)
- NSA$_EVENT_SUBTYPE (see Table SYS-2)
- At least one of the NSA$_ALARM_NAME item code or the
NSA$_AUDIT_NAME item code.
- If the event being reported is an object access
(NSA$C_MSG_OBJ_ACCESS) or an object delete (NSA$C_MSG_OBJ_DELETE), the
NSA$_FINAL_STATUS, NSA$_ACCESS_DESIRED, and NSA$_OBJECT_CLASS item
codes must be specified.
- If the event being reported is an object create
(NSA$C_MSG_OBJ_CREATE), the NSA$_FINAL_STATUS and NSA$_OBJECT_CLASS
item codes must be specified.
- If the event being reported is a privilege audit
(NSA$C_MSG_PRVAUD), the NSA$_PRIVS_USED or the NSA$_PRIVS_MISSING item
code must be specified.
- If the audit event being reported is a deaccess event
(NSA$C_MSG_OBJ_DEACCESS), the NSA$_OBJECT_CLASS item code must be
specified.

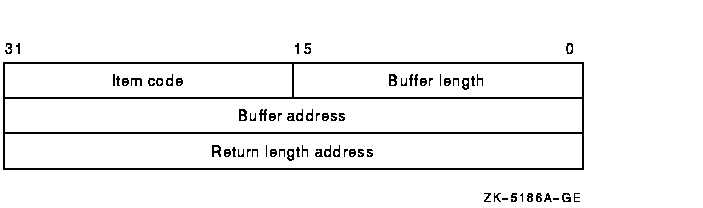

The item list is a standard format item list. The following diagram
depicts the general structure of an item descriptor:
The following table defines the item descriptor fields:
| Descriptor Field |
Definition |
|
Buffer length
|
A word specifying the length (in bytes) of the buffer; the buffer
supplies information to be used by $AUDIT_EVENT. The required length of
the buffer varies, depending on the item code specified; each item code
description specifies the required length.
|
|
Item code
|
A word containing a symbolic code describing the nature of the
information currently in the buffer. The location of the buffer is
pointed to by the buffer address field. Each item code has a symbolic
name. This section provides a detailed description of item codes
following the description of arguments.
|
|
Buffer address
|
A longword containing the address of the buffer that specifies the
information.
|
|
Return length address
|
Not currently used; this field is reserved to Compaq. You must specify
0.
|
See the Item Codes section for a description of the $AUDIT_EVENT item
codes.
audsts
| OpenVMS usage: |
cond_value_type |
| type: |
longword (unsigned) |
| access: |
write only |
| mechanism: |
by reference |
Longword condition value that receives the final completion status from
the operation. If a security audit is required, the final completion
status represents either the successful completion of the resulting
security audit or any failing status that occurred while the security
audit was performed within the audit server process.
The audsts argument is valid only when the service
returns success and the status is not SS$_EVTNOTENAB. In addition, the
caller must either make use of the astadr argument or
use the $AUDIT_EVENTW service before attempting to access
audsts.
astadr
| OpenVMS usage: |
ast_procedure |
| type: |
procedure value |
| access: |
call without stack unwinding |
| mechanism: |
by reference |
Asynchronous system trap (AST) routine to be executed after the
audsts is updated. The astadr
argument, which is the address of a longword value, is the procedure
value of the AST routine.
The AST routine executes in the access mode of the caller of
$AUDIT_EVENT.
astprm
| OpenVMS usage: |
user_arg |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by value |
Asynchronous system trap (AST) parameter passed to the AST service
routine. The astprm argument is a longword value
containing the AST parameter.
Item Codes This section provides a list of item codes that can be used
to affect auditing.
NSA$_ALARM_NAME
NSA$_ALARM_NAME is a string of 1 to 32 characters specifying an alarm
journal name to receive the record. To direct an event to the system
alarm journal (that is, all enabled security operator terminals), use
the string SECURITY.
NSA$_AUDIT_NAME
NSA$_AUDIT_NAME is a string of 1 to 65 characters specifying the
journal file to receive the audit record. To direct an event to the
system audit journal, use the string SECURITY.
NSA$_CHAIN
NSA$_CHAIN is a longword value specifying the item list to process
immediately after the current one. The buffer address field in the item
descriptor specifies the address of the next item list to be processed.
Anything after NSA$_CHAIN is ignored.
NSA$_EVENT_FACILITY
NSA$_EVENT_FACILITY is a word value specifying the facility generating
the event. All operating system events are audited as facility zero.
NSA$_EVENT_SUBTYPE
NSA$_EVENT_SUBTYPE is a longword value specifying an event message
subtype. See Table SYS-2 for a list of valid event subtypes.
NSA$_EVENT_TYPE
NSA$_EVENT_TYPE is a longword value specifying an event message type.
See Table SYS-2 for a list of valid event types.
Table SYS-2 Description of$AUDIT_EVENT Types and Subtypes
| Symbol of Event Type |
Meaning |
|
NSA$C_MSG_AUDIT
|
Systemwide change to auditing
|
Subtype and Meaning
NSA$C_AUDIT_DISABLED
NSA$C_AUDIT_ENABLED
NSA$C_AUDIT_INITIATE
NSA$C_AUDIT_TERMINATE
NSA$C_AUDIT_LOG_FINAL
NSA$C_AUDIT_LOG_FIRST
|
Audit events disabled
Audit events enabled
Audit server startup
Audit server shutdown
Final entry in audit log (forward link)
First entry in audit log (backward link)
|
|
|
|
|
NSA$C_MSG_BREAKIN
|
Break-in attempt detected
|
Subtype and Meaning
NSA$C_DETACHED
NSA$C_DIALUP
NSA$C_LOCAL
NSA$C_NETWORK
NSA$C_REMOTE
|
Detached process
Dialup interactive process
Local interactive process
Network server process
Interactive process from another network node
|
|
|
|
|
NSA$C_MSG_CONNECTION
|
Logical link connection or termination
|
Subtype and Meaning
NSA$C_CNX_ABORT
NSA$C_CNX_ACCEPT
NSA$C_CNX_DECNET_CREATE
NSA$C_CNX_DECNET_DELETE
NSA$C_CNX_DISCONNECT
NSA$C_CNX_IPC_CLOSE
NSA$C_CNX_IPC_OPEN
NSA$C_CNX_REJECT
NSA$C_CNX_REQUEST
NSA$C_CNX_INC_REQUEST
NSA$C_CNX_INC_ACCEPT
NSA$C_CNX_INC_REJECT
NSA$C_CNX_INC_DISCONNECT
NSA$C_CNX_INC_ABORT
|
Connection aborted
Connection accepted
DECnet for OpenVMS logical link created
DECnet for OpenVMS logical link disconnected
Connection disconnected
Interprocess communication association closed
Interprocess communication association opened
Connection rejected
Connection requested
Incoming connection requested
Incoming connection accepted
Incoming connection rejected
Incoming connection disconnected
Incoming connection aborted
|
|
|
|
|
NSA$C_MSG_INSTALL
|
Use of the Install utility (INSTALL)
|
Subtype and Meaning
NSA$C_INSTALL_ADD
NSA$C_INSTALL_REMOVE
|
Known image installed
Known image deleted
|
|
|
|
|
NSA$C_MSG_LOGFAIL
|
Login failure
|
Subtype and Meaning
NSA$C_BATCH
NSA$C_DETACHED
NSA$C_DIALUP
NSA$C_LOCAL
NSA$C_NETWORK
NSA$C_REMOTE
NSA$C_SUBPROCESS
|
Batch process
Detached process
Dialup interactive process
Local interactive process
Network server process
Interactive process from another network node
Subprocess
|
|
|
|
|
NSA$C_MSG_LOGIN
|
Successful login
|
Subtype and Meaning
See subtypes for NSA$C_MSG_
LOGFAIL
|
|
|
|
|
|
NSA$C_MSG_LOGOUT
|
Successful logout
|
Subtype and Meaning
See subtypes for NSA$C_MSG_
LOGFAIL
|
|
|
|
|
|
NSA$C_MSG_MOUNT
|
Volume mount or dismount
|
Subtype and Meaning
NSA$C_VOL_DISMOUNT
NSA$C_VOL_MOUNT
|
Volume dismount
Volume mount
|
|
|
|
|
NSA$C_MSG_NCP
|
Modification to network configuration database
|
Subtype and Meaning
NSA$C_NCP_COMMAND
|
Network Control Program (NCP) command issued
|
|
|
|
|
NSA$C_MSG_NETPROXY
|
Modification to network proxy database
|
Subtype and Meaning
NSA$C_NETPROXY_ADD
NSA$C_NETPROXY_DELETE
NSA$C_NETPROXY_MODIFY
|
Record added to network proxy database
Record removed from network proxy database
Record modified in network proxy database
|
|
|
|
|
NSA$C_MSG_OBJ_ACCESS
|
Object access attempted
|
Subtype and Meaning
NSA$C_OBJ_ACCESS
|
Object access attempted
|
|
|
|
|
NSA$C_MSG_OBJ_CREATE
|
Object created
|
Subtype and Meaning
NSA$C_OBJ_CREATE
|
Object created
|
|
|
|
|
NSA$C_MSG_OBJ_DEACCESS
|
Object deaccessed
|
Subtype and Meaning
NSA$C_OBJ_DEACCESS
|
Object deaccessed
|
|
|
|
|
NSA$C_MSG_OBJ_DELETE
|
Object deleted
|
Subtype and Meaning
NSA$C_OBJ_DELETE
|
Object deleted
|
|
|
|
|
NSA$C_MSG_PROCESS
|
Process control system service issued
|
Subtype and Meaning
NSA$C_PRC_CANWAK
NSA$C_PRC_CREPRC
NSA$C_PRC_DELPRC
NSA$C_PRC_FORCEX
NSA$C_PRC_GETJPI
NSA$C_PRC_GRANTID
NSA$C_PRC_RESUME
NSA$C_PRC_REVOKID
NSA$C_PRC_SCHDWK
NSA$C_PRC_SETPRI
NSA$C_PRC_SIGPRC
NSA$C_PRC_SUSPND
NSA$C_PRC_WAKE
NSA$C_PRC_PRCTERM
|
Process wakeup canceled
Process created
Process deleted
Process exit forced
Process information gathered
Process identifier granted
Process resumed
Process identifier revoked
Process wakeup scheduled
Process priority altered
Process exception issued
Process suspended
Process wakeup issued
Process termination notification requested
|
|
|
|
|
NSA$C_MSG_PRVAUD
|
Attempt to use privilege
|
Subtype and Meaning
NSA$C_PRVAUD_FAILURE
NSA$C_PRVAUD_SUCCESS
|
Unsuccessful use of privilege
Successful use of privilege
|
|
|
|
|
NSA$C_MSG_RIGHTSDB
|
Modification to rights database
|
Subtype and Meaning
NSA$C_RDB_ADD_ID
NSA$C_RDB_CREATE
NSA$C_RDB_GRANT_ID
NSA$C_RDB_MOD_HOLDER
NSA$C_RDB_MOD_ID
NSA$C_RDB_REM_ID
NSA$C_RDB_REVOKE_ID
|
Identifier added to rights database
Rights database created
Identifier given to user
List of identifier holders modified
Identifier name or attributes modified
Identifier removed from rights database
Identifier revoked from user
|
|
|
|
|
NSA$C_MSG_SYSGEN
|
Modification of a system parameter using the System Generation utility
(SYSGEN)
|
Subtype and Meaning
NSA$C_SYSGEN_SET
|
System parameter modified
|
|
|
|
|
NSA$C_MSG_SYSTIME
|
Modification to system time
|
Subtype and Meaning
NSA$C_SYSTIM_SET
NSA$C_SYSTIM_CAL
|
System time set
System time calibrated
|
|
|
|
|
NSA$C_MSG_SYSUAF
|
Modification to system user authorization file (SYSUAF)
|
Subtype and Meaning
NSA$C_SYSUAF_ADD
NSA$C_SYSUAF_COPY
NSA$C_SYSUAF_DELETE
NSA$C_SYSUAF_MODIFY
NSA$C_SYSUAF_RENAME
|
Record added to SYSUAF
Record copied in SYSUAF
Record deleted from SYSUAF
Record modified in SYSUAF
Record renamed in SYSUAF
|
NSA$_FIELD_NAME
NSA$_FIELD_NAME is a string of 1 to 256 characters specifying the name
of the field being modified. This is used in combination with
NSA$_ORIGINAL_DATA and NSA$_NEW_DATA.
NSA$_MESSAGE
NSA$_MESSAGE specifies a system message code. The $FORMAT_AUDIT service
will use the $GETMSG service to translate the message into text. The
resulting text is inserted into the formatted audit message, with the
"Event information:" prefix. For example, the operating
system uses this item code to supply the privilege audit text
associated with privilege audit events; this keeps the audit records
small. By default, the $GETMSG service can only translate resident
system messages. You can use the NSA$_MSGFILNAM item code to specify
the name of an application or site-specific message file.
NSA$_MSGFILNAM
NSA$_MSGFILNAM is a string of 1 to 255 characters specifying the
message file containing the translation for the message code in
NSA$_MESSAGE. The default file specification is SYS$MESSAGE:.EXE. By
default, $FORMAT_AUDIT uses the resident system message file.
NSA$_NEW_DATA
NSA$_NEW_DATA is a string of 1 to n characters specifying the
contents of the field named in NSA$_FIELD_NAME after the event
occurred. NSA$_ORIGINAL_DATA contains the field contents prior to the
event.
NSA$_NOP
NSA$_NOP specifies that the item list entry should be ignored. This
item code allows you to build a static item list and then remove those
entries that do not apply to the current event.
NSA$_ORIGINAL_DATA
NSA$_ORIGINAL_DATA is a string of 1 to n characters specifying
the contents of the field named in NSA$_FIELD_NAME before the event
occurred. NSA$_NEW_DATA contains the field contents following the event.
NSA$_SENSITIVE_FIELD_NAME
NSA$_SENSITIVE_FIELD_NAME is a string of 1 to 256 characters specifying
the name of the field being modified. This is used in combination with
NSA$_SENSITIVE_ORIG_DATA and NSA$_SENSITIVE_NEW_DATA. Use
NSA$_SENSITIVE_FIELD_NAME to prevent sensitive information, such as
passwords, from being displayed in an alarm message. Sensitive
information is written to the audit log.
NSA$_SENSITIVE_NEW_DATA
NSA$_SENSITIVE_NEW_DATA is a string of 1 to n characters
specifying the contents of the field named in NSA$_SENSITIVE_FIELD_NAME
after the event occurred. NSA$_SENSITIVE_ORIG_DATA contains the field
contents prior to the event. Use NSA$_SENSITIVE_NEW_DATA to prevent
sensitive information from being displayed in an alarm message.
Sensitive information is written to the audit log.
NSA$_SENSITIVE_ORIG_DATA
NSA$_SENSITIVE_ORIG_DATA is a string of 1 to n characters
specifying the contents of the field named in NSA$_SENSITIVE_FIELD_NAME
before the event occurred. NSA$_SENSITIVE_NEW_DATA contains the field
contents following the event. Use NSA$_SENSITIVE_FIELD_NAME to prevent
sensitive information from being displayed in an alarm message.
Sensitive information is written to the audit log.
NSA$_SUPPRESS
NSA$_SUPPRESS is a longword bit mask directing $AUDIT_EVENT to ignore
the defaults for the following values and either omit the information
from the event record or use the value provided in another parameter.
The bits in the mask inhibit the use of default values for the
following item codes:
|
NSA$V_ACCOUNT_NAME
|
NAS$V_PROCESS_NAME
|
|
NSA$V_FINAL_STATUS
|
NSA$V_SUBJECT_CLASS
|
|
NSA$V_IMAGE_NAME
|
NSA$V_SUBJECT_OWNER
|
|
NSA$V_PARENT_ID
|
NSA$V_SYSTEM_ID
|
|
NSA$V_PARENT_NAME
|
NSA$V_SYSTEM_OWNER
|
|
NSA$V_PARENT_OWNER
|
NSA$V_TERMINAL
|
|
NSA$V_PARENT_USERNAME
|
NSA$V_TIME_STAMP
|
|
NSA$V_PROCESS_ID
|
NSA$V_USERNAME
|
|
