SMG$GET_PASTING_INFO
Provided that the specified virtual display is currently pasted, the
Return Pasting Information routine returns the row and column of the
pasting.
Format
SMG$GET_PASTING_INFO display-id ,pasteboard-id ,flags [,pasteboard-row]
[,pasteboard-column]
RETURNS
| OpenVMS usage: |
cond_value |
| type: |
longword (unsigned) |
| access: |
write only |
| mechanism: |
by value |
Arguments
display-id
| OpenVMS usage: |
identifier |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by reference |
Identifier of the virtual display to be examined. The
display-id argument is the address of an unsigned
longword containing the identifier of this virtual display.
pasteboard-id
| OpenVMS usage: |
identifier |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by reference |
Identifier of the pasteboard on which the virtual display is pasted.
The pasteboard-id argument is the address of an
unsigned longword containing the identifier of this pasteboard.
flags
| OpenVMS usage: |
mask_longword |
| type: |
longword (unsigned) |
| access: |
write only |
| mechanism: |
by reference |
Bit mask indicating the status of the specified virtual display with
respect to the specified pasteboard. The flags
argument is the address of an unsigned longword that contains the flag.
Valid values for flags are as follows:
|
0
|
The virtual display is not pasted to the specified pasteboard.
|
|
SMG$M_DISPLAY_PASTED
|
The virtual display specified by
display-id is pasted to the pasteboard specified by the
pasteboard-id argument.
|
pasteboard-row
| OpenVMS usage: |
longword_signed |
| type: |
longword (signed) |
| access: |
write only |
| mechanism: |
by reference |
Row of the pasteboard that contains row 1 of the specified virtual
display. The optional pasteboard-row argument is the
address of a signed longword containing the number of the pasteboard
row that contains the first row of the virtual display.
pasteboard-column
| OpenVMS usage: |
longword_signed |
| type: |
longword (signed) |
| access: |
write only |
| mechanism: |
by reference |
Column of the pasteboard that contains column 1 of the specified
virtual display. The optional pasteboard-column
argument is the address of a signed longword containing the number of
the pasteboard column that contains the first column of the virtual
display.
Description
SMG$GET_PASTING_INFO first checks to see if the virtual display
specified by display-id is pasted to the pasteboard
specified by pasteboard-id. If this virtual display is
pasted to this pasteboard, SMG$GET_PASTING_INFO returns the row and
column numbers of the pasteboard that correspond to row 1 and column 1
of the pasted virtual display.
Condition Values Returned
|
SS$_NORMAL
|
Normal successful completion.
|
|
SMG$_ILLBATFNC
|
Display is batched.
|
|
SMG$_INVDIS_ID
|
Invalid
display-id.
|
|
SMG$_INVPAS_ID
|
Invalid
pasteboard-id.
|
|
SMG$_WRONUMARG
|
Wrong number of arguments.
|
SMG$GET_TERM_DATA
The Get Terminal Data routine accesses TERMTABLE.EXE and returns the
character sequence that causes a terminal to perform a specified
operation.
Format
SMG$GET_TERM_DATA termtable-address ,request-code
,maximum-buffer-length ,return-length ,capability-data
[,input-argument-vector]
RETURNS
| OpenVMS usage: |
cond_value |
| type: |
longword (unsigned) |
| access: |
write only |
| mechanism: |
by value |
Arguments
termtable-address
| OpenVMS usage: |
address |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by reference |
Specifies the address of the TERMTABLE entry for the desired terminal.
The termtable-address argument is the address of an
unsigned longword that contains the address of the terminal
capabilities table (TERMTABLE).
The TERMTABLE address is returned by SMG$INIT_TERM_TABLE or
SMG$INIT_TERM_TABLE_BY_TYPE.
request-code
| OpenVMS usage: |
longword_signed |
| type: |
longword (signed) |
| access: |
read only |
| mechanism: |
by reference |
Longword constant of the form SMG$K_code, where code
is the name of the desired capability field. The
request-code argument is the address of a signed
longword that contains the request code. The SMG$K_code constants can
be found in the library supplied by Compaq, $SMGTRMPTR.
See Table 5-1, Table 5-2, Table 5-3, and Table 5-4 for
valid capability fields.
maximum-buffer-length
| OpenVMS usage: |
longword_signed |
| type: |
longword (signed) |
| access: |
read only |
| mechanism: |
by reference |
Maximum length of the buffer into which the requested capability data
is written. The maximum-buffer-length argument is the
address of a signed longword that contains the maximum number of bytes
that can be written into the buffer.
return-length
| OpenVMS usage: |
longword_signed |
| type: |
longword (signed) |
| access: |
write only |
| mechanism: |
by reference |
Receives the number of bytes actually written into the buffer. The
return-length argument is the address of a signed
longword into which is written the number of bytes transferred into the
buffer.
capability-data
| OpenVMS usage: |
unspecified |
| type: |
unspecified |
| access: |
by reference, array reference |
Address of the first byte of the buffer which is to receive the
capability data. The capability-data argument contains
the address of the buffer.
input-argument-vector
| OpenVMS usage: |
vector_longword_unsigned |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by reference, array reference |
Address of a list of longwords used for capabilities that require a
variable number of arguments, and for those that require substitution
or arithmetic operations on an argument. The
input-argument-vector argument is the address of an
array of unsigned longwords that contains capability arguments. The
first longword must contain the number of arguments that follow.
Description
SMG$GET_TERM_DATA should be used only when you perform direct
(non-SMG$) I/O to terminals. It accesses the TERMTABLE.EXE entry for
the specified type of terminal and returns the character sequence that
performs the specified operation. It is up to you to send this
character sequence to the terminal.
Condition Values Returned
|
SS$_NORMAL
|
Normal successful completion.
|
|
SMG$_INVREQCOD
|
Invalid request code.
|
|
SMG$_INVTERTAB
|
Invalid terminal table address.
|
SMG$GET_VIEWPORT_CHAR
The Get Characteristics of Display Viewport routine returns the
characteristics of the specified viewport.
Format
SMG$GET_VIEWPORT_CHAR display-id [,viewport-row-start]
[,viewport-column-start] [,viewport-number-rows]
[,viewport-number-columns]
RETURNS
| OpenVMS usage: |
cond_value |
| type: |
longword (unsigned) |
| access: |
write only |
| mechanism: |
by value |
Arguments
display-id
| OpenVMS usage: |
identifier |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by reference |
Identifier of the virtual display associated with the viewport. The
display-id argument is the address of an unsigned
longword containing this identifier.
viewport-row-start
| OpenVMS usage: |
longword_signed |
| type: |
longword (signed) |
| access: |
write only |
| mechanism: |
by reference |
Optional argument that receives the starting row number of the
viewport. The viewport-row-start argument is the
address of a signed longword that receives this row number.
viewport-column-start
| OpenVMS usage: |
longword_signed |
| type: |
longword (signed) |
| access: |
write only |
| mechanism: |
by reference |
Optional argument that receives the starting column number of the
specified viewport. The viewport-column-start argument
is the address of a signed longword that receives this column number.
viewport-number-rows
| OpenVMS usage: |
longword_signed |
| type: |
longword (signed) |
| access: |
write only |
| mechanism: |
by reference |
Optional argument that receives the number of rows in the specified
viewport. The viewport-number-rows argument is the
address of a signed longword that receives this number.
viewport-number-columns
| OpenVMS usage: |
longword_signed |
| type: |
longword (signed) |
| access: |
write only |
| mechanism: |
by reference |
Optional argument that receives the number of columns in the specified
viewport. The viewport-number-columns argument is the
address of a signed longword that receives this number.
Description
SMG$GET_VIEWPORT_CHAR returns the requested characteristics of the
specified viewport.
Condition Values Returned
|
SS$_NORMAL
|
Normal successful completion.
|
|
SMG$_INVDIS_ID
|
Invalid
display-id.
|
|
SMG$_NO_WINASSOC
|
No viewport associated with the virtual display.
|
|
SMG$_WRONUMARG
|
Wrong number of arguments.
|

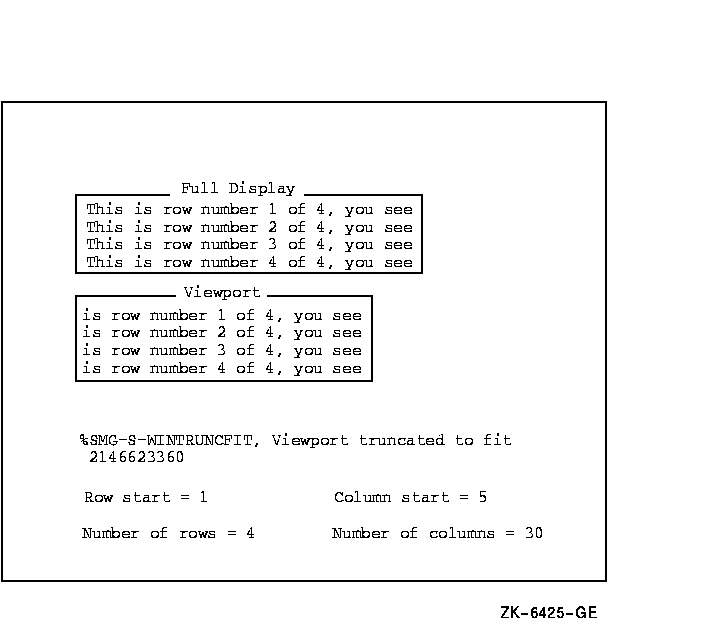

Example
|
C+
C This Fortran example demonstrates the use of SMG$GET_VIEWPORT_CHAR.
C The viewport created will start at row 3, column 4. It will consist of
C 7 rows and 29 columns. Note the parameters used in the SMG$CREATE_VIEWPORT
C routine. I request 26 rows and 55 columns, but my viewport is truncated
C to fit.
C-
IMPLICIT INTEGER (A-Z)
INCLUDE '($SMGDEF)'
C Create the virtual display. Give it a border.
ROWS = 4
COLUMNS = 34
STATUS = SMG$CREATE_VIRTUAL_DISPLAY
1 ( ROWS, COLUMNS, DISPLAY1,SMG$M_BORDER )
IF (.NOT. STATUS) CALL LIB$SIGNAL(%val(STATUS))
C Create the pasteboard.
STATUS = SMG$CREATE_PASTEBOARD (PASTE1)
IF (.NOT. STATUS) CALL LIB$SIGNAL(%val(STATUS))
C Put data in the virtual display.
STATUS = SMG$PUT_CHARS ( DISPLAY1,
1 'This is row number 1 of 4, you see', 1, 1 )
IF (.not. STATUS) CALL LIB$SIGNAL(%val(STATUS))
STATUS = SMG$PUT_CHARS ( DISPLAY1,
1 'This is row number 2 of 4, you see', 2, 1 )
IF (.not. STATUS) CALL LIB$SIGNAL(%val(STATUS))
STATUS = SMG$PUT_CHARS ( DISPLAY1,
1 'This is row number 3 of 4, you see', 3, 1 )
IF (.not. STATUS) CALL LIB$SIGNAL(%val(STATUS))
STATUS = SMG$PUT_CHARS ( DISPLAY1,
1 'This is row number 4 of 4, you see', 4, 1 )
IF (.not. STATUS) CALL LIB$SIGNAL(%val(STATUS))
C Paste the virtual display.
STATUS = SMG$COPY_VIRTUAL_DISPLAY(DISPLAY1,DISPLAY2)
IF (.NOT. STATUS) CALL LIB$SIGNAL(%VAL(STATUS))
STATUS = SMG$LABEL_BORDER (DISPLAY1, 'Full Display',,,SMG$M_BOLD)
IF (.NOT. STATUS) CALL LIB$SIGNAL(%VAL(STATUS))
STATUS = SMG$LABEL_BORDER (DISPLAY2,'Viewport',,,SMG$M_BOLD)
IF (.NOT. STATUS) CALL LIB$SIGNAL(%VAL(STATUS))
STATUS = SMG$PASTE_VIRTUAL_DISPLAY ( DISPLAY1, PASTE1, 2, 2 )
IF (.NOT. STATUS) CALL LIB$SIGNAL(%VAL(STATUS))
STATUS = SMG$CREATE_VIEWPORT ( DISPLAY2, 1, 5, 26, 55 )
IF (.NOT. STATUS) CALL LIB$SIGNAL(%VAL(STATUS))
STATUS = SMG$PASTE_VIRTUAL_DISPLAY ( DISPLAY2, PASTE1, 8, 2 )
IF (.NOT. STATUS) CALL LIB$SIGNAL(%VAL(STATUS))
CALL SMG$SET_PHYSICAL_CURSOR(PASTE1, 16, 1)
TYPE *, ' '
TYPE *, LIB$SIGNAL(%VAL(STATUS))
STATUS = SMG$GET_VIEWPORT_CHAR ( DISPLAY2, A, B, C, D )
IF (.NOT. STATUS) CALL LIB$SIGNAL(%VAL(STATUS))
TYPE *, ' '
WRITE(5,7) A,B
7 FORMAT(1X,'Row start = ',I2,8X,'Column start = ',I2)
TYPE *, ' '
WRITE(5,8) C,D
8 FORMAT(1X,'Number of rows =',I2,4X,'Number of columns =',I3)
END
|
The output for this program is shown in Figure SMG-26.
Figure SMG-26 Output Generated by SMG$GET_VIEWPORT_CHAR
SMG$HOME_CURSOR
The Home Cursor routine moves the virtual cursor to the specified
corner of a virtual display.
Format
SMG$HOME_CURSOR display-id [,position-code]
RETURNS
| OpenVMS usage: |
cond_value |
| type: |
longword (unsigned) |
| access: |
write only |
| mechanism: |
by value |
Arguments
display-id
| OpenVMS usage: |
identifier |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by reference |
Specifies the virtual display in which the virtual cursor is moved. The
display-id argument is the address of a longword that
contains the display identifier.
The display identifier is returned by SMG$CREATE_VIRTUAL_DISPLAY.
position-code
| OpenVMS usage: |
longword_unsigned |
| type: |
longword (unsigned) |
| access: |
read only |
| mechanism: |
by reference |
Specifies the point to which the virtual cursor moves. The
position-code argument is the address of a longword
that contains the position code.
Valid codes for position-code are as follows:
| Code |
Meaning |
|
SMG$C_UPPER_LEFT
|
Row 1, column 1 (the upper left corner). This is the default if
position-code is not specified.
|
|
SMG$C_LOWER_LEFT
|
Row
n, column 1 (where
n is the number of rows in the display). That is, the lower
left corner. It is useful to specify this position when accepting input
for an upward-scrolling virtual display.
|
|
SMG$C_UPPER_RIGHT
|
Row 1, column
m (where
m is the number of columns in the display). That is, the upper
right corner.
|
|
SMG$C_LOWER_RIGHT
|
Row
n, column
m (where
n is the number of rows and
m is the number of columns in the display). That is, the lower
right corner.
|
Description
SMG$HOME_CURSOR moves the virtual cursor to a corner of the specified
virtual display, according to the code specified in the
position-code argument. You do not need to know the
dimensions of the virtual display, or the virtual cursor location. If
you omit the position-code argument, SMG$HOME_CURSOR
moves the virtual display cursor to the upper left corner of the
virtual display.
Condition Values Returned
|
SS$_NORMAL
|
Normal successful completion.
|
|
SMG$_INVARG
|
Invalid argument.
|
|
SMG$_INVDIS_ID
|
Invalid
display-id.
|
|
SMG$_WRONUMARG
|
Wrong number of arguments.
|
SMG$INIT_TERM_TABLE
The Initialize Terminal Table routine initializes the TERMTABLE
database for the terminal named, so that subsequent calls to
SMG$GET_TERM_DATA can extract information and command strings for that
terminal.
Format
SMG$INIT_TERM_TABLE terminal-name, termtable-address
RETURNS
| OpenVMS usage: |
cond_value |
| type: |
longword (unsigned) |
| access: |
write only |
| mechanism: |
by value |
Arguments
terminal-name
| OpenVMS usage: |
device_name |
| type: |
character string |
| access: |
read only |
| mechanism: |
by descriptor |
Specifies the name of the terminal. The terminal-name
argument is the address of a descriptor pointing to the terminal name.
The name must be an entry in TERMTABLE.EXE.
termtable-address
| OpenVMS usage: |
address |
| type: |
longword (unsigned) |
| access: |
write only |
| mechanism: |
by reference |
Address of the entry for a particular type of terminal in
TERMTABLE.EXE. The termtable-address argument is the
address of an unsigned longword that contains the address of the
terminal capabilities table.
You use this address when calling the SMG$GET_TERM_DATA procedure for
the specified type of terminal. The TERMTABLE address is also returned
by SMG$INIT_TERM_TABLE_BY_TYPE.
Description
SMG$INIT_TERM_TABLE initializes the TERMTABLE database for the terminal
named, so that subsequent calls to SMG$GET_TERM_DATA can extract
information and command strings for that terminal. This routine should
be used only when you perform direct (non-SMG$) I/O to terminals.
SMG$INIT_TERM_TABLE first searches for TERMTABLE.EXE in the area
logically named TERM$TABLOC. If TERMTABLE.EXE is not found there, the
routine searches the global section SMG$TERMTABLE.
Condition Values Returned
|
SS$_NORMAL
|
Normal successful completion.
|
|
SMG$_GBLSECMAP
|
Successful completion. The definition was found in the global TERMTABLE.
|
|
SMG$_PRISECMAP
|
Successful completion. The definition was found in a private TERMTABLE.
|
|
SMG$_UNDTERNAM
|
Undefined terminal name.
|
|
SMG$_UNDTERNOP
|
Undefined terminal. No definition was found for the terminal and no
private TERMTABLE was found.
|
|
SMG$_UNDTERNOS
|
Undefined terminal. No definition was found for the terminal and no
system TERMTABLE was found.
|
|
