OpenVMS Calling Standard
3.4.7 Procedure Descriptor for Null Frame Procedures
The null frame procedure descriptor built by a
compiler provides information about a procedure with no frame. The size
of the descriptor is 16 bytes (defined by PDSC$K_NULL_SIZE).
The fields defined in the null frame descriptor are illustrated in
Figure 3-7 and described in Table 3-5.

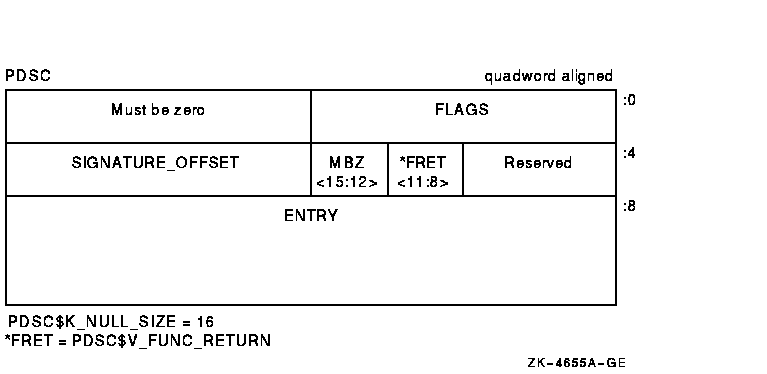

Figure 3-7 Null Frame Procedure Descriptor (PDSC)
Format
Table 3-5 Contents of Null Frame Procedure Descriptor (PDSC)
| Field Name |
Contents |
|
PDSC$W_FLAGS
|
The PDSC descriptor flag bits <15:0> are defined as follows:
|
PDSC$V_KIND
|
A 4-bit field <3:0> that identifies the type of procedure
descriptor. For a null frame procedure, this field must specify a value
8 (defined by constant PDSC$K_KIND_NULL).
|
|
Bits 4--7
|
Must be 0.
|
|
PDSC$V_REI_RETURN
|
Bit 8. If set to 1, the procedure expects the stack at entry to be set,
so an REI instruction correctly returns from the procedure. Also, if
set, the contents of the PDSC$B_SAVE_RA field are unpredictable and the
return address is found on the stack.
|
|
Bit 9
|
Must be 0 (reserved).
|
|
PDSC$V_BASE_FRAME
|
For compiled code, this bit must be 0. If set to 1, indicates the
logical base frame of a stack that precedes all frames corresponding to
user code. The interpretation and use of this frame and whether there
are any predecessor frames is system software defined (and subject to
change).
|
|
Bit 11
|
Must be 0 (reserved).
|
|
PDSC$V_NATIVE
|
For compiled code, this bit must be set to 1.
|
|
PDSC$V_NO_JACKET
|
For compiled code, this bit must be set to 1.
|
|
PDSC$V_TIE_FRAME
|
For compiled code, this bit must be 0. Reserved for use by system
software.
|
|
Bit 15
|
Must be 0 (reserved).
|
|
|
PDSC$V_FUNC_RETURN
|
A 4-bit field <11:8> that describes which registers are used for
the function value return (if there is one) and what format is used for
those registers.
Table 3-7 lists and describes the possible encoded values of
PDSC$V_FUNC_RETURN.
|
|
PDSC$W_SIGNATURE_OFFSET
|
A 16-bit signed byte offset from the start of the procedure descriptor.
This offset designates the start of the procedure signature block (if
any). A 0 in this field indicates that no signature information is
present. Note that in a bound procedure descriptor (as described in
Section 3.7.4), signature information might be present in the related
procedure descriptor. A 1 in this field indicates a standard default
signature. An offset value of 1 is not otherwise a valid offset because
both procedure descriptors and signature blocks must be quadword
aligned.
|
|
PDSC$Q_ENTRY
|
The absolute address of the first instruction of the entry code
sequence for the procedure.
|
3.5 Procedure Signatures
As a way to enhance certain aspects of program interoperation between
images built from native Alpha code and images translated from VAX
code, native Alpha compilers can optionally generate information that
describes the parameters of a procedure. This auxiliary information is
called procedure signature information, or sometimes just
signature information.
Signature information is used when a call from a native procedure
passes control to a translated procedure and vice versa. Translated VAX
code on Alpha processors uses a VAX argument list and function return
conventions as described in Sections 2.4 and 2.5.
Here, the signature information is used to control how passed and
returned arguments according to Alpha conventions are manipulated and
placed for use by translated VAX code and vice versa.
If a procedure is compiled with signature information,
PDSC$W_SIGNATURE_OFFSET contains a byte offset from the procedure
descriptor to the start of a procedure signature control
block. The maximum size of the procedure signature control
block is 72 bytes (defined by constant PSIG$K_MAX_SIZE). The fields
defined in the procedure signature information block are illustrated in
Figure 3-8 and described in Table 3-6.

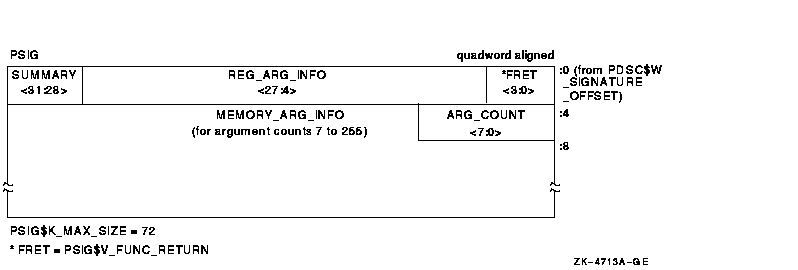

Figure 3-8 Procedure Signature Information Block (PSIG)
Table 3-6 Contents of the Procedure Signature Information Block (PSIG)
| Field Name |
Contents |
|
PSIG$V_FUNC_RETURN
|
A 4-bit field <3:0> that describes which registers are used for
the function value return (if there is one) and what format is used for
those registers.
Table 3-7 lists and describes the possible encoded values of
PSIG$V_FUNC_RETURN.
|
|
PSIG$V_REG_ARG_INFO
|
A 24-bit field <27:4> that is divided into six groups of 4 bits
that correspond to the six arguments that can be passed in registers.
These groups describe how each of the first six arguments are to be
passed in registers of the first group (bits <7:4>) describing
the first argument.
Each register argument signature group is encoded as follows:
| Value |
Name |
Meaning1,2 |
|
0
|
RASE$K_RA_NOARG
|
Argument is not present
|
|
1
|
RASE$K_RA_Q
|
64-bit argument passed in an integer register
|
|
2
|
RASE$K_RA_I32
|
32-bit argument sign extended to 64 bits passed in an integer register
|
|
3
|
RASE$K_RA_U32
|
32-bit unsigned argument zero extended to 64 bits passed in an integer
register
|
|
4
|
RASE$K_RA_FF
|
F_floating argument passed in a floating-point register
|
|
5
|
RASE$K_RA_FD
|
D_floating argument passed in a floating-point register
|
|
6
|
RASE$K_RA_FG
|
G_floating argument passed in a floating-point register
|
|
7
|
RASE$K_RA_FS
|
S_floating argument passed in a floating-point register
|
|
8
|
RASE$K_RA_FT
|
T_floating argument passed in a floating-point register
|
|
9--15
|
|
Reserved for future use
|
|
|
PSIG$V_SUMMARY
|
A 4-bit field <31:28> that contains coded argument signature
information as follows:
| Bit |
Name |
Meaning |
|
0, 1
|
PSIG$M_SU_ASM
|
Summary of arguments 7 through PSIG$B_ARG_COUNT:
00 = All arguments are 64-bit or not used
01 = All arguments are 32-bit sign extended or not used
10 = Reserved
11 = Other (not 00 or 01)
|
|
2
|
PSIG$M_SU_VLIST
|
VAX formatted argument list expected
|
|
3
|
|
Must be 0 (reserved)
|
PSIG$M_SU_ASM values of 00 and 01 (binary) allow a quick test for the occurrence of either an all 32-bit or an all 64-bit argument list. The values for the PSIG$V_MEMORY_ARG_INFO field must be valid even when these occurrences apply.
|
|
PSIG$B_ARG_COUNT
|
Unsigned byte (bits 0--7) that specifies the number of 64-bit argument
items described in the argument signature information. This count
includes the first six arguments.
|
|
PSIG$V_MEMORY_ARG_INFO
|
Array of 2-bit values that describe each of arguments 7 through
PSIG$B_ARG_COUNT. PSIG$S_MEMORY_ARG_INFO data is only defined for the
arguments described by PSIG$B_ARG_COUNT. These memory argument
signature bits are defined as follows:
| Value |
Name |
Meaning1 |
|
0
|
MASE$K_MA_Q
|
64-bit argument
|
|
1
|
|
Reserved
|
|
2
|
MASE$K_MA_I32
|
32-bit sign-extended argument
|
|
3
|
|
Reserved
|
|
1For more specific impact on the converted field value, see
Section 3.5.1.
2The X_floating and X_floating complex data types do not
appear in this table because these types are not passed using the by
value mechanism (see Section 3.8.5.1).
Table 3-7 Function Return Signature Encodings
| Value |
Name |
Meaning1,2 |
|
0
|
PSIG$K_FR_I64
|
64-bit result in R0
or No function result provided
or First parameter mechanism used
|
|
1
|
PSIG$K_FR_D64
|
64-bit result with low 32 bits sign extended in R0 and high 32 bits
sign extended in R1
|
|
2
|
PSIG$K_FR_I32
|
32-bit sign extended to 64-bit result in R0
|
|
3
|
PSIG$K_FR_U32
|
32-bit unsigned result (zero extended) in R0
|
|
4
|
PSIG$K_FR_FF
|
F_floating result in F0
|
|
5
|
PSIG$K_FR_FD
|
D_floating result in F0
|
|
6
|
PSIG$K_FR_FG
|
G_floating result in F0
|
|
7
|
PSIG$K_FR_FS
|
S_floating result in F0
|
|
8
|
PSIG$K_FR_FT
|
T_floating result in F0
|
|
9, 10
|
|
Reserved for future use
|
|
11
|
PSIG$K_FR_FFC
|
F_floating complex result in F0 and F1
|
|
12
|
PSIG$K_FR_FDC
|
D_floating complex result in F0 and F1
|
|
13
|
PSIG$K_FR_FGC
|
G_floating complex result in F0 and F1
|
|
14
|
PSIG$K_FR_FSC
|
S_floating complex result in F0 and F1
|
|
15
|
PSIG$K_FR_FTC
|
T_floating complex result in F0 and F1
|
1For more specific impact on the converted field value, see
Section 3.5.1.
2The X_floating and X_floating complex data types do not
appear in this table because these types are not passed using the by
value mechanism (see Section 3.8.5.1).
3.5.1 Call Parameter PSIG Conversions
Where a VAX image is translated to an Alpha image, the VAX registers
R0--15 are represented using the lower half of the corresponding Alpha
registers R0--15 at call interface boundaries. No "type
conversion" is performed in making parameters from either native
or translated code available to each other. However, it is important to
understand the effects of the PSIG field values when interfacing
between native and translated environments.
Note that an address under OpenVMS Alpha is described using
RASE$K_RA_I32 or MASE$K_MA_I32 as appropriate.
3.5.1.1 Native-to-Translated Code PSIG Conversions
The specific impact of the native-to-translated call conversions of the
PSIG$V_REG_ARG_INFO and the PSIG$V_FUNC_RETURN field values are listed
in Table 3-8.
Table 3-8 Native-to-Translated Conversion of the PSIG Field Values
| Name |
Impact |
| PSIG$V_REG_ARG_INFO Field Conversions |
|
RASE$K_RA_Q
|
The low-order 32 bits of the integer register contents are used to fill
the first of two longword entries in the VAX formatted argument list,
while the high-order 32 bits are used to fill the second longword
entry. This counts as two arguments in the VAX formatted argument list.
|
RASE$K_RA_I32
RASE$K_RA_U32
|
The low-order 32 bits of the integer register contents are used to fill
one longword entry in the VAX formatted argument list passed to the
translated procedure. The high-order 32 bits are ignored. This counts
as one argument in the VAX formatted argument list.
|
|
RASE$K_RA_FF
|
The single-precision contents of a floating-point register are used to
fill one longword entry in the VAX formatted argument list passed to
the translated procedure. This counts as one argument in the VAX
formatted argument list. The Alpha store instruction STF is used to
place the register contents into memory.
|
RASE$K_RA_FD
RASE$K_RA_FG
|
The double-precision contents of a floating-point register are used to
fill two longword entries in the VAX formatted argument list passed to
the translated procedure. This counts as two arguments in the VAX
formatted argument list. The Alpha store instruction STG is used to
place the register contents into memory.
|
RASE$K_RA_FS
RASE$K_RA_FT
|
Undefined.
|
| PSIG$V_MEMORY_ARG_INFO Field Conversions |
MASE$K_MA_Q
MASE$K_MA_I32
|
These convert like the RASE$K_RA_Q and RASE$K_RA_I32 field conversions,
except that the Alpha argument list entry is stored in memory (rather
in than a register).
|
| PSIG$V_FUNC_RETURN Field Conversions |
|
PSIG$K_FR_I64
|
The translated code is returning a 64-bit result split between R0 and
R1. The low-order 32 bits of R1 are shifted left and combined with the
low-order 32 bits of R0 to form the 64-bit result that is returned to
the native caller.
|
|
PSIG$K_FR_D64
|
The translated code is returning a 64-bit result split between R0 and
R1. Both R0 and R1 are sign extended from 32 to 64 bits and returned to
the native caller in place.
|
PSIG$K_FR_I32
PSIG$K_FR_U32
|
The translated code is returning a 32-bit result in R0. R0 is sign
extended from 32 to 64 bits and returned to the native caller in place.
|
|
PSIG$K_FR_FF
|
The single-precision contents of the result in R0 is loaded into Alpha
register F0.
|
PSIG$K_FR_FD
PSIG$K_FR_FG
|
The double-precision contents in registers R0 and R1 are combined and
loaded into Alpha register F0.
|
PSIG$K_FR_FS
PSIG$K_FR_FT
|
Undefined.
|
|
PSIG$K_FR_FFC
|
The single-precision complex contents in registers R0 and R1 are loaded
into Alpha registers F0 and F1.
|
PSIG$K_FR_FDC
PSIG$K_FR_FGC
|
The translated code is returning a double-precision complex result
using the hidden first parameter method (by reference). The storage for
the result is allocated prior to the call and the address is passed as
the extra parameter. Upon return, the result is copied from the
temporary storage into the Alpha floating-point registers and returned
to the native caller.
|
PSIG$K_FR_FSC
PSIG$K_FR_FTC
|
Undefined.
|
In all 64-bit cases, the longword at the lower memory address forms the
earlier argument in the VAX formatted argument list. Also, for
single-precision floating-point types, the unused 32 bits of an Alpha
64-bit argument list entry are undefined.
3.5.1.2 Translated-to-Native Code PSIG Conversions
The specific impact of the translated-to-native call conversions of the
PSIG$V_REG_ARG_INFO and the PSIG$V_FUNC_RETURN field values are listed
in Table 3-9.
Table 3-9 Translated-to-Native Conversion of the PSIG Field Values
| Name |
Impact |
| PSIG$V_REG_ARG_INFO Field Conversions |
|
RASE$K_RA_Q
|
The contents of two successive longwords from the VAX formatted
argument list are combined to form a single quadword value that is
placed in an integer register. This counts as one argument in the Alpha
argument list.
|
RASE$K_RA_I32
RASE$K_RA_U32
|
The contents of one longword entry from the VAX formatted argument list
is sign extended and placed in the integer register. This counts as one
argument in the Alpha argument list.
|
|
RASE$K_RA_FF
|
A single longword entry from the VAX formatted argument list is used to
form a floating-point value in a floating-point register. This counts
as one argument in the Alpha argument list. The Alpha load instruction
LDF is used to place the argument in the floating-point register.
|
RASE$K_RA_FD
RASE$K_RA_FG
|
Two longword entries from the VAX formatted argument list are combined
to form a single floating-point value in a floating-point register.
This counts as one argument in the Alpha argument list. The Alpha load
instruction LDG is used to place the argument in the floating-point
register.
|
RASE$K_RA_FS
RASE$K_RA_FT
|
Undefined.
|
| PSIG$V_MEMORY_ARG_INFO Field Conversions |
MASE$K_MA_Q
MASE$K_MA_I32
|
These convert like RASE$K_RA_Q and RASE$K_RA_I32 field conversions,
except that the Alpha argument list entry is stored in memory (rather
than a register).
1
|
| PSIG$V_FUNC_RETURN Field Conversions |
|
PSIG$K_FR_I64
|
The native code is returning a 64-bit result in R0. The high 32 bits of
R0 are moved to the low half of R1 and sign extended, and then R0 is
sign extended from 32 to 64 bits. The 64-bit result is then returned to
the translated caller in R0 and R1.
|
|
PSIG$K_FR_D64
|
The native code is returning a 64-bit result split between R0 and R1.
Both R0 and R1 are sign extended from 32 to 64 bits and returned to the
translated caller in place.
|
PSIG$K_FR_I32
PSIG$K_FR_U32
|
The native code is returning a 32-bit result in R0. R0 is sign extended
from 32 to 64 bits and the result is then returned in place to the
translated caller.
|
|
PSIG$K_FR_FF
|
The single-precision result in Alpha register F0 is stored in the
low-order half of register R0.
1
|
PSIG$K_FR_FD
PSIG$K_FR_FG
|
The double-precision result in Alpha register F0 is stored in the
low-order halves of registers R0 and R1.
|
PSIG$K_FR_FS
PSIG$K_FR_FT
|
Undefined.
|
|
PSIG$K_FR_FFC
|
The single-precision complex result in Alpha registers F0 and F1 is
stored in the low-order halves of registers R0 and R1.
1
|
PSIG$K_FR_FDC
PSIG$K_FR_FGC
|
The native code is returning a double-precision complex result in the
Alpha floating-point registers. The result is copied into the storage
given by the hidden first parameter passed by the translated caller.
|
PSIG$K_FR_FSC
PSIG$K_FR_FTC
|
Undefined.
|
1Note that for single-precision floating-point types, the
unused 32 bits of an Alpha 64-bit argument list entry are undefined.
|
