In certain cases, a standard default procedure signature representing a common combination of characteristics is encoded in a special manner. (For example, see the descriptions of PDSC$W_SIGNATURE_OFFSET in Sections 3.4.1 and 3.7.4.)

In the OpenVMS Alpha environment, procedure signatures are used only to effect interoperation between native OpenVMS Alpha and translated VAX VMS or OpenVMS VAX images. Default procedure signature characteristics are defined for each of the two possible call situations.

For an OpenVMS Alpha procedure that is callable from a translated VAX procedure, a default procedure signature implies the following characteristics about the expected parameters and result of a call to that procedure:

• The number of parameters passed is contained in the AI (R25) register (taken from the count in the VAX argument list).
• All parameters (if any) are 32-bit sign extended (RASE$K_RA_I32 for register arguments, MASE$K_MA_I32 for memory arguments).
• The function result (if any) is 32-bit sign extended (PSIG$K_FR_I32).

For a bound procedure used as a jacket to effect a call into a translated image, a default procedure signature implies the following characteristics about the actual parameters and the expected result from a call to that translated procedure:

• The number of parameters passed is contained in the AI (R25) register.
• The register parameters (if any) are described in the AI register.
• The memory parameters (if any) are 32-bit sign extended (MASE$K_MA_I32).
• The function result (if any) is 32-bit sign extended (PSIG$K_FR_I32).

Except for the first invocation in a thread, there is always an invocation that was previously considered to be the current procedure invocation. The current procedure invocation, together with the previous current procedure invocations, together with all successive previously current procedure invocations, all the way back to the first invocation in the thread, make up a logical list of procedure contexts referred to as the call chain. The current procedure invocation is always considered to be the first procedure invocation in this logical list and the first procedure invocation executed in the thread is always the last procedure invocation in the list. The register values of all nonscratch registers at the time of the currently active call in a procedure invocation can be determined by walking the call chain and retrieving the procedure invocation context for that invocation. A procedure is called an active procedure (active invocation) while it exists on the call chain.

The call chain and its supporting data are used by code that implements various aspects of the calling standard such as call returns and procedure unwinding.

3.6.1 Current Procedure

In this calling standard, R29 is the frame pointer (FP) register that defines the current procedure.

Therefore, the current procedure must always maintain in FP one of the following pointer values:

• Pointer to the procedure descriptor for that procedure.
• Pointer to a naturally aligned quadword containing the address of the procedure descriptor for that procedure. For purposes of finding a procedure's procedure descriptor, no assumptions must be made about the quadword location. As long as all other requirements of this standard are met, a compiler is free to use FP as a base register for any arbitrary storage, including a stack frame, provided that while the procedure is current, the quadword pointed to by the value in FP contains the address of that procedure's descriptor.

At any point in time, the FP value can be interpreted to find the procedure descriptor for the current procedure by examining the value at 0(FP) as follows:

• If 0(FP)<2:0> = 0, then FP points to a quadword that contains a pointer to the procedure descriptor for the current procedure.
• If 0(FP)<2:0> <> 0, then FP points to the procedure descriptor for the current procedure.

By examining the first quadword of the procedure descriptor, the procedure type can be determined from the PDSC$V_KIND field.

The following code is an example of how the current procedure descriptor and procedure type can be found:

        LDQ     R0,0(FP)        ;Fetch quadword at FP
        AND     R0,#7,R28       ;Mask alignment bits
        BNEQ    R28,20$         ;Is procedure descriptor pointer
        LDQ     R0,0(R0)        ;Was pointer to procedure descriptor
10$:    AND     R0,#7,R28       ;Do sanity check
        BNEQ    R28,20$         ;All is well

        ;Error - Invalid FP

20$:    AND     R0,#15,R0       ;Get kind bits

        ;Procedure KIND is now in R0

IF PDSC$V_KIND is equal to PDSC$K_KIND_FP_STACK, the current procedure has a stack frame.

If PDSC$V_KIND is equal to PDSC$K_KIND_FP_REGISTER, the current procedure is a register frame procedure.

Either type of procedure can use either type of mechanism to point to the procedure descriptor. Compilers may choose the appropriate mechanism to use based on the needs of the procedure involved.

3.6.2 Procedure Call Tracing

Mechanisms for each of the following functions are needed to support procedure call tracing:

• To provide the context of a procedure invocation
• To walk (navigate) the procedure call chain
• To refer to a given procedure invocation

This section describes the data structure mechanisms. The routines that support these functions are described in Section 3.6.3.

3.6.2.1 Referring to a Procedure Invocation from a Data Structure

When referring to a specific procedure invocation at run time, a procedure invocation handle, shown in Figure 3-9, can be used. Defined by constant LIBICB$K_INVO_HANDLE_SIZE, the structure is a single-field longword called HANDLE. HANDLE describes the invocation handle of the procedure.

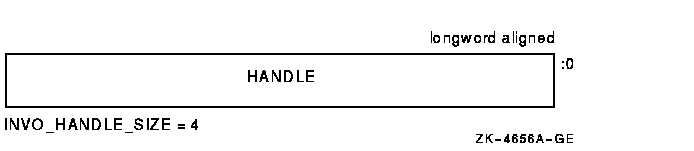

Figure 3-9 Procedure Invocation Handle Format

To encode a procedure invocation handle, follow these steps:

1. If PDSC$V_BASE_REG_IS_FP is set to 1 in the corresponding procedure descriptor, then set INVO_HANDLE to the contents of the FP register in that invocation.
   If PDSC$V_BASE_REG_IS_FP is set to 0, set INVO_HANDLE to the contents of the SP register in that invocation. (That is, start with the base register value for the frame.)
2. Shift the INVO_HANDLE contents left one bit. Because this value is initially known to be octaword aligned (see Section 3.7.1), the result is a value whose 5 low-order bits are 0.
3. If PDSC$V_KIND = PDSC$K_KIND_FP_STACK, perform a logical OR on the contents of INVO_HANDLE with the value 1F₁₆, and then set INVO_HANDLE to the value that results.
   If PDSC$V_KIND = PDSC$K_KIND_FP_REGISTER, perform a logical OR on the contents of INVO_HANDLE with the contents of PDSC$B_SAVE_RA, and then set INVO_HANDLE to the value that results.

Note that a procedure invocation handle is not defined for a null frame procedure.

The context of a specific procedure invocation is provided through the use of a data structure called an invocation context block. The minimum size of the block is 528 bytes and is system defined using the constant LIBICB$K_INVO_CONTEXT_BLK_SIZE. The size of the last field (LIBICB$Q_SYSTEM_DEFINED[n]) defined by the host system determines the total size of the block.

The fields defined in the invocation context block are illustrated in Figure 3-10 and described in Table 3-10.

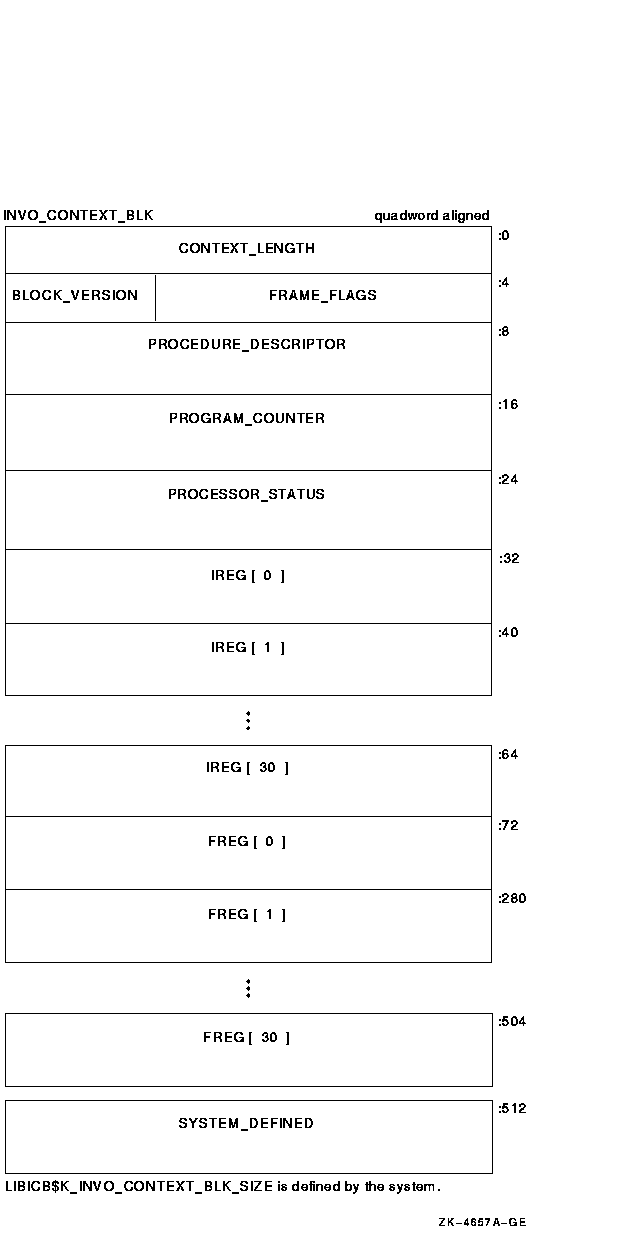

Figure 3-10 Invocation Context Block Format

A thread can obtain its own context or the current context of any procedure invocation in the current call chain (given an invocation handle) by calling the run-time library functions defined in Section 3.6.3.

3.6.2.4 Walking the Call Chain

During the course of program execution, it is sometimes necessary to walk the call chain. Frame-based exception handling is one case where this is done. Call chain navigation is possible only in the reverse direction (in a latest-to-earliest or top-to-bottom procedure).

To walk the call chain, perform the following steps:

1. Build an invocation context block when given a program state (which contains a register set).
   For the current routine, an initial invocation context block can be obtained by calling the LIB$GET_CURR_INVO_CONTEXT routine (see Section 3.6.3.2).
2. Repeatedly call the LIB$GET_PREV_INVO_CONTEXT routine (see Section 3.6.3.3) until the end of the chain has been reached (as signified by 0 being returned).

Compilers are allowed to optimize high-level language procedure calls in such a way that they do not appear in the invocation chain. For example, inline procedures never appear in the invocation chain.

Make no assumptions about the relative positions of any memory used for procedure frame information. There is no guarantee that successive stack frames will always appear at higher addresses.

3.6.3 Invocation Context Access Routines

A thread can manipulate the invocation context of any procedure in the thread's virtual address space by calling the following run-time library functions.

3.6.3.1 LIB$GET_INVO_CONTEXT

A thread can obtain the invocation context of any active procedure by using the following function format:

Arguments:

Function Value Returned:

A thread can obtain the invocation context of a current procedure by using the following function format:

Argument:

Function Value Returned:

A thread can obtain the invocation context of the procedure context preceding any other procedure context by using the following function format:

Argument:

Function Value Returned:

A thread can obtain an invocation handle corresponding to any invocation context block by using the following function format:

Argument:

Function Value Returned:

A thread can obtain an invocation handle of the procedure context preceding that of a specified procedure context by using the following function format:

Argument:

Function Value Returned:

A given procedure invocation context's fields can be updated with new register contents by calling a system library function in following format:

Arguments:

Function Value Returned:
