You must ensure that your electrical power distribution systems meet local requirements (for example, electrical codes) prior to installing your OpenVMS Cluster system. If your configuration consists of two or more enclosures connected by a common SCSI interconnect, you must also ensure that the enclosures are properly grounded. Proper grounding is important for safety reasons and to ensure the proper functioning of the SCSI interconnect.

Electrical work should be done by a qualified professional. Section A.7.8 includes details of the grounding requirements for SCSI systems.

A.6.2 Step 2: Configure SCSI Node IDs

This section describes how to configure SCSI node and device IDs. SCSI IDs must be assigned separately for multihost SCSI buses and single-host SCSI buses.

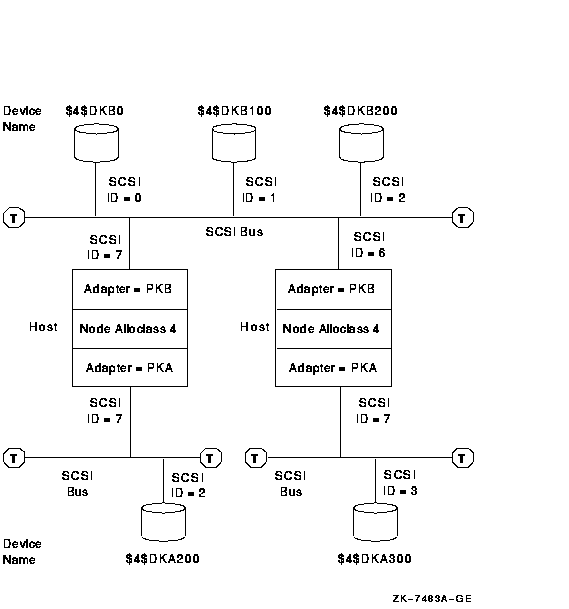

Figure A-12 shows two hosts; each one is configured with a single-host SCSI bus and shares a multihost SCSI bus. (See Figure A-1 for the key to the symbols used in this figure.)

Figure A-12 Setting Allocation Classes for SCSI Access

The following sections describe how IDs are assigned in this type of multihost SCSI configuration. For more information about this topic, see OpenVMS Cluster Systems.

A.6.2.1 Configuring Device IDs on Multihost SCSI Buses

When configuring multihost SCSI buses, adhere to the following rules:

• Set each host adapter on the multihost bus to a different ID. Start by assigning ID 7, then ID 6, and so on, using decreasing ID numbers.
  If a host has two multihost SCSI buses, allocate an ID to each SCSI adapter separately. There is no requirement that you set the adapters to the same ID, although using the same ID may simplify configuration management. ( Section A.6.4 describes how to set host IDs for the internal adapter using SCSI console parameters.)
• When assigning IDs to devices and storage controllers connected to multihost SCSI buses, start at ID 0 (zero), assigning the highest ID numbers to the disks that require the fastest I/O response time.
• Devices connected to a multihost SCSI bus must have the same name as viewed from each host. To achieve this, you must do one of the following:
  • Ensure that all hosts connected to a multihost SCSI bus are set to the same node allocation class, and all host adapters connected to a multihost SCSI bus have the same controller letter, as shown in Figure A-12.
  • Use port allocation classes (see OpenVMS Cluster Systems) or HSZ allocation classes (see Guidelines for OpenVMS Cluster Configurations).

The device ID selection depends on whether you are using a node allocation class or a port allocation class. The following discussion applies to node allocation classes. Refer to OpenVMS Cluster Systems for a discussion of port allocation classes.

In multihost SCSI configurations, device names generated by OpenVMS use the format $allocation_class$DKA300. You set the allocation class using the ALLOCLASS system parameter. OpenVMS generates the controller letter (for example, A, B, C, and so forth) at boot time by allocating a letter to each controller. The unit number (for example, 0, 100, 200, 300, and so forth) is derived from the SCSI device ID.

When configuring devices on single-host SCSI buses that are part of a multihost SCSI configuration, take care to ensure that the disks connected to the single-host SCSI buses have unique device names. Do this by assigning different IDs to devices connected to single-host SCSI buses with the same controller letter on systems that use the same allocation class. Note that the device names must be different, even though the bus is not shared.

For example, in Figure A-12, the two disks at the bottom of the picture are located on SCSI bus A of two systems that use the same allocation class. Therefore, they have been allocated different device IDs (in this case, 2 and 3).

For a given allocation class, SCSI device type, and controller letter (in this example, $4$DKA), there can be up to eight devices in the cluster, one for each SCSI bus ID. To use all eight IDs, it is necessary to configure a disk on one SCSI bus at the same ID as a processor on another bus. See Section A.7.5 for a discussion of the possible performance impact this can have.

SCSI bus IDs can be effectively "doubled up" by configuring different SCSI device types at the same SCSI ID on different SCSI buses. For example, device types DK and MK could produce $4$DKA100 and $4$MKA100.

A.6.3 Step 3: Power Up and Verify SCSI Devices

After connecting the SCSI cables, power up the system. Enter a console SHOW DEVICE command to verify that all devices are visible on the SCSI interconnect.

If there is a SCSI ID conflict, the display may omit devices that are present, or it may include nonexistent devices. If the display is incorrect, then check the SCSI ID jumpers on devices, the automatic ID assignments provided by the StorageWorks shelves, and the console settings for host adapter and HSZxx controller IDs. If changes are made, type INIT, then SHOW DEVICE again. If problems persist, check the SCSI cable lengths and termination.

Example A-1 is a sample output from a console SHOW DEVICE command. This system has one host SCSI adapter on a private SCSI bus (PKA0), and two additional SCSI adapters (PKB0 and PKC0), each on separate, shared SCSI buses.

>>>SHOW DEVICE
dka0.0.0.6.0               DKA0                          RZ26L  442D
dka400.4.0.6.0             DKA400                        RRD43  2893
dkb100.1.0.11.0            DKB100                        RZ26  392A
dkb200.2.0.11.0            DKB200                        RZ26L  442D
dkc400.4.0.12.0            DKC400                        HSZ40   V25
dkc401.4.0.12.0            DKC401                        HSZ40   V25
dkc500.5.0.12.0            DKC500                        HSZ40   V25
dkc501.5.0.12.0            DKC501                        HSZ40   V25
dkc506.5.0.12.0            DKC506                        HSZ40   V25
dva0.0.0.0.1               DVA0
jkb700.7.0.11.0            JKB700                        OpenVMS  V62
jkc700.7.0.12.0            JKC700                        OpenVMS  V62
mka300.3.0.6.0             MKA300                        TLZ06  0389
era0.0.0.2.1               ERA0                          08-00-2B-3F-3A-B9
pka0.7.0.6.0               PKA0                          SCSI Bus ID 7
pkb0.6.0.11.0              PKB0                          SCSI Bus ID 6
pkc0.6.0.12.0              PKC0                          SCSI Bus ID 6

The following list describes the device names in the preceding example:

• DK devices represent SCSI disks. Disks connected to the SCSI bus controlled by adapter PKA are given device names starting with the letters DKA. Disks on additional buses are named according to the host adapter name in a similar manner (DKB devices on adapter PKB, and so forth).
  The next character in the device name represents the device's SCSI ID. Make sure that the SCSI ID for each device is unique for the SCSI bus to which it is connected.
• The last digit in the DK device name represents the LUN number. The HSZ40 virtual DK device in this example is at SCSI ID 4, LUN 1. Note that some systems do not display devices that have nonzero LUNs.
• JK devices represent nondisk or nontape devices on the SCSI interconnect. In this example, JK devices represent other processors on the SCSI interconnect that are running the OpenVMS operating system. If the other system is not running, these JK devices do not appear in the display. In this example, the other processor's adapters are at SCSI ID 7.
• MK devices represent SCSI tapes. The A in device MKA300 indicates that it is attached to adapter PKA0, the private SCSI bus.
• PK devices represent the local SCSI adapters. The SCSI IDs for these adapters is displayed in the rightmost column. Make sure this is different from the IDs used by other devices and host adapters on its bus.
  The third character in the device name (in this example, a) is assigned by the system so that each adapter has a unique name on that system. The fourth character is always zero.

When creating a SCSI OpenVMS Cluster system, you need to verify the settings of the console environment parameters shown in Table A-6 and, if necessary, reset their values according to your configuration requirements.

Table A-6 provides a brief description of SCSI console parameters. Refer to your system-specific documentation for complete information about setting these and other system parameters.

Examples

Before setting boot parameters, display the current settings of these parameters, as shown in the following examples:

1. >>>SHOW *BOOT* boot_osflags 10,0 boot_reset OFF bootdef_dev dka200.2.0.6.0 >>>


   The first number in the boot_osflags parameter specifies the system root. (In this example, the first number is 10.) The boot_reset parameter controls the boot process. The default boot device is the device from which the OpenVMS operating system is loaded. Refer to the documentation for your specific system for additional booting information.
   Note that you can identify multiple boot devices to the system. By doing so, you cause the system to search for a bootable device from the list of devices that you specify. The system then automatically boots from the first device on which it finds bootable system software. In addition, you can override the default boot device by specifying an alternative device name on the boot command line.
   Typically, the default boot flags suit your environment. You can override the default boot flags by specifying boot flags dynamically on the boot command line with the -flags option.

2. >>>SHOW *PK* pka0_disconnect 1 pka0_fast 1 pka0_host_id 7


   The pk*0_disconnect parameter determines whether or not a target is allowed to disconnect from the SCSI bus while it acts on a command. On a multihost SCSI bus, the pk*0_disconnect parameter must be set to 1, so that disconnects can occur.
   The pk*0_fast parameter controls whether fast SCSI devices on a SCSI controller perform in standard or fast mode. When the parameter is set to 0, the default speed is set to standard mode; when the pk*0_fast parameter is set to 1, the default speed is set to fast SCSI mode. In this example, devices on SCSI controller pka0 are set to fast SCSI mode. This means that both standard and fast SCSI devices connected to this controller will automatically perform at the appropriate speed for the device (that is, in either fast or standard mode).
   The pk*0_host_id parameter assigns a bus node ID for the specified host adapter. In this example, pka0 is assigned a SCSI device ID of 7.

3. >>>SHOW *POLL* scsi_poll ON


   Enables or disables polling of SCSI devices while in console mode.
   Set polling ON or OFF depending on the needs and environment of your site. When polling is enabled, the output of the SHOW DEVICE is always up to date. However, because polling can consume SCSI bus bandwidth (proportional to the number of unused SCSI IDs), you might want to disable polling if one system on a multihost SCSI bus will be in console mode for an extended time.
   Polling must be disabled during any hot-plugging operations. For information about hot plugging in a SCSI OpenVMS Cluster environment, see Section A.7.6.

4. >>>SHOW *TERM* control_scsi_term external


   Used on some systems (such as the AlphaStation 400) to enable or disable the SCSI terminator next to the external connector. Set the control_scsi_term parameter to external if a cable is attached to the bulkhead. Otherwise, set the parameter to internal.

Refer to the OpenVMS Alpha or VAX upgrade and installation manual for information about installing the OpenVMS operating system. Perform the installation once for each system disk in the OpenVMS Cluster system. In most configurations, there is a single system disk. Therefore, you need to perform this step once, using any system.

During the installation, when you are asked if the system is to be a cluster member, answer Yes. Then, complete the installation according to the guidelines provided in OpenVMS Cluster Systems.

A.6.6 Step 6: Configure Additional Systems

Use the CLUSTER_CONFIG command procedure to configure additional systems. Execute this procedure once for the second host that you have configured on the SCSI bus. (See Section A.7.1 for more information.)

A.7 Supplementary Information

The following sections provide supplementary technical detail and concepts about SCSI OpenVMS Cluster systems.

A.7.1 Running the OpenVMS Cluster Configuration Command Procedure

You execute either the CLUSTER_CONFIG.COM or the CLUSTER_CONFIG_LAN.COM command procedure to set up and configure nodes in your OpenVMS Cluster system. Your choice of command procedure depends on whether you use DECnet or the LANCP utility for booting. CLUSTER_CONFIG.COM uses DECnet; CLUSTER_CONFIG_LAN.COM uses the LANCP utility. (For information about using both procedures, see OpenVMS Cluster Systems.)

Typically, the first computer is set up as an OpenVMS Cluster system during the initial OpenVMS installation procedure (see Section A.6.5). The CLUSTER_CONFIG procedure is then used to configure additional nodes. However, if you originally installed OpenVMS without enabling clustering, the first time you run CLUSTER_CONFIG, the procedure converts the standalone system to a cluster system.

To configure additional nodes in a SCSI cluster, execute CLUSTER_CONFIG.COM for each additional node. Table A-7 describes the steps to configure additional SCSI nodes.

 BOOT -FL FF,0 DKA200

You can run the CLUSTER_CONFIG.COM procedure to set up an additional node in a SCSI cluster, as shown in Example A-2.

$ @SYS$MANAGER:CLUSTER_CONFIG

           Cluster Configuration Procedure


    Use CLUSTER_CONFIG.COM to set up or change an OpenVMS Cluster configuration.
    To ensure that you have the required privileges, invoke this procedure
    from the system manager's account.

    Enter ? for help at any prompt.

            1. ADD a node to a cluster.
            2. REMOVE a node from the cluster.
            3. CHANGE a cluster member's characteristics.
            4. CREATE a duplicate system disk for CLU21.
            5. EXIT from this procedure.

    Enter choice [1]:

    The ADD function adds a new node to a cluster.

    If the node being added is a voting member, EXPECTED_VOTES in
    every cluster member's MODPARAMS.DAT must be adjusted, and the
    cluster must be rebooted.


    WARNING - If this cluster is running with multiple system disks and
              if common system files will be used, please, do not
              proceed unless you have defined appropriate logical
              names for cluster common files in SYLOGICALS.COM.
              For instructions, refer to the OpenVMS Cluster Systems
              manual.


              Do you want to continue [N]? y

    If the new node is a satellite, the network databases on CLU21 are
    updated. The network databases on all other cluster members must be
    updated.

    For instructions, refer to the OpenVMS Cluster Systems manual.

What is the node's DECnet node name? SATURN
What is the node's DECnet node address? 7.77
Is SATURN to be a clustered node with a shared SCSI bus (Y/N)? y
Will SATURN be a satellite [Y]? N
Will SATURN be a boot server [Y]?

    This procedure will now ask you for the device name of SATURN's system root.
    The default device name (DISK$BIG_X5T5:) is the logical volume name of
    SYS$SYSDEVICE:.

What is the device name for SATURN's system root [DISK$BIG_X5T5:]?
What is the name of SATURN's system root [SYS10]? SYS2
    Creating directory tree SYS2 ...
    System root SYS2 created

    NOTE:
        All nodes on the same SCSI bus must be members of the same cluster
        and must all have the same non-zero disk allocation class or each
        will have a different name for the same disk and data corruption
        will result.

Enter a value for SATURN's ALLOCLASS parameter [7]:
Does this cluster contain a quorum disk [N]?
Updating network database...
Size of pagefile for SATURN [10000 blocks]?
   .
   .
   .

Certain common operations, such as booting or shutting down a host on a multihost SCSI bus, can cause other hosts on the SCSI bus to experience errors. In addition, certain errors that are unusual in a single-host SCSI configuration may occur more frequently on a multihost SCSI bus.

These errors are transient errors that OpenVMS detects, reports, and recovers from without losing data or affecting applications that are running. This section describes the conditions that generate these errors and the messages that are displayed on the operator console and entered into the error log.
