Availability Manager User's Guide
3.2.7 OpenVMS Cluster Summary
When you click the Cluster Summary tab on an OpenVMS
Node Summary page, the Availability Manager displays the OpenVMS
Cluster Summary page (Figure 3-18).
This page contains cluster interconnect information for an entire
cluster as well as detailed information about each node in the cluster,
including System Communications Services (SCS)
connections and LAN virtual circuits for individual nodes. The data
items shown on the page correspond to data that the Show Cluster
utility (SHOW CLUSTER) displays for the SYSTEMS and MEMBERS classes.

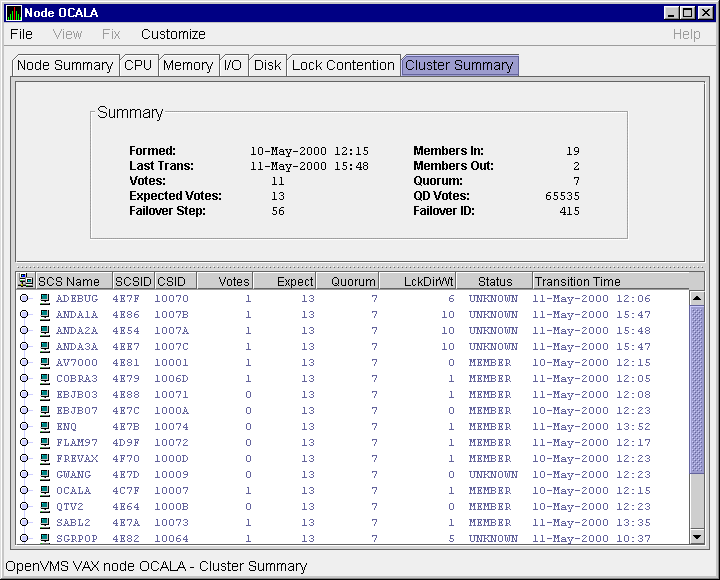

Figure 3-18 OpenVMS Cluster Summary Page
The two panes in the Cluster Summary page display the following
information:
- The Summary pane (top) displays summary information about the
entire cluster.
- The Cluster Members pane (bottom) displays detailed information
about each node in the cluster, including its System Communication
Architecture (SCA) connections with other nodes.
The following sections discuss these two panes.
Notes about Pane Displays
Following are notes about the display of data in the panes:
- The Availability Manager signals the LOVOTE event when the
difference between the cluster's quorum and votes is less than
the threshold for the event:
LOVOTE, 'node' VOTES count is close to or below QUORUM
|
The default threshold for LOVOTE is 1.
- You can change collection intervals by using the
Customize menu on the main Application window. Choose
the Customize OpenVMS... option, and then click the
Data Collection tab. On the page displayed, you can
select data that you want to collect and change the default collection
intervals.
3.2.7.1 Summary Pane
Table 3-5 describes the Summary pane data (see Figure 3-18).
Table 3-5 Summary Pane Data
| Data |
Description |
|
Formed
|
Date and time the cluster was formed.
|
|
Last Trans
|
Date and time of the most recent cluster state transition.
|
|
Votes
|
Total number of quorum votes being contributed by all cluster members
and by the quorum disk.
|
|
Expected Votes
|
Number of votes expected to be contributed by all members of the
cluster as determined by the connection manager. This value is based on
the maximum EXPECTED_VOTES system parameter and the maximized value of
the VOTES system parameter.
|
|
Failover Step
|
Current failover step index. Shows which step in the sequence of
failover steps the failover is currently executing.
|
|
Members In
|
Number of cluster members to which the Availability Manager has a
connection.
|
|
Members Out
|
Number of cluster members to which the Availability Manager either has
no connection or has lost connection.
|
|
Quorum
|
Number of votes required to keep the cluster above quorum.
|
|
QD Votes
|
Number of votes given to the quorum disk. A value of 65535 means there
is no quorum disk.
|
|
Failover ID
|
Failover instance identification. Unique ID of a failover sequence that
indicates to system managers whether a failover has occurred since the
last time they checked.
|
3.2.7.2 Cluster Members Pane
The Cluster Members pane lists all the nodes in the cluster and
provides detailed information about each one. The first level of
information in the Cluster Members pane contains cluster member data
(see Figure 3-18), which is described in Table 3-6.
Table 3-6 Cluster Member Data
| Data |
Description |
|
SCS Name
|
System Communications Services (SCS) name for the node (system
parameter SCSNODE).
|
|
SCSID
|
SCS identification for the node (system parameter SCSYSTEMID).
|
|
CSID
|
Cluster system identification.
|
|
Votes
|
Number of votes the member contributes.
|
|
Expect
|
Member's expected votes as set by the EXPECTED_VOTES system parameter.
|
|
Quorum
|
Number of votes that must be present for the cluster to function and
permit user activity.
|
|
LckDirWt
|
Lock manager distributed directory weight as determined by the LCKDIRWT
system parameter.
|
|
Status
|
Current cluster member status: MEMBER, UNKNOWN, or BRK_NON (break
nonmember).
|
|
Transition Time
|
Time cluster member had last transition.
|
3.2.7.3 System Communications Architecture (SCA) Virtual Circuit (VC) Data
SCA VC data includes information about members' virtual circuits to
other members of the cluster. More than one virtual circuit indicates
more than one path to the other member.
The data displayed is similar to the information that the Show Cluster
utility (SHOW CLUSTER) displays for the CIRCUITS, CONNECTIONS, and
COUNTERS classes. However, in Availability Manager Version 1.3 and
earlier, SHOW CLUSTER displays show connections and virtual circuits to
other OpenVMS nodes only; they do not show connections and virtual
circuits to the DIGITAL Storage Architecture (DSA) devices, such as
FDDI or DSSI disk controllers. This limitation will be fixed in a
future release of the Availability Manager software.
You can display virtual circuit data by double-clicking the SCS name of
a node. Figure 3-19 is an example of virtual circuit data on a
Cluster Summary page. (Because it is very wide, the illustration splits
the screen into two sections; the bottom screen is a continuation of
the top screen.)

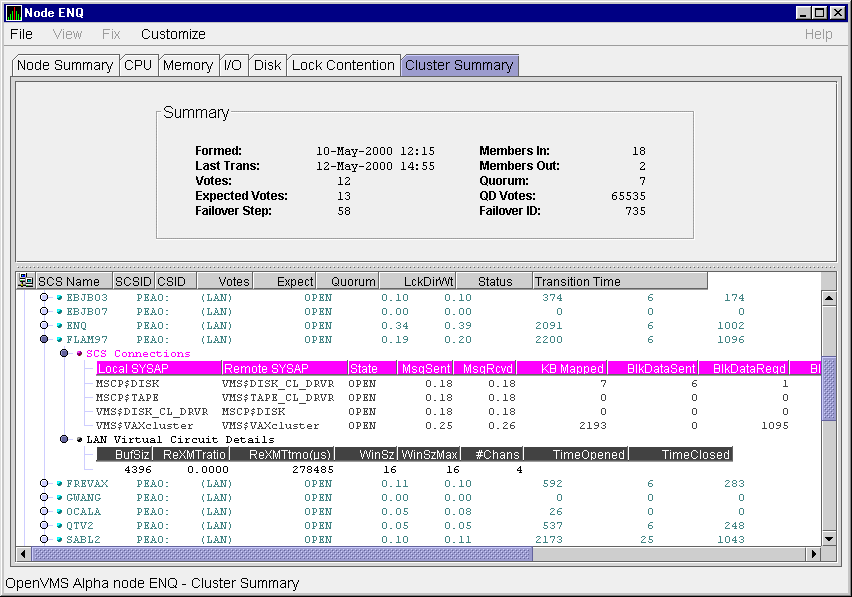

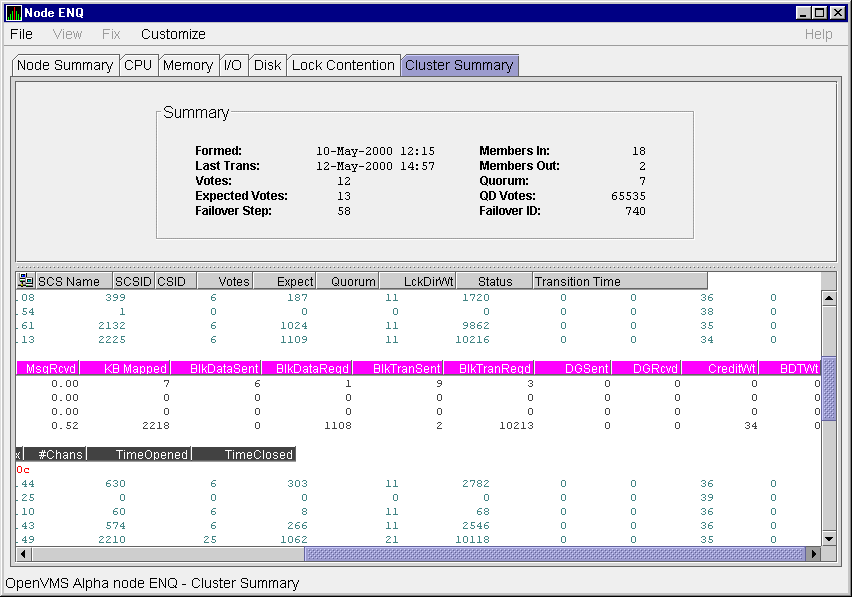

Figure 3-19 Virtual Circuit Data Page
Table 3-7 describes virtual circuit data. Each line shows either a
summary of all system applications (SYSAPs) that use
virtual circuit communication or the communication on the connection
between a local and a remote SYSAP.
Table 3-7 Virtual Circuit Data
| Data |
Description |
|
NodeName
|
SCS name of the remotely connected node.
|
|
LPortName
|
The device name of the local port associated with the circuit.
|
|
RPortType
|
The type of remote port associated with the circuit.
|
|
State
|
The state of the virtual circuit connection.
|
|
MsgSent
|
Rate that messages are sent on the virtual circuit.
|
|
MsgRcvd
|
Rate that messages are received on the virtual circuit.
|
|
KB Mapped
|
Number of kilobytes mapped for block data transfer using the virtual
circuit.
|
|
BlkDataSent
|
Number of kilobytes sent on the virtual circuit by this node using send
block data transfers.
|
|
BlkDataReqd
|
Number of kilobytes requested on the virtual circuit by this node using
request block data transfers.
|
|
BlkTransSent
|
Number of send block data transfers by this node on the virtual circuit.
|
|
BlkTransReqd
|
Number of request block data transfers by this node on the virtual
circuit.
|
|
DGSent
|
Number of datagrams sent by this node on the virtual circuit.
|
|
DGRcvd
|
Number of datagrams received from the remote system on the virtual
circuit.
|
|
CreditWt
|
Number of times any connection on the virtual circuit had to wait for a
send credit.
|
|
BDTWt
|
Number of times any connection on the virtual circuit had to wait for a
buffer descriptor.
|
3.2.7.4 SCS Connections Data
You can display SCS connections data by double-clicking the SCS
Connections icon displayed under a virtual circuit node name.
See Figure 3-19 for SCS connections data on a Cluster Summary page.
Table 3-8 describes the SCS connections data.
Table 3-8 SCS Connections Data
| Data |
Description |
|
Local SYSAP
|
Name of the local system application using the SCS connection.
|
|
Remote SYSAP
|
Name of the remote system application communicated with using the SCS
connection.
|
|
State
|
The state of the SCS connection.
|
|
MsgSent
|
Rate that messages are sent to the remote SYSAP using the SCS
connection.
|
|
MsgRcvd
|
Rate that messages are received from the remote SYSAP using the SCS
connection.
|
|
KB Mapped
|
Number of kilobytes mapped for block data transfer using the SCS
connection. Note: This field is available only in raw data format.
|
|
BlkDataSent
|
Number of kilobytes sent on the SCS connection by this node using send
block data transfers.
|
|
BlkDataReqd
|
Number of kilobytes the data requested on the SCS connection by this
node using request block data transfers.
|
|
BlkTransSent
|
Number of send block data transfers by this node on the SCS connection.
|
|
BlkTransReqd
|
Number of request block data transfers by this node on the SCS
connection.
|
|
DGSent
|
Number of datagrams sent by this node on the SCS connection.
|
|
DGRcvd
|
Number of datagrams received from the remote system on the SCS
connection.
|
|
CreditWt
|
Number of times the connection had to wait for a send credit.
|
|
BDTWt
|
Number of times the connection had to wait for a buffer descriptor.
|
3.2.7.5 LAN Virtual Circuit Details Data
You can display LAN virtual circuit details by double-clicking the icon
preceding that heading on the Cluster Summary page. The data items
displayed depend of the type of virtual circuit. Currently, this
feature is available only for LAN virtual circuits.
See Figure 3-19 for a LAN virtual circuit data display. Table 3-9
describes the LAN virtual circuit details data.
Table 3-9 LAN Virtual Circuit Details Data
| Data |
Description |
|
BufSz
|
Maximum data buffer size in use by this LAN virtual circuit.
|
|
ReXMTRatio
|
Ratio of retransmitted to transmitted packets during the most recent
data collection interval.
|
|
ReXMTTimOut (µs)
|
Retransmission timeout (in microseconds). The amount of time the
virtual circuit will wait for acknowledgment of a packet's receipt
before retransmitting the packet.
|
|
WinSz
|
Current value of the transmit window (or pipe quota). Maximum number of
packets that will be sent before stopping to await an acknowledgment.
After a timeout, the transmit window is reset to 1 to decrease
congestion and is allowed to increase as acknowledgments are received.
|
|
WinSzMax
|
Maximum transmit window size currently allowed for the virtual circuit.
|
|
#Chans
|
Number of channels
1 available to the virtual circuit.
|
|
TimeOpened
|
Most recent time the virtual circuit was opened.
Not implemented in this release.
|
|
TimeClosed
|
Most recent time the virtual circuit was closed.
Not implemented in this release.
|
1A channel is a logical communication path between two LAN
adapters located on different nodes. Channels between nodes are
determined by the pairs of LAN adapters and the connecting network. For
example, two nodes, each having two LAN adapters, could establish four
channels. The data carried by a particular virtual circuit can be sent
over any channel connecting the two nodes.
For more detailed explanations of these data, refer to the NISCA
troubleshooting information in the OpenVMS Cluster Systems manual.
3.2.8 OpenVMS Network Interconnect for the System Communication Architecture (NISCA) Pages
The Network Interconnect for the System Communication Architecture
(NISCA) is the transport protocol responsible for carrying messages
such as disk I/Os and lock messages across Ethernet and FDDI LANs to
other nodes in the cluster. More detailed information about the
protocol is in the OpenVMS Cluster Systems manual.

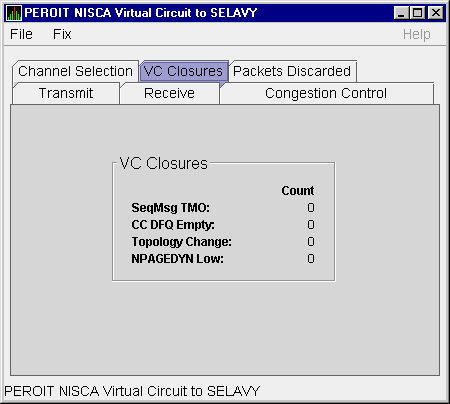

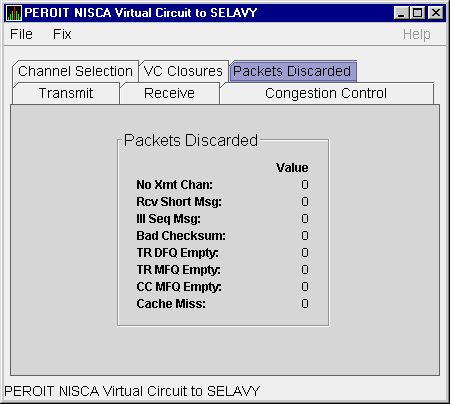

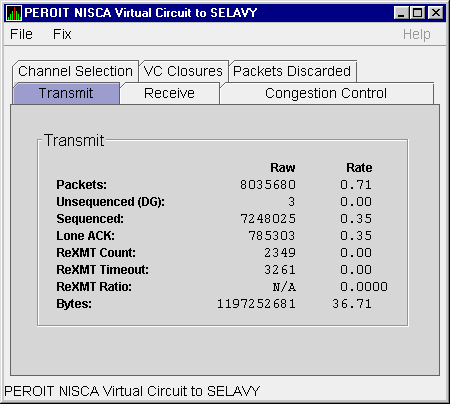

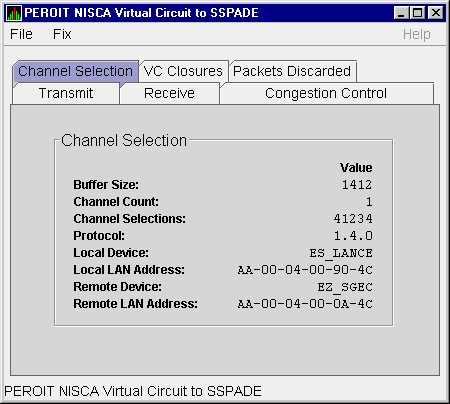

The NISCA pages show detailed information about the LAN (Ethernet or
FDDI) connection between two nodes. The Availability Manager displays
one window for each LAN virtual circuit.
The pages are intended primarily as real-time aids to diagnosing
LAN-related problems. The OpenVMS Cluster Systems manual describes the parameters
shown in these pages and tells how to diagnose LAN-related cluster
problems. The pages provide the same information as the OpenVMS System
Dump Analyzer (SDA) command SHOW PORTS/VC=VC_node-name. (VC
refers to a virtual circuit; node-name refers to a node in the
cluster. The system defines VC-node-name after a SHOW PORTS
command is issued from SDA.)
To display NISCA details, double-click the buffer size data item
(BufSz) under the LAN Virtual Circuit Details heading on the Cluster
Summary page (Figure 3-20).
Figure 3-20 LAN Virtual Circuit Details
The system then displays a Transmit Data page (Figure 3-24) that
contains five additional tabs you can select. These pages are described
in the following sections.
Notes about the Display
Following are notes about displaying data in this window:
- You cannot sort or filter the data displayed.
- You can change collection intervals.
3.2.8.1 Channel Selection Data
Channel selection data includes information about the selection of
virtual circuit channels. Figure 3-21 is an example of a Channel
Selection Data page.
Figure 3-21 Channel Selection Data Page
The following table describes the data displayed:
| Data |
Description |
|
Buffer Size
|
Maximum data buffer size for this virtual circuit.
|
|
Channel Count
|
Number of channels available for use by this virtual circuit.
|
|
Channel Selections
|
Number of channel selections performed.
|
|
Protocol
|
NISCA protocol version.
|
|
Local Device
|
Name of the local LAN device that the channel uses to send and receive
packets.
|
|
Local LAN Address
|
Address of the local LAN device that performs sends and receives.
|
|
Remote Device
|
Name of the remote LAN device that the channel uses to send and receive
packets.
|
|
Remote LAN Address
|
Address of the remote LAN device performing the sends and receives.
|
3.2.8.2 Virtual Circuit (VC) Closures Data
VC closures data is information about the number of times a virtual
circuit has closed for a particular reason. Figure 3-22 is an example
of a VC Closures Data page.
Figure 3-22 Virtual Connect (VC) Closures Data Page
The following table describes the displayed data:
| Data |
Description |
|
SeqMsg TMO
|
Number of times the VC was closed because of sequenced transmit
timeouts.
|
|
CC DFQ Empty
|
Number of times the VC was closed because the channel control data-free
queue (DFQ) was empty.
|
|
Topology Change
|
Number of times the VC was closed because PEDRIVER performed a failover
from a LAN path with a large packet size to a LAN path with a smaller
packet size, necessitating the closing and reopening of the virtual
circuit.
|
|
NPAGEDYN Low
|
Number of times the virtual circuit was lost because of a pool
allocation failure on the local node.
|
3.2.8.3 Packets Discarded Data
Packets discarded data is information about the number of times packets
were discarded for a particular reason. Figure 3-23 is an example of
a Packets Discarded Data page.
Figure 3-23 Packets Discarded Data Page
The following table describes the displayed data:
| Data |
Description |
|
No Xmt Chan
|
Number of times there was no transmit channel.
|
|
Rcv Short Msg
|
Number of times an undersized transport message was received.
|
|
Ill Seq Msg
|
Number of times an illegal sequenced message was received.
|
|
Bad Checksum
|
Number of times there was a checksum failure on a received packet.
|
|
TR DFQ Empty
|
Number of times the transmit data-free queue (DFQ) was empty.
|
|
TR MFQ Empty
|
Number of times the transmit message-free queue (MFQ) was empty.
|
|
CC MFQ Empty
|
Number of times the channel control MFQ was empty.
|
|
Cache Miss
|
Number of packets that could not be placed in the virtual circuit's
receive cache because the cache was full.
|
3.2.8.4 Transmit Data
Transmit data is information about data packet transmission.
Figure 3-24 is an example of a Transmit Data page.
Figure 3-24 Transmit Data Page
The following table describes the displayed data:
| Data |
Description |
|
Packets
|
(Raw) count and rate of packets transmitted through the virtual circuit
to the remote node, including both sequenced and unsequenced (channel
control) messages and lone acknowledgments.
|
|
Unsequenced (DG)
|
(Raw) count and rate of the number of unsequenced packets transmitted.
|
|
Sequenced
|
(Raw) count and rate of sequenced packets transmitted. Sequenced
packets are guaranteed to be delivered.
|
|
Lone ACK
|
(Raw) count and rate of packets sent solely for the purpose of
acknowledging receipt of one or more packets.
|
|
ReXMT Count
|
Number of packets retransmitted. Retransmission occurs when the local
node does not receive an acknowledgment for a transmitted packet within
a predetermined timeout interval.
|
|
ReXMT Timeout
|
Number of retransmission timeouts that have occurred.
|
|
ReXMT Ratio
|
Ratio of current and past retransmission count to the current and past
number of sequenced messages sent.
|
|
Bytes
|
(Raw) count and rate of bytes transmitted through the virtual circuit.
|
|
