You can use this fix to adjust the lock queue limit of a process. When you select the Lock option, the Availability Manager displays the page shown in Figure 5-15.

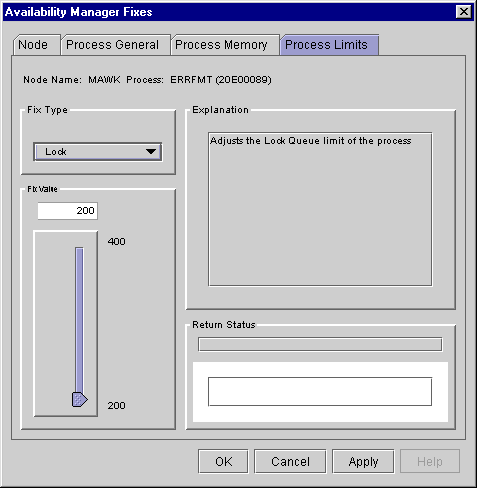

Figure 5-15 Lock Queue Limit Page

To perform this fix, use the slider to adjust the lock queue limit to the number you want. You can also click the line above or below the slider to adjust the number by one.

When you are satisfied with the new lock queue limit, select one of the options displayed at the bottom of the page. A message displayed on the page indicates that the fix has been successful.

5.2.5.6 Time Queue Entry Limit

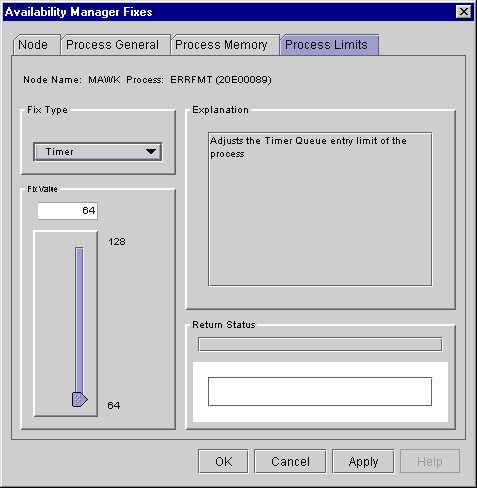

Figure 5-16 Time Queue Entry Limit Page

To perform this fix, use the slider to adjust the timer queue entry limit to the number you want. You can also click the line above or below the slider to adjust the number by one.

When you are satisfied with the new timer queue entry limit, select one of the options displayed at the bottom of the page. A message displayed on the page indicates that the fix has been successful.

5.2.5.7 Subprocess Creation Limit

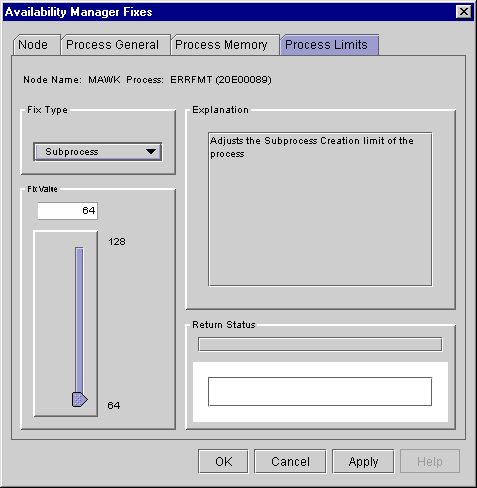

Figure 5-17 Subprocess Creation Limit Page

To perform this fix, use the slider to adjust a process's subprocess creation limit to the number you want. You can also click the line above or below the slider to adjust the number by one.

When you are satisfied with the new subprocess creation limit, select one of the options displayed at the bottom of the page. A message displayed on the page indicates that the fix has been successful.

5.2.5.8 I/O Byte

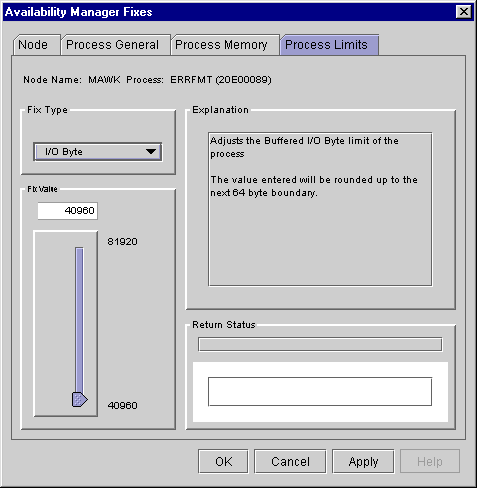

Figure 5-18 I/O Byte Page

To perform this fix, use the slider to adjust the I/O byte limit to the number you want. You can also click the line above or below the slider to adjust the number by one.

When you are satisfied with the new I/O byte limit, select one of the options displayed at the bottom of the page. A message displayed on the page indicates that the fix has been successful.

This chapter explains how to customize the following features of the Availability Manager:

How to Specify Which Nodes to Customize

In the Application window, you can select the Customize option in either of these places:

• On the Application window menu bar, click the Customize menu. The Availability Manager displays the menu shown in Figure 6-1.

  Figure 6-1 Customize Menu in Application Window

  ---


• Right-click a node name in the Node pane of the Application window Figure 1-3. The Availability Manager displays the popup menu shown in Figure 6-2.

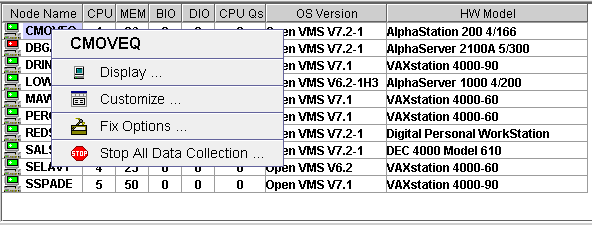

  Figure 6-2 Customize Menu in Node Pane

  ---



Depending on which Customize menu you use and your choice of menu items, your customizations can affect one or more nodes, as indicated in the following table.

When you select Customize Application on the Application window Customize menu (Figure 6-1), the Availability Manager displays a Group/Node Lists tab (Figure 6-3).

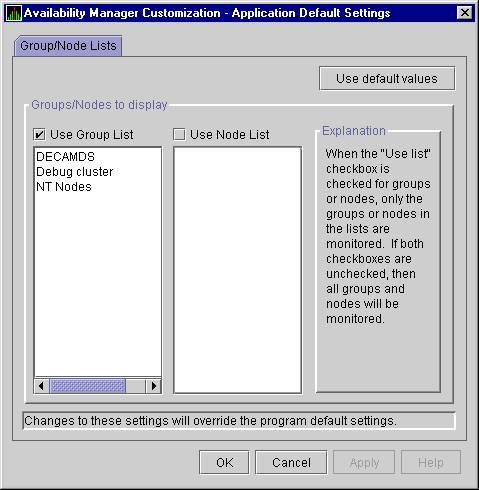

Figure 6-3 Group/Node Lists Customization Page

You can select either of the following lists of nodes to monitor:

• Use Group List
  Using the correct case, enter the names of the groups of nodes you want to monitor.
• Use Node List
  Using the correct case, enter the names of individual nodes you want to monitor.

If you decide to return to the default (monitor all nodes) or to enter names again, click Use default values.

After you enter a list of groups or individual nodes, click one of the following choices:

To put the list into effect, exit the Availability Manager and restart it.

6.2 Changing the Group Membership of a Node

Each Availability Manager Data Collector node is assigned to the DECAMDS group by default. The following sections explain how to change the group membership of nodes.

You need to edit a logical on each Data Collector node to change the group for that node. To do this, follow these steps:

1. Assign a unique name of up to 15 alphanumeric characters to the AMDS$GROUP_NAME logical name in the AMDS$AM_SYSTEM:AMDS$AM_LOGICALS.COM file. For example:

   $ AMDS$DEF AMDS$GROUP_NAME FINANCE ! Group FINANCE; OpenVMS Cluster alias

2. Apply the logical name by restarting the Data Collector:

   $ @SYS$STARTUP:AMDS$AM_STARTUP RESTART

You need to edit the Registry to change the group of a Windows NT node. To edit the Registry, follow these steps:

1. Click the Windows NT Start button. On the lists displayed, first click Programs and then Command Prompt.
2. Type REGEDIT after the angle prompt (>).
   The system displays a screen for the Registry Editor, with a list of entries under My Computer.
3. On the list displayed, click HKEY_LOCAL_MACHINE .
4. Click SYSTEM.
5. Click CurrentControlSet.
6. Click damdrvr.
7. Click Parameters.
8. Double-click Group Name. Then type a new group name of 15 alphanumeric characters or fewer, and click OK to make the change.
9. On the Control Panel, click Services, and then click Stop for "PerfServ."
10. Again on the Control Panel, click Devices, and then click Stop for "damdrvr."
11. First restart damdrvr under "Devices," and then restart PerfServ under "Services."
    This step completes the change of groups for this node.

When you click the Customize OpenVMS... menu option in the Application window and then click the Data Collection tab, the Availability Manager displays the OpenVMS Data Collection page, where you can choose types of data you want to collect. You can also change the default Availability Manager intervals at which data is collected or updated.

Figure 6-4 shows the OpenVMS Data Collection page.

Figure 6-4 OpenVMS Data Collection Page

Table 6-1 identifies the page where each type of data collected appears and indicates whether or not that type of data collection is a default.

You can choose additional types of data collection by selecting the Collect check box on the Data Collection page of the Customize OpenVMS... menu (Figure 6-4). A check mark indicates that data will be collected at the intervals described in Table 6-2.

You can enter a different collection interval by double-clicking the value; then delete the old value and enter a new one. If you change your mind and decide to return to the default collection interval, select one or more rows of data items: then click Use default values. The system displays the default values for all the collection intervals.

When you finish customizing your data collection, select one of the following options at the bottom of the page:

When you select the Customize OpenVMS... menu option and click the Filter tab, the Availability Manager displays a page that allows you to display specific kinds of data by selecting check boxes. The types of data filters available are as follows:

• CPU Filters
• Disk Status
• Disk Volume
• I/O
• Lock Contention
• Memory Filters
• Page/Swap File

Filters can vary depending on the type of data collected. For example, filters might be process states or a variety of rates and counts. The following sections describe data filters that are available for various types of data collection.

Each filter page contains the following note: "Changes to these settings will override the program default settings." This means that settings that are changed on the node level override settings made at the application and program (or GUI) level.

You can display the default values for the data items on the page at any time. To do this, select the item and click Use default values.

When you finish modifying a filters page, click one of the following options at the bottom of the page:

When you click CPU Filters on the Filter page, the Availability Manager displays the OpenVMS CPU Filters page (Figure 6-5).

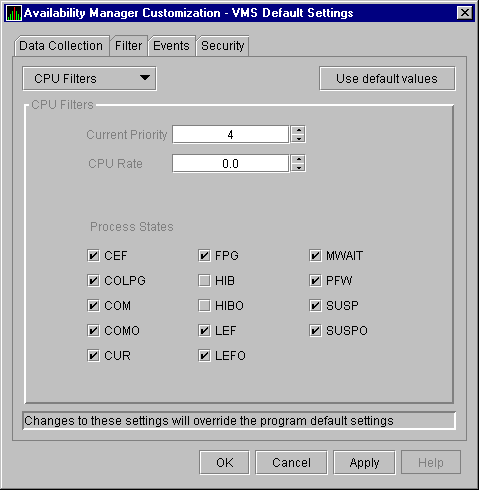

Figure 6-5 OpenVMS CPU Filters Page

This page allows you to change and select values that are displayed on the OpenVMS CPU Process States page (Figure 3-7).

You can change the current priority and rate of a process. By default, a process is displayed only if it has a Current Priority of 4 or more. Click the up or down arrow to increase or decrease the priority value by one. The default CPU rate is 0.0, which means that processes with any CPU rate used will be displayed. To limit the number of processes displayed, you can click the up or down arrow to increase or decrease the CPU rate by .5 each time you click.

The OpenVMS CPU Filters page also allows you to select the states of the processes that you want to display on the CPU Process States page. Select the check box for each state you want to display. (Process states are described in Appendix B.)

6.4.2 OpenVMS Disk Status Filters

When you click Disk Status on the Filter page, the Availability Manager displays the OpenVMS Disk Status Filters page (Figure 6-6).

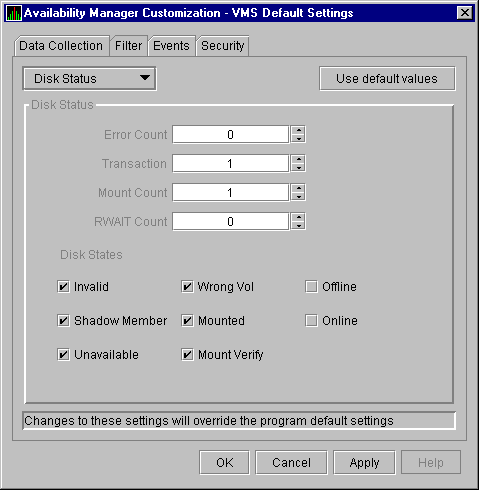

Figure 6-6 OpenVMS Disk Status Filters Page

The OpenVMS Disk Status Summary page (Figure 3-12) displays the values you set on this filters page.

This filters page lets you change the following default values:

This filters page also lets you check the states of the disks you want to display, as described in the following table:

When you click Disk Volume on the Filter page, the Availability Manager displays the OpenVMS Disk Volume Filters page (Figure 6-7).

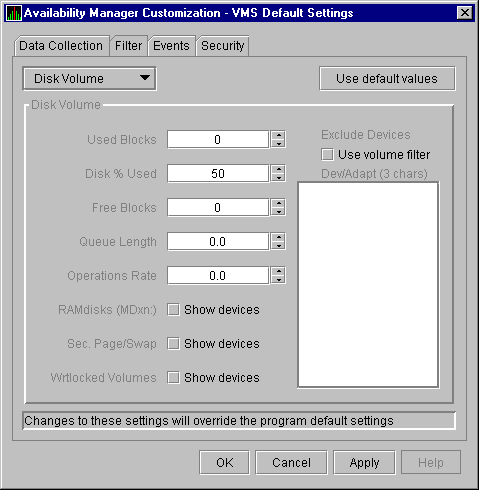

Figure 6-7 OpenVMS Disk Volume Filters Page

The OpenVMS Disk Volume Filters page allows you to change the values for the following data:
