[Contents] DIGITAL SNA Access Server Migration
Guide
Access Names Dialog: Specify Access Names and Parameters
The parameters you specified in the ACCESS NAMES section
of the Access Server Configuration Worksheet are configured in the Access
Names dialog box (Figure 4-2). Click
on the Access Names tab to display this dialog box.

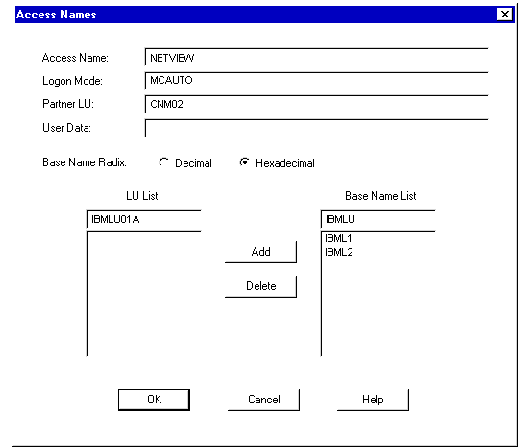

Figure 4-2: Access Names Dialog Box
You can define one or more Access Names, depending
on how you planned to configure your network and how the existing DECnet
SNA Gateway is configured. An Access Name entry must be saved (by pressing
OK after the appropriate parameters are entered) before you can create
another one.
For each Access Name you define, use the configuration
information from the Configuration Worksheet to fill in the parameters,
as follows:
-
Specify a Logon Mode and a Partner LU (required in order to use the defaulting
feature of an Access Name).
-
Add one or more LUs to the LU List box, which may contain individual LU
names and LU pool names.
-
If you plan to use Base Names with Access Names, add one or more Base Names
to the Base Name List box, and choose the Base Name Radix (Decimal or Hexadecimal)
(the Base Name Radix is not used if there are no entries in the Base Name
List).
See "Specifying Access Names" in Chapter 5 of the Installation
& Configuration Guide for specific and detailed information on
using the Access Names dialog box.
