ATX-DECstation 5000/150 ("4MIN" ) |
HOSTNAME | WALRUS |
SYSTEM CPU | MIPS R4000 @50 MHz (internal 100 MHz) |
CACHE (2nd, 1st D/I) | 1 MB, 8 KB / 8 KB |
RAM | 96 MB (Max. 128 MB) |
SYSTEM BUS WIDTH | 32 bit |
SCSI BUS | 1 x SCSI-2 (5 MB/s) |
OPTION BUS | TurboChannel @12.5MHz |
GRAPHICS | PMAGB-BA 8-plane 1280x1024 @72Hz |
HARD DISK DRIVE | 4 GB 7200 RPM Seagate and 1 GB 5400 RPM DEC RZ26 |
CD-ROM DRIVE | SCSI-1 2x Sony |
NETWORK | 10 Mbps AUI and 2 x 100 Mbps FDDI (DEFTA-FA and DEFTA-AA option cards) |
OS | ULTRIX V4.5 and LINUX/MIPSEL |
YEAR | 1993 |
SPEED | 75 VAX MIPS |
COMMENTS | ULTRIX on this machine is fast. Useable with X11 and GNUware. |
Ultrixboot - V4.5 Thu Sep 14 07:07:42 EDT 1995 Loading 3/rz0/vmunix ... Sizes: text = 1426720 data = 227952 bss = 445392 Starting at 0x80030000 ULTRIX V4.5 (Rev. 47) System #1: Fri Jan 1 01:22:10 EET 1999 real mem = 16777216 avail mem = 12062720 using 409 buffers containing 1675264 bytes of memory DECstation 5000 Model 150 - system rev 48 8Kb Instruction Cache, 8Kb Data Cache 1024Kb Secondary Cache cpu0 ( version 3.0, implementation 4 ) fpu0 ( version 0.0, implementation 5 ) HBA 'PMAZ-BA ' and DME 'PMAZ-BA ' attached on Controller 0. asc0 at ibus3 rz0 at asc0 slave 0 (COMPAQPCST34371N 0472) rz4 at asc0 slave 4 (SONY CD-ROM CDU-8012 3.1e) ln0 at ibus3 ln0: DEC LANCE Ethernet Interface, hardware address: 08:00:00:00:00:00 scc0 at ibus3 fb0 at ibus0 fta0 at ibus2 fta0: DEC DEFTA (PDQ) FDDI Interface, hardware address 08:00:00:00:00:00 fta0: Module type is 'PMAF-FA ', Firmware revision '2.4' fta0: DMA Available Sat Aug 31 17:04:55 EET DST 2002 |

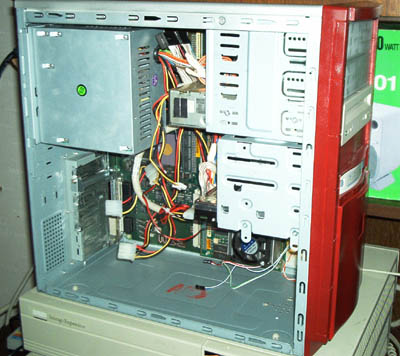

The motherboard is from a DECstation 5000/125 with a broken power
supply
unit and the CPU was acquired separately. The other parts came from
various
places. The amount of installed memory has changed since I captured
that
bootlog, in case you are wondering.
