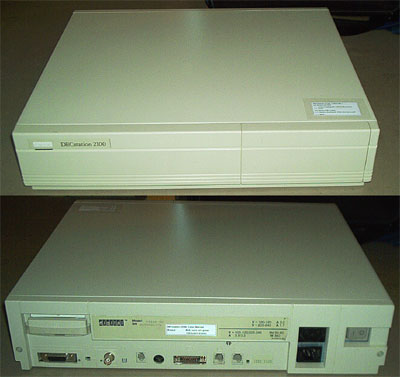

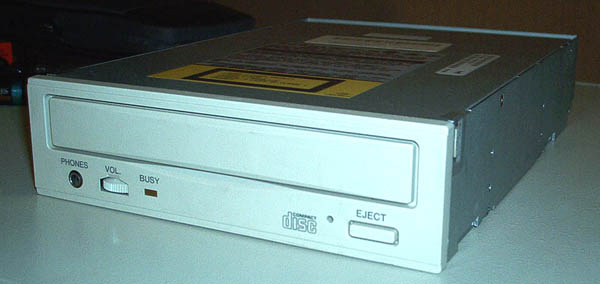

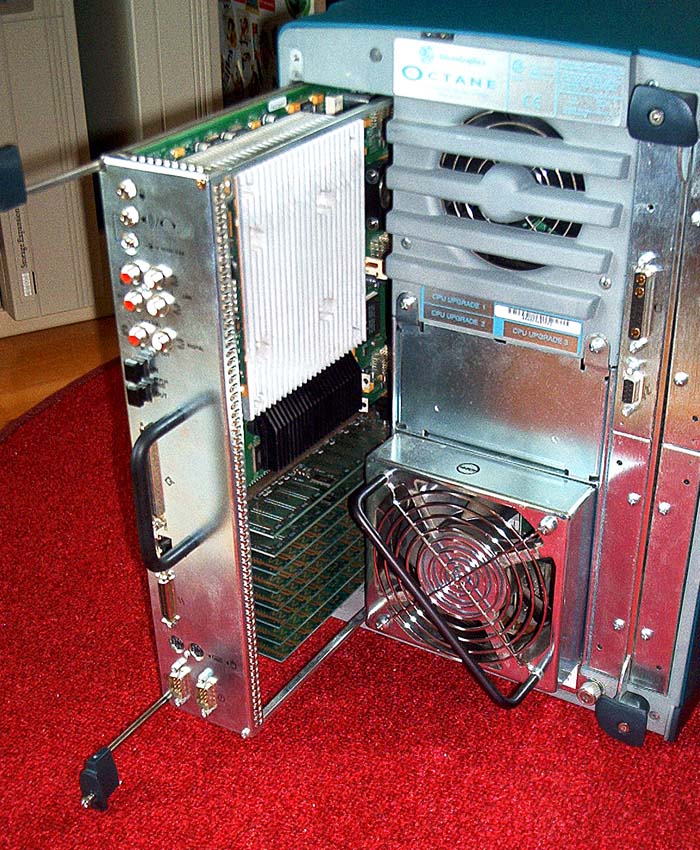

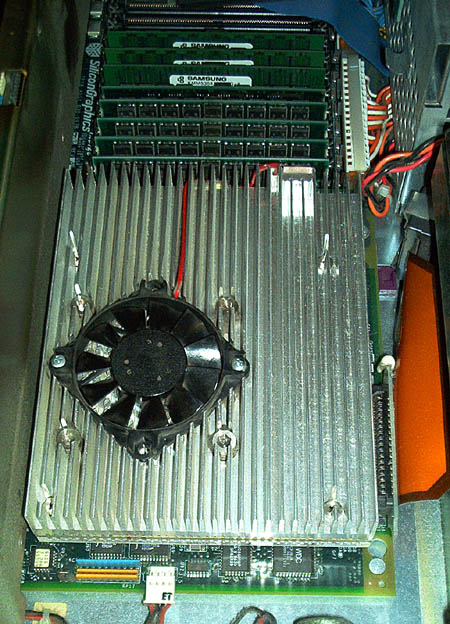

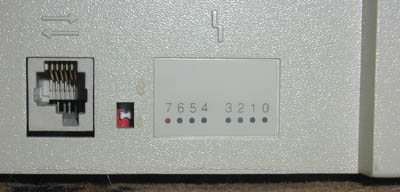

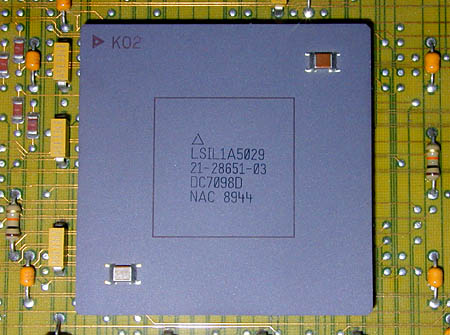

HARDWARE COLLECTION PICTURES |

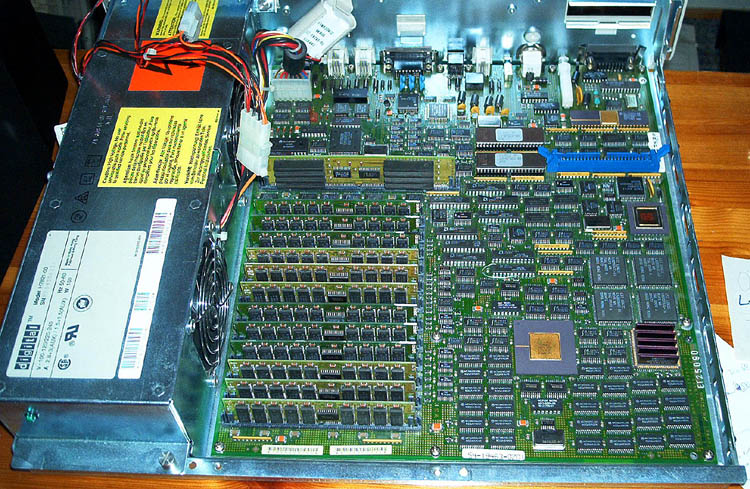

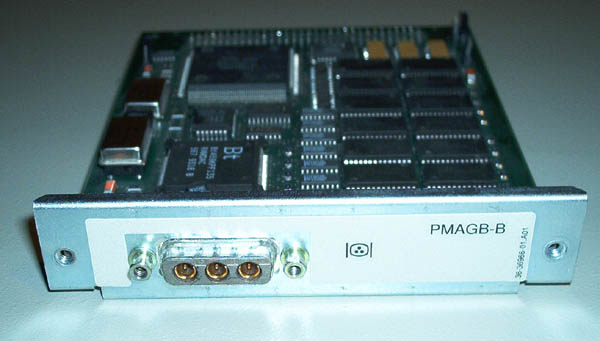

Inside DECstation 5000/133 | ![]() PMAGB-B TC card |
Quantum 2 GB hard drive |

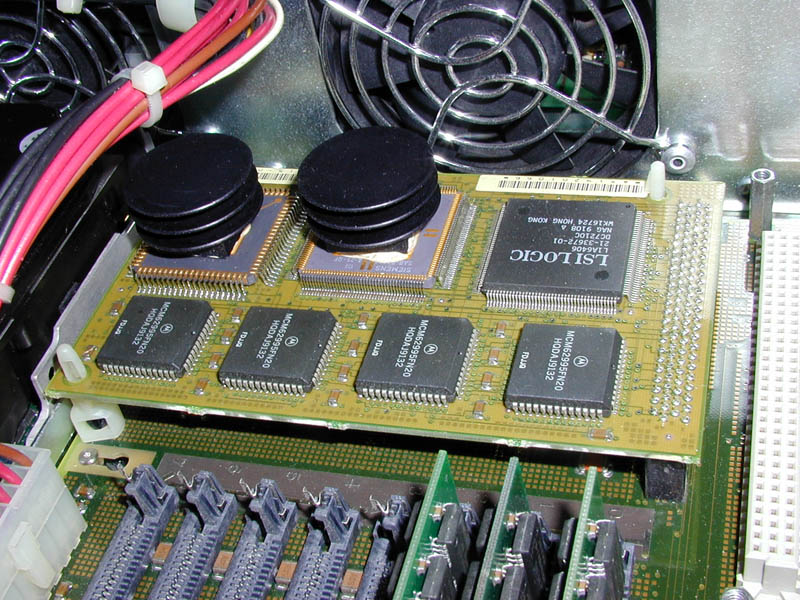

![]() 33MHz R3000 CPU and the 25MHz one, before upgrade. |

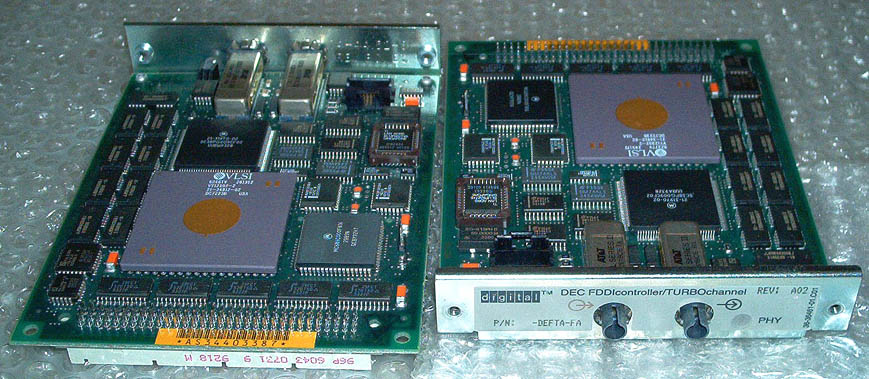

![]() DEFTA FDDI TC card |

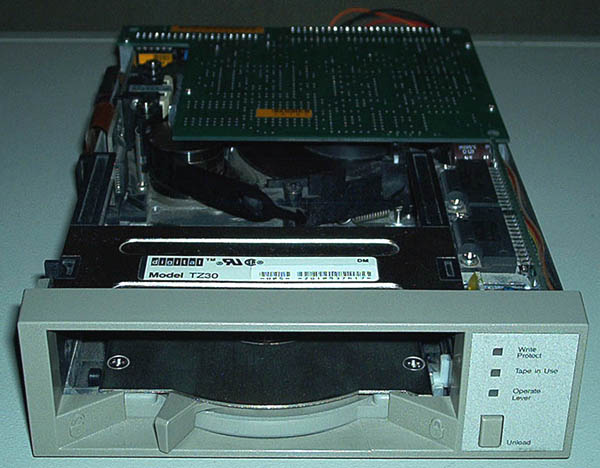

![]() TZ30 tape drive |

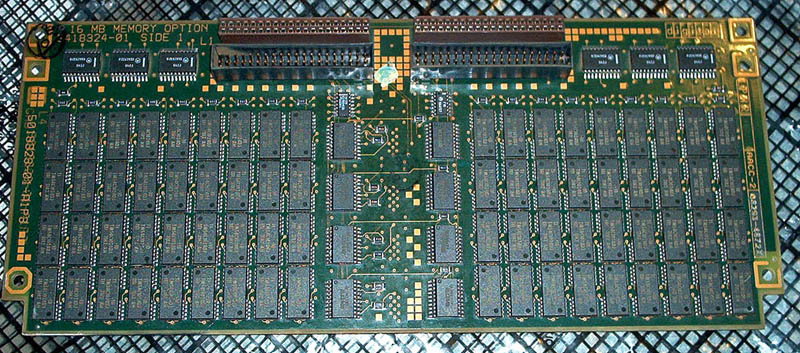

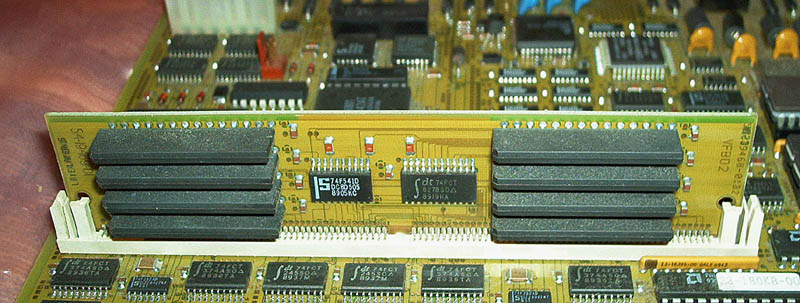

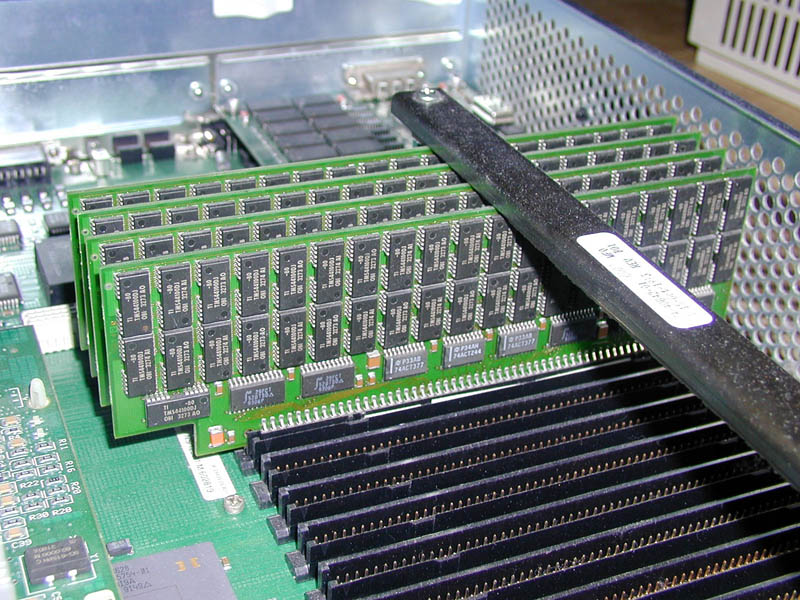

80 pin DECstation memory SIMMs | ![]() PMAD-A ethernet TC card |

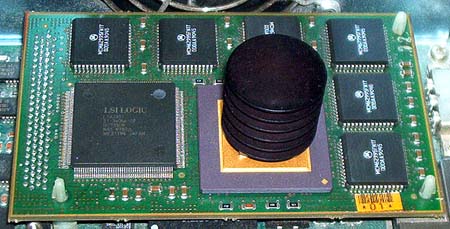

![]() 33MHz R3000 CPU |

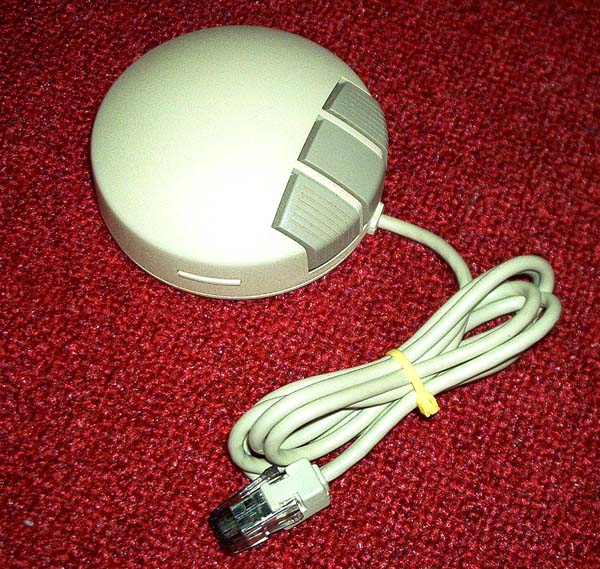

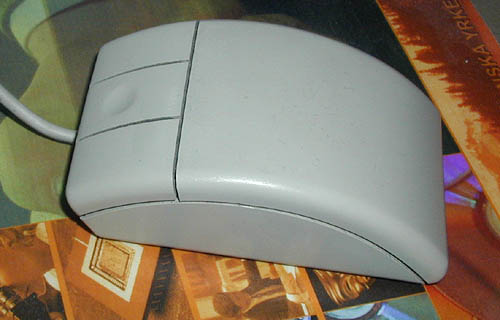

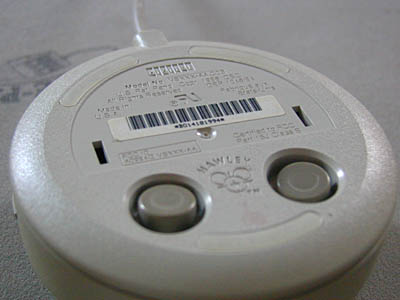

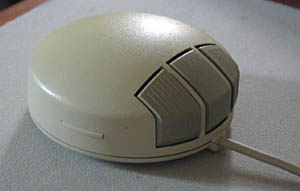

![]() MAXINE Serial Bus Puck mouse |

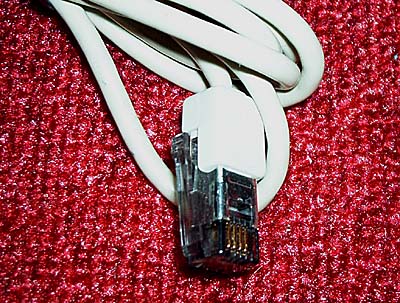

![]() MAXINE Serial Bus connector |

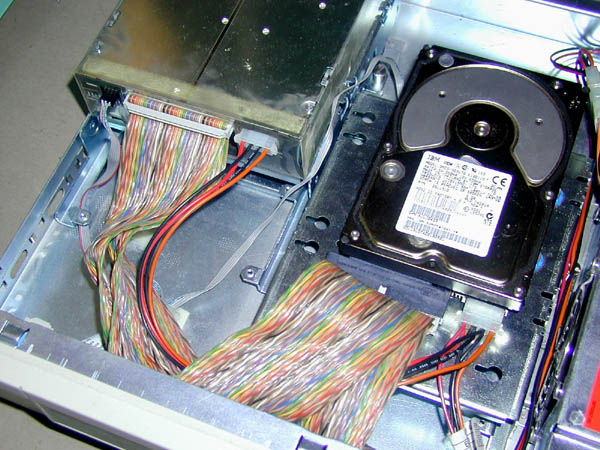

![]() DEC BA46A enclosure |

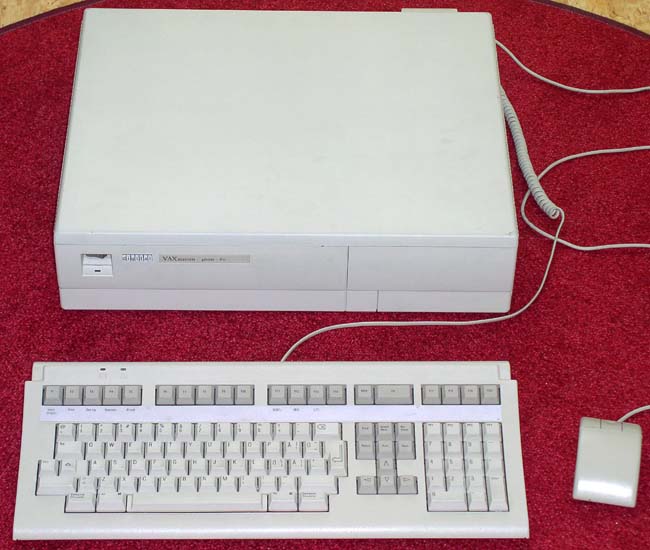

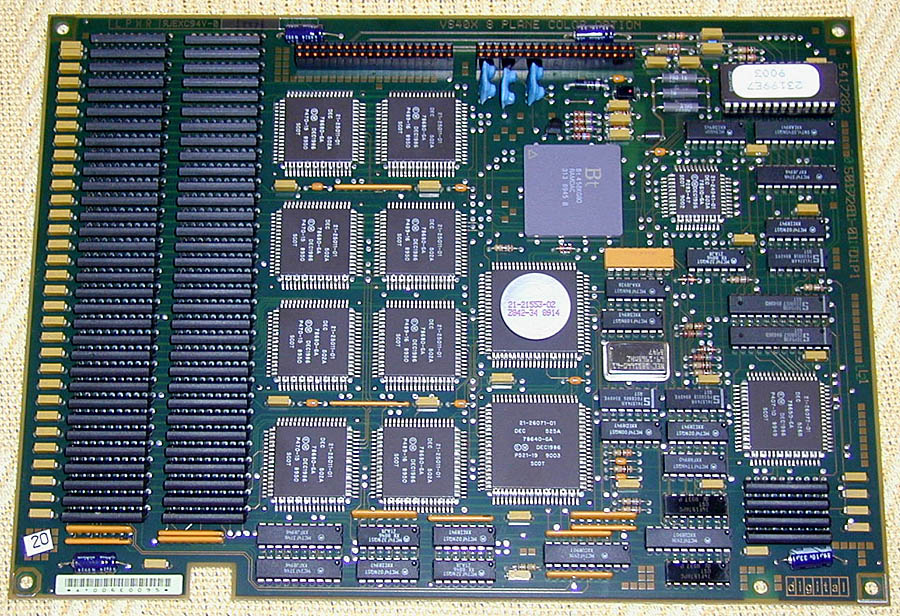

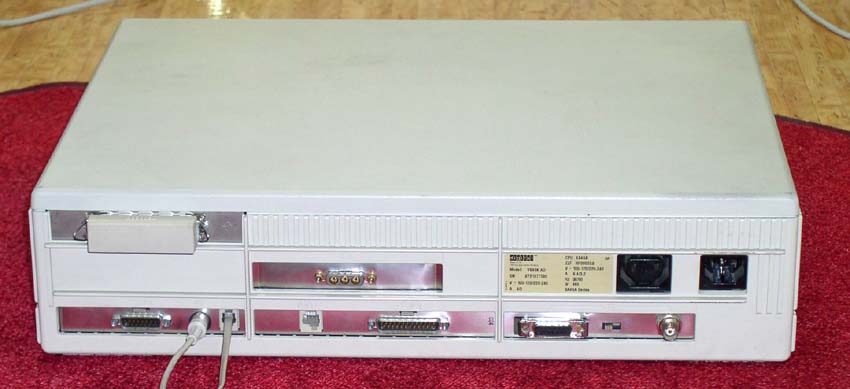

![]() VAXstation 4000 M60 back |
![]() VAXstation 4000 M60 date stamp "MAY 13 1996" |

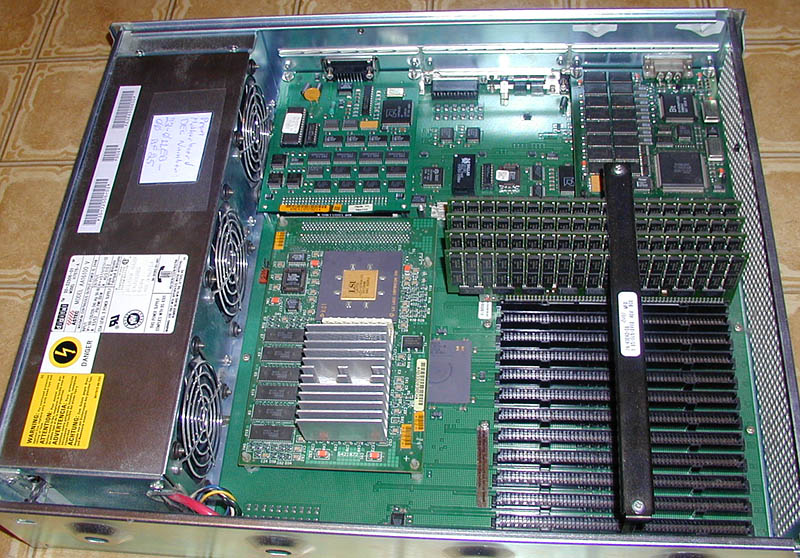

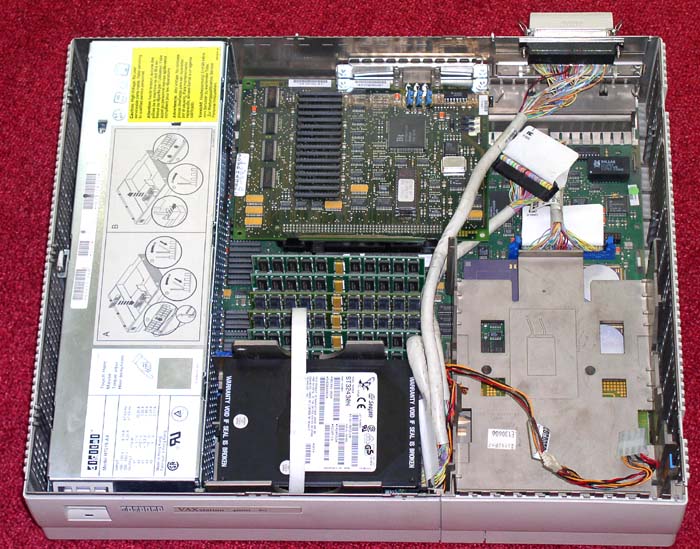

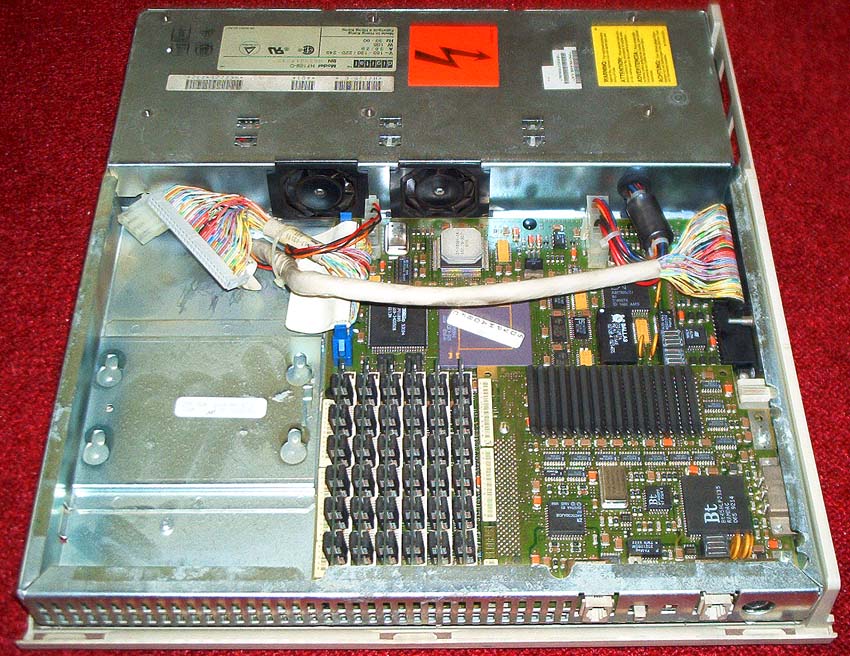

![]() Inside the box |

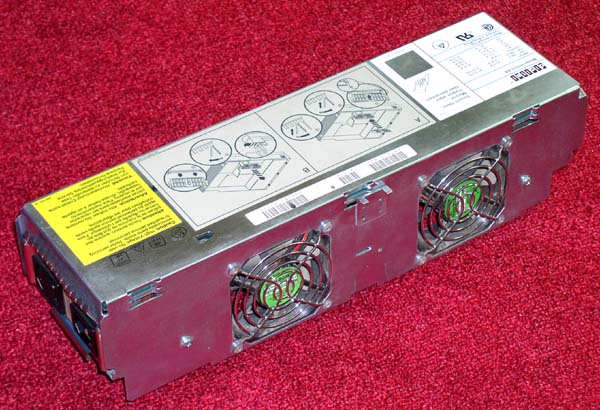

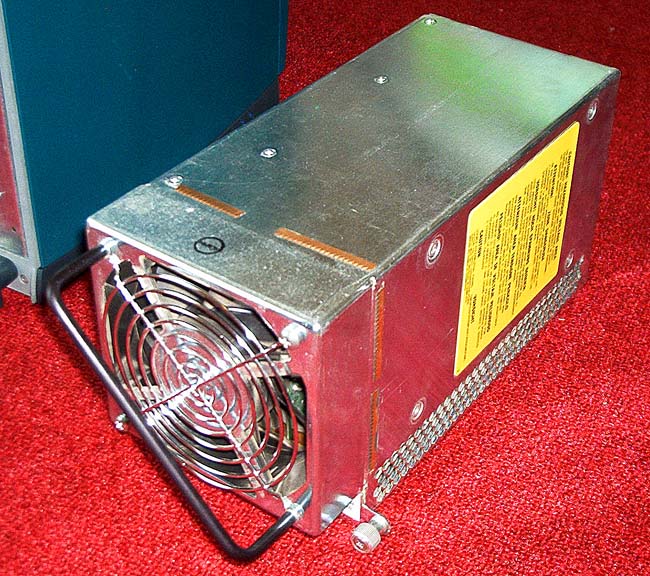

![]() 'One click' installable PSU |

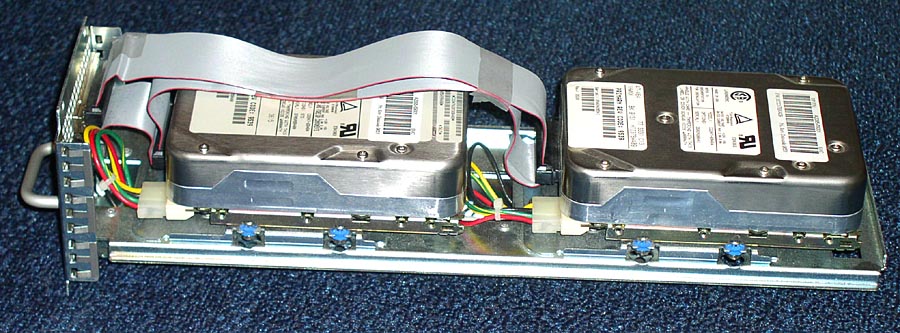

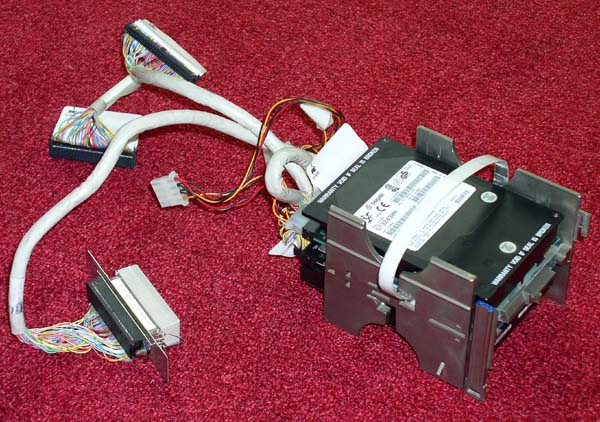

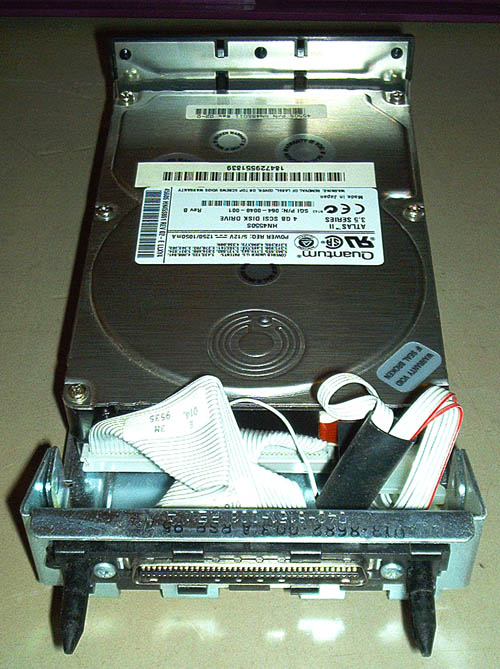

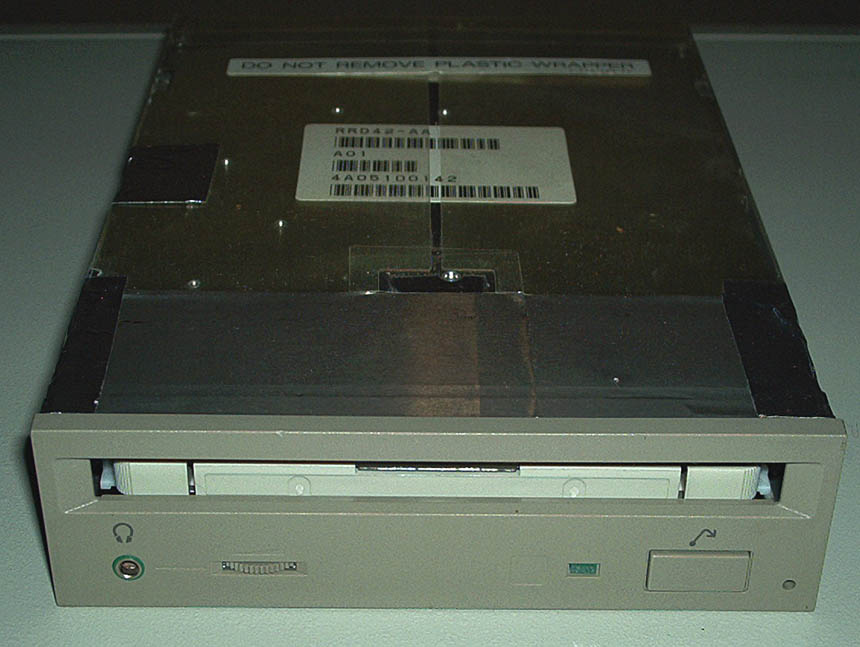

![]() SCSI disk tray + disks |

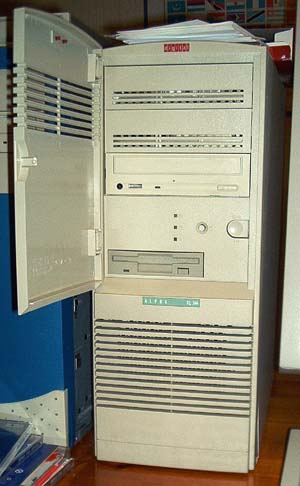

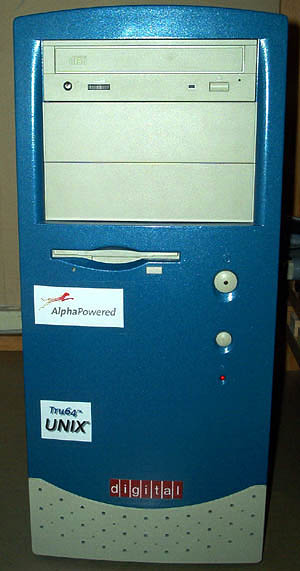

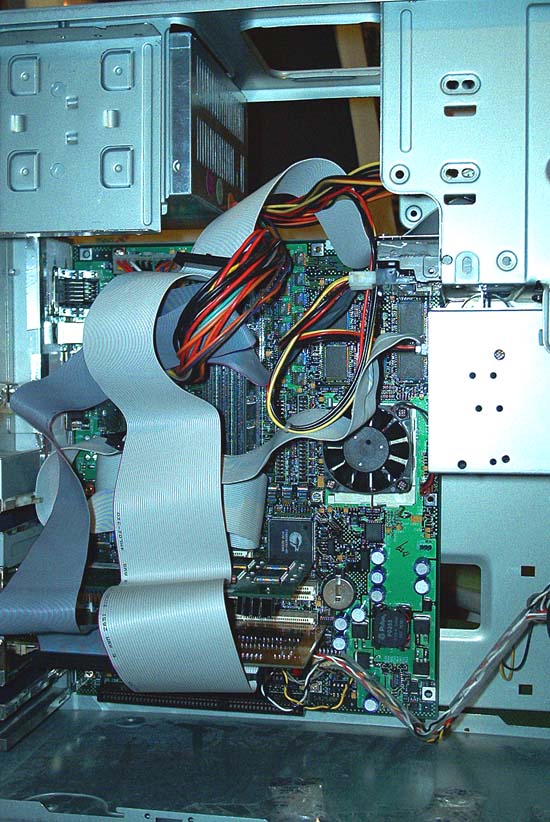

![]() The Alpha XL midtower box from outside |

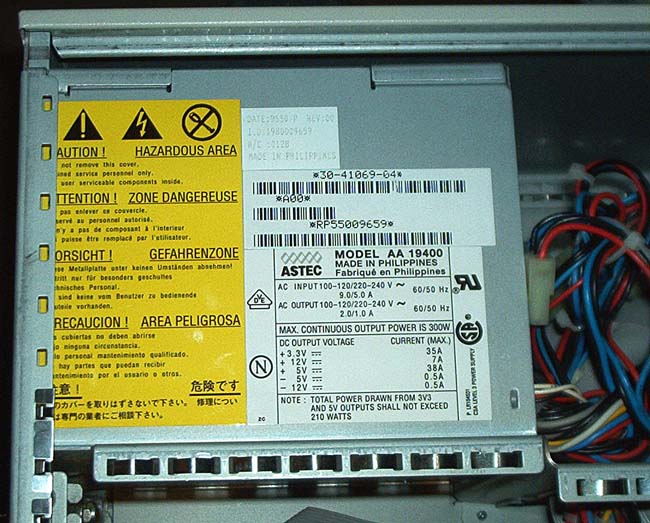

![]() Power Supply Unit |

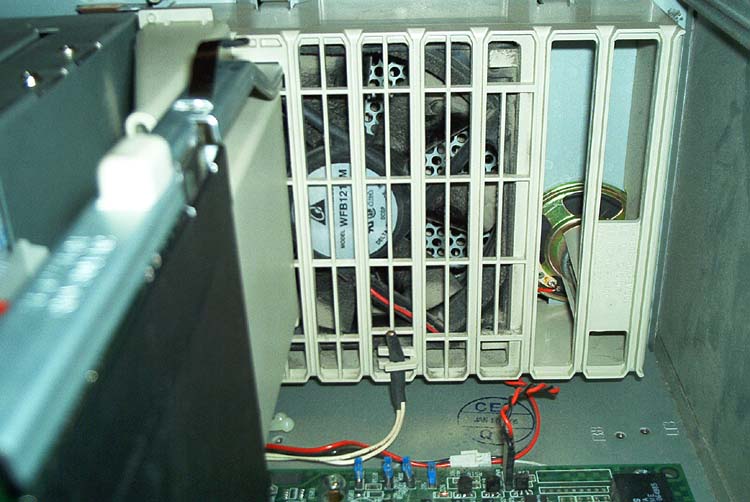

![]() Inlet air cooling fan for option cards and CPU (a pretty big one, that too) |

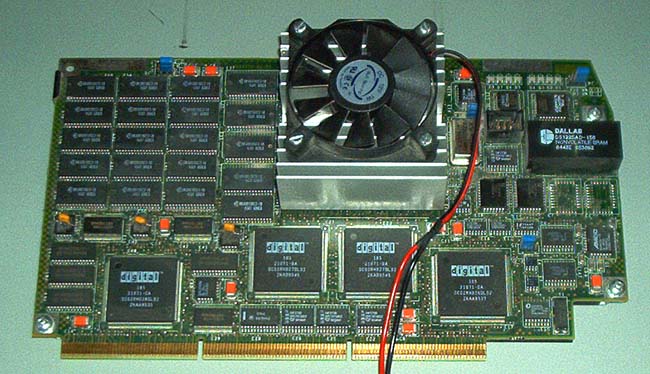

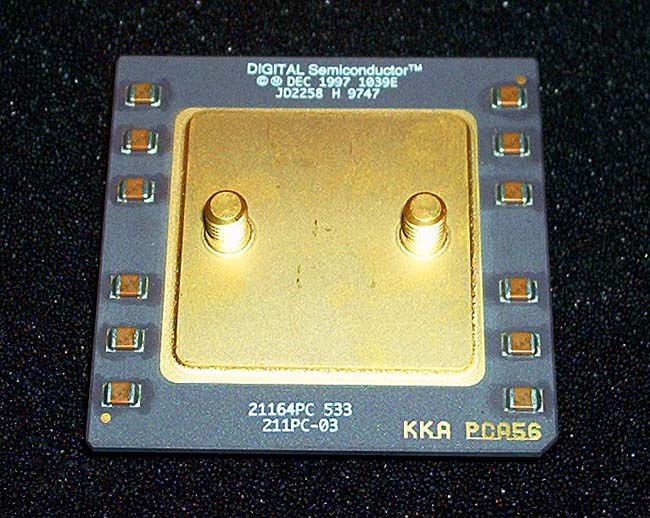

![]() Alpha CPU card with 2 MB cache |
NAME (click on the link for a pic) |
CATEGORY |
DESCRIPTION |

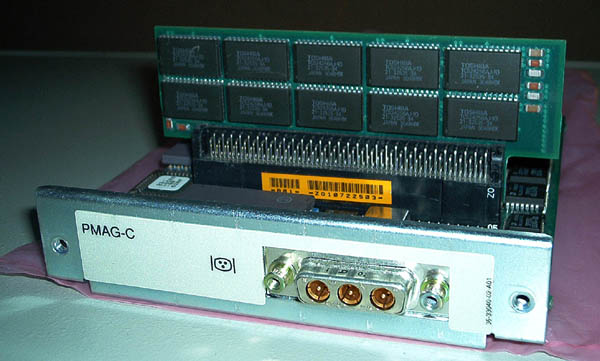

PMAG-A | 2D Graphics, B/W | 4-plane 1280 x 1024 @72Hz, unaccelerated |
PMAGB-B | 2D Graphics, color | 8-plane 1280 x 1024 @66/72Hz , accelerated. You can select between the two refresh rate settings with a jumper on the card. |
PMAG-C | 2D Graphics, color | 8-plane 1280 x 1024 @66Hz, accelerated |

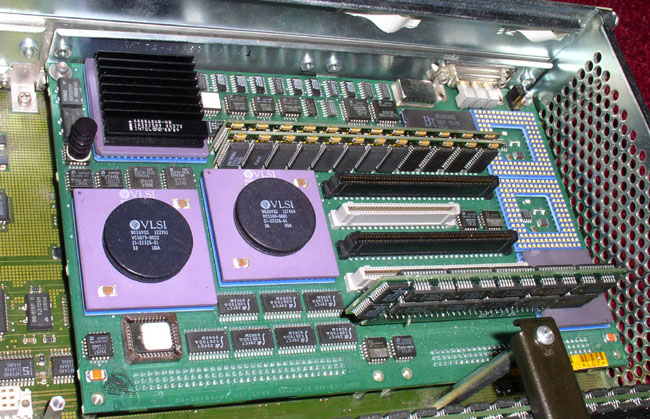

PMAG-D |
3D Graphics, color | 8-plane 1280 x 1024 @66Hz, 3D accelerated |

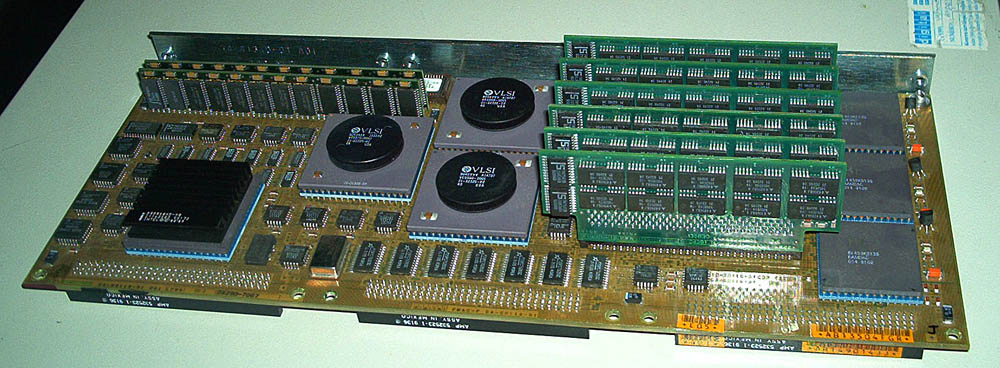

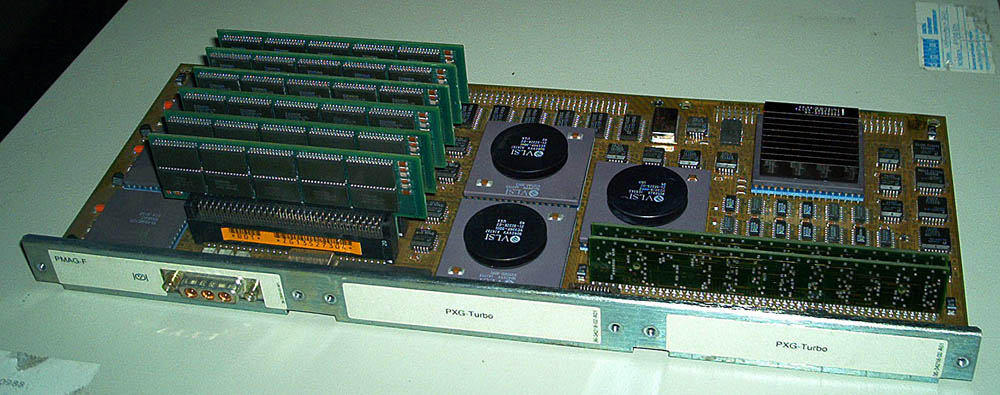

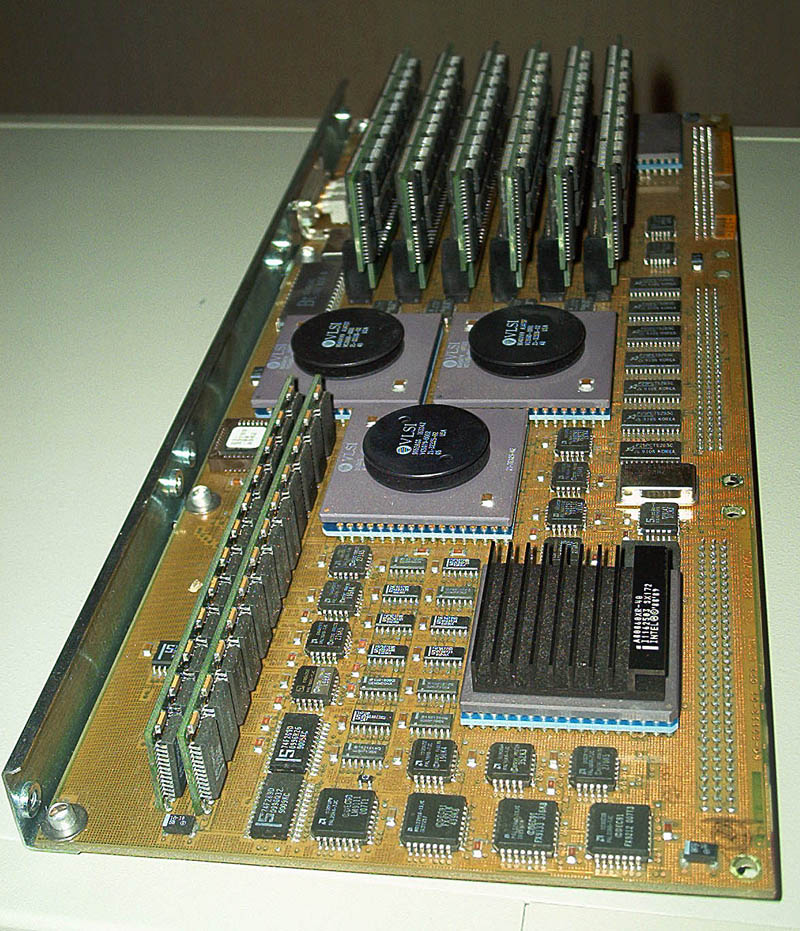

PMAG-F |
3D Graphics, true color | 96-plane 1280 x 1024 @66Hz, 3D
accelerated |
PMAGB-J* |
2D Graphics, color | 8- or 24-plane 1280 x 1024 @72Hz |

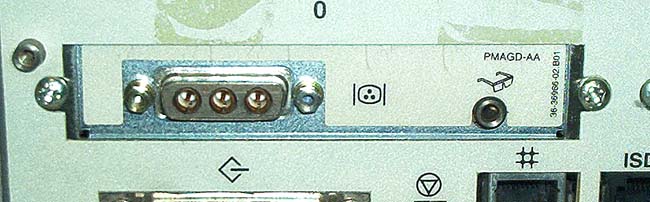

PMAGD-AA |
2D Graphics, color | 8-plane, resolution / refresh rate can be set with a rotary switch on the card. This card is DEC Alpha specific (doesn't work in a DECstation). |
DEFTA-FA | Network adapter |
100Mbps FDDI |

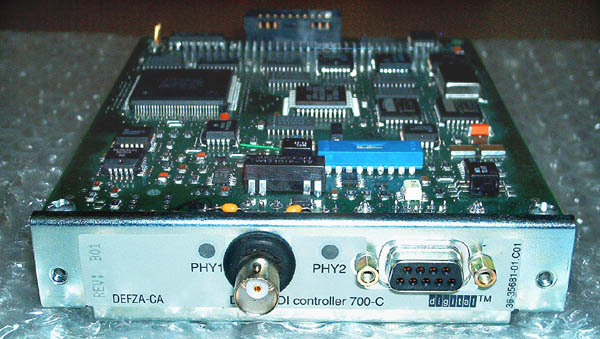

DEFZA-CA |
Network adapter | 100Mbps FDDI (wierd connectors ...) |
PMAD-A | Network adapter | 10Mbps AUI ethernet |

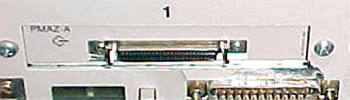

PMAZ-A* |
SCSI adapter | 5MHz SCSI-2 |

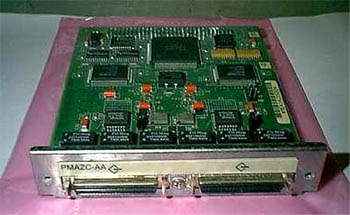

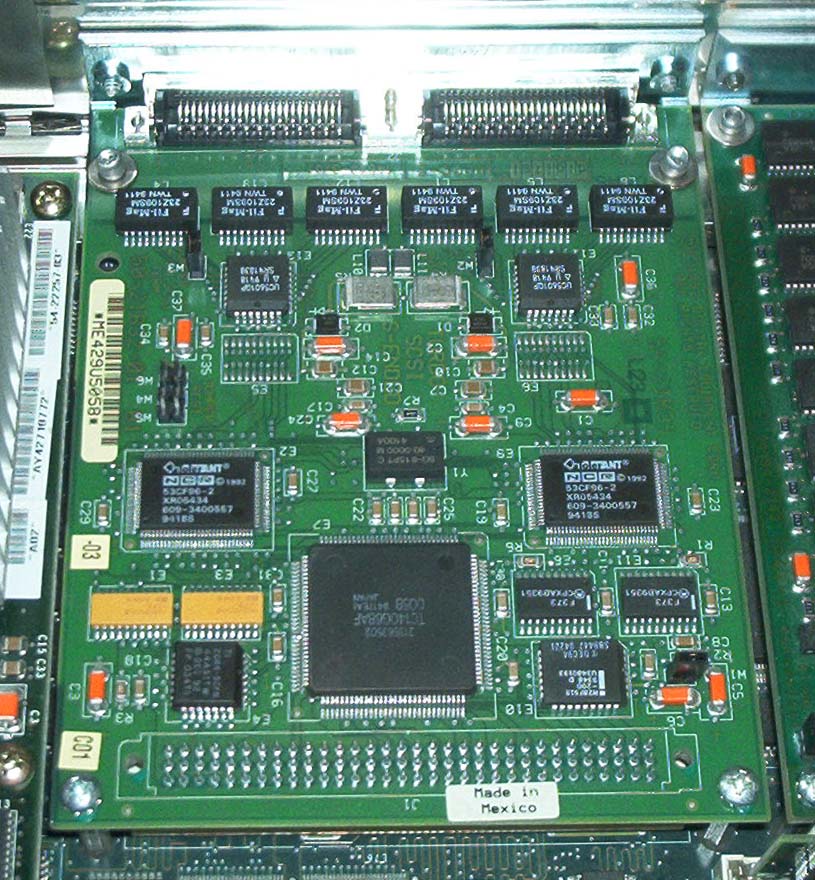

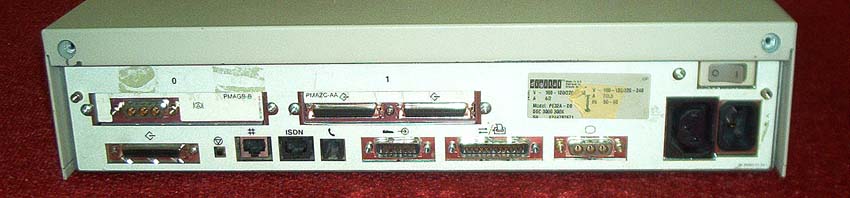

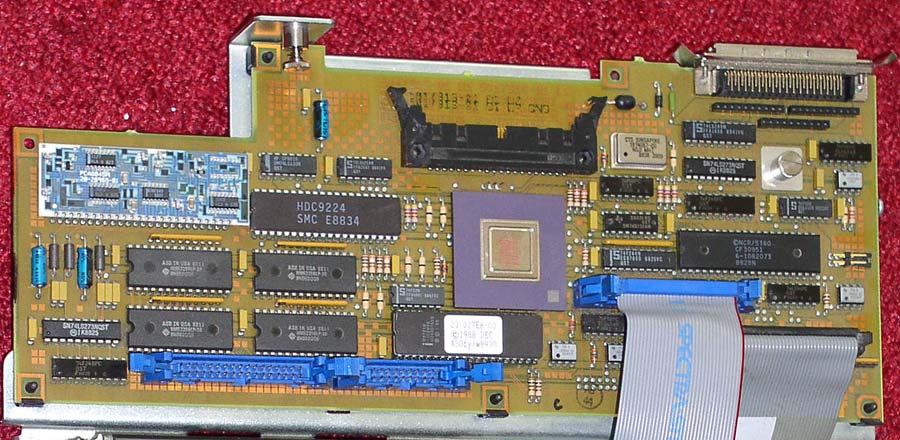

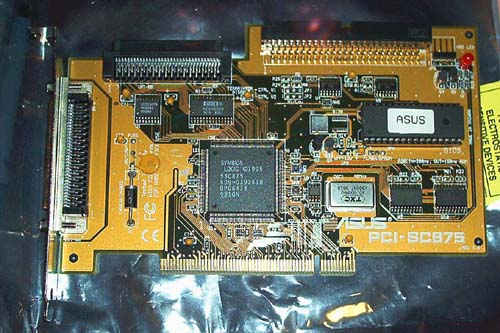

PMAZC-AA |
SCSI adapter | 10MHz Dual Channel SCSI-2, it has two NCR53CF96 chips |

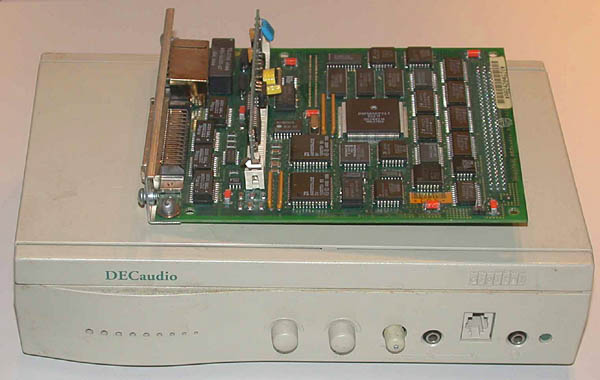

LOFI* | Audio adapter | Analog audio I/O |
*=I don't have these cards. These
pictures are here because I decided to include some of the DEC
relatedpictures I've collected, over the years.

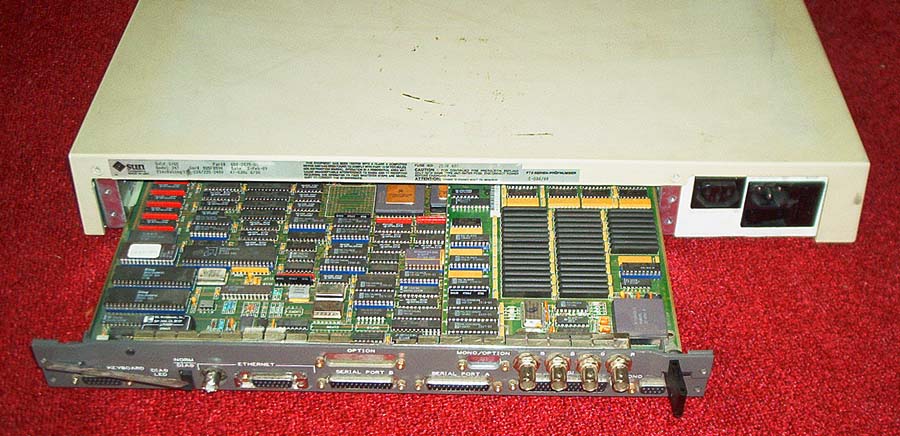

![]() The SUN 3/60 motherboard |

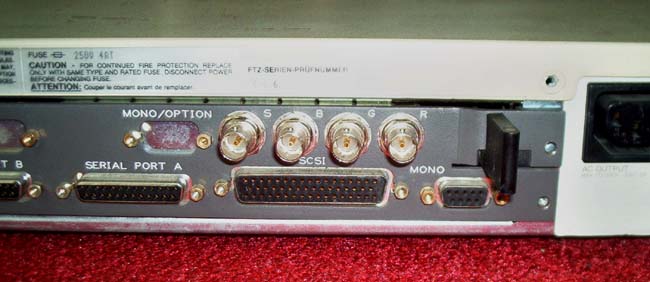

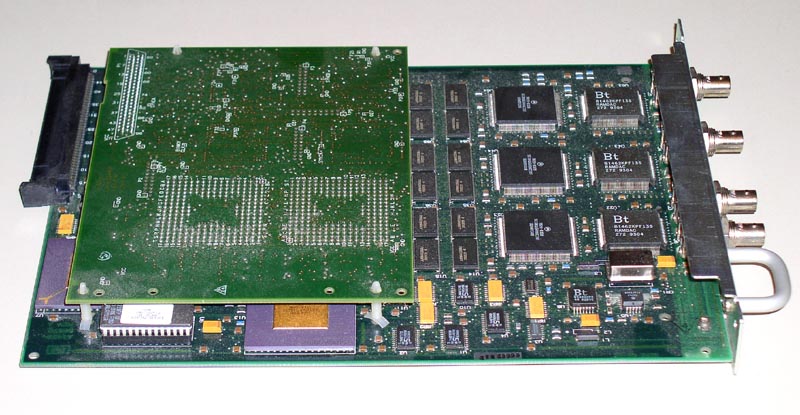

![]() The four BNC connectors on the graphics board |

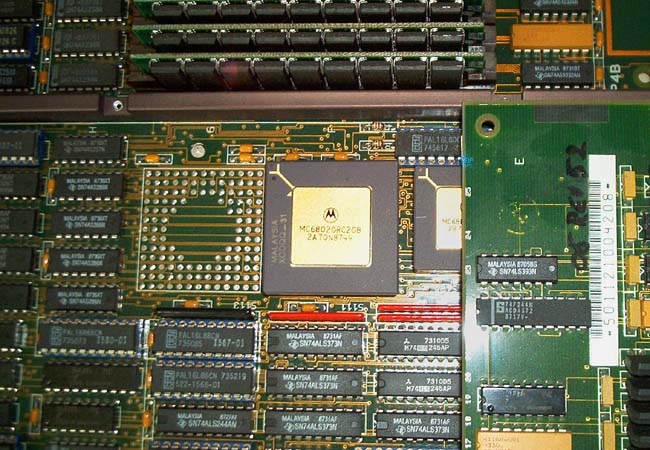

![]() The Motorola 68020 on the motherboard |
