Click here for more pictures.
General Technical Information
HOSTNAME |
COBOLD |
SYSTEM CPU |
Motorola 68020 @20 MHz |
CACHE
(2nd, 1st D/I) |
0 KB, 0 KB / 256 Bytes |
RAM |
12 MB (Max. 24 MB) |
SCSI BUS |
1 x SCSI (5 MB/s) |
OPTION BUS |
N/A (no space in the box for extra cards)
|
GRAPHICS |
8-plane 1152x900@66Hz and onboard mono frame
buffer |
HARD DISK DRIVE |
N/A |
NETWORK |
10 Mbps AUI |
OS |
N/A |
YEAR |
1988 |
SPEED |
not measured VAX MIPS |
COMMENTS |
So far I haven't booted up this system to
any OS. A D50 SCSI cable is missing.
|
ESTIMATED PRICE
'87 |
$30,000 |
History and other comments

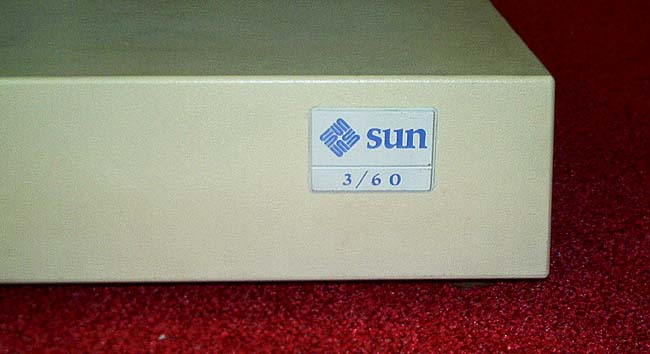

I actually have two SUN 3/60 computers, but I only show one here because
the PSU in my first one is broken. The second one was imported from Germany
and is in working condition.
If I ever want to use the first one (with the broken PSU) I have to repair
the PSU or I'll try connecting a peecee PSU to the mainboard. I've tried
ther latter, but I had difficulties with getting enough current on -5V
DC. I measured the current drain to about 1.7 A, and a standard PC/AT PSU
only has a 0.5 A voltage regulator for -5V DC. I replaced the regulator with
another, a 1.5A 7905 but this was not enough. The system would work a couple
of minutes and then fail, because the regulator becomes too hot and shuts
down to protect itself from burning up.
