4 Motif Dependencies

Locale Management

Font Management

Font List Structure

Font Lists Examples

Font List Syntax

Drawing Localized Text

Compound String Components

Compound Strings and Font Lists

Text and TextField Widgets and Font Lists

Inputting Localized Text

Geometry Management

Focus Management

Internationalized User Interface Language

Programming for Internationalized User Interface Language

default_charset Character Set in UIL

Compound Strings in UIL

Locale Management

A single language environment is established when an application runs. The language environment in which an application operates is specified by the application user, often either by setting an environment variable (LANG or LC_* on POSIX-based systems) or by setting the xnlLanguage resource. The application then sets the language environment based on the user's specification. The application can do this by using the setlocale() function in a language procedure established by the XtSetLanguageProc() function. This causes Xt to cache a per-display language string that is used by the XtResolvePathname() function to find resource, bitmap, and User Interface Language (UIL) files.

An application that supplies a language procedure can either provide its own procedure or use an Xt default procedure. In either case, the application establishes the language procedure by calling the XtSetLanguageProc() function before initializing the toolkit and before loading the resource databases (such as by calling the XtAppInitialize() function). When a language procedure is installed, Xt calls it in the process of constructing the initial resource database. Xt uses the value returned by the language procedure as its per-display language string.

The default language procedure performs the following tasks:

• Sets the locale. This is done by using:

  setlocale(LC_ALL, language);


  where language is the value of the xnlLanguage resource, or the empty string ("") if the xnlLanguage resource is not set. When the xnlLanguage resource is not set, the locale is generally derived from an environment variable (LANG on POSIX-based systems).

• Calls the XSupportsLocale() function to verify that the locale just set is supported. If not, a warning message is issued and the locale is set to C.

• Calls the XSetLocaleModifiers() function specifying the empty string.

• Returns the value of the current locale. On ANSI C-based systems, this is the result of calling:

  setlocale(LC_ALL, NULL);


XtSetLanguageProc(NULL, NULL, NULL);
        .
        .
toplevel = XtAppInitialize(...);

By supplying its own language procedure, an application can use any procedure it wants for setting the language string.

Font Management

Font List Structure

Each entry in a font list is in the form of a {tag, element} pair, where element can be either a single font or a font set. The application can create a font list entry from either a single font or a font set. For example, the following code segment creates a font list entry for a font set:

char font1[] =
        "-adobe-courier-medium-r-normal--10-100-75-75-M-60";
font_list_entry = XmFontListEntryLoad (displayID, font1,
        XmFONT_IS_FONTSET, "font_tag");

displayID

Display on which the font list is to be used.

fontname

A string that represents either a font name or a base font name list, depending on the nametype argument.

nametype

A value that specifies whether the fontname argument refers to a font name or a base font name list.

tag

A string that represents the tag for this font list entry.

The following code example creates a new font list and appends the entry font_list_entry to it:

XmFontList font_list;
XmFontListEntry font_list_entry;
        .
        .
font_list = XmFontListAppendEntry (NULL, font_list_entry);
XmFontListEntryFree (font_list_entry);

XFontSet font2;
char *font_tag;
XmFontListEntry font_list_entry2;
        .
        .
font_list_entry2 = XmFontListEntryCreate (font_tag,
         XmFONT_IS_FONTSET, (XtPointer)font2);

To add this entry to the font list, use the XmFontListAppendEntry() function again, only this time, its first parameter specifies the existing font list.

font_list = XmFontListAppendEntry(font_list, font_list_entry2);
XmFontListEntryFree(font_list_entry2);

Font Lists Examples

Obtaining a Font

• If the tag is present, it should be preceded by an = (equal sign).

• If the tag is not present, do not use an = (equal sign).

Obtaining a Font Set

• If the tag is present, it should be preceded by a : (colon) instead of an = (equal sign).

• If the tag is not present, the colon must still be present as this is what distinguishes a font from a font set in the resource declaration.

Specifying a Font When the Font List Element Tag Is Absent

• Specifying a font using the default font list element tag:

  *fontList: fixed
  *fontList: \
   -adobe-courier-medium-r-normal--10-100-75-75-M-60-iso8859-1


• Specifying a font list element tag:

  *fontList: fixed=ROMAN, 8x13bold=BOLD


• Specifying two fonts, one with the default font list element tag and one with an explicit tag:

  *fontList: fixed, 8x13bold=BOLD


Specifying a Font Set When the Font List Element Tag Is Absent

• Let Xlib select the fonts without specifying a font list element tag:

  *fontList: -dt-application-medium-r-normal-*-m*-*-*-*-m-*


• Let Xlib select the fonts and specify a font list element tag as MY_TAG:

  *fontList: -dt-application-medium-r-normal-*-m*-*-*-*-m*:MY_TAG


• Let Xlib select the fonts, specify a font list element tag for bold fonts, and use the default font list element tag for the others:

  *fontList:-dt-application-medium-r-normal-*-m*-*-*-*-m-*:,\
   -dt-application-medium-r-normal-style2-m*-*-*-*-m-*:BOLD


Font List Syntax

XFontStruct

An X font that can be used to draw text encoded in the charset of the font, that is, font-encoded text.

XFontSet

A collection of XFontStruct fonts used to draw text encoded in a locale, that is, localized text.

XmFontList := <fontentry> {', 'fontentry}

fontentry  := <fontname><fontid>
            | <baselist><fontsetid>

baselist   := <fontname>{';'<fontname>}

fontsetid  := ':'<string> | <defaultfontset>

fontname   := <XLFD string>

fontid     := '='<string> | <defaultfont>

XLFD string := refer to XLFD Specification
defaultfont := NULL
defaultfontset := ':'NULL
string    := any character from ISO646IRV, except newline

Both defaultfont and defaultfontset can define the default fontentry, yet there can only be one default per XmFontList.

The XmFONTLIST_DEFAULT_TAG identifier always references the default fontentry when XmString is drawn. If the default fontentry is not specified, the first fontentry is used to draw.

The resource converter operates under a single locale so that all font sets created are associated with the same locale.

Drawing Localized Text

Compound String Components

A compound string component can be one of the following four types:

• A font list element tag.
  • The font list element tag XmFONTLIST_DEFAULT_TAG indicates that the text is encoded in the code set of the current locale.

  • Other font list element tags are used later to match text with particular entries in a font list.

• A direction identifier.

• The text of the string. For internationalized applications, the text falls into two broad categories: either the text requires localized treatment or it does not.

• A separator.

Font list element tag

Indicates a string value that correlates the text component of a compound string to a font or a font set in a font list.

Direction

Indicates the relationship between the order in which characters are entered on the keyboard and the order in which the characters are displayed on the screen. For example, the display order is left-to-right in English, French, German, and Italian, and right-to-left in Hebrew and Arabic.

Text

Indicates the text to be displayed.

Separator

Indicates a special form of a compound string component that has no value. It is used to separate other segments.

The direction segment of a compound string specifies the direction in which the text is displayed. Direction can be left-to-right or right-to-left.

Compound Strings and Resources

Setting a Compound String Programmatically

This function creates a compound string in the encoding of the current locale and automatically sets the font list entry tag to XmFONTLIST_DEFAULT_TAG.

The following code segment shows one way to set the XmNlabelString resource for a push button using a program.

#include <nl_types.h>
Widget button;
Args   args[10];
int    n;
XmString button_label;
nl_msg my_catd;
(void)XtSetLanguageProc(NULL,NULL,NULL);
        .
        .
button_label = XmStringCreateLocalized (catgets(my_catd, 1, 1,
                 "default label"),
                 XmFONTLIST_DEFAULT_TAG);

/* Create an argument list for the button */
n = 0;
XtSetArg (args[n], XmNlabelString, button_label); n++;

/* Create and manage the button */
button = XmCreatePushButton (toplevel, "button", args, n);
XtManageChild (button);
XmStringFree (button_label);

Setting a Compound String in a Defaults File

*form1.button.labelString: Push Here

Compound Strings and Font Lists

The desktop follows a set search procedure when it binds a compound string to a font list entry in this way:

1. The desktop searches the font list for an exact match with the font list element tag specified in the compound string. If it finds a match, the compound string is bound to that font list entry.

2. If this does not provide a binding between the compound string and the font list, the desktop binds the compound string to the first element in the font list, regardless of its font list element tag.

Figure 4-1 shows the relationships between a compound string, a font set, and a font list when the font list element tag is set to something other than XmFONTLIST_DEFAULT_TAG.

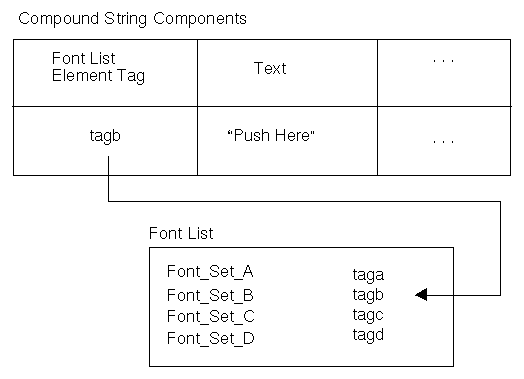

Figure 4-1 Relationships between compound strings, font sets, and font lists when the font list element tag is not XmFONTLIST_DEFAULT_TAG

The following example shows how to use a tag called tagb.

XFontSet   *font1;
XmFontListEntry font_list_entry;
XmFontList font_list;
XmString label_text;
char**     missing;
int        missing_cnt;
char*      del_string;
char *tagb;    /* Font list element tag */
char *fontx;   /* Initialize to XLFD or font alias */
char *button_label; /* Contains button label text */
        .
        .
font1 = XCreateFontSet (XtDisplay(toplevel), fontx, & missing,
        & missing_cnt, & def_string);
font_list_entry = XmFontListEntryCreate (tagb, XmFONT_IS_FONTSET,
        (XtPointer)font1);
font_list = XmFontListAppendEntry (NULL, font_list_entry);
XmFontListEntryFree (font_list_entry);

label_text = XmStringCreate (button_label, tagb);

Figure 4-2 shows the relationships between a compound string, a font set, and a font list when the font list element tag is set to XmFONTLIST_DEFAULT_TAG. In this case, the value field is locale text.

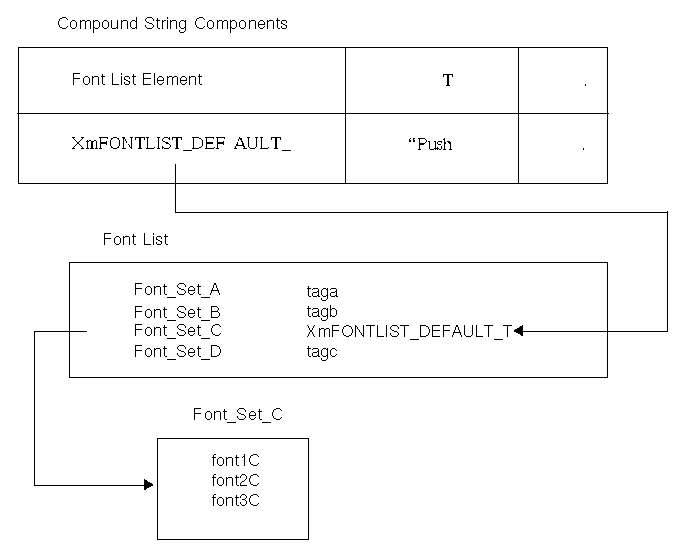

Figure 4-2 Relationships between compound strings, font sets, and font lists when a font list element tag is set to XmFONTLIST_DEFAULT_TAG

Here, the default tag points to Font_Set_C, which in turn identifies the fonts needed to display the characters in the language.

Text and TextField Widgets and Font Lists

1. The widget searches the font list for an entry that is a font set and has a font list element tag of XmFONTLIST_DEFAULT_TAG. If a match is found, it uses that font list entry. No further searching occurs.

2. The widget searches the font list for an entry that specifies a font set. It uses the first one found.

3. If no font set is found, the widget uses the first font in the font list.

Inputting Localized Text

When the input method requires a status area or a preedit area or both, the VendorShell widget automatically instantiates the status and preedit areas and manages their geometry layout. Any status area or preedit area is managed by the VendorShell widget internally and is not accessible by the client. The widget instantiated as the child of the VendorShell widget is called the MainWindow area.

The input method to be used by the VendorShell widget is determined by the XmNinputMethod resource; for example, @im=alt. The default value of Null indicates to choose the default input method associated with the locale at the time that VendorShell is created. As such, the user can affect which input method is selected by either setting the locale, setting the XmNinputMethod resource, or setting both. The locale name is concatenated with the XmNinputMethod resource to determine the input method name. The locale name must not be specified in this resource. The modifier name for the XmNinputMethod resource needs to be in the form @im=modifier, where modifier is the string used to qualify which input method is selected.

The VendorShell widget can support multiple widgets that can share the input method. Yet only one widget can have the keyboard focus (for example, receive key press events and send them to an input method) at any given time. To support multiple widgets (such as Text widgets), the widgets need to be descendants of the VendorShell widget.

The VendorShell widget behaves as an input manager only if one of its descendants is an XmText[Field] instance. As soon as an XmText[Field] instance is created as a descendant of the VendorShell widget, VendorShell creates the necessary areas required by the particular input methods dictated by the current locale. Even if an XmText[Field] instance is not mapped but just created, VendorShell has the geometry management behavior as described previously.

A VendorShell widget does the following:

• Enables applications to process multibyte character input and output that is supported by the locales installed in the system.

• Manages an input method instance as defined in the XmIm reference functions.

• Supports preediting within a preedit area in either OffTheSpot, OverTheSpot, Root, or None mode. Localized text can be entered into any Text child widget in a multiple Text children widget tree by changing the focus.

• Provides geometry management for descendant child widgets.

Geometry Management

Depending on the current preediting being done, an auxiliary area may be required. If so, the VendorShell widget also instantiates and manages the auxiliary area. Typically, the child of the VendorShell widget is a container widget (such as the XmBulletinBoard or XmRowColumn widgets) that can manage multiple Text and TextField widgets, which allow multibyte character input from the user. In this scenario, all Text widgets share the same input method.

The application programmer has some control over the behavior of the input method user interface components through XmNpreeditType resources of the VendorShell widget class. See "Input Methods" for a description of OffTheSpot and OverTheSpot modes.

Geometry management extends to all input method user interface components. When the application program window (a TopLevelShell widget) is resized, the input method user interface components are resized accordingly, and the preedited strings in them are rearranged as required. Of course, this assumes that the shell window has a resize policy of True.

When the VendorShell widget is created, if a specific input method requires a status area, preedit area, or both, the size of the VendorShell considers the areas required by these components. The extra areas required by the preedit and status areas are part of the VendorShell widget's area. They are also managed by the VendorShell widget, if resizing is necessary.

Because of the potential instantiation of these areas (status and preedit), depending on the input method currently being used, the size of the VendorShell widget area does not necessarily grow or shrink to accommodate exactly the size of its child. The size of the VendorShell widget area grows or shrinks to accommodate both its child's geometry and the geometry of these input method user interface areas. There may be a difference (for example, of 20 pixels) in height between the VendorShell widget and its child widget (the MainWindow area). The width geometry is not affected by the input method user interface components.

In summary, the requested size of the child is honored if possible; the actual size of the VendorShell may be larger than its child.

The requests to specify the geometry of the VendorShell widget and its child are honored as long as they do not conflict with each other or are within the constraint of the VendorShell widget's ability to resize. When they do conflict, the child's widget geometry request has higher precedence. For example, if the size of the child widget is specified as 100x100, the size of VendorShell is also specified as 100x100. The resulting VendorShell has a size of 100x120, while its child widget gets a size of 100x100. If the size of the child widget is not specified, the VendorShell shrinks its child widget if necessary to honor its own size specification. For example, if the size of VendorShell is specified as 100x100 and no size is specified for its child, the child widget has a size of 100x80. If the VendorShell widget is disabled from resizing, regardless of what the geometry request of its child is, the VendorShell widget honors only its own geometry specification.

Focus Management

The interactive process of composing characters in such languages is called preediting. The preediting itself is handled by the input method. However, the user interface of the preediting is determined by the system environment. An interface needs to exist between the input method and the system environment. This is done through the VendorShell widget of the system environment.

Figure 4-3 illustrates a case with Japanese preediting. The string shown in reverse video is the string in preediting. This string can be moved across different windows by giving focus to the particular window. However, only one preediting session can occur at one time.

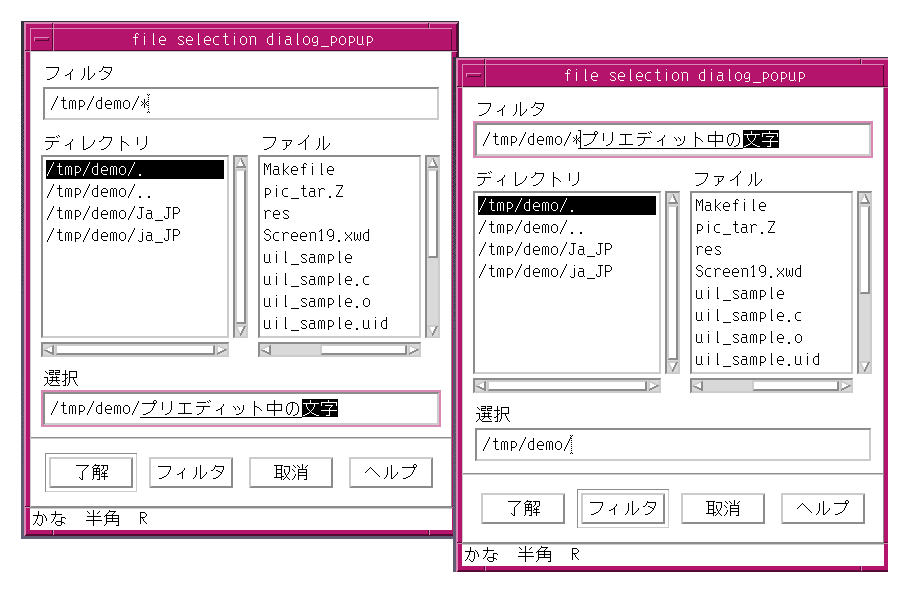

Figure 4-3 Japanese preediting example

For an example of focus management, suppose a TopLevelShell widget (a subclass of the VendorShell widget) has an XmBulletinBoard widget child (MainWindow area), which has five XmText widgets as children. Assume the locale requires the preedit area, and assume the OverTheSpot mode is specified. Because the VendorShell widget manages only one instance of an input method, you can run only one preedit area at a time inside the TopLevelShell widget. If the focus is moved from one Text widget to another, the current preedit string under construction is also moved on top of the Text widget that currently has focus. Processing of keys to the old Text widget is suspended temporarily. Subsequent interface of the input method, such as the delivery of the string at preedit completion, is made to the new, focused Text widget.

The string being preedited can be moved to the location of the focus; for example, by clicking the mouse.

A string that the end user is finished preediting and that is already confirmed cannot be reconverted. Once the string is composed, it is committed. Committing a string means that it is moved from the preedit area to the focus point of the client.

Internationalized User Interface Language

Programming for Internationalized User Interface Language

If the locale text of a widget requires a font set (more than one font), the font set must be specified within the resource file. The font parameter does not support font sets.

To use a specific language with UIL, a UIL file is written according to characteristics of the target language and compiled into a UID file. The UIL file that contains localized text needs to be compiled in the locale in which it is to run.

String Literals

To set locale text in the string literal with the default_charset value, enter the following:

XmNlabelString = 'XXXXXX';

XmNlabelString = #default_charset"XXXXXX";

Font Sets

*fontList: -*-r-*-20-*:

Font Lists

The FONT function creates a font list entry containing a font specification. The argument is a string representing an XLFD font name. The FONTSET function creates a font list entry containing a font set specification. The argument is a comma-separated list of XLFD font names representing a base name font list.

Both FONT and FONTSET have optional CHARACTER_SET declaration parameters that specify the font list element tag for the font list entry. In both cases, if no CHARACTER_SET declaration parameter is specified, UIL determines the font list element tag as follows:

• If the module contains no CHARACTER_SET declaration and if the uil command was called with the -s option or the Uil() function was started with use_setlocale_flag set, the font list element tag is XmFONTLIST_DEFAULT_TAG.

• Otherwise, the font list element tag is the code set component of the LANG environment variable, if it is set in the UIL compilation environment; or it is the value of XmFALLBACK_CHARSET if the LANG environment variable is not set or has no code set.

Creating Resource Files

*preeditType: OverTheSpot, OffTheSpot, Root, or None

Setting the Environment

For example, to run the uil_sample program with an English environment (LANG environment variable is en_US), set uil_sample.uid with Latin characters at the $HOME/en_US directory, or set uil_sample.uid to a directory and set the UIDPATH environment variable to the full path name of the uil_sample.uid file.

To run the uil_sample program with a Japanese environment (LANG environment variable is ja_JP), create a uil_sample.uid file with Japanese (multibyte) characters at the $HOME/ja_JP directory, or place uil_sample.uid to a unique directory and set the UIDPATH environment variable to the full path name of the uil_sample.uid file. The following list specifies the possible variables:

%U

Specifies the UID file string.

%N

Specifies the class name of the application.

%L

Specifies the value of the xnlLanguage resource or LC_CTYPE category.

%l

Specifies the language component of the xnlLanguage resource or the LC_CTYPE category.

1. UID file path name

2. $UIDPATH

3. %U

4. $XAPPLRESDIR/%L/uid/%N/%U

5. $XAPPLRESDIR/%l/uid/%N/%U

6. $XAPPLRESDIR/uid/%N/%U

7. $XAPPLRESDIR/%L/uid/%U

8. $XAPPLRESDIR/%l/uid/%U

9. $XAPPLRESDIR/uid/%U

10. $HOME/uid/%U

11. $HOME/%U

12. /usr/lib/X11/%L/uid/%N/%U

13. /usr/lib/X11/%l/uid/%N/%U

14. /usr/lib/X11/uid/%N/%U

15. /usr/lib/X11/%L/uid/%U

16. /usr/lib/X11/%l/uid/%U

17. /usr/lib/X11/uid/%U

18. /usr/include/X11/uid/%U

default_charset Character Set in UIL

If no character set is set to a string literal, the character set of the string literal is set as cur_charset. And, in the system environment, the cur_charset value is always set as default_charset.

Example: uil_sample

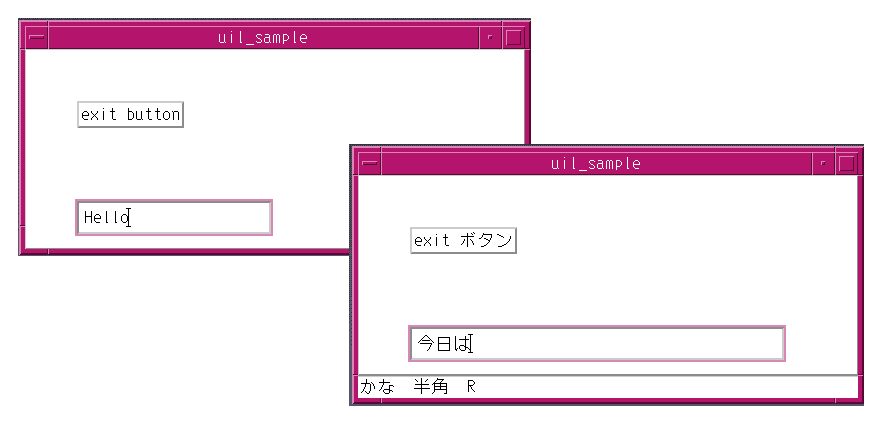

Figure 4-4 Sample UIL program on English and Japanese environments

In the following sample program, LLL indicates locale text, which can be Japanese, Korean, Traditional Chinese, Greek, French, or others.

uil_sample.uil
!
!      sample uil file - uil_sample.uil
!
!          C source file - uil_sample.c
!
!              Resource file - uil-sample.resource
!
module Test
        version = 'v1.0'
        names = case_sensitive
        objects = {
            XmPushButton = gadget;
        }
!************************************
!      declare callback procedure
!************************************
procedure
        exit_CB;
!***************************************************************
!      declare BulletinBoard as parent of PushButton and Text
!***************************************************************
object
        bb : XmBulletinBoard {
            arguments{
                XmNwidth = 500;
                XmNheight = 200;
            };
            controls{
                XmPushButton pb1;
                XmText text1;
            };
        };
!****************************
!      declare PushButton
!****************************
object
        pb1 : XmPushButton {
            arguments{
                XmNlabelString = #Normal "LLLexit buttonLLL";
                XmNx = 50;
                XmNy = 50;
            };
            callbacks{
                XmNactivateCallback = procedure exit_CB;
            };
        };
!*********************
!      declare Text
!*********************
        text1 : XmText {
            arguments{
                XmNx = 50;
                XmNy = 150;
             };
        };
end module;
*
*          C source file - uil_sample.c
*
*/
#include <Mrm/MrmAppl.h>
#include <locale.h>
void exit_CB();
static     MrmHierarchy   hierarchy;
static     MrmType *class;

/******************************************/
/*      specify the UID hierarchy list */
/*****************************************/
static     char *aray_file[]=
                     {"uil_sample.uid"
                     };
static     int num_file = (sizeof aray_file / sizeof
aray_file[0]);
/******************************************************/
/*     define the mapping between UIL procedure names */
/*     and their addresses           */
/******************************************************/
static     MRMRegisterArg reglist[]={
                     {"exit_CB",(caddr_t) exit_CB}

Compound Strings in UIL

• As string literals, which may be stored in UID files as either null-terminated strings or compound strings

• As compound strings

• As wide character strings

Regardless of whether UIL stores string literals in UID files as null-terminated strings or as compound strings, it stores information about each string's character set and writing direction along with the text. In general, UIL stores string literals or string expressions as compound strings in UID files under the following conditions:

• When a string expression consists of two or more literals with different character sets or writing directions

• When the literal or expression is used as a value that has a compound string data type (such as the value of a resource whose data type is compound string)

The syntax of a string literal is one of the following:

• '[character_string]'
• [#char_set]
• "[character_string]"

• For a string declared as 'character_string', the character set is the code set component of the LANG environment variable, if it is set in the UIL compilation environment; or it is the value of XmFALLBACK_CHARSET if the LANG environment variable is not set or has no code set. By default, the value of XmFALLBACK_CHARSET is ISO8859-1, but vendors may supply different values.

• For a string declared as #char_set "string", the character set is char_set.

• For a string declared as "character_string", the character set depends on whether the module has a CHARACTER_SET clause and whether the UIL compiler's use_setlocale_flag is set.
  • If the module has a CHARACTER_SET clause, the character set is the one specified in that clause.

  • If the module has no CHARACTER_SET clause but the uil command was started with the -s option, or if the Uil() function was started with use_setlocale_flag set, UIL calls the setlocale() function and parses the string in the current locale. The character set of the resulting string is XmFONTLIST_DEFAULT_TAG.

  • If the module has no CHARACTER_SET clause and the uil command was started without the -s option, or if the Uil() function was started without use_setlocale_flag, the character set is the code set component of the LANG environment variable, if it is set in the UIL compilation environment, or the character set is the value of XmFALLBACK_CHARSET if LANG is not set or has no code set.
